V2 Easy4, Easy3 User Manual

V2 S.p.A.
Corso Principi di Piemonte, 65/67 12035 RACCONIGI (CN) ITALY tel. +39.0172.812411 - fax +39.0172.84050 info@gatestore.co.uk www.remotecontrolgates.co.uk
Easy3-4
CENTRALE DI COMANDO ANALOGICA PER SERRANDE AVVOLGIBILI
I
ANALOG CONTROL UNIT FOR ROLLER SHUTTERS
GB
ARMOIRE DE COMMANDE ANALOGIQUE POUR STORES
F
CUADRO DE MANIOBRAS ANALÓGICO PARA PERSIANAS ENROLLABLES
E
QUADRO ELÉCTRICO ANALÓGICO PARA ESTORES DE ENROLAR
P
ANALOGE STEUERUNG FÜR ROLLTORE
D
ANALOGE STUURCENTRALE VOOR ROLLUIKEN
NL
IL n. 207 EDIZ. 20/10/2010
ENGLISH
17
INDEX
IMPORTANT REMARKS ........................................................................................................18
DECLARATION OF CONFORMITY ........................................................................................18
DESCRIPTION OF THE CONTROL UNIT..................................................................................19
TECHNICAL SPECIFICATIONS................................................................................................19
ELECTRIC CONNECTIONS TABLE ..........................................................................................20
OPTICAL EDGE INSTALLATION (EASY4 only) ........................................................................21
FIRE INPUT ..........................................................................................................................21
OPERATION WITH A TIMER ..................................................................................................22
CASE WITH KEYPAD ............................................................................................................22
CABLE GLAND ASSEMBLY....................................................................................................23
DISPLAYING THE SET FUNCTIONS ........................................................................................24
ALTERING THE FUNCTIONS ..................................................................................................25
FUNCTION TABLE ................................................................................................................26
ADJUSTING THE OPERATING TIME ......................................................................................28
ADJUSTING THE PAUSE TIME ..............................................................................................29
ADJUSTING THE COURTESY LIGHT OFF DELAY ....................................................................29
OPERATION WITH REMOTE CONTROL ................................................................................30
MEMORISING REMOTE CONTROL UNITS ............................................................................30
DISTANCE MEMORISING OF REMOTE CONTROL UNITS........................................................31
DELETING ALL THE REMOTE CONTROL UNITS......................................................................31
VISUALISATION AND SIGNALLING USING LED......................................................................32
ENGLISH
18
IMPORTANT REMARKS
For any installation problem please contact our Customer Service at the number +39-0172.812411 operating Monday to Friday from 8:30 to 12:30 and from 14:00 to 18:00.
V2 has the right to modify the product without previous notice; it also declines any responsibility to damage or injury to people or things caused by improper use or wrong installation.
Please read this instruction manual very
carefully before installing and programming your control unit.
This instruction manual is only for qualified technicians, who specialize in installations and automations.
The contents of this instruction manual do not concern the end user.
Every programming and/or every maintenance service should be done only by qualified technicians.
AUTOMATION MUST BE IMPLEMENTED IN COMPLIANCE WITH THE EUROPEAN REGULATIONS IN FORCE: EN 60204-1 (Machinery safety. electrical equipment
of machines, part 1: general rules)
EN 12445 (Safe use of automated locking
devices, test methods)
EN 12453 (Safe use of automated locking
devices, requirements)
The installer must provide for a device (es. magnetotermical switch) ensuring the omnipolar sectioning of the equipment from the power supply. The standards require a separation of the contacts of at least 3 mm in each pole (EN 60335-1).
After making connections on the terminal board, use one hose clamp to fix dangerous voltage wires near the terminal board and another hose clamp to fix safety low voltage wires used for accessories connection; this way, in case of accidental detachment of a conducting wire, dangerous voltage parts will
not come into contact with safety low voltage ones.
The plastic case has an IP55 insulation; to connect flexible or rigid pipes, use pipefittings having the same insulation level.
Installation requires mechanical and electrical skills, therefore it shall be carried out by qualified personnel only, who can issue the Compliance Certificate concerning the whole installation (EEC Machine Directive 89/392, Annex IIA).
The automated vehicular gates shall comply with the following rules: EN 12453, EN 12445, EN 12978 as well as any local rule in force.
Also the automation upstream electric system shall comply with the laws and rules in force and be carried out workmanlike.
The door thrust force adjustment shall be measured by means of a proper tool and adjusted according to the max. limits, which EN 12453 allows.
Connect the earthing lead of the motors to the electricity grid earth system.
Observe all necessary precautions (e.g. anti-static bracelet) for handling parts sensitive to electrostatic discharges.
DECLARATION OF CONFORMITY
V2 S.p.A. hereby declare that products (EASY3 ­EASY4) conform to the essential requirements established in the following directives:
- 89/336/CEE (EMC Directive in accordance with standards EN 61000-6-2, EN 61000-6-3 + EN 50336)
- 2006/95/CEE (Low Voltage Directive in accordance with standards EN 60335-1 + EN 60335-2-103)
- 99/05/CEE (Radio Directive in accordance with standard EN 301 489-3)
Racconigi, lì 28/01/2010 V2 S.p.A. legal representative.egale della V2 S.p.A.
Cosimo De Falco
ENGLISH
19
DESCRIPTION OF THE CONTROL UNIT
The EASY digital control unit is an innovative V2 product that guarantees safety and reliability for the automation of roller shutters.
230 Vac output for 1 single-phase motor
230 Vac output for flashing light or timed courtesy light
Input for key switch or pushbutton (START)
Input for separate UP/DOWN commands
Input for safety pushbutton (STOP)
Input for safety photocell with automatic operating test (PHOTO)
Input for safety edge (mechanic or electronic) with automatic operating test (EDGE)
Input for fire emergency (FIRE)
Monitoring the inputs using LED
Operating logic and working times that can be programmed using the programming key and 8 LEDs
Possibility of operating in DEAD MAN mode
Fitted 433.92 MHz radio receiver
Possibility of saving 18 433.92 MHz Personal Pass transmitters.
Allows the total deletion of stored codes
EASY4
Input for optical safety edge with 24V direct current power supply and adjustment of the power of the transmitter.
WARNING: use only FEEL optical safety
edges (see V2 catalogue)
TECHNICAL SPECIFICATIONS
230V models 120V models
Power supply 230V / 50Hz 120V / 60Hz
Max motor load 1100W 600W
Max accessories load 24V 3W 3W
Working temperature -20 ÷ +60 °C -20 ÷ +60 °C
Protection fuse F1 = 5A delayed F1 = 5A delayed
Dimensions 170 x 185 x 70 mm
Weight 800 g
Protection IP55
ENGLISH
20

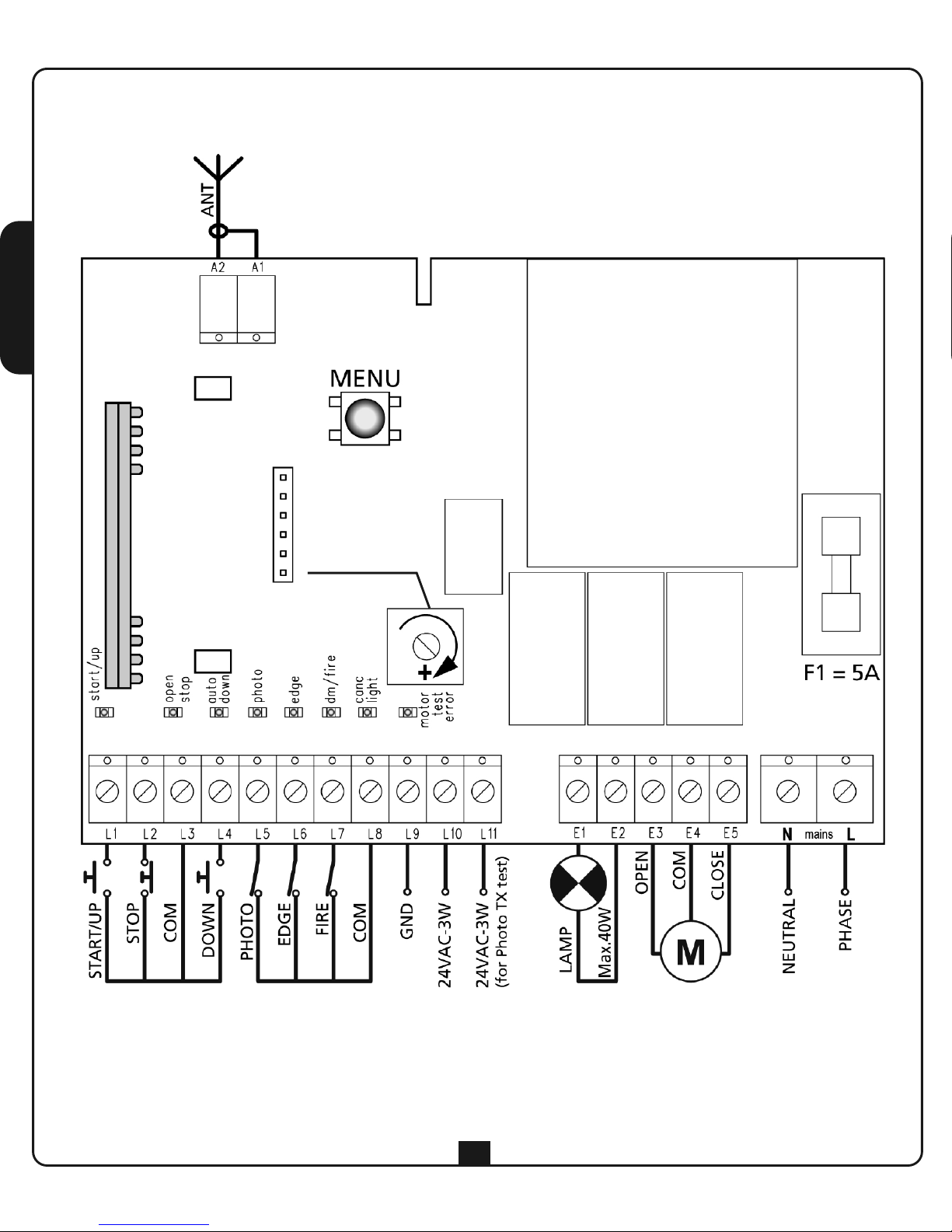

ELECTRIC CONNECTIONS TABLE
WARNING: Normally closed inputs STOP (L2), PHOTOCELL (L5), EDGE (L6), FIRE (L7), if not
used must be bridged through the COMMON terminal (-)
WARNING: a wrong connection of the antenna compromises seriously the RADIO working of
the control unit.
EASY4 only
