UV POT is a patented product
with registered trademark of OptoLED Co., Ltd.
Make sure to read this manual carefully before use.
The drawings in the manual may not be identical to the actual product and may be partly modified
without notification for performance improvement.
Visit the UV POT website (www.uv-pot.com) to access the product information and detailed manual.
Page 3
About UV POT Charging Battery How to Use Caution
Page 4
Product Configuration and Specification

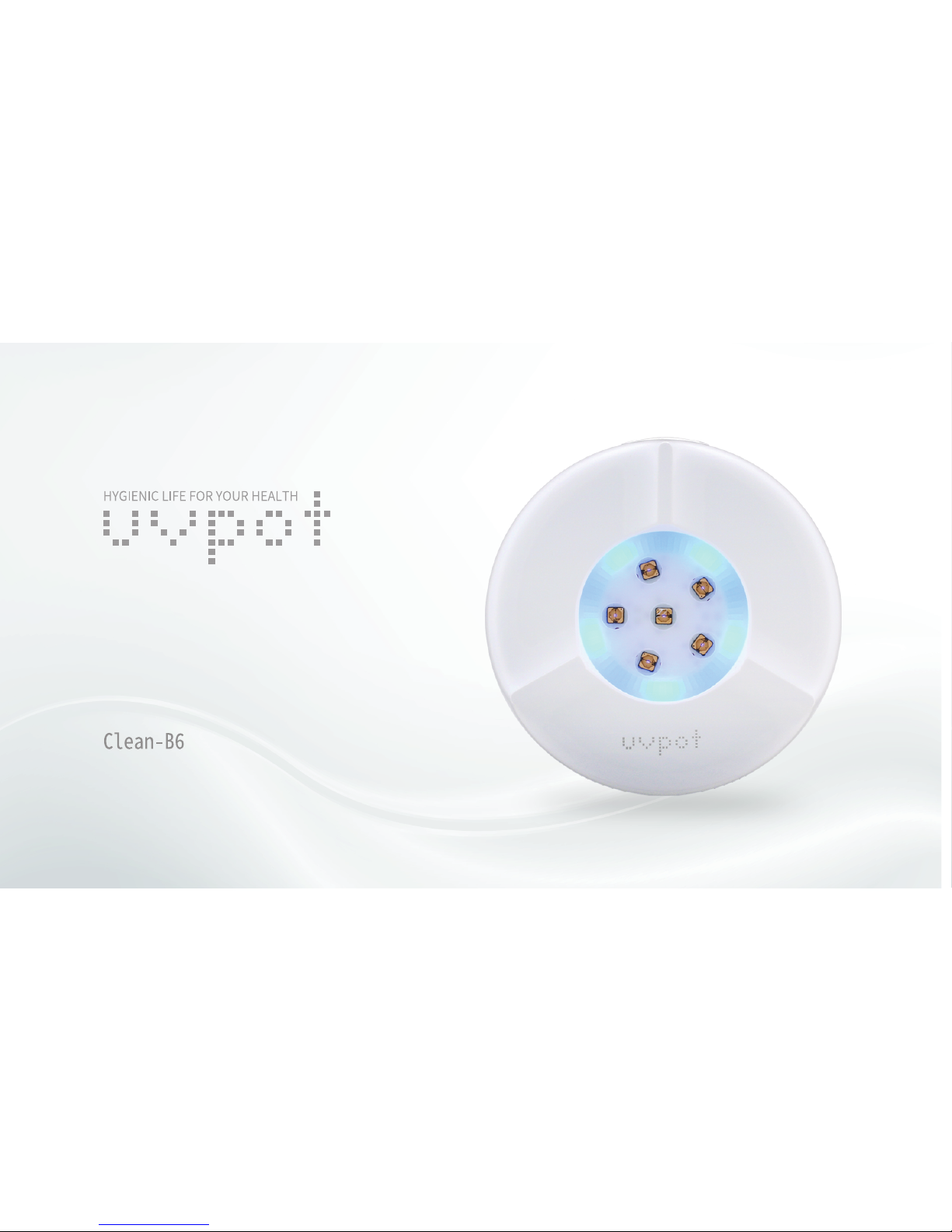

UV POT is a portable sterilizer using UV LED.
UV POT Pouch STAND
Welcome Letter Manual
Available
for
purchase
(5pin)charger
Package and Size
(mm)
Product name
Model
Method
Interface
Material
Certificate
Portable baby bottle sterilizer
Clean-B6
UVC LED sterilization
Micro USB (5pin)
PC
Patent: No. 10-1594851
KC certificate: MSIP-REM-O3P-CLEAN-B6
Page 5
Product Name
Number Name Function
UV LED
Display
Power button
USB Port
STAND
Discharges powerful UV wavelength with strong sterilizing power
Displays power on/off, 5-min/10-min mode, charging
Switch on/off, select 5-min/10-min mode
Micro USB (5pin) charging
UV POT stand / protects from UV rays
We recommend using the UV POT stand.
Page 6
Charging Battery
Make sure to fully charge the battery if you are using it for the first time or have not been using it for a while.
Charging (Red) Full (Green)
Battery Display (when connected to power)
Page 7
Battery Display
Battery status
0%
Less than 30%
100%
Charging
Display
No light
Red light when switched on; needs charging
Green light flickers
Red light flickers
For a new product, after being fully charged, it can be used 8 to 10 times on 10-minute mode.
For 5V, 1A charger, the charging takes about 2 hours.
The charging time may vary according to the charger specifications.
Due to the nature of lithium ion batteries, the battery life may get shorter after a long use.
Page 8
How to Use
5 minute
sterilization
Press for 3 secs
Blue Green light
Blue Green light
5 minutes sterilization
Automatically switched
off after finish
10 minute
sterilization
Press for 3 secs
Press Power once Pink Violet light
10 minute sterilization
Automatically switched
off after finish
Recommended Use
5-min mode (blue, green light): for direct sterilization or on stand
10-min mode (pink, violet light): on stand
※The closer you place the object to the UV LED, the stronger sterilization will be.
Forced Stop (during operation)
At any point, you can force stop by holding down the Power button
for about 3 seconds.
Make sure to fully charge the battery if you are using it for the first time or have not been using it for a while.
Page 9
Efficient UV Sterilization (maintenance)
Make space
When using the UV pot stand,
make sure to secure as much space as possible
between the device and object to be sterilized
in order to ensure even sterilization.
No overlap
Overlapping or folded areas
will not be fully sterilized.
Make sure not to stack cups or plates
and direct openings toward the UV LED.
Keep clean
To maintain efficient sterilization, make sure
to keep the UV Pot (especially the LED area)
clean at all times.
After use, wipe it with a soft cloth.
Keep dry
Remove moisture as much as you can
before sterilization.
Page 10
Caution
※ To prevent injury and/or damage, please make sure to comply with the following cautions:
Warning Caution
Make sure to plug out before cleaning or maintenance
Do not place any heavy or hot object on the product.
Do not apply shock or damage the product and/or battery
Do not use thinner, alcohol, or detergent spray on the product.
Do not scratch with metal scrubber
Make sure to keep babies, children, and pet away from the product.
Do not immerse the product in water.
Warning
If ignored, it may result in death or serious injury.
Caution
If ignored, if may cause injury or property damage.
Avoid directly looking at the UV LED or contacting
the UV rays with the skin.
Direct exposure to UV LED light can be harmful to human body.
Do not touch the product or charger during charging with a wet hand.
Avoid contacting the charger connector or battery connector
with conductive materials (metal, liquid, etc.)
Recommended operation temperature for this product is 0℃ to 35℃
and storage temperature -20℃ - 50℃. Outside the recommended
temperature, the product may be damaged and battery life shortened.
Do not dismantle, repair, or modify the product.
Please contact the place of purchase or customer service center for repair.
Do not use the product in high temperature or near heating devices
- Microwave, stove, sauna, electric heating mattress,
inside car during summer, etc.
