UVplus UVP101R User Guide

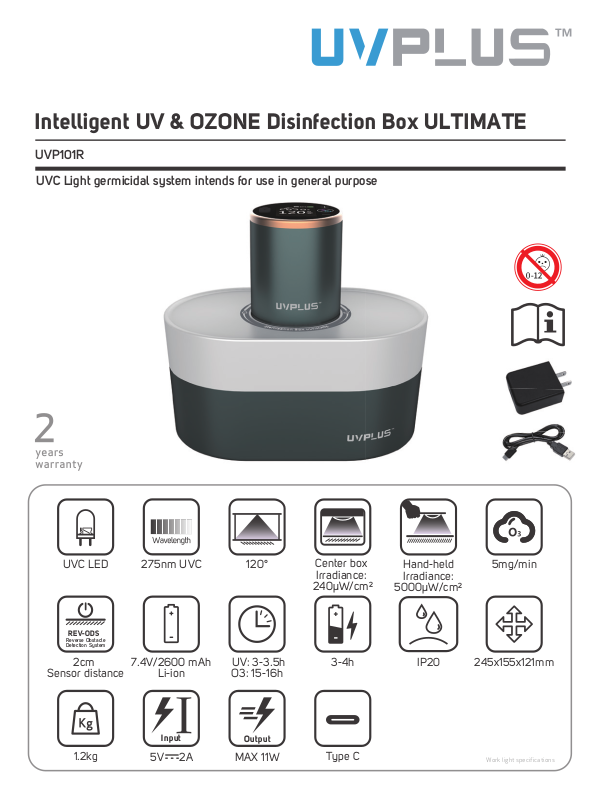

Intelligent UV & OZONE Disinfection Box ULTIMATE

UVP101R

UVC Light germicidal system intends for use in general purpose

UVC LED 120°

REV-ODS

Reverse Obstacle
Detection System

2cm

Sensor distance

1.2kg

275nm UVC

7.4V/2600 mAh
Li-ion

Input

5V 2A

UV: 3-3.5h

O3: 15-16h

Output

MAX 11W

Center box
Irradiance:

240μW/cm²

3-4h

Type C

Hand-held
Irradiance:

5000μW/cm²

5mg/min

IP20 245x155x121mm

Work light specifications

Product Features:

• Double-effect disinfection combination, fully reflect the high efficiency of ULTRAVIOLET disinfection and 360° no
blind angle of OZONE disinfection.

• A multi-purpose box can meet the using demands of whole family along with realizing the classified disinfection and
mobile disinfection.

• The metal deposition in the disinfection box can strengthen the reflection efficiency and realize 360° all-round
disinfection without blind angle.

• The inside of disinfection box is equipped with the interlayer, which can increase the disinfection area to the backside
of articles after the ultraviolet is reflected from the inner bottom of box.

• The design of Hall Switch for the disinfection box, opening the box will automatically stop the disinfection work,
which can effectively avoid the damage of ultraviolet or ozone to human body.

• During the hand-held using, REV-ODS intelligent Reverse Obstacle Detection System will start automatically. If
detecting the distance between the light source of disinfection light head and the surface of articles to be disinfected
exceeds 2cm, it will automatically stop the disinfection work, and reach the safe energy-efficient effects.

• In case of disinfecting the surface of articles by independently hand-held using, it is usually able to kill 99.9%
bacteria and virus on the surface or articles within 3 to 5 seconds.

• With the intelligent button operation interface, it is able to independently select and adjust the disinfection mode and
disinfection time.

• Color LCD screen can display the information e.g. disinfection mode, disinfection time and state of charge etc. in real
time.

• UVP101R has the memory function. After starting the machine each time, the screen will display the mode and time
of disinfection work for the last time.

• Type-C charging, portable and durable.

Schematic Diagram of Product:

Color LCD screen

Type C charging port

Button of Ozone disinfection

Master switch

Button of UVC disinfection

Disinfection lamp cap

Upper cover

Lower box

REV-ODS sensor

UVC LED

Ozone generator

Operation Instruction:

• After starting the machine, please select language: short press “ ”to select English

• Long press both of “ ” and “ ” for more than 5 seconds, the unit will automatically switch

off and reset the language selection, you can reselect language in the next use

I. Disinfection lamp cap is fixed with upper cover of box and lower Box (Mode 1). (ULTRAVIOLET mode or

OZONE mode are optional for disinfection)

1. Long press “ ” for 1.5 seconds to start the machine，the screen displays “Double-click start / stop

disinfection” for 5 seconds. If not performing any operation after starting the machine, it will
automatically switch off after 30 seconds for the energy conservation and environment protection.

2. The screen displays “Fixed use” to indicate the installation for disinfection lamp, upper and lower box

of box is completed; If there is any separation between disinfection lamp cap, upper cover of box and
lower box of box, and then the screen will display “Handheld use”.

3. Short or long press “ ” to select “O3 60 min” or “O3 120 min”mode.

4. Short or long press “ ” to select “UVC 5 min”, “UVC 10 min” or “UVC 30 min” mode.

5. After selecting the disinfection mode, double-click “ ” to start disinfection, the screen displays

“Disinfecting…”.

6. In case of any separation between disinfection lamp cap, upper cover of box and lower cover of box in

the course of disinfection, it will automatically stop the disinfection work, and the time will return to the
preset time.

7. In the progress of disinfection, double-click “ ” to stop working, and time will return to the preset

time.

8. Long press “ ” during the disinfection to switch off the machine.

9. Short press any button during the disinfection will not be effective.

10. It will automatically stop the ozone work in the last 10 minutes of preset time in the course of ozone

disinfection, and activate the ultraviolet automatically to perform 10-minute ozonolysis.

11. If the battery level is lower than 20% and the battery level displays in red “ ” ，it is required to

charge as soon as possible to avoid that the remaining battery power is insufficient to finish one
complete disinfection.

12. If the screen displays “Disinfection finished” and time displays the green number 0, it indicates the

disinfection work is completed.

13. After the disinfection work is completed, it will automatically switch off after 30 seconds if not

performing any operation for the energy conservation and environment protection.

14. The disinfection lamp cap has the memory function: After starting the machine each time, the screen

will display the mode and preset time of disinfection work for the last time.

II. Separate hand-held operation for disinfection lamp cap (Mode 2). (Only ULTRAVIOLET disinfection

mode)

1. Long press “ ” for 1.5 seconds to start the machine，the screen displays “Double-click start / stop

disinfection” for 5 seconds. If not performing any operation after starting the machine, it will
automatically switch off after 2 minutes for the energy conservation and environment protection.

2. The preset mode is “UVC 60 min”, double-click “ ” to start disinfection.

3. The intelligent REV-ODS system will start automatically during the disinfection

• If REV-ODS system doesn’t detect the articles to be disinfected, the screen will display “Please move

closer”, and unit will automatically stop the disinfection work, It will automatically switch off after 2
minutes for the energy conservation and environment protection

UVC

UVC
