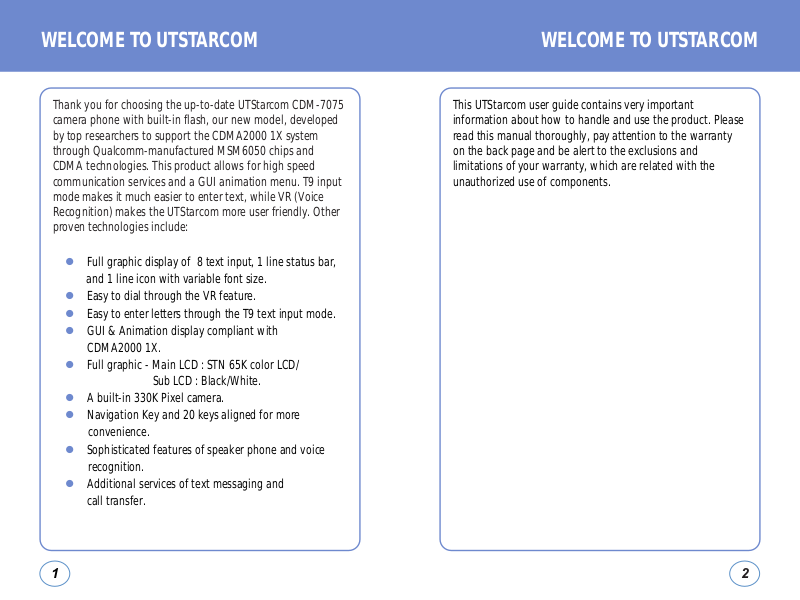

WELCOME TO UTSTARCOM WELCOME TO UTSTARCOM
Thank you for choosing the up-to-date UTStarcom CDM-7075
camera phone with built-in flash, our new model, developed
by top researchers to support the CDMA2000 1X system
through Qualcomm-manufactured MSM6050 chips and
CDMA technologies. This product allows for high speed
communication services and a GUI animation menu. T9 input
mode makes it much easier to enter text, while VR (Voice
Recognition) makes the UTStarcom more user friendly. Other
proven technologies include:
l Full graphic display of 8 text input, 1 line status bar,
and 1 line icon with variable font size.
l Easy to dial through the VR feature.
l Easy to enter letters through the T9 text input mode.
l GUI & Animation display compliant with
CDMA2000 1X.
l Full graphic - Main LCD : STN 65K color LCD/
Sub LCD : Black/White.
l A built-in 330K Pixel camera.
l Navigation Key and 20 keys aligned for more
convenience.
l Sophisticated features of speaker phone and voice
recognition.
l Additional services of text messaging and
call transfer.
This UTStarcom user guide contains very important
information about how to handle and use the product. Please
read this manual thoroughly, pay attention to the warranty
on the back page and be alert to the exclusions and
limitations of your warranty, which are related with the
unauthorized use of components.
43
TABLE OF CONTENTS TABLE OF CONTENTS
CHAPTER 1. BEFORE USING YOUR PHONE
PACKAGE INCLUDES.............................................................................................9
HANDSET DESCRIPTION......................................................................................10
BATTERY USAGE.................................................................................................14
POWER CONNECTION........................................................................................................16
PCS AND 1X BATTERY TIMES.............................................................................................17
BATTERY LIFE (FOR NEW BATTERY)...................................................................................17
BATTERY HANDLING INFORMATION..................................................................18
DO’s....................................................................................................................................18
DON’Ts................................................................................................................................18
CHAPTER 2. BASIC OPERATION
TURNING THE PHONE ON / OFF..........................................................................21
TURNING THE PHONE ON...................................................................................................21
TURNING THE PHONE OFF..................................................................................................21
ACCESSING THE MENU.......................................................................................22
MENU SUMMARY...............................................................................................23
BASIC FUNCTIONS...............................................................................................25
MAKING A CALL.................................................................................................................25
ANSWERING CALLS............................................................................................................26
WAIT/PAUSE FEATURE........................................................................................................26
ANSWERING A CALL...........................................................................................................27
3-WAY CALLING.................................................................................................................27
CALLER ID FUNCTION.........................................................................................................28
CALL WAITING FUNCTION..................................................................................................28
ADJUSTING VOLUME..........................................................................................................29
DURING A CALL ..................................................................................................30
MUTE (UNMUTE)................................................................................................................30
SEND TXT MSG...................................................................................................................30
CONTACTS..........................................................................................................................30
RECENT CALLS....................................................................................................................30
VOICE PRIVACY..................................................................................................................30
LOCATION...........................................................................................................................31
MAKING AN EMERGENCY CALL .........................................................................32
911 IN LOCK MODE............................................................................................................32
911 USING ANY AVAILABLE SYSTEM.................................................................................32
CHAPTER 3. MEMORY FUNCTION
STORING A PHONE NUMBER..............................................................................35
ENTERING LETTERS, NUMBERS & SYMBOLS.......................................................36
STANDARD INPUT MODE ...................................................................................................37
WORD INPUT MODE...........................................................................................................38
NUMERIC MODE.................................................................................................................39
SYMBOL MODE...................................................................................................................39
MAKING A CALL THROUGH THE PHONE BOOK..................................................40
ONE-TOUCH/TWO-TOUCH DIALING....................................................................................40
CHAPTER 4. MENU FUNCTION
CONTACTS...........................................................................................................43
NEW CONTACT...................................................................................................................43
CONTACT LIST....................................................................................................................44
GROUPS..............................................................................................................................45
SPEED DIALS.......................................................................................................................47
65
TABLE OF CONTENTS TABLE OF CONTENTS
RECENT CALLS.....................................................................................................48
MISSED...............................................................................................................................48
RECEIVED............................................................................................................................49
DIALED................................................................................................................................50
ALL......................................................................................................................................51
VIEW TIMERS......................................................................................................................52
SETTINGS.............................................................................................................53
SOUND SETTINGS...............................................................................................................53
DISPLAY SETTINGS .............................................................................................................61
PHONE SETTINGS................................................................................................................66
CALL SETTINGS...................................................................................................................71
MEMORY............................................................................................................................76
PHONE INFO.......................................................................................................................77
CHAPTER 5. TOOLS
TOOLS..................................................................................................................79
CALENDAR..........................................................................................................................79
ALARM CLOCK....................................................................................................................80
WORLD CLOCK ...................................................................................................................80
NOTEPAD............................................................................................................................81
CALCULATOR......................................................................................................................82
CHAPTER 6. CAMERA
CAMERA..............................................................................................................85
GET NEW PIX......................................................................................................................85
MY PIX................................................................................................................................86
PIX PLACE...........................................................................................................................87
TAKE PIX.............................................................................................................................88
CHAPTER 7. MESSAGE
MESSAGE............................................................................................................91
NEW MSG...........................................................................................................................91
INBOX.................................................................................................................................93
SENT...................................................................................................................................94
DRAFTS...............................................................................................................................95
VOICEMAIL.........................................................................................................................95
ERASE ALL..........................................................................................................................96
SETTINGS............................................................................................................................97
CHAPTER 8. SAFETY AND WARRANTY
SAFETY AND WARRANTY..................................................................................105
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES...........................................105
SAFETY INFORMATION FOR FCC RF EXPOSURE...............................................................110
SAR INFORMATION..........................................................................................................112
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS
DEVICES............................................................................................................................114
FDA CONSUMER UPDATE.................................................................................................117
MANUFACTURER’S WARRANTY.......................................................................................127
87
MEMO
CHAPTER 1
BEFORE USING YOUR PHONE
This chapter provides important information about
using the UTStarcom including:
PACKAGE INCLUDES
HANDSET DESCRIPTION
BATTERY USAGE
BATTERY HANDLING INFORMATION
CHAPTER 1
BEFORE
USING
YOUR PHONE
109
PACKAGE INCLUDES HANDSET DESCRIPTION
This package should include all items pictured below.
If any are missing or different, immediately contact the retailer where
you purchased the phone.
Travel Charger
Standard Battery User Manual
Handset
The UTStarcom weighs 98grams. The dimensions are 88x47x21.8mm.
Function Keys
Clear Key
END/POWER KEY
Microphone
Send key
Camera Key
Volume Keys
Ear-jack
Antenna
1211
HANDSET DESCRIPTION
(THE FUNCTION KEYS)
HANDSET DESCRIPTION
(DISPLAY INDICATORS)
Send Key
Press to make or receive a call.
End Key
Press to turn the phone on/off, to terminate a call or to return to the initial
page.
Left Soft Key
Press to access the message menu or function displayed on bottom line.
In Idle Mode
Press Up for Voice Activated Dialing, Down for Quick
Search for Phone Book entries, Right for My Menu and
Left for Message menu.
In Idle Mode
Within a menu, use to scroll through menu options, or to
select a function displayed on the screen.
Back Soft Key
Press to clear a digit from the display or to return to the previous page.
Press and hold to enable speaker phone mode.
Shift Key
Enters the asterisk [*] character for calling features. In text entry mode,
press to change the character input type. A long press shall display a plus
“+”.
Right Soft Key
Press to access contacts menu or function displayed on bottom line.
Space Key
Enters the pound [#] character for calling features. In text entry mode, press
to enter a space.
Camera Key
Press to access Camera Mode.
Side Volume Key
Allows you to adjust the ringer volume in standby mode (with the flip open)
or adjust the voice volume during a call. The volume key can also be used
to scroll up or down to navigate through the different menu options. To
mute the ringer during an incoming call, press the volume key up or down.
Text & Graphic area
Soft Key Indicators
Shows the functions currently assigned to each soft key
and displays some icons.
Display Indicators
Display various icons.
The idle display appears when you are not on a call or using the menu.
You must be in the idle display to dial a phone number.
Roaming
Phone is out of home area.
Voice Privacy
Indicates Voice Privacy mode.
Signal Strength
Current signal strength: the more lines, the stronger the signal (1X
Mode/Digital Mode).
Dormant
Indicates your phone is in a dormant state during a data call. Your phone
goes to Dormant mode when you have not had any activity on a page for
some time - your connection is still active and you can make and receive
calls.
No Service
Indicates the phone cannot receive a signal from the system.
TTY
Indicates your phone is active in TTY mode.
GPS Icon
Indicates the Location Service of your phone is disabled/enabled.
1413
HANDSET DESCRIPTION
(DISPLAY INDICATORS)
BATTERY USAGE
(BATTERY INSTALLATION)
1.
Place the battery and place the battery cover on the back of the
handset and slide into place.
2.
Push the battery down until it locks into place.
Data Only
Receives a data call when connected to PC.
Voicemail
Indicates you have voicemail messages.
New Messages
New TXT or voice message.
All Off
Indicates the ringer volume is set to off.
Calendar Appointment
Indicates Event Alarm is active.
Speakerphone
Phone is in speakerphone mode.
Battery
Battery charging level — the more blocks, the stronger the charge.
Alarm Only
Phone will alert you with an alarm tone when call is received.
Alarm
Appears when either a calendar or an alarm is set.
Vibrate Only
Phone will vibrate when call is received.
1615
BATTERY USAGE
(BATTERY REMOVAL)
BATTERY USAGE
(BATTERY CHARGING)
1.
Pull down the release latch, lift up the battery cover.
2.
Remove the battery from the handset.
POWER CONNECTION
1.
Plug the AC Charger into a standard outlet.
2.
Plug the other end of the AC Charger into the bottom of your
phone. The battery must be installed onto the phone.
If the battery is not correctly placed in the compartment,the
handset will not turn on and/or the battery may detach during use.
Note
• When you charge the battery with the phone power off, you
will see a charging status screen. You cannot operate the phone
until it is powered on.
• The battery is not charged at the time of purchase.
• Fully charge the battery before use.
• It is more efficient to charge the battery with the handset powered
off.
• The battery must be connected to the phone in order to charge it.
• Battery operating time gradually decreases over time.
• If the battery fails to perform normally, you may need to replace
the battery.
Hot Key
1817
BATTERY USAGE
(BATTERY CHARGING)
BATTERY HANDLING
INFORMATION
PCS AND 1X BATTERY TIMES
The operating time is subject to your handset usage and configuration.
BATTERY LIFE (FOR NEW BATTERY)
The operating time is subject to your handset usage and configuration.
DO’s
l
Only use the battery and charger approved by the manufacturer.
l
Only use the battery for its original purpose.
l
Try to keep batteries in a temperature between 41ºF (5ºC ) and 95ºF
(35ºC).
l
If the battery is stored in temperatures above or below the
recommended range, give it time to warm up or cool down before
using.
l
Completely drain the battery before recharging. It may take one to
four days to completely drain.
l
Store the discharged battery in a cool, dark, and dry place.
l
Purchase a new battery when its operating time gradually decreases
after fully charging.
l
Properly dispose of the battery according to local laws.
DON’Ts
l
Don’t attempt to disassemble the battery – it is a sealed unit with no
serviceable parts.
l
Don’t accidentally short circuit the battery by carrying it in your pocket
or purse with other metallic objects such as coins, clips and pens. This
may critically damage the battery.
l
Don’t leave the battery in hot or cold temps. Otherwise, it could
significantly reduce the capacity and lifetime of the battery.
l
Don’t dispose of the battery into a fire.
Battery Capacity DCS PCS
STD Up to XXX m Up to XXX m
EXT Up to XXX m Up to XXX m
Battery Capacity DCS PCS
STD XXX Hours XXX Hours
EXT XXX Hours XXX Hours
These times are for a new battery. Usage and Standby time may
decrease over time.
Note
2019
MEMO
CHAPTER 2
BASIC OPERATION
This chapter addresses and explains the basic
features of your phone including:
TURNING THE PHONE ON / OFF
ACCESSING THE MENU
MENU SUMMARY
BASIC FUNCTIONS
DURING A CALL
MAKING AN EMERGENCY CALL
CHAPTER 2
BASIC OPERATION
Your phone can be customized via the menu. Each function can be
accessed by scrolling with the Navigation Key or by pressing the number
that corresponds with the menu item.
1.
To access the menu in the idle mode, press OK KEY [MENU].
2.
Use the Navigation Key to scroll through the menu.
2221
TURNING THE PHONE
ON / OFF
TURNING THE PHONE ON
1.
Press and hold END KEY until your “Power On” logo appears and
the tone sounds.
TURNING THE PHONE OFF
1.
Press and hold END KEY until your “Power Off” logo appears.
• If “Password” appears on the display enter your 4-digit password
to unlock your phone.
• The default password is the last 4 digit of your phone number.
Note
• Immediately change or recharge the battery when
“LOW BATTERY!! PHONE IS TURNING OFF!”appears on the
display. Memory may possibly be damaged if the phone turns off
due to the battery completely draining.
• Turn the phone off before removing or replacing the
battery. If the phone is on, unsaved data may be lost.
Note
In idle mode, move the Navigation Key as follows to access these
functions:
• Upward movement : Voice Activated Dialing
• Downward movement : Quick Search for Phone Book entries
• Rightward movement : My Menu
• Leftward movement : Message Menu
Hot Key
ACCESSING THE MENU
To search through the menu in numerical order, press the Navigation Key.
3.
To return to the previous page, press BACK KEY.
To exit the current menu and return to the idle mode,
press END KEY.
4.
Press the Navigation Key to enter a function when its main page is
displayed or press its assigned number to have direct access to the
function.
2423
MENU SUMMARY
GET PIX
Get New PIX
My PIX
PIX Place
Take PIX
MESSAGE
New Msg
Inbox
Sent
Drafts
Voicemail
CONTACTS
New Contacts
Contact List
Groups
No Group
Family
Friends
Work
Speed Dials
RECENT CALLS
Missed
Received
Dialed
All
View Timers
SETTINGS & TOOLS
Tools
Calendar
Alarm Clock
World Clock
Notepad
Calculator
Sound Settings
Master Volume
Call Sound
Call Ringtone
Call Vibrate
Alert Sound
TXT Message
Voicemail Msg
Keypad Volume
Earpiece Volume
Service Alerts
ERI
Minute Beep
Call Connect
Power On/Off
Power On
Power Off
Alarm Sound
Tone
Vibrate
Display Settings
Banner
Personal
ERI Banner
Backlight
Display
Keypad
Contrast
Wallpaper
Screen Saver
Display Themes
Fonts
Clock Format
Phone Settings
Standalone Mode
Short Cut Key
Language
Location
Security
Common Code
Lock Mode
Edit Code
System Select
Nam Selection
Call Settings
Answer Options
Auto Retry
TTY Mode
One Touch Dial
Voice Privacy
Call Restrictions
Data Settings
Select Port
Port Speed
DTMF Tones
Ringer ID
Picture ID
Memory
Memory Usage
My PIX
My Sounds
Phone Info
My Number
SW Version
Icon Glossary
MENU SUMMARY
MAKING A CALL
1.
Enter a phone number.
2.
Press SEND KEY.
3.
To end a call, press END KEY.
2625
BASIC FUNCTIONS BASIC FUNCTIONS
ANSWERING CALLS
1.
When your phone rings or vibrates, press SEND KEY to answer the
incoming call. (Depending on your phone’s settings, you may also
answer incoming calls by opening the phone or by pressing any
digit key.)
2.
To end a call, press END KEY.
WAIT/PAUSE FEATURE
Pauses are used for automated systems (i.e., voice mail, calling cards).
Insert a pause after a phone number then enter another group of
numbers. The second set of numbers is dialed automatically after the
pause. This feature is useful for dialing into systems that require a code.
1.
To insert a wait/pause, enter a phone number then press
RIGHT S.KEY [OPTIONS]. Select either a 2.Sec Pause
(“P” appears) or a Wait (“W” appears).
2.
Press SEND KEY to dial or press LEFT S.KEY to save phone
number.
To modify the phone number you have entered :
• To erase one digit at a time press
BACK KEY
.
• To erase the entire number, press and hold
BACK KEY
.
Phone number display in contact list :
If contact’s name field empty, then highest priority phone number
displayed. If any phone number and name is not exist then email
address diaplay. Referece “Contact display order”. All matching
entries will be displayed. To call the selected number,
press
SEND KEY
.
To send the txt with phone number :
• To enter a part of the phone number, then press
RIGHT S.KEY
[OPTIONS], select “New TXT Msg” .
Note
• If “CALL FAILED” appears on the display or the line is busy,
press or .
• If you activate the “AUTO RETRY” function, the phone will
automatically retry for the number of times you have selected.
• When you place or receive a call from stored phone numbers,
only the name will be displayed.
• If “Enter Lock Code” appears on the display enter your 4-digit
password to unlock your phone.
Note
To ignore incoming calls, press
RIGHT S.KEY
[IGNORE].
2827
BASIC FUNCTIONS BASIC FUNCTIONS
ANSWERING A CALL
1.
To answer a call, press any key except END KEY, LEFT S.KEY,
RIGHT S.KEY, BACK KEY, VOLUME KEY or NAVIGATION KEY.
3-WAY CALLING
With 3-Way Calling, you can talk to two people at the same time. When
using this feature, the normal airtime rates will be applied for each of
the two calls.
1.
Enter a number you wish to call then press SEND KEY.
2.
Once you have established the connection, enter the second
number you wish to call then press SEND KEY.
3.
When you’re connected to the second party, press SEND KEY
again to begin your 3-Way call.
CALLER ID FUNCTION
Identifies caller by displaying their phone number.
If the caller’s name and number are already stored in your phone book,
they name will appear. The caller ID is stored in the recent calls.
CALL WAITING FUNCTION
Notifies you of an incoming call when you are already on a call by
sounding a beep tone and displaying the caller’s phone number.
1.
To answer another call while on the phone, press SEND KEY. This
places the first call on hold. To switch back to the first caller, press
SEND KEY again.
By pressing
OK KEY
[MENU] then select “Settings & Tools” menu, press
5
KEY,1 KEY
, you can select either “Flip Open”, “Any Key”, “Send Only”
or “Auto Answer” to answer a call.
lf “Send Only” is selected, the phone can only be answered by pressing
SEND KEY
.
In Auto Answer Mode a call is automatically answered after five
seconds of ring tones.
Note
If one of the people you called hangs up during your call, you and
the remaining caller stay connected.
If you initiated the call and are the first to hang up, all three callers
are disconnected.
Note
Call Waiting is a system dependent feature.
Please contact your service provider for details.
Note
2.
To end the call, press END KEY.
3029
BASIC FUNCTIONS DURING A CALL
ADJUSTING VOLUME
Adjusts the volume of the ringer, key beep and earpiece.
1.
Press OK KEY [MENU], then select “Settings & Tools” menu,
press 2 KEY then select one of the following.
2.
Adjust volume then press OK KEY to save it.
MUTE (UNMUTE)
The caller cannot hear you or any sounds from your side but you can still
hear them.
1.
Press LEFT S.KEY [MUTE].
SEND TXT MSG
Enables you to send a TXT message (SMS) during a call.
1.
Press RIGHT S.KEY [OPTIONS], press 1 KEY.
CONTACTS
To select the phone number in your internal Contact List.
1.
Press RIGHT S.KEY [OPTIONS], press 2 KEY.
RECENT CALLS
To select the phone number in your recent calls List.
1.
Press RIGHT S.KEY [OPTIONS], press 3 KEY.
VOICE PRIVACY
Increases security during a call.
1.
Press RIGHT S.KEY [OPTIONS], press 4 KEY.
Master Volume: Controls the ringer volume.
Keypad Volume: Controls the keypad volume.
Earpiece Volume: Controls the earpiece volume.
• To adjust earpiece volume during a call, press the Side Key up
or down.
• To adjust master volume, press short side up/ down key.
• Side Volume Up key Long Press: Volume key shall bring device
Normal Mode.
• Side Volume Down key Long Press: To setting a sounds off.
Note
• To deactivate, press
LEFT S.KEY
[UNMUTE].
• The phone will automatically unmute in Emergency Call or Callback
mode.
3231
DURING A CALL MAKING AN EMERGENCY CALL
LOCATION
Enables the network to locate your current location through Global
Positioning System (GPS).
1.
Press RIGHT S.KEY [OPTIONS], press 5 KEY.
The 911 feature puts the phone in the Emergency Call Mode
when you dial the preprogrammed emergency number, 911.
It also operates in the lock mode and out of the service area.
911 IN LOCK MODE
The 911 call service is available even in the lock mode.
1.
Enter “911”, then press SEND KEY.
2.
The call connects.
3.
When the call ends, the phone returns to the Lock Mode.
911 USING ANY AVAILABLE SYSTEM
1.
Enter “911”, then press SEND KEY.
2.
The call connects.
3.
The phone maintains the Emergency Mode and the phone can
receive an incoming call from any available system. However, it
can’t make a call.
The 911 call is not recorded in the recent call list.
Note
3433
MEMO
CHAPTER 3
MEMORY FUNCTION
This chapter addresses memory functions including:
STORING A PHONE NUMBER
ENTERING LETTERS, NUMBERS & SYMBOLS
MAKING A CALL THROUGH THE PHONE BOOK
CHAPTER 3
MEMORY
FUNCTION
3635
STORING A PHONE NUMBER
ENTERING LETTERS,
NUMBERS & SYMBOLS
The phone book stores up to 500 entries.
1.
Enter phone # then press LEFT S.KEY [SAVE] then choose “Create
New” or “Update Existing”.
Press OK KEY to select.
2.
If “Create New” is selected, the phone number will appear above a
list. Press the Navigation Key up or down to choose the type of
number you’re adding, as indicated by the icon. Press OK KEY to
select. If “Update Existing” is selected, your contact list is
displayed. Choose the entry to add the phone number to, then press
OK KEY. You will then see the phone number listed about a list.
Press OK KEY to select.
3.
Enter a name.
To change the input mode, press LEFT S.KEY [Abc].
Press the Navigation Key down to select other options (Mobile1.2,
E-mail1.2, etc...). If entered phone number, press RIGHT S.KEY
[OPTIONS] to select one of the following options:
4.
To store the entry, press OK KEY [SAVE]. “CONTACT SAVED” will
be displayed.
The input mode (Alpha editor) will automatically be activated when
necessary to enter letters and numbers. As shown below, there are 5
available modes ; Standard input mode (Abc), Input mode (Word),
Numeric mode (123), and Symbol mode (Symbols). The input mode
indicator appears on the upper right of the display when letters and
numbers are entered. To select the desired input mode among the 5
modes below, press LEFT S.KEY [Abc], then enter letters and numbers.
Set Speed Dial
Set Voice Dial
Set As Default
Add Pause
KEY
KEY
LEFT S.KEY 0 KEY SPACE KEY
BACK KEY
OK KEY SHIFT KEY
Press to select a
letter case of the
standard text input
or T9 text input
mode. [Abc], [ABC]
and [abc] indicate
the standard text
input. [Word],
[WORD] and [word]
indicate the
predictive text input.
Press to change
mode.
[Word][Abc]
[ABC][123]
[Symbols]
Press to view the
next matching word
if the highlighted
word is not the word
you intended.
Press to accept a
word and add a
space.
Send the letters and
numbers you enter.
Press to delete
a character to
the left of the
cursor.
3837
ENTERING LETTERS,
NUMBERS & SYMBOLS
ENTERING LETTERS,
NUMBERS & SYMBOLS
STANDARD INPUT MODE
Use the digit keys to enter letters, numbers and characters.
1.
Enter letters using the key pad, to change the input mode,
press LEFT S.KEY [Abc].
2.
To enter a space, press SPACE KEY. The cursor will automatically
move to the next column.
3.
Repeat until letters are entered.
4.
To delete one digit, press BACK KEY.
To delete the entire entry, press and hold BACK KEY.
5.
To change from lowercase to uppercase, press SHIFT KEY.
WORD INPUT MODE
The input mode incorporates a built-in-dictionary to determine a word
based on the entered characters. A word can be entered more quickly by
pressing a key once per character.
1.
Select the Word mode by pressing LEFT S.KEY [Abc].
2.
Press a digit key once to enter the character you want then enter all
the characters to input the word you want.
3.
To view the next matching word, press 0 KEY.
4.
To accept the matching word then enter a space,
press SPACE KEY.
Select Abc mode by pressing
LEFT S.KEY
[Abc].
When you select this mode, the Abc icon appears as a visual
confirmation.
- Find the key that corresponds to the letter you want to enter.
- Press it as many times as needed for the letter to appear on the
screen.
- To enter the name “John”:
Press [
5 KEY
] J
Press [
6 KEY, 6 KEY, 6 KEY
] o
Press [
4 KEY, 4 KEY
] h
Press [
6 KEY, 6 KEY
] n
E.G.
To enter “Fun fare” in the T9 input mode:
- After you enter the 1stletter, press
LEFT S.KEY
[Abc] to select T9
mode and
SHIFT KEY
to choose the lower case (Word).
- Press
3 KEY, 8 KEY, 6 KEY
and you will see “Fun”highlighted.
Press
SPACE KEY
to select it.
- Press
3 KEY, 2 KEY, 7 KEY, 3 KEY
and until you see “ease”
highlighted. Press
0 KEY
to select the next matching word, you
will see “fare” then enter a space.
E.G.
To enter a compound word:
• Enter the first part of the word then press
RIGHT NAVIGATION KEY
to accept it.
• Enter the last part of the word then press
SPACE KEY
to enter
the word.
Note
4039
ENTERING LETTERS,
NUMBERS & SYMBOLS
MAKING A CALL THROUGH
THE PHONE BOOK
NUMERIC MODE
Allows you to enter numbers.
1.
Press LEFT S.KEY [Abc] and scroll to the input mode to changes to
“123 (Numeric mode)”.
2.
To enter a number, press a digit key.
SYMBOL MODE
Allows you to enter symbols.
1.
Press LEFT S.KEY [Abc] and scroll to the input mode to changes to
“Symbols (Symbol mode)”.
2.
Select symbol you want to enter with the Navigation Key.
ONE-TOUCH/TWO-TOUCH DIALING
Ideal for frequently dialed numbers, this feature allows phone book
entries to be dialed via the keypad with only one or two key presses.
ONE-TOUCH DIALING
2-9 : Press and hold the corresponding memory number for more than
1 second.
TWO-TOUCH DIALING
10-22/97-99 : Press the first digit and second digits of the memory
number short and long respectively.
Use the Navigation Key to view a different line of symbols.
Note
If no phone number is stored in the location entered,“Unssigned
location” will appear on the screen.
Note
Loading...
