Safety Precautions
SAFETY PRECAUTIONS
Regulatory Statement (R&TTE / WLAN IEEE
802.11b)
European standards dictate maximum radiated transmit power of 100mW
EIRP and frequency range 2.400-2.4835GHz; In France, the equipment
must be restricted to the 2.4465-2.4835GHz frequency range and must be
restricted to indoor use.
CE Declaration of Conformity
For the following equipment: WiFi handset F1000
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage
Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the
procedures given in European Council Directive 99/5/EC and
89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
EN 300 328 V.1.4.1 (2003-04)
EN 301 489-1 V.1.3.1 (2001-09) / EN 301 489-17 V.1.1.1 (2000-09)
EN 50371: 2002
EN 60950: 2000
1
Safety Precautions
FCC RF Exposure Compliance
This PCS phone has been tested and complies with the Federal
Communications Commission (FCC) RF exposure limits for the General
Population/Uncontrolled exposure environment. In addition, it complies
with the following Standards and Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Effects of
Radio-Frequency Radiation
FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency Electromagnetic
Fields, 3 kHz to 300 GHz
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields - RF
and Microwave
Note: For body-worn operation, this phone has been tested and
meets FCC RF exposure guidelines when used with an accessory
that contains no metal and when the back of the phone faces your
body.
Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
The antenna used for this transmitter must not be co-located or
must not operate in conjunction with any other antenna.
2
Safety Precautions
Handling the Phone, Battery and Charger
DANGER
Only use the battery and charger specified for the
phone. Failure to do so can result in damage to the
phone, electric shock or fire.
CAUTION
Do not store or operate the phone or charger in hot,
damp, or dusty areas, which can damage electrical and
mechanical components. Avoid prolonged exposure to
temperatures below 5°C or in excess of 35°C.
DANGER
Do not drop, shake or throw the phone or charger.
Rough handling can damage internal circuit boards and
the battery pack.
Do not use the phone in the vicinity of volatile gases.
Leave the area before using the phone. Failure to leave
the area can result in the risk of fire or an explosion.
Do not disassemble or modify the phone, charger, or
battery. Incorrect modifications, reassembly, or
tampering may result in malfunction or personal injury.
3
Safety Precautions
Handling the Phone
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
This device may not cause harmful interference
This device must accept any interference received, including
interference that may cause undesired operation
DANGER
This phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This phone
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this phone does cause harmful interference to radio or
television reception, which can be determined by
turning the phone off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the phone and
receiver.
Connect the phone into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Observe local regulations for specialized areas
(hospital, aircraft, etc) when using the phone.
4
CAUTION
Safety Precautions
Do not use the phone while operating a vehicle.
Changes or modifications not expressly approved by
UTStarcom, Inc. could void the user’s authority to
operate the phone.
Keep all storage media (magnetic cards, floppy disks,
credit cards, etc.) away from the phone. Close
encounters or contact can erase or damage the storage
media.
Keep all sharp metal objects (pins, nails, hairpins etc.)
away from the phone handset. The handset earpiece
contains a strong magnet that can attract and hold
metal objects. Remove any objects from the handset
earpiece before using, to avoid personal injury.
In case of emergency, key in the emergency number
(911 for example in US), then press the Talk key and let
the operator know your specific location. Don’t hang up
until you are told to do so.
5
Safety Precautions
Handling the Battery
DANGER
Do not dispose of the battery pack in a fire. It may
explode. Check with local waste management codes for
disposal instructions.
Do not force the battery pack into the phone. Improper
installation can cause malfunctions or damage the
battery pack. This may result in fire or personal injury.
Use caution in handling batteries in order not to short
the battery on conductive materials such as rings,
bracelets, and keys. The battery and/or conductor may
overheat and cause burns.
If the battery becomes too hot while recharging, it
should be removed immediately from the charger.
When clothes or skin are exposed to battery leakage,
rinse with clean water at once to prevent skin irritation.
Do not use a cracked, leaking or odor-emitting battery
pack near an open flame or high temperatures.
CAUTION
If a fully discharged battery is stored for a long period of
time, it may not be possible to recharge the battery.
Observe local waste management codes for proper
battery disposal instructions.
6
Handling the Charger
DANGER
Only use a power source that provides the appropriate
voltage (AC100~240 V) for the charger. An unsuitable
power source can result in damage to the charger, fire
or electric shock.
Do not use the charger if the power supply cord or plug
is damaged or frayed (exposed or broken wires, etc).
This can result in the risk of fire or electric shock.
Do not short circuit the charger connector jack. This may
result in fire or electric shock.
Immediately unplug the charger from the wall outlet in
the event that liquid is spilled into the unit to prevent fire
or electric shock.
CAUTION
Always unplug the charger from the wall outlet before
cleaning to avoid the risk of electric shock.
Do not place heavy objects on the cord to avoid
damage.
Always grip the power plug when removing the charger
from the wall outlet. Do not pull on the power supply
cord to avoid damage and the risk of electric shock.
Safety Precautions
7
Getting Started
1. GETTING STARTED
1.1 Package Contents
Please check the package contents by comparing them with the following
list. If you find anything missing or if the documentation set is incomplete,
contact your local phone dealer immediately.
Model F1000 (with one battery)
Charger (one)
User manual (one)
Quick Start Guide (one)
Certificate of quality
8
Getting Started
1.2 Phone Specifications
Dimensions
Weight Approximately 100g
Battery DC 3.6V 1500mAh Li-ion battery
Charger
Charger Weight Approximately 80g
Charging Time 3~4 hours
Standby Time 50~100 hours
Talking Time Approximately 5 hours
Standby time refers to the state in which the phone is on continuously
without being used for calls, or moved to different service areas
The standby time depends on the network conditions, phone usage
and surrounding area. The phone consumes more battery power
under the following conditions:
- In areas with weak signals, with high or low temperatures, or when
used outside the service coverage area
- When the phone frequently searches for network signal due to
location changes
- When you talk on the phone for long periods of time
- The Alarm, Backlight or Vibration function is active
- Ring or listening volume is set to maximum
About 107.8 x 44 x 23.5 (L×W×H) mm
Input: 100~240V AC, 50~60Hz
Output: 5.2V DC, 600mA
9
Getting Started
1.3 Handset Description
1. Fixed antenna
2. Earpiece
3. LCD Screen
Navigation Key:
4.
This key is used to scroll up and down through menu lists.
Left Soft Key:
5.
This key is used to perform the function indicated on the screen above
it.
10
Getting Started
6. Talk Key:
This key is used to make or receive a call. It can also be used to
access outgoing call logs in standby mode.
7.
~ Number Keypad:
These keys are used to enter numbers and characters
* Key/Switch Key:
8.
This key is used to key in “*” or change the text input method.
9. Charging Socket
10. Earphone Socket
11. Right Soft Key:
This key is used to perform the function indicated on the screen above
it.
Power Key:
12.
This key is used to switch the phone on and off, to end a call, or to
return to standby mode.
13. # Key/Lock Key:
This key is used to key in “#” or pause symbol “P” (by pressing and
holding the key), or to lock the keypad.
14. Microphone
15. Battery Cover Release Button
16. Battery Cover
Note: This is only a brief introduction to the keypad functions.
Please refer to the contents of this user manual for detailed
descriptions and operations.
11
Getting Started
1.4 Display Indicators
1 2 3 4 5 6 7
8
9
1. Shows the current signal strength. The higher the bar, the stronger the
signal.
Strong Weak
2.
Indicates a new voice mail has been received.
Indicates the keypad is locked.
3.
4. Means the Ring Mode is set to Mute; if the Ring Mode is set to
Ringing, will be displayed.
5.
Means the Ring Mode is set to Vibration.
If you press and hold the vibration shortcut key
mode,
6.
7.
will be displayed (refer to “Vibration Shortcut” on page 26).
Indicates the Alarm function is active.
Indicates the battery charge level. The higher the bar, the greater
the battery power.
High Low
in standby
12
Getting Started
8. Content Display Area: Shows phone numbers, characters, etc.
9. Soft key function display area: Shows the functions of the left soft key
and the right soft key .
1.5 Charge the Battery
When the battery power is low and needs recharging, the battery indicator
will flash continuously, and the phone will sound a low battery alarm
(if the alert tone is set to On), reminding you that the battery is running low
and the phone will be switched off automatically. To charge the battery,
follow the steps below:
1. Connect the charger to an AC wall outlet (100~240V).
2. Connect the lead from the charger to the charging socket of the phone.
The battery indicator bar starts to scroll (
the phone is off, the text Charging is also displayed on the LCD
screen.
3. When the battery indicator bar stops scrolling, charging is complete.
The text “Full Charged!” is also displayed on the LCD screen, if the
phone is off.
). If
13
Getting Started
The phone takes about 3~4 hours to charge and the exact time may
vary depending on the circumstances
With your phone turned off, charge your new battery for 4 hours before
its first use
When the battery is being charged, it is normal that your charger and
phone become warm to the touch
If the phone is turned on while charging, you can still make and
receive calls as usual, but this will consume battery power, thus
extending the charging time
1.6 Replace the Battery
Since battery power is easily consumed, if you find the battery power
diminishes quickly after full charging, please replace your battery. After
replacing the battery, you will need to reset the date and time.
1. In standby mode, switch the phone off by pressing and holding
(Otherwise, some user settings will be lost.)
2. Remove the battery cover.
With the back of the phone facing you, press the battery cover release
button and lift the cover off in the direction of the arrow.
14
.
Getting Started
3. Remove the old battery.
Disconnect the cord by firmly gripping the connector (not the battery
connection wire) and pulling gently as illustrated.
4. Install the new battery.
Connect the cord of the new battery by firmly inserting the connector
into its place. Do not reverse the connector.
15
Getting Started
5. Replace the battery cover until it clicks into place.
1.7 Conventions Used in this Manual
In this manual, “press the key” means to release the key after you
press it; “press and hold the key” means to press the key for over 2
seconds before releasing it
The text displayed on the screen is indicated in bold in this manual, for
example Menu
Most operations need to be performed in standby mode. When the left
soft key function is Menu, the phone is in standby mode (refer to the
figure illustrated in “Display Indicators” on page 12)
Navigation key operations follow:
Press the “Up”, “Down”, “Left”, and “Right” directions on the
Navigation key to execute operations such as browsing, selecting,
adjusting and setup; key directions are as follows:
Up Down
Up or
Down
Left Right
16
Left or
Right
Getting Started
1.8 Access Menu/List Options
A variety of options are available for the menus and lists, such as: Menu
and Names.
For example, to access
steps below:
1. In standby mode, press the left soft key
SettingsAnswer Mode, follow the
(Menu).
2. Press
(Ok).
3. Press
to reach Settings, and then press the left soft key
to highlight Answer Mode, and then press the left soft key
(Ok).
Note: To return to the previous menu level, press the right soft key
(Exit). To return to standby mode without changing the menu
settings, press
If you stop operating the phone for two minutes, the phone will
return to standby mode without changing the menu settings.
.
17
Basic Operations
2. BASIC OPERATIONS
2.1 Switch the Phone On/Off
Press and hold the power key . The phone will display the
power-on/off animation.
If the PowerOn Code function is active, after switching on the phone,
enter the security code (with each input displayed as *) and press the left
soft key
otherwise Code Error will be displayed.
2.2 Make a Call
Note: Prior to making or receiving calls, the phone must be
1. Key in the phone number.
(Ok). If correct, the power-on animation will be displayed;
connected to a wireless Access Point (AP) and registered with the
service network. See “WiFi-Settings” on page 54 for detailed
instructions.
To delete the character or digit to the left of the cursor, press the right
soft key
numbers or characters, press and hold the right soft key
(Clear). To move the cursor, press . To delete all the
(Clear).
2. Press
To cancel the call attempt, press the right soft key
time display of 00:00:00 will appear. You can also press the
to cancel the call; the phone will return to standby mode.
3. When the call is connected, the call timer is displayed.
4. To end the call, press the right soft key
to call the number. “Connecting..” will be displayed.
(Hangup) or the key.
18
(Cancel). A
key
Basic Operations
2.3 Use Speed Dial
If you have assigned a phone number to one of the speed dial keys
~
, you can quickly call that phone number:
1. In standby mode, press and hold the corresponding speed dial key to
automatically display the phone number.
2. Press to call the number.
For details of speed dial settings, refer to “Speed Dial” on page 31
2.4 Answer a Call
If the Answer Mode is set to Talk Key, press the left soft key
(Answer) or the
If the Answer Mode is set to Any Key, press any key to answer an
incoming call except the right soft key
key to answer an incoming call
, the key or the
key
When there is an incoming call, you may press to stop the
vibration or ring alert without picking up the call
To end an ongoing call, press the right soft key (Hangup) or the
key
2.5 Reject a Call
When there is an incoming call, press the right soft key (Hangup)
or the
If you press the right soft key (Hangup) to reject an incoming call,
key to reject the call
the call duration 00:00:00 will be displayed
19
Basic Operations
When there are missed calls (excluding rejected calls), the number of
missed calls will be displayed, for example Missed Log 3. In this case,
press the left soft key
(View) to enter the missed call log (Missed
Log)
2.6 In Call Operations
While on a call, you can perform the following operations:
2.6.1 Hold a Call
You can place an ongoing call temporarily on hold.
During a call, press the left soft key
soft key
To take the call off hold, press the left soft key (Option), and then
To end the held call, press the right soft key (Hangup) or the
(Ok) to select Hold.
press the left soft key
(Ok) to select Unhold
key
2.6.2 Call Waiting
If the Call Waiting function is activated (refer to “Call Waiting” on page 72),
when another call comes in during a call, the earpiece will sound a waiting
tone.
To reject the incoming third party call and continue the current call,
press the right soft key (Hangup)
To hold the current call and answer the incoming third party call, press
the left soft key
After answering the third party call, you can perform the following
operations:
(Answer)
(Option), and then press the left
20
Basic Operations
Press the left soft key (Option). Press to highlight Swap
and press the left soft key
(Ok) to switch between the current call
and the held call
Press the left soft key (Option). Press to highlight End
Back Call and press the left soft key
Press the right soft key (Hangup) to end the current call. Then,
you can press the left soft key
(Ok) to end the held call
(Option) and select Unhold to take
the held call off hold
Press the key to end both calls
2.6.3 Make a New Call
While on a call, if you need to connect to a third party, press the left soft
key
(Option). Press to highlight New Call and press the left soft
(Ok). Key in the third party’s phone number, and then press the
key
left soft key
can start the call with the third party. The original call will be placed on
hold.
The following operations are available:
Press the left soft key (Option). Press to highlight
Conference and press the left soft key
conference call (refer to “Conference Call” on page 22)
Press to highlight Mute and press the left soft key (Ok) to
mute the microphone (refer to “Mute the Microphone Volume” on page
23)
(Ok) or the key. When the connection succeeds, you
(Ok) to initiate a
Press the left soft key (Option). Press to highlight End
Back Call and press the left soft key
(Ok) to end the held call
21
Basic Operations
Press the right soft key (Hangup) to end the current call. Then,
you can press the left soft key
(Option) and select Unhold to take
the held call off hold
Press the key to end both calls
2.6.4 Conference Call
If the Three Way Call function is active, after making a new call with the
original call on hold (refer to “Make a New Call” on page 21), you can
make a conference call with both parties. Press the left soft key
(Option). Press
to highlight Conference and press the left soft key
(Ok) to initiate the conference call.
To end one of the calls during the conference call, press the left soft
(Option). Press to highlight Drop and press the left soft
key
(Ok). Press to highlight the desired party, and press the
key
left soft key
To end the conference call, pressing the right soft key (Hangup)
or the
(Ok) to end the call with the selected party
key will end both calls
2.6.5 Transfer a Call
If the Call Transfer function is activated (refer to “Call Transfer” on page
72), you can transfer an ongoing call to another phone number:
During a call, press the left soft key
Blind or Consult and press the left soft key
number and press the left soft key
If Blind is selected, the call will be directly transferred to the dialed
(Option). Press to highlight
(Ok). Key in the transfer
(Ok).
phone number after the connection succeeds
22
Basic Operations
If Consult is selected, after the transferred-to party answers the call,
announce the transfer. Then, press the left soft key (Transfer) to
transfer the intended call
The Blind option is selectable only when the Call Transfer function is
set to Blind or Blind & Consult; the Consult option is selectable only
when the Call Transfer function is set to Consult or Blind & Consult
2.6.6 Mute the Microphone Volume
During a call, press the left soft key (Option). Press to highlight
Mute and press the left soft key
(Ok). The microphone volume will be
set to mute.
To resume the volume, press the left soft key (Option). Press
to highlight Unmute and press the left soft key (Ok)
2.6.7 Access the Phonebook
While on a call, press to access the phonebook entry list.
When you press to access the phonebook, the last phonebook
entry will be highlighted; when you press
phonebook, the first entry will be highlighted
After entering the phonebook, press to scroll through the entries.
Press the left soft key
(Details) to check the details (name, phone
number and group) for the highlighted entry
to access the
In the phonebook entry list, Press ~ to enter the first
letter(s)/digit(s) of the desired entry (name). All names starting with
these letter(s)/digit(s) will be displayed (refer to “Search” on page 27
under the Phonebook menu for details)
Note: If there are no entries in the phonebook, when you press ,
23
Basic Operations
the error tone will sound.
2.6.8 Adjust the Listening Volume
1. During a call, press to access the listening volume adjustment
screen.
2. There are six volume levels. Press
decrease the volume.
If the volume is at the highest level, the volume level will not change
when
level will not change when
3. After completing the volume selection, press the right soft key
(Exit) or wait for two seconds to return to the call timer mode. The
phone will save the adjusted volume level.
is pressed; if the volume is at the lowest level, the volume
is pressed.
to increase or to
2.7 Store a Phone Number
In standby mode, new entries can be added to the phonebook.
1. Enter the desired phone number and press the left soft key
2. Enter the name according to the prompts and press the left soft key
(Ok).
3. Press
press the left soft key
to highlight the desired group for this phone number and
(Ok) to complete the operation.
(Save).
Note: The phone number and name of the newly added record
cannot be identical to those of an existing record. Otherwise, the
text Exists will be displayed after you enter the name and press the
left soft key
24
(Ok).
Basic Operations
2.8 Call Log Shortcut
In standby mode, you can quickly view the call logs: outgoing call log
(Dialed Log), received call log (Received Log) and missed call log (Missed
Log).
Press to display the latest outgoing call. Press to scroll
through other outgoing call records
Press to display the latest received call. Press to scroll
through other received call records
Press to display the latest missed call. Press to scroll
through other missed call records
After the intended record is displayed, you can press to call the
number.
To perform other operations with the record, press the left soft key
(Option). (Refer to “Call Log” on page 33 for details)
2.9 Custom Functions Shortcut
1. In standby mode, press to access the custom functions menu.
2. Press
Scheme (3), Calculator (4), Calendar (5) or Voice Mail (6), and then
press the left soft key
You can also access an option by pressing its corresponding number
key.
to highlight the desired option: WiFi (1), Network (2),
(Ok) to access the option.
25
Basic Operations
2.10 Current Profile Shortcut
In standby mode, press to access the menu of the current profile.
Press
For details of profile setup, refer to “Profiles” on page 39.
to highlight the desired option, and then press the left soft key
(Ok) to access the option.
2.11 Vibration Shortcut
In standby mode, press and hold to set the ring mode for incoming
calls and alarms to vibration, and set the keypad tone and alert tone to
“Off”.
will be displayed.
Press and hold
tone in the current profile. The indicator corresponding to the current
profile’s ring mode will be displayed. (Refer to “Display Indicators” on
page 12)
For detailed operations, refer to “Ring Mode” on page 40
again to resume ring mode, keypad tone and alert
2.12 Keypad Lock
The keypad lock prevents the keys from being accidentally pressed,
resulting in unintentional operations.
In standby mode, press and hold to lock the keypad. The
indicator will be displayed
To unlock the keypad, press and hold again in standby mode
When the keypad is locked, you can answer a call as usual. During the
call, you can operate the phone normally. However, the keypad will
automatically lock when the call ends, or if the call is rejected
When the keypad is locked, even if the Backlight is not set to Off, the
LCD screen and keypad will not light when keys are pressed
26
Phonebook (Names)
3. PHONEBOOK (NAMES)
You can store frequently used phone numbers and names in the phone
memory (phonebook). The phonebook can store up to 200 entries. Each
entry may contain a name, phone number and group category
You can enter the phonebook in either of the following ways:
In standby mode, press the right soft key (Names)
In standby mode, press the left soft key (Menu), press to
scroll to Phonebook and press the left soft key
From the phonebook menu, you can select from the following options:
3.1 Search
Search
After you access this option, the phonebook entry list will be displayed.
Key in the first letter(s) or digit(s) of the name you are searching for. A
maximum of six letters/digits can be entered. All names starting with these
letter(s)/digit(s) will be displayed.
Enter letters or digits as follows:
.
(Ok)
3. Press
on the respective key. For keys
corresponding key repeatedly until the intended letter/digit appears.
For example: if you press
digit appear in turn:
~ to enter the corresponding letter or digit labeled
~ , press the
repeatedly, the following letters and
a → b → c → 2
27
Phonebook (Names)
4. The letter/digit just entered will be underlined. After you have entered
the intended letter/digit, press the appropriate number key to input the
next letter/digit. If the next letter/digit and current letter/digit share the
same key, wait for one second to input the letter/digit again.
To delete the last entered letter/digit, press the right soft key
(Clear); to delete all letters/digits, press and hold the right soft key
(Clear).
When a matched name is highlighted, you can press to call the
corresponding phone number
When an entry (name) is highlighted, press the left soft key
(Details) to see the detailed information: name, phone number and
group category. Press
to browse through the text
When the entry details are displayed, you can press
phone number.
When the entry details are displayed, you can press the left soft key
(Option) to select from the following options:
to call the
3.1.1 Edit
Change names, numbers and group categories by following the screen
prompts.
3.1.2 Delete Entry
After this option is selected, “Delete?” will be displayed. Press the left soft
(Ok) to confirm the deletion.
key
3.2 Add Entry
Add Entry
Select this option to add new entries into the phonebook.
28
Phonebook (Names)
1. Key in the name, and press the left soft key (Ok).
You can enter a maximum of 20 alphanumeric characters (refer to
“Input Method” on page 78).
2. Enter the phone number (24 digits maximum), and press the left soft
key
(Ok).
The phone number cannot be left blank; otherwise Number Error will
be displayed.
3. Press
to highlight the desired group category: Family, Friend,
Colleague, Classmate, VIP, Partner, Others or Blacklist. Press the
left soft key
If the name is not filled in, the phone will use the first 12 digits from the
(Ok) to complete the operation.
phone number as the name
The phone number and name of the newly added record cannot be
identical to those of an existing record. Otherwise, the text Exists will
be displayed after you enter the phone number and press the left soft
(Ok)
key
The phone will automatically reject any incoming caller whose number
is on the Blacklist. No response will be displayed.
No more entries can be added if the phonebook memory is full. When
Add Entry is selected, the phone will remind you that the phonebook
memory is full
In standby mode, you can add a new entry by entering the phone
number and pressing the left soft key
name and press the left soft key
desired group category and press the left soft key
(Save). Then, enter the
(Ok); press to highlight the
(Ok) to
complete the operation
29
Phonebook (Names)
3.3 Delete Entry
Delete Entry
You can select from the following options to delete entries one by one or
all at once.
3.3.1 One by One
Delete EntryOne by one
When you access this option, the phonebook entry list will be displayed.
Enter the first letter(s)/digit(s) of the intended entry (name). Press
highlight the entry, and then press the left soft key
“Delete?” is displayed, press the left soft key
deletion.
(Delete). When
(Ok) to confirm the
to
3.3.2 All
Delete EntryAll
When you access this option, the prompt Enter Code will be displayed.
Enter the security code, and press the left soft key
correct, all phonebook entries will be deleted; otherwise Code Error will
be displayed.
(Ok). If the code is
3.4 Group Info
Group Info
After accessing this option, press
category: Family, Friend, Colleague, Classmate, VIP, Partner, Others
or Blacklist, and press the left soft key
from the following options:
to highlight the desired group
(Ok). Then, you can select
30
Phonebook (Names)
3.4.1 Ring Tone
Select this option to specify a ring tone for the particular group category.
Press
left soft key
to highlight and sample the ring tone options. Then press the
(Ok) to complete your selection.
Note: The Blacklist only has a Browse function because the
phone will automatically reject any call from this group. Thus, it is
not necessary to set a ring tone for the Blacklist group.
3.4.2 Browse
When you access this option, the list of entries in the selected group
category will be displayed.
Enter the first letter(s)/digit(s) of the desired entry (name). Press to
highlight the entry, and press the left soft key
details for the entry. Press the left soft key
or Delete Entry to edit or delete this entry.
3.5 Speed Dial
Speed Dial
Select this option to assign a phone number in the phonebook to one of
the speed dial k eys ~ for greater convenience when dialing
(refer to “Use Speed Dial” on page 19).
After you access this option, the setting status for key #1 (
displayed. Press
If no phone number is assigned to the key, Unset will be displayed.
Press the left soft key
displayed (if there are no entries in the phonebook, No Record will be
displayed). Enter the first letter(s)/digit(s) of the desired entry (name).
to browse through the speed dial key settings.
(Set); the phonebook entry list will be
(Details) to view the
(Option), and select Edit
) will be
31
Phonebook (Names)
Press to highlight the entry, and press the left soft key (Ok)
to assign the number to the key
If a phone number has been assigned to the key, the corresponding
name will be displayed. To change or cancel the setting for this key,
press the left soft key
(Option), and then select Edit or Cancel
Note: If the record for a speed dial key is modified in the phonebook,
it will automatically be updated for the speed dial key function.
If the record for a speed dial key is deleted from the phonebook, it
will also be cancelled for the speed dial key function.
3.6 Memory
Memory
Select this option to view the number of records in each group category,
totally stored records (Used) and available records (Unused).
32
Menu -> Call Log
4. MENU
In standby mode, press the left soft key (Menu) to access the menu.
Press
(Ok) to access the submenu.
4.1 Call Log
Your phone records missed, received and dialed calls as well as their call
durations.
to reach the desired submenu, and press the left soft key
Call Log
In standby mode, you can press
Missed Log, Received Log or Dialed Log (refer to “Call Log Shortcut”
on page 25).
, or to quickly access
4.1.1 Missed Log
Call LogMissed Log
This option enables you to view the last 20 missed calls.
After you access this option, the phone will display the information of the
most recent missed call Missed 1: the caller’s phone number or name (if
the number is stored in the phonebook). Press
calls.
to view other missed
Note: This function only works in networks that support the Caller
ID service; otherwise No Caller ID will be displayed in the missed
log. If the caller’s phone is set to block the caller’s number, No
Caller ID will also be displayed.
When viewing a log, you can dial the caller’s phone number by pressing
.
33
Menu -> Call Log
When a call log is displayed, press the left soft key (Option). The
following options will be available:
4.1.1.1 Edit
After you access this option, the caller’s phone number will be displayed.
You can edit the phone number, and then save or dial the edited number:
Save Number
After editing the number, press the left soft key
name and press the left soft key
desired group category, and then press the left soft key
complete the operation.
Dial Number
After editing the number, press
(Ok). Press to highlight the
to call the displayed number.
(Save). Key in the
(Ok) to
Note: If No Caller ID is shown in the log, when you select Edit,
Number Error will be displayed.
When you are saving the number, the phone number and name
cannot be identical to those of an existing phone book entry.
Otherwise, the text Exists will be displayed after you enter the
name and press the left soft key
4.1.1.2 Time
Select this option to view the time the call came in.
4.1.1.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key
(Ok) to complete the deletion.
34
(Ok).
Menu -> Call Log
4.1.2 Received Log
Call LogReceived Log
This option enables you to view the last 20 received calls.
After you access this option, the phone will display the information of the
most recently received call Received 1: the caller’s phone number or
name (if the number is stored in the phonebook). Press
received calls.
to view other
Note: This function only works in networks that support Caller ID
service; otherwise No Caller ID will be displayed in the received log.
If the caller’s phone is set to block the caller’s number, No Caller ID
will also be displayed.
When viewing a log, you can dial the caller’s phone number by pressing
.
When a call log is displayed, press the left soft key
following options will be available:
4.1.2.1 Edit
After you access this option, the caller’s phone number will be displayed.
You can edit the phone number, and then save or dial the edited number.
Refer to “Edit” on page 34 under the Missed Log option for details.
4.1.2.2 Time
Select this option to view the time the call came in.
(Option). The
4.1.2.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key
(Ok) to complete the deletion.
35
Menu -> Call Log
4.1.2.4 Duration
Select this option to view the duration of the received call.
4.1.3 Dialed log
Call LogDialed Log
This option enables you to view the last 20 dialed calls.
After you access this option, the phone will display the information of the
most recent outgoing call Dialed 1: the dialed phone number or name (if
the number is stored in the phonebook). Press
outgoing calls.
to view other
Note: If you dial a number that has been recorded in the Dialed Log,
the phone will update the log after the call ends.
When viewing a log, you can call the dialed phone number by pressing
.
When a call log is displayed, press the left soft key
following options will be available:
4.1.3.1 Edit
After you access this option, the dialed phone number will be displayed.
You can edit the phone number, and then save or dial the edited number:
Save Number
(Option). The
After editing the number, press the left soft key
name and press the left soft key (Ok). Press to highlight the
desired group category, and then press the left soft key (Ok) to
complete the operation.
(Save). Key in the
36
Menu -> Call Log
Note: The phone number and name cannot be identical to those of
an existing phone book entry. Otherwise, the text Exists will be
displayed after you enter the name and press the left soft key
(Ok).
Dial Number
After editing the number, press
4.1.3.2 Time
Select this option to view the time the call was dialed.
4.1.3.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key
4.1.3.4 Duration
Select this option to view the duration of the dialed call.
(Ok) to complete the deletion.
to call the displayed number.
4.1.4 Delete Log
Call LogDelete Log
This option enables you to delete all missed calls, received calls, dialed
calls, or to delete all.
If you select Missed Log, Received Log or Dialed Log, the text
“Delete?” will be displayed. Press the left soft key
complete the deletion
If Delete All is selected, follow the prompts to enter the security code
and press the left soft key
security code is incorrect, Code Error will be displayed
(Ok) to delete all the call logs. If the
(Ok) to
37
Menu -> Call Log
4.1.5 Duration
Call LogDuration
This option enables you to view the approximate duration of received calls,
dialed calls, or the duration of all calls.
After accessing this option, press
calls (Received), dialed calls (Dialed), as well as the duration of all calls
(Tota l Ti m e ). The time will be displayed in “h:mm:ss” format.
To clear the timer, press the left soft key
will be displayed. Press the left soft key
operation.
to view the duration of received
(Reset). The text “Reset?”
(Ok) to complete the
38
Menu -> Profiles
4.2 Profiles
Profiles
This submenu enables you to customize the phone alert settings to suit a
variety of environments.
When you access this submenu, the profile list will be displayed; the
current profile will be highlighted. You can customize each profile, and
activate the one that suits your environment. The phone will utilize all the
current profile’s settings.
Standard is the factory-preset profile.
4.2.1 Standard
ProfilesStandard
4.2.1.1 Enable
ProfilesStandardEnable
Select this option to activate the selected profile.
4.2.1.2 Set
ProfilesStandardSet
This option enables you to change the selected profile’s settings,
including:
Ring Volume
Select this option to adjust the ring volume level for incoming calls and the
alarm clock.
There are two volume levels: High and Low. Press to reach the
desired volume level, and press the left soft key
operation.
(Ok) to complete the
39
Menu -> Profiles
Ring Mode
This function
incoming calls.
enables you to define how the phone will notify you of
The available op
to reach the desired ring mode, and press the left soft key
complete the operation.
Ring Tone
Press
ghl
After hi ighting the desired ring tone, press the left soft key
complete the operation.
Alarm Tone
This option enables you to select an alarm tone for the alarm clock.
Press
fter
each. A highlighting the desired alarm tone, press the left soft key
(Ok) to complete the operation.
Keypad Tone
If this function is activated, when you press any key, the phone will sound
a tone. When an operation on the phone is completed or fails, the
respective success/failure tone will sound.
Select On or Off to activate or deactivate th
Alert Tone
If this function
power is low. Select On or Off to activate or deactivate this function.
tions include: Ringing, Vibration and Mute. Press
(Ok
) to
nables you to select a special ring tone for incoming calls. This option e
to scroll through the ring tones and listen to a sample of each.
(Ok) to
to scroll through the alarm tones and listen to a sample of
is function.
is activated, a warning tone will sound when the battery
40
Menu -> Profiles
4.2.2 Meeting
ProfilesMeeting
This eeting environments. You can preset this
profile is suitable for m
option by following the same steps specified in
to meet your needs
“Standard”.
4.2.3 Outd
This utdoor environments. You can preset this
option by following the same steps specified in
“Standard”.
4.2.4 User
This ther environments. You can preset this
option owing the same steps specified in
“Standard”.
oor
ProfilesOutdoor
profile is suitable for o
to meet your needs
Define
ProfilesUser Define
profile can be tailored for o
to meet your needs by foll
41
Menu -> Settings
4.3 Settings
Settings
From this submenu, you can perform various phone settings.
4.3.1 Scheme
SettingsScheme
After accessing this option, you can select from the following options:
4.3.1.1 Static Picture
The standby display will become static after you set this option.
After this option is selected, its current setting will be highlighted. To
customize a text and display it in standby mode, select User-defined; to
select and display a picture in standby mode, select from the options
Photograph1~Photograph24.
If User-defined is selected, enter up to or 12 alphanumeric characters
(refer to “Input Method” on page 78), and then press the left soft key
(Ok) to complete the operation
If one of the options Photograph1~Photograph24 is selected, the
corresponding picture will be displayed. You can press
through other pictures. When the desired picture is displayed, press
the left soft key
4.3.1.2 Every Hour
The standby display will change every hour in a 24-hour cycle after you
set this option. When this option is accessed, these options will be
available:
(Ok) to complete the operation
to browse
42
Menu -> Settings
Default
The standby display will change every hour in the default picture
sequence after you select this option.
User Edit
This option enables you to specify the picture or text for each hour
(Picture1~Picture24).
Select from the options Picture1~Picture24, and then edit text or select a
picture by following the same operations specified in “Static Picture”.
Default pictures will remain for unedited options.
Change Preview
Select this option to preview the current setting for Every Hour. You can
press the left soft key
4.3.1.3 Every 3 Hours
The standby display will change every three hours in a 24-hour cycle after
you set this option. Follow the same operations specified in “Every Hour”.
4.3.1.4 Every Day
The standby display will change every day in a 7-day cycle after you set
this option. Follow the same operations specified in “Every Hour”.
(Replay) to re-preview the pictures or text.
4.3.2 Date/Time
SettingsDate/Time
This option enables you to set the phone’s date and time.
After accessing the option, enter a date from 2004-01-01 to 2019-12-31,
and then enter the time in the corresponding time format. Press the left
43
Menu -> Settings
soft key (Ok) to complete the operation.
When you key in the date or time, you can press to move the
cursor and modify the number
4.3.3 Answer Mode
SettingsAnswer Mode
This option enables you to select how to answer an incoming call.
After you access this option, the following will be available:
4.3.3.1 Any Key
Press any key to answer an incoming call except the right soft key
the
key and the key.
4.3.3.2 Talk Key
Press the left soft key
incoming call.
(Answer) or the key to answer an
4.3.4 Language
SettingsLanguage
This option enables you to select the language of the phone’s text display.
4.3.5 Display
SettingsDisplay
You may set the display for the LCD screen as follows:
44
,
Menu -> Settings
4.3.5.1 Backlight
SettingsDisplayBacklight
If the Backlight is not set to Off, the LCD screen and keypad will light
when you press keys or the phone receives a call.
The following options are available:
Off
Select this option to deactivate the backlight.
Battery Saving
In this mode, the backlight will last for 5 seconds after the last keystroke.
Normal
In this mode, the backlight will last for 15 seconds after the last keystroke.
4.3.5.2 Contrast
SettingsDisplayContrast
This option enables you to specify the contrast level for the LCD screen.
There are six contrast levels. Press
the contrast. The screen display will reflect the contrast setting. After
reaching the desired contrast level, press the left soft key
complete the operation.
4.3.5.3 Screen Saver
to increase or to decrease
(Ok) to
SettingsDisplayScreen Saver
If the Screen Saver is not set to Off, the clock screen saver will be
displayed after the phone has been in standby mode for one minute. The
screen saver will disappear when you press keys.
45
Menu -> Settings
The following options are available:
Digital Mode
In this mode, the screen saver will display a digital clock.
Analog Mode
In this mode, the screen saver will display an analog clock.
Off
Select this option to deactivate the Screen Saver function.
4.3.5.4 On/Off Animation
SettingsDisplayOn/Off Animation
This option enables you to select the power-on/off animation.
Select one of the options Animation 1 ~ Animation 4; the corresponding
animation will be displayed. Press the left soft key
the operation.
(Ok) to complete
4.3.6 Set Security
SettingsSet Security
This password protected option enables you to set the security level to
protect your phone from unauthorized use.
After accessing this option, you will be prompted to enter the user
definable security code (i.e. password). Key in the security code and
press the left soft key
available (otherwise Code Error will be displayed):
(Ok). If correct, the following options will be
Note: The initial default security code is “888888”.
46
Menu -> Settings
4.3.6.1 PowerOn Code
If this function is active, the security code will need to be entered each
time you switch on the phone.
After accessing this option, select On or Off to activate or deactivate.
4.3.6.2 Change Code
Select this option to change the security code. Observe the following
steps:
1. When New Code is displayed, enter a new security code (0~6 digits
long, using numbers 0~9), and then press the left soft key
(Ok).
Confirm Code will be displayed.
2. Enter the new security code again and press the left soft key
(Ok)
to complete the operation.
The security code is “888888” by default
If the new security code entered in step 2 is different from that entered
in step 1, when you press the left soft key
(Ok), Not Matched will
be displayed
To avoid any inconvenience, please remember the new security code
4.3.6.3 Reset All
Select this option to restore your phone’s default settings.
When you access this option, “Reset All?” will be displayed. Press the
left soft key
(Ok) to complete the operation.
This operation will not delete the phonebook entries or call logs. It cannot
change the phone’s date and time either.
47
Menu -> Settings
Phone Default Settings
Functions Default Settings
Profiles Standard
Listening Volume 3
Call Log (Duration) 0:00:00
Speed Dial Setting Unset
Phonebook Group (Ring Tone) Ring 5
Security Code 888888
PowerOn Code Off
Scheme Static Picture
Scheme (Static Picture) Photograph1
Scheme (User-defined) (Blank)
Answer Mode Talk Key
Language English
Backlight Battery Saving
Contrast 3
Screen Saver Digital Mode
On/Off Animation Animation 3
Alarm (On/Off) Off
Alarm (Set Time)
Alarm (Snooze)
Time Format 24 Hour
08:00
Off
Profiles Default Settings
Profile
Options
Ring Volume High Low High High
Standard Meeting Outdoor
User
Define
48
Menu -> Settings
Profile
Options
Ring Mode Ringing Vibration Ringing Ringing
Ring Tone Ring 6 Ring 6 Ring 6 Ring 6
Alarm Tone Ring 3 Ring 3 Ring 3 Ring 3
Keypad Tone Off Off Off Off
Alert Tone On Off On On
Standard Meeting Outdoor
User
Define
49
Menu -> Tools
4.4 Tools
Tools
From this submenu, you can use the Calculator, view the Calendar, set
the Alarm, change the current Time Zone, enable DST (Daylight Saving
Time) or set Time Format.
4.4.1 Calculator
ToolsCalculator
This function enables you to add, subtract, multiply and divide.
1. The screen will initially display the number “0”. Enter the first number to
be calculated.
- To enter a minus sign, press
made negative); to enter a decimal point, press
2. Press
division signs respectively.
3. Enter the second number.
- To enter “0”, press
4. Press to display the calculation result.
- To conduct further calculations from this result, repeat steps 2~4
5. When starting a new calculation, if the result from the last calculation is
not “0”, press the right soft key
To delete the character you just entered, press the right soft key
(Clear); to erase all entered characters, press and hold the right soft
key
, , or to enter the plus, minus, multiplication or
and ; “0.0” will be displayed
(Clear)
(only the first number can be
(Clear) to initialize.
50
Menu -> Tools
A maximum of 9 digits (including minus sign and decimal point) can be
entered at one time
If the formula violates mathematical principles (for example, 5/0),
Error will be displayed
If the absolute value of the calculation result exceeds 999,999,999,
Overflow will be displayed
4.4.2 Calendar
ToolsCalendar
This function enables you to view the calendar from January 1, 2004 to
December 31, 2021.
After accessing this option, you can press
to highlight the desired
date.
4.4.3 Alarm
ToolsAlarm
This function enables you to set the alarm for a specified time. Once
activated, the alarm indicator
When the preset alarm time expires, the phone will sound the alarm;
will be displayed.
an alarm icon and the current time will be displayed. The alarm will
sound for 30 seconds unless dismissed
To dismiss the alarm and return to standby mode, press any key
If the alarm time expires during a call, the alarm will not sound
You can set the alarm function by observing the following operations:
4.4.3.1 On/Off
ToolsAlarmOn/Off
After accessing this option, select On or Off to activate or deactivate the
alarm function.
51
Menu -> Tools
4.4.3.2 Set Time
ToolsAlarmSet Time
Select this option to set the alarm time. Enter the time in 24-hour time
format, and then press the left soft key
(Ok) to complete the
operation.
When you key in the time, you can press to move the cursor and
modify the number
The cursor will advance if the number entered is valid; otherwise, the
phone will sound an error tone (if the Keypad Tone is set to On)
4.4.3.3 Snooze
ToolsAlarmSnooze
If this function is activated, the alarm will repeat 3 times at 5-minute
intervals after the original alarm time expires.
You can select On or Off to activate or deactivate this function.
4.4.4 Time Zone
ToolsTime Zone
This function enables you to change the current time zone.
After you access this option, some cities (time zones) and their time
differences will be displayed; the current time zone will be highlighted.
Press to highlight the desired time zone, and then press the left soft
key (Ok) to set it as the current time zone. The phone’s time will
change accordingly.
52
Menu -> Tools
4.4.5 DST Setting
ToolsDST Setting
This function enables you to activate or deactivate Daylight Saving Time
(DST).
After accessing this option, select On or Off to activate or deactivate the
DST function.
4.4.6 Time Format
ToolsTime Format
This option enables you to set the time format.
After accessing this option, select 12 Hour or 24 Hour.
53
Menu -> WiFi-Settings
4.5 WiFi-Settings
WiFi-Settings
From this submenu, you can perform the following WiFi settings.
Note: After completing WiFi settings, switch the phone off and then
on, to apply the changed WiFi settings.
4.5.1 Net Search
WiFi-SettingsNet Search
This option enables you to search available APs (10 maximum) for the
phone. APs can be defined and saved using the Net Search feature if APs
have broadcast turned on and the phone is within their ranges.
After selecting this option, the phone will start to search for APs. Available
APs will be listed according to the signal strength. The strongest AP’s
SSID will be highlighted at the top of the list.
Those with no lock icon next to the name are open APs; those with a lock
icon (
or ) are protected APs and you will need to supply their WEP
keys or WPA-PSKs to access them.
Press
(Save). Press
soft key (Save) to save the SSID to the AP profile.
You can then follow the prompt to set the security mode and/or the
encryption code (WEP key or WPA-PSK) and activate the AP profile. For
detailed operations, refer to “AP Profile” on page 55.
to highlight the desired SSID, and press the left soft key
to highlight the desired AP profile, and press the left
Note: When the phone is connecting to an AP, you can press the
right soft key
(Search) to start the search for available APs.
If the desired AP has broadcast turned off, the AP can be entered
directly through a series of keystrokes on your handset. (Refer to
“AP Profile” on page 55)
54
Menu -> WiFi-Settings
4.5.2 WiFi Config
WiFi-SettingsWiFi Config
From this option, you can perform the following WiFi configuration:
4.5.2.1 AP Profile
WiFi-SettingsWiFi ConfigAP Profile
This option enables you to set up to four AP (Access Point) profiles. Each
time you switch on the phone, the phone will try to connect to one of these
APs according to their respective profile settings.
After you select this option, the AP profile list will be displayed. If the
security mode of an AP profile is set to WEP Key, the
displayed in front of the AP profile. If the security mode is set to WPA-PSK,
the
icon will be displayed in front of the AP profile. If the security mode
is set to Open AP, no icon will be displayed in front of the AP profile.
icon will be
Press
key
SSID
This option enables you to save an AP’s SSID to the AP profile.
After accessing this option, enter the SSID (32 alphanumeric characters
maximum), and then press the left soft key
operation.
Security Mode
This option enables you to set the security mode for the AP profile.
After accessing this option, select Open AP, WEP KEY or WPA-PSK:
If WEP KEY is selected, the phone will then display the options of
to highlight the desired AP profile, and then press the left soft
(Ok). The following options will be available:
(Ok) to complete the
WEP Key Info (refer to “WEP Key Info”)
55
Menu -> WiFi-Settings
If WPA-PSK is selected, the phone will then display the PSK-editing
screen (refer to “WPA-PSK Info”)
WEP Key Info
If the AP profile’s security mode is set to WEP Key, select this option to
set the WEP key. After accessing this option, observe the following
operations:
1. Select Auth. Method, and then select the authentication method:
Open Key or Shared Key.
2. Select 64bit or 128bit according to the AP’s WEP key setting. Enter
the WEP key that the AP used, and press the left soft key
- If 64bit is selected, ensure that the WEP key consists of five ASCII
characters or ten hexadecimal characters
- If 128bit is selected, ensure that the WEP key consists of 13 ASCII
characters or 26 hexadecimal characters
3. Select WEP Key Index. Enter the WEP key index (1-4), and then
press the left soft key
(Ok).
(Ok).
Note: The WEP key setting may be different due to AP settings.
If an AP supports only a fixed hexadecimal WEP key, you should
enter the same WEP key in the phone.
If an AP supports both ASCII and hexadecimal WEP keys, you can
enter either the ACSII WEP key or the hexadecimal WEP key in the
phone.
WPA-PSK Info
If the AP profile’s security mode is set to WPA-PSK, select this option to
set the WPA-PSK key.
After accessing this option, enter the WPA-PSK key and press the left soft
key (Ok) to complete the operation.
56
Menu -> WiFi-Settings
Ensure that the WPA-PSK key consists of 8-63 ASCII characters or 64
hexadecimal characters
Activate
Select this option to connect to the AP according to the AP profile setting.
If the connection fails, the phone will try to connect to other AP profiles’
APs. If the phone fails to connect to all these APs and the Auto Scan
function is active, the phone will try to search and connect to another
available open AP. (Refer to “Auto Scan” on page 57)
4.5.2.2 Auto Scan
WiFi-SettingsWiFi ConfigAuto Scan
If the Auto Scan function is active, when the phone is switched on and
fails to connect to the APs specified in “AP Profile”, the phone will do a
scan for available APs and try to connect to one open AP of these
scanned APs.
After accessing this option, select Enable or Disable to activate or
deactivate the Auto Scan function.
Note: If the phone fails to connect to all the specified and scanned
APs, the phone will periodically retry AP connections.
If the phone fails to register with the service network after the AP
connection, the phone will prompt you to try another AP.
4.5.3 Web Configuration
A PC browser can be used as an alternative to configuring AP profile and
network information via the handset. Ensure that the PC is connected to
the same AP as the phone.
1. Enter the phone's IP address in the address bar of the PC's web
browser and press <Enter>.
57
Menu -> WiFi-Settings
2. Follow screen prompts to enter the user name (“user”) and password
(the phone’s security code), and then click <OK>.
The WiFi Web Server Management window will be displayed:
58
Menu -> WiFi-Settings
3. Click USER MENU, and then you can select:
- Local Network Config: To view the phone’s network status and
perform network configuration
59
Menu -> WiFi-Settings
- Wireless AP Config: To configure the phone’s AP profiles
60
Menu -> WiFi-Settings

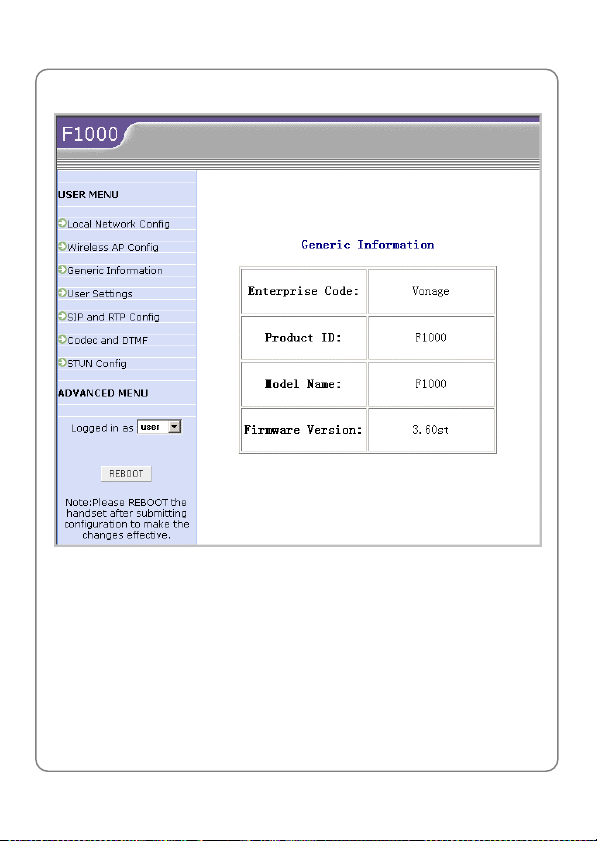

- Generic Information: To view the phone’s generic information
61
Menu -> WiFi-Settings
- User Settings: To configure the phone’s user settings
62
Menu -> WiFi-Settings
- SIP and RTP Config: To perform SIP and RTP configurations
63
Menu -> WiFi-Settings
- Codec and DTMF: To configure the codec and DTMF
64
Menu -> WiFi-Settings
- STUN Config: To perform STUN configurations
4. After configuring the desired parameters, click <submit> and then click
<REBOOT> to initiate and save the configurations.
4.5.4 Network Parameter
WiFi-SettingsNetwork Parameter
This option enables you to set network parameters:
4.5.4.1 DHCP
WiFi-SettingsNetwork ParameterDHCP
If the DHCP function is active, the phone will obtain an IP address
65
Menu -> WiFi-Settings
automatically from the DHCP server.
After accessing this option, select Disable or Enable to disable or enable
DHCP.
4.5.4.2 IP
WiFi-SettingsNetwork ParameterIP
This option enables you to perform IP settings.
Note: Only when DHCP is disabled, can the IP option be available.
Otherwise, when you select this option, Please disable DHCP will
be displayed.
IP Address
Select this option to set the phone’s IP address.
After accessing this option, key in the IP address, and press the left soft
(Ok) to complete the operation.
key
Subnet Mask
Select this option to set the subnet mask.
After accessing this option, key in the subnet mask, and press the left soft
(Ok) to complete the operation.
key
Gateway IP Address
Select this option to set the gateway IP address.
After accessing this option, key in the gateway IP address, and press the
left soft key
(Ok) to complete the operation.
66
Menu -> WiFi-Settings
4.5.4.3 DNS
WiFi-SettingsNetwork ParameterDNS
This option enables you to perform DNS settings.
Primary DNS Server IP Address
Select this option to set the IP address of the local primary DNS server.
After accessing this option, key in the IP address, and press the left soft
(Ok) to complete the operation.
key
Secondary DNS Server IP Address
Select this option to set the IP address of the local secondary DNS server.
After accessing this option, key in the IP address, and press the left soft
(Ok) to complete the operation.
key
Priority
Select this option to set the priority.
You can select DHCP First or Local First.
4.5.4.4 Network Information
WiFi-SettingsNetwork ParameterNetwork Information
Select this option to view the network information. Press
through the phone’s IP Address, Subnet Mask, Gateway IP Address,
MAC Address, Connected SSID and DNS Address.
to browse
67
Menu -> WiFi-Settings
4.5.5 Signal Protocol
WiFi-SettingsSignal Protocol
From this option, you can set signal protocols:
4.5.5.1 SIP
WiFi-SettingsSignal ProtocolSIP
This option enables you to set the SIP protocol. The following options are
available:
SIP Register Server Mode
Select this option to set the SIP register server mode.
After accessing this option, you can select IP or DNS.
SIP Register Server Domain Name
Select this option to set the SIP register server domain name.
After accessing this option, enter the domain name, and press the left soft
(Ok) to complete the operation.
key
SIP Register Server IP Address
Select this option to set the SIP register server IP address.
After accessing this option, key in the IP address, and press the left soft
(Ok) to complete the operation.
key
SIP Register Server Port
Select this option to set the SIP register server port.
After accessing this option, key in the port number, and press the left soft
68
Menu -> WiFi-Settings
key (Ok) to complete the operation.
SIP Outbound Proxy
Select this option to set the SIP outbound proxy.
After accessing this option, you can select IP or DNS.
SIP Outbound Server Domain Name
Select this option to set the SIP outbound server domain name.
After accessing this option, enter the domain name, and press the left soft
(Ok) to complete the operation.
key
SIP Outbound Server IP Address
Select this option to set the SIP outbound server IP address.
After accessing this option, key in the IP address, and press the left soft
key (Ok) to complete the operation.
SIP Outbound Server Port
Select this option to set the SIP outbound server port.
After accessing this option, key in the port number, and press the left soft
(Ok) to complete the operation.
key
SIP User Name
Select this option to set the SIP user name.
After accessing this option, enter the user name (1~32 alphanumeric
characters), and press the left soft key
operation.
(Ok) to complete the
69
Menu -> WiFi-Settings
SIP Authentication String
Select this option to set the SIP authentication string.
After accessing this option, enter the authentication string, and press the
left soft key
SIP Password
Select this option to set the SIP password.
After accessing this option, follow the prompt to enter the security code
and press the left soft key
alphanumeric characters), and press the left soft key
complete the operation.
4.5.5.2 RTP
Select this option to set the RTP protocol.
After you access this option, the RTP Port option will be displayed.
RTP Port
This option enables you to set the RTP port.
After accessing this option, key in the RTP port number (10000~20000),
and press the left soft key
The port number should range from 10000 to 20000; otherwise Illegal
input will be displayed
(Ok) to complete the operation.
(Ok). Enter the SIP password (0~32
(Ok) to
WiFi-SettingsSignal ProtocolRTP
(Ok) to complete the operation.
4.5.5.3 NAT
WiFi-SettingsSignal ProtocolNAT
Select this option to set the NAT protocol. After you access this option, the
STUN option will be displayed:
70
Menu -> WiFi-Settings
STUN
This option enables you to set the STUN protocol:
Server Name
Select this option to set the STUN server name.
After accessing this option, key in the STUN server name, and press the
left soft key (Ok) to complete the operation.
Server Port
Select this option to set the STUN server port.
After accessing this option, key in the STUN server port number, and
press the left soft key
On/Off
Select On or Off to activate or deactivate the STUN function.
4.5.5.4 Voice Mail
WiFi-SettingsSignal ProtocolVoice Mail
This option enables you to perform voice mail settings.
After you access this option, the Voice Mail Access Number option will
be displayed.
Voice Mail Access Number
Select this option to set the voice mail access number.
After accessing this option, key in the access number, and press the left
soft key
(Ok) to complete the operation.
(Ok) to complete the operation.
71
Menu -> Network Service
4.6 Network Service
Network Service
From this submenu, you can set the following network services:
4.6.1 Call Waiting
Network ServiceCall Waiting
This option enables you to set the Call Waiting function.
4.6.1.1 Per Call Basis
Network ServiceCall WaitingPer Call Basis
Select Enable or Disable to activate or deactivate the per call basis Call
Waiting function.
4.6.2 Call Transfer
Network ServiceCall Transfer
If the call transfer function is active, you can transfer an ongoing call to
another phone number. (Refer to “Transfer a Call” on page 22.)
After you access this option, the following will be available:
4.6.2.1 Disable
Network ServiceCall TransferDisable
Select this option to disable the call transfer function.
4.6.2.2 Blind
Network ServiceCall TransferBlind
If this option is selected, you can directly transfer an ongoing call to
another phone number after the connection succeeds.
72
Menu -> Network Service
4.6.2.3 Consult
Network ServiceCall TransferConsult
If this option is selected, you need to announce the transfer after the
transferred-to party answers your call. Then, press the left soft key
(Transfer) to transfer the intended call.
4.6.2.4 Blind & Consult
Network ServiceCall TransferBlind & Consult
Select this option to activate both Blind and Consult Call Transfer
functions.
4.6.3 Three Way Call
Network ServiceThree Way Call
If the Three Way Call function is active, you can make a conference call
with two parties (refer to “Conference Call” on page 22).
After accessing this option, select Enable or Disable to activate or
deactivate the Three Way Call function.
4.6.4 Register Interval Time
Network ServiceRegister Interval Time
This option enables you to set the register interval time.
After accessing this option, enter the interval time (0~86400 seconds),
and then press the left soft key
(Ok) to complete the operation.
4.6.5 Caller-ID Block
Network ServiceCaller-ID Block
If this function is active, when you make a call, your phone number will not
73
Menu -> Network Service
be displayed on the called party’s phone.
After accessing this option, select On or Off to activate or deactivate this
function.
4.6.6 Repeat Dial on Busy
Network ServiceRepeat Dial on Busy
If this function is active, the phone will enable you to select to
automatically redial the last busy number that you tried to dial.
After accessing this option, select On or Off to activate or deactivate this
function.
4.6.7 Reject Anonymous Incoming Call
Network Service Reject Anonymous Incoming Call
If this function is active, the phone will automatically reject anonymous
incoming calls.
After accessing this option, elect On or Off to activate or deactivate this
function.
4.6.8 Personal Information
Network ServicePersonal Information
To set a caller ID name for the phone. After accessing this option, enter
the caller ID and press the left soft key
(Ok) to complete the operation.
74
Menu -> MISC
4.7 MISC
MISC
From this submenu, you can perform the following operations:
4.7.1 Vendor Information
MISCVendor Information
Select this option to view the vendor information. Press
the desired option: Vendor Name, Enterprise Code, Model Name and
Ver sio n, and then press the left soft key
corresponding information.
to highlight
(Ok) to view the
4.7.2 PC Config
MISCPC Config
This option enables you to download WiFi setting parameters from a PC
to the phone.
When the operation is complete, restart the phone
4.7.3 Remote TFTP Update
MISCRemote TFTP Update
This option enables you to perform remote TFTP update.
After you select this option, the phone will display a notice for the remote
TFTP update. Press
left soft key
(Update) to initiate the remote TFTP update process.
to browse through the information. Press the
Note: The phone will spend a long time completing the remote
TFTP update. Please do not unplug the battery. When the update
operation is complete, restart the phone.
75
Menu -> MISC
4.7.4 Remote TFTP Server
MISCRemote TFTP Server
This option enables you to set the remote TFTP server.
After accessing this option, key in the domain name of the remote TFTP
server, and press the left soft key
(Ok) to complete the operation.
4.7.5 Local TFTP Update
MISCLocal TFTP Update
This option enables you to perform local TFTP update.
After accessing this option, follow the prompt to enter the security code
and press the left soft key
local TFTP update. Press
the left soft key
(Update) to initiate the local TFTP update process.
(Ok). The phone will display a notice for the
to browse through the information. Press
Note: The phone will spend a long time completing the local TFTP
update. Please do not unplug the battery. When the update
operation is complete, restart the phone.
4.7.6 Local Log
MISCLocal Log
Select this option to view the phone’s status information (for example,
network connection, SIP messages). This information will be useful when
troubleshooting a problem.
After accessing this option, press the left soft key
through items.
(Next) to browse
76
Menu -> MISC
4.7.7 Web Authentication
MISCWeb Authentication
Set this option when you use the phone in an area that requires web
authentication.
After you access this option, the following will be available:
4.7.7.1 Set Address
Select this option to set the effective URL for script download
After accessing this option, key in the URL, and press the left soft key
(Ok) to complete the operation
4.7.7.2 Download Script
Select this option to initiate script download.
Script files may be different due to authentication methods. You may
need to download script files each time you perform web
authentication for a different area
For detailed information, contact the area’s network administrator
4.7.7.3 Log In
Select this option to log in and follow the prompt to enter the
corresponding user name and password.
77
Input Method
5. INPUT METHOD
This phone supports English Letter and Digit input methods, in order to
provide easy input for letters and digits in text editing mode.
5.1 Switch Input Method
In text-editing mode, press to switch between these input methods.
The current input method indicator will be displayed at the lower left side
of the screen and include:
Input Method Indicator
English
Letter
Digit
5.2 English
The phone supports intelligent English input and word association,
speeding up the input process.
Switch the input method to English;
left corner of the screen.
will be displayed at the lower
1. To enter letters, press
on the respective key; a word matching the input letters will be
displayed automatically.
- When you enter the first letter of any English word, “*” will be
displayed (except
will automatically associate the matched English words
~ one time for the letters labeled
and ). As you input letters, the phone
78
Input Method
- If the letter input does not correspond with any English word in the
phone’s dictionary, this key press will have no response
- Press the right soft key
right to left
2. Select a word and change upper/lower case: If the word displayed is
not desired, press
to switch between upper and lower cases; press once to capitalize
the initial letter; press twice to capitalize all letters; press three times to
return letters to lower case.
(Clear) repeatedly to delete letters from
to scroll through other word alternatives. Press
3. Enter the selected word: Press the left soft key
confirm the selected word and to remove the underline; or press
to confirm the word and to add a space.
- When no word is underlined, press
to switch input methods; press to move the cursor; press
the right soft key
cursor; press and hold the right soft key
characters
4. Enter symbols: When no word is underlined, press
symbol list. Press
soft key
to enter the selected symbol.
(Clear) to delete the character to the left of the
to highlight the intended symbol. Press the left
(Ok) or to
to enter a space; press
(Clear) to delete all
to display the
5.3 Letter
Switch to Letter input method; will be displayed at the lower left corner
of the screen.
1. Press
respective key. To input a letter, press the corresponding key
repeatedly until the letter appears.
~ to enter the corresponding letter labeled on the
79
Input Method
For example: if you press repeatedly, the following letters
appear in turn:
- The letter just entered will be underlined. When the letter is
underlined, press
press the right soft key
2. After you have entered the intended letter, press any other key on the
keypad to input the next letter. If the next letter and current letter share
the same key, press the left soft key
underline, and then enter the next letter; or simply wait for one second
to input again. Press to confirm the current letter input and enter
a space.
to switch between upper and lower cases;
(Clear) to delete the letter
(Ok) or to remove the
3. Enter symbols and spaces: After the underline disappears, press
to display the symbol list. Press
and then press the left soft key
to enter a space.
4. When no letter is underlined, press
right soft key
press and hold the right soft key
press
(Clear) to delete the character to the left of the cursor;
to switch input methods.
to highlight the intended symbol,
to enter the selected symbol. Press
to move the cursor; press the
(Clear) to delete all characters;
5.4 Digit
Switch to digit input method; will be displayed in the lower left corner
of the screen.
To enter digits, press the corresponding number keys
Press
to switch input methods.
80
~ .
Troubleshooting
6. TROUBLESHOOTING
When using this phone, if you run into malfunctions, please refer to the
following troubleshooting techniques before requesting help:
Symptom Diagnosis Solution
Press and hold
for more than 2
seconds.
Insert the
connector correctly.
Ensure the phone’s
WiFi settings are
correct.
Move closer to the
AP for better signal
strength.
Enter the correct
number to make
the call.
Select different ring
mode or different
profile.
In standby mode,
press and hold
again.
The phone
cannot be
switched on
Cannot make
calls
No ring
Have you pressed
and held it for more than 2
seconds?
Is the battery connector
reversed?
Is the battery low? Charge the battery.
Is the phone connected to
an AP and registered with
the service network?
Is the phone outside of
e AP’s range? Is there
th
sufficient signal strength?
Is the keypad locked? Unlock the keypad.
Is the phone number
correct?
Is the ring mode of the
current profile set to
Vibration or Mute?
Have you pressed and
held
mode, displaying ?
in standby
81
Troubleshooting
Symptom Diagnosis Solution
Is there an obstacle
Strong
interference noise
during call; or call
interrupted
The battery
cannot be
charged (The
battery indicator
bar does not
scroll)
How to know the
F1000 phone’s IP
address and MAC
Address?
Net Search didn't
find my AP
If the malfunction symptoms are not listed in the above table, or the
corresponding solution is invalid, please contact your local service
provider.
For Technical Support and Assistance please visit the website at:
http://userforums.utstar.com (Free Registration Required)
You can find the latest User Manual at:
http://www.utstar.com/Solutions/Handsets/WiFi/
nearby that is preventing
signals from passing?
Is there data download
via the AP, which affects
your phone’s signal
quality?
Is the charger properly
connected to the phone?
Is the charger connected
to a 100-240V AC wall
outlet?
Have you accessed the
Network Information
option?
Is SSID broadcasting
disabled on your AP?
Is the phone within range
of your AP?
Move to another
area.
Connect to another
AP or stop the data
download.
Connect the
charger and phone
correctly.
Connect the
charger to a
100-240V AC wall
outlet correctly.
Refer to “Network
Information” on
page 67.
Enable your AP’s
SSID broadcasting.
Move to your AP’s
range.
82
