Page 1
Electric Meter Jumper Leads
Operation Manual
USJL-001
Our Electric Meter Jumper Lead sets are a convenient and safe method to prevent a customer outage during
meter removal or change-out.

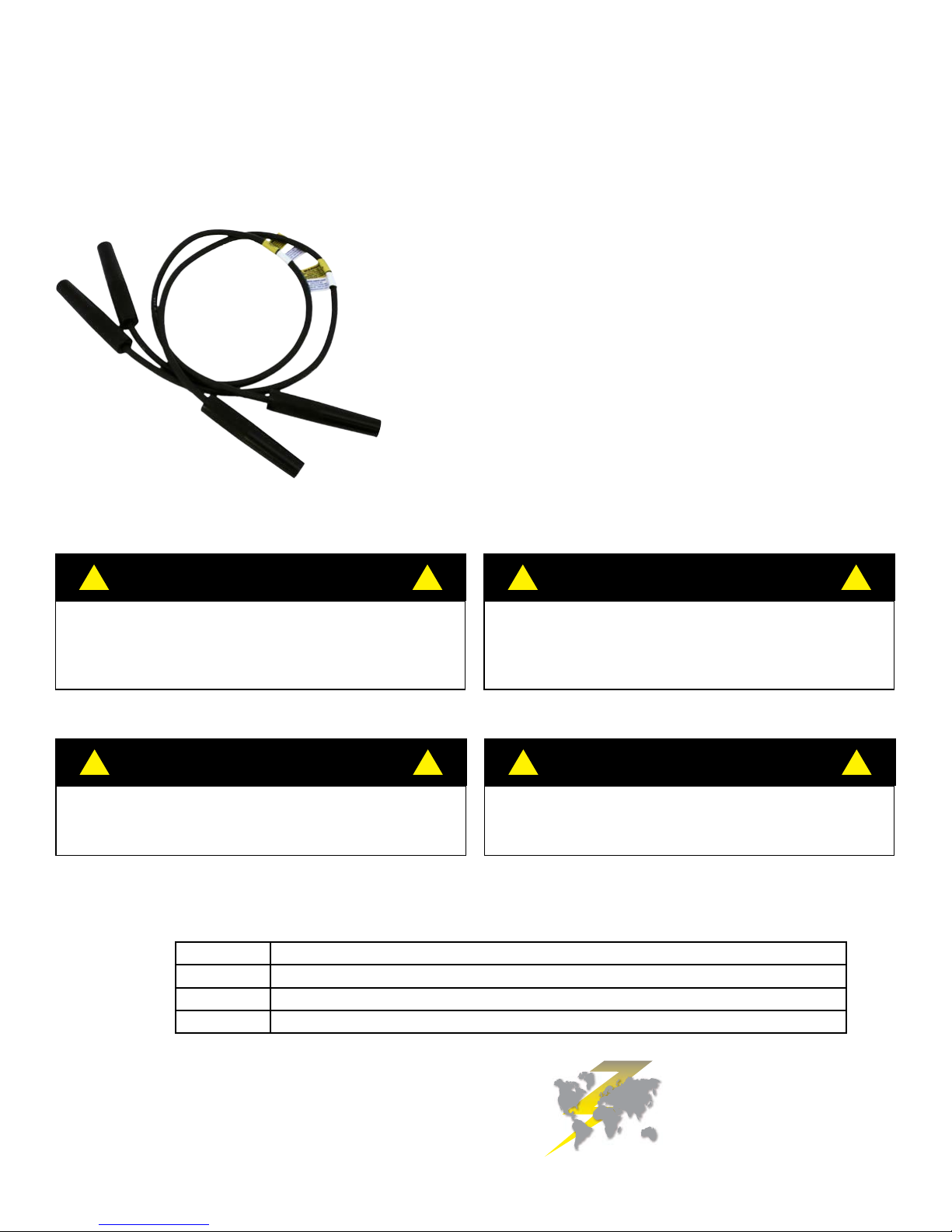

USJL-001 Electric Meter Jumper Leads - Ferrule End
Manual Rev. 1.5 (3-6-14)
The USJL-001 Electric Meter Jumper Lead Set has a maximum
rating of 200 Amps and 240 Volts AC when attached in parallel
(each individual lead has a maximum of 100 Amps).
USJL-001 has a ferrule connector and can only be attached to
meter sockets with horn bypass lugs. Horn bypass lugs are a
factory installed residential socket option. The horn bypass lugs
consist of specially designed lugs with metal tangs that act as
attachment points for insulated jumper leads.
The lack of exposed metal on the USJL-001 provides a
substantial level of safety for the operator.
! !
Carefully read and fully understand this manual
prior to operating, maintaining or testing
this device. Improper operation, handling or
maintenance of this device can result in death,
grievous personal injury and or equipment damage.
! !
e Electric Meter Jumper Lead Set is to be used in a
temporary capacity only. Do not utilize the tool in a
permanent capacity or for extended periods of time.
WARNING
WARNING
Product Line
USJL-001 Ferrule Connection for Bypass Horn Lugs
USJL-002 Ferrule Connection for Bypass Horn Lugs w/ 100 Amp Breaker
USJL-003 Alligator Clamp Connection for Standard Lugs
USJL-004 Alligator Clamp Connection for Standard Lugs w/ 100 Amp Breaker
! !
Follow safe work procedures and practices
when utilizing this device. Follow all existing
codes, requirements and instructions for all
equipment used in conjunction with this device.
! !
e Electric Meter Jumper Lead Set is
not waterproof. Do not use this device
WARNING
WARNING
in wet conditions.
rd
101 33
Street Drive SE · Hickory, NC 28602
TILITY
U
S
OLUTIONS
Lineman driven. Field proven.
™
Page 2

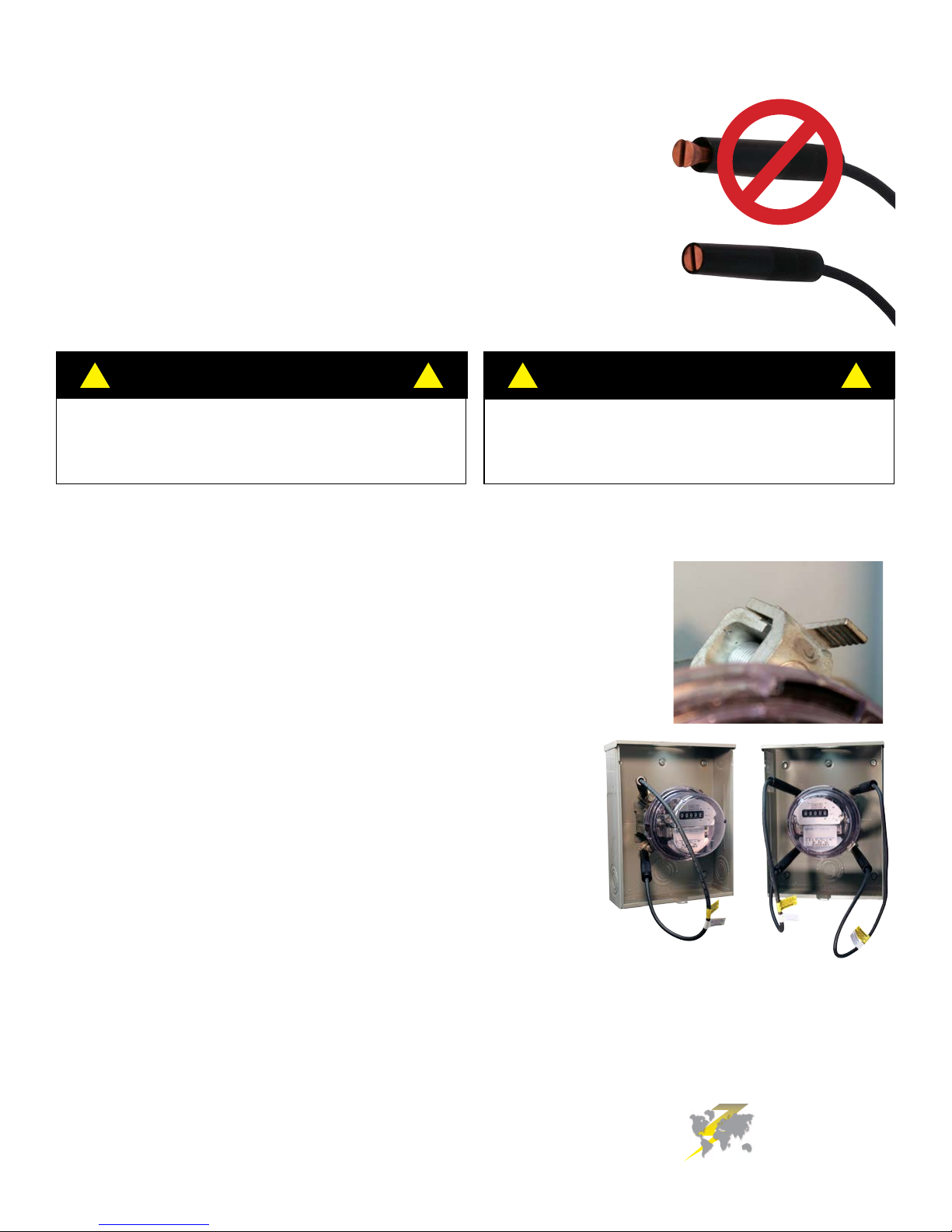

BEFORE Installing
Visually inspect the tool to verify that the protective cable is not cut or damaged.
Prior to installation of the USJL-001 ensure that all four insulated handles
are in the receiving position. This means that the insulated handle has been
unthreaded so that the copper attachment ferrule is just barely recessed inside
the black insulated handle. The ferrule should not protrude from the insulated
handle.
Also prior to installation ensure that the ferrule, when in the receiving position,
has a wide enough attachment slot opening. If necessary unthread the ferrule
past the insulated handle and use a large at head screwdriver to open the slot
accordingly.
! !
WARNING
! !
DANGER
Contact with high voltage will cause death or
Only utilize this tool while wearing appropriate
rated gloves and personal protective equipment.
grievous personal injury to the operator. Only
use this device in conjunction with safe operating
practices around energized lines and equipment.
Installation, Removal and Storage
1. Remove the Meter Enclosure Cover.
2. Push one end of a jumper lead ferrule over the load side bypass horn until
fully seated.
3. Turn the insulated handle clockwise until the jumper ferrule rmly clamps
onto the bypass horn.
4. Push the corresponding jumper lead ferrule over the source side bypass
horn until fully seated.
5. Turn the insulated handle clockwise until the jumper ferrule rmly clamps
onto the bypass horn.
6. Repeat the same process for the other side of the meter base
with the remaining jumper lead.
7. Verify that the jumper leads are secure and will not interfere with
the removal of the meter.
8. Remove the meter.
9. After the meter has been replaced remove the jumper leads
one side at a time. Unthread and remove the insulated handle
attached to the load side rst followed by the corresponding
source side ferrule.
10. Repeat the same process for the other side of the meter base.
Warranty
Utility Solutions, Inc. warrants the Electric Meter Jumper Lead Set for any defects in manufacturing
for the period of one year. If the tool is returned within that time period, Utility Solutions, Inc. will
replace the tool free of charge.
USJL-001
Manual Rev. 1.5 (3-6-14)
UTILITY
S
OLUTIONS
2
Lineman driven. Field proven.
™
