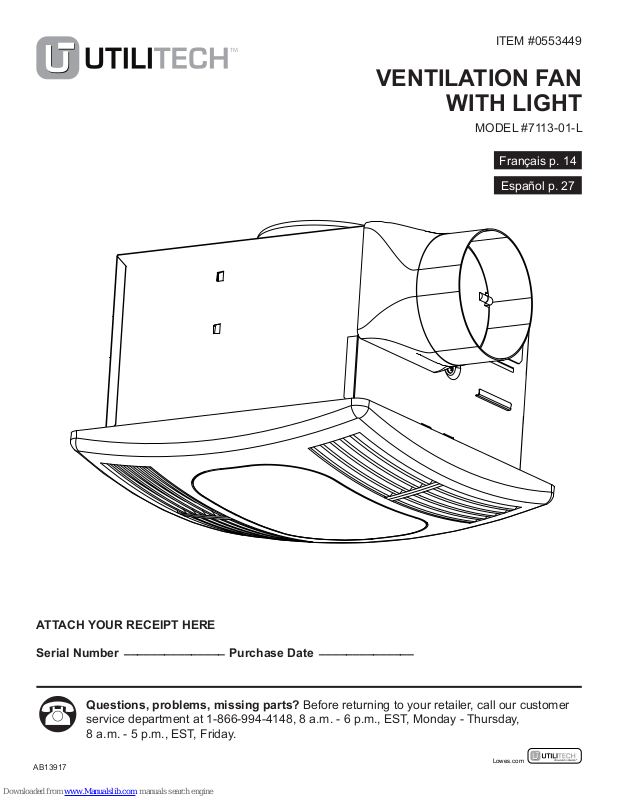

TM
ITEM #0553449
VENTILATION FAN
WITH LIGHT
MODEL #7113-01-L
Français p. 14
Español p. 27
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
AB13917
_______________
Purchase Date
______________
Lowes.com
TABLE OF CONTENTS
Product Specications ........................................................................................................................ 2
Package Contents ..............................................................................................................................3
Safety Information ..............................................................................................................................4
Preparation ......................................................................................................................................... 5
New Construction Assembly Instructions ...........................................................................................6
Existing Construction Assembly Instructions ....................................................................................10
Care and Maintenance ..................................................................................................................... 11
Troubleshooting ................................................................................................................................12
Warranty ...........................................................................................................................................13
PRODUCT SPECIFICATIONS
SPECIFICATIONS SPECIFICATIONS
Airow: 90 CFM Power consumption: 32 W
120 V, 60 Hz Exhaust fan speed: 790 RPM
Duct diameter: 4 in. Weight: 12.0 lbs.
Sound output: 1.5 Sones
TYPICAL INSTALLATION
2
Lowes.com
PACKAGE CONTENTS
C
D
A
B
F
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A Fan body 1 D Suspension bracket II 1
B Grille 1 E Suspension bracket III 1
C Suspension bracket I 1 F GU24, 13 watt bulb 2
E
HARDWARE CONTENTS (shown actual size)
AA BB
Long Wood
Screw
Short Machine
Screw
Qty. 8 Qty. 3
3
Lowes.com
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
1. Always disconnect the power supply prior to servicing the fan, motor or junction box.
2. Installation work must be carried out by a qualied person(s) in accordance to all local and
safety codes including the rules for re-rated construction.
3. Follow all local building, safety and electrical codes as well as NEC (National Electrical Code)
and OSHA (Occupational Safety and Health Act).
4. Electric Service supply must be 120 volts, 60 hertz.
5. This unit must be properly grounded.
6. Do not bend or kink the power wires.
7. Exercise care to not damage existing wiring when cutting or drilling into walls or ceilings.
8. Sufcient air supply is required for proper combustion and the exhaustion of gases through
the chimney (ue) of fuel burning equipment to prevent back-drafting. See the standards of
NFPA (National Fire Protection Association) and ASHRAE (American Society for Heating
Refrigeration and Air Conditioning Engineers) and the local building code authorities.
9. Do not use this fan with any solid state control device, such as a remote control, dimmer switch,
or certain timers. Mechanical timers are not solid state devices.
10. This ventilation fan is approved for use over a bathtub or shower when installed in a GFCI
protected circuit. Do not use fans over a bathtub or shower that are not approved for that
application and marked accordingly.
11. Do not install in a cooking area.
12. Do not use to exhaust hazardous or explosive vapors.
13. Fans should always be vented to the exterior and in compliance with local codes.
14. Do not install in a ceiling with insulation greater than R42.
15. Duct work should be installed in a straight line with minimal bends.
16. Duct work size must be the same size as the discharge and should not be reduced. Reducing
the duct size may increase fan noise.
17. Prior to service or cleaning this unit, shut off power supply at the panel and lock to
prevent the power from being turned on. If the panel cannot be locked, clearly mark
the panel with a warning tag to prevent the power from being turned on.
18. Use this unit in the manner intended by the manufacturer. If you have any questions. Please
call customer service.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time: 60 minutes
4
Lowes.com
PREPARATION
Tools Required for Assembly (not included): Hammer, Drill Bits, Flathead Screwdriver, Wire Nuts, Nails,
Duct Tape, Phillips Screwdriver, Utility Knife
Helpful Tools (not included): Electric Drill, Wood Screws
WARNING: Turn off electricity at breaker box before beginning installation.
Carefully remove unit from carton.
Check area above installation location to be sure that wiring can run to the planned location and that
duct work can be run and the area is sufcient for proper ventilation.
Inspect duct work and wiring before proceeding with installation.
Before installation, provide inspection and future maintenance access at a location that will not interfere
with installation work.
You may need the help of a second person to install this fan; one person on the attic side and one on
the room side.
Note: Installations may vary depending on how the previous bath fan was installed. Supplies necessary
for the installation of your bath fan are not all included; however, most are available at your local
home improvement or hardware store.
DIMENSION REQUIREMENTS
Ceiling
Opening (L)
Ceiling
Opening (W)
9.4 in. 9.4 in. 7.4 in.
WIRING DIAGRAM
to 120V/60Hz
Junction box
Capacitor
for long
life of
montor
LIGHT HOUSING
Up to 13 Watts
Up to 13 Watts
Automatic terminal
switch
MOTOR
FAN HOUSING
Ceiling
Opening (H)
to
switch
to neutral
to ground
Black wire
to switch
White wire
to neutral
Green wire
to ground
QUICK CONNECTOR INSTRUCTIONS
To be sold only with installation instructions.
WARNING: Wiring must comply with all appliable electrical
codes. Turn OFF power before removing or installing connectors.
WARNING: COPPER TO COPPER ONLY. Do not use Aluminum wire.
CAUTION: Accessory part (quick connector) should meet
installation instructions below.
NOTE: The connector is reusable on solid wires of the same wire gage or
smaller. Do not reuse the connector on stranded wires.
• Strip wires 3/8"-1/2"
• Grip the wire firmly and push
the stripped end of the wire into
the open port of the connector.
Use only one conductor
per port.
• Verify the stripped end of the
wires is fully inserted to the
back of the connector.
NOTE: Important wire information. Maximum temperature rating 105˚C
(221˚F). 600 volts maximum for building wire and 1000 volts maximum for
building wire and 1000 volts maximum in signs and lighting xtures.
The acceptable wire range includes: Solid: 12-18 AWG.
House
wires
Quick
connect
Product
wires
5
Lowes.com
NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
NEW CONSTRUCTION – ATTACHING TO THE
JOIST
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Insert the suspension bracket into the fan body.
(If spacing between joists is 21-1/4 in. to 23-1/2 in.
(540 to 597 mm), connect suspension bracket
I and II).
2. Mount the fan body to joist using the suspension
brackets and long wood screws.
Hardware Used
AA
Long wood screw x 2
3. CAUTION: Dimension “B” should allow for
thickness of ceiling board used in your applicaton. Do not ush mount to joist. Flange
should be ush with ceiling board.
1
2
AA
3
4. Refer to wiring diagram on page 5. Remove the
junction box cover. Using quick connectors,
connect house wires to ventilating fan wires:
black to black; white to white; green to green.
Replace the junction box cover.
CAUTION: If your house wires do not match
these colors, you must determine what each
house wire represents before connecting and
you may need to consult an electrical contractor
to determine this safely. Mount junction box
cover carefully so lead wires are not pinched.
4
Wiring
box
Quick
connector
House
wires
Product
wires
Lowes.com
6
NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
5. Install a circular duct (not included) and secure it
with duct tape or clamps (neither included).
Finish ceiling work. Ceiling hole should be ush
with the edge of the ange. (DO NOT FLUSH
MOUNT TO JOIST. Flange should be ush with
ceiling board.) See dimensions for ceiling hole on
page 5. If joist is present, insert long wood screws
through ange and through ceiling to secure fan to
joist.
6. Attach plug connector to receptacle.
7. Install two (2) GU24, 13 watt bulbs (F).
5
6
7
8. Pinch mounting springs on grille (B) and insert
into narrow rectangular slots inside the fan
housing next to the fan motor.
Turn on electricity at breaker box after nishing
installation.
8
7
Lowes.com
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
Installing the fan body in an existing building
REQUIRES AN ACCESSIBLE AREA (attic or
crawl space) above the planned installation
location and existing duct and wiring.
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Remove existing fan.
2. Measure the opening to ensure it is large
enough to accommodate the new fan body
(A) (9.4 in. x 9.4 in.).
3. If this fan is not replacing an old fan, be sure
to cut a 9.4 in. x 9.4 in. opening for the fan
body (A).
1
2
3
9.4"
9.4 in.
4. Insert the suspension bracket into the fan body. (If
spacing between joists is 21-1/4 in. to 23-1/2 in.
(540 to 597 mm), connect suspension bracket
I and II).
9.4 in.
9.4"
4
Lowes.com
8
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
5. Insert fan body (A) into the ceiling cut out making
sure to align the duct connector with the fan body
(A). Flange should be on the bathroom side of
the drywall.
NOTE: Duct/outlet adapter can be removed for
easier installation through the ceiling opening.
6. Mount the fan body to joist using the suspension
brackets and long wood screws.
Hardware Used
AA
Long wood screw x 2
7. CAUTION: Dimension “B” should allow for thick-
ness of ceiling board used in your applicaton.
Do not ush mount to joist. Flange should
be ush with ceiling board.
5
6
AA
7
8. Refer to wiring diagram on page 5. Remove the
junction box cover. Using quick connectors,
connect house wires to ventilating fan wires:
black to black; white to white; green to green.
Replace the junction box cover.
CAUTION: If your house wires do not match
these colors, you must determine what each
house wire represents before connecting and
you may need to consult an electrical contractor
to determine this safely. Mount junction box
cover carefully so lead wires are not pinched.
8
Wiring
box
Quick
connector
House
wires
Product
wires
Lowes.com
9
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
9. Install a circular duct (not included) and secure it
with duct tape or clamps (neither included).
Finish ceiling work. Ceiling hole should be ush
with the edge of the ange. (DO NOT FLUSH
MOUNT TO JOIST. Flange should be ush
with ceiling board.) See dimensions for ceiling
hole on page 5. If joist is present, insert long
wood screws through ange and through ceiling
to secure fan to joist.
10. Attach plug connector to receptacle.
11. Install two (2) GU24, 13 watt bulbs (F).
9
6
7
12. Pinch mounting springs on grille (B) and insert
into narrow rectangular slots inside the fan
housing next to the fan motor.
Turn on electricity at breaker box after nishing
installation.
10
10
Lowes.com
CARE AND MAINTENANCE
WARNING: Disconnect power supply before servicing. See SAFETY INFORMATION before
proceeding. Routine maintenance should be done at least once a year.
CAUTION
• Never use solvents, thinner or harsh chemicals for cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse resin parts in water over 140º F.
1. Remove grille by squeezing spring and pull down.
2. Wash and clean the grille in a sink and dry with a
cloth.
1
2
3. Remove dust and dirt from the fan housing with a
vacuum cleaner.
3
Lowes.com
11
CARE AND MAINTENANCE
4. Dampen cloth with dish detergent, wipe the fan housing
and dry with a cloth.
4
Replace the grille.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Be sure the CFM rating on the fan
CFM too great
matches the size of your room
Check damper to ensure it is opening
Damper not working properly or
damaged
and closing properly. If the damper
has become damaged, please call
Customer Service
The fan seems
louder than it should
Bend in duct too close to fan discharge
Be sure you do not have any sharp
bends in duct closer than 18 in. to the
fan discharge
Fan discharge reduced to t smaller
duct
Fan body not securely attached
Use recommended size ducting to
reduce fan noise
Be sure the fan is securely attached
to your ceiling joists
Be sure a door or window is slightly
ajar or opened to allow airow. The
Insufent intake airow within room
fan is not able to draw air out of the
room without enough airow to draw
from
Be sure the CFM rating on the fan
The fan is not
clearing the room
matches the requirements for your
room size
NOTE: Using a tissue is not an
Insufent CFM
accurate method for determining if
the fan is operating properly. If the
fan clears steam from the room
within approximately 15 minutes of
completeing your shower, then the
fan is operating properly
12
Lowes.com
LIMITED 5-YEAR WARRANTY
If this product fails due to a defect in materials or workmanship at any time during the rst FIVE years of
ownership, the manufacturer will replace it free of charge, postage-paid at their option. This warranty does
not cover products that have been abused, altered, damaged, misused, cut or worn. This warranty does
not cover use in commercial applications. Use only manufacturer-supplied genuine warranty repair
replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The
manufacturer DISCLAIMS all other implied or express warranties including all warranties of
merchantability and/or tness for a particular purpose. As some states do not allow exclusions or
limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty
gives you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage
incurred during installation, repair, replacement as well as incidental and consequential damages
connected with the above are excluded. Any damage to this product as a result of neglect, misuse,
accident, imporper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-866-994-4148, 8 a.m. - 6 p.m.,
EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Utilitech & UT Design® is a registered
Printed in China
trademark of LF, LLC. All rights reserved.
Lowes.com
13
Loading...
