Page 1

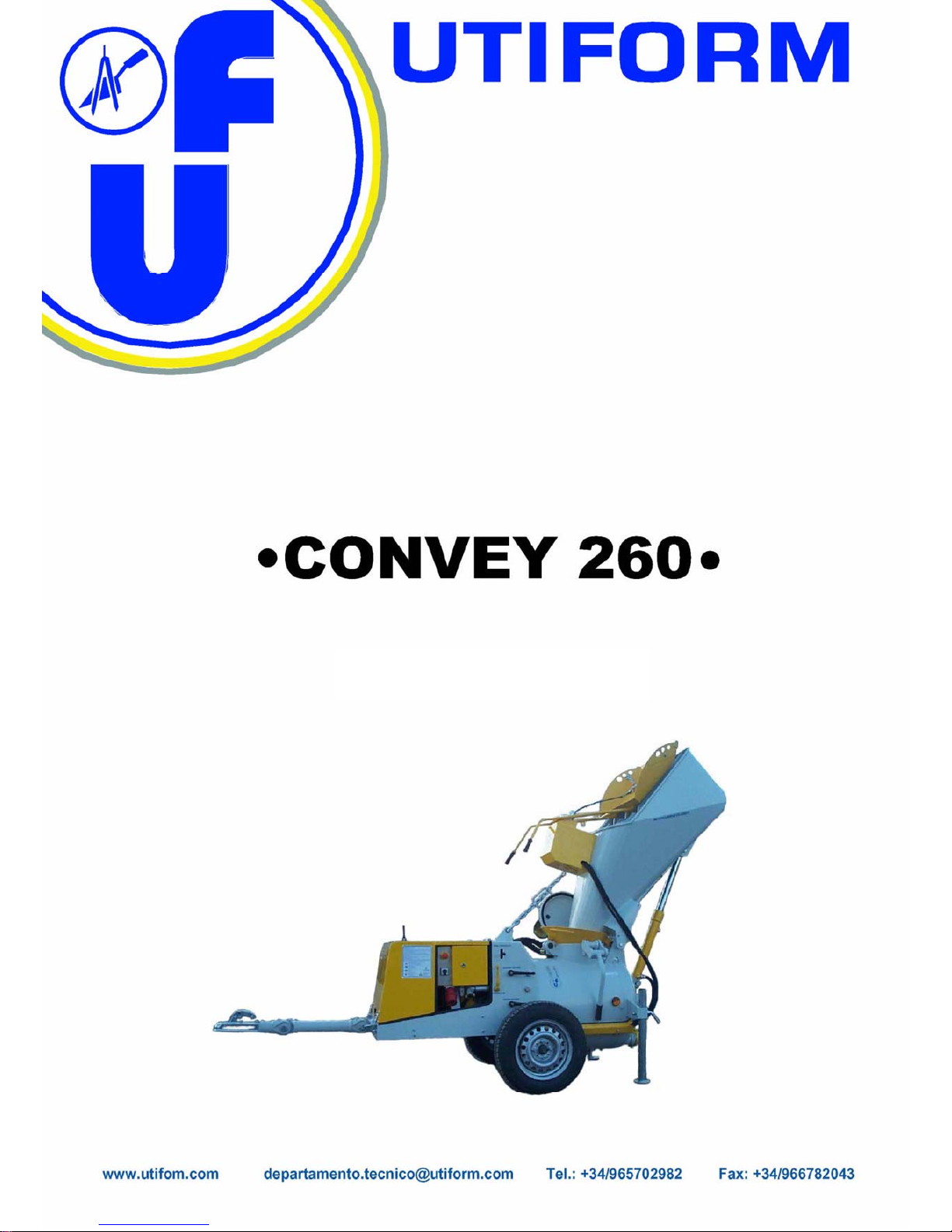

Electric Soladora CONVEY 260
www.utiform.com departamento.técnico@utiform.com Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
0
INSTRUCTIONS
Page 2
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
1
FOREWORD
Dear client:
We request him that he/she reads the manual of instructions carefully, before beginning to use their new
machine
CONVEY 260 and familiarize with the whole operation and handling of the same one. This
way you It will avoid errors in their handling, as well as damages and material losses.
This machine corresponds to the most recent state in the technical advances, as well as to the generally
valid norms and the regulatory schemes of the CE. This one can deduce from the symbol CE as well as of the
Declaration of enclosed Conformity to this book of instructions.
In the event of mishap of the machine, of an order of reserves or of a warning to the Service of
Technical support, we request him he/she takes contact with their salesperson or directly with the
concessionaire.
In order to avoiding mishaps caused by reserves or faulty waste pieces or of bad quality and for not
running the risk of losing the right to the "Guarantee of Factory", we advise him to only use reserves or original
waste pieces.
We request it stuffs the data that are next, with the purpose of knowing the most important data in their
machine to always have them to the reach and of using them in the event of making an order of reserves. You
find the data to score in the board of characteristic of their machine.
CONVEY 260
Machine Nº
Year of construction
Electric motor
....................…………….......................
....................…………….......................
Type............................……………......
Nº Serie ..........................………….…..
We reserve ourselves the right of making any technical modification with tendency to improve the
machine, although it is not contemplated in this manual.
The company UTIFORM wishes him a lot of success with the new realized acquisition.
Page 3
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
2
1. Indications on these instructions 3
2. Safe-deposit fundamental indications 3
2.1 Obligation……………………………………. 3
2.2 Security and responsibility……………….. 3
2.3 Correct use……………………………………..4
2.4 Protection devices……………………………...4
2.5 Safety measures in the normal operation………5
2.6 Revision, maintenance, suppression of………...5
mishaps
2.7 Mechanical changes in the machine…………...5
2.8 Cleaning of the machine……………………….6
2.9 Safe-deposit norms for machines………………6
3. Transport 9
3.1 Safe-deposit special indications………………..9
3.2 Transport for crane and………………………...9

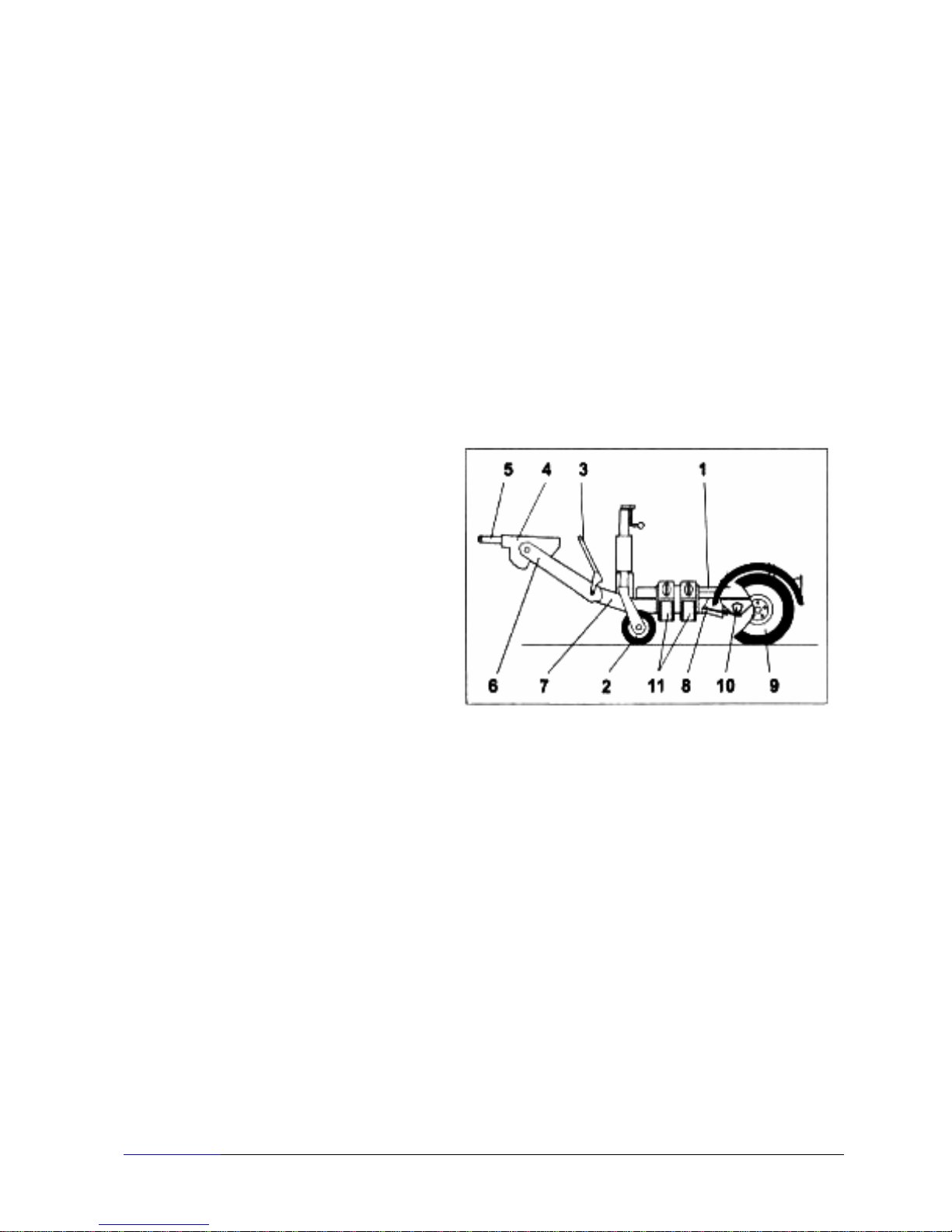

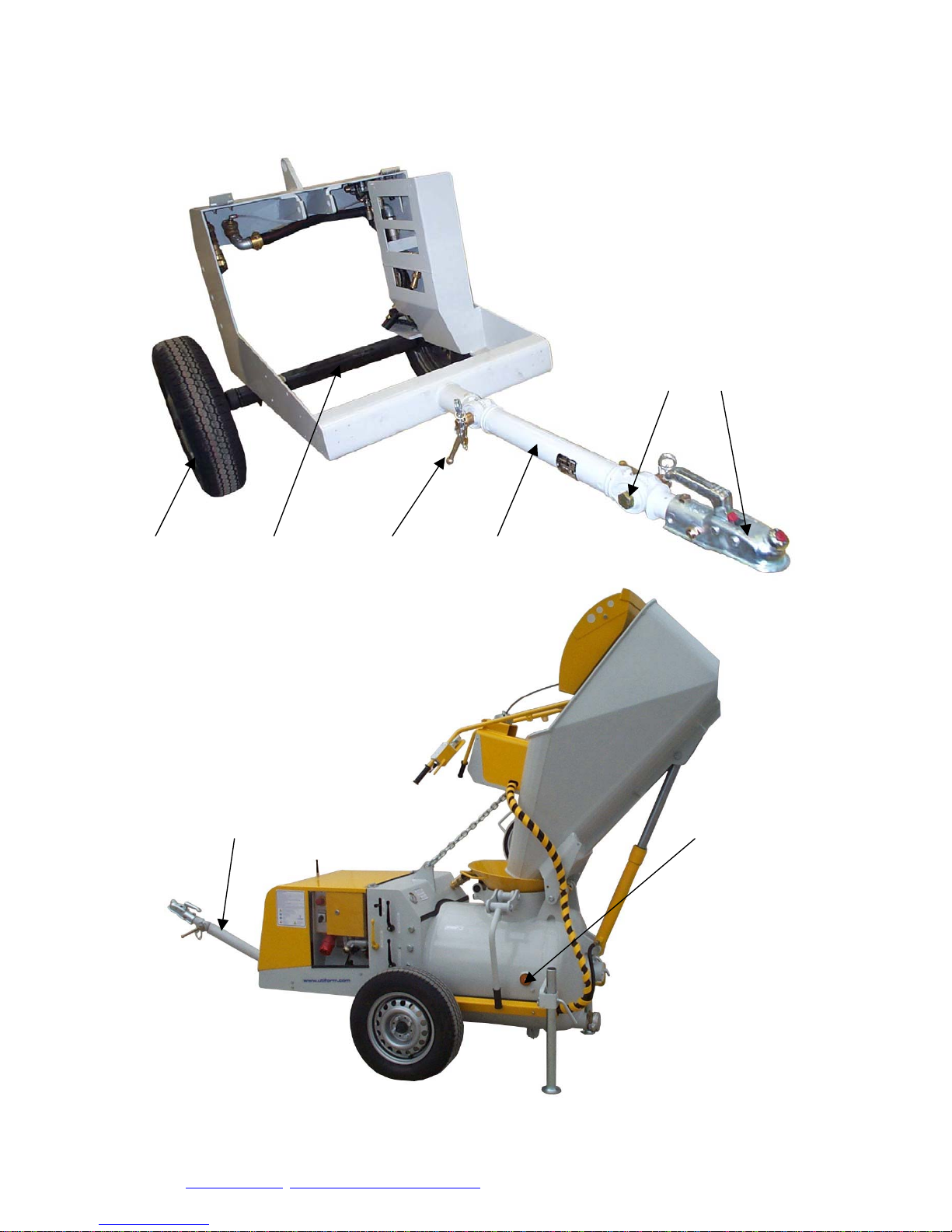

3.3 Tow elements:
3.3.1 Main chassis……………………………….10
3.3.2 Rotate jockey…………………………… 10
3.3.3 Hand control or of
parking……………………………………………11
3.3.4 Retention device…………………………...11
3.3.5 Head of hook of ball ……………………..
.11
3.3.6 piece intermediate lance tows…………......11
3.3.7 Tow lance……………………………….....11
3.3.8 Suspension axis……………………………12
3.3.9 Pneumatic wheels………………………….12
3.3.10 Control of inertia reindeer………………..12
3.3.11 Support and control chuck……………….12
3.3.12 System of lights tow……………………...12
3.5 Preparation to carry out the transport……….. 13
3.6 Transport like tow………………………… 13
3.7 Transport in a truck…………………………. 13
4. Description of the machine 14
4.1 Technical data………………………………...14

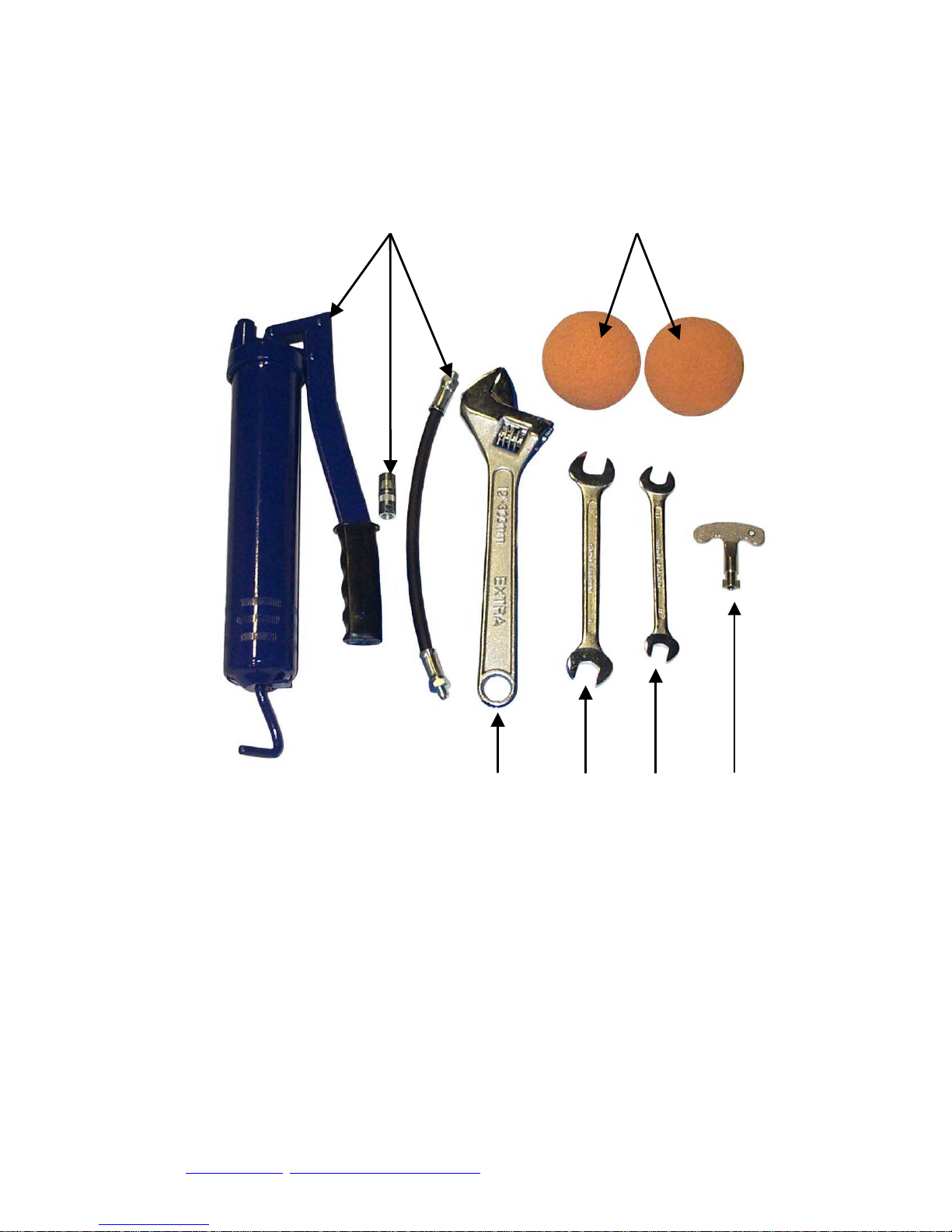

4.2 Standard team…………………………………15

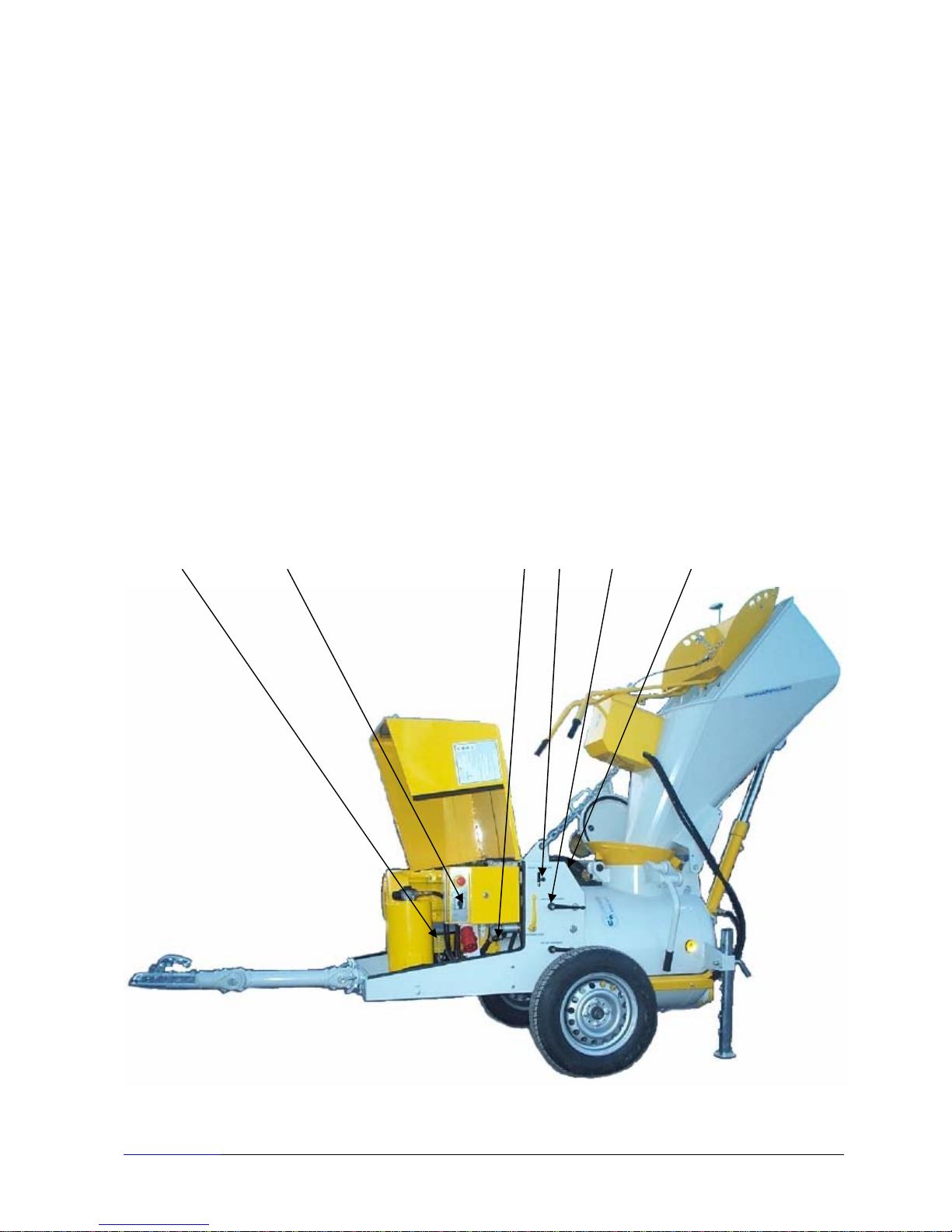

5. Elements of services 16

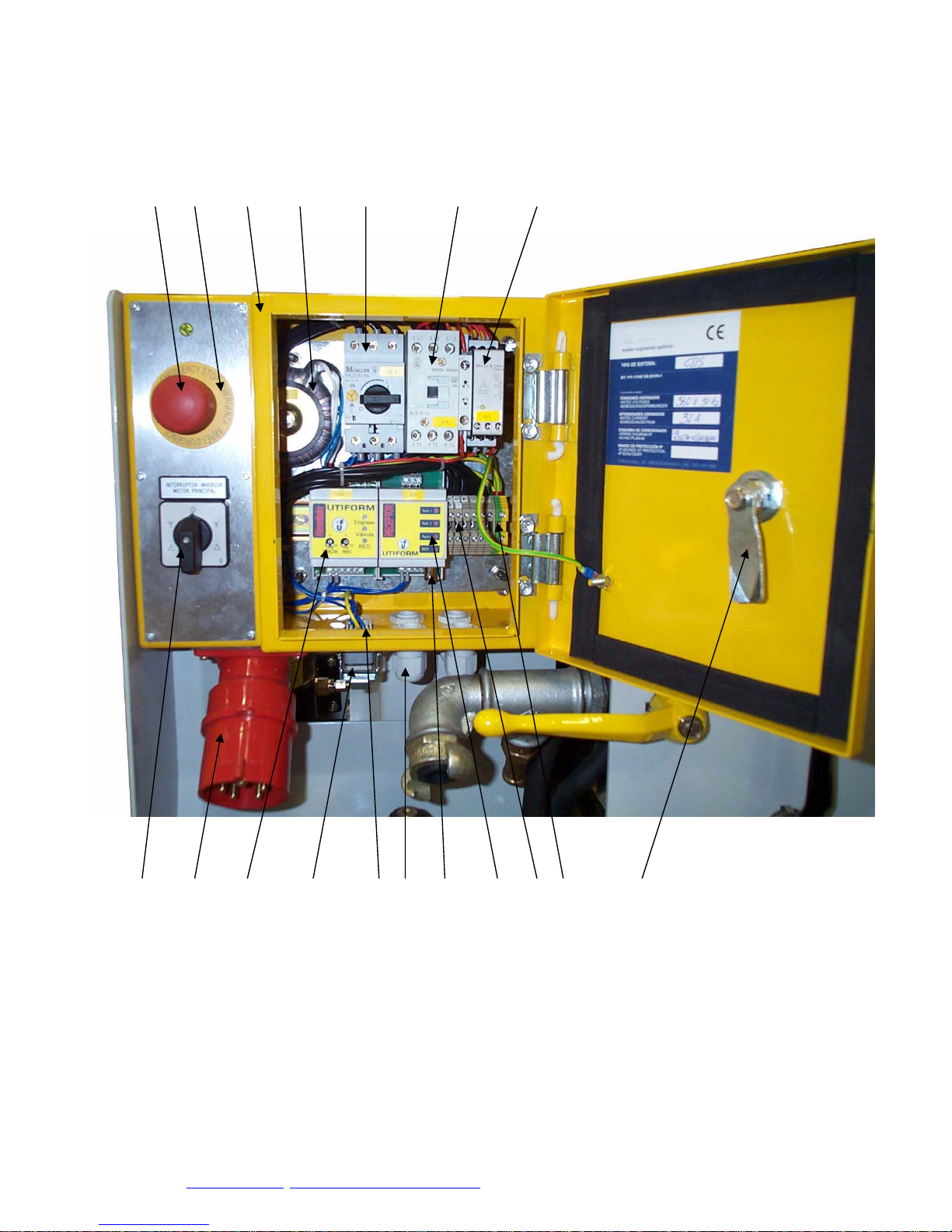

5.1 Switch-investor star triangle….........................16
6. Preparation for the operation 17
6.1 Safe-deposit indications

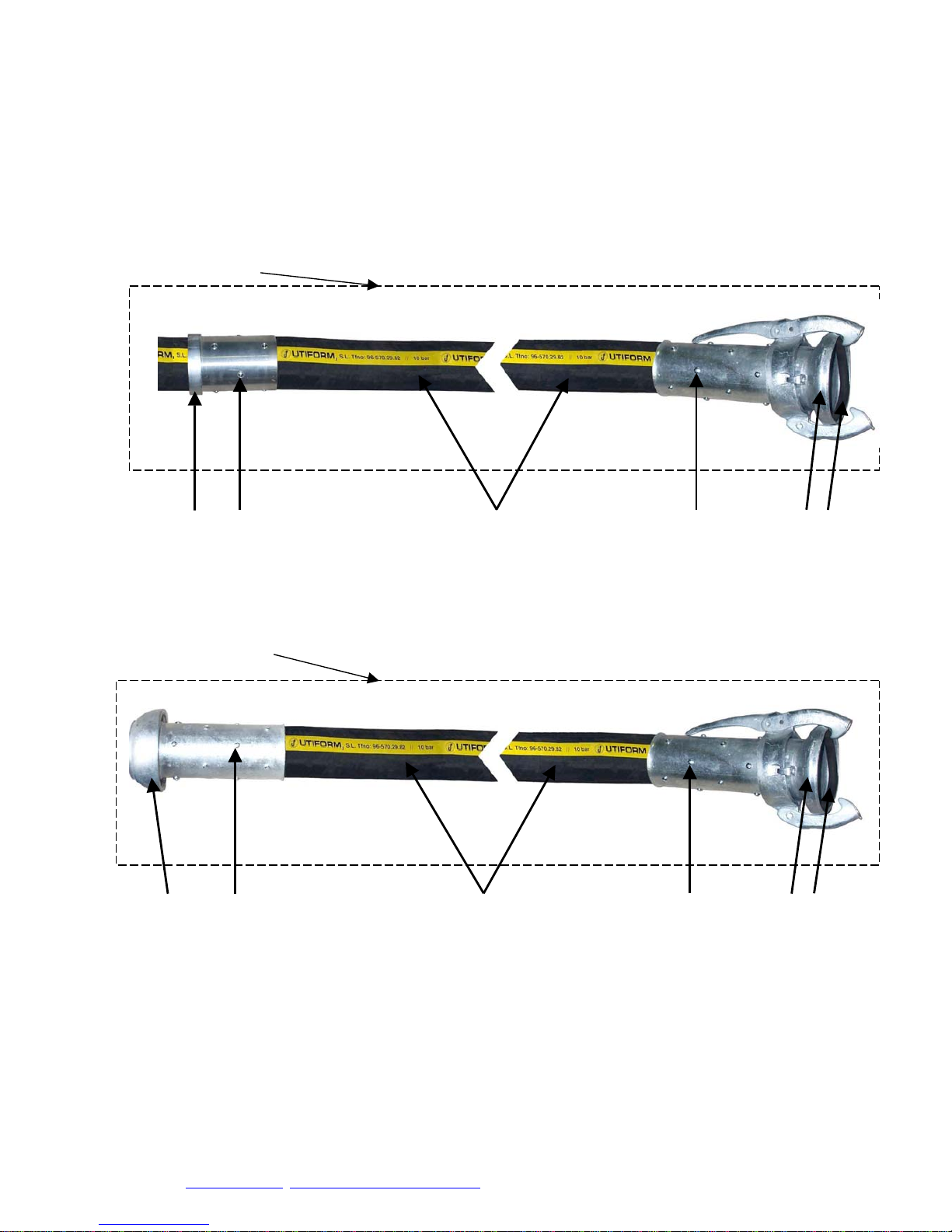

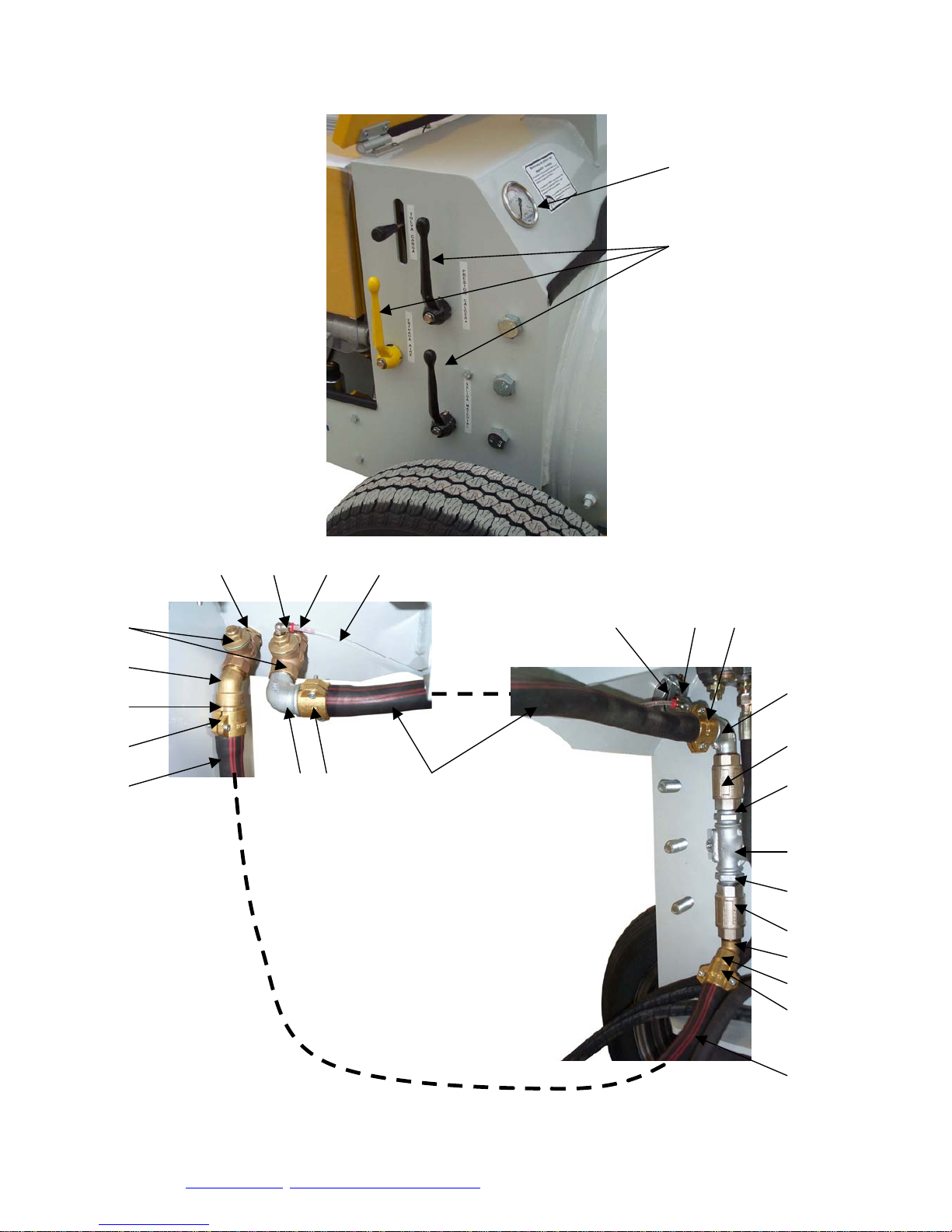

6.2 Hoses and joining of transport……………… 18
6.3 Operation in closed spaces……………………19
6.4 Before the setting in operation..........................19
7. Operation 20
7.1 Safe-deposit indications………………………21
7.2 Safe-deposit indications in the normal operation
…………………………………………………….20
7.2.1 Recipient to pressure…………………….20
7.2.2 Safe-deposit valve……………………….21
7.2.3 Prevention of accidents………………… .21
7.3 Control before the setting in march………......21
7.3.1 Safe-deposit Systems in the machine……22
7.4 Setting in march of the machine……………...22
7.5 To mix……………………………………….. 22
7.6 To transport…………………………………. .23
7.6.1 Correct pressure of transport…………… 24
7.7 Load chuteawlsic I send it distances……….. 25
7.9.1 Description of the product……………...26
7.10 Finalization of the work or…………………..28
7.11 Shortcomings in the transport……………….29
7.12 Operation in winter………………………….30
8. Maintenance 31
8.1 Safe-deposit indications in the maintenance and
repairers………………………………………… 31
8.3 Safe-deposit indications on the machine..........32

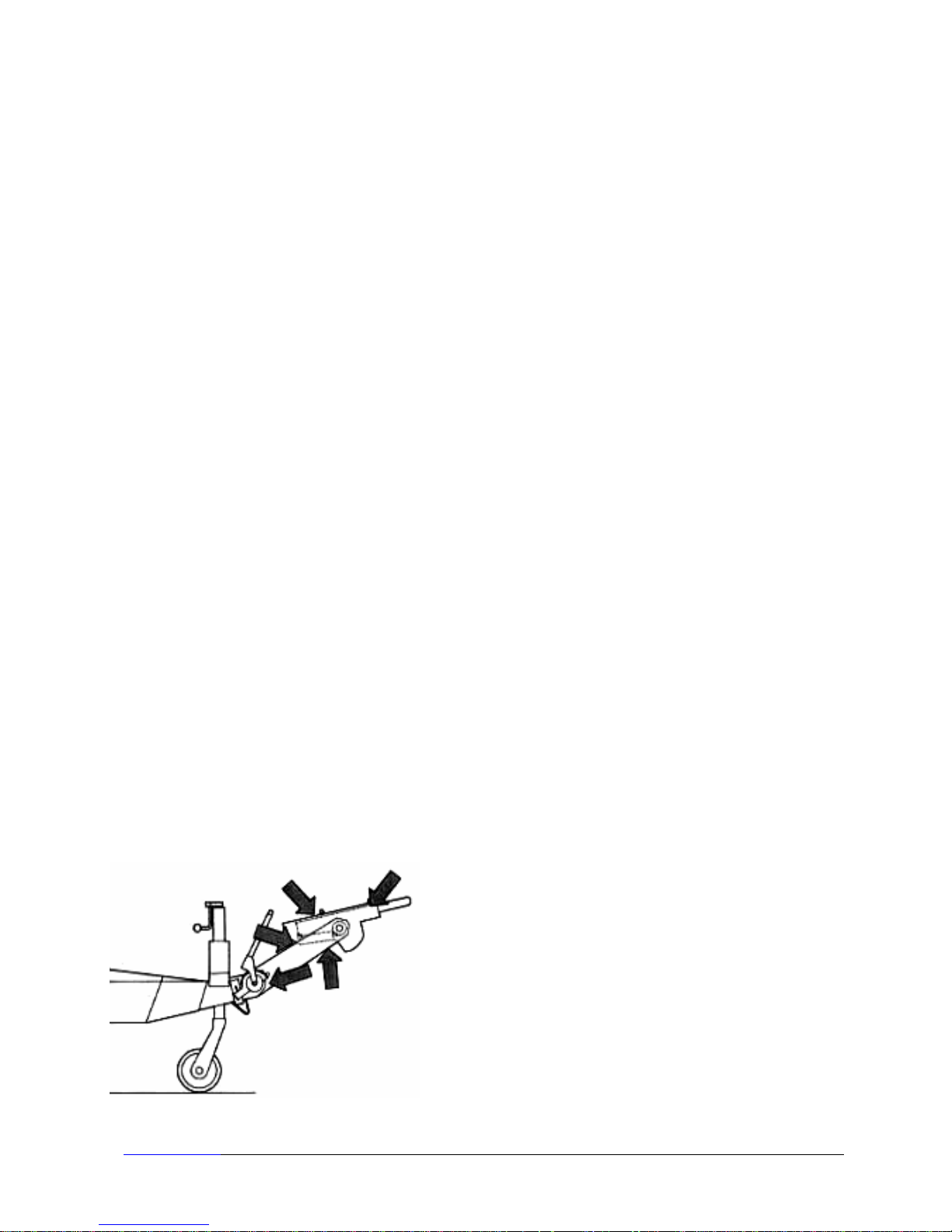

8.4 Points of it greases newspapers……………….33
8.5 Points of it greases weekly……………………33
8.6 Points of it greases each means year………….33

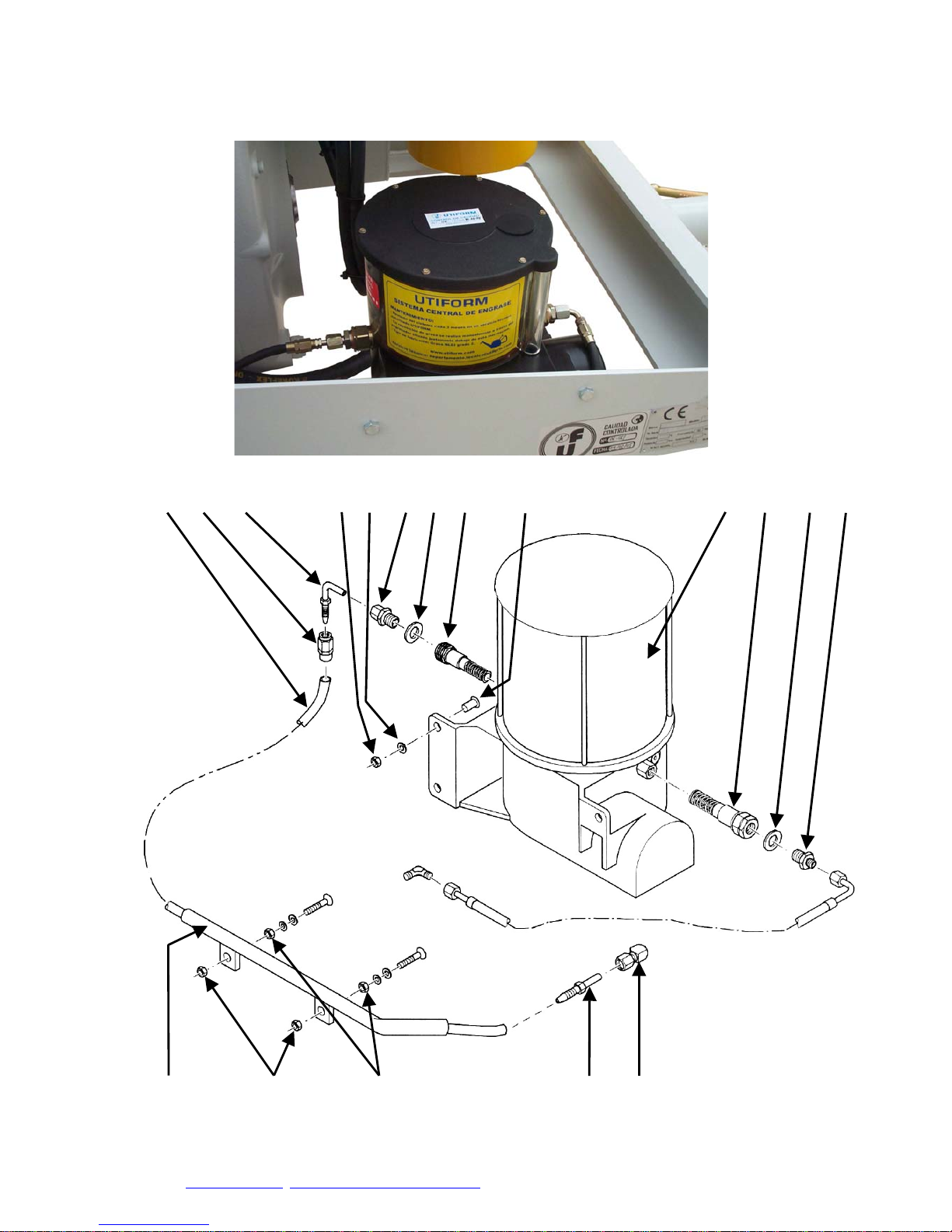

8.7 Grease central automatic…………………….. 33
8.8 Additional maintenance each 8 working hours or
daily……………………………………………… 34
8.9 Additional maintenance each 40 working hours
or weekly………………………………………… 34
8.10 Additional maintenance each 500 working
hours o reach means year………………………34
8.11 Additional maintenance each 1000 working
hours or every year………………………………. 35
8.12 To keep the machine……………………… 35
8.13 Illumination the wing………………………..35
8.16 Tires and the wing …………………………..35
9. Lubrifiant.........................................................35
10. Declaration CE................................................37
11. Leaf of safe-deposit control…………………38
12. Relationship of maintenance works………..39
13. Leaf of reserve order………………………..40
Page 4
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
3
1 Indications on these instructions
This manual of instructions is divided in the following main chapters:
• Instructions
• Safe-deposit indications
• Maintenance
• Technical data
The safe-deposit indications are at the beginning of each section and / or framed in squares.
These handling instructions and maintenance always have to be available in the working place. All the
indications have to have been read, understood and assisted before the setting in march of the machine.
2 Safe-deposit fundamental indications
This manual of instructions contains the most important indications, to manage the machine CONVEY
with all security. The especially important points are signal with special symbols. These have the following
meaning:
ATTENTION: This symbol means that a direct danger exists for the life and the health of
people because of the mechanical goods.
ATTENTION: This symbol means that a direct danger exists for the life and the health of people because of the
electric power.
WARNING: Maintenance works and service. ATTENTION
2.1 Obligations
The manual of instructions always has to be near the machine. Also, they have to be to disposition and
taken into account, apart from the manual of instructions, the local regulations on the prevention of accidents
and the protection of the environment.
Also, the domestic regulation in which will use the machine.
All the safe-deposit indications and of danger located in the machine they have to be conserved in
readable state, and when necessary, to renovate them.
Page 5
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
4
This machine solider only debit side to use:
• for their use according to that settled down
• in a technically sure and perfect state
The mishaps that can affect the security of the machine or people that manipulate it have to be eliminated
immediately.
2.2 Guarantee and responsibility
In general, they govern the general "conditions of sale of the machine", which are to the buyer's
disposition in the moment of the finalization of the contract of the machine. In the event of damages to people or
materials are excluded of demands that are derived of the guarantee or responsibility, if they can be attributed to
the following causes:
• an in adequate use of the machine
• assembly, operation, handling and inappropriate maintenance of the machine.
• not to keep in mind the indications of the manual of instructions about the transport, storage,
assembly, setting in march, operation and maintenance (that is to say, he/she refers main y to the 1ª
inspection after 50 hours of operation. All the works have to be carried out in an authorized shop or
for the Technical service Utiform).
• own construction changes
• insufficient observation of the pieces of the machine that are subjected to the waste,
• realized repairs improperly (only original exchange pieces Utiform or pieces can be used
authorized by the maker).
For safe-deposit reasons to only use original exchange pieces UTIFORM or pieces authorized by the
maker.
Before any doubt or question that it arises in the machine all the registered data they should be
facilitated that are possessed of the machine, equally for the realization of orders for exchange pieces is
necessary to facilitate the following data:
• type and machine model
• serial number
When carrying out maintenance works it should be kept in mind that an absolute cleaning is essential,
mainly in support surfaces and hermetizantes they can be formed considerable damages because of dirt.
The duration and reliability of this machine depend essentially on the operation and appropriate
maintenance.
2.3 Correct use
The CONVEY 260 are a pneumatic transporters with a deposit mixer for all the acquaintances
solado mixtures, mortar and cement up to 16 mm of granulation.
You can use for plastic materials as the cement sol ado, anhydrite soled, slight concrete, mortar, clay
mixture and straw, humus, material antideflagrante, granular bulk articles, as well as I cement, sand and thick
sand up to 16 mm of granulation.
The use of other materials is only possible after previous agreement and it consults with the maker.
Any inadequate use of the machine is forbidden. In the correct use it is included:
• to keep in mind all the indications of the manual of instructions and
• to fulfil the inspection works and maintenance
Page 6
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
5

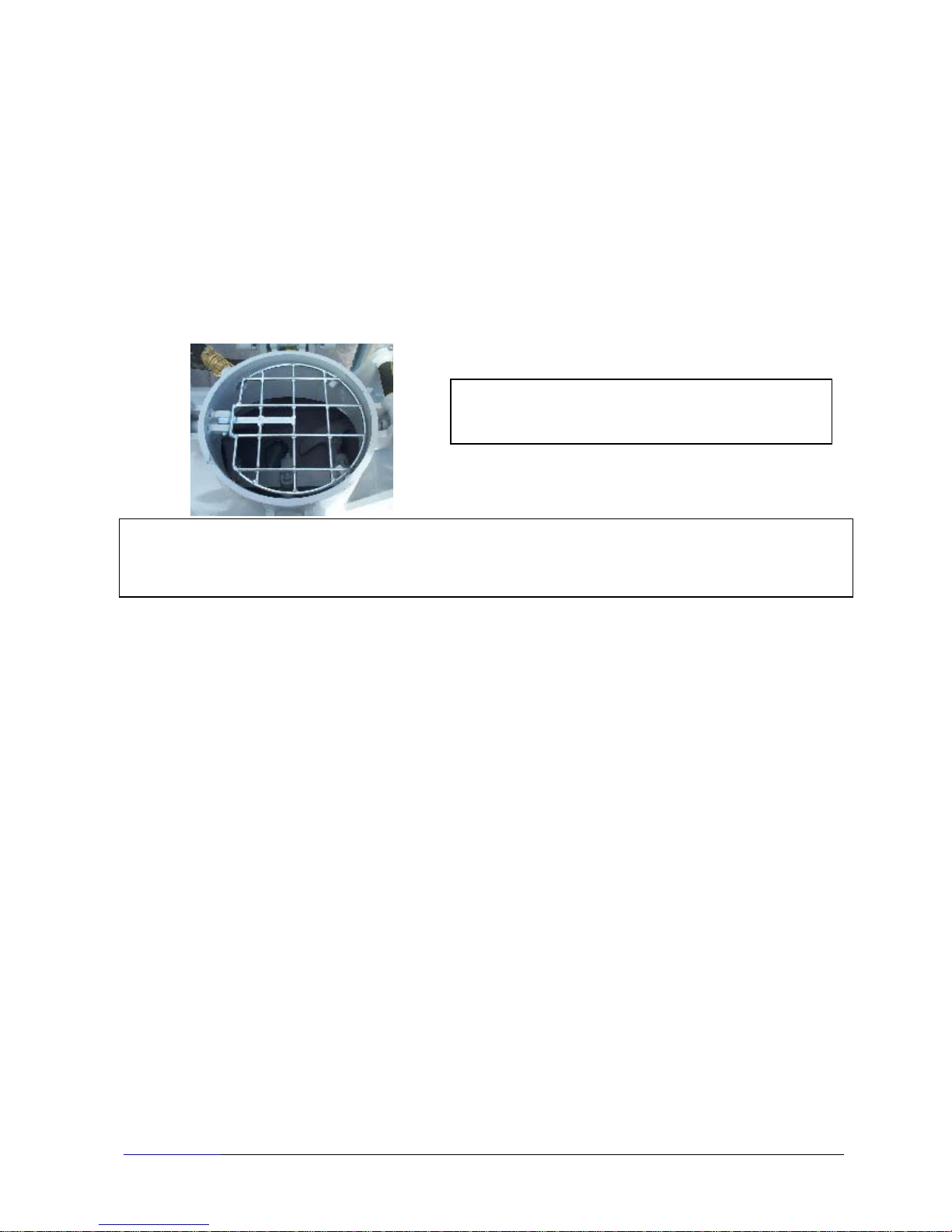

2.4 Devices of Protection
Before starting the machine they have to be placed all the protection facilities and they have to be
prepared to work. The grills protectors are a fixed safety appliance that you/they can never be retired in
operation. The machine CONVEY 260 complete all the requirements of the safe-deposit European norms for
construction machines.
Never to play through the safe-
deposit grills!
2.5 Safety measures in the normal operation
Only to start the machine in case all the protection devices work completely. To make sure before to
plug it that no person is in danger.
To check at least once up-to-date, in the machine and all their complements, as the tubes transporters
and automatic tripod of exit if external damages existed and if they work the protection devices perfectly.
Mainly, to keep in mind in the tubes transporters breaks, bumps or damages in the material.
To keep in mind the waste, correct function, you prow or possible indications of damages in the tubes
transporters, or at least every 3 months all the tubes transporters and connection joining should be changed
among the same ones.
2.6 Revision and maintenance, suppression of mishaps
• To carry out the adjusting works, maintenance and inspection settled down inside the certain term.
Flexible rubber tubes with their joinings are subjected to a natural process of waste for close contact and
aging. To check for a specialist (at most every 3 months) the good state and to change them, when
necessary. To write down the process in the control leaf dedicated for this end.
• In all the maintenance works, inspection and repair is to make sure that the machine is free of electric
tension and mainly that is not connected pressing the disconnect switch unwittingly again.
• To place a warning warning so that to avoid that an involuntary connection takes place.
• To control helical combinations loosed in an adjustment. To check the functions and protection
devices after finishing the maintenance works.
2.7 Mechanical changes in the machine
NOT to carry out, without previous authorization of the maker, any installation change or it reforms in
the machine. That is also applicable for the soloed in supportive pieces. All the reformations specify an
authorization in writing of the maker, UTIFORM.
Page 7
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
6
It is necessary to change all the pieces that are not in a perfect state immediately. To only use exchange
pieces and of original waste.
When using pieces non originals it is not guaranteed that these are built and manufactured in a resistant
and sure way, for what is expired in that same moment or expired guarantee some on the machine.
2.8 Cleaning of the machine.
It is indispensable to maintain the machine free of inlays, for that which is recommended to use a
biological conservator of machines, as liquid of separation protection and corrosion.
In any case to use gas oil fuel for the cleaning and the care of the machine, since it can produce
irreparable damages, mainly the meetings and pieces of plastic are the most affected.
To use and to evacuate the substances and used materials, mainly:
• in works carried out in systems of it greases and devices of it greases
and
• in the cleaning with solvent.
2.9.1 Safe-deposit norms for passable machines
General safe-deposit indications
1. The person that works the machine has the responsibility that the machine stays in a state of sure
operation.
2. To only use the oils of it greases and recommended lubricant and authorized by UTIFORM. To keep in
mind that the elected lubricants complete all the safe-deposit norms, mainly what concerns to the danger
of fires by reason of the oil or explosions and the possibility of the formation or transformation of
dangerous gases.
3. The responsible person has to keep in mind them to be completed all the norms strictly regarding the
handling and the maintenance of the machines and the tools.
4. The maintenance works, revision and repair can only be carried out for qualified personnel, when
necessary under the surveillance of a person specially formed for these works.
5. If any indication or suspicion that a piece inside the machine has warmed existed, the machine should be
disconnected. In any case he/she opens up you the control tapes before the machine has cooled down the
sufficiently with the purpose of avoiding a car-fire from the vapours of oil when mixing with the oxygen.
6. All the maintenance works must be carried out with the stopped machine.
7. Before disassembling any piece that low pressure is, to cut the compressor or the team of all the sources
of pressure efficiently and to discharge of pressure the complete system. Also, it is necessary to put in
each closing valve a warning poster saying they are being carried out works in the machine, not to open
up."
Page 8
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
7
8. Before beginning with a repair work it is necessary to make sure that the installation you cannot connect
for negligence or mistake. As another safety measure he/she should put on in the device of the starter a
warning poster that he/she says: The machine is repairing, not to connect it".
In the facilities that work with Diesel it is necessary to disassemble the battery or it is necessary to put
insulating tapes to the pincers.
If it is an electric installation, the main switch has to be assured in free position and all the insurance have
to be disassembled. It is necessary to put in the box for circuit breakers or in the main switch a warning
poster that he/she says: The machine is repairing, not to connect it."
9. Limiting values (pressure, temperature, adjustment of the number of revolutions, etc.) they have clearly to
be marked.
10. Never to work machines or tools for under or above their limiting values (pressure, temperature, number
of revolutions, etc.)
11. Stuff you for each machine in an operation newspaper the operation data and the maintenance works.
12. The machine CONVEY always has to be clean, that is to say, without residuals of oil or other residuals
and free of powder.
13. To control and to clean the surfaces of transmission of heat regularly (refrigeration fins, intermediate
refrigerator, cooling jackets, etc.) with the purpose of avoiding the ascent of the temperature.
14. To revise all the regulation devices and security carefully to guarantee a good operation. They cannot be
put outside of service.
15. Avoid you to damage the safe-deposit valves and other devices to reduce the pressure. Be careful,
mainly, with the dirt coming from cement, fine sand or fibber accumulation that could affect the operation
of these devices.
16. Control the accuracy of the indicator of the pressure and the temperature regularly. If the accepted limits
were surpassed it is necessary to change the same ones.
17. Only use original exchange pieces of Utiform.
18. To control the good state of the safety appliances it should follow the steps marked in the plan of
maintenance of the manual of instructions.
19. Not to use solvent inflammatory, Diesel fuel or the substance carbon tetrachloride for the cleaning of the
pieces. Apply safety measures against poisonous vapours of liquids in the cleaning.
20. To be very careful with the cleaning during the repair works. To avoid the dirt covering the pieces and
openings with a clean cloth, paper or a gummed tape.
21. To protect the motor, alternator, filter of aspiration of air, electric components, regulation devices, etc.
against the penetration of humidity, for example when cleaning the jet of vapour.
22. If in a machine it is necessary to carry out works that can cause heat, flames or sparks, the next
components they have to be protected with anti-inflammatory material.
Page 9
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
8
23. Never to control the interior part of a machine, a recipient to pressure, etc. with a light that has a flame.
24. To place the traction bar and el/los eje(s) in a sure way in the transitory machines, if you he/she works
under the machine, or it disassembles a wheel. Don't trust the cats.
25. Before to dismount or to revise a CONVEY, a motor or another machine, make sure that all the mobile
pieces with a weight that surpasses the 15 kgs cannot rotate or to move.
26. After finishing the repair works to always control if tools, loose pieces or a cloth have not been stopped
to clean in or above the machine, the motor of working or any device of working.
To control the sense of turn of the electric motors in each first setting in march and after each change in
the connections or electric repairs, to guarantee the good effect of the bomb of oil and the fan
.
Page 10
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
9
3 Transport
3.1 Safe-deposit special indications
• If a change of the machine takes place in the work, the deposit of mixing and of transport they should
be empty and the pieces of the machine low pressure should not be.
• To only use an appropriate vehicle of transport or traction with enough loads of tow and of support.
• To hook the hook head correctly with the traction vehicle.
• To move the tow for safe-deposit reasons for two people. To offer that he/she is always a person to the
reach to be able to help.
• If it is new machines or after a change of wheels press the nuts of the wheels on the way after few
kilometres with the moment of marked rotation again.
3.2 Transport for crane
When moving the place machine with a crane, the machine has to go held in two points.
ATTENTION! The suspension hole in the superior part of the machine is only foreseen for the
disassembly of the unit motor-compressor, it doesn't stop its use like support for elevation of the machine.
- To retire or to tie all the loose pieces that could fall when lifting the machine.
- It would be advisable that there was an in charge specialist that is near the driver of the crane or that it is
in contact with this for megaphone.
- To hang the machine then to the crane.
- To only use for the lift elevators and machinery of support of loads with capacity appropriate producer.
- To control before if they are revised and approved according to the local safe-deposit norms.
- If he/she gets up the machine or pieces of the machine with one or several elevation holes, it is
necessary to use load hooks, shackles. Not to place cables, chains or strings directly in the elevation
holes.
- Not to never use bent load hooks, etc., and to tie them from such a way that is subjected to an effort
always on-line straight line with the axis of the support of loads.
- Given the case, you can place a beam between the elevator and the load. You can also use two elevators,
keeping in mind that these cannot be inclined more than 30º against the vertical one. The supportive
capacity of an elevator diminishes if the force elevator doesn't lapse in a vertical way.
- In any event, the machine in such a way that can be raised vertically, to assure and that it cannot rotate
neither to overturn.
- To be careful with the load and not to work with too much impetus. The acceleration and deceleration
have to be inside some moderate limits.
- Not to leave hung the load in the elevator.
- To make sure that nobody is in the area of danger around the load.
Page 11
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
10
3.3 Tow elements
All the adjusting works or assembly to carry out in the elements of transport will only be carried out by
the maker of the vehicle or authorized personnel.
Of course, they should not be carried out welding works in any element of the tow.
It is recommended to wash the elements of transport in winter with water, after a transfer by lorry,
especially, if salt exists in the highway.
To clean the axis of suspension of dirt and possible inlays regularly.
The boards identificativas of the tow elements should figure in perfect state, since they always have to
be readable. This way he/she makes sure and it facilitates the repair and the supply of reserves, since for it
should be facilitated it to the maker the existent minted data in the identification board.

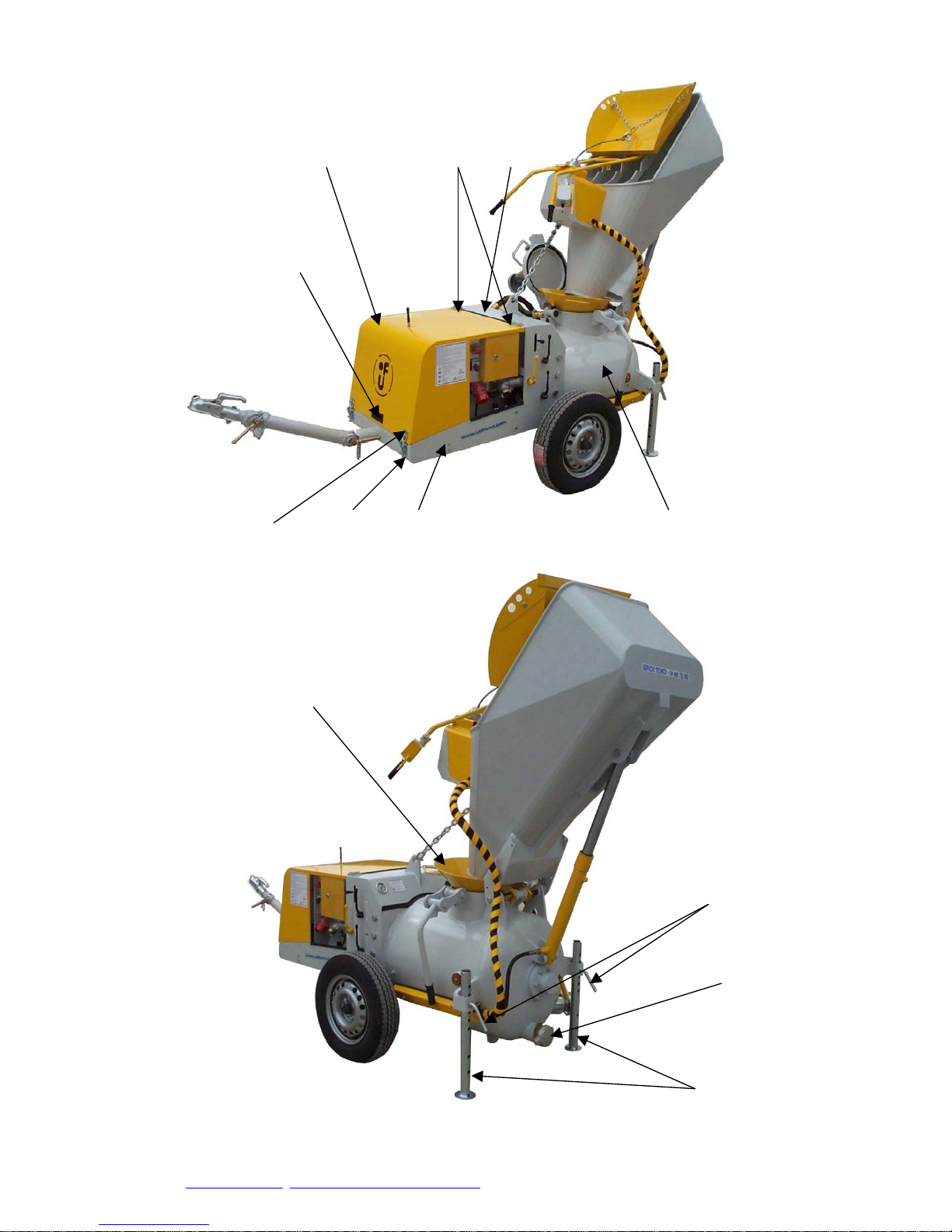

1 Main chassis.
2 Rotate jockeys (according to version)
3 Hand control (according to version)
4 Retention devices (according to version)
5 Head of ball hook or pin
6 Intermediate pieces of lance tows
7 Lance tows
8 Suspension axes
9 Pneumatic wheels
10 Brake inertia (according to version)
11 Support and control chucks
3.3.1 Main chassis
The main chassis is built under a special production of steel of quality that gets a great stability of the
machine in march.
3.3.2 Rotate jockey
This support wheel doesn't specify maintenance.
To rotate up, to run off with and to assure the support wheel with the machine in march. To place it in the
working place the support wheel it is rotated down until the wing is in horizontal position. The adjournment
wheel you can only place up for the support protector when this is in having not been loaded. This placement
procedure begins manually. The unfolding works automatically. In the folding position the adjournment wheel
is blocked alone.
Page 12
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
11
3.3.3 Hand control or parking control
The hand control that is supported by an elastic suspension by gas, is good for the sure parking of the
machine. When the wing leaves back the hand control it is adjusted automatically.
- I manage of the version with elastic suspension for gas: to throw of the hand control for the parking
until the break-even point. To loose the control it is necessary to restack the lever in the zero position
going by the break-even point.
- I manage of the version cylinder of jetties: to throw of the hand control for the parking until the last
tooth.
3.3.4 Retention device
In case the traction vehicle brakes or leave hill below the traction bar it is introduced, depending on the
size that has the force of the tow bar, the control responds this way.
Also when going it goes the control behind he/she responds at the beginning. Since the drum of the
control moves back, it is eliminated the effect of the control practically. When adjusting the retention device it is
necessary to keep in mind that it must be in parallel position to the lance of main tow. Otherwise, the controls
don't work.
3.3.5 Head of ball hook or pin
The wing is prepared, according to the chosen option, for the transport with a car (ball-and-socket head)
or with a truck (pin head).
They should respect you the national regulatory schemes of the destination countries, in those that the
machine will be transported.
3.3.6 Intermediate piece of lance tows
The intermediate piece is the connection between the retention device and the tow lance.
3.3.7 Tow lance
The tow lance has a help for the regulation. This facilitates an easy and comfortable regulation of the
height for the hook of transport.
To revise before each itinerary the security of the bar of tow regulator.
• To keep in mind to the regular one the height that the retention device is in parallel position to the
tow bar. It is necessary to check if the jagged heads are correctly united to each other, and if the fixation
maneta this correctly tight one and that the safe-deposit grupilla is well inserted. Otherwise, it is not
guaranteed that the controls work.
• In the event of having a ring like traction device, he/she will be proven that the system of blockade
of the vehicle tractor is totally inserted. In the case of having a bolster, he/she will be proven that the
bolster is correctly couple on the ball of the vehicle tractor.
• To only change the height in flat area.
• To assure the machine with the control chuck against rotating, then to loose the hand control.
Page 13
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
12
When maintaining a certain height during a long time he/she can appear in the connection of the heads
jagged oxide, with the rising deterioration of the same ones, for what a regular cleaning of the jagged
connections is recommended.
The maintenance of these elements should be carried out periodically and to verify the state of the
jagged heads, as well as of the threads, bolts and fixation manetas. If an excessive waste is detected, the
corresponding piece will be substituted.
ATTENTION! The safe-deposit grupilla is absolutely necessary. It should be substituted in the
event of loss or waste. To check the state of the cable of control of the hook of inertia periodically, as well as of
the safe-deposit cable.
3.3.8 Suspension axis
The suspension axis doesn't specify maintenance and you cannot grease, since the fats can attack the
rubber bodies.
Not to carry out welding works in the axis.

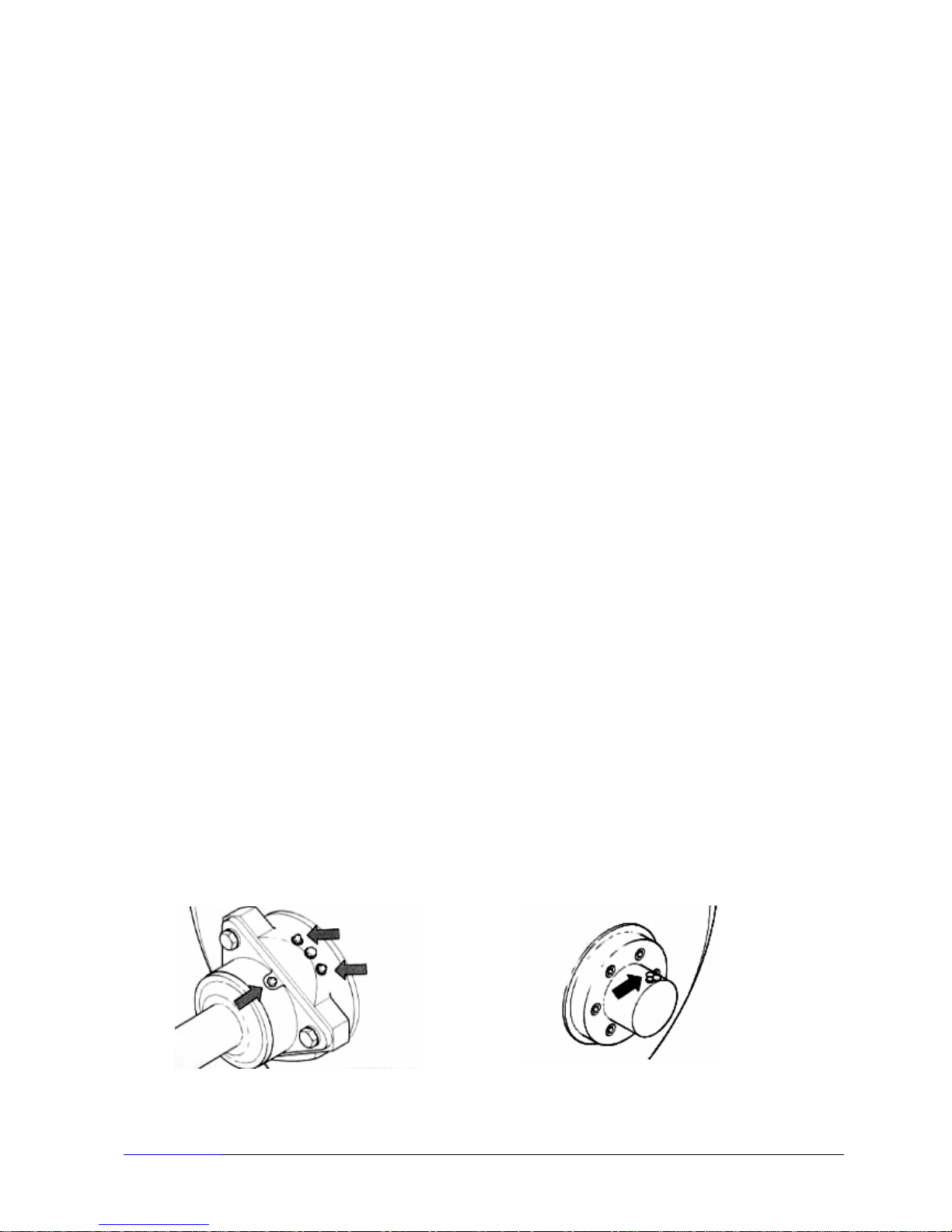

3.3.9 Pneumatic wheels
When changing the wheel it should be kept in mind that the correct bujes corresponds to the connections
of the wheels.
• To press the ball-and-socket screws with the moment of marked turn.
• The tires have to correspond with the data of the axis.
3.3.10 Control of inertia
To only repair the controls in an authorized shop and only with original pieces.
The controls of the wheels complete the norms on toxic substances and the regulatory scheme of the
UE.
3.3.11 Support and control chucks
To assure the wheels with both control chucks, so much in flat surface as slope to avoid that the vehicle
can rotate.
3.3.12 System of lights tow
The luminous bar is available in the version with 12 V and 24 V. The assembly of this system of lights
is carried out following the following steps:
• He/she catches the bar of illumination and he/she enters in the later part of the machine, assuring it
with two willing jetty pins for such a function.
• To catch the cable of light with their peg normalizes of the bar of illumination and it is connected in
the base of 7 poles that is located in the lateral part of the machine.
• To connect the plug prepared in the front part of the tow, in the area of the tow lance and to connect
it with the traction vehicle.
• For the disassembly it is necessary to carry out the contrary process.
Page 14
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
13
If a traction vehicle is used that prepares of a system of 12 V, you can connect the cable immediately
with the vehicle.
If one has a traction vehicle with a system of 24 V, he/she is necessary an adapter of 12 V to 24 V
(consults us the reference of the article)
If he/she behaves a vehicle with plug-in EURO, he/she is necessary an adapter of 12 V to EURO
(consults us the reference of the article)
3.5 Preparation to carry out the transport
• To empty the mixture boiler completely.
• To control the pressure of the tires.
• To regulate the height of the hook head.
• To loose the parking control.
• To hook the tow in the traction vehicle.
• To run off with up the wheel jockey and then to bend it.
• To hold the safe-deposit cable of control.
• To revise the blockade of the cover, the closings and the valve of the square of controls.
• Close you the locks, this is a protection against vandalism and robbery.
• For the transport the machine has by lorry to have a bar of illumination that works.
3.6 Transport like tow
To carry out the transport by lorry it is necessary to keep in mind the following points:
• To respect the domestic national traffic norms where you circulates with the tow.
• To take gets the documentation or permission of circulation of the tow.
3.7 Transport in a truck
To only use a vehicle of transport with enough carrying capacity for the total weight of the machine.
Immediately after loading the machine to assure it and to hold it in such a way that cannot come off. To
use for it adapted tapes, the chucks located in the front part of the machine and to work the parking control,
according to machine version.
To assure all the pieces that can move, as the cover of the boiler and the tubes transporters.
The transport of the machine in a truck without belts is not admitted.
Not to forget before the next transport to remove the insurance of transport in the machine.
Page 15
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
14

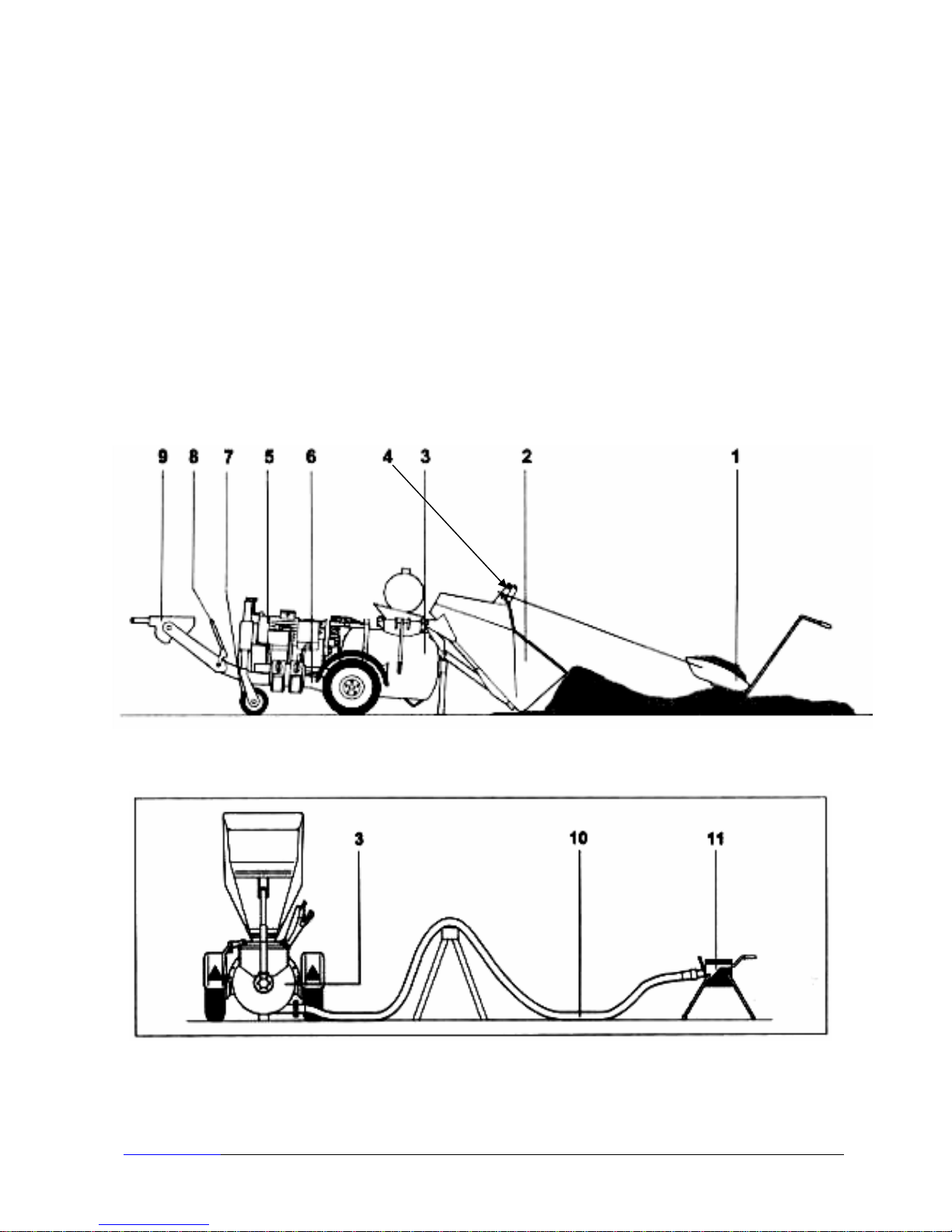

4 Description of the machine

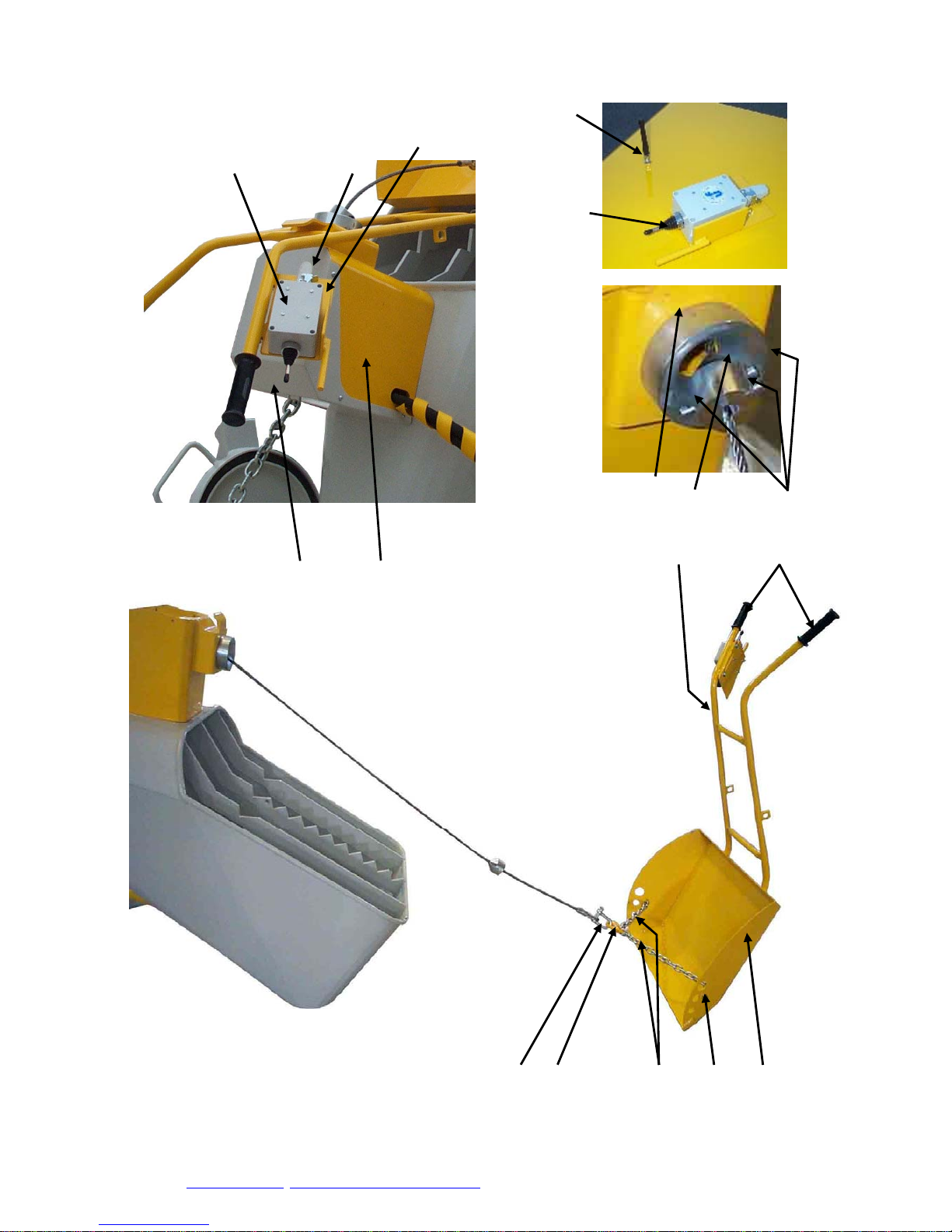

Machine version with load chute and shovel crawls.
1 shovel crawls (according to version)
2 load chute (according to version)
3 mixture deposit or pressure boiler
4 support shovel he/she crawls (according to version)
5 motor reducer for the working of the mixture
6 main chassis
7 rotate jockey (according to version)
8 I brake of hand (according to version)
9 Retention device (according to version)
10 Hose of transport (accessories)

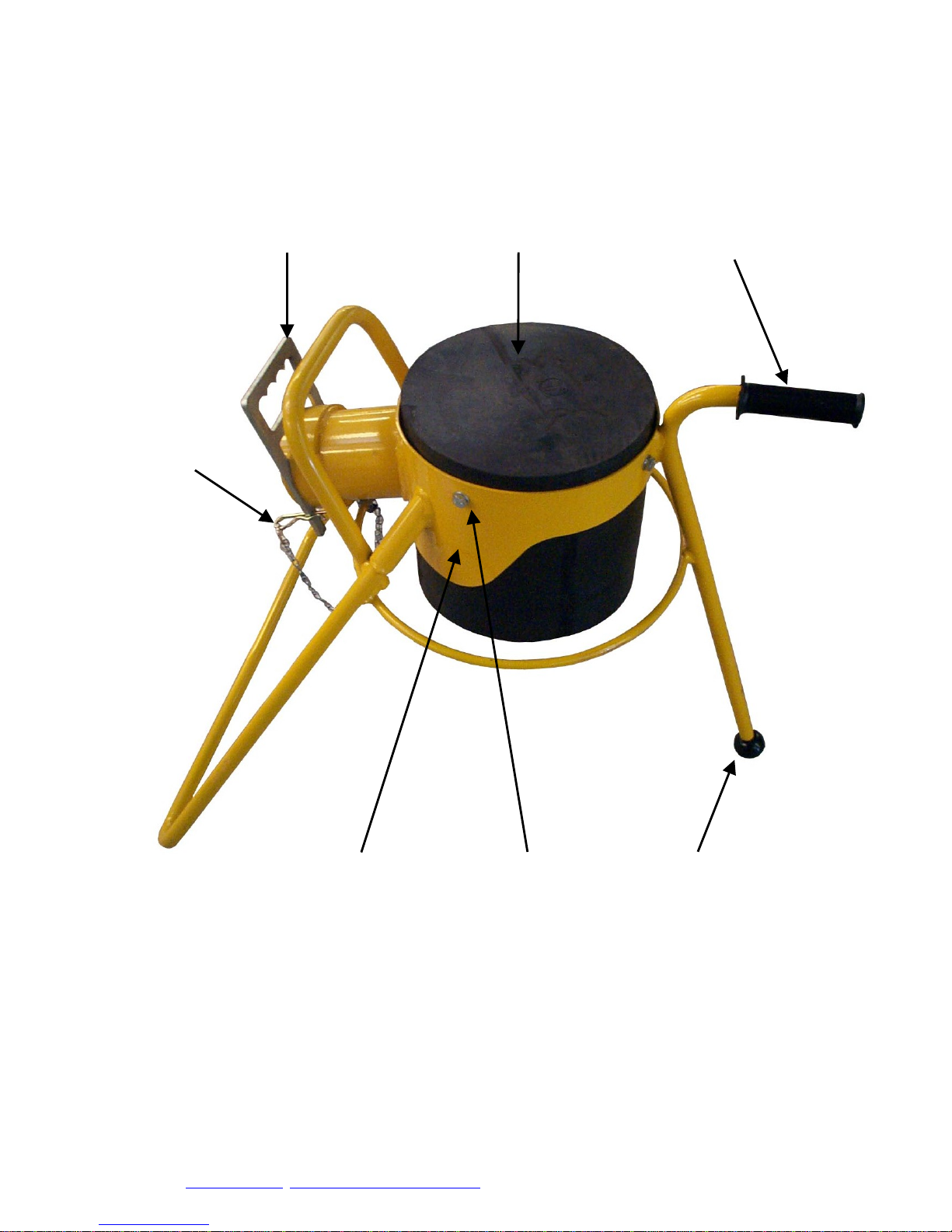

11 Receiving tripod of material exit (accessories)
Page 16
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
15
4.1 Technical data
Machine type ............................................... 260 260 T 260T/P
Electric connection 400 V./50 Hz.
It develops Motor Feeder 7'5 Kw.
Connection to the electric net 3P+N+T 32 A./6h.
Control tension 48 V./50 Hz.
Useful capacity of the boiler 200 its.
Flow theoretical 3 m/h3. (*) (Approximately)
Height of transport 15 floors (*)
It distances of transport 100 mts (*)
Longitude(mm) 2750 3300 3300
Width (mm) 1160 1160 1160
Total height (mm) 1100 2280 2370
I weigh (Kg) 730 860 920
(*) It depends on the material type, consistency and dosage numberless.
4.2 Standard team
- I send it distances for radio frequency, with battery and loader.
- Fund accessories (lubricating, adjusting keys, rubber balls, etc)
- 40 (20+20) hose meters transport 65 mm c / joining
- Tripod receiving material exit
- 25 meters of hose electric 5x2'5 mm2 c / it bases.
- 1 certificate of conformity EEC.
- 1 guarantee of 12 months.
- 1 book of instructions and it lists of quartering of the machine.
4.3 Recommended equipment
- 40 (20+20) meters of hose transport 65 mm c connection receiving
- Tripod exit of material
- 25 meters of electrical hose 5x2' 5 mm2 c base.
Page 17
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
16

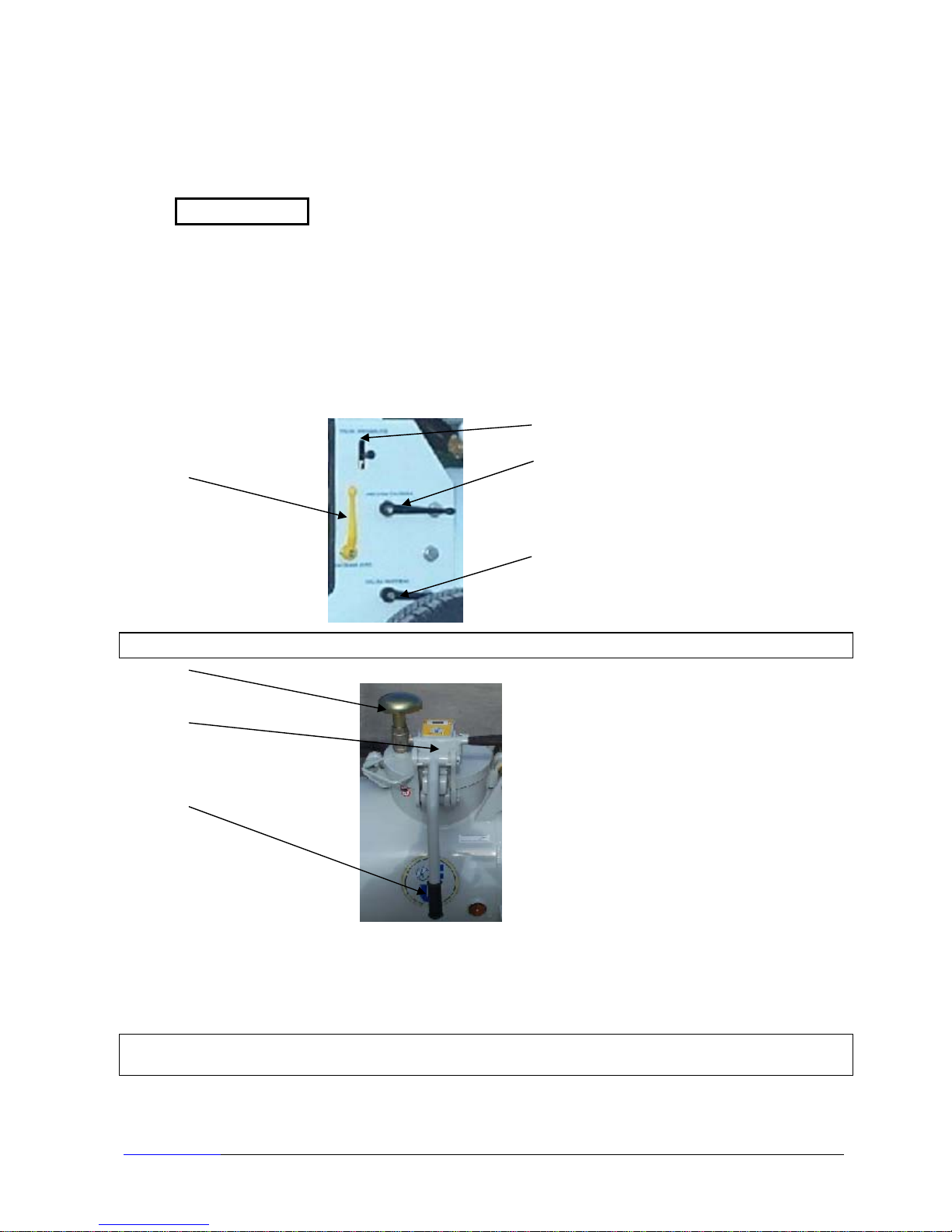

5 Elements of service
1 Switch - investor star-triangle
2 Manometer of pressure
3 Sphere valves
4 Connection of the auxiliary compressor

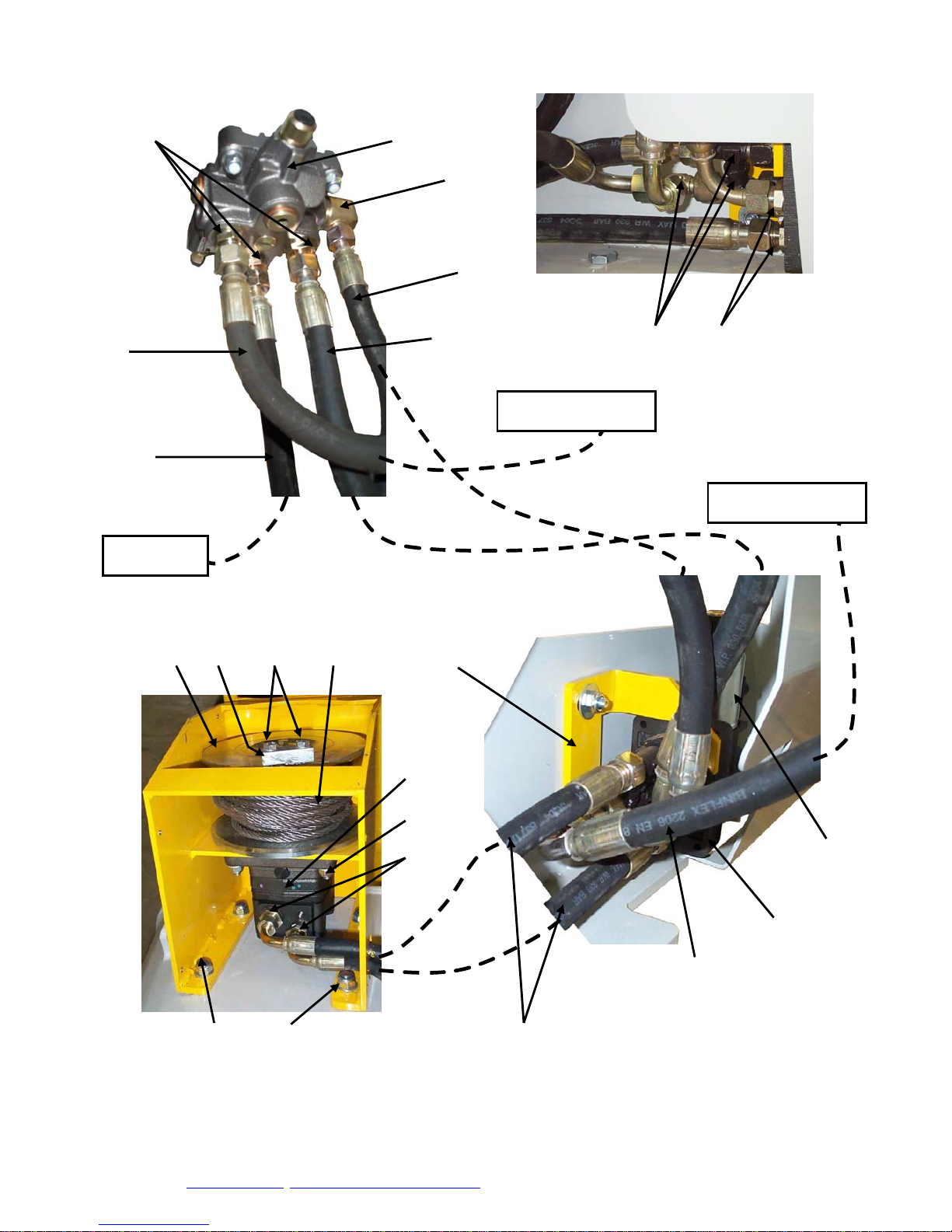

5 Lever hydraulic distributor, working chute (according to version)
6 Unit of central of it greases automatic
5.1 Switch - investor star-triangle
This switch is connected with a felt relé of phases that makes that the alone motoreductor can work in a
turn sense, that is to say, in the correct sense of march..
The mixer has to rotate in contrary address that the needles of the clock seen of the part of behind of the
machine toward the boiler.
6 1 4 5 3 2
Page 18
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
17
6 Preparation for the operation
6.1 Safe-deposit indications
• The sure work and carefully it begins with the election of the place of installation of the machine. In the
working place it is necessary to familiarize first with the working environment.
• The installation of the machine should be in a fixed place and plane.
• If the machine is equipped with load chute, in the place where it is placed he/she has to have enough space so
that it can lower the same one without difficulty.
• In the event of machine with load chute is necessary to put the machine at level being helped of the support
paws that are located to both sides of the boiler of blended, assuring them with their corresponding pins.
• In a place with powder is to keep in mind that the powder doesn't blow in the address of the system of
aspiration of air. The air filter gets dirty quite quicker and the maintenance intervals, also for the refrigerator,
they shorten considerably.
• Not to place the machine in places where an explosion can take place. Unless it is a machine that is
technically as amended for it. To pay special attention to the indications on the electric motors and of gas oil.
• To place the machine in such a way that the working place is protected by objects with easy fall on the same
one or the personnel that it surrounds it. To take helmet protective ATTENTION!
• To assure the machine so that it cannot move with the parking control and chucks dedicated for this end. It is
advisable to remove the system of illumination of the machine and to keep it in sure place.
• To work the machine with the necessary safety appliances.
• To connect the machine with the cables of the current.

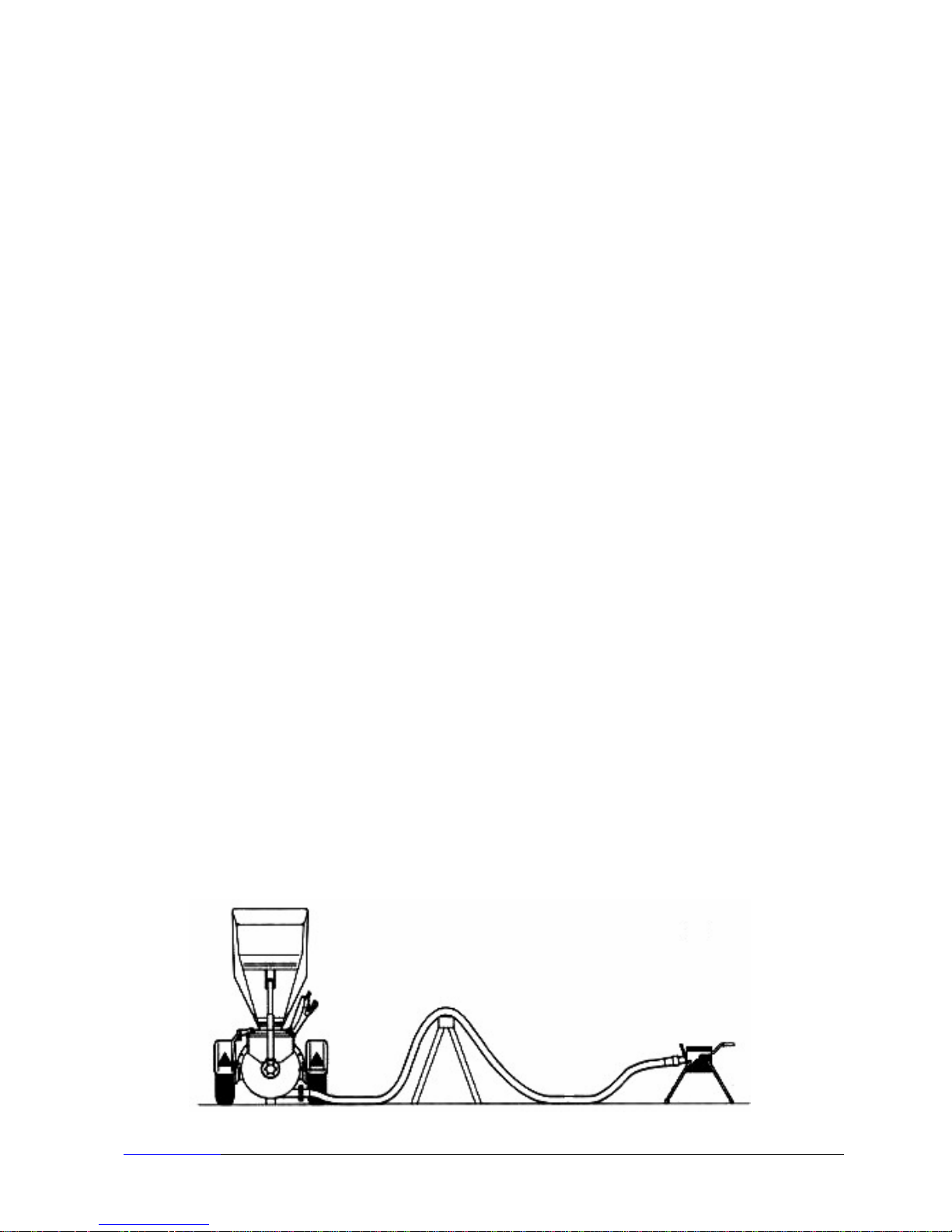

• To place the tubes of transport tracing a road the shortest thing possible. To calculate for the changes of
address generous radios (I radiate of curve = six times the external diameter of the tubes), avoiding that the
hoses of transport bend. As much as less joinings have better, since this way the fuljo free of the material is
facilitated by the interior of the tubes transporters.
• To tie the ascent lines very carefully with the fixers of the foreseen tube, so that they don't break for their
own weight. We recommend our hooks for the hoses of cloth transport or leather.
• To assure all the connections of the joinings in the connected tubes to avoid that they can open up.
• To control the tubes and joinings regularly against waste (abrasion and aging, see you the leaf of safe-deposit
control for a good state).
For the security in the operation is indispensable that tubes transporters and original joinings of
UTIFORM are only used (or authorized by the maker).
Page 19
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
18
6.2 Hoses and joining of transport
Available several types of tubes different transporters that differ in their interior diameter exist
(compound number also nominal diameter).
The election of the nominal diameter corresponding to each tube transporters depends from the material
to transport. The following points serve like reference:
Granulation of the supplementary material of 4 up to 6 mm:
Nominal diameter 50, 60 or 65
Granulation of the supplementary material up to 8 mm, at most the third part of more grains, washed
sand, great cement part:
Diameter nominal 60 or 65
Granulation of the supplementary material from 8 mm until maximum 12 to 16 mm, sand glutinous,
great part of grains, great cement part:
Nominal diameter 65
All the tubes utilized transporters should be of the same nominal diameter, since when using different
nominal diameters they can be formed plugs easily and he/she diminishes the yield transporter of the
machine.
According to the nominal diameter of the tubes transporters different joinings are needed for their
complete adaptation to each one of the different diameters.
The hoses of transport are subjected to a natural waste due to the abrasion and aging, for that that due to
this fact, a specialist or qualified personnel should control at most every 3 months if these subjected pieces to
waste are in a perfect state.
When necessary to change the tubes transporters immediately with the joining. To write down the
revision in the leaf of safe-deposit control.

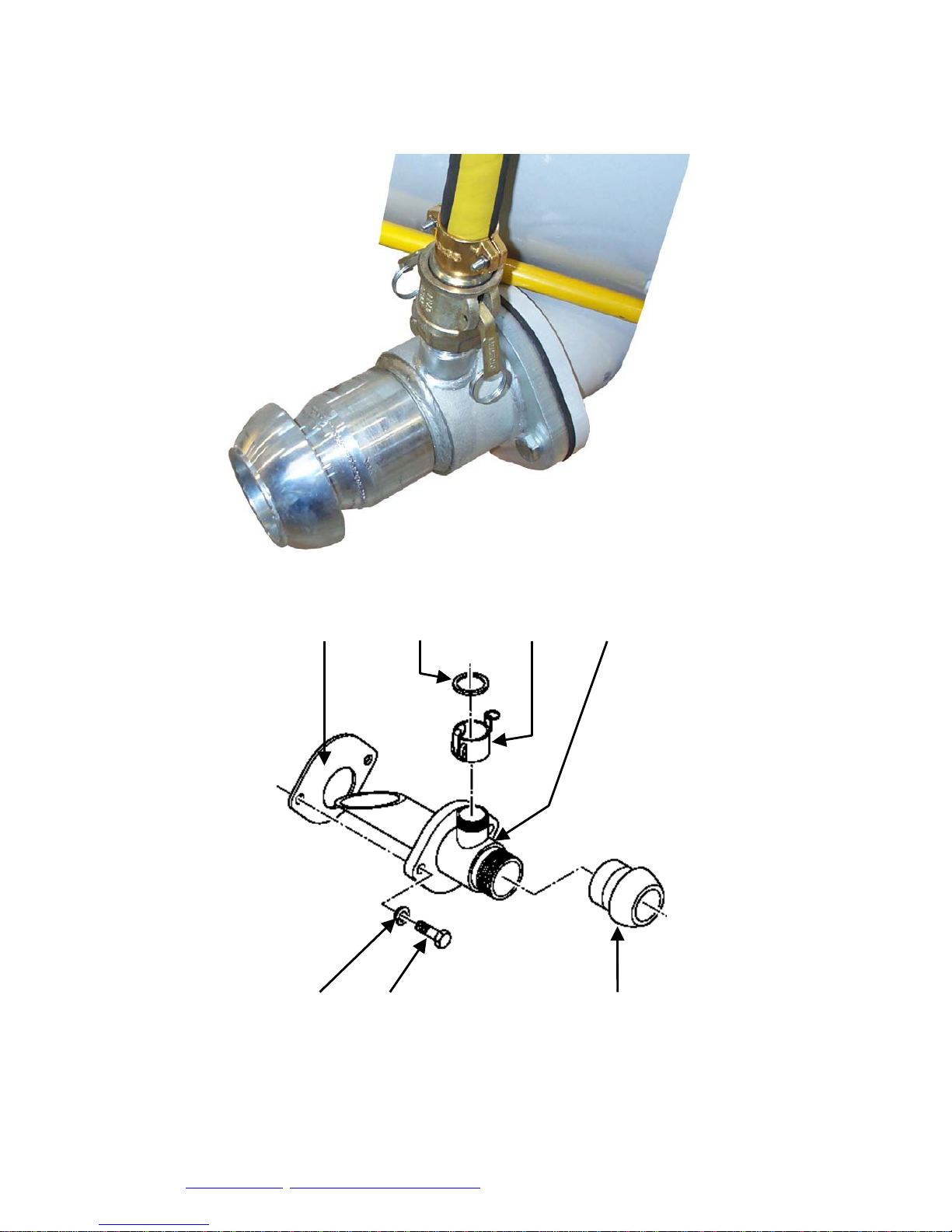

In the exit of material of the boiler of blended the possibility exists of placing a reduction of the nominal
diameter from 65 to diameter 50 mm and obtaining a double function of this reducer like it is retaining stones
with a bigger granulation, so that these cannot be strained in the tube transporters and to cause plugs.
The hoses of transports should be able to support a working pressure of 10 bar, for machines of flowing
soled and 40 bar. for machines of having sulked or I pump and projection of materials.
Page 20
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
19
6.3 Operation in closed spaces
In general: To keep in mind the possible applicable national norms to the destination place from the
machine when working in reduced spaces.
To place the machine in such a way that doesn't cut the step to entrances, exits or passages if the doors
are open.
To mount the machine in such a way so that one can work with her without difficulty - not directly
before a wall, this way it is avoided that the hot air that leaves the motor can be absorbed another time.
To always have enough ventilation, so much of the space as of the machine, never to cut the admission
of the air.
To place the machine in such a way that cannot absorb dangerous substances (for example solvent
inflammable, etc., but also powder and other dangerous or toxic substances). This is equally valid for sparks.
For maintenance works, tests and repairs he/she should have a clear and very aerated place.
6.4 Before the setting in operation
To keep in mind the energy that absorbs the machine when connecting it to the current.
• Before the first setting in march is to have an appropriate electric outlet. To keep
in mind the absorbed energy of the electric motors.
Page 21
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
20
7 Operation
7.1 Safe-deposit indications
• To keep in mind the norms of the professional associations, mainly the norms of prevention of accidents.
• To eliminate all the mishaps that can affect the security immediately.
• One could give the case that materials with those that one is working could put in danger the health, for this
reason, to always wear the necessary clothes corresponding to the leaves of data of the maker (breathing
protection, gloves, etc.).
• To elaborate and to only transport capable materials for the utility of the machine (sees you remote 2.3
correct Use). In the event of doubt to contact their branch of UTIFORM.
7.2 Safe-deposit indications in the normal operation
Lend you attention to the special norms when elevating the machine CONVEY.
See you the chapter 3.2 Transport for crane.
7.2.1 Recipient to pressure
(according to the norms of the directive 87/404/CEE annex II, article 2).
Requirements about the maintenance and the installation:
1. The recipients to pressure are used in the CONVEY like separator of oil and I eat deposit of mixing and to
pressure.
The operation data are in the board of type of the recipient:
• Maximum operation on-pressure, Ps in bar,
• Maximum operating temperature, T.max in ºC,
• Minimum operating temperature, T.min in ºC,
• Content of the recipient, V in l.
2. To the recipient to pressure the utility can be given only described previously and corresponding to the
technical data. The use for other purposes is not allowed by safe-deposit reasons.
3. The state norms regarding repetitive tests should be respected.
4. Never to carry out in the recipient to pressure welding works or another procedure type with heat.
5. The recipient to pressure is equipped with all the protection devices and necessary security, as the
manometer, protective devices against on-pressure, safe-deposit valve, etc; never to start it without the same
ones.
6. It is necessary to clean the recipients regularly to pressure with the unplugged machine, he/she should also
purge the condensed one.
7. Placement, construction and the connections cannot be changed.
8. The screws of the cover and the screws of the plate like additional fixation cannot be used.
Page 22
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
21
7.2.2 Safe-deposit valve
The maintenance works and repair should be carried out by the supplier's authorized representative.
The tests that should be carried out are the following ones:
1. To control an or twice a year if the elevation mechanism opens up correctly. For it, it is necessary to rotate the
plug of the valve against the needles of the clock.
2. To control once a year the value regulator of pressure according to the local norms. This test should not be
carried out in the compressor but in an appropriate place for tests.
7.2.3 Prevention of accidents
1. All the pieces that rotate or they go of a side for other and that they are not protected otherwise and they can
represent a danger for the personnel, they are in the CONVEY in a box or they are fixedly screwed.
2. Never open low tension closets of electric distribution, connection cells and other electric equipment. If this is
unavoidable, for example for mensurations, tests or readjustments, these works should be carried out by a
specialized electrical technician and using appropriate tools and certain safety measures.
3. The noise, although it is not very high, it can put on nervous and upset, and after some time, our nervous
system can suffer strong damages.
Depending on the level of sound pressure in the places where the employees are, it is necessary to take the
following dispositions:
- Lower to 70 dB (TO): any measures in particular.
- Upper to 70 dB (TO): people that are continually in that area should use protection for the hearing.
- Lower to 85 dB(A): for sporadic visitors that are for a while short in the area, it is not necessary to
take special protection measures.
- Upper to 85 dB(A): Area of a lot of noise! In each entrance it should have a warning poster that
indicates that it is indispensable when entering in that area - although it is almost time - to take
protection for the hearing.
- Upper to 95 dB (A): the warning posters in the entrances should point out that the visitor sporadic
debit side to take protection for the hearing.
- Upper to 105 dB (A): they should be to disposition special protectors for the hearing that you/they
are adapted to the volume of the sound and the ghastly composition of the sound. In each entrance it
should have a poster of corresponding warning.
7.3 Control before the setting in march
• To pay attention to that nobody is in the elevation area near the machines that have the load chute and
haulage shovel.
• To pay attention to the appropriate electric outlet, that is to say, 32A for the CONVEY 260.
• To keep in mind the correct position of all the cables. To assure all the lines of ascent of the hoses of
transport appropriately and to pay attention to the security of the joinings in the hoses that are appropriate and
don't be damaged.
• The additional compressor is connected in a correct way with appropriate rubber pressure tubing.
Page 23
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
22

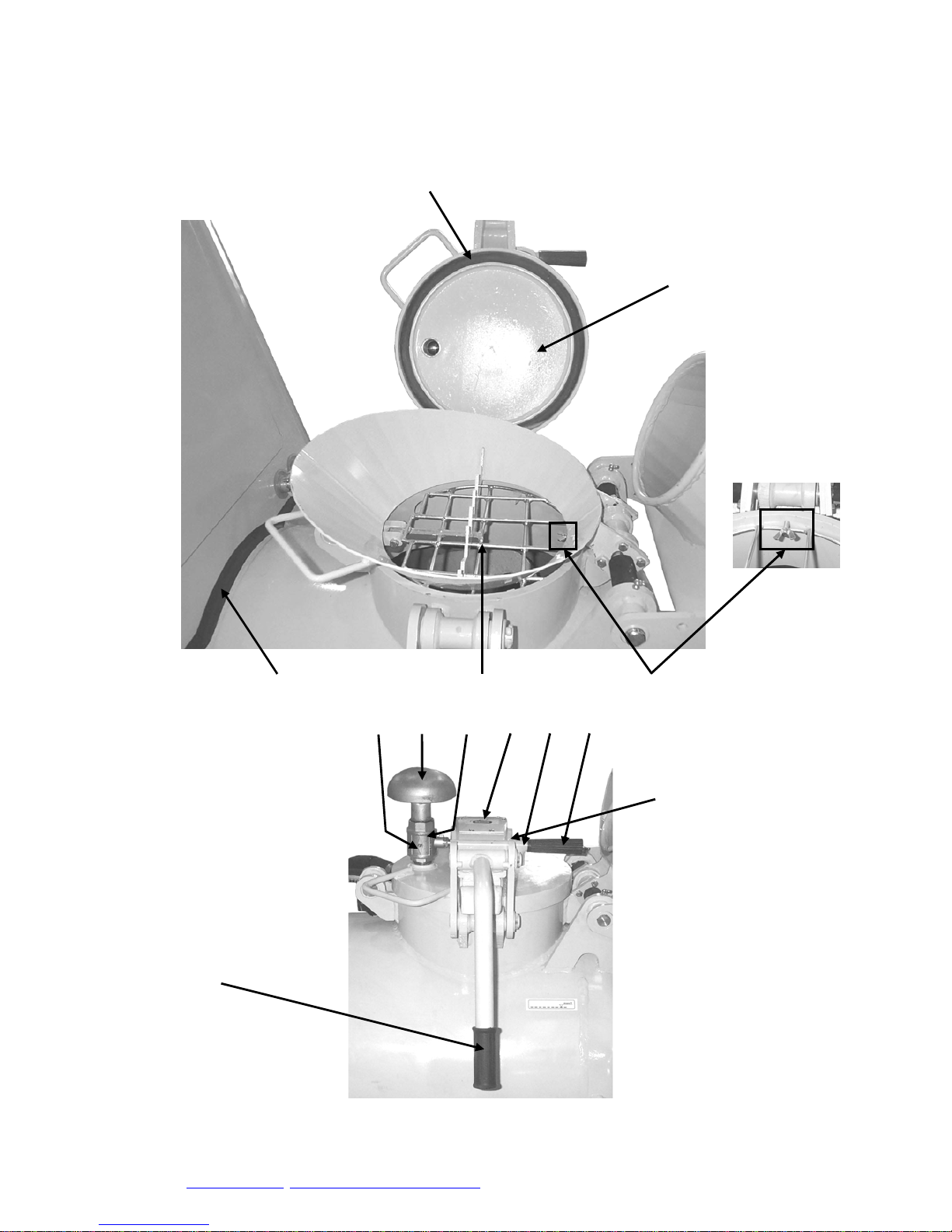

7.3.1 Safe-deposit Systems in th e machine
Before starting the machine, all the protection facilities have to be placed and they have to be prepared
to work correctly.
The machine CONVEY fulfils all the requirements of the safe-deposit European norms for construction
machines, for there is it prepared in the machine the necessary safe-deposit systems, like it is the grill prepared
in the mouth of material entrance in the boiler.

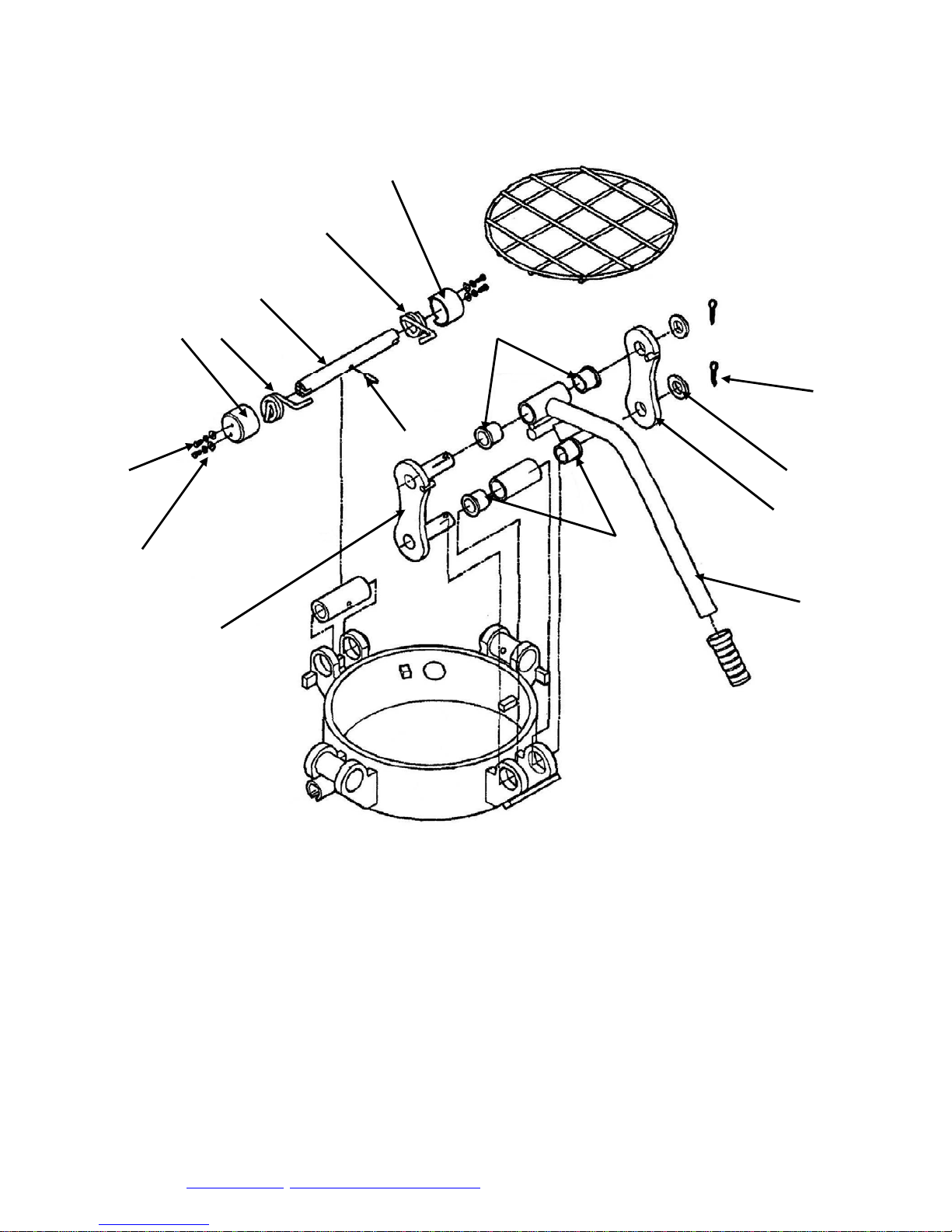

This grill has a double safe-deposit system, firstly it takes a screw butterfly that prevents that the grill
can rise and in case this screw takes off and get up the grill, the machine it would not work correctly, since the
air would escape for this hole and in second place, in the grill he/she has prepared an inductive sensor, so that
although the grill rises the diesel motor (according to version) he/she would stop automatically.
Never to play through the safe-
deposit grills!
In situations of danger or when taking place strange noises with the machine in march, to press the
emergency mushroom quickly to stop the machine immediately.
The pusher is activated rotating toward the right again and throwing toward it was.
7.4 Setting in march of the machine
To work the switch-investor star-triangle in the position shatters in first time and followed act to pass to
the position triangle.
The electric operation of the machine this designed so that the alone electric motor can rotate in only
sense, since he/she incorporates a relé detection of phases.
According to the sequence of phases of the source of connected current the motor only starts in a part of
the switch. The other address doesn't work, to avoid in this way that the hydraulic bomb coupled in the redactor
of the own electric motor rotates a contrary sensed to the correct one and damage its internal structure.
The mixer has to rotate against the sense of the needles of the clock seen by the part of behind of the
machine to the deposit of blended.
7.5.1 To mix
The mixture process to continue is the following one:
• To raise the receiving cone of material above the mouth of having filled with the boiler.
• To fill the deposit of blended with material supplementary until the half (approx. 100 l).
• To add the hydraulic agglomerate according to the maker's indications.
• To add water.
Page 24
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
23
• To stuff the deposit of mixing with material supplementary.
• To control more water when necessary, and in such a case to add more.
• Before closing the mixture deposit with their corresponding cover, to clean with a brush, or
something similar, the border of the boiler.
ATTENTION! To fill the boiler with having only mixed 10 - 15 mm until the inferior
border of the mouth of having filled with the mixture boiler!
Otherwise he/she shortens the duration of life of the deposit considerably of mixing and their waste
pieces.
7.6 To transport

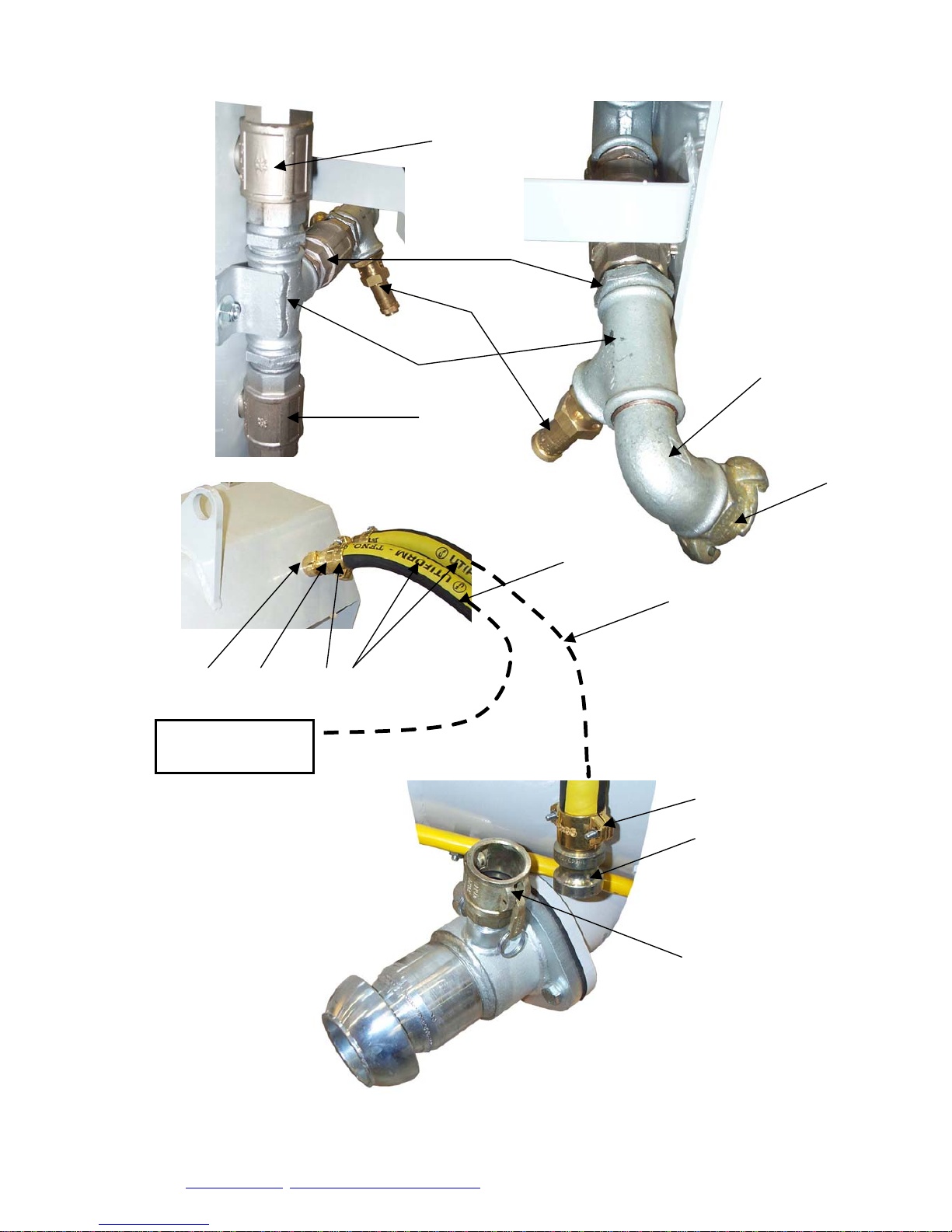

The pressure to generate inside the boiler is carried out pressing the lever (2) prepared in the boiler and
working the cover down. The process of transport begins with the auxiliary compressor in march and later on
opening the spherical key (1) of yellow colour prepared in the machine.
7
5
1
6
Never to open the cover if it is low pressure!
4
3
2
Nevertheless, this machine this endowed with a safe-deposit system so that the cover of the boiler
cannot open up with pressure. Before opening the cover of the boiler with the lever (2), it is necessary and
indispensable to work the lever (3) safe-deposit that works the opening of the escape valve (4) that this located
in the superior part of the boiler, escaping this way the whole existent pressure inside the boiler.
To clean the borders of the deposit. To change the rubber meeting immediately if this shows bigger
cracks or if he/she has entered material in the meeting.
Page 25
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
24
The material transport begins, in the moment that is formed pressure inside the boiler, so that this same
pressure causes that the first material comes out pushed by the exit of the deposit.
By means of the air that he/she enters in the exit of material of the boiler the transport of the material
he/she takes place along the hoses of transport, for the system of plugs.
7.6.1 Correct pressure of trans p ort
Transport up
If it is necessary to transport material to higher floors the pressure of good elevation it is among 4 to 5,5
bar.
The elevation pressure is regulated with the spherical keys for the superior and inferior air. The
regulation depends on the longitude and the conduction of the tubes transporters, as well as of the proportion of
the mixture of the material in the deposit of blended.
If one of the aforementioned variables is changed previously it is necessary to regulate the pressure
again, for this it is necessary to always have very in bill the manometer (7):
If it goes up the elevation pressure to more than 4 to 5 bar, to continue closing the superior faucet (5)
and to open up more the inferior faucet (6).
If it lowers the elevation pressure to less than 4 to 5 bar, to continue opening the superior faucet (5) and
to close more the inferior faucet (6).
Transport down
If it is necessary to pump down, for example to a basement, the good pressure of transport is of only
approx. 2 to 3 bar. The pressure of transport is also here regulated with the spherical keys for the superior air (5)
and inferior (6). The regulation depends on the larger and the conduction of the tubes transporters as well as the
proportion of the mixture of the material in the deposit of mixing.
Transport down it is a situation of difficult transport, since the air transporters can go by the material
plugs in the tube. For this reason, it is necessary to elevate the tubes transporters (sees you illustration below).
Transport at level of the earth
Also the transport at level of the earth, for example, to the low plant or mezzanine of the work, it is a
situation of quite difficult transport. The good pressure of transport is of approx. 3 to 4 bar.
For this reason, it is necessary to elevate the tubes transporters (sees you illustration below).
Placement the hoses of transport
Apart from the pressure of transport the correct placement of the tube transporters is of supreme
importance for a perfect transport of the material. For this reason, to elevate the tube directly behind the
machine, it is also advisable to elevate the tubes transporters each 15 to 20 meters in the long journeys of
transport, plains and without hill. (see you illustration below).
Page 26
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
25
End of the transport
When the mixture deposit is completely empty of material, the compressed air begins to leave without
obstacles for the hose of transport, for what means that we have finished with this process.
Next, to close the spherical key (1) toward the auxiliary compressor. To rotate the switch-investor
shatters triangle in position rest.
When these processes have concluded, to open the cover and to begin with the following process of
blended.
Finalization of the work
To keep in mind the manometer of pressure (7). It lowers the pressure below 2 bar, one can throw of the
lever (2) up, nevertheless, as suitable previously, it is necessary to work the lever (3) safe-deposit before
opening the boiler cover.

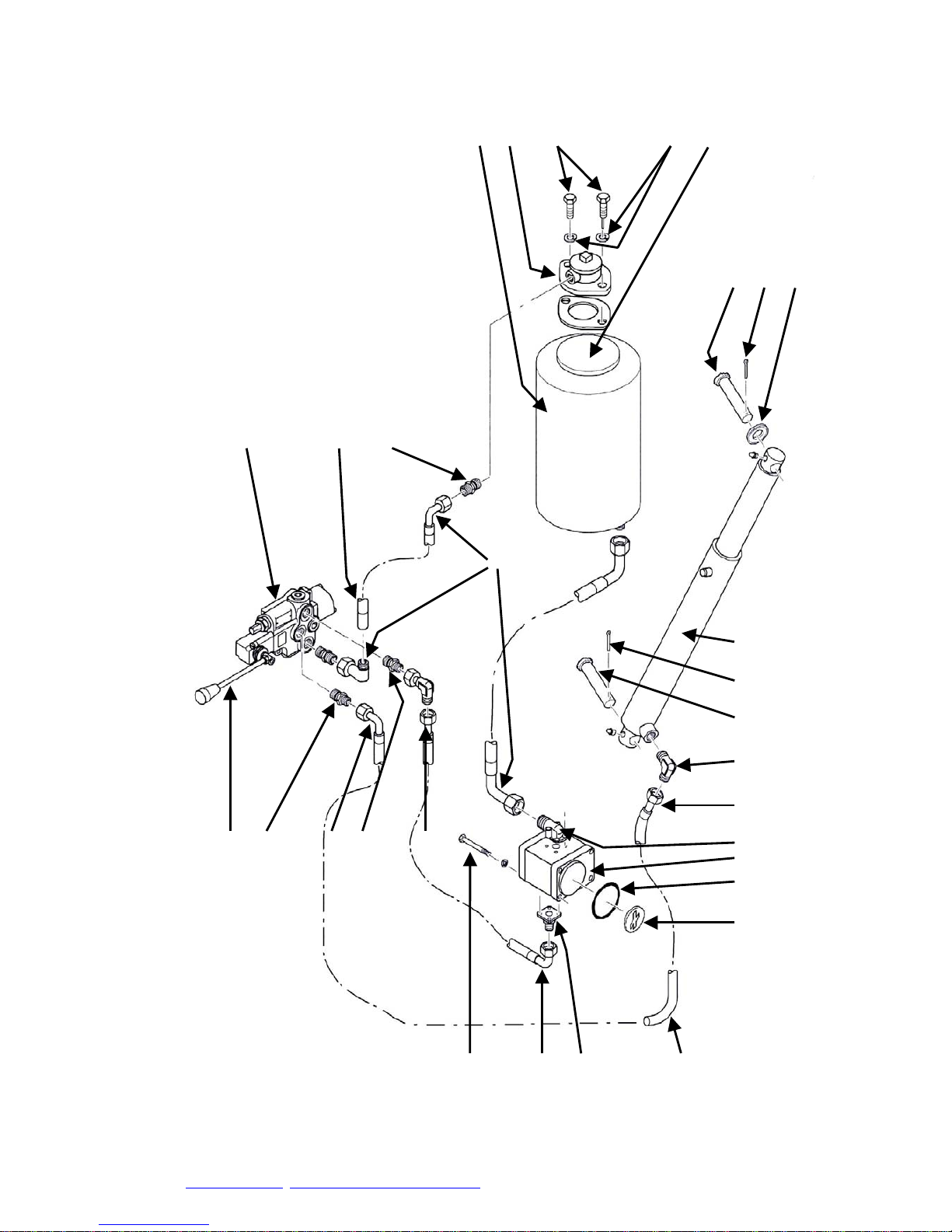

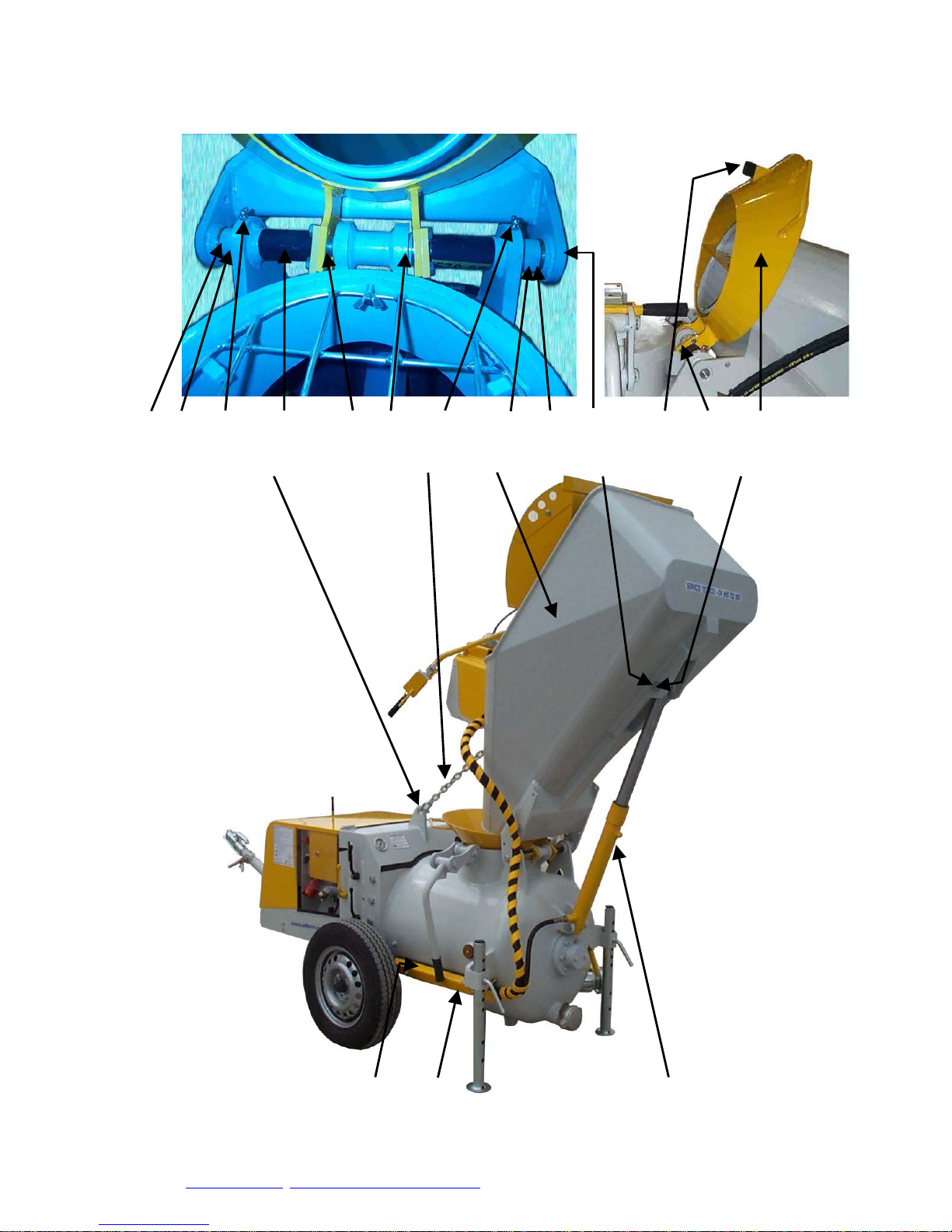

7.7 Load chute
The load chute is a device of load hydraulics for the deposit of blended. It combines two advantages:
it takes advantage of part of the operative's work, that is to say, their time and he/she makes possible
that he/she gets ready a new soled mixture while he/she is carried out a process of transport.

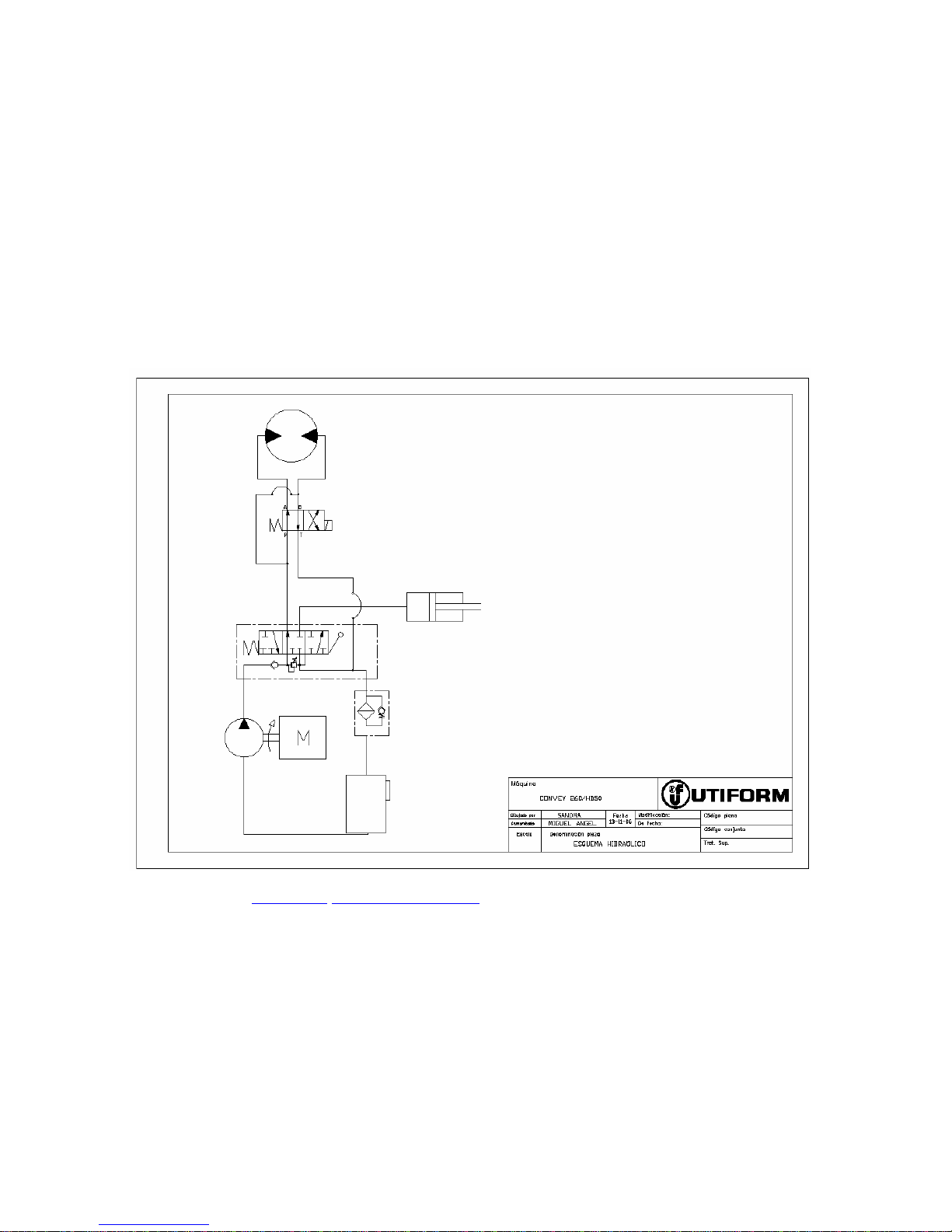

The operation of this load chute is carried out by means of a hydraulic system prepared in the machine.
A hydraulic bomb coupled in the reductora of the deposit of blended that works a hydraulic cylinder of simple
effect that makes that the load chute ascends exists and lower by means of the action of an existent lever in the
willing hydraulic distributor for such a function.
The load chute only works if the machine is working
7.8 Haulage shovel
The shovel system crawls it consists a shovel that is thrown by an of steel cable wound to a drum-pulley
worked by a hydraulic motor toward the machine.
Working this haulage shovel by means of a control prepared in the same one the sand crawls toward the
load chute it stops later on to introduce it inside the mixture deposit.
The manipulation of this control in the haulage shovel works a hydraulic electroválvula that works the
operation of a hydraulic motor that is the one that picks up the cable of steel of the pulley drum and in turn, it
works the haulage shovel.
7.9 Grease automatic + Remote control
The machine takes installed of series a power station of it greases automatic to lubricate the points of it
greases of the machine, without necessity of carrying out the operative manually.
The function of this power station carries out it a temporized of it greases located inside the electric
square that in turn has incorporated other functions that next we detail:
The temporization "UTIFORM" has two basic functions:
to) Control of electro valve at 12V.
b) temporized Control of a motor of it greases at 12V.
Page 27
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
26
7.9.1 Description of the Product:
The feeding must be carried out through a given transformer of fifty watts and that it accompanies the
apparatus. This transformer should feed to 400 V and it transforms the tension to 12 V. of AC.
The apparatus should not work to a superior tension to the 16 V. of AC.
This apparatus cannot work with direct current. It must work with twelve volts of AC (VCA). He/she
takes like base of time the signs coming from the electric net.
This temporized of it greases it can accompany with the receiving "UTIFORM" to control the
manoeuvred of the electro hydraulic valve, which receives the sign of the control distances located in the
haulage shovel.
It includes a system of quick load in four hours for the batteries of the issuing team, and a control circuit
for emergency cable.

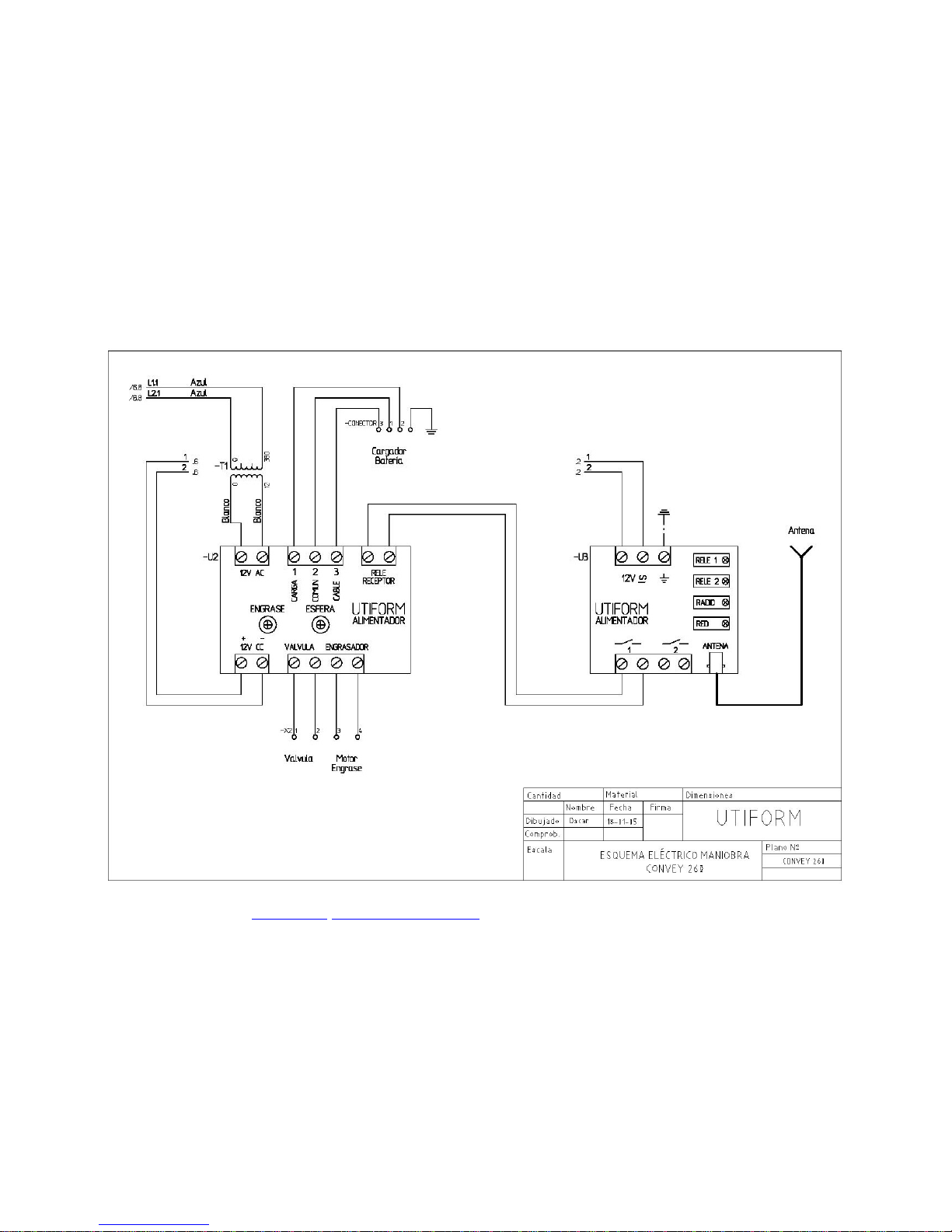

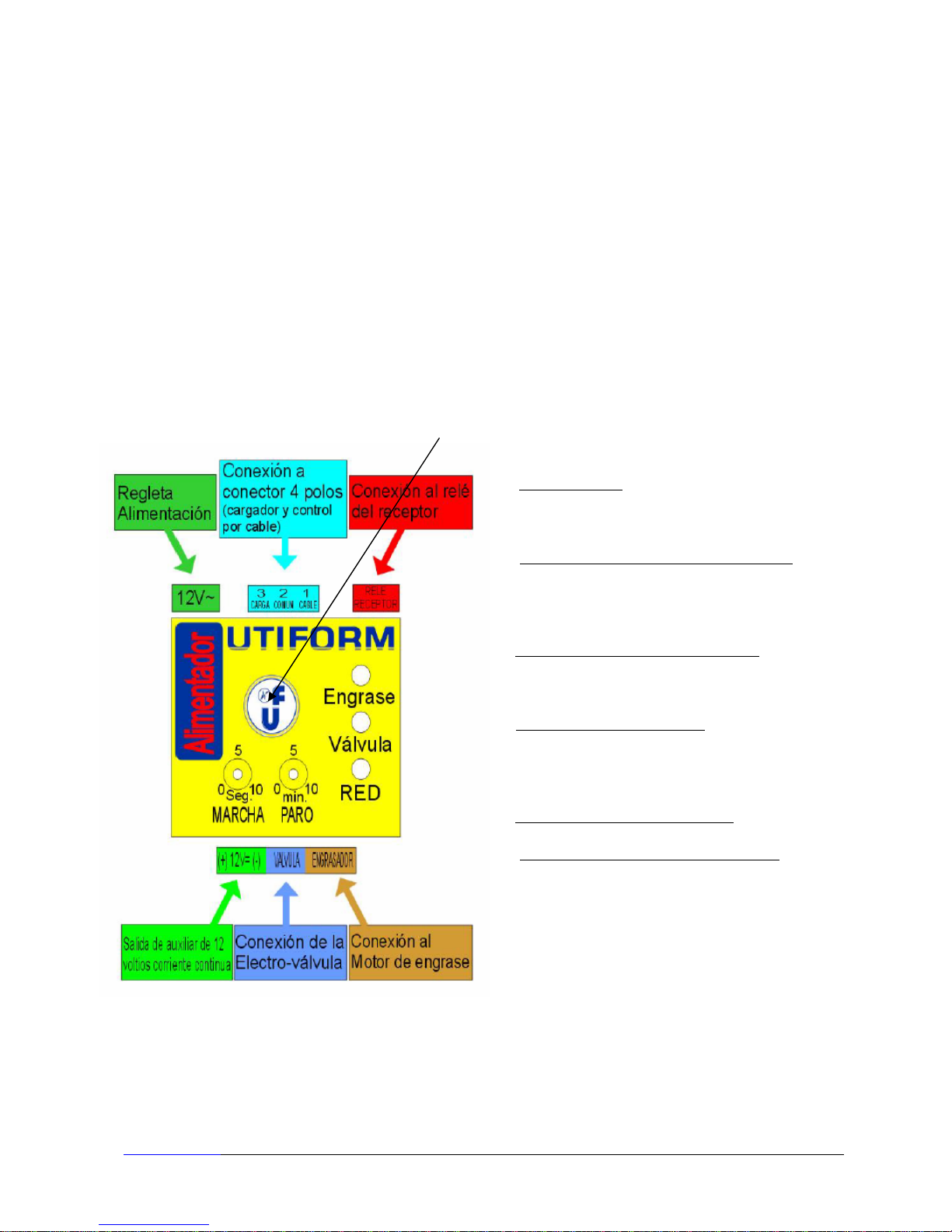

Connections: 1
a) Feeding Regret:
It is where we should connect the
secondary of the transformer. The primary one
should be connected to the tension of net of
400VAC.
b) Connection to the connector of four poles:
He/She
has the I number from each pole to which should be
connected the batteries of the command control like
the auxiliary cable since so much they should be
connected to this peg.
c) Connection to the relé of the receiver
: It should be
connected to the dry contact and usually open of the
receiver. When closing this contact he/she carries out
the feeding of the electro valve
d) Auxiliary Exit of 12VCC:
Rectified exit of not
regulated tension. The apparatus feeds with 12 V. of
AC, and in these terminals we can connect an
auxiliary element that doesn't consummate more than
an ampere, I eat a receiver of 12VCC for example.
e) Connection of the electro valve:
Here we should
connect the electro valve of 12 V. of direct current.
f) Connection to the motor of it Greases:
Here we
should connect the motor of it greases. As the exit it
is from direct current to 12 V, it can be that the motor
walks on the contrary to the correct one. In such a
case, the polarity should be invested exchanging the
cables of the motor.
The motor of it greases he/she has a soft outburst to
lengthen the life of the motor; this he/she should not
have a upper consumption to the 3 A. The operation of the motor can be interrupted by an order of march of the
electro valve. If it happened this simultaneously to the operation of the motor, this is disconnected while it is
connected the electro-valve, working the pending time again.
Page 28
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
27
g) I Steer NET:
this pilot is illuminated when feeding the team with 12 V. CA.
h) I Steer Valve:
this pilot lights simultaneously with the electro valve and it is good to give us visual
information on his operation.
i) I Steer it Greases:
this pilot gives us reference of operation of the motor of it greases. He/she blinks
approximately once every two seconds what gives us idea of the lapsed time (he/she lights one second,
it turns off one second).
j) IT GOES:
adjusting potentiometer to control the period of time in that the motor will work of it
greases. You can adjust between zero and ten seconds. If it was necessary to manipulate the electro
valve while the motor of it greases it is working, this will stop automatically, and renewing their
march once finished the manoeuvre of the electroválvula that works the haulage shovel.
k) UNEMPLOYMENT:
adjusting potentiometer to control the period of time in that the motor of it
greases it will be in rest. You can adjust between zero and ten minutes.
Connection of the connector of four poles:
When the team goes accompanied by a receiving "UTIFORM" it should have the connections to
interconnect two teams. The feeder goes prepared for it and for that reason it incorporates the "connection to
connector of 4 poles." This regret of terminals goes numbered and this numeration should coincide with the
connector of 4 poles. The fourth connection that corresponds with the earth, should be connected to the chassis
of it schemes it and to the connection of earth of the plug.
Construction of a cable of EMERGENCY:
You can either build a cable to make the direct connection from the originator to the feeder in the event
of bad operation of the receiver for interferences or for any other cause. The cable should be built connecting the
pole I number 2 and the pole I number 1, making coincide the numbers in the two ends of the cable and with the
coincident numeration. If he/she incorporates the earth cable, this debit side to go in the corresponding
connection, in this case, the pole 4.
ATTENTION! Very important: the pole 3 of the connector of both ends of the cable control
distance it should be free.
The reference Utiform for this cable control distances it is 48100.
Connection to the receiver:
The receiver has two fundamental connections to this team. If the receiver is fed with 12V DC this
connection should be carried out to the terminals of exit of 12V DC taking care of the polarity (that the
coincides "+" with "+" and "- with "-").
The control is realized through the exit relé that should be connected to the suitable entrance as "RELE
RECEIVER" taking care of connecting the "usually open" connection. The closing of this active contact the
electro-valve exit.
The incorporation of this apparatus to a square and all the connections of this apparatus should be
carried out according to the effective regulatory scheme taking care of isolations and feeding tensions, being
these of exclusive responsibility of the installer.
This apparatus is designed specifically and it is manufactured exclusively by the company "UTIFORM"
and it should always be installed under its specifications.
Page 29
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
28
Code
In the first setting in march of the machine the emission code is coded by the factory.
When changing the manual transmitter or receiver is to erase all the filed codes first and to code the
receiver with the originator. This processes it is made in the following way:
• To maintain pressed the lever of the control distances of the shovel he/she crawls in the march sense
and in the same instant to press the button 1 (with logo UTIFORM) of the receptor installed inside the
electric square of the machine.
With this simple process the new materials are coded being under good conditions of operation.
7.10 Finalization of the work
Cleaning of the machine
• To have very in bill the cleaning.
• To clean the connections, fuel and conservatism daily.
• Not to use for the cleaning aggressive detergents, or gas oil fuels and to only use cloths of cleaning
that don't loose perusals.
• Not to use solvent inflammatory or otherwise dangerous, mainly, not to use the substance carbon
tetrachloride.
• The use of solvent caustics can attack the materials of the system of the air, for example those
covered with the polycarbonate.
• Given the case, to take cautions against toxic vapours of the liquids of cleaning.
• If a machine of jet of vapour is used to protect delicate construction pieces against humidity.
• To cover the electric motor, the machine of light and other electric components, the air filters and
the regulation devices completely.
• To check after the cleaning all the conductions of fuel, of the oil of the motor and of the hydraulic
oil, since losses, points of close contact and damages can take place. To repair the damages
immediately!
• To move away the dirt of the interior of the machine in the following works, covering the pieces
and the discovered openings with a clean cloth, paper or adhesive tape.
• To remove the recubrimientos/adhesion immediately after cleaning.
• To clean the machine daily so that they are not formed inlays that can affect the function of
important construction pieces.
• Not to try to put the hand in the mixer or agitator with the motor in march, although the mixer or
agitator are stopped.
• To dew the machine with conservatism after each cleaning. They impede the oxide formation and
they protect the machine without attacking the rubber pieces, cables and meetings.
• Any guarantee is not assumed for the aforementioned pieces if it is used other means, mainly gasoil
fuels.
• To wash the complete machine for the exterior with water and a brush.
Cleaning of the deposit of blended and the hoses of transport
To elevate the grill of protection of the mouth of the boiler and to bend it toward a side. To wash the
mixture deposit especially inside with abundant water until it is not any mortar rest or other materials.
ATTENTION! To take care of the ends of the axis of the boiler, since in the meetings of the
axis mixer, it cannot be formed any inlay of dirt. It would damage the meetings of the axis and it
would end up causing important mishaps.
Page 30
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
29
To place the exit recipient in a place where it can leave the dirty water without causing any type of
damage.
To close the cover of the deposit, to start the machine and to transport the dirty water for the hoses of
transport and the receiver material exit toward out.
To hold the receiving tripod of material exit well because they leave mortar remains, he/she dilutes to
wash and air of transport low pressure.
To clarify the deposit of blended a second time, to fill it until the half with water and to empty it again,
as previously described.
For the final cleaning in the hoses of transport to use the rubber balls (ref. 3500180) introducing
them in their interior to eliminate the mortar remains that can be deposited in their interior.
To repeat this process the necessary times until the water that comes out for final end of the
hoses is totally clean.
7.11 Shortcomings in the transport
The mixture material is not transported
If the material is not transported at one time by the hose of transport very brief, there is a mishap.
• To close the faucets for the superior and inferior air. This way, it is avoided that the compressed air
escapes unsuccessfully for the hose of transport it empties.
• To disconnect the machine and to assure it against an unauthorized connection.
• To eliminate the causes, for example the inadequate constitution of the mixture ingredients.
A plug in the hose of transport
When there is a plug in the hose of transport the manometer of the mixture deposit it ascends to a
pressure from 7 to 8 bar, since it cannot leave the compressed air.
Not to open the cover of the deposit! The deposit and the hoses support a pressure of higher break to it
specifies it previously, for what doesn't constitute any source of danger.
1. To check where he/she is the plug, hitting the hose of transport
2. When he/she has been the plug, to move the tube from a side to another strongly.
In most of the cases, this process is enough so that the plug disappears. If the movement was not
enough:
To disconnect the air transporters!
3. To close the faucets for the inferior air and superior and to open the mixture deposit.
To take protection glasses!
To keep in mind, although the machine is stopped that the hoses of transport are low pressure, for what
the mortar remains could cause lesions when opening the working of the hose.
Care with material splashes! To take protection clothes!
4. To wait until the manometer of the deposit indicates 0 bar.
5. To only open then the hose of transport in the corked part and to eliminate the plug.
Page 31
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
30
Causes of the formation of plugs
The plugs can be formed for different reasons, for example:
1. Supplementary material with a low percentage of thick grain in the mixture ingredients: little
tendency to the formation of plugs offers the use of supplementary material of the line of regular sieve
2. Hoses of transport with a small nominal diameter: it should only be used hoses of transport with a
nominal diameter of 60 or 65 mm.
3. A high percentage of agglutinant in the mixture ingredients: the hoses should also here be used with
a bigger nominal diameter, starting from a nominal diameter of 60 mm.
At the same time, thick sand should be used with a bigger percentage of thick grain.
If it reaches some material the eyes in spite of taking some goggles, to wash the eyes immediately with
abundant cold water.
The hydraulic agglomerate is aggressive and it can damage the eyes.
Then to go to a specialist immediately.
7.12 Operations in winter
In geographical areas with low temperatures the work is more difficult.
To take advantage of that time, if it is possible, for maintenance works and repairs in the machine. To
make the annual revision in an authorized shop.
Up to 0 ºC it is guaranteed an operation without difficulties of the machine. If it lowers the temperature
below the freezing point, to keep in mind the following points:
• To prepare the working place and the material to transport appropriately.
• Not to use frozen material.
Page 32
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
31
8 Maintenance
8.1 Safe-deposit indications in the maintenance and repair
The maintenance works and repair should only be carried out for specialized, given personnel the case,
under the supervision of a qualified person for this working type.
1. To use the appropriate tools for the maintenance works and repair.
2. To only use original exchange pieces UTIFORM.
8.2 Safe-deposit indications in the use of tools
Use the appropriate tool for each work. If the tools are used in an appropriate and reasonable way and
one keeps in mind the limitations, many accidents can be avoided.
For special works special tools can be obtained. To use this type of tools bears to save time and to avoid
damages in the pieces of the machine.
1. Only use keys for nuts or glass keys that are coupled perfectly.
2. Only place a forked key in the flat level of the bolster of the nut in a vertical way in the axis of the
thread. Never to place a forked key in a crossed way.
3. Never to use a tube or any other type of bars improvised to lengthen a mango.
4. To give blows never has more than enough keys or another tool type whose end is not that.
5. To hold the bolster of the old crock key well if it is necessary to make lengthening.
7. Not to use keys with tips or broken or worn-out songs.
8. To use high-power joining suddenly for compressed air tools or tools.
9. To change joining that are broken or worn away; to always maintain the joining clean.
10. Never to use a screwdriver to open up, granter, to chisel, to groove or requester.
11. To use the appropriate screwdriver for each work. The mouth of the screwdriver has to enter
perfectly in the screw to manipulate. A screwdriver with rounded songs can slide easily. It is necessary
to sharpen it or to throw it.
12. To use a screwdriver or any other tool near conduction never lowers tension or other electric
components. The case of plastic of the mangos is good to improve the mango and I don't eat isolation,
if he/she doesn't come specification expressly for the maker.
Page 33
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
32
13. Never to give blows with a hammer to a hardened object: not put an intermediate piece hardened
above the object before beginning to give blows.
14. To never use a hammer with the loose head. To throw a hammer with the chart desconchada.
15. Never to use a chisel or a die with the surface desconchada or uniformed.
16. Always take a protection for the eyes in any related work with hitting, requester, to chisel or to
sharpen.
17. Take protective gloves in the chisel use or die.
8.3 Safe-deposit indications on the machine
• Never to remove safety appliances.
• Never to put the hand in the mixture deposit, being in progress the machine.
• Before beginning any work to try that nobody can connect the machine without authorization.
• Specialized personnel can only carry out the works.
• To avoid the dirt in the points of it greases. To wash the oilier and the bomb engrasadora before
using both, since the dirt and the sand in the rodamientos take to a premature waste.
• To grease the machine after each cleaning.
• To only use the detailed lubricants and never to mix different models, since some fats are not
compatible, and the lubricant effect diminishes considerably.
• To grease each means year all the mobile pieces that don't figure in the following chapter.
8.4 Points of it greases newspapers
In case the machine doesn't prepare of central of it greases automatic or be damaged it should be kept in
mind the following points of it greases:
1) to grease twice daily the meetings of the axis mixer and the bearing of the axis mixer with the motor
in march.
Page 34
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
33
2) to grease once up-to-date the valve of sphere of air escape of the cover of the boiler.
• To clean the points minutely of it greases.
• To grease to such an extent that it leaves the fat visibly for the interior part of the axis.
8.5 Points of it greases weekly
Machine with version load chute: to grease the two points of it greases manuals located in the axis
articulation chute.
• To clean the points minutely of it greases.
• To grease to such an extent that it leaves the fat
visibly.
8.6 Points of it greases each means year
It is necessary to grease the parking device and contention control, according to the enclosed illustration:
• To clean the points minutely of it greases.
• To grease to such an extent that it leaves the fat visibly.
When maintaining a certain height during a long time he/she can appear in the connection of the
heads jagged oxide, with the rising deterioration of the same ones, for what a regular cleaning of the
jagged connections is recommended.
8.7 Grease central automatic
The power station of it greases automatic it greases the following points of the machine automatically
with the quantity of correct fat:
1. The meetings of the axis mixer in the mixture deposit in the part of the motor
2. Support back of the axis mixer, in the blind part.
The front support of the axis mixer is to grease it once a month. The point of it greases it is beside the
recipient of fat of the one it greases central.
Page 35
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
34
8.8 Additional maintenance each 8 working hours or daily.
• To control the meeting in the cover of the boiler
• To control the hose of transport and joinings if they are in a perfect state.
The power station of it greases automatic debit side to have the quantity of fat in the enough recipient.
• When finishing working to clean the machine, as described in previous chapters.
• When carrying out a displacement to control the installation of illumination.
• Check in a machine with load chute or shovel crawls if both are very subject with its corresponding
chain.
8.9 Additional maintenance each 40 working hours or weekly.
To keep in mind the maintenance works described in the previous maintenance intervals and also the
following ones:
• To control, and when necessary, to clean the hoses of superior and inferior air.
• To clean, and when necessary to adjust or to change the taper joint of the cover of the boiler.
• To prove, to clean or to change the function of the setback valves in the system of air.
• To control the pressure in the tires; state of the neumáticos/profundidad of the profile.
• To control the controls and the retention team (according to version of the machine)
• To prove the perfect operation in an installation of it greases automatic.
• To prove the state of the waste pieces and of the mixer, and when necessary, to change everything.
8.10 Additional maintenance each 500 working hours or each means year
To keep in mind the maintenance works described in the previous maintenance intervals and also the
following ones:
•
To clean the refrigerator of oil inside..
• To change the taper joint of the cover of the boiler of
the mixture deposit
• To change the ring choke and the jetty for the
retention valve.
• To change the waste boards in the mixture deposit.
• To control the axial game of the support of the buje.
• To substitute the filter of hydraulic oil (according to
version)
Page 36
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
35
8.11 Additional maintenance each 1000 working hours or every year
To keep in mind the maintenance works described in the previous maintenance intervals and also the
following ones:
• Safe-deposit control of the mixture deposit if it is in perfect state, see you also the regulation of the
recipient to pressure.
8.12 To keep the machine
To make all the maintenance works before keeping the machine. We recommend earnestly that they are
only carried out the maintenance works and inspection for a shop authorized by UTIFORM. You can only this
way be sure of having a machine with a perfect operation.
• To deposit the machine in a dry place and I clean.
• The storage duration should not surpass a period of about 3 months. If it is a more lingering period
it is necessary to take additional measures of protection.
These have to be in the following way:
• It is necessary to clean and to conserve the machine before keeping it. To clean the complete
machine with a high-pressure cleaner.
• To eliminate strong inlays of oil in the interior with a cold cleaner.
8.13 Illumination
To control the operation of the team of illumination before carrying out the displacement. To change the
faulty bulbs immediately.
8.14 Tires and wing
If the machine will be stopped during a long time it is recommended to lift the machine it has more than
enough tacos to alleviate the tires and to prevent a deformation in the same ones.
To grease all the mobile pieces that are in the wing.
After a change of tires or in a new machine it is recommended to press the nuts of the wheels after few
meters of movement of the machine.
9 Lubricant
Oil hydraulic in machine with chute of load y/ó shovel crawls
Viscosity: 46 HLP Quantity: 12 l
Lubricating grease
Lithium fat KL
Never to mix different types of oils or fatty!
The used oil is an enemy for the machines. It is recommended that how much higher it is the quality of
the oil, better the machine works and much longer it will be the duration of life of the same one.
Page 37
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
36
10 Declaration of conformity CE
The Useful company and you Form, Tools and Machines, S.L., from now on UTIFORM, domiciled
in: Industrial polygon "The Ropes", 03160 - ALMORADI (Alicante) SPAIN
It CERTIFIES for this document that the machine
Denomination: TRANSPORTADORA DE SOLADOS
It marks: UTIFORM Series: Model: Type:
Serial number :Manufacturing Year:
it is according with the essential requirements of the R.D. 1435/92 (27-11-92) relative to
Security of Machines, modified by the R.D.1215/97 (20-01-95) and the R.D. 1215/97 (18-07-97) for the
one that the safe-deposit minimum dispositions and health settle down for the use for the workers of the
working teams.
It is, also, in conformity with the dispositions of the following directive of the CE:
Directive 98/37CEE (22-06-98) relative to the approach of the legislations delos States members it
has more than enough machines, which was modified by the directive 98/79(27-10-98)
Directive 89/336/CEE (19-02-73) relative to the approach of the legislations of the States
members about the electromagnetic compatibility, which was modified by the directive 92/31/CEE
and the 93/68/CEE, incorporate to the Spanish legislation by means of the one
R.D. 444/1994 (11-03-94), for which the procedures of evaluation of the conformity and the
relative protection requirements settle down to electromagnetic compatibility of the teams, systems
and facilities, modified by the R.D. 1950/1995 (01-12-1995).
Directive 2000/14 CEE (08-05-00) relative to the approach of the legislations of thes States
members it has more than enough sound emissions in the environment to the machines of I use
outdoors.
In the concerning thing to the Directive 98/37/CE, he/she has been carried out the
autocertificación, being the machine in conformity with the dispositions and requirements of the
following European Norms:
IN 292-1;1991.- Security of the machines. Basic concepts, general principles for the design. It
leaves 1: Basic terminology, methodology.
IN 292-2; 1991.- Security of the machines. Basic concepts, general principles for the design. It
leaves 2: Principles and technical specifications.
IN 292-2; 1991/A1;1995.- Security of the machines. Basic concepts, general principles for the
design. It leaves 2: Principles and technical specifications. (Modification A1)
IN 294:1992.- Security of the machines. You distance safe-deposit to prevent that dangerous areas
are reached with the superior members.
Page 38
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
37
Also, they are of conformity with the following Norms:
IN 60204-1:1997.- Security of the machines. I equip electric of the machines. It leaves 1: General
requirements
IN 418:1992.- Security of the machines. Teams of emergency stop, functional aspects. Principles
for the design
IN 982;1996.- Security of the machines.- Safe-deposit requirements for systems and components
for hydraulic and pneumatic transmissions. Hydraulics.
In the concerning thing to the Directive 89/236/CE, he/she has been carried out the
autocertificación, being the machine in conformity with the dispositions and requirements of the
following European Norms:
IN 50081-1:1992.- Electromagnetic compatibility. Generic Norma of emission. It leaves 1:
Residential, commercial and slight industry
IN 50082-1:1992.- Electromagnetic compatibility. Generic Norma of immunity. It leaves 1:
Residential, commercial and slight industry
This declaration of conformity will be limited in that that to the responsibility of the one proven
refers, in case if the salesperson or distributor for its own bill and risk, and without our express authority,
carry out changes in the machines, use the machines for other goods that the specification ones for her or to
work in a country outside of the territory where they have validities the norms of the CE 98/37 EEC, or in
the event of repair for third unauthorized, with assembly of pieces and waste.
In Almoradí, at October 14 2.004
Miguel Ángel Peco
Engineer Technician. Industrial
Page 39
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
38
11 Leaf of safe-deposit control
Should the need arise (at most every 3 months), to change all the hoses of transport and
joinings immediately. To keep in mind the pressure of appropriate operation!
HOURS WORK IT DATES OBSERVATIONS IT SIGNS
Page 40
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
39
12 Relationship of maintenance works
HOURS WORK IT DATES REALIZED MAINTENANCE IT SIGNS
Page 41
Electric Soladora CONVEY 260
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
40
13 Leaf of reserve order
Useful and you Form, Tools and Machines, S.L.
Technical service After-sales
Pol. Ind. The Ropes, Esq. C / 1 AND 9
03160 ALMORADI
Tfno. + 34 96 570 29 82 fax: + 34 96 570 29 83
Delivery Direction................................................................................................................................
Population................................................................... County..................................C.P.......................
Client Nom/nº..................................................................................................................................
Company.....................................................................................................................................................
.
I domicile....................................................................Población...................................C.P.......................
Telephone...........................................................
Fax...................................................................................
It forms of shipment _____NORMAL _____URGENTE
It forms of delivery _____ he/she Gives _____Entrega completely partially
I Model of machine: _____________________Número series
This order is governed according to the effective sale conditions of the company UTIFORM.
IT INDEXES DESCRIPTION QUANTITY
Page 42
Zerlegung
Page 43
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch
nicht berücksichtigt sind.
utiform.com
Tel.: + 34 965 702 982 / Fax: + 34 965 702 983
ANLEITUNG
1. Benutzerhandbuch
2. Bauteile des Fahrgestells
3. Mischkessel
4. Abdichtung Mischwelle
5. Verschleissbleche
6. Mischflügelsystem
7. Getriebe
8. Elektrisches System
9. Kesselsausgang
10. Elektrisches System
11. Schmiersystem
12. Beschicker-Kübel
13. Schrapper Schaufel
14. Auslauftopf
15. Förderschläuche
16. Werkzeuge
Page 44
Esstrichmachine Convey 260
1. Benutzerhandbuch
1 2, 3 4
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
5
6 7 8 9
10
11, 12
13
14
Page 45
Esstrichmachine Convey 260
1. Benutzerhandbuch: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 3500563143 1
CAPOT CHASIS CONVEY 260
2 41137 8
TORNILLO ALLEN D7991 M6x16 SCREW D7991 M6x16 VIS ALENE D7991 M6x16
3 7214145 2
BISAGRA CAPOT NIVO-CONVEY HINGE HOOD VARIO AUTONIVELANTE
CHARNIERE CAPOT VARIO
AUTONIVELANT
4
5613149 1
BURLETE CON GOMA LINEAL (1-3 mm)
(MTS)
5 46450 1
TIRADOR EMPOTRABLE CAPOT V2
6 2405110501 2
CIERRE C/SEGURO P/CAPOT FASTENER CAPOT FERMETURE AVEC SECURITE P/CAPOT
7 2405110502 2
GANCHO P/CIERRE CAPOT HOOK FOR CLOSING COVER CROCHET POUR FERMETURE CAPOT
8 45613 1
CHASIS-CHAPA CONVEY 260
9 80402120 1
CALDERA 260 A1/2, C/PLACAS, TAPA,
SALIDA 118
VESSEL 260 A1/2 WITH PLATES, OUTLET
118
CUVE 260 A1/2, AVEC PLAQUES, SORTIE
118, COUVERCLE
10
1923011050 1
CONO RECEPTOR MATERIAL CONVEY
260 -A2-
11 46210 2
PASADOR PATA APOYO CONVEY
12 41606 2
PASADOR R DE 4 mm. GOUPILLE R DE 4 mm.
13 46461 1
TAPON DESAGÜE TOLVA R. INT. 3" (V2)
14 3500421300 2
PATA APOYO CONVEY 260 PIED APPUI UTI 260 "E"
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 46
Esstrichmachine Convey 260
2. Bauteile des Fahrgestells
3 6
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
1 2 4 5
5 7
Page 47
Esstrichmachine Convey 260
2. Bauteile des Fahrgestells: Ersatzteilliste
Nº Ref. Uds. DESCRIPCIÓN Description Bezeichnung Désignation
1 313013155000 2
RUEDA NEUMATICA 155/80 R-13 SPARE WHEEL V2 ROUE DE SECOURS V2
2 1295517 1
EJE SIN FRENO 750 KG. P/V2
3 70911 1
TORNILLO-EJE M20 APRIETE NUDO
LANZA
SCREW-AXLE M20
4 70910 1
MANETA APRIETE M20 NUDO LANZA HANDLE M20 FOR SPRAY GUN MANETTE SERRAGE M20 NOEUD LANCE
5
263265 1
LANZA REMOLQUE REG P/750
KG.+CABEZAL V2
6 2294125000 1
ENGANCHE BOLA P/TRANSPORTE AK160-
TRAILER HOOK FOR TRANSPORT
BRINKMANN MACHINES
ATTACHE BOULE P/TRANSPORT
MACHINE BRINK.
7 3120000862 2
REFLECTOR REDONDO AMARILLO
REFLECTOR YELLOW ROUND FOR
VESSEL 260 E
REFLECTEUR JAUNE ROND CUVE 260 E
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 48
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
3. Mischkessel
1
2
3 4 5
6 7 8 9 10 11
27
12
Page 49
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
13
14
15
26 16 21
22
20
17 23
24
21
18
25
19
Page 50
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
3. Mischkessel: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 4222103200 1
JUNTA TAPA CALDERA JOINT CAP FOR VESSEL JOINT COUVERCLE CUVE ESTRICH BOY
2 001003040 1
TAPA CALDERA CONVEY
3 5613149 1
BURLETE CON GOMA LINEAL (1-3 mm)
(MTS)
4 001003080 1
REJILLA CALDERA CONVEY
5 41130 1
TORNILLO MARIPOSA M8x25 SCREW BUTTERFLY M8x25 ECROU PAPILLON M8x25
6 011160 1
ENGRASADOR RECTO M8X1 LUBRICATOR STRAIGHT R 1/8" GRAISSEUR DROIT R 1/8"
7 65726 1
TAPA VALVULA ESCAPE CALDERA COVER VALVE VESSEL
COUVERCLE SOUPAPE ECHAPPEMENT
CUVE
8 65546 1
VALVULA ESFERA 1 1/4" M-H SIN
MANETA
VALVE BALL 1 1/4" M-H LONG LEVER
C/ENGRASE
SOUPAPE SPHERIQUE 1 1/4" M-H
MANETTE LARGE AVEC GRAISSAGE
9 001003095 1
TAPA SUPERIOR EN TAPA CALDERA
CONVEY
10 001011002 1
MANGO SEG.+EJE VALVULA ESCAPE
TAPA CALDERA
11 471710101 1
PROTECTOR GOMA MANGO DN 20 MM.
12 414230103 1
PROTECTOR GOMA MANGO DN 30 MM.
13 1401011232 1
TAPA MUELLE TAPA CALDERA DERECHO
14 1401011236 1
MUELLE C/PATAS DCHA. P/TAPA
CALDERA CONVEY
RESSORT AVEC PIEDS DROITES P/
COUVERCLE CUVE ANCIENNE
15 001003093 1
EJE PASADOR TAPA CALDERA
16 1401011237 1
MUELLE C/PATAS IZDA. P/TAPA
CALDERA CONVEY
RESSORT AVEC PIEDS GAUCHES P/
COUVERCLE CUVE ANCIENNE
17 - 4
TORNILLO D933 M5X12
18 41708 4
ARANDELA D125A M5 WASHER D-125A M5 RONDELLE D-125A M5
19 001003050 1
TAPA BISAGRA C/ BULÓN CIERRE TAPA
CALDERA
20 76035 1
PASADOR D1481 10x40 GOUPILLE D'EMPENNAGE 6x50
21 1801905110 4
CASQUILLO NYLON ARTICULACION
TOLVA
SOCKET NYLON HOPPER BAGUE NYLON ARTICULATION TREMIE
22 41609 2
PASADOR DE ALETA 6x60
23 41734 2
ARANDELA D125A M24 WASHER D-125A M24 RONDELLE D-125A M24
24 001003055 1
TAPA BISAGRA CIERRE TAPA CALDERA
25 001003060 1
BULON FINAL CARRERA TOLVA NIVO
26 1401011233 1
TAPA MUELLE TAPA CALDERA IZQUIERD
27 01011001
RING NYLON
Page 51
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83

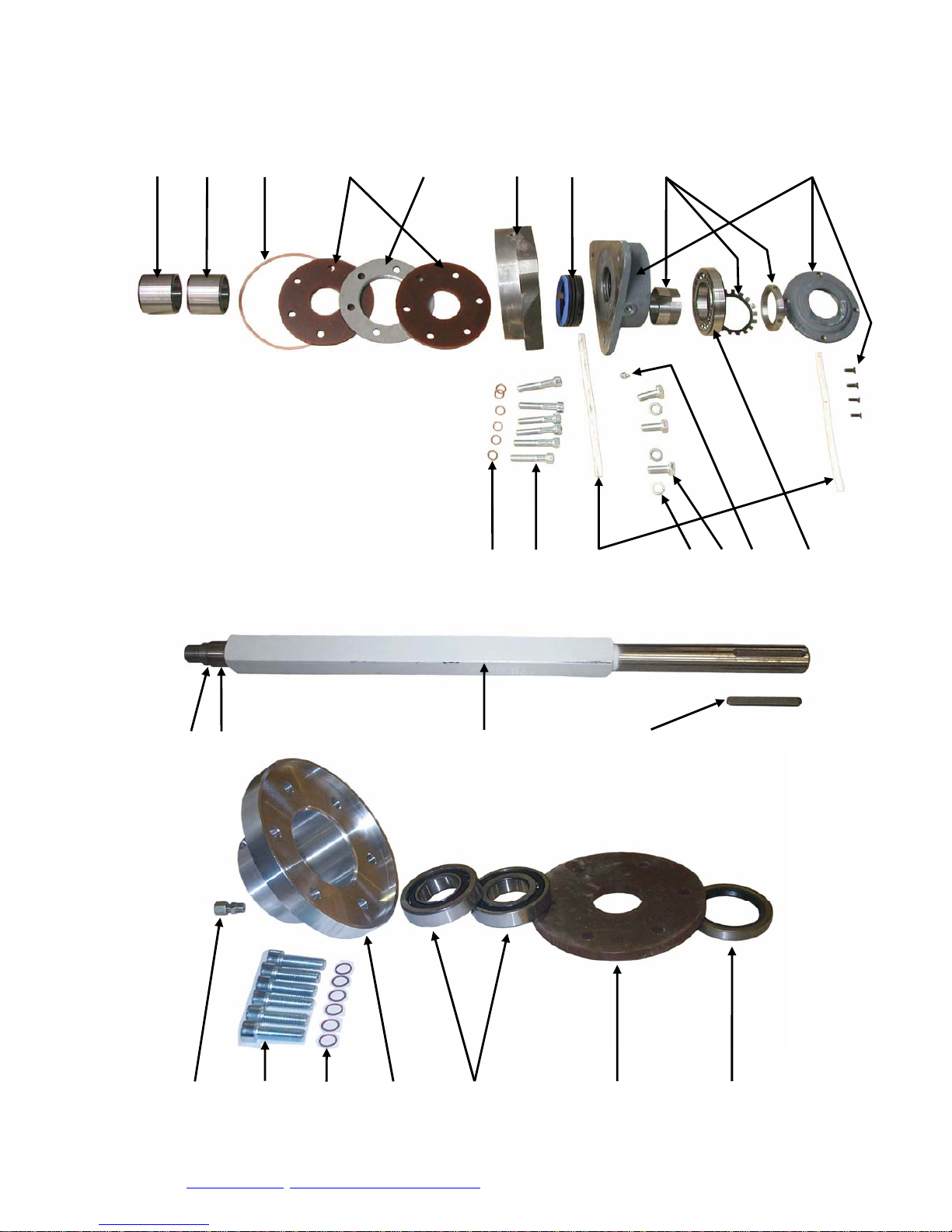

4. Abdichtung Mischwelle
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
26 27 17 18
19 20 21 22 23 24 25
Page 52
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
4. Abdichtung Mischwelle: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 5406007060 2
CASQUILLO 60X70X60 EJE MOVIL
CALDERA
SOCKET 60X70X60 VESSEL BAGUE 60X70X60 AXE MOBILE CUVE
2 5406007060 2
CASQUILLO 60X70X60 EJE MOVIL
CALDERA
SOCKET 60X70X60 VESSEL BAGUE 60X70X60 AXE MOBILE CUVE
3 5303999915 1
ANILLO COBRE BRIDA REDUCTORA
CALDERA
RING COPPER TRANSMISSION VESSEL
BAGUE CUIVRE BRIDE REDUCTRICE
CUVE
4 4241700601 2
JUNTA GOMA PLANA 170x60x10 EJE
CALDERA
RUBBER JOINT FLAT 170x60x10 AXLE
VESSEL
JOINT CAOUTCHOUC PLAT 170x60x10
AXE CUVE
5 1800402090 1
BRIDA INTERMEDIA EN GOMA EJE
CALDERA
CLAMP INTERMEDIA EN GOMA AXLE
VESSEL
BRIDE INTERMEDIAIRE EN
CAOUTCHOUC AXE CUVE
6 1930010180 1
BRIDA SUJECIÓN REDUCTORA CALDERA
DELANTERA
SUPPORT CLAMP TRANSMISSION
VESSEL
BRIDE SUSPENSION REDUCTORA CUVE
7 4307009030 1
EMPAQUETADURA JUNTA
ESTANQUIEDAD EJE
EMPAQUETAGE JOINT ETANCHEITE AXE
8 5491021300 1
ACOPL. AJUSTE EJE MOVIL CALDERA CUPPLING ADJUSTING AXLE VESSEL
KUPPLUNG AUSRICHTUNG ACHSE
KESSEL
RACCORD AJUSTAGE AXE MOBILE
CUVE
9 5470005131 1
BRIDA CERRADA REDUCTORA CALDERA CLAMP CLOSED TRANSMISSION VESSEL BRIDE FERMEE REDUCTORA CUVE
10 5303121815 6
ARANDELA COBRE 12x18x1.5
11 41059 6
TORNILLO ALLEN D912 M12x65 SCREW D912 M12x65 VIS ALENE D912 M12x65
12 5492608026 1
JUNTA FIELTRO 6'5x8x260 MM. EJE
CALDERA
JOINT FILTER 6'5x8x260 MM. AXLE
VESSEL
JOINT FILTRE 6'5x8x260 MM. AXE CUVE
13 41703 3
ARANDELA D125A M14 WASHER D-125A M14 RONDELLE D-125A M14
13.1 41733 3
ARANDELA GROWER D7980 M14 WASHER GROWER D7980 M14 RONDELLE GROWER D7980 M14
14 41183 3
TORNILLO ALLEN D912 M5x30 SCREW D933 M14x35 VIS D933 M14x35
15 011160 1
ENGRASADOR RECTO M8X1 LUBRICATOR STRAIGHT R 1/8" GRAISSEUR DROIT R 1/8"
16 5430012133 1
RODAMIENTO EJE MOVIL CALDERA BEARING MOBILE AXLE VESSEL KUGELLAGER MOBILE ACHSE KESSEL ROULEMENT AXE MOBILE CUVE
17 1800402043 1
EJE CALDERA AXLE VESSEL AXE CUVE
18 5385181116 1
CHAVETA EJE CALDERA KEY AXLE VESSEL CLAVETTE AXE CUVE
19 406423 1
RACOR RECTO M10x1 – ENGRASE JOINT STRAIGHT M10x1 - GREASING
VERBINDUNGSSTUECK GERADE M10x1 FETTUNG
RACCORD DROIT M10x1 - GRAISSAGE
20 41195 6
TORNILLO ALLEN D912 M12x45 SCREW D912 M12x45 VIS ALENE D912 M12x45
21 5303121815 6
ARANDELA COBRE 12x18x1.5
22 1930010280 1
BRIDA CIEGA EJE CALDERA TRASERA CLAMP BLIND AXLE VESSEL BRIDE AVEUGLE AXE CUVE
23 5430072081 2
RODAMIENTO EJE CALDERA "DETRAS" BEARING VESSEL AXLE "BACKSIDE" KUGELLAGER KESSELACHSE "HINTEN" ROULEMENT AXE CUVE "ARRIERE"
24 4241700501 1
JUNTA GOMA PLANA 170x50x10 EJE
CALDERA
RUBBER JOINT FLAT 170x50x10 AXLE
VESSEL
JOINT CAOUTCHOUC PLAT 170x50x10
AXE CUVE
25 4305808012 1
RETEN C/ANILLO METALICO EJE
CALDERA "DETRAS"
SEALING WITH METAL RING AXLE
VESSEL "BACKSID"
DICHTUNG MIT METALLRING ACHSE
KESSEL
BAGUE AVEC ANNEAU METALIQUE AXE
CUVE "ARRIERE"
26 5405005822 1
CASQUILLO FIJO 50x58x22 EJE CALDERA SOCKET FIX 50x58x22 AXLE VESSEL BAGUE FIXE 50x58x22 AXE CUVE
27 5405005840 1
CASQUILLO FIJO 50x58x40 EJE CALDERA SOCKET FIX 50x58x40 AXLE VESSEL BAGUE FIXE 50x58x40 AXE CUVE
Page 53
Soladora Convey 260

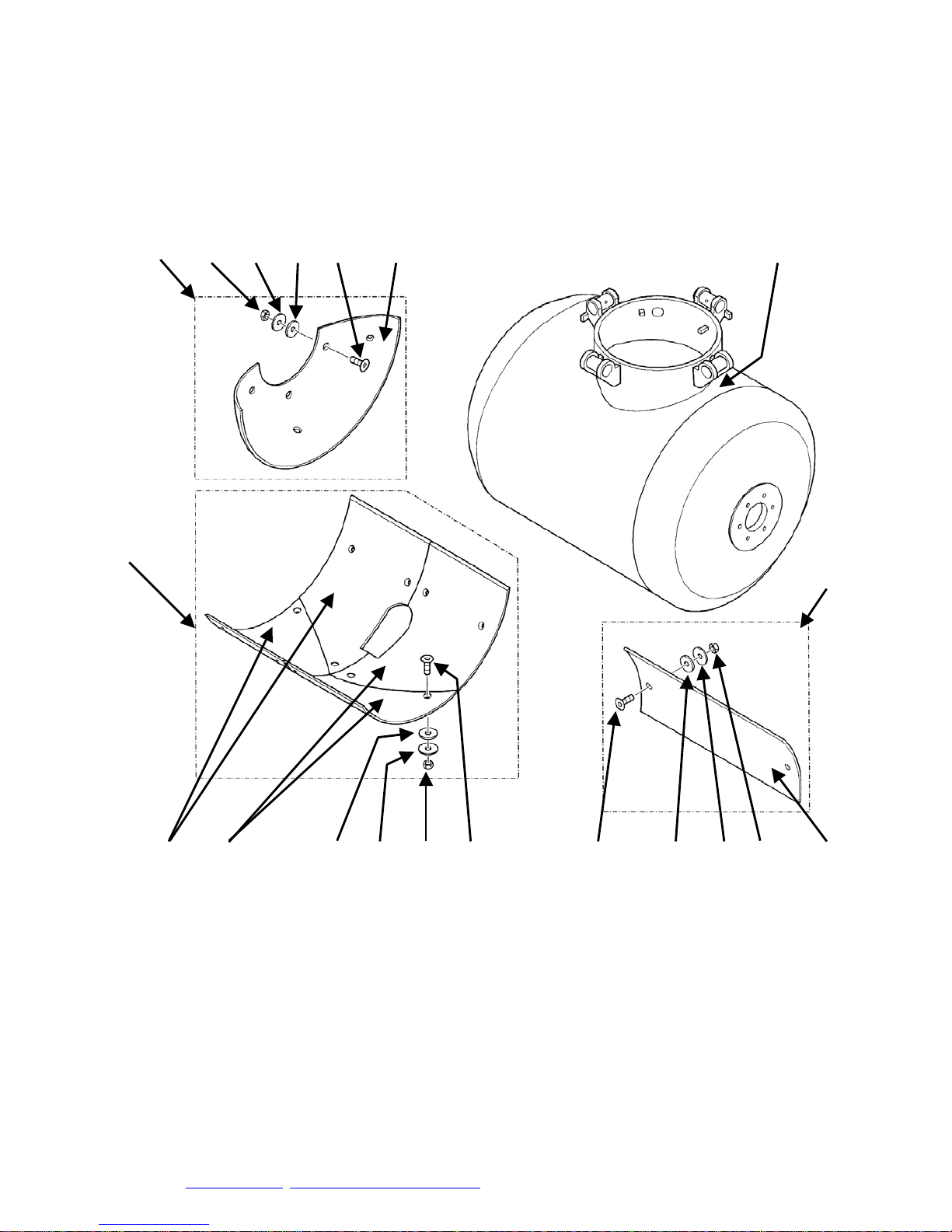

5. Placas desgaste caldera CONVEY.
A
1 2 3 4 5 6
NOTA: La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté
contemplada en esta manual.
B
C
7 8 9 10 11 12 13 14 15 16 17
Page 54
Soladora HD-50
5. Placas desgaste caldera CONVEY: lista de repuestos.
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
A
80634050 2
PLACA DESGASTE REDONDA
EXTREMO C/TORN.
PLAQUE D'USURE REDONDA
EXTREMO C. TORN.
1 41204 6
TUERCA D934 M10 SCREW D934 M10 MUTTER D934 M10 ECROU D934 M10
2 4240300083 6
JUNTA GOMA P/PLACAS DESGASTE Ø
8MM
RUBBER JOINT FOR WEARPLATES Ø
8MM
GUMMIDICHTUNG Ø 8MM
JOINT CAOUTCHOUC P. PLAQUES
D'USURE Ø 8MM
3 41716 6
ARANDELA PLANA D9021 M10 ANCHA WASHER FLAT D9021 M10 WIDE UNTERLEGSCHEIBE D9021 M10 RONDELLE PLATE D9021 M10 LARGE
4 41198 6
TORNILLO ALLEN D7991 M10x40 SCREW D7991 M10X40 SCHRAUBE D7991 M10X40 VIS ALENE D7991 M10X40
5 1201060110 1
PLACA DESG. "STR" REDONDA
EXTREMOS CALD. 260
VERSCHLEISSBLECH RUND
PLAQUE RONDE EXTREMES
BRINKMANN
6 a) 80402121 1
CALDERA PARA MÁQUINA STANDARD
6 b) 80402120 1
CALDERA PARA MÁQUINA CON TOLVA
DE CARGA
B 80606050 2
JUEGO PLACAS DESGASTE SAL.
CENTRAL
SET WEAR PLATES CPL. WITH
CENTRAL OUTLET
JEU PLAQUES D'USURE FOND CUVE
SORTIE CENTR.
7 1201050730 1
PLACA DESG. "STR" "CENTRAL" S/AGUJ.
118 mm "2 PZAS
VERSCHLEISSBLECH UNTEN HINTEN
PLAQUE D'USURE E260 FOND ARRIERE 2
PCS
8 1201050725 1
PLACA DESG. "STR" "CENTRAL" C/AGUJ.
118 mm "2 PZAS
VERSCHLEISSBLECH UNTEN VORNE
PLAQUE D'USURE E260 FOND AVANT 2
PCS
9 41716 12
ARANDELA PLANA D9021 M10 ANCHA WASHER FLAT D9021 M10 WIDE UNTERLEGSCHEIBE D9021 M10 RONDELLE PLATE D9021 M10 LARGE
10 4240300083 12
JUNTA GOMA P/PLACAS DESGASTE Ø
8MM
RUBBER JOINT FOR WEARPLATES Ø
8MM
GUMMIDICHTUNG Ø 8MM
JOINT CAOUTCHOUC P. PLAQUES
D'USURE Ø 8MM
11 41204 12
TUERCA D934 M10 SCREW D934 M10 MUTTER D934 M10 ECROU D934 M10
12 41198 12
TORNILLO ALLEN D7991 M10x40 SCREW D7991 M10X40 SCHRAUBE D7991 M10X40 VIS ALENE D7991 M10X40
C 80626200 2
PLACA CURVA LISA C/TORN. PLAQUE COURBE LISSE AVEC VIS
13 41198 2
TORNILLO ALLEN D7991 M10x40 SCREW D7991 M10X40 SCHRAUBE D7991 M10X40 VIS ALENE D7991 M10X40
14 41716 2
ARANDELA PLANA D9021 M10 ANCHA WASHER FLAT D9021 M10 WIDE UNTERLEGSCHEIBE D9021 M10 RONDELLE PLATE D9021 M10 LARGE
15 4240300083 2
JUNTA GOMA P/PLACAS DESGASTE Ø
8MM
RUBBER JOINT FOR WEARPLATES Ø
8MM
GUMMIDICHTUNG Ø 8MM
JOINT CAOUTCHOUC P. PLAQUES
D'USURE Ø 8MM
16 41204 2
TUERCA D934 M10 SCREW D934 M10 MUTTER D934 M10 ECROU D934 M10
17 2000015182 2
PLACA DESG. "STR" CURVA LISA CALD.
260
VERSCHLEISSBLECH KURVE PLAQUE COURBE LISSE BRINKMANN
NOTA: La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté contemplada en esta manual.
Page 55
Esstrichmachine Convey 260

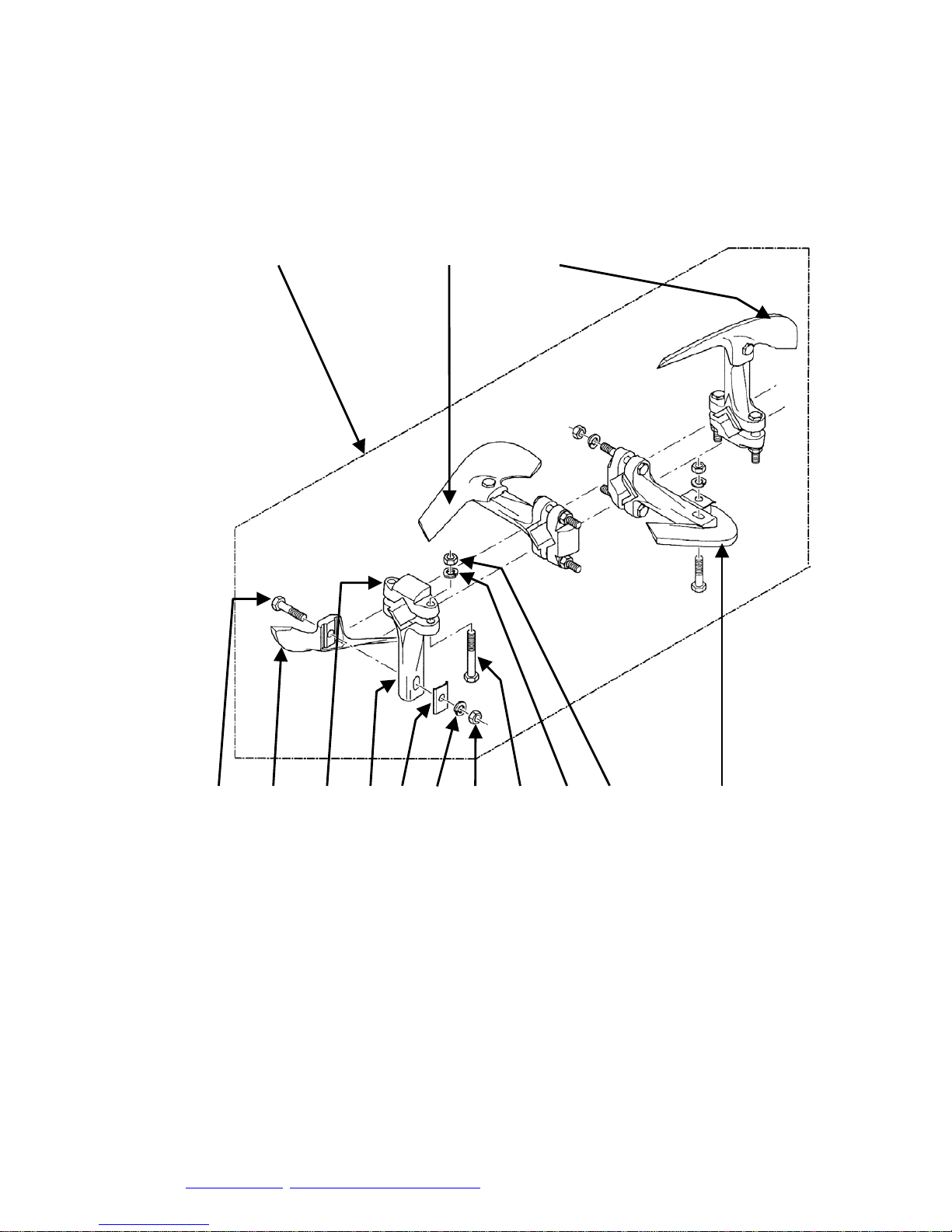

6. Mischwerk-kessel
1 2 3
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
4 2 5 6 7 8 9 10 8 9 3
Page 56
Esstrichmachine Convey 260
6. Mischwerk-kessel: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 81010010 1
JUEGO PALAS CONVEY SAL. CENTRAL
SET MIXING PADDLES CPL. WITH
CENTRAL OUTLET
JEU PALES KPL. AVEC EVACUATION
CENTRALE
2 7210001000 2
PALA UT1 MISCHERARM UT1 PALE UT1
3 7210003000 2
PALA UT3 MISCHERARM UT3 PALE UT3
4 41196 4
TORNILLO D931 M16x70 SCREW D931 M16x70 SCHRAUBE D931 M16X70 VIS D931 M16x70
5 7200001000 4
BRIDA PIEZA SUJECION UT01 KLEMMSTÜCK 01 PIECE FIXATION B01
6 7200005400 4
BRAZO SUJECION UT54 KLEMMSTÜCK MIT ARM BK54 PIECE FIXATION BK54
7 7240035060 4
PLACA 3x50x60 P/JUEGO PALA ABDECKPLATTE 3X50X60 PLAQUE 3x50x60 P. JEU PALES
8 41732 12
ARANDELA GROWER D127A M16 WASHER GROWER D127A M16 RONDELLE GROWER D127A M16
9 41214 12
TUERCA AUTOBLOC. D985 M16 SCREW AUTOBLOC. D985 M16 MUTTER D985 M16 ECROU AUTOBLOQUANT D985 M16
10 41128 8
TORNILLO D931 M16x110 SCREW D931 M16x110 SCHRAUBE D931 M16X110 VIS D931 M16x110
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 57
Esstrichmachine Convey 260

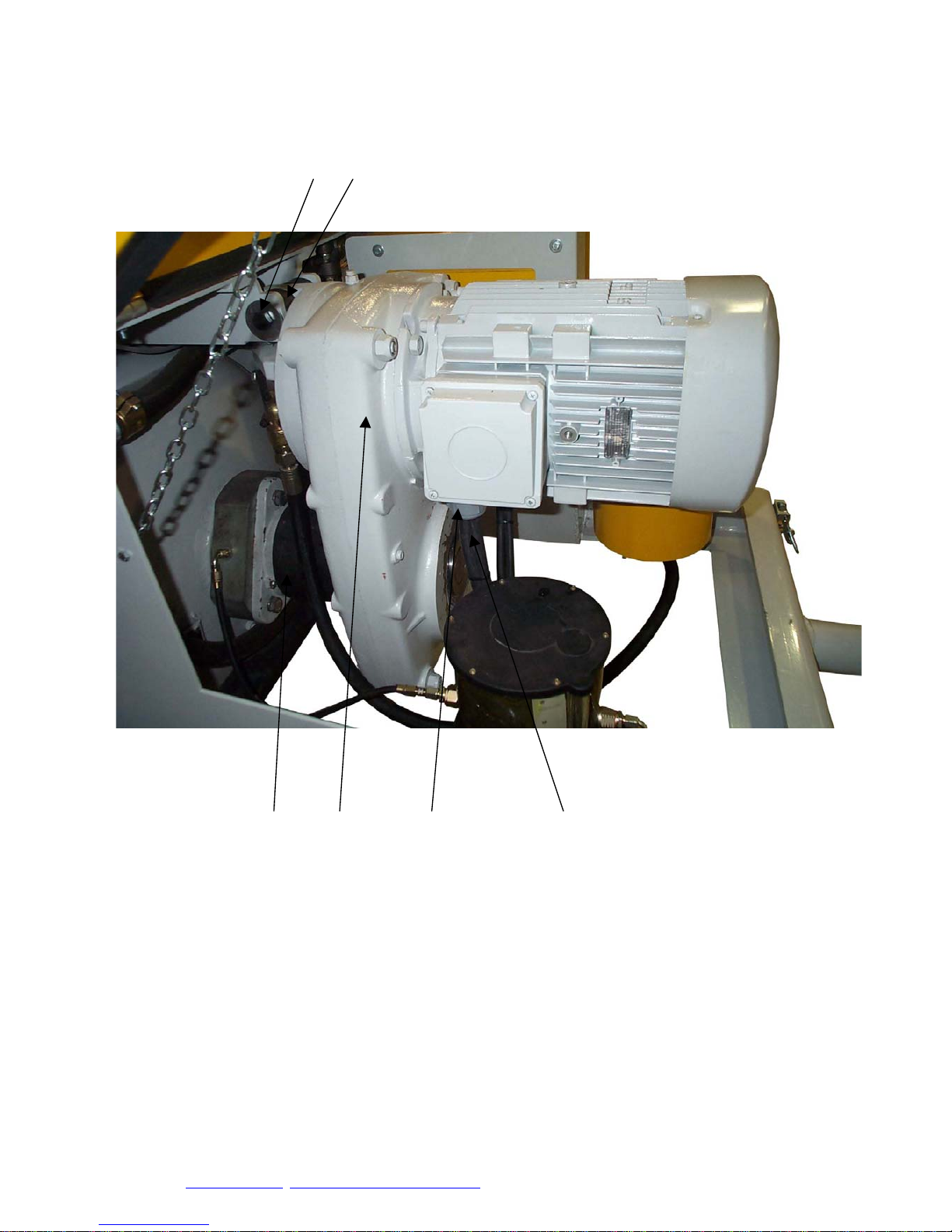

7. Getriebe
1, 2 3
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
4 5 6 7
Page 58
Esstrichmachine Convey 260
7. Getriebe: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 41197 1
TORNILLO D931 M20x120 SCREW D931 M20x120 VIS D931 M20x120
2 41217 1
TUERCA AUTOBLOC. D985 M20 SCREW AUTOBLOC. D985 M20 ECROU AUTOBLOQUANT D985 M20
3
75128 2
SILENBLOCK MOTOREDUCTOR EJES
PARALELOS
4 4230600301 1
ANILLO GOMA EJE CALDERA CON
REDUCTORA
RING RING OF AXLE VESSEL BRINKM.
260
BAGUE CAOUTCHOUC AXE CUVE
BRINKM. 260
5
75027 1
MOTOREDUCTOR 7'5 Kw. C/BRIDA
BOMBA HID.
6 41583 1
PRENSASTOPA PVC M32x1.5 PRESSE-ETOUPE PVC M32
7 36017 2
MANG. ELECTRICA 4x4 ELECTRIC CABLE 4x4 STROMKABEL 4x4 CABLE ELECTRIQUE 4x4
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 59
Esstrichmachine Convey 260
8. Luftsteverung Over und Unterluft
1
2
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
3 4 3 5
6 12 13 9
7
11
8
9 14
10 11 9 10 15
16
15
14
7
8
9
10
Page 60
Esstrichmachine Convey 260
14
15
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
17
16 11
14
18
A
B
20 21 22 23
Belüftungseingang
im Kessel
22
24
25
Page 61
Esstrichmachine Convey 260
8. Luftsteverung Over und Unterluft: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 3517670762 1
MANOMETRO GLICERINA 0-16 BAR
POST.C/PUENTE R.1/4"
MANOMETER GLICERINA 0-16 BAR
POST.WITH BRIDGE R.
MANOMETRE GLYCERINE 0-16 BAR
POST.A/PONT R.1/4"
2 3502350068 3
MANETA VALVULA ESFERA 1 1/4"
CALDERA 260
HANDLE VALVE 1 1/4" VESSEL 260
MANETTE SOUPAPE SPHERE 1 1/4" CUVE
260
3 32704 2
MACHON 1" LATÓN CONNECTING ROD 1" BRASS REDUZIERSTUECK 1" MESSING PILIER 1" LAITON
4
46475 1
RACOR RAPIDO 90 º T/RILSAN 6 R.EXT.
1/8"
5 46466 1
TUBO RILSAN 4x6 MM. (MTS)POLIURETANO
RISLAN TUBE 4X6MM TUBE RISLAN 4x6 MM.
6 3501210170 2
VALVULA ANTIRETORNO VALVE NON-RETURN 260 E+DC 260/43 SOUPAPE ANTIRETOUR 260 E+DC 260/43
7 780103 2
CODO 45º R.INT.1"-R.EXT.1"
BEND 45§ INT. THREAD 1" - EXT. THREAD
1"
COUDE 45§ R.INT.1"-R.EXT.1"
8 76027 4
OLIVETA 25 MM. R.EXT. 1" (SKK M) OLIVETA 25 MM. R.EXT. 1" (SKK M)
9 78001 4
ABRAZADERA 32-35 2 PIEZAS BRACKET 32-35 2 PIECES SPANNSCHELLE 32-35 2 PIEZAS BRIDE 32-35 2 PIECES
10 38080 1.5
MANGUERA AIRE 1"-25 BAR
11 32504 2
CODO 90º M-H 1" BEND 90º M-H 1" COUDE 90º M-H 1"
12 3517670762 1
MANOMETRO GLICERINA 0-16 BAR
POST.C/PUENTE R.1/4"
MANOMETER GLICERINA 0-16 BAR
POST.WITH BRIDGE R.
MANOMETRE GLYCERINE 0-16 BAR
POST.A/PONT R.1/4"
13 46476 1
RACOR RAPIDO T/RILSAN 6 R.INT. 1/4"
14 206483 3
VALV. ESFERA 1" H-H MANETA LARGA VALVE BALL 1" H-H LONG LEVER SOUPAPE SPHERIQUE 1" H-H MANETTE
15 32704 4
MACHON 1" LATÓN CONNECTING ROD 1" BRASS REDUZIERSTUECK 1" MESSING PILIER 1" LAITON
16 32404 2
TE 1" T - SQUARE 1" TE 1"
17 46072 1
VALVULA SEGURIDAD CALDERA E-260 VALVE SAFETY VESSEL E-260 SICHERHEITSVENTIL KESSEL E 260 SOUPAPE SECURITE CUVE E-260
18 76202 1
ACOPL. COMPRESOR R.EXT. 1" CUPPLING COMPRESOR EXT. THREAD 1"
KUPPLUNG KOMPRESSOR
AUSSENGEWINDE 1"
RACCORD COMPRESSEUR R.EXT. 1"
20 77017 2
ACOPL. GEKA R. INT. 1" CUPPLING GEKA INT. THREAD 1" KUPPLUNG GEKA INNENGEWINDE 1" RACCORD GEKA R. INT. 1"
A 39522 1
TRAMO MANG. 25 MM. AIRE A TAPA
CALDERA
HOSE PART 25 MM. AIR FOR VESSEL
TUYAU 25 MM AIR AU COUVERCLE
CUVE
21 77008 2
ACOPL. GEKA P/MANG. PRESION 1" CUPPLING GEKA FOR HOSE PRESSURE 1"
KUPPLUNG GEKA F. SCHLAUCH PRESION
1"
RACCORD GEKA POUR TUYAU PRESSION
1"
22 78010 2
ABRAZADERA SUPRA 37-40 BRACKET SUPRA 37-40 SPANSCHELLE SUPRA 37-40 BRIDE SUPRA 37-40
23 38100 0.40
MANG. MORTERO 25x37 mm. 40 BAR. MORTAR HOSE 25x37 mm. 40 BAR. M™RTELSCHLAUCH 25x37 mm. 40 BAR. TUYAU MORTIER 25x37 mm. 40 BAR.
B 39523 1
TRAMO MANG. 25 MM. AIRE
ACELERADOR CALDERA
HOSE PART 25 MM. AIR VESSEL
TUYAU 25 MM AIR ACCELERATEUR
CUVE
21 77008 2
ACOPL. GEKA P/MANG. PRESION 1" CUPPLING GEKA FOR HOSE PRESSURE 1"
KUPPLUNG GEKA F. SCHLAUCH PRESION
1"
RACCORD GEKA POUR TUYAU PRESSION
1"
22 78010 2
ABRAZADERA SUPRA 37-40 BRACKET SUPRA 37-40 SPANSCHELLE SUPRA 37-40 BRIDE SUPRA 37-40
23 38100 0.83
MANG. MORTERO 25x37 mm. 40 BAR. MORTAR HOSE 25x37 mm. 40 BAR. MOETELSCHLAUCH 25x37 mm. 40 BAR. TUYAU MORTIER 25x37 mm. 40 BAR.
24 76011 1
ACOPL. SKK V 35 ESPIGA 25 MM. CUPPLING SKK V 35 25 MM. KUPPLUNG SKK V 35 TUELLE 25 MM. RACCORD SKK V 35 CHEVILLE 25 MM.
25 76021 1
ACOPL. SKK M 35 R. INT. 1 1/2"-UTI CUPPLING SKK M 35 INT. THREAD 1 1/2" KUPPL. SKK M 35 INNENGEWINDE 1 1/2" RACCORD SKK M 35 R. INT. 1 1/2"-UTI
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 62
Esstrichmachine Convey 260
9. Kesselabgang
1 2 3 4
5 6 7
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
Page 63
Esstrichmachine Convey 260
9. Kesselabgang: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
SALIDA MATERIAL 60 MM. PARA
MANGUERA DE 50 MM.
1 4242000906 1
JUNTA GOMA ACELER.SAL.MAT. 60-118 MM.
R.EXT 2 1/2"
RUBBER JOINT MATERIAL OUTLET
VESSEL S 1/2"
JOINT CAOUTCHOUC ACCELER.SORTIE
MAT. CUVE S 1/2"
2 76025 1
JUNTA ACOPL. SKK M DN. 35 JOINT CUPPLING SKK M DN. 35 JOINT RACCORD SKK M DN. 35
3 76021 1
ACOPL. SKK M 35 R. INT. 1 1/2"-UTI
CUPPLING SKK M 35 INT. THREAD 1 1/2"-UTI KUPPLUNG SKK M 35 INNENGEWINDE 1 1/2"-UT
RACCORD SKK M 35 R. INT. 1 1/2"-UTI
4 1917054093 1
ACELERADOR SALIDA MAT. 60-118 MM.
R.EXT. 2 1/2"
MATERIAL OUTLET 60-118 MM. R.EXT. 2
1/2"
MATERIALABGANG 60-118 MM. R.EXT. 2
1/2
ACCELERATEUR SORTIE MAT. 60-118
MM. R.EXT. 2 1/2"
5 41727 2
ARANDELA GROWER D7980 M16 WASHER GROWER D7980 M16 FEDERRING D7980 M16 RONDELLE GROWER D7980 M16
6 41172 2
TORNILLO D933 M16x50 SCREW D933 M16x45 VIS D933 M16x45
7 7151501212 1
ACOPL. KKVT 60 R.INT. 2 1/2" ACELERADOR
CUPPLING KKVT 50 INT. THREAD 2 1/2"
MATERIAL OUT
KUPPLUNG KKVT 50 INNENGEWINDE 2
1/2" ACE
RACCORD KKVT 50 R.INT. 2 1/2"
ACCELERATEUR
SALIDA MATERIAL 60 MM. PARA
MANGUERA DE 65 MM.
1 4242000906 1
JUNTA GOMA ACELER.SAL.MAT. 60-118 MM.
R.EXT 2 1/2"
RUBBER JOINT MATERIAL OUTLET
VESSEL S 1/2"
JOINT CAOUTCHOUC ACCELER.SORTIE
MAT. CUVE S 1/2"
2 76025 1
JUNTA ACOPL. SKK M DN. 35 JOINT CUPPLING SKK M DN. 35 JOINT RACCORD SKK M DN. 35
3 76021 1
ACOPL. SKK M 35 R. INT. 1 1/2"-UTI
CUPPLING SKK M 35 INT. THREAD 1 1/2"UTI
KUPPLUNG SKK M 35 INNENGEWINDE 1
1/2"-UT
4 1917054093 1
ACELERADOR SALIDA MAT. 60-118 MM.
R.EXT. 2 1/2"
MATERIAL OUTLET 60-118 MM. R.EXT. 2
1/2"
MATERIALABGANG 60-118 MM. R.EXT. 2
1/2
ACCELERATEUR SORTIE MAT. 60-118
MM. R.EXT. 2 1/2"
5 41727 2
ARANDELA GROWER D7980 M16 WASHER GROWER D7980 M16 FEDERRING D7980 M16 RONDELLE GROWER D7980 M16
6 41172 2
TORNILLO D933 M16x50 SCREW D933 M16x45 VIS D933 M16x45
7 7190891212 1
ACOPL. KKVT 89 R.INT. 2 1/2" ACELERADOR
CUPPLING KKVT 89 INT. THREAD 2 1/2"
MATERIAL OUT
KUPPLUNG KKVT 89 INNENGEWINDE 2
1/2" ACE
RACCORD KKVT 89 R.INT. 2 1/2"
ACCELERATEUR
SALIDA MATERIAL 60 MM. PARA
MANGUERA DE 65 MM.
1 4242000907 1
JUNTA GOMA ACELER.SAL.MAT. 90-118 MM.
R.EXT 3 1/2"
RUBBER JOINT MATERIAL OUTLET 90118 MM. R.EXT 3
JOINT CAOUTCHOUC ACCELER.SORTIE
MAT. 90-118 MM. R.EXT 3 1/2"
2 76025 1
JUNTA ACOPL. SKK M DN. 35 JOINT CUPPLING SKK M DN. 35 JOINT RACCORD SKK M DN. 35
3 76021 1
ACOPL. SKK M 35 R. INT. 1 1/2"-UTI
CUPPLING SKK M 35 INT. THREAD 1 1/2"UTI
KUPPLUNG SKK M 35 INNENGEWINDE 1
1/2"-UT
RACCORD SKK M 35 R. INT. 1 1/2"-UTI
1917050950
ACELERADOR SALIDA MAT. 90-118 MM.
R.EXT. 3" 1/2"
MATERIAL OUTLET 90-118 MM. R.EXT.
3" 1/2"
MATERIALABGANG 90-118 MM. R.EXT. 3"
1/2
ACCELERATEUR SORTIE MAT. 90-118
MM. R.EXT. 3" 1/2"
4
1917050960
1
ACELERADOR SALIDA MAT. 90-118 MM.
R.EXT. 3"
5 41727 2
ARANDELA GROWER D7980 M16 WASHER GROWER D7980 M16 FEDERRING D7980 M16 RONDELLE GROWER D7980 M16
6 41172 2
TORNILLO D933 M16x50 SCREW D933 M16x45 VIS D933 M16x45
7190892220
ACOPL. KKVT 89 R.INT. 3 1/2" ACELERADOR
CUPPLING KKVT 89 INT. THREAD 3 1/2"
MATERIAL OUT
KUPPLUNG KKVT 89 INNENGEWINDE 3 1/2"
ACE
RACCORD KKVT 89 R.INT. 3 1/2"
ACCELERATEUR
7
7190892225
1
ACOPL. KKVT 89 R.INT. 3" ACELERADOR
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 64
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
10. Elektrisches System
1, 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19
Page 65
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
10. Elektrisches System: Ersatzteilliste
Nº Ref. Ud
s.
Descripción Description Bezeichnung Désignation
1 ZB4BS54 1
CABEZA SETA 40MM. EMERGENCIA ROJO TÒTE CHAMPIGNON 40MM. URGENCE ROUGE
2 ZB4BZ102 1
BLOQUE CONTACTOS NC CONTACT BLOCK NC BLOC CONTACTS NC
3 ZBY9430 1
DISCO SETA EMERGENCIA EMERGENCY DISC DISQUE "CHAMPIGNON" URGENCE
4 35009 1
ARMARIO ELECTRICO CONVEY 260
5 48107 1
TRAFO TOROIDAL 400 V-AC/12 V-AC
6 046938 1
PROTECTOR MOTOR PKZM0-16 PROTECTEUR MOTEUR PKZM0-16
7 061709 1
CONTACTOR POTENCIA DIL OAM
(380V/50-60 HZ)
CONTACTOR POWER DIL OAM (380V/5060 HZ)
CONTACTEUR PUISSANCE DIL OAM (380V/5060 HZ)
8
RM3TG201MS7
1
RELE DETECCION SENTIDO FASES RELAY PHASE DIRECTION DELTA-SILO RELAIS SENS PHASES DELTA-SILO
9 016776 1
INTERR-INVERSOR T3-5-15876/E
ESTRELLA-TRIANG.
INTERR-REVERSER T3-5-15876/E
ESTRELLA-TRIANG.
INTERR-INVERSEUR T3-5-15876/E ETOILETRIANG.
10 37507 1
BASE ENTRADA 32 A. 3P+N+T/6h. SOCKET ENTRY 32 A. 3P+N+T/6h. SOCLE ENTREE 32 A. 3P+N+T/6h.
11 48106 1
CAJA C/TEMPORIZADOR+CARGA
BATERIA CONVEY
12 149760 1
BASE SUP. C/SEGURO P/CONECTOR 3
POLOS+T
SOCKET SUP. WITH SECURITY SWITCH
FOR CONECTION 3
SOCLE SUP. AVEC SECURITE P/CONNECTEUR
3 POLES+T
13 149820 1
CONECTOR HEMBRA 3 POLOS+T CONNECTOR FEMALE 3 POLES+T CONNECTEUR 3 POLES+T
14 41581 2
PRENSASTOPA PVC M20x1.5 PRESSE-ETOUPE PVC M20x1.5
15 48120 1
CONECTOR ANTENA MACHO BNC AEREO
15.1 48119 1
CONECTOR ANTENA HEMBRA BNC PARA
CHASIS
15.2 3160600305 1
ANTENA RADIOFRECUENCIA ANTENNA ANTENNE
16 48105 1
RECEPTOR MANDO DISTANCIA
RADIOFRECUENCIA 12 V-CC
RECEIVER FOR REMOTE CONTROL
RADIO CONTROL 12 V-C
RECEPTEUR TELECOMMANDE
RADIOFREQUENCE 12 V-CC
17 AB1VV435U 1
BORNA CONEXION 4 mm2 (MARFIL)
CONNECTION OF BUSHING 4MM2
(MARFIL)
BORNE CONNEXION 4 mm2 (MARFIL)
18 AB1TP1035U 1
BORNA CONEXION TIERRA 10 mm2
CONNECTION OF BUSHING EARTH
10MM2
BORNE CONNEXION TERRE 10 mm2
19 45012 1
CERRADURA METALICA
MASTER/DELTA-MIX
FLAP LOCK METAL MASTER/DELTA MIX SERRURE METALIQUE MASTER/DELTA-MIX

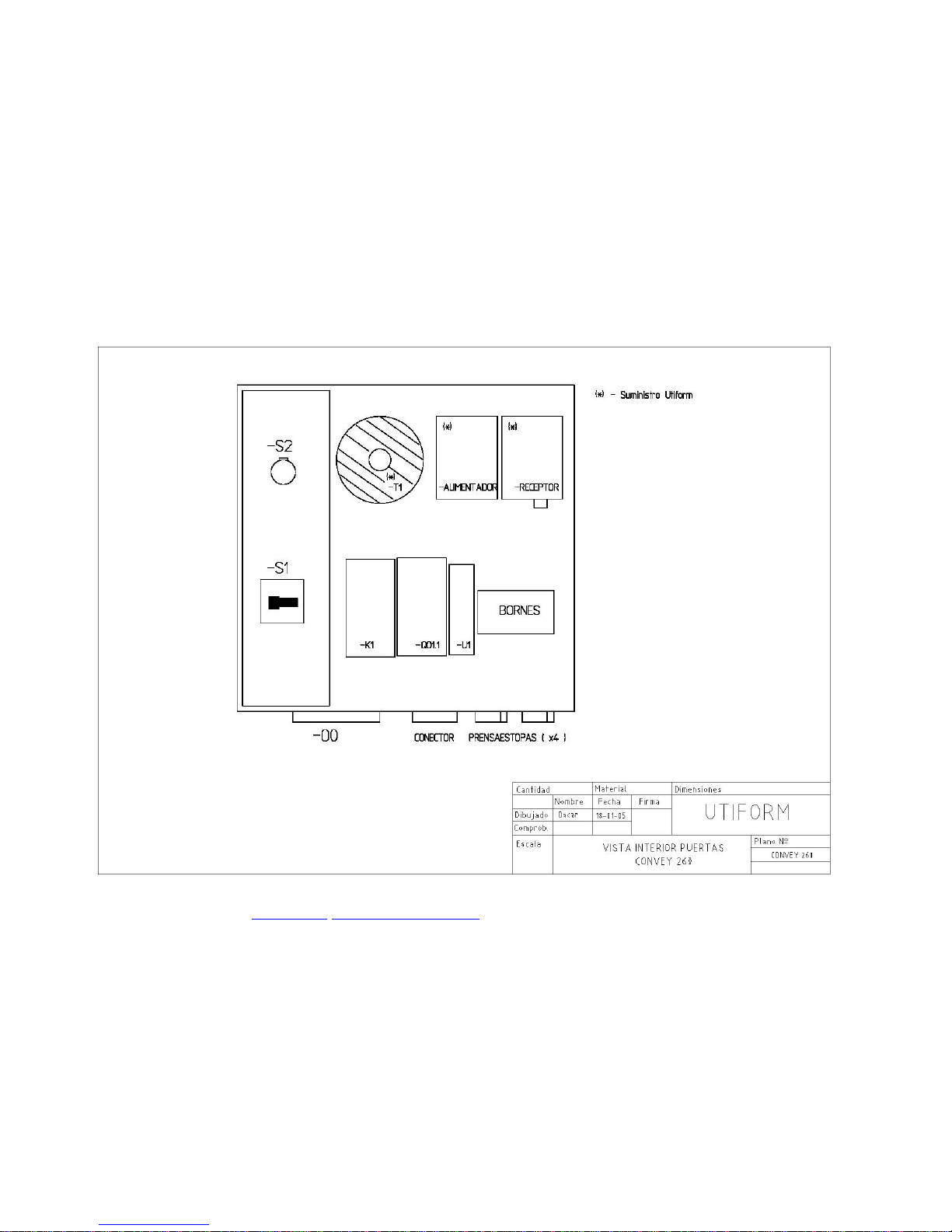

Page 66
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83

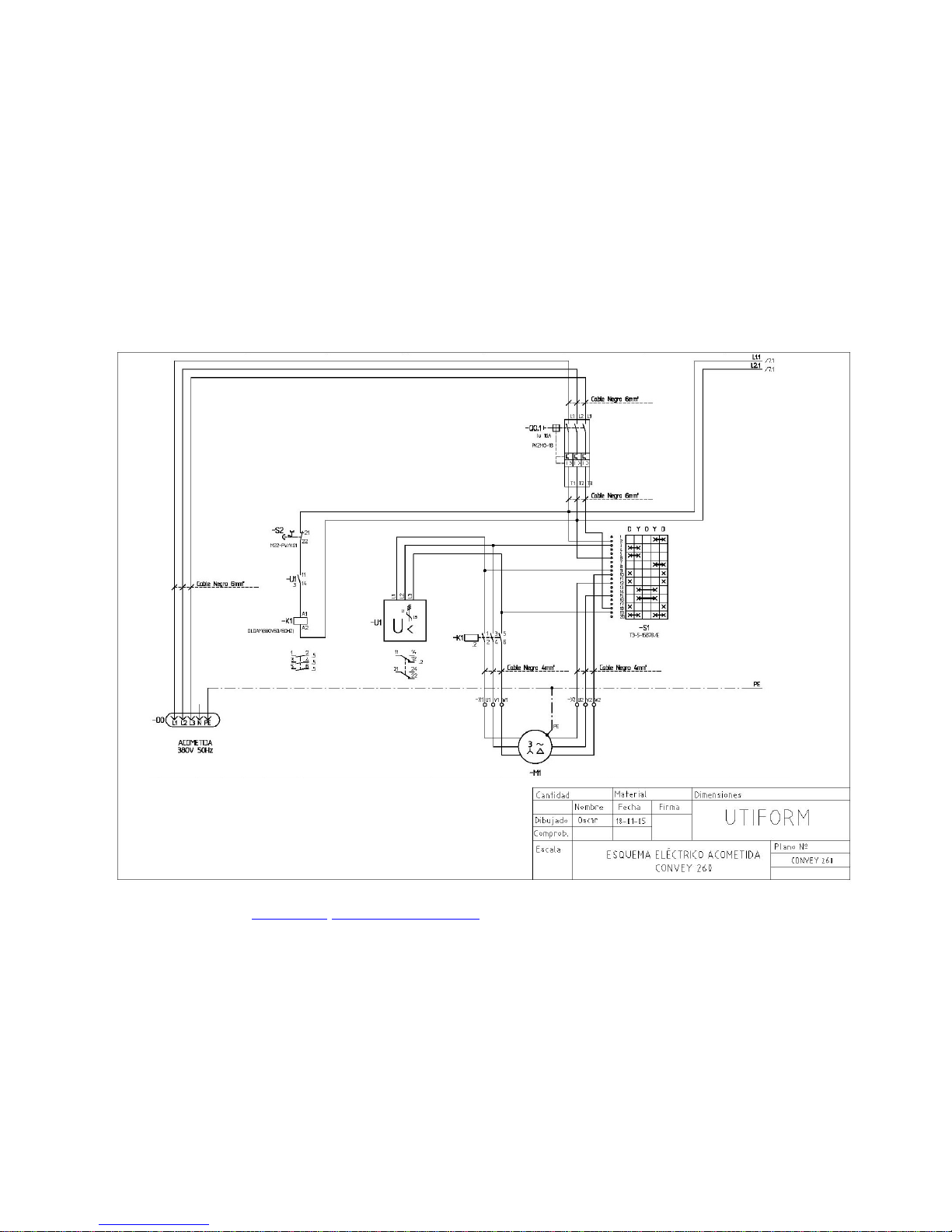

Page 67
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
Page 68
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
Page 69
Esstrichmachine Convey 260
11. Schmiersystem
1 2 3 7 8 4 5 6 9 10 11 5 4
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
12 7 13 14 2
Page 70
Esstrichmachine Convey 260
11. Schmiersystem: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 982750091 2.55
MANG. ENGRASE ALTA PRESION CON
GRASA
HOSE FOR GREASING SYSTEM HIGHT
PRESSURE
TUYAU GRAISSAGE HAUTE PRESSION
AVEC GRAISSE
2 853540010 4
CASQUILLO ROSCADO P/EMPALME
ENGRASE
SOCKET THREADED FOR GREASING
BAGUE ROSCADO POUR ASSEMBLAGE
GRAISSAGE
3 853380003 3
EMPALME CURVO 90º TUBO ENGRASE BUTT JOINT 90º CURVE GREASING TUBE
EMBRANCHEMENT COURBE 90º TUBE
GRAISSAGE
4 406413 2
MACHON RED. M20x1.5-M14x1.5 –
ENGRASE
CONNECTING ROD RED. M20x1.5-M14x1.5
GREASING
REDUZIERSTšCK RED. M20x1.5-M14x1.5 ENG
PIEDROIT RED. M20x1.5-M14x1.5 GRAISSAGE
5 41740 2
ARANDELA D7603-A - ENGRASE WASHER DIN7603-A - GREASING RONDELLE DIN7603-A - GRAISSAGE
6 406400 1
ELEMENTO BOMBA KFG1.U1 PUMP ELEMENT KFG1.U1 ELEMENT POMPE KFG1.U1
7 41211 5
TUERCA AUTOBLOC. D985 M8 SCREW AUTOBLOC. D985 M8 ECROU AUTOBLOQUANT D985 M8
8 41702 3
ARANDELA D125A M8 WASHER D-125A M8 RONDELLE D-125A M8
9 41111 3
TORNILLO D933 M8x25 SCREW D933 M8x25 VIS D933 M8x25
10 5900000005 1
DEPOSITO ENGRASE 2 KG. GREASE TANK 2 KG RESERVOIR GRAISSAGE 2KG.
11 406401 1
ELEMENTO BOMBA KFG1.U4 PUMP ELEMENT KFG1.U4 ELEMENT POMPE KFG1.U4
12 1800411011 1
TUBO PROTEC. MANG. ENGRASE
CALDERA
PROTECTION TUBE GREASING HOSE
VESSEL
TUBE PROTECTION TUYAU GRAISSAGE
CUVE
13 41202 2
TUERCA D934 M8 SCREW D934 M8 ECROU D934 M8
14 853380002 1
EMPALME RECTO TUBO ENGRASE BUTT JOINT STRAIGHT GREASING TUBE
EMBRANCHEMENT DROIT TUBE
GRAISSAGE
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 71
Soladora Convey 260
12. Tolva de carga.
NOTA:
La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté
contemplada en esta manual
1 2 3 4 5 5 3 2 1 6 7a, 7b 8 9
10 11 12 13 14,15
16 17 18
Page 72
Soladora Convey 260
12.1. Sistema hidráulico tolva de carga.
20 21 22 23 24
NOTA:
La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté
contemplada en esta manual
13 14 15
28 29 30
31
18
14
13
33
35
32 33 31 33 35 25
27
34
37
36 31 26 29
Page 73
Soladora Convey 260
NOTA:
La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté contemplada en esta manual
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
12. Tolva de carga: lista de repuestos
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 1805520070 2
ARANDELA BRONCE EJE ARTIC. TOLVA WASHER BRONCE AXLE ARTIC. HOPPER BAGUE BRONZE AXE ARTIC. TREMIE
2 1800612090 2
CASQUILLO COJINETE LATON EJE ARTIC.
TOLVA
SOCKET BEARING LATON AXLE ARTIC.
VESSEL
BAGUE COUSSINET LATON AXE ARTIC.
TREMIE
3 015160 2
ENGRASADOR ACODADO M8X1 LUBRICATOR CONE R1/8" GRAISSEUR COUDE R1/8"
4 38100 0.4
MANG. MORTERO 25x37 mm. 40 BAR. MORTAR HOSE 25x37 mm. 40 BAR. MOETELSCHLAUCH 25x37 mm. 40 BAR. TUYAU MORTIER 25x37 mm. 40 BAR.
5 1801905110 2
CASQUILLO NYLON ARTICULACION
TOLVA
SOCKET NYLON HOPPER BAGUE NYLON ARTICULATION TREMIE
6 1805520190 1
EJE ARTICULACION TOLVA AXLE HOPPER AXE ARTICULATION TREMIE
7a 110021 1
SILENBLOCK MACHO SIMPLE M8x20 D30H22 (CON TOLVA)
SILENBLOCK MALE SIMPLE M8x20 D30H22
SILENBLOCK M¶LE DOUBLE M8x20 D30H22
7b
41592 2
SILENBLOCK MACHO SIMPLE M8x20 D40H30 (ESTANDAR)
8 1805520210 2
PLETINA MONTAJE CONO RECEPTOR EN
EJE
8.1 41100 8
TORNILLO D933 M8x16 SCREW D933 M8x16 VIS D933 M8x16
9 1805520200 1
CONO RECEPTOR MATERIAL CONVEY
C/TOLVA
CONE FOR SKIP
CONE POUR TREMIE TRANSPORTEUR DE
CHAPE
10 5301063122 2
GRILLETE RECTO 1/2" SHACKLE STRAIGHT 1/2" MANILLE DROITE 1/2"
11 5363080002 0.5
CADENA ANCHO 8 MM. (1 MTS) CHAIN WIDE 8 MM (1MTS) CHAINE LARGEUR 8 MM. (1 MTS)
12 1805520010 1
TOLVA CARGA CALDERA CONVEY
13 1800612121 2
BULON PASADOR TOLVA SOLADORA CONECTING ROD PIN FOR VESSEL
BOULON VERROU TREMIE
TRANSPORTEUR DE CHAPE
14 41609 2
PASADOR DE ALETA 6x60 GOUPILLE D'EMPENNAGE 6x50
15 41735 2
ARANDELA D125A M27 WASHER D-125A M27 RONDELLE D-125A M27
16 41815 1
BURLETE SENCILLO (1-2 mm) (MTS.) SEALING COMPRESOR
BOURRELET PLATEAU COMPRESSEUR
(MTS.)
17 48504 1
CHAPA PROTECCION MANG. HID. EN
CALDERA
PROTECTION PLATE HYDRAULIC HOSE
IN VESSEL
PLAQUE PROTECTION TUYAU HYD. EN
CUVE
18 3205303167 1
CILINDRO HIDRAULICO TOLVA HYDRAULIC CYLINDER SKIP CYLINDRE HYDRAULIQUE TREMIE
20 3205429024 1
DEPOSITO HID. SOLADORA HYDRAULIC TANK
RESERVOIR HYD. TRANSPORTEUR DE
CHAPE ELECTRIQUE
21 3880430500 1
FILTRO HIDRAULICO RETORNO
SEMISUMERGIBLE
HYDRAULIC FILTER RETURN SEMISUBMARINE
FILTRE HYDRAULIQUE DE RAPPEL SEMI
SUBMERGIBLE
22 41156 2
TORNILLO D933 M10x25 SCREW D933 M10x25 VIS D933 M10x25
23 41717 2
WASHER D-125A M10 RONDELLE D-125A M10
24 41825 7
ACEITE HIDRÁULICO (BIDÓN 210 LTS) OIL HYDRAULIC (210 LTS) HYDRAULIKOEL (KANISTER 210 LTS) HUILE HYDRAULIQUE (BIDON 210 LTS)
25 040003 1
BRIDA BOMBA HID. RGB40-1/2"
26 040001 1
BRIDA BOMBA HID. RGB35-3/8"
27 3205104150 1
BOMBA HID. 8.5 CM3 CONEXIÓN
REDUCTORA "IZDA"
28 3205301031 1
DISTRIBUIDOR HID. TOLVA+PALA HD 50
29 36506 1
CABLE ELECTRICO NEGRO 4 FLEXIBLE ELECTRIC CABLE BLACK 4 FLEXIBLE CABLE ELECTRIQUE NOIR 4 FLEXIBLE
Page 74
Soladora Convey 260
NOTA:
La empresa Utiform se reserva el derecho de efectuar cualquier modificación técnica con tendencia a mejorar la máquina, aunque no esté contemplada en esta manual
www.utiform.com
12. Tolva de carga: lista de repuestos (Continuación).
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
30 040082 1
RACOR RECTO RED. C/JUNTA GAS 1/2"TN92-12LR
JOINT STRAIGHT RED. WITH GAS JOINT
1/2"-TN92-12L
VERBINDUNGSSTUECK GERADE
REDUZIERT MIT DICHTUNG ½” TN9212LR
RACCORD DROIT RED. AVEC JOINT GAZ
1/2"-TN92-12LR
31 10851806 5
BOQUILLA CURVA 90º 12 L-M18x150
P/MANG. 3/8"
NOZZLE ANGLE 90§ 12 L-M18x150 FOR
HOSE 3/8"
EMBOUT COURBE 90§ 12 L-M18x150
P/TUYAU 3/8"
32 3205301027 1
PALANCA PEQ. DISTRIBUIDOR HID.
TOLVA/PALA
PETIT LEVIER HYDRAULIQUE
TREMIE/PALE
33 050024 5
RACOR RECTO C/JUNTA GAS 3/8"-TN92
GG-12LR
JOINT STRAIGHT WITH GAS JOINT 3/8"TN92 GG-12LR
VERBINDUNGSSTUECK GERADE 3/8 –
TN92 GG-12 LR
RACCORD DROIT AVEC JOINT GAZ 3/8"TN92 GG-12LR
34 - 1
JUNTA TÓRICA BOMBA HIDRAÚLICA
35 10811806
BOQUILLA RECTA 12 L-M18x150 P/MANG.
3/8"
NOZZLE STRAIGHT 12 L-M18x150 FOR
HOSE 3/8"
EMBOUT DROIT 12 L-M18x150 P/TUYAU
3/8"
36 41080 4
TORNILLO D931 M10x100
37 3205104154 1
AUTOCENTRAJE BOMBA HID. ENGRAN.
D259
departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
Page 75
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
13. Schrapper Schaufel
1.1; 1.2
3
1 2
1
6 7 8
9 10
4 5
11 12 13 14 15
Page 76
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
16 17
18
19
21 22 23
20
24
25 26 27 28 38
29
30
37
31
36
35
32 33 34
Hidraulikfilter
Hidraulikdruck
Zilinder
Page 77
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
13. Schrapper Schaufel: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 48102 1
MANDO DISTANCIA "CONVEY 260"
COMPLETO
REMOTE CONTROL E 260
COMPLETE
TELECOMMANDE TRANSPORTEUR
DE CHAPE "UTI 260" COMPLETE
1.1 3160600305 1 ANTENA RADIOFRECUENCIA ANTENNA ANTENNE ANTENNE
1.2 48119 1
CONECTOR ANTENA HEMBRA BNC
PARA CHASIS
2 48101 2 BATERIA M/D "CONVEY 260"
BATTERY REMOTE CONTROL "UTI
260"
BATERIE TELECOMMANDE "UTI 260"
3 48505 1
CHAPA SUJ. MANDO DISTANCIA A PALA
ARRASTRE
SUPPORT PLATE REMOTE
CONTROL FOR SCRAP
PLAQUE FIXATION TELECOMMANDE
A PALE ENTRAINMENT
4 001011020 1 TAPA TORRE PALA ARRASTRE CONVEY
5 001011010 1 SOPORTE PALA ARRASTRE CONVEY
6 1806006015 1 GUIA P/CABLE PALA ARRASTRE GUIDE FOR CABLE SCRAP
GUIDE P. CABLE PALE
ENTRAINEMENT
7 1806006017 1
TOPE CONICO CABLE ACERO PALA
ARRASTRE
8 41187 3 TORNILLO ALLEN D912 M6x20 SCREW D912 M6x20 VIS ALENE D912 M6x20
9 3190189811 1 MANILLAR PALA HANDLE UNIT FOR SCRAP SCHRAPPERGESTELL GUIDON PALE
10 414422105 2 PROTECTOR GOMA MANGO DN 22 MM.
11 5301063122 1 GRILLETE RECTO 1/2" SHACKLE STRAIGHT 1/2" MANILLE DROITE 1/2"
12 084008 1 UNION DOBLE 8 MM. (CADENA) DOBLE UNION 8MM (CHAIN) RACCORD DOUBLE 8 MM. (CHAINE)
13 3190189202 1.2 CADENA ANCHO 6 MM. (1 MTS) CHAIN WIDE 6 MM (1MTS) CHAINE LARGEUR 6 MM. (1 MTS)
14 41110 2 TORNILLO D933 M10x20 SCREW D933 M10x20 VIS D933 M10x20
14.1 41212 2 TUERCA AUTOBLOC. D985 M10 SCREW AUTOBLOC. D985 M10 ECROU AUTOBLOQUANT D985 M10
15 3190181002 1 PALA ARRASTRE CONVEY
PALE DEMARRAGE TRANSPORTEUR
DE CHAPE
16 050024 4
RACOR RECTO C/JUNTA GAS 3/8"-TN92
GG-12LR
JOINT STRAIGHT WITH GAS JOINT
3/8"-TN92 GG-12LR
VERBINDUNGSSTšCK GERADE MIT
GAS VERBINDU
RACCORD DROIT AVEC JOINT GAZ
3/8"-TN92 GG-12LR
17 3205301030 1
DISTRIBUIDOR HID. TOLVA+PALA
CONVEY 260
HYDRAULIC DSITRIBUTOR SKIP
AND SCRAP 260
DISTRIBUTEUR HYDRAULIQUE
TREMIE+PALE 260
17.1 3205301032 1
PALANCA GRANDE DE HIDRAULICO
TOLVA/PALA
GRAND LEVIER HYDRAULIQUE
TREMIE/PALE
18 230007 1
RACOR UNIÓN CODO 90º GAS 3/8"-TN
111-12 LR
19 48608 1
MANG. HID. 3/8" (0.415 MTS) RECTACURVA12 L
HYDR. HOSE 3/8" (0.415 MTS)
STRAIGHT-ANGLE12 L
HYDRAULIKSCHLAUCH 3/8" (0.415
MTS) GERADE
TUYAU HYD. 3/8" (0.415 MTS)
DROITE-COURBE12 L
20 48601 1
MANG. HID. 3/8" (0.365 MTS) RECTACURVA 12 L
HYDRAULIKSCHLAUCH 3/8" (0.365
MTS) GERADE-WI
HYDR. HOSE 3/8" (0.365 MTS)
STRAIGHT-ANGLE 12 L
TUYAU HYD. 3/8" (0.365 MTS)
DROITE-COURBE 12 L
21 48619 1
MANG. HID. 3/8" (0.425 MTS) RECTACURVA12 L
HYDR. HOSE 3/8" (0.425 MTS)
STRAIGHT-ANGLE12 L
HYDRAULIKSCHLAUCH 3/8" (0.425
MTS) GERADE
TUYAU HYD. 3/8" (0.425 MTS)
DROITE-COURBE12 L
22 330004 3 TE ORIENTABLE LATERAL TN 121-12L
T - SQUARE ORIENTABLE SIDE TN
121-12L
TE ORIENTABLE LATERAL TN 12112L
23 050024 4
RACOR RECTO C/JUNTA GAS 3/8"-TN92
GG-12LR
JOINT STRAIGHT WITH GAS JOINT
3/8"-TN92 GG-12LR
VERBINDUNGSSTUECK GERADE 3/8 –
TN92 GG-12 LR
RACCORD DROIT AVEC JOINT GAZ
3/8"-TN92 GG-12LR
24 48602 1
MANG. HID. 3/8" (1.90 MTS) RECTARECTA 12 L
HYDR. HOSE 3/8" (1.90 MTS)
STRAIGHT-STRAIGHT 12 L
HYDRAULIKSCHLAUCH 3/8" (1.90
MTS) GERADE
TUYAU HYD. 3/8" (1.90 MTS) DROITEDROITE 12 L
25 1805540113 1
POLEA-TAMBOR P/GUIAR CABLE
ARRASTRE CONVEY
POULIE TAMBOUR P. GUIDER CABLE
ENTRAINEMENT
Page 78
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
13. Schrapper Schaufel: Ersatzteilliste (Fortsätzung).
26 1800814052 1
SUJETACABLE ACERO POLEA-TAMBOR
SOLADORA
27 41100 2
TORNILLO D933 M8x16 SCREW D933 M8x16 VIS D933 M8x16
28 1800814011 1
CABLE ACERO PALA ARRASTRE CABLE ACIER PALE ENTRAINEMENT
29 2901601100 1
MOTOR HIDRAULICO PALA ARRASTRE
SOLADORA
HYDRAULIC MOTOR SCRAP
MOTEUR HYDRAULIQUE PALE
ENTRAINEMENT TRANSPORTEUR DE
CHAPE
30 41182 4
TORNILLO ALLEN D7991 M12x50 SCREW D7991 M12x50 VIS ALENE D7991 M12x50
30.1 41213 4
TUERCA AUTOBLOC. D985 M12 SCREW AUTOBLOC. D985 M12 ECROU AUTOBLOQUANT D985 M12
31 040082 2
RACOR RECTO RED. C/JUNTA GAS 1/2"TN92-12LR
JOINT STRAIGHT RED. WITH GAS JOINT
1/2"-TN92-12L
VERBINDUNGSSTUECK GERADE
REDUZIERT MIT DICHTUNG ½” TN9212LR
RACCORD DROIT RED. AVEC JOINT GAZ
1/2"-TN92-12LR
32 41113 4
TORNILLO D933 M12x40 SCREW D933 M12x40 VIS D933 M12x40
33 41213 4
TUERCA AUTOBLOC. D985 M12 SCREW AUTOBLOC. D985 M12 ECROU AUTOBLOQUANT D985 M12
34 48604 2
MANG. HID. 3/8" (2.60 MTS) CURVARECTA 12 L
HYDR. HOSE 3/8" (2.60 MTS) STRAIGHTANGLE 12 L
HYDRAULIKSCHLAUCH 3/8" (2.60 MTS)
GERADE
TUYAU HYD. 3/8" (2.60 MTS) DROITECOURBE 12 L
35 48603 1
MANG. HID. 3/8" (0.80 MTS) RECTACURVA 12 L
HYDR. HOSE 1/2" (0.80 MTS) STRAIGHTSTRAIGHT 15
HYDRAULIKSCHLAUCH 1/2" (0.80 MTS)
GERADE
TUYAU HYD. 1/2" (0.80 MTS) DROITEDROITE 15 L
36 3218155337 1
PLACA BASE NG-6 SAL.POST. 3/8"
PLAQUE SOCLE ELECT. HYD. PALE
ENTRAINEMENT
37 3208100913 1
ELECTROVALVULA HID. PALA
ARRASTRE
38 48503 1
CHAPA SUJECION ELECTROVALVULA
HID.
SUPPORT PLATE FOR ELECTRIC VALVE
HYDR.
PLAQUE FIXATION ELECTROVALVULE
HYD.
Page 79
Esstrichmachine Convey 260
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
www.utiform.com departamento.té[email protected] Tfno. +34 96 570 29 82 Fax: +34 96 570 29 83
13.1 Hydraulischer Entwurf
Page 80
Esstrichmachine Convey 260
14. Auslauftopf
1 3 4
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
2
5 6,7 8
Page 81
Esstrichmachine Convey 260
14. Auslauftopf: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1
001999084 1
ASA AGARRE PASADOR SEGURO
TRIPODE SOLADORA
2 41604 2
PASADOR R DE 3 mm. "R" CLIP GOUPILLE R DE 3 mm.
3 46480 1
PROTECTOR GOMA TRIPODE UTIFORM
PROTECTEUR CAOUTCHOUC TREPIED
UTIFORM
4 414422105 1
PROTECTOR GOMA MANGO DN 22 MM.
5 1922508420 1
TRIPODE-CHASIS SALIDA SOLADORA TRIPOD CHASIS
TREPIED-CHASSIS SORTIE
TRANSPORTEUR DE CHAPE
6 41101 4
TORNILLO D933 M8x20 SCREW D933 M8x20 VIS D933 M8x20
7 41211 4
TUERCA AUTOBLOC. D985 M8 SCREW AUTOBLOC. D985 M8 ECROU AUTOBLOQUANT D985 M8
8 458305 1
ESFERA ROSCA DIRECTA M12
DIAL THREAD DIRECT M12 DELTA
QUATTRO
SPHERE ROSCA DIRECTE M12 DELTAQUATTRO
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 82
Esstrichmachine Convey 260
15. Förderschläuche
Ref. 38314
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
3 1 2 1 4 5
Ref. 38312
6 1 2 1 4 5
Page 83
Esstrichmachine Convey 260
15. Förderschläuche: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
38314
1
MANG. TRANSP. 65 mm.(20 MTS) C/ACOPL.
P/TRÍPODE
1 41151 20
TORNILLO R/CH. D7981 M4.8x19 (MANG.) SCREW R/CH. D7981 M4.8x19 (HOSE) ECROU R/CH. D7981 M4.8x19 (TUYAU)
2 38310 20
MANG. TRANSP. 65x85 mm. 10 BAR. MATERIAL HOSE 65x85 mm. 10 BAR. MATERIALSCHLAUCH 65x85 mm. 10 BAR. TUYAU TRANSP. 65x85 mm. 10 BAR.
3 85486261 1
ACOPL. NW.65 TRIPODE CUPPLING NW.65 TRIPODE BRINKMANN
KUPPLUNG NW.65 AUSLAUFTOPF
BRINKMANN
RACCORD NW.65 TREPIED BRINKMANN
4 76300 1
ACOPL. HEMBRA KKMT 89 Dn 65 CUPPLING FEMALE KKMT 89 Dn 65 KUPPLUNG WEIBLICH KKMT 89 Dn 65 RACCORD FEMELLE KKMT 89 Dn 65
5 76303 1
JUNTA ACOPL. 65 mm. 110x14 mm. JOINT CUPPLING 65 mm. 110x14 mm. JOINT RACCORD 65 mm. 110x14 mm.
38312
1
MANG. TRANSP. 65 mm.(20 MTS) C/ACOPL.
MATERIAL HOSE 65 mm.(20 MTS) WITH
CUPPLING
MATERIALSCHLAUCH 65 mm.(20 MTS)
MIT KUPP
TUYAU TRANSP. 65 mm.(20 MTS)
A/RACCORD
6 76301 1
ACOPL. MACHO KKVT 89 Dn 65 CUPPLING MALE KKVT 89 Dn 65 KUPPLUNG MŽNNLICH KKVT 89 Dn 65 RACCORD M¶LE KKVT 89 Dn 65
1 41151 25
TORNILLO R/CH. D7981 M4.8x19 (MANG.) SCREW R/CH. D7981 M4.8x19 (HOSE) ECROU R/CH. D7981 M4.8x19 (TUYAU)
2 38310 20
MANG. TRANSP. 65x85 mm. 10 BAR. MATERIAL HOSE 65x85 mm. 10 BAR. MATERIALSCHLAUCH 65x85 mm. 10 BAR. TUYAU TRANSP. 65x85 mm. 10 BAR.
4 76300 1
ACOPL. HEMBRA KKMT 89 Dn 65 CUPPLING FEMALE KKMT 89 Dn 65 KUPPLUNG WEIBLICH KKMT 89 Dn 65 RACCORD FEMELLE KKMT 89 Dn 65
5 76303 1
JUNTA ACOPL. 65 mm. 110x14 mm. JOINT CUPPLING 65 mm. 110x14 mm. JOINT RACCORD 65 mm. 110x14 mm.
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Page 84
Esstrichmachine Convey 260
16. Werkzeuge
1 2
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht
berücksichtigt sind.
3 4 5 6
Page 85
Esstrichmachine Convey 260
16. Werkzeuge: Ersatzteilliste
Nº Ref. Uds. Descripción Description Bezeichnung Désignation
1 925470 1
ENGRASADORA MANUAL LUBRICATOR MANUAL GRAISSEUSE MANUELLE
2 3500180 2
BOLA CAUCHO 80 MM. CLEANING BALL 80 MM. BALLE CAOUTCHOUC 80 MM.
3 3052330 1
LLAVE AJUSTABLE 12 MM.
4 41807 1
LLAVE FIJA 16-17
5 41806 1
LLAVE FIJA 12-13
6 45049 1
LLAVE CERRADURA METALICA
Zeichen: Die Firma Utiform behält sich das Recht vor zur verbesserung der Machine technische Änderungen vorzunehmen die in diesem Handbuch nicht berücksichtigt sind.
Loading...
