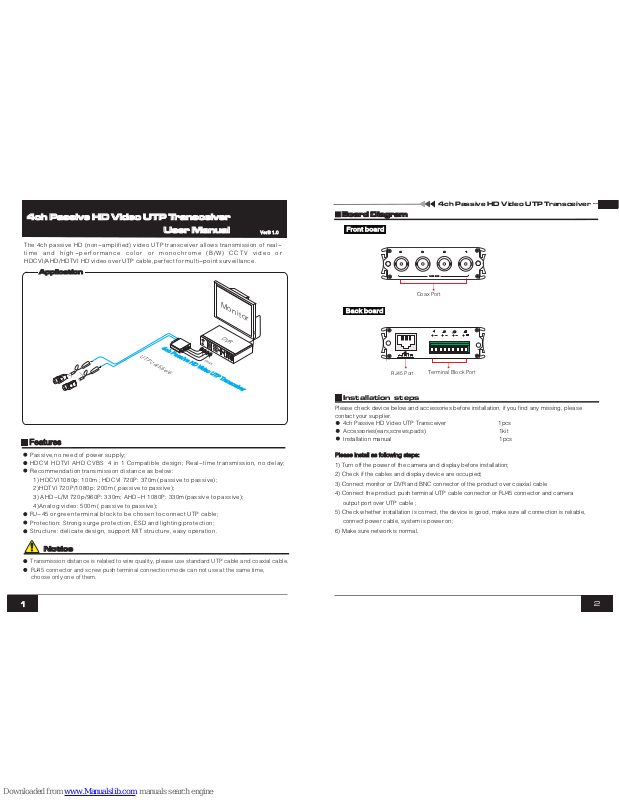

Page 1
Board Diagram
Please check device below and accessories before installation, if you find any missing, please
contact your supplier.
4ch Passive HD Video UTP Transceiver 1pcs
Accessories(ears,screws,pads) 1kit
Installation manual 1pcs
1) Turn off the power of the camera and display before installation;
2) Check if the cables and display device are occupied;
3 Connect monitor or DVR and BNC connector of over coaxial cable) the product
4 Connect the product push terminal UTP cable connector or RJ45 connector and camera )
output port over UTP cable ;
5 Check whether installation is correct, the device is good, make sure all connection is reliable, )
connect power cable, system is power on;
6 Make sure network is normal.)
Features
Application
4ch Passive HD Video UTP Transceiver
D
VR
Mo
n
i
t
o
r
Co
a
x
4
c
h P
a
ss
i
v
e HD Video UTP Transceiver
VID
E
O
3
4
1
2
VID
E
O
3
4
1
2
VID
E
O
3
4
1
2
Coax Port
Terminal Block Port
RJ45 Port
UT
P
C
a
t
5/
5
e/
6
Notice
Transmission distance is related to wire quality, please use standard UTP cable and coaxial cable.
RJ45 connector and screw push terminal connection mode can not use at the same time,
choose only one of them.
1
2
Installation steps
Please install as following steps:
4ch Passive HD Video UTP Transceiver
User Manual
The 4ch passive HD (no n-amp lifie d) vide o UTP transc eiver allo ws tran smiss ion o f realt i m e an d hi gh -p er fo rm an ce co lo r or m on o ch ro me ( B/ W) CC TV v i d eo o r
HDC VI/AH D/HDT VI HD vid eo over U TP cabl e,per fect fo r multi -poin t surve illan ce.
Ver B 1.0
Pas sive, no need o f power s upply ;
HDC VI HDTV I AHD CVBS 4 in 1 Co mp at ib le desi gn; Real-ti me transm issio n, no del ay;
Rec ommen datio n trans missi on dist ance as b elow:
1) HD CVI10 80p: 10 0m ; HDCV I 720P: 3 70m( pa ssive t o passi ve);
2)H DTVI 72 0P/10 80p: 20 0m ( pass ive to pa ssive );
3) AH D-L/M 7 20p/9 60P: 33 0m; AHD -H 1080 P: 330m (pass ive to pa ssive );
4)A nalog v ideo: 5 00m ( pas sive to p assiv e);
RJ- 45 or gre en term inal bl ock to be c hosen t o conne ct UTP ca ble;
Pro tecti on: Str ong sur ge prot ectio n, ESD an d light ing pro tecti on;
Str uctur e: deli cate de sign, s uppor t MIT str uctur e, easy o perat ion.
Fro nt boar d
Bac k board
Page 2
连接接口
3
4
4ch Passive HD Video UTP Transceiver
Specification
Item
Description
Function
Transmission Channel
4 channel
Video Connector
4 channel
Transmission Distance
Please refer to table 1
Video
Transmission
Performance
and Connector
Coaxial Video Connector Female BNC Connector
UTP Cable Video Connector
Female RJ45 Connector
8 channel screw push terminal
Compatible Video Format
HDCVI HDTVI AHD CVBS
Signal Transmission Width 0~70MHz
Anti-interference
>60dB
Protection Level
Coaxial Video Connector Surge 2KV per：IEC61000-4-5
UTP Cable Communication
Connector Surge Protection
2KV(different mode)
per:IEC61000-4-5
ESD
1a contact discharge level 3
1b air discharge level 3
per： IEC61000-4-2
Operation
Environment
Operation Temperature
0~55℃
Storage Temperature -40~85℃
Humidity
0~95%
Physical
Properties
Dimension(L*W*H)
85mm （Include connector length)×82mm×25mm
Shell Aluminum
Color Black
N.W.
154g
连接接口
Trouble shooting
If the equipment fails to work, please solve the problem as following method
Che ck if it' s accor ding to t he manu al;
the r eal dis tance n ot exce eds the a llowe d trans missi on dist ance;
Mak e sure th e cable s are qua lity;
Rep lace th e devic e at ques tion by a n ormal w orkin g devic e;
Ple ase con tact yo ur vend or if tro uble st ill exi sts.
If ch oose RJ -45,m ake sur e both en ds of UTP c able ar e same( both 56 8A or bot h 568B)
If ch oose gr een ter minal b lock, make su re cabl e of same c olor be i n the sam e pin;
Che ck all co nnect ion(l ike BNC ,RJ-4 5);
Mak e sure
4ch Passive HD Video UTP Transceiver
Spe cific ation c hange w ill not b e notic ed
Table 1:
Instru ct io n:
The test d at a in t ab le 1 is requi re d un de r lab envir on me nt b y passi ve t o pa ss ive,In
actual c as e, t he re maybe so me d if fe rences du e to d if ferent ca bl e an d en vironme nt .
Sig nal Sou rce
HDC VI
(72 0P)
HDC VI
(10 80P)
HDT VI
(72 0P/10 80P)
AHD -L/M
(72 0P/96 0P)
AHD -H
(10 80P)
Ana log
Vid eo
Rec ommen datio n
dis tance
370 m
100 m
200 m
330 m
330 m
500 m
