www.ute.de
X2-88A
Modular Matrix Switcher 8x8
All Rights Reserved
Version: X2-88A_2018V1.3
User Manual
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till July,
2018. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
All product function is valid till 2018-07-05.
Trademarks
Product model and logo are trademarks of U.T.E. electronic GmbH & Co. KG.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫ Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
⚫ Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
⚫ Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
⚫ Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
⚫ Refer all servicing to qualified service personnel.
⚫ To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫ Do not put any heavy items on the extension cable in case of extrusion.
⚫ Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫ Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫ Keep the module away from liquids.
⚫ Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
⚫ Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫ Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
⚫ Unplug the power cord when left unused for a long period of time.
⚫ Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
Table of Contents
1. Introduction ................................................................................................................. 1
1.1. Product Introduction .......................................................................................... 1
1.2. Features ........................................................................................................... 1
1.3. Signal Card ....................................................................................................... 2
1.4. Package List ..................................................................................................... 3
2. Panel Description ........................................................................................................ 4

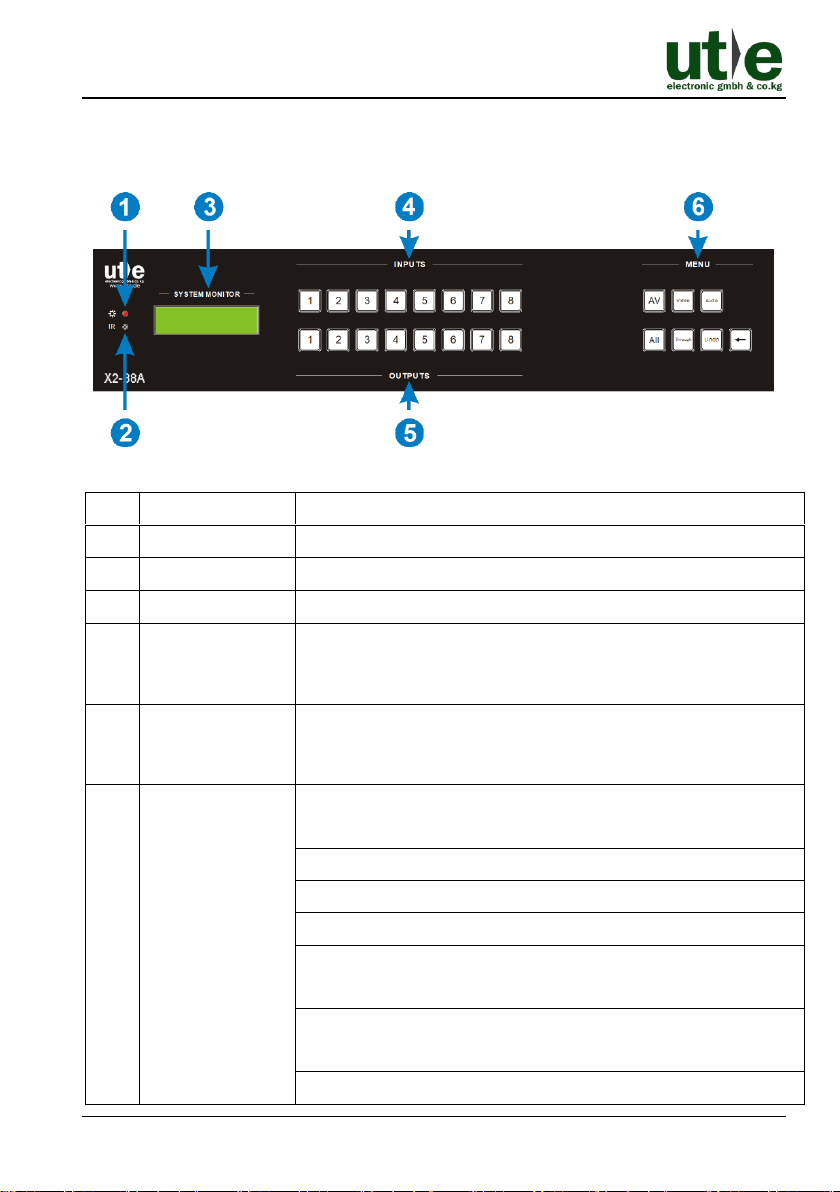

2.1. Matrix Front Panel ............................................................................................ 4
2.2. Matrix Rear Panel ............................................................................................. 5
2.3. Signal Cards ..................................................................................................... 6
2.3.1. VGA Signal Cards ................................................................................... 6
2.3.1.1. X2-4I-VA: 1080P seamless VGA input card .................................. 7
2.3.1.2. X2-4O-VG: 1080P seamless VGA input card w. audio ports ......... 8

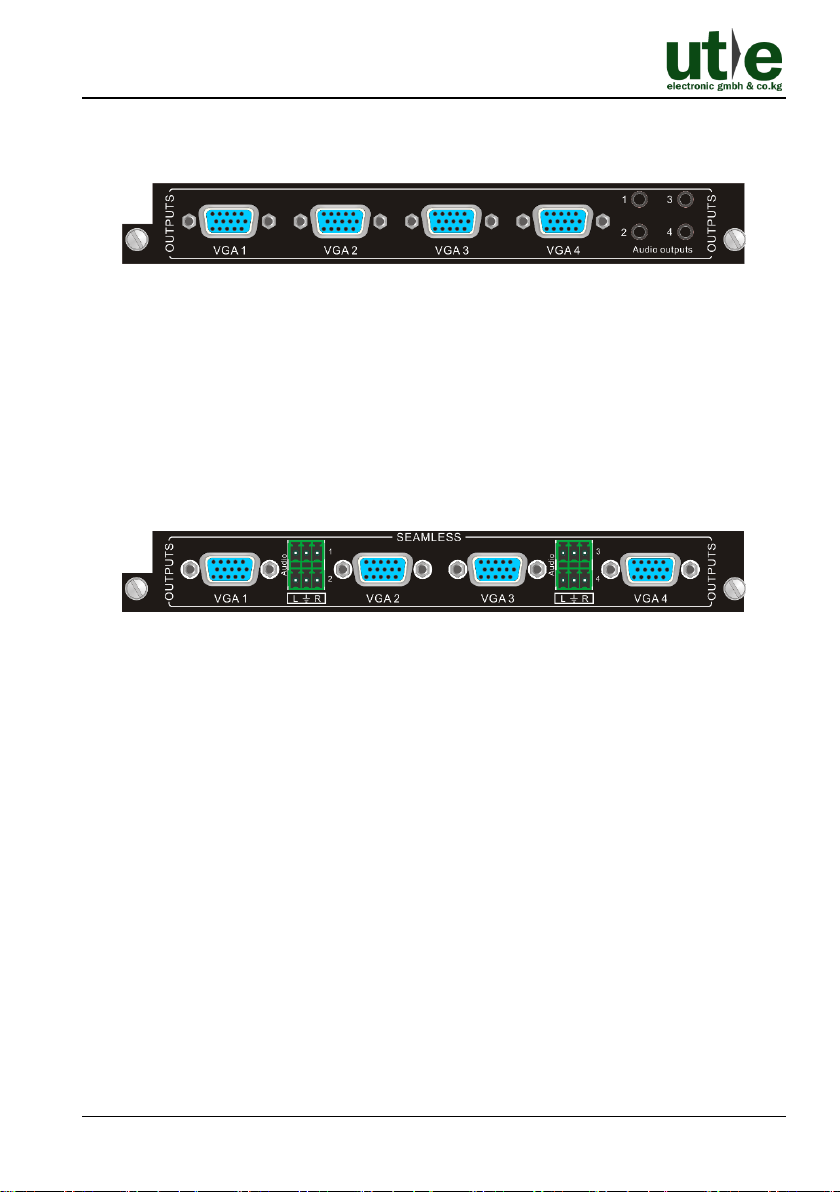

2.3.1.3. X2-4O-VS: 1080P seamless VGA output card w. audio ports ....... 8
2.3.2. HDMI Signal Cards ................................................................................. 9
2.3.2.1. X2-4I-HS: 1080P seamless HDMI input card ................................ 9
2.3.2.2. X2-4O-HS: 1080P seamless HDMI output card .......................... 10
2.3.2.3. X2-4I-UH: 4K HDMI input card .................................................... 11
2.3.2.4. X2-4O-UH: 4K HDMI output card ................................................ 11

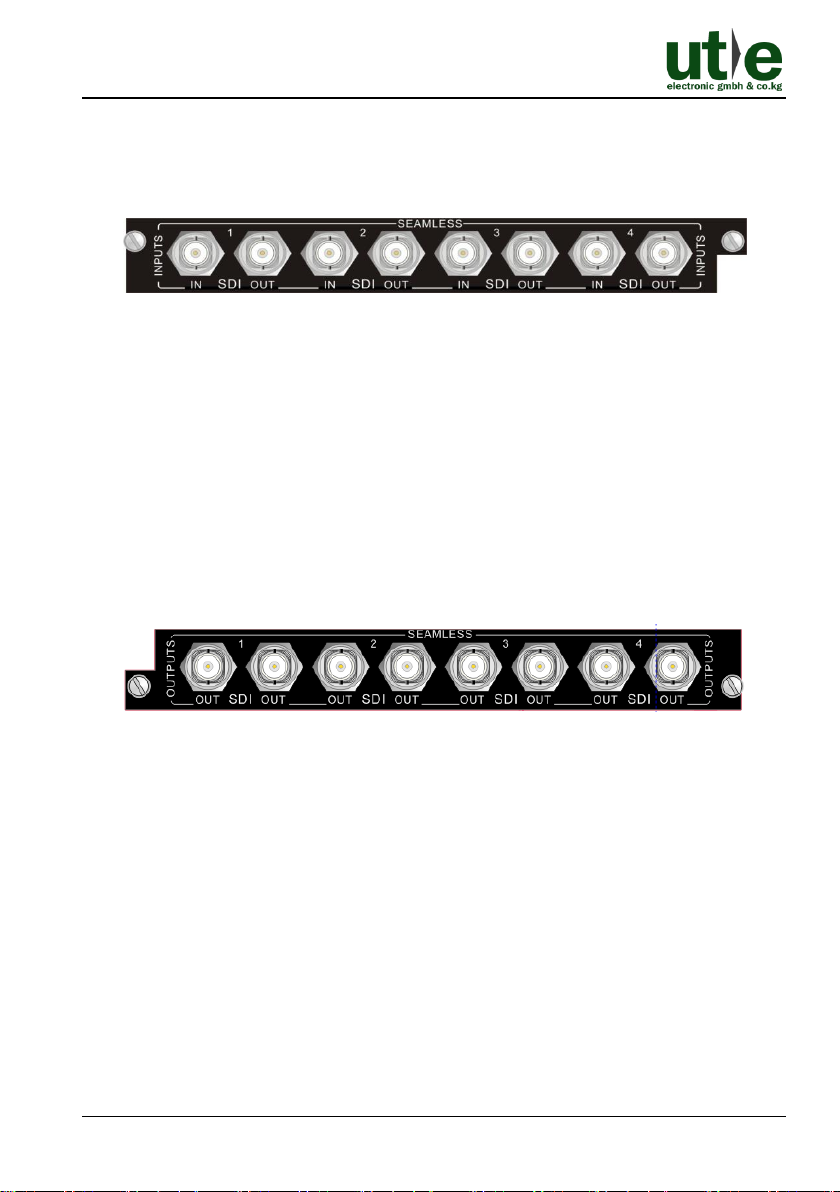

2.3.3. SDI Signal Cards .................................................................................. 12
2.3.3.1. X2-4I-SS: 1080P seamless SDI input card ................................. 12
2.3.3.2. X2-4O-SS: 1080P seamless SDI output card ............................. 12

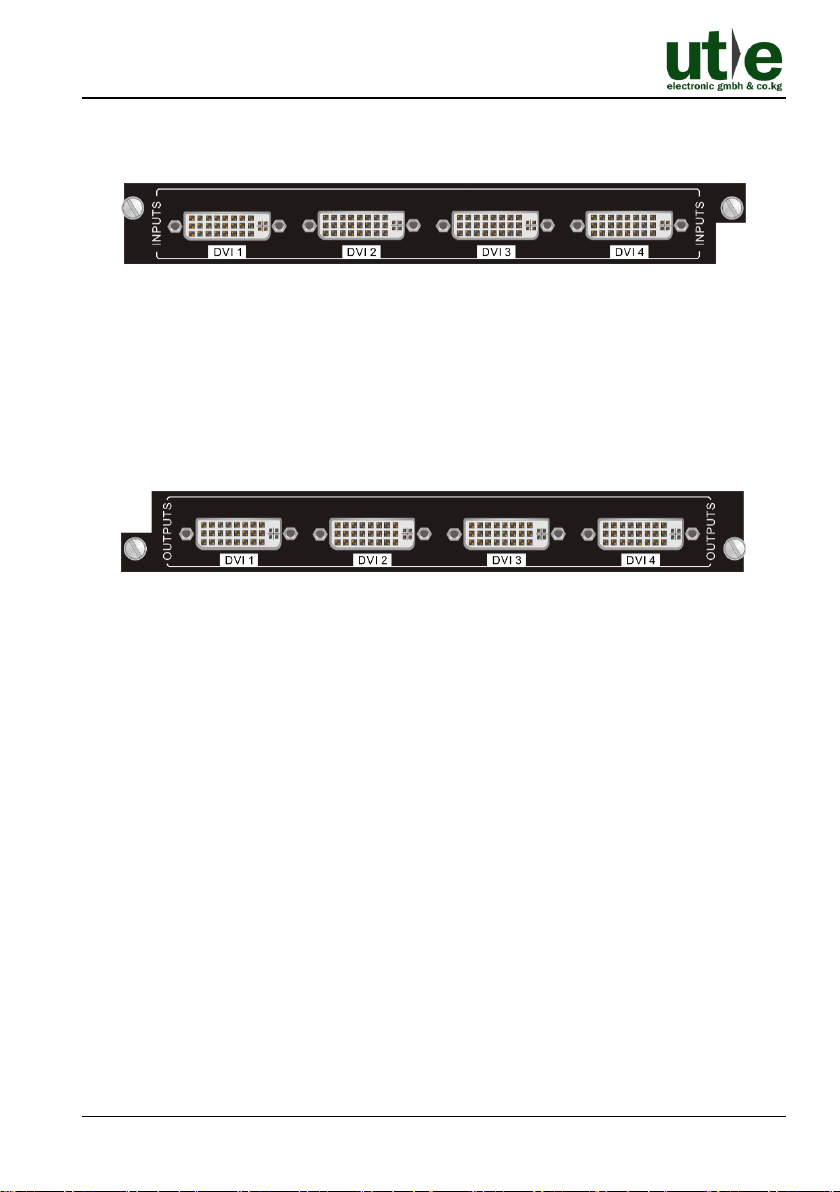

2.3.4. DVI Signal Cards .................................................................................. 13
2.3.4.1. X2-4IDV: 1080p DVI input card ................................................... 15
2.3.4.2. X2-4O-DV: 1080P DVI output card ............................................. 15

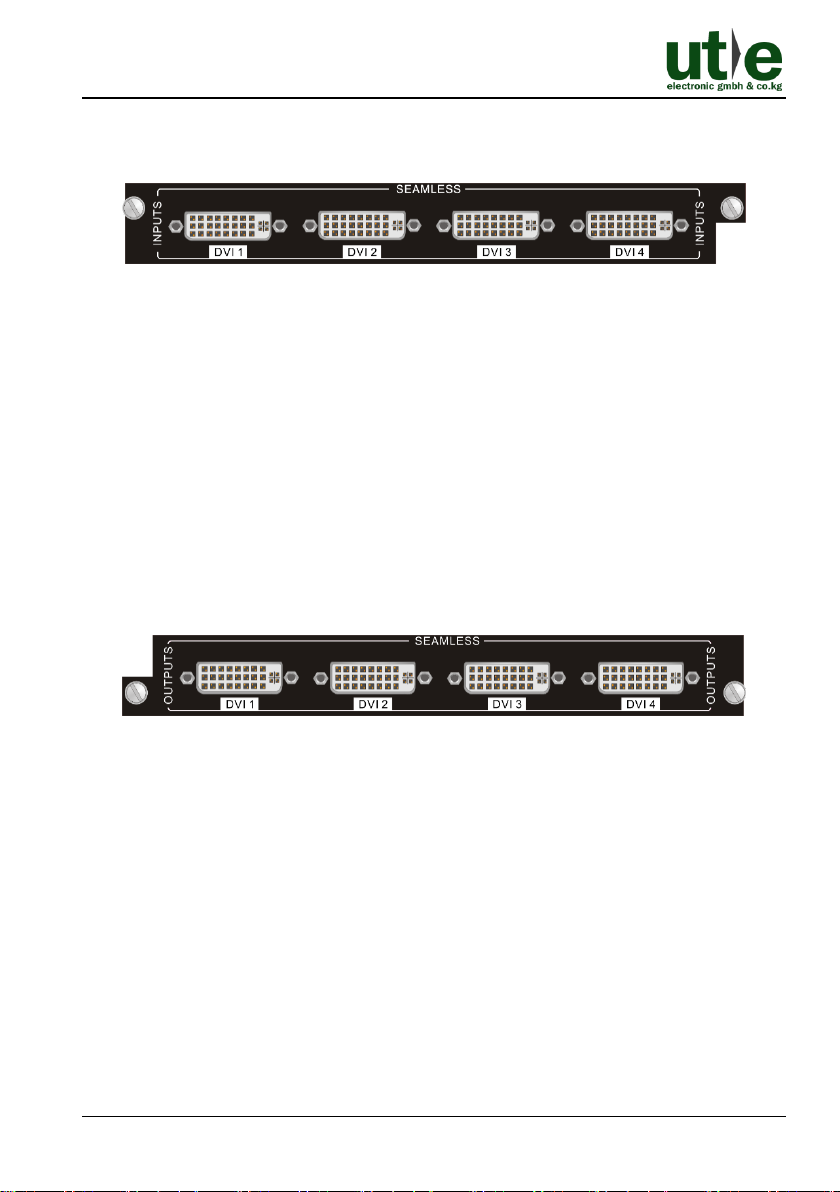

2.3.4.3. X2-4I-DS: 1080P seamless DVI input card ................................. 16
2.3.4.4. X2-4O-DS: 1080P seamless DVI output card ............................. 16
2.3.5. HDBaseT Signal Cards......................................................................... 17

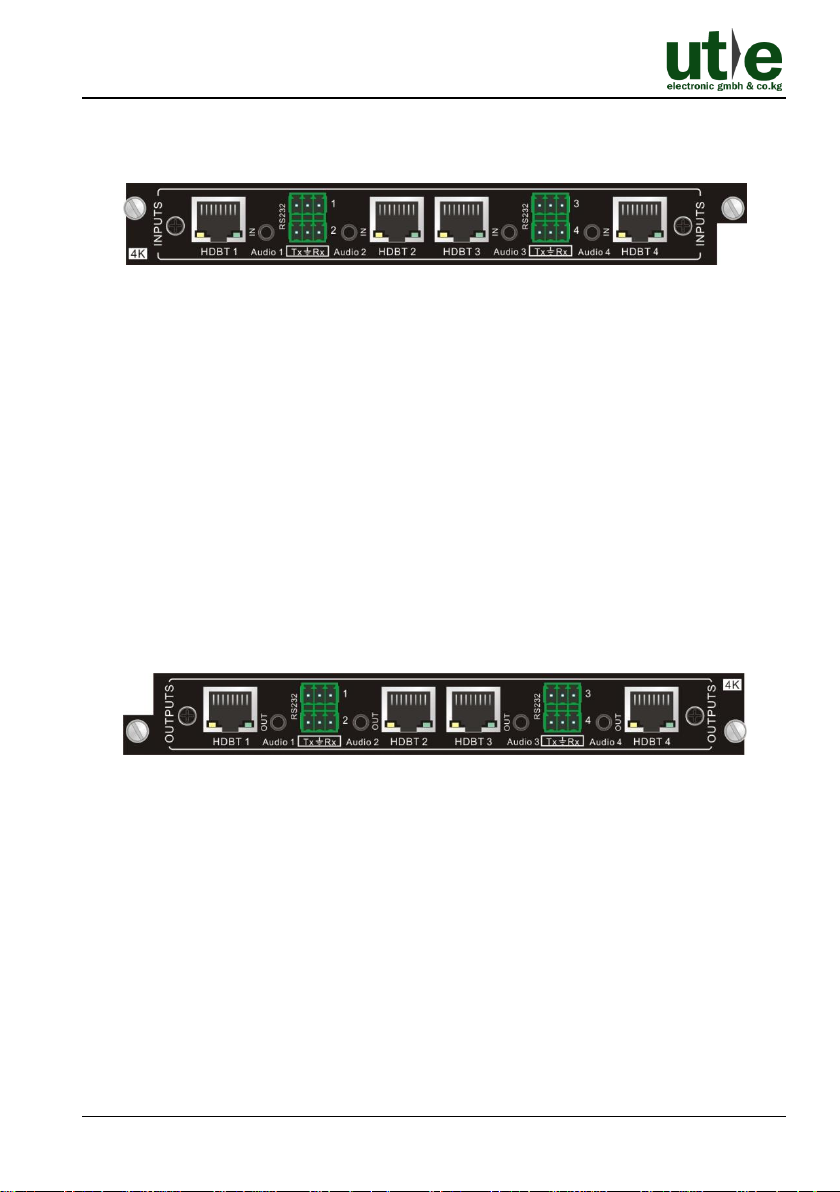

2.3.5.1. X2-4I-BT: 4K HDBaseT input card............................................... 18
2.3.5.2. X2-4O-BT: 4K HDBaseT output card........................................... 18
2.3.5.3. X2-4I-BTS: 1080P seamless HDBaseT input card ...................... 19
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
2.3.5.4. X2-4O-BTS: 1080P seamless HDBaseT output card .................. 20
2.3.6. Optical Signal Cards ............................................................................. 21

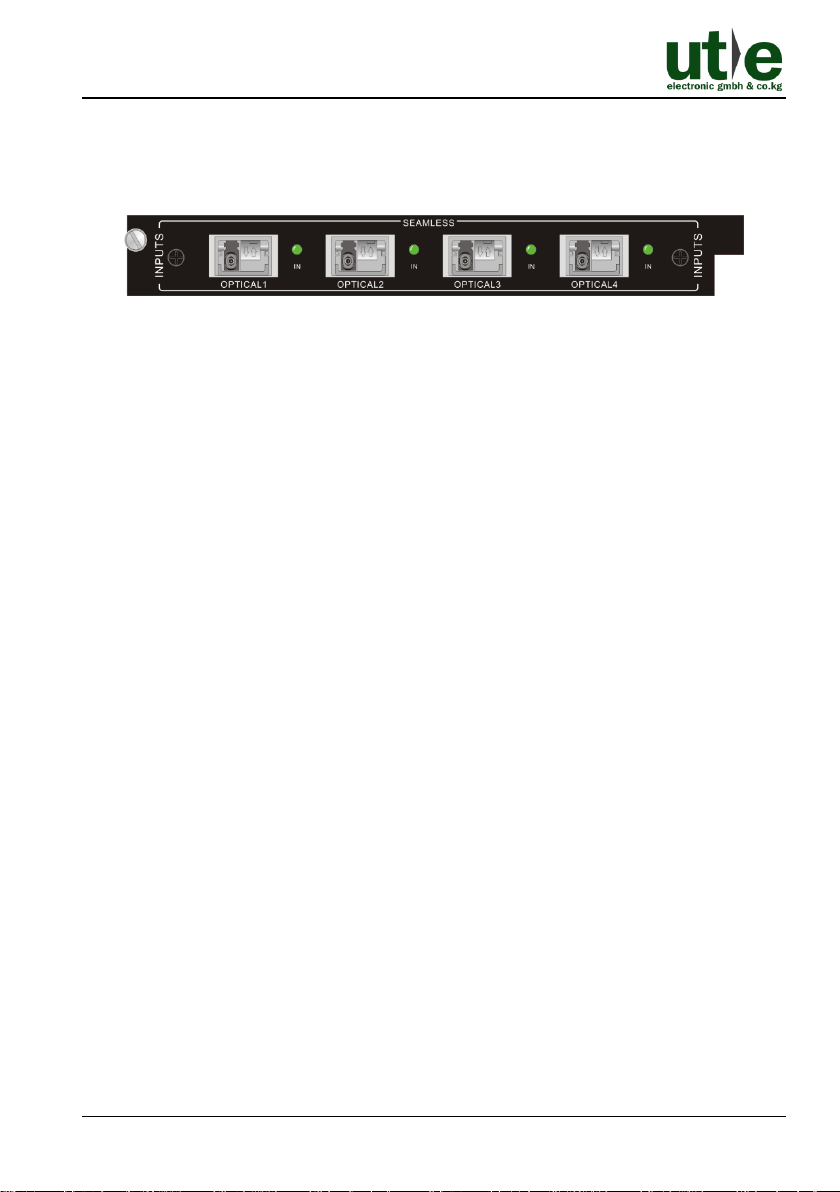

2.3.6.1. X2-4I-UFS: 1080P seamless OPTICAL input card ...................... 21
2.3.6.2. X2-4O-UFS: 1080P seamless OPTICAL output card .................. 22
3. System Connection ................................................................................................... 23
3.1. Usage Precautions ......................................................................................... 23

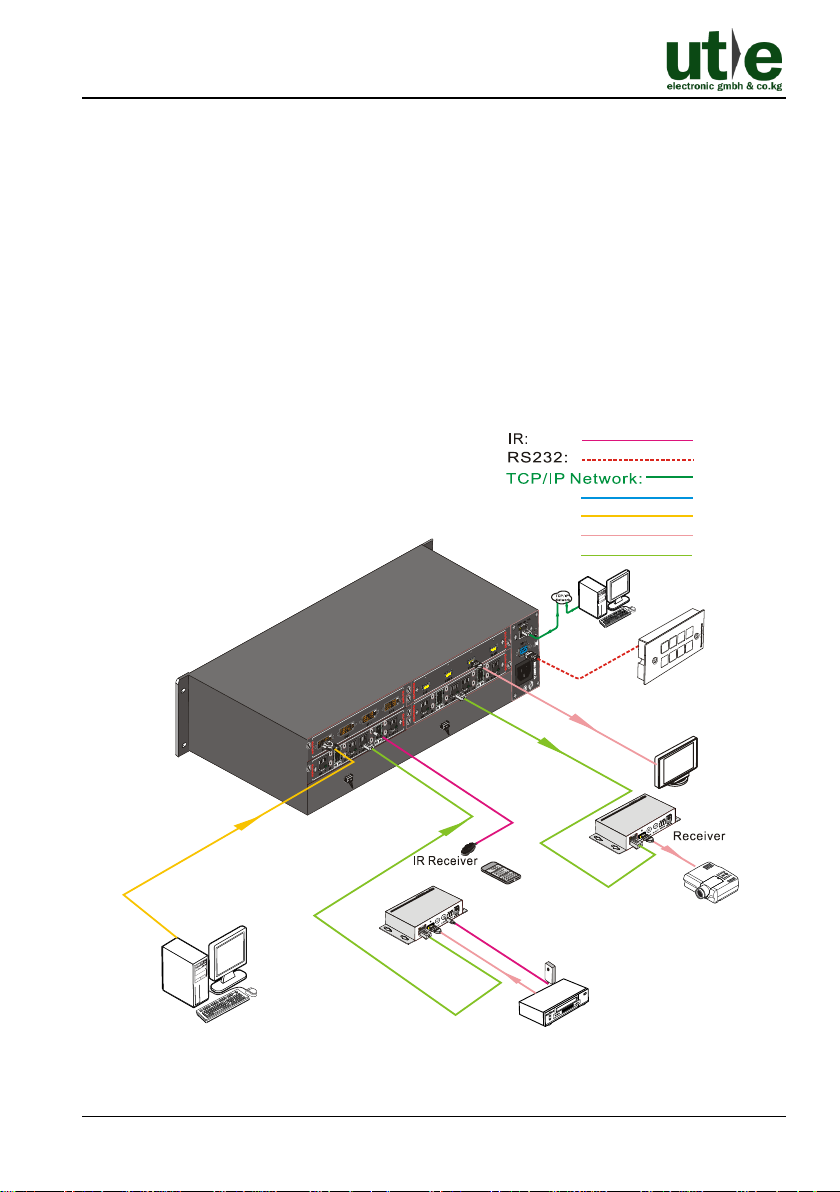

3.2. Connection Diagram X2-88A .......................................................................... 23
4. Button Control ........................................................................................................... 24
5. IR Remote Control .................................................................................................... 25
6. RS232 Control ................................................................................................ .......... 26
6.1. RS232 Communication Port ........................................................................... 26

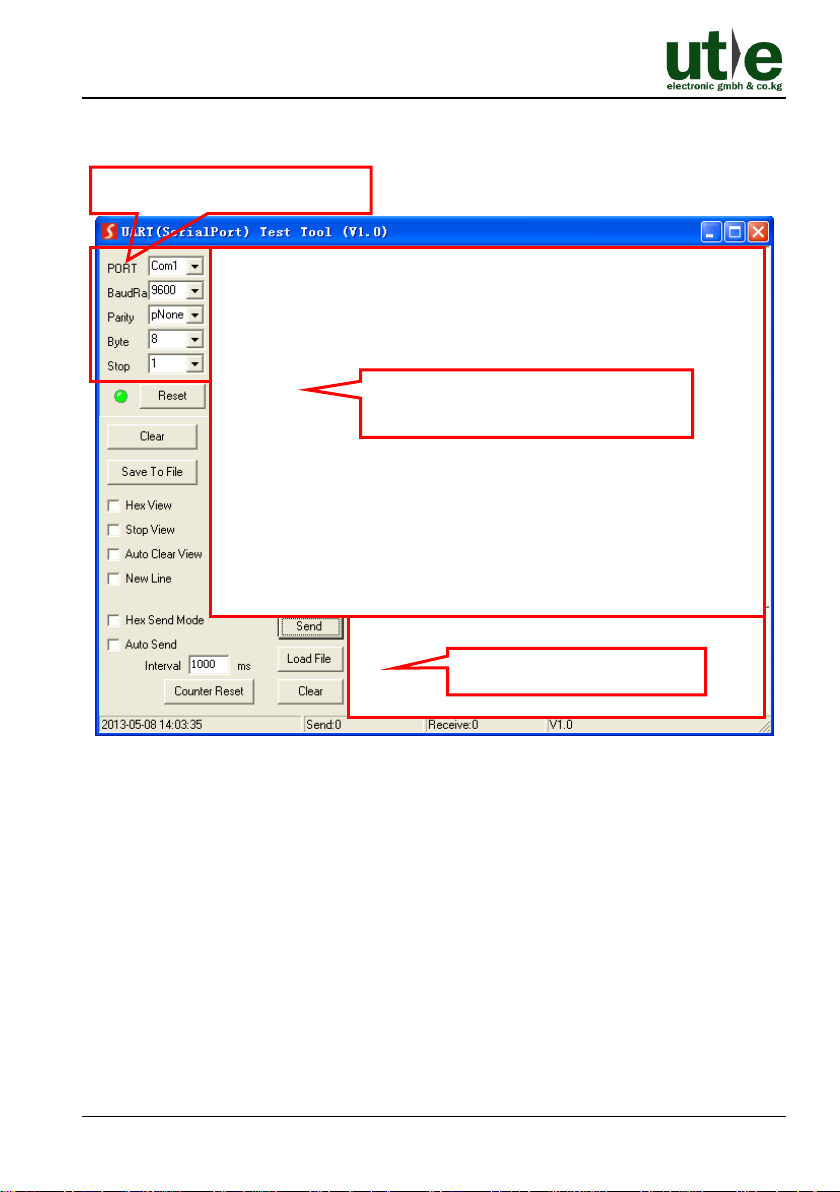

6.2. RS232 Control Software ................................................................................. 26
6.2.1. Installation/ uninstallation of RS232 Control Software .......................... 26
6.2.2. Basic Setting ......................................................................................... 26
6.3. RS232 Communication Command ................................................................. 28
6.3.1. System Control Command.................................................................... 29
6.3.2. Signal Switching Command .................................................................. 30
6.3.3. Preset Command .................................................................................. 30
6.3.4. EDID Management Command .............................................................. 31
6.3.5. X2-4I-VA Input Card Command ............................................................ 32
6.3.6. X2-4O-VS Output Card Command ....................................................... 33
6.3.7. X2-4I-HS Input Card Command ............................................................ 36
6.3.8. X2-4O-HS Output Card Command ....................................................... 38
6.3.9. X2-4I-UH Input Card Command ........................................................... 38
6.3.10. X2-4I-DS Input Card Command .......................................................... 39
6.3.11. X2-4O-DS Output Card Command ..................................................... 41
6.3.12. X2-4I-SS Input Card Command .......................................................... 44
6.3.13. X2-4O-SS Output Card Command ..................................................... 45
6.3.14. X2-4I-BT Input Card Command .......................................................... 45
6.3.15. X2-4I-BTS Input Card Command ........................................................ 46
6.3.16. X2-4O-BTS Output Card Command ................................................... 48
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
6.3.17. X2-4I-UFS Input Card Command ....................................................... 51
6.3.18. X2-4O-UFS Output Card Command ................................................... 52

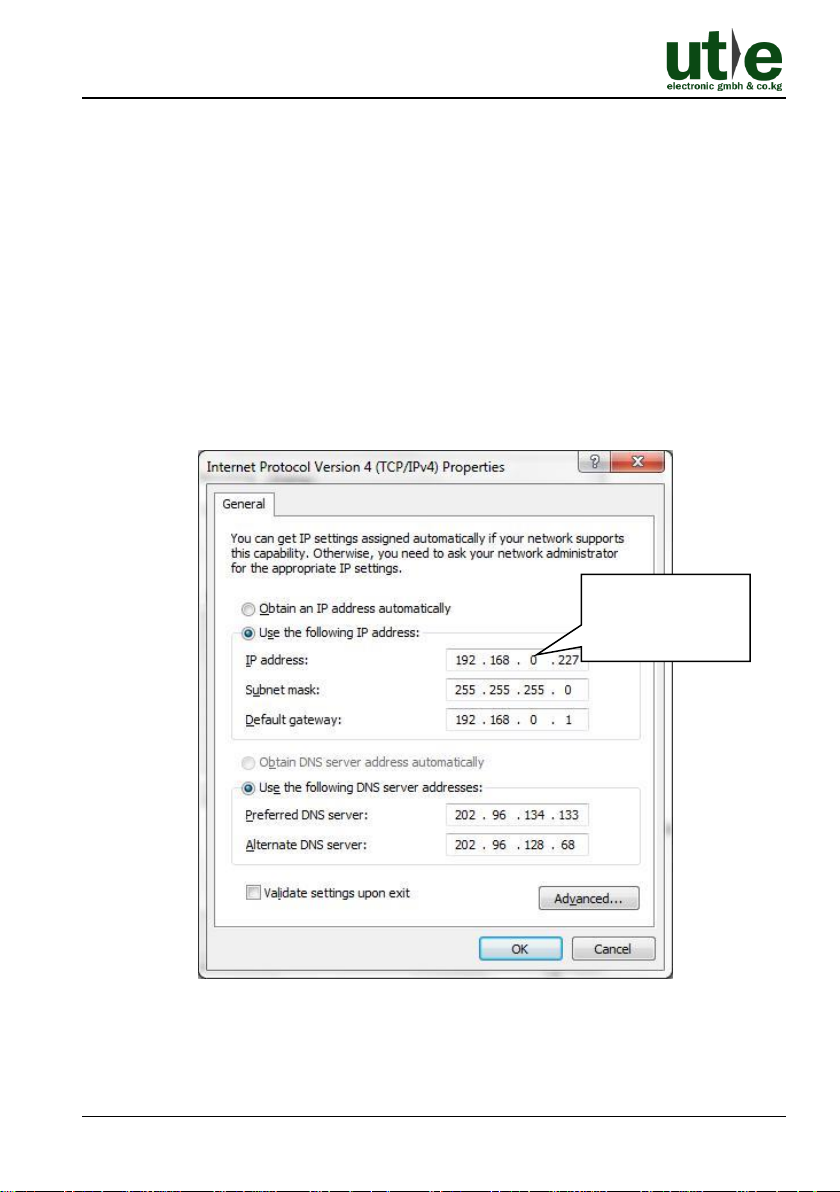

7. TCP/IP Control .......................................................................................................... 55
7.1. Control Mode .................................................................................................. 55
7.1.1. Controlled by Single PC ....................................................................... 55
7.1.2. Controlled by PC(s) in LAN................................................................... 56

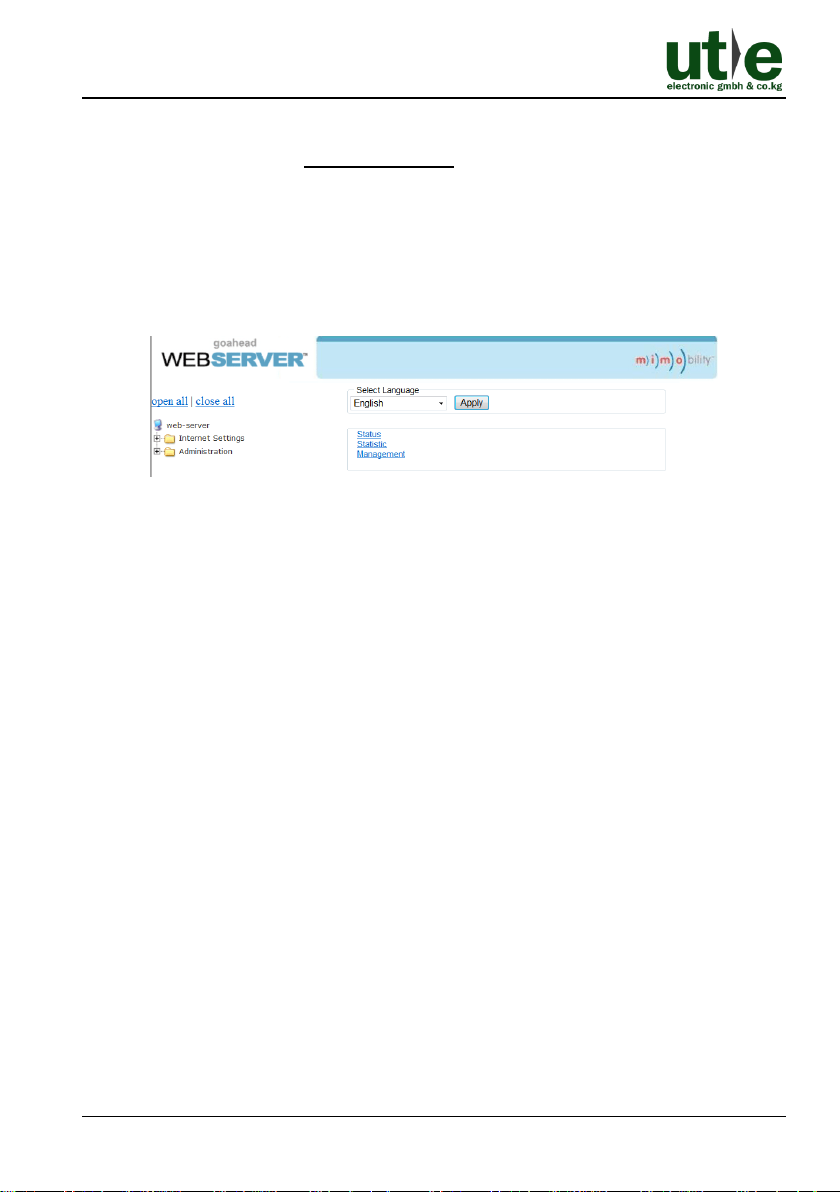

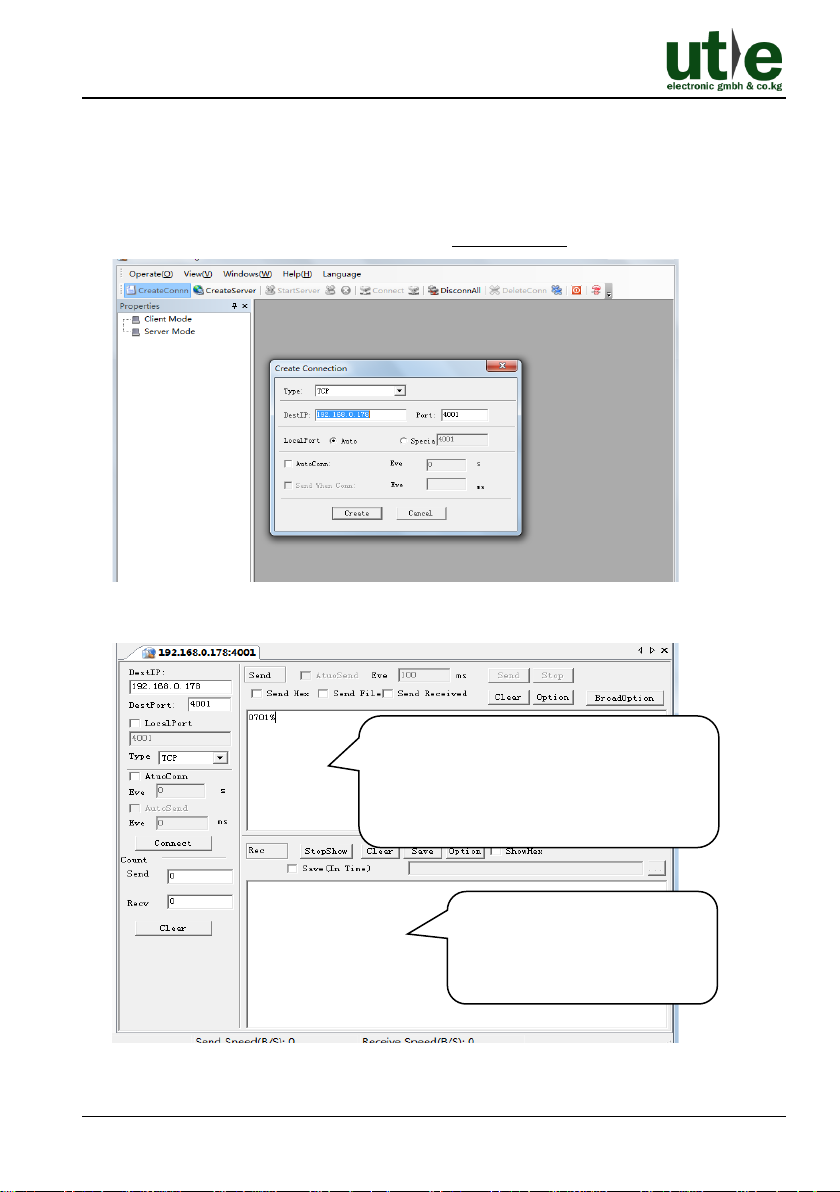

7.2. TCP/IP Communication Software ................................................................... 57
7.3. Port Management ........................................................................................... 58
8. Specification ............................................................................................................. 59
8.1. Main Unit ........................................................................................................ 59
8.2. Changeable Signal Cards ............................................................................... 60
8.2.1. VGA Signal Cards ................................................................................. 60
8.2.1.1. X2-4I-VA ...................................................................................... 60
8.2.1.2. X2-4O-VG ................................................................................... 61
8.2.1.3. X2-4O-VS .................................................................................... 61
8.2.2. HDMI Signal Cards ............................................................................... 62
8.2.2.1. X2-4I-HS ..................................................................................... 62
8.2.2.2. X2-4O-HS ................................................................................... 62
8.2.2.3. X2-4I-UH ..................................................................................... 63
8.2.2.4. X2-4O-UH ................................................................................... 64
8.2.3. SDI Signal Cards .................................................................................. 65
8.2.3.1. X2-4I-SS ..................................................................................... 65
8.2.3.2. X2-4O-SS .................................................................................... 65
8.2.4. DVI Signal Cards .................................................................................. 66
8.2.4.1. X2-4I-DV ..................................................................................... 66
8.2.4.2. X2-4O-DV ................................................................................... 67
8.2.4.3. X2-4I-DS ..................................................................................... 68
8.2.4.4. X2-4O-DS ................................................................................... 69
8.2.5. HDBaseT Signal Cards......................................................................... 70
8.2.5.1. X2-4I-BT ...................................................................................... 70
8.2.5.2. X2-4O-BT .................................................................................... 71
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG www.ute.de
8.2.5.3. X2-4I-BTS ................................................................................... 72
8.2.5.4. X2-4O-BTS ................................................................................. 73
8.2.6. Optical Signal Cards ............................................................................. 74
8.2.6.1. X2-4I-UFS ................................................................................... 74
8.2.6.2. X2-4O-UFS ................................................................................. 74
9. Troubleshooting & Maintenance ............................................................................... 75
10. After-sales/ Customer Service ................................................................................ 77
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 1 www.ute.de
1. Introduction
1.1. Product Introduction
The X2-88A is a high-performance 8x8 video and audio modular matrix switcher. It
supports different video signals with cross switching. Every AV signal is transmitted and
switched independently to decrease signal attenuation. X2-88A supports various
changeable cards including HMDI, DVI, VGA, SDI and HDBaseT etc. Users can
choose to insert different signal card for different application.
The X2-88A has 1 RS232 port and 1 TCP/IP port for convenient control from third-party.
With its flexible design, X2-88A can be used for different project and tend to be an allin-one solution. It is the combo solution for multimedia conference rooms, control
rooms, broadcasting rooms, shopping center etc. It will handle all the audiovisual
management, including the switching, driving, scaling etc.
1.2. Features
⚫ Modular chassis with configurable I/O slots, ranging from 4x4 to 8x8.
⚫ Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA cards
(Compatible with YUV, YC & CVBS.) to configure any matrix.
⚫ Truly cross-point switching, any input to any output, regardless signal format.
⚫ Supports HDMI1.4a, 3D.
⚫ Integrated HDBaseT technology.
⚫ Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties
control.
⚫ HDCP compliant.
⚫ LCD display.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
1.3. Signal Card
The matrix supports multiple signal cards as listed in the following charts:
Signal
Model
Description
VGA
X2-4I-VA
1080P seamless VGA input card with 4 VGA and 4
external L+R audio ports.
X2-4O-VG
1080P VGA output card with 4 VGA and 4 external
stereo audio ports.
X2-4O-VS
1080P seamless VGA output card with 4 VGA and 4
external L+R audio ports.
HDMI
X2-4I-HS
1080P seamless HDMI input card with 4 HDMI and 4
external L+R audio ports.
X2-4O-HS
1080P seamless HDMI output card with 4 HDMI and 4
external L+R audio ports.
X2-4I-UH
4K HDMI input card with 4 HDMI, and 4 external L+R
audio ports.
X2-4O-UH
4K HDMI output card with 4 HDMI and 4 external L+R
audio ports.
SDI
X2-4I-SS
1080P seamless SDI input card with 4 SDI input and 4
loop output ports.
X2-4O-SS
1080P seamless SDI output card with 4 SDI output
and 4 loop output ports.
DVI
X2-4I-DV
1080P DVI input card with 4 DVI ports
X2-DO-DV
1080P DVI input card with 4 DVI ports
X2-4I-DS
1080P seamless DVI input card with 4 DVI ports.
X2-4O-DS
1080P seamless DVI output card with 4 DVI ports.
HDBaseT
X2-4I-BT
4K HDBaseT input card with 4 HDBT, 4 RS232 and 4
external stereo audio ports.
X2-4O-BT
4K HDBaseT output card with 4 HDBT, 4 RS232 and 4
external stereo audio ports.

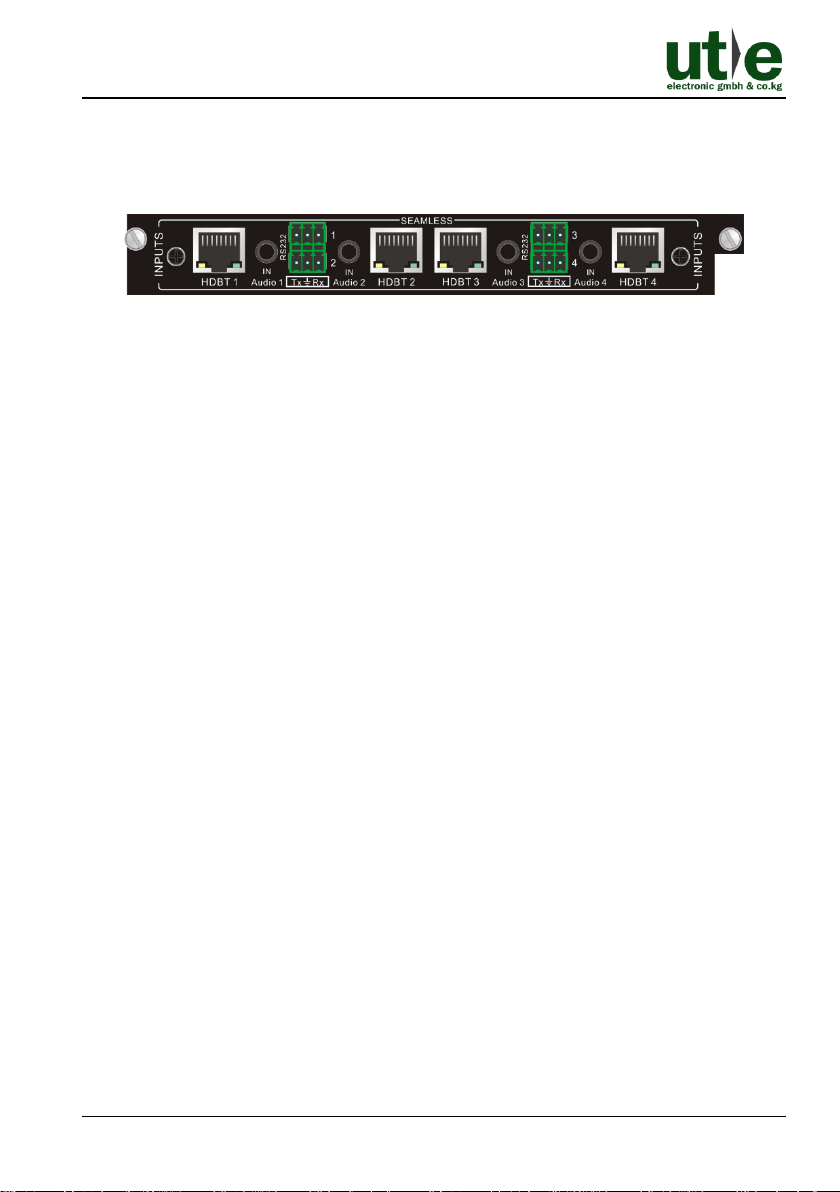

X2-4I-BTS
1080P seamless HDBaseT input card with 4 HDBT, 4
RS232 and 4 external stereo audio ports.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 3 www.ute.de

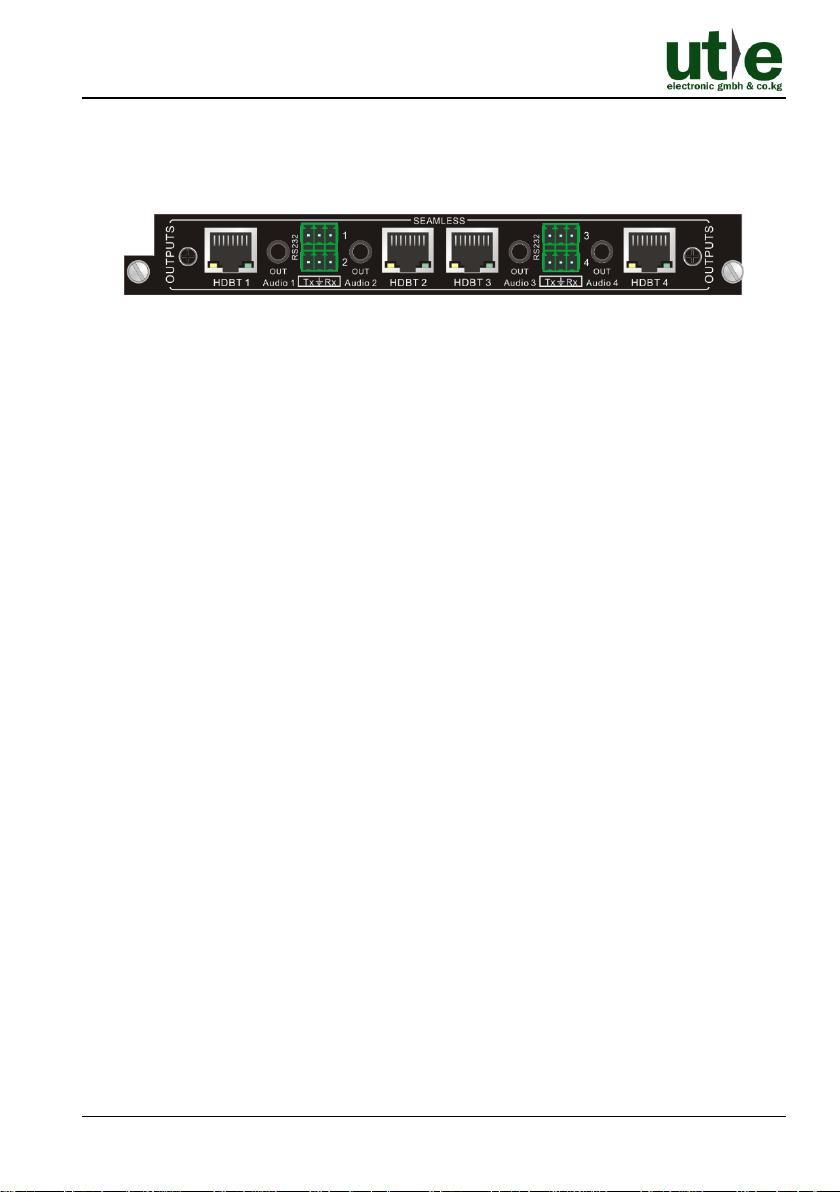

X2-4O-BTS
1080P seamless HDBaseT output card with 4 HDBT,
4 RS232 and 4 external stereo audio ports.
OPTICAL
X2-4I-UFS
1080P seamless OPTICAL input card with 4 OPTICAL
ports.
X2-4O-UFS
1080P seamless OPTICAL output card with 4
OPTICAL ports.
1.4. Package List
⚫ 1x X2-88A: Modular Matrix Switcher 8x8 Chassis

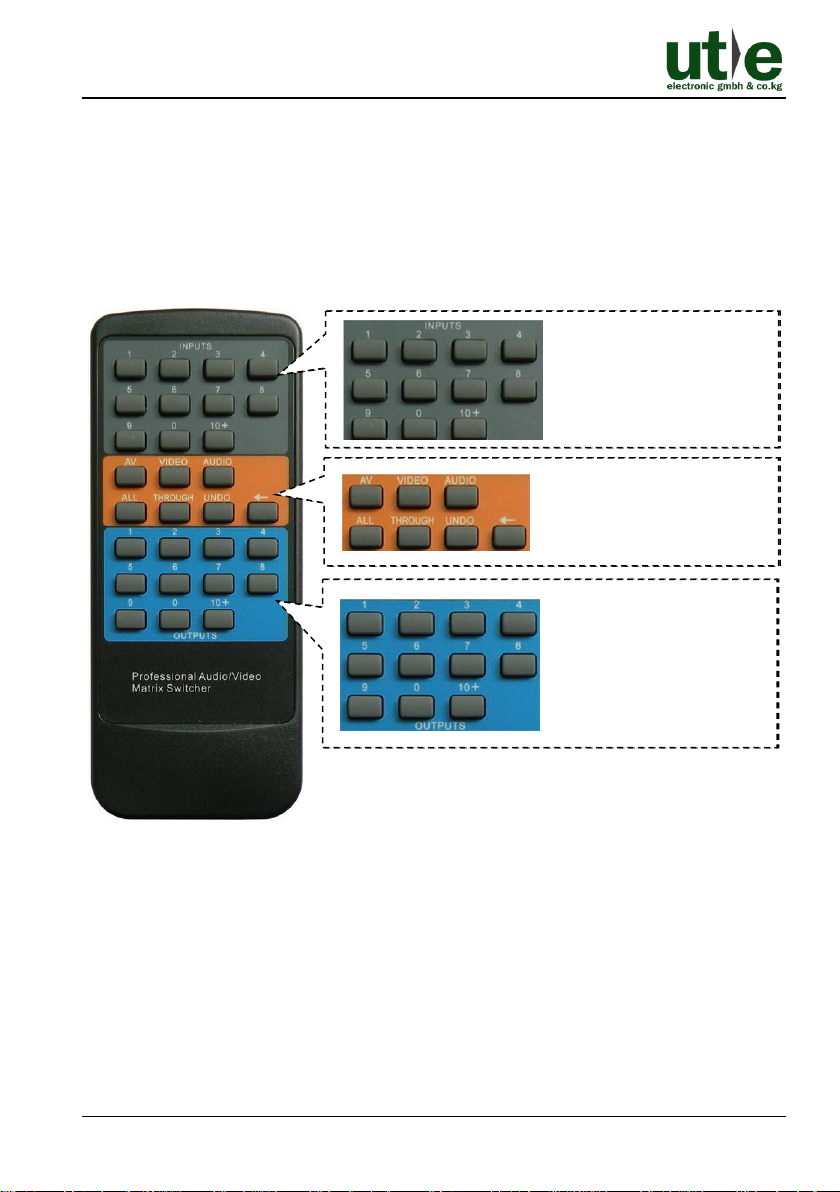

⚫ 1x IR Remote
⚫ 1x RS232-CBL-DB9F-3P: RS232 Cable
⚫ 4x Plastic Cushions
⚫ 1x Power Cord
⚫ 1 x User Manual
Notes:
• Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.
• Please contact your dealer immediately if any damage or defect in the components
is found.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
2. Panel Description
2.1. Matrix Front Panel
No.
Name
Description
①
IR
Built-in IR sensor to receive IR signal sent from IR remote.
②
Power LED
The LED illuminates red when power is applied.
③
LCD Screen
Shows real-time operation status.
④
INPUTS
Back-lit buttons for input selection, ranges from 1~ 8,
correspond to 1~8 sources on input signal cards (counting
from left to right, top to bottom).
⑤
OUTPUTS
Back-lit buttons for output selection, ranges from 1~ 8,
correspond to 1~8 displays on output signal cards (counting
from left to right, top to bottom).
⑥
MENU
AV: Switch AV signal from AV signal card& audio signal from
audio card synchronously.
VIDEO: Switch AV signal from AV signal card only.
AUDIO: Switch audio signal from audio card only.
ALL: Select all input or output channels.
THROUGH: Switch the signals directly to the corresponding
output channels.
UNDO: Undo button, to resume to the status before the
command just performed.
: Backspace button, to backspace the last press.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 5 www.ute.de

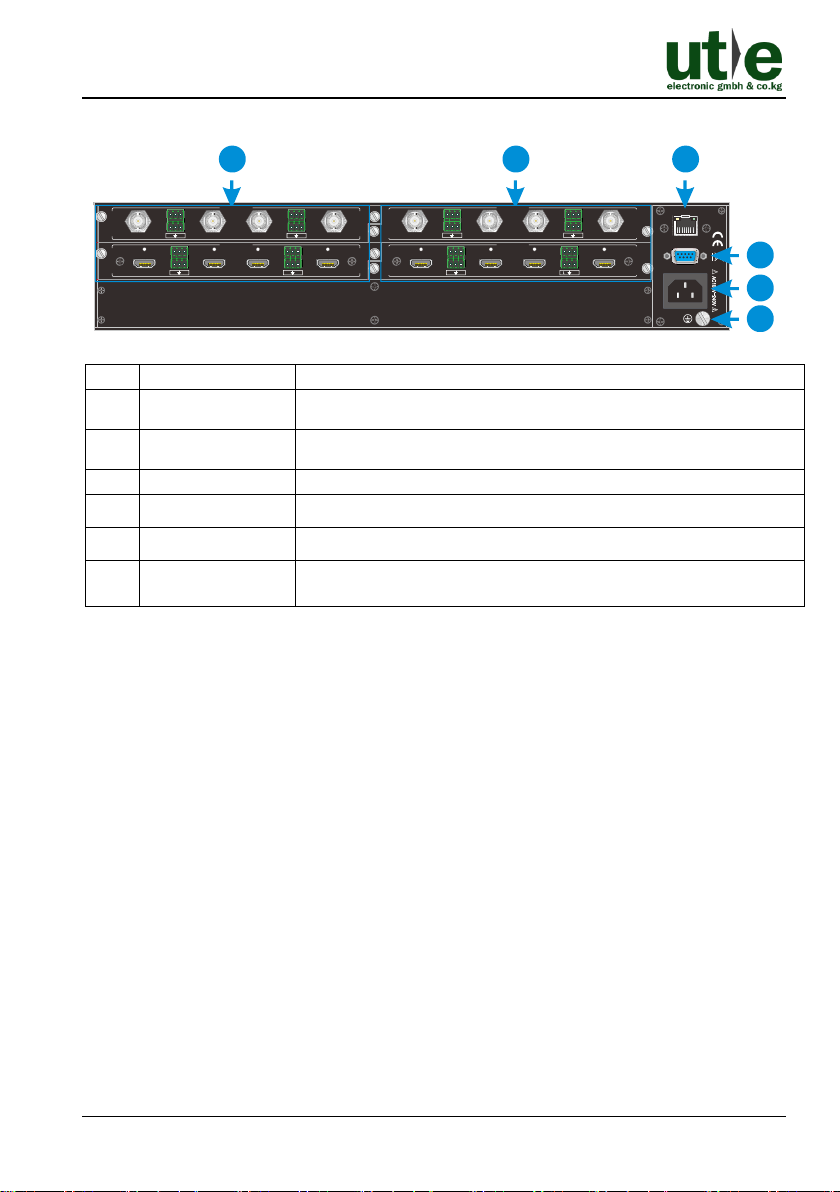

2.2. Matrix Rear Panel
No.
Name
Description
①
INPUTS
Signal card slots to insert necessary input cards.
②
OUTPUTS
Signal card slots to insert necessary output cards.
③
TCP/IP
RJ45 connector for TCP/IP control.
④
RS232
Serial control port for RS232 control.
⑤
Power port
Connect with household alternating current power.
⑥
GND connector
System grounding.
R 232S
TCP/IP CON TROL
OUTPU TS
OUTPU TS
VGA 3VGA 2VGA 1 VGA 4
INPUT S
INPUT S
VGA 3VGA 2VGA 1 VGA 4
OUTPU TS
OUTPU TS
VGA 3VGA 2VGA 1 VGA 4
INPUT S
INPUT S
VGA 3VGA 2VGA 1 VGA 4
1
2
3
4
5
6
INPUT S
INPUT S
SEAMLE SS
L
R
1
2
Audio
AV 1 AV 2
L
R
3
4
Audio
AV 3 AV 4
OUTPU TS
OUTPU TS
SEAMLE SS
L
R
1
2
Audio
AV 1 AV 2
L
R
3
4
Audio
AV 3 AV 4
INPUT S
INPUT S
HDMI 3
HDMI 2HDMI 1 HDMI 4
L R L R
1
2
3
4
Audio
Audio
SEAMLE SS
OUTPU TS
OUTPU TS
HDMI 3
HDMI 2HDMI 1 HDMI 4
L R R
1
2
3
4
Audio
Audio
SEAMLE SS
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 6 www.ute.de
2.3. Signal Cards
The X2-88A support expansion through various changeable input/ output cards of
different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief
introduction to the changeable cards.
2.3.1. VGA Signal Cards

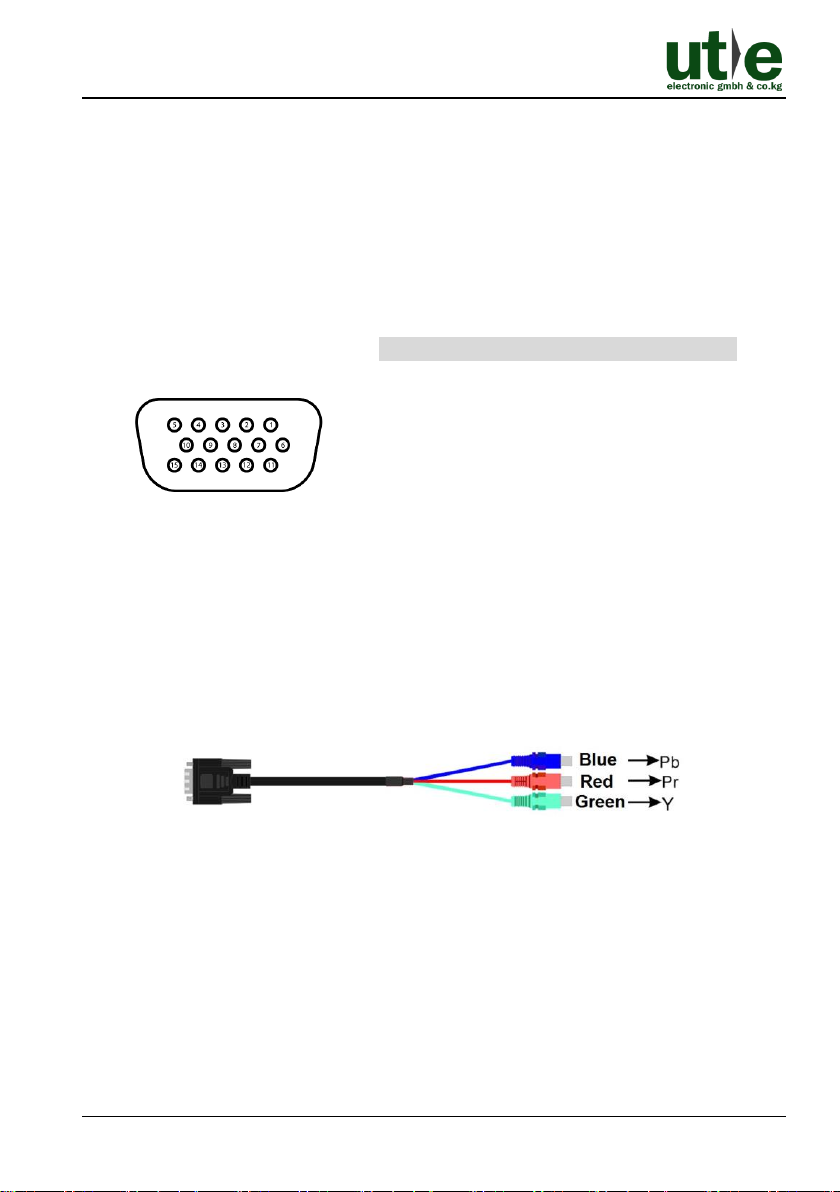

Pin layout of female VGA connector:
Pin
Signal
Pin
Signal
1
RED
9
KEY/PWR
2
GREEN
10
GND 3 BLUE
11
ID0/RES
4
ID2/RES
12
ID1/SDA
5
GND
13
HSync
6
RED_RTN
14
VSync
7
GREEN_RTN
15
ID3/SCL
8
BLUE_RTN

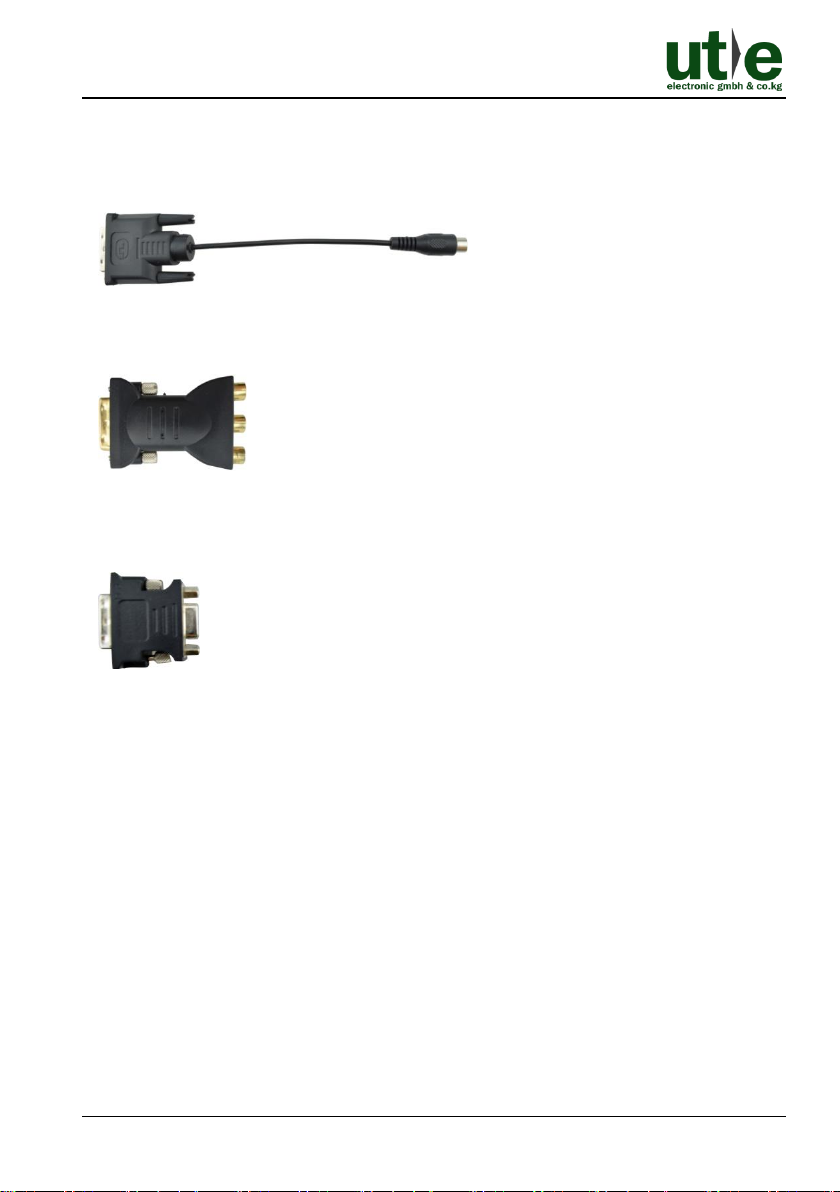

When connecting to YPbPr or C-VIDEO signal, insert converting cables according to
specific pin definitions (see the figures below):
VGA- YPbPr:
Pin
Signal
Pin
Signal
1
RED
6
GND
2
GREEN
7
GND
3
BLUE
8
GND
Other pins are not used.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 7 www.ute.de
VGA- C-VIDEO:
Pin
Signal
Pin
Signal
1
RED
6
GND
7
GND
8
GND
Other pins are not used.
2.3.1.1. X2-4I-VA : 1080P seamless VGA input card
1080P seamless VGA input card with 4 VGA and 4 external L+R audio ports.
X2-4I-VA
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports video upscaling, converting input video to 1080P or 1920x1200P.
⚫ Supports input resolution selection.
⚫ Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format.
⚫ Compatible with HDMI and DVI signal input.
⚫ Supports YCBCR or RGB chrominance space.
⚫ Supports VGA input signal auto correction.
⚫ Supports 4 external L+R audio inputs and audio channel control.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 8 www.ute.de
2.3.1.2. X2-4O-VG: 1080P seamless VGA input card w. audio ports
1080P seamless VGA input card 4 VGA and 4 external stereo audio ports.
X2-4O-VG
⚫ Only supports VGA video format.
⚫ The bandwidth is up to 350MHz (-3dB).
⚫ The default output resolution is 1920x1080P@60Hz.
⚫ Supports 4 external stereo audio outputs.
2.3.1.3. X2-4O-VS: 1080P seamless VGA output card w. audio ports
1080P seamless VGA output card with 4 VGA and 4 external L+R audio ports.
X2-4O-VS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports output resolution selection.
⚫ Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format.
⚫ Supports 4 external L+R audio outputs and audio channel control.
⚫ When it is used with X2-4I-VA input card, the ratio of input and output is 1:1.
⚫ Supports NTSC or PAL.
Note: When the X2-4O-VS output card is used with the seamless input card except
X2-4I-AV, the video resolution of all input sources should be set to same resolution
by RS232 commands to ensure the seamless output.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 9 www.ute.de
2.3.2. HDMI Signal Cards
Pin layout of the HDMI connectors (female).
No.
Signal
No.
Signal
1
TMDS Data 2+
20
SHELL
2
TMDS Data 2
Shield
19
Hot Plug Detect
3
TMDS Data 2-
18
+5V Power
4
TMDS Data 1+
17
Ground
5
TMDS Data 1
Shield
16
DDC Data
6
TMDS Data 1-
15
DDC Clock
7
TMDS Data 0+
14
No Connect
8
TMDS Data 0
Shield
13
CEC
9
TMDS Data 0-
12
TMDS Clock-
10
TMDS Clock+
11
TMDS Clock
Shield

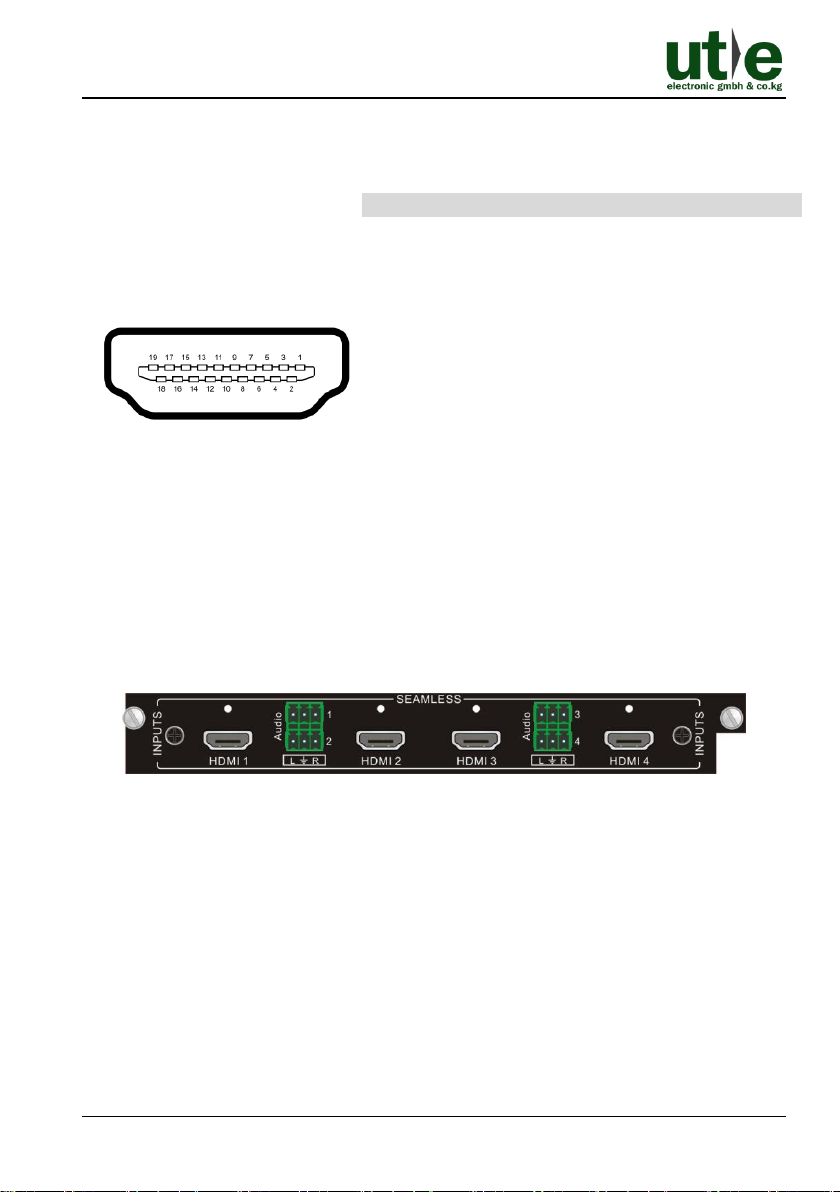

2.3.2.1. X2-4I-HS: 1080P seamless HDMI input card
1080P seamless HDMI input card with 4 HDMI and 4 external L+R audio ports.
X2-4I-HS
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports HDMI 1.3 and HDCP 1.2.
⚫ Compatible with DVI signal input.
⚫ Supports input resolution selection, and it is up to 1920x1080P@60Hz.
⚫ Supports image brightness, contrast, chrominance, sharpness, color temperature,
aspect ratio, and image mode setting.
⚫ Supports 4 external L+R audio inputs and audio channel control.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 10 www.ute.de

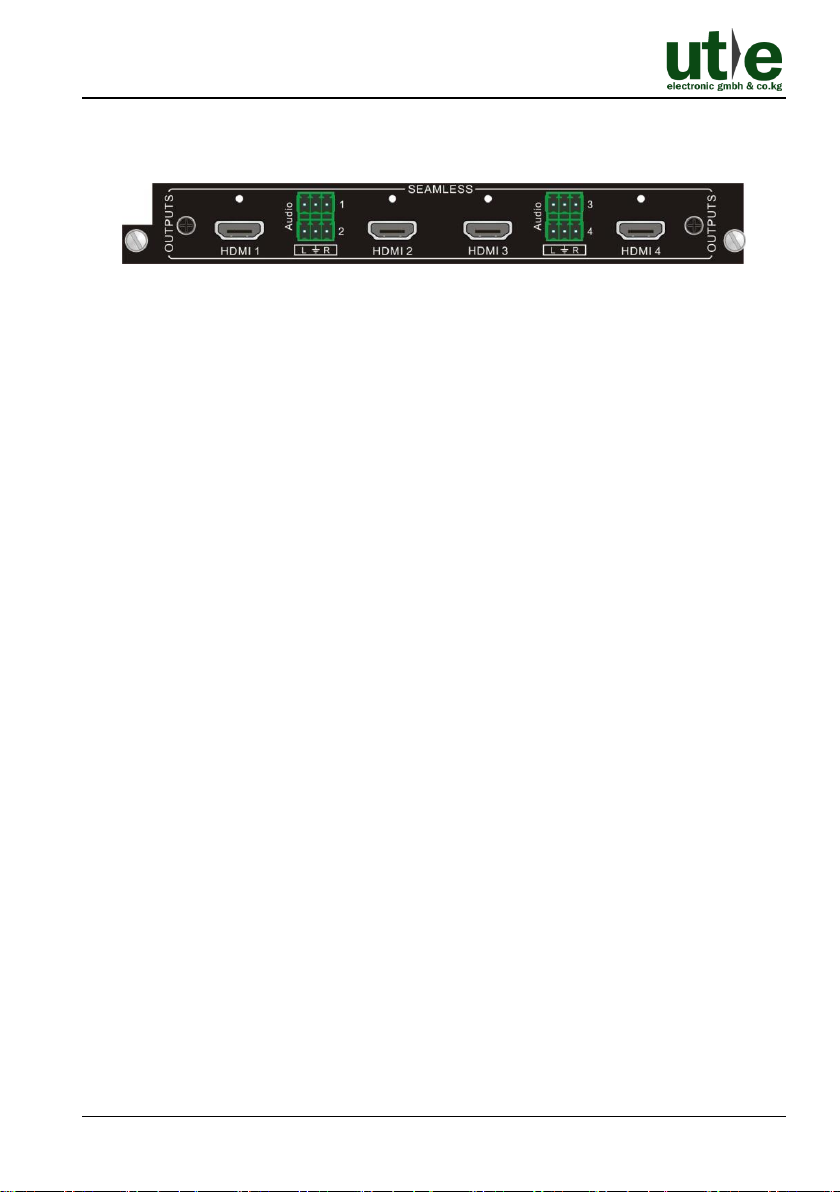

2.3.2.2. X2-4O-HS: 1080P seamless HDMI output card
1080P seamless HDMI output card with 4 HDMI and 4 external L+R audio ports.
X2-4O-HS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports HDMI 1.3 and HDCP 1.2.
⚫ Supports output resolution selection, and it is up to 1920x1080P@60Hz.
⚫ Supports 4 external L+R audio outputs and audio channel control.
Note: When the X2-4O-HS output card is used with the seamless input card
except X2-4I-HS, the video resolution of all input sources should be set to same
resolution by RS232 commands to ensure the seamless output.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 11 www.ute.de

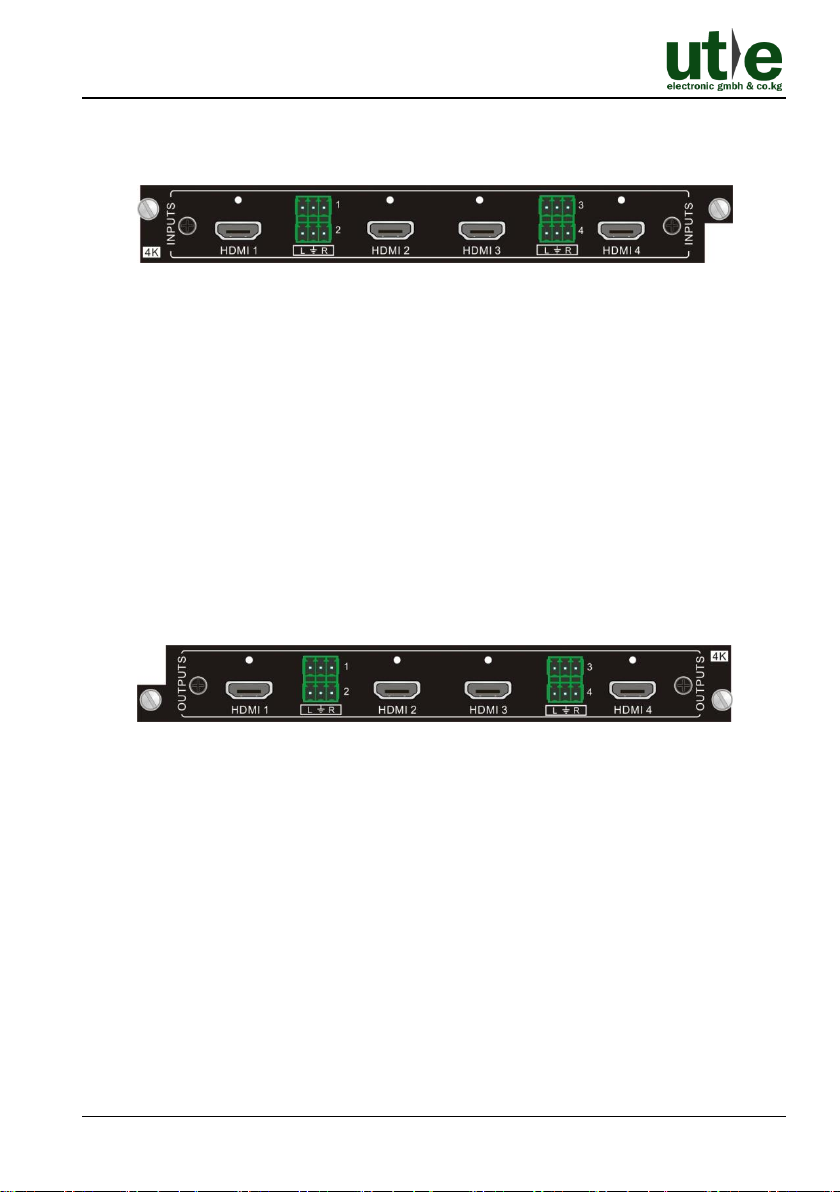

2.3.2.3. X2-4I-UH: 4K HDMI input card
4K HDMI input card with 4 HDMI, and 4 external L+R audio ports.
X2-4I-UH
⚫ Supports HDMI 1.4 and HDCP 1.4.
⚫ Compatible with DVI signal.
⚫ Input resolution is up to 4Kx2K, and supports 1080P 3D.
⚫ Synchronously switch audio and video.
⚫ Supports 4 external L+R audio inputs and audio channel control.
Note: When the X2-4I-UH input card is used with the 1080P output card, the video
resolution must be set to 1080P to ensure reliable output.
2.3.2.4. X2-4O-UH: 4K HDMI output card
4K HDMI output card with 4 HDMI, and 4 external L+R audio ports.
X2-4O-UH
⚫ Supports HDMI 1.4 and HDCP 1.4.
⚫ Compatible with DVI signal.
⚫ Output resolution is up to 4Kx2K, and supports 1080P 3D.
⚫ Synchronously switch audio and video.
⚫ Supports 4 external L+R audio outputs.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 12 www.ute.de
2.3.3. SDI Signal Cards
2.3.3.1. X2-4I-SS: 1080P seamless SDI input card
1080P seamless SDI input card with 4 SDI input and 4 loop output ports.
X2-4I-SS
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports input resolution selection, and the input resolution can be upscaled to
1920x1080P@60Hz.
⚫ Automatically recognize SDI, HD-SDI or 3G-SDI signal format.
⚫ Supports image brightness, contrast, chrominance, sharpness, color temperature,
aspect ratio, and image mode setting.
2.3.3.2. X2-4O-SS: 1080P seamless SDI output card
1080P seamless SDI output card with 4 SDI output and 4 loop output ports.
X2-4O-SS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports output resolution selection, it is up to 1920x1080P@60Hz.
⚫ Automatically recognize SDI, HD-SDI or 3G-SDI signal format.
Note: When the X2-4O-SS output card is used with the seamless input card
except X2-4I-SS, the video resolution of all input sources should be set to same
resolution by RS232 commands to ensure the seamless output.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 13 www.ute.de
2.3.4. DVI Signal Cards

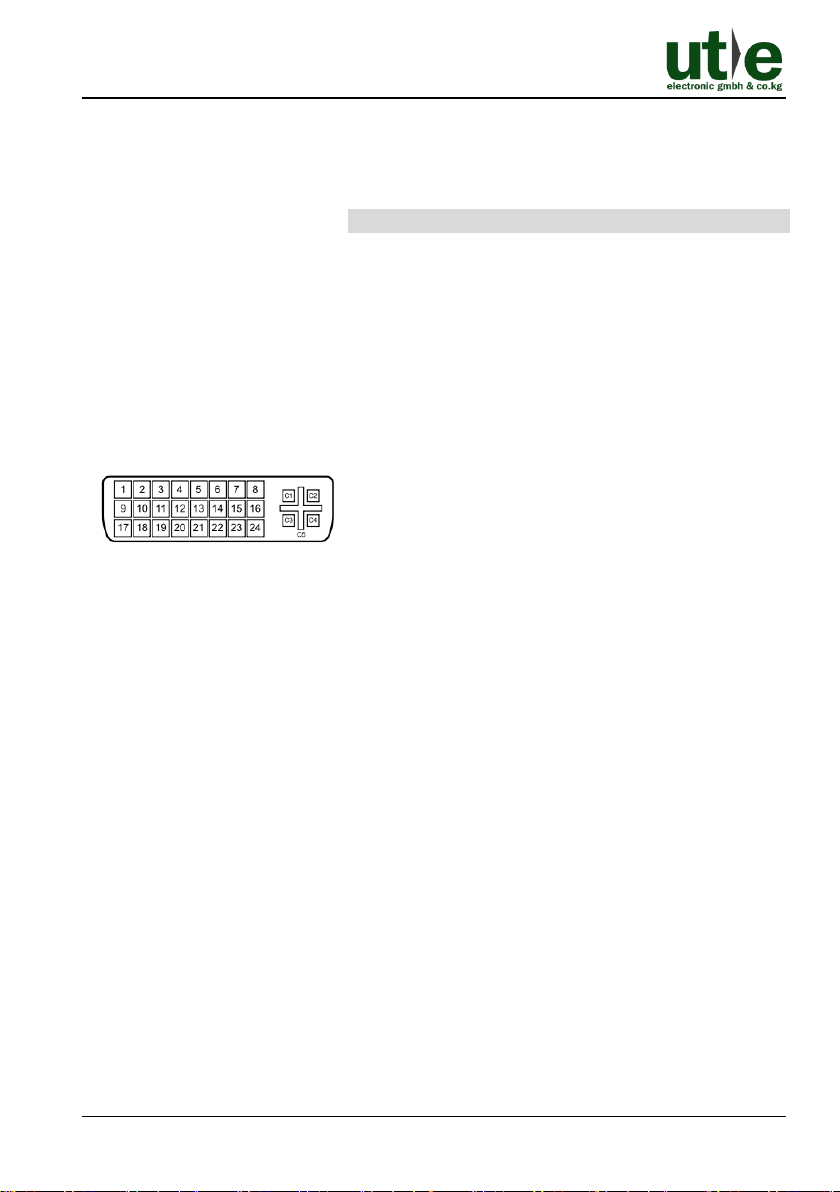

Pin Layout of the DVI-I connector (Dual-Link). (Female)
Pin
Function
Pin
Function
1
T.M.D.S.Data2-
13
T.M.D.S.Data3+
2
T.M.D.S.Data2+
14
+5V Power
3
T.M.D.S. Data
2/4 Shield
15
Ground (return for
+5V,
Hsync and Vsync)
4
T.M.D.S. Data
4-
16
Hot Plug Detect
5
T.M.D.S. Data
4+
17
T.M.D.S. Data 0-
6
DDC Clock
18
T.M.D.S. Data 0+
7
DDC Data
19
T.M.D.S. Data 0/5
Shield
8
Analog Vertical
Sync
20
T.M.D.S.Data5-
9
T.M.D.S.Data1-
21
T.M.D.S.Data5+
10
T.M.D.S.Data1+
22
T.M.D.S. Clock
Shield
11
T.M.D.S.Data1/3
Shield
23
T.M.D. S. Clock +
12
T.M.D.S.Data3-
13
T.M.D.S.Data3+
C1
RED
C2
Analog Green
C3
Analog Blue
C4
Horizontal Sync
Analog
C5
GND
Note: Pin C1~C5 are not used in X2-4I-DV & X2-4O-DV.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 14 www.ute.de
Note: When connecting to VGA, YPbPr or C-VIDEO signal, insert converting
cables according to specific pin definitions (see the figures below):
✓ DVI- C-VIDEO:
Pin
Signal
C1
Yellow
C5
GND
Other pins are unused.
✓ DVI- YPbPr:
Pin
Signal
Pin
Signal
C1
RED
C2
GREEN
C3
BLUE
C5
GND
Other pins are unused.
✓ DVI- VGA (female):
Pin
Signal
Pin
Signal
C1
RED
C2
GND
C3
GREEN
C4
Horizontal Sync
Analog 8 Vertical Sync Analog
Other pins are unused.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 15 www.ute.de
2.3.4.1. X2-4IDV: 1080p DVI input card
1080P DVI input card with 4 DVI ports.
X2-4I-DV
• Supports HDMI 1.3 and HDCP, but not supporting analogy signal.
• Supports input resolution up to 1920x1080P@60Hz.
• Supports embedded EDID management and DDC.
2.3.4.2. X2-4O-DV: 1080P DVI output card
1080P DVI output card with 4 DVI ports.
X2-4O-DV
• Supports HDMI 1.3 and HDCP, but not supporting analogy signal.
• Supports input resolution up to 1920x1080P@60Hz.
• Supports embedded EDID management and DDC.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 16 www.ute.de
2.3.4.3. X2-4I-DS: 1080P seamless DVI input card
1080P seamless DVI input card with 4 DVI ports.
X2-4I-DS
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports HDMI 1.3 and HDCP 1.4.
⚫ Automatically recognize DVI, HDMI, VGA, YPbPr and C-VIDEO signal format.
⚫ Supports input resolution selection, and it is up to 1920x1080P@60Hz.
⚫ Supports image brightness, contrast, chrominance, sharpness, color temperature,
aspect ratio, and image mode setting.
⚫ Supports embedded EDID management and DDC channel.
2.3.4.4. X2-4O-DS: 1080P seamless DVI output card
1080P seamless DVI output card with 4 DVI ports.
X2-4O-DS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports HDMI 1.3 and HDCP 1.4.
⚫ Manually select VGA (RGBHV), YPbPr, or C-VIDEO signal format.
⚫ Supports output resolution selection, and it is up to 1920x1080P@60Hz.
⚫ Supports embedded EDID management and DDC channel.
⚫ Supports NTSC or PAL
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 17 www.ute.de
2.3.5. HDBaseT Signal Cards
How the indicators work:
Color
Definition
Status
Yellow
Power LED
The LED illuminates yellow when power is
applied.
Green
Link LED
The LED illuminates green when the port is
successfully connected to other device by CATx
cable.

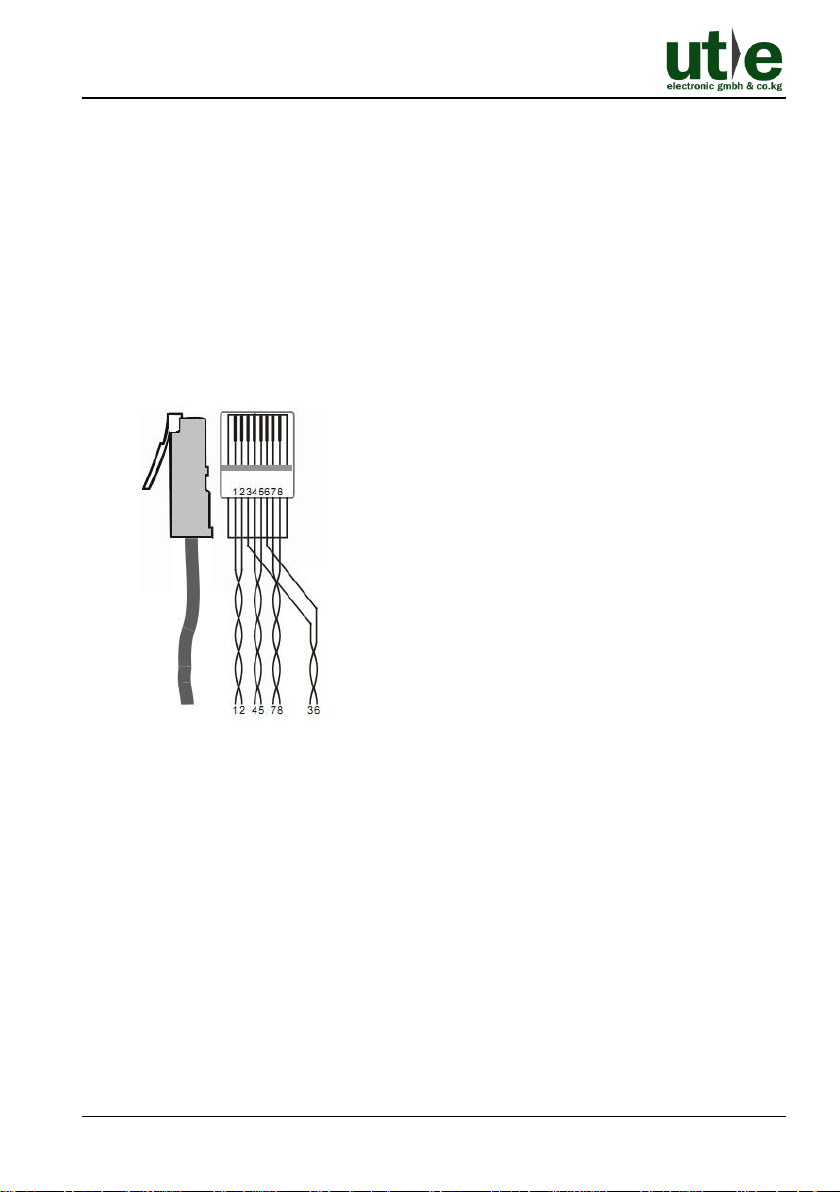

Pin layout of the HDBT connector:
Pin
Color
1
orange white
2
orange
3
green white
4
blue
5
blue white
6
green
7
brown white
8
brown
1st Group
4--5
2nd Group
1--2
3rd Group
3--6
4th Group
7--8
Note: Cable connectors MUST be metal one, and the shielded layer of cable
MUST be connected to the connector’s metal shell, to well share the grounding.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 18 www.ute.de
2.3.5.1. X2-4I-BT: 4K HDBaseT input card
4K HDBaseT input card with 4 HDBT, 4 RS232 and 4 external stereo audio ports.
X2-4I-BT
⚫ Supports HDBT 1.0, HDMI 1.4 and HDCP 1.4.
⚫ Input resolution is up to 4Kx2K, and supports 1080P 3D.
⚫ It is used with HDBaseT transmitter to extend video signal, and the transmission
distance can up to 70 meters at 1080P, or 40 meters at 4Kx2K.
⚫ Features 4 RS232 ports for two-way RS232 pass-through.
⚫ The RS232 baud rate supports 2400, 4800, 9600, 19200, 38400, 57600,115200.
⚫ Supports 4 external stereo audio inputs and audio channel control.
Note: When the X2-4I-BT input card is used with the 1080P output card, the video
resolution must be set to 1080P to ensure reliable output.
2.3.5.2. X2-4O-BT: 4K HDBaseT output card
4K HDBaseT output card with 4 HDBT, 4 RS232 and 4 external stereo audio ports.
X2-4O-BT
⚫ Supports HDBT 1.0 and HDCP 1.4.
⚫ Output resolution is up to 4Kx2K, and supports 1080P 3D.
⚫ It is used with HDBaseT receiver to extend video signal, and the transmission
distance can up to 70 meters at 1080P, or 40 meters at 4Kx2K.
⚫ Features 4 RS232 ports for two-way RS232 pass-through.
⚫ The RS232 baud rate supports 2400, 4800, 9600, 19200, 38400, 57600,115200.
⚫ Supports 4 external stereo audio outputs and audio channel control.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 19 www.ute.de
2.3.5.3. X2-4I-BTS: 1080P seamless HDBaseT input card
1080P seamless HDBaseT input card with 4 HDBT, 4 RS232 and 4 external stereo
audio ports.
X2-4I-BTS
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports HDBT1.0 and HDCP 1.3.
⚫ Supports input resolution selection, and the default is 1920x1080P@60Hz.
⚫ It is used with HDBaseT transmitter to extend video signal, and the transmission
distance can up to 70 meters at 1080P.
⚫ Supports image brightness, contrast, chrominance, sharpness, color temperature,
aspect ratio, and image mode setting.
⚫ Features 4 RS232 ports for two-way RS232 pass-through.
⚫ The RS232 baud rate supports 2400, 4800, 9600, 19200, 38400, 57600,115200.
⚫ Supports 4 external stereo audio inputs and audio channel control.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 20 www.ute.de
2.3.5.4. X2-4O-BTS: 1080P seamless HDBaseT output card
1080P seamless HDBaseT output card with 4 HDBT, 4 RS232 and 4 external
stereo audio ports.
X2-4O-BTS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports HDBT1.0 and HDCP 1.3.
⚫ Supports output resolution selection, and the default is 1920x1080P@60Hz.
⚫ It is used with HDBaseT receiver to extend video signal, and the transmission
distance can up to 70 meters at 1080P.
⚫ Features 4 RS232 ports for two-way RS232 pass-through.
⚫ The RS232 baud rate supports 2400, 4800, 9600, 19200, 38400, 57600,115200.
⚫ Supports 4 external stereo audio outputs and audio channel control.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 21 www.ute.de
2.3.6. Optical Signal Cards
2.3.6.1. X2-4I-UFS: 1080P seamless OPTICAL input card
1080P seamless OPTICAL input card with 4 OPTICAL ports.
X2-4I-UFS
⚫ Supports seamless switching, it can be used in combination with other seamless
output signal card.
⚫ Supports input resolution selection, and it is up to 1920x1080P@60Hz.
⚫ Compatible with HDMI and DVI signal input.
⚫ It is used with optical fiber transmitter to extend video signal, and the transmission
distance can up to 2 kilometers by single-mode optical fiber cable, or 300 meters by
multi-mode optical fiber cable.
⚫ Supports image brightness, contrast, chrominance, sharpness, color temperature,
aspect ratio, and image mode setting.
⚫ The input signal cannot be transmitted with HDCP.
⚫ The input card does not support DDC channel.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 22 www.ute.de
2.3.6.2. X2-4O-UFS: 1080P seamless OPTICAL output card
1080P seamless OPTICAL output card with 4 OPTICAL ports.
X2-4O-UFS
⚫ Supports seamless switching, it can be used in combination with other seamless
input signal card.
⚫ Supports output resolution selection, and it is up to 1920x1080P@60Hz.
⚫ It is used with optical fiber receiver to extend video signal, and the transmission
distance can up to 2 kilometers by single-mode optical fiber cable, or 300 meters by
multi-mode optical fiber cable.
⚫ The input signal cannot be transmitted with HDCP.
⚫ The input card does not support DDC channel.
Note: Before using the X2-4I-UFS and X2-4O-UFS, the firmware program of matrix
front-board and back-board needs to be upgraded. Please seek technical
assistance from our technical support.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 23 www.ute.de
3. System Connection
3.1. Usage Precautions
⚫ Make sure all components and accessories included before installation.
⚫ System should be installed in a clean environment with proper temperature and
humidity.
⚫ All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
⚫ All devices should be connected before power on.
3.2. Connection Diagram X2-88A
Note: All the input and output signal cards don’t support hot-plug, but the input and
output ports on the signal cards support.
PC
PC
HDTV
IR Emitter
Transmitter
BlueRay
VGA:
DVI:
HDMI:
HDMI TP:
Projector
RS232
control panel
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 24 www.ute.de
4. Button Control
The matrix can be rapidly controlled with its front panel buttons. Here is a brief
operation guide.
Format: “Input Channel” + “Switch Mode” +“Output Channel”
Notes:
⚫ “Switch Mode”:
✓ AV: Switch AV signal from AV signal card and audio signal from audio card
synchronously.
✓ Video: Switch AV signal from AV signal card.
✓ Audio: Switch audio signal from audio card.
⚫ “Input Channel”: Fill with the number of input channel to be controlled.
⚫ “Output Channel”: Fill with the number of output channels to be controlled. Press
“All” to select all the outputs.
⚫ The input/output channels on the rear panel are counting from left to right, top to
bottom.
⚫ The input delay time between two numbers of every input and output channel must
be less than 5 seconds; otherwise the operation will be cancelled.
Example:
⚫ To switch input 1 to output 1, press input “1”, output “1”.
⚫ To switch signals from input 1 to all output channels, press buttons in this order: “1”,
“All”.
Functional Buttons:
⚫ UNDO: Return to the previous status
Example: Input 6 is connecting with output 6, press input “6” + “AV”+ output 4 to change
the connection. Press “Undo” to enable input 6 to reconnect with output 6.
⚫ : If press buttons “1”, “AV ”, “2”, “” in order, then “2” will be canceled.
⚫ THROUGH: Get straight I/O connection, e.g. input 1-> output 1, input 2-> output 2.
Press “Input Channel” + ”Through”
Example: If you press buttons “ALL”, “THROUGH” in order, then the result will be like
input 1→ output 1, input 2→output 2, input 3→output 3 … input 8→output 8.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 25 www.ute.de
5. IR Remote Control
With the IR remote, the matrix could be controlled remotely. As the function buttons on
the IR remote are the same with the ones on the front panel, the IR remote shares the
same operations and commands with the control panel.
Press the buttons under below format:
“Input Channel” + “Switch Mode” +“Output Channel”
Input channel buttons,
including 1~10+
Menu buttons, including
switching buttons and
function buttons
Output channel buttons,
including 1~10+
Input channel buttons,
including 1~10+, only
1~8 are available
Menu buttons, including
switching buttons and
function buttons
Output channel buttons,
including 1~10+, only
1~8 are available
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 26 www.ute.de
6. RS232 Control
6.1. RS232 Communication Port
Except the front control panel and IR remote control, the matrix can be controlled by
far-end control system via the RS-232 communication port.

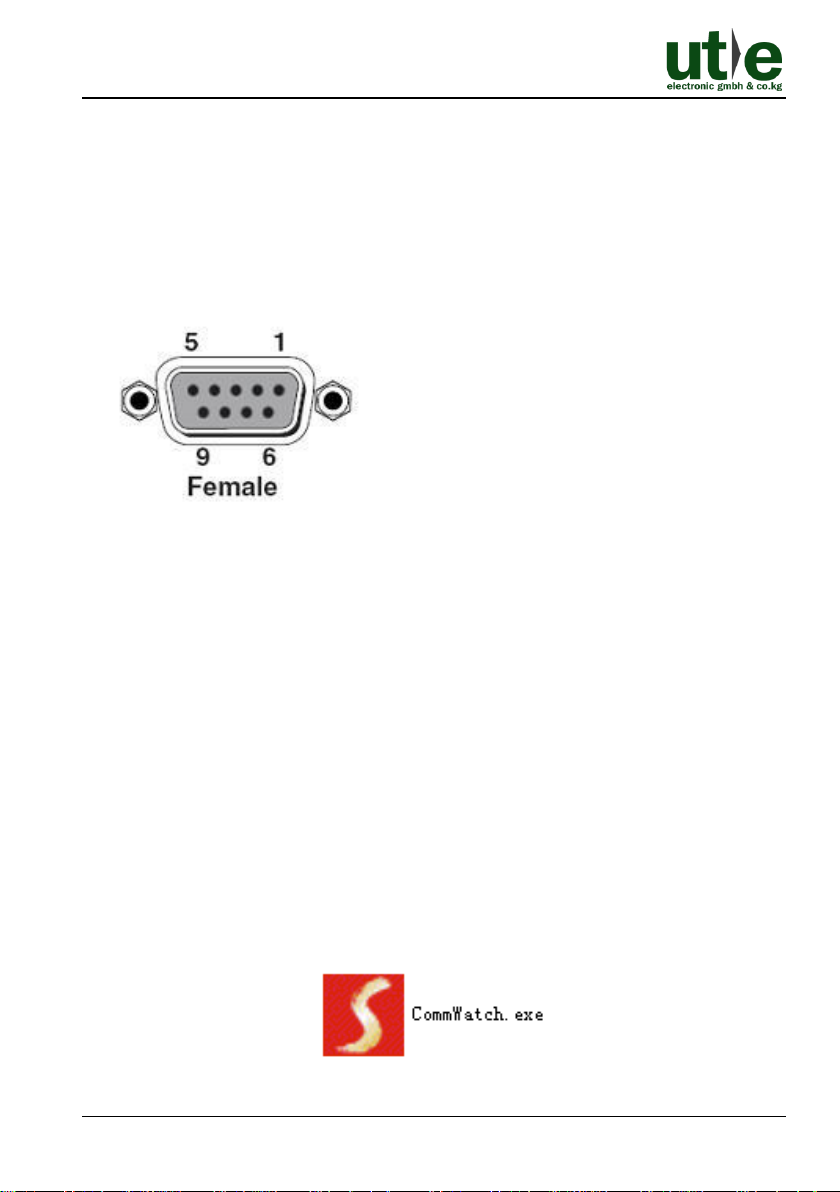

This RS-232 communication port is a female 9- D connector. The definition of its pin
layout is shown in the table below.
No.
Pin
Function
1
N/u
Unused
2
Tx
Transmit
3
Rx
Receive
4
N/u
Unused
5
Gnd
Ground
6
N/u
Unused
7
N/u
Unused
8
N/u
Unused
9
N/u
Unused
6.2. RS232 Control Software
When the matrix connects to the RS232 port of a computer with control software, users
can control it by that computer. To control the switcher, users need to use RS232
control software.
6.2.1. Installation/ uninstallation of RS232 Control Software
⚫ Installation: Copy the control software file to the computer connected with the
Transmitter.
⚫ Uninstallation: Delete all the control software files in corresponding file path.
6.2.2. Basic Setting
Connect the matrix to all input devices and output devices needed, then connect it to a
PC which is installed with RS232 control software. Double-click the software icon to run
this software. Please refer the software CommWatch.exe as example. The icon is
shown as below:
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 27 www.ute.de
The interface of the control software is showed as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly (Baud rate: 9600 , Data bit: 8 , Stop bit: 1 , Parity bit: none), then the
RS232 commands can be sent in Command Sending Area.
Parameter configuration area
Monitoring area, show the commands
and its feedback information.
Command sending area
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 28 www.ute.de
6.3. RS232 Communication Command
With this command system, users are able to control and operate the matrix with
RS232 software remotely.
Notes:
⚫ Please disconnect all the twisted pairs before sending command EDIDUpgrade[X].
⚫ In the commands, “[”and “]” are symbols for easy reading and do not need to be
typed in actual operation.
⚫ Please remember to end the commands with the ending symbols “.” or “;”.
⚫ Type the command carefully, it is case-sensitive.
⚫ Commands pertaining to EDID only avails for signal cards that support EDID
management.
⚫ The matrix boasts 6 in-built EDID data, the chart below illustrates the detailed
information:
No.
Detailed Information
1
1080P 2D 5.1CH
2
1080P 2D 2.0CH
3
720P 2D 5.1CH
4
720P 2D 2.0CH
5
4kx2k 2D 5.1CH
6
4kx2k 2D 2.0CH
Update in-built EDID data by sending command UpgradeIntEDID[x]..
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 29 www.ute.de
6.3.1. System Control Command
Command
Description
Feedback
/*Type;
Get the system model.
xxxxx
/%Lock;
Lock front panel buttons.
System Locked!
/%Unlock;
Unlock front panel buttons.
System Unlock!
/^Version;
Get the firmware version.
Vx.x.x
/:MessageOff;
Disable feedback message
Closed The
Message Return.
/:MessageOn;
Enable feedback message (Default)
Enabled The
Message Return.
Undo.
Cancel the previous operation
Undo
Demo.
Switch to testing mode, switch AV 1>1,
2>2 and so on...
Demo Mode
AV: 01->001
… …
PWON.
Power on the system.
PWON
PWOFF.
Turn the system to standby mode.
PWOFF
/V00.
Get the backboard software version.
Vx.x.x
%0911.
Restore factory default.
All I/O connection will be restored to
straight through: 1->1, 2->2… saved
operation status will remain the same.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 30 www.ute.de
6.3.2. Signal Switching Command
Command
Description
Feedback
[x]All.
Switch input [x] AV to all outputs.
01 To All
All#.
Switch all input signal to the corresponding
output channel
All Through.
All$.
Switch off all outputs.
All Closed.
[x]#.
Switch input [x] to output [x].
01 Through.
[x]$.
Switch off the output [x].
AV: 01 Closed.
All@.
Switch on all outputs.
All Open.
[x]@.
Switch on the output [x].
01 Open.
[x]V[y1](&[y2]….
).
Switch input [x] only video to output [y1]
(and all target output in [y2] and so on).
V: 01->001
[x1]B[y1](&[y2]
….).
Switch input [x] AV signal to output [y1]
(and all target output in [y2] and so on).
AV: 01->001
Status[x].
Get the input channel on output [x].
V: 01->001
A: 01->001
Status.
Get the input channel on output channel
one by one.
V: 01->001
A: 01->001
… …c
6.3.3. Preset Command
Command
Description
Feedback
Save[Y].
Store the current status to preset [Y].
[Y] ranges from 1 to 9.
Save To F8
Recall[Y].
Recall preset [Y]
Recall From F8
V: 01->001
A: 01->001
… …
Clear[Y].
Clear the preset [Y]
Clear F8
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 31 www.ute.de
6.3.4. EDID Management Command
Command
Description
Feedback
UpgradeIntEDI
D[x].
Upgrade built-in EDID data. When the
command applied, system prompts to
upload the EDID file (.bin). [x] ranges 1 – 6.
Prompt to upload
EDID file
……..
Upload EDID to
system completed
EDIDUpgrade[x
].
Upgrade the EDID data of the input port
[x]. When the command applied, system
prompts to upload the EDID file (.bin).
Operation will be cancelled in 10 seconds.
Prompt to upload
EDID file
……..
Upload EDID to
input card
completed
EDID/[x]/[y].
Set the built-in EDID data type [y] to input
port [x]. [y]= 1~6.
Set system EDID[y]
to input [x]
EDIDG[x].
Get the EDID data from output port [x] and
display on serial port.
EDIDMInit.
Reset all input card EDID to all input card
EDIDMInit
EDIDM[x]B[y].
Set the EDID data of output [x] on input [y].
EDIDM2B1
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 32 www.ute.de
6.3.5. X2-4I-VA Input Card Command
Command
Description
Feedback
USER/I/[x]:0622%;
Set the input [x] to VGA signal.
0622%
USER/I/[x]:0623%;
Set the input [x] to YPbPr signal.
0623%
USER/I/[x]:0624%;
Set the input [x] to S-VIDEO signal.
0624%
USER/I/[x]:0625%;
Set the input [x] to C-VIDEO signal.
0625%
USER/I/[x]:0648%;
Switch on audio of input [x].
0648%
USER/I/[x]:0649%;
Switch off audio of input [x].
0649%
USER/I/[x]:0684%;
Set the color space of of input [x] to
YCBCR.
0684%
USER/I/[x]:0685%;
Set the color space of of input [x] to
RGB.
0685%
USER/I/[x]:0686%;
Set the signal format of input [x] to
HDMI.
0686%
USER/I/[x]:0687%;
Set the signal format of input [x] to DVI.
0687%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768p@60Hz.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720P@60Hz.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800P@60Hz.
0628%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768p@60Hz.
0619%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200P@60Hz.
0621%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080P@60Hz.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200P@60Hz.
0620%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0606%;
Automatically calibrate the VGA signal
of input [x].
0606%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 33 www.ute.de
6.3.6. X2-4O-VS Output Card Command
Command
Description
Feedback
USER/O/[x]:0201%;
Set the output [x] to YPbPr signal.
0201%
USER/O/[x]:0202%;
Set the output [x] to VGA signal.
0202%
USER/O/[x]:0203%;
Set the output [x] to C-VIDEO signal.
0203%
USER/O/[x]:0800%;
Set the resolution of output [x] to
720x480i@60Hz.
Resolution
Ou01 720x480 I
USER/O/[x]:0801%;
Set the resolution of output [x] to
720x576i@50Hz.
Resolution
Ou01 720x576 I
USER/O/[x]:0802%;
Set the resolution of output [x] to
720x480P@60Hz.
Resolution
Ou01 720x480 P
USER/O/[x]:0803%;
Set the resolution of output [x] to
720x576p@50Hz.
Resolution
Ou01 720x576 P
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0805%;
Set the resolution of output [x] to
1280x720P@59Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0806%;
Set the resolution of output [x] to
1280x720P@50Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0807%;
Set the resolution of output [x] to
1280x720P@30Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0808%;
Set the resolution of output [x] to
1280x720P@25Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0809%;
Set the resolution of output [x]
to1280x720P@24Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0810%;
Set the resolution of output [x]
to1920x1080i@60Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0811%;
Set the resolution of output [x]
to1920x1080i@59Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0812%;
Set the resolution of output [x]
to1920x1080i@50Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 34 www.ute.de
Command
Description
Feedback
USER/O/[x]:0814%;
Set the resolution of output [x]
to1920x1080P@59Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0815%;
Set the resolution of output [x] to
1920x1080P@50Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0816%;
Set the resolution of output [x] to
1920x1080P@30Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0817%;
Set the resolution of output [x] to
1920x1080P@29Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0818%;
Set the resolution of output [x] to
1920x1080P@25Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0819%;
Set the resolution of output [x] to
1920x1080P@24Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0820%;
Set the resolution of output [x] to
640x480P@60Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0821%;
Set the resolution of output [x] to
640x480P@75Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0822%;
Set the resolution of output [x] to
800x600P@60Hz.
Resolution
Ou01 800x600
USER/O/[x]:0823%;
Set the resolution of output [x] to
800x600P@75Hz.
Resolution
Ou01 800x600 P
USER/O/[x]:0824%;
Set the resolution of output [x] to
1024x768p@60Hz.
Resolution
Ou01 1024x768
USER/O/[x]:0825%;
Set the resolution of output [x] to
1024x768p@75Hz.
Resolution
Ou01 1024x768 P
USER/O/[x]:0826%;
Set the resolution of output [x] to
1280x1024p@60Hz.
Resolution
Ou01 1280x1024
USER/O/[x]:0827%;
Set the resolution of output [x] to
1280x1024p@75Hz.
Resolution
Ou01 1280x1024P
USER/O/[x]:0828%;
Set the resolution of output [x] to
1360x768p@60Hz.
Resolution
Ou01 1360x768P
USER/O/[x]:0829%;
Set the resolution of output [x] to
1366x768p@60Hz.
Resolution
Ou01 1366x768P
USER/O/[x]:0830%;
Set the resolution of output [x] to
1400x1050P@60Hz.
Resolution
Ou01 1400x1050P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 35 www.ute.de
Command
Description
Feedback
USER/O/[x]:0831%;
Set the resolution of output [x] to
1600x1200P@60Hz.
Resolution
Ou01 1600x1200P
USER/O/[x]:0832%;
Set the resolution of output [x] to
1440x900P@60Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0833%;
Set the resolution of output [x] to
1440x900P@75Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0837%;
Set the resolution of output [x] to
1920x1200P@60Hz.
Resolution
Ou01 1920x1200
USER/O/[x]:0839%;
Set the resolution of output [x] to
1600x900P@60Hz.
Resolution
Ou01 1600x900
GetVGAPortMode[x]
.
Get the port status of output [x].
USER/O/[x]:0900%;
Set the CVBS output [x] to NTSC
(60Hz).
USER/O/[x]:0901%;
Set the CVBS output [x] to PAL (50Hz).
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 36 www.ute.de
6.3.7. X2-4I-HS Input Card Command
Command
Description
Feedback
USER/I/[x]:02xx%;
Set the image brightness of input [x] to
xx, xx=00~99.
0299%
USER/I/[x]:03xx%;
Set the image contrast of input [x] to xx,
xx=00~99.
0399%
USER/I/[x]:04xx%;
Set the image saturation of input [x] to
xx, xx=00~99.
0499%
USER/I/[x]:05xx%;
Set the image sharpness of input [x] to
xx, xx=00~99.
0599%
USER/I/[x]:0607%;
Set the image color temperature of
input [x] to user/cool/medium/warm.
0607%
USER/I/[x]:0608%;
Set the image aspect ratio of input [x] to
16:9/4:3/Auto/Panorama/Just
scan/Zoom2/Zoom1.
0608%
USER/I/[x]:0614%;
Set the image mode of input [x] to
user/Dynamic/Standard/mild.
0614%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768 HD.
0619%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768 XGA.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720 720P.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800 WXGA.
0628%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080 1080P.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200 WUXGA.
0620%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200 UXGA.
0621%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
USER/I/[x]:0711%;
Select HDMI embedded audio as audio
source for input [x].
0711%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 37 www.ute.de
Command
Description
Feedback
USER/I/[x]:0712%;
Select external analog audio input as
audio source for input [x].
0712%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 38 www.ute.de
6.3.8. X2-4O-HS Output Card Command
Command
Description
Feedback
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0824%;
Set the resolution of output [x] to
1024x768p@60Hz.
Resolution
Ou01 1024x768
USER/O/[x]:0826%;
Set the resolution of output [x] to
1280x1024p@60Hz.
Resolution
Ou01 1280x1024
USER/O/[x]:0837%;
Set the resolution of output [x] to
1920x1200P@60Hz.
Resolution
Ou01 1920x1200
GetResolution[x].
Get the resolution of output [x].
USER/O/[x]:0617%;
Restore the output [x] signal card to
factory default.
USER/O/[x]:0110%;
Enable the analog audio output [x].
0110%
USER/O/[x]:0111%;
Disable the analog audio output [x].
0111%
6.3.9. X2-4I-UH Input Card Command
Command
Description
Feedback
AUDIO[x]I[z].
Select audio source for input [x]
[x] is port number; [z] stands for audio
source, it can be 0 (embedded HDMI
audio) or 1 (analog audio)
AUDIO1I0.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 39 www.ute.de
6.3.10. X2-4I-DS Input Card Command
Command
Description
Feedback
USER/I/[x]:02xx%;
Set the image brightness of input [x] to
xx, xx=00~99.
0299%
USER/I/[x]:03xx%;
Set the image contrast of input [x] to xx,
xx=00~99.
0399%
USER/I/[x]:04xx%;
Set the image saturation of input [x] to
xx, xx=00~99.
0499%
USER/I/[x]:05xx%;
Set the image sharpness of input [x] to
xx, xx=00~99.
0599%
USER/I/[x]:0606%;
Automatically calibrate the VGA signal
of input [x].
0606%
USER/I/[x]:0607%;
Set the image color temperature of
input [x] to user/cool/medium/warm.
0607%
USER/I/[x]:0608%;
Set the image aspect ratio of input [x] to
16:9/4:3/Auto/Panorama/Just
scan/Zoom2/Zoom1.
0608%
USER/I/[x]:0614%;
Set the image mode of input [x] to
user/Dynamic/Standard/mild.
0614%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768 HD.
0619%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768 XGA.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720 720P.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800 WXGA.
0628%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080 1080P.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200 WUXGA.
0620%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200 UXGA.
0621%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 40 www.ute.de
USER/I/[x]:0686%;
Set the signal format of input [x] to
HDMI.
0686%
USER/I/[x]:0687%;
Set the signal format of input [x] to DVI.
0687%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 41 www.ute.de
6.3.11. X2-4O-DS Output Card Command
Command
Description
Feedback
USER/O/[x]:0201%;
Set the output [x] to YPbPr signal.
0201%
USER/O/[x]:0202%;
Set the output [x] to VGA signal.
0202%
USER/O/[x]:0203%;
Set the output [x] to C-VIDEO signal.
0203%
USER/O/[x]:0800%;
Set the resolution of output [x] to
720x480i@60Hz.
Resolution
Ou01 720x480 I
USER/O/[x]:0801%;
Set the resolution of output [x] to
720x576i@50Hz.
Resolution
Ou01 720x576 I
USER/O/[x]:0802%;
Set the resolution of output [x] to
720x480P@60Hz.
Resolution
Ou01 720x480 P
USER/O/[x]:0803%;
Set the resolution of output [x] to
720x576p@50Hz.
Resolution
Ou01 720x576 P
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0805%;
Set the resolution of output [x] to
1280x720P@59Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0806%;
Set the resolution of output [x] to
1280x720P@50Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0807%;
Set the resolution of output [x] to
1280x720P@30Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0808%;
Set the resolution of output [x] to
1280x720P@25Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0809%;
Set the resolution of output [x]
to1280x720P@24Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0810%;
Set the resolution of output [x]
to1920x1080i@60Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0811%;
Set the resolution of output [x]
to1920x1080i@59Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0812%;
Set the resolution of output [x]
to1920x1080i@50Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 42 www.ute.de
Command
Description
Feedback
USER/O/[x]:0814%;
Set the resolution of output [x]
to1920x1080P@59Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0815%;
Set the resolution of output [x] to
1920x1080P@50Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0816%;
Set the resolution of output [x] to
1920x1080P@30Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0817%;
Set the resolution of output [x] to
1920x1080P@29Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0818%;
Set the resolution of output [x] to
1920x1080P@25Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0819%;
Set the resolution of output [x] to
1920x1080P@24Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0820%;
Set the resolution of output [x] to
640x480P@60Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0821%;
Set the resolution of output [x] to
640x480P@75Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0822%;
Set the resolution of output [x] to
800x600P@60Hz.
Resolution
Ou01 800x600
USER/O/[x]:0823%;
Set the resolution of output [x] to
800x600P@75Hz.
Resolution
Ou01 800x600 P
USER/O/[x]:0824%;
Set the resolution of output [x] to
1024x768p@60Hz.
Resolution
Ou01 1024x768
USER/O/[x]:0825%;
Set the resolution of output [x] to
1024x768p@75Hz.
Resolution
Ou01 1024x768 P
USER/O/[x]:0826%;
Set the resolution of output [x] to
1280x1024p@60Hz.
Resolution
Ou01 1280x1024
USER/O/[x]:0827%;
Set the resolution of output [x] to
1280x1024p@75Hz.
Resolution
Ou01 1280x1024P
USER/O/[x]:0828%;
Set the resolution of output [x] to
1360x768p@60Hz.
Resolution
Ou01 1360x768P
USER/O/[x]:0829%;
Set the resolution of output [x] to
1366x768p@60Hz.
Resolution
Ou01 1366x768P
USER/O/[x]:0830%;
Set the resolution of output [x] to
1400x1050P@60Hz.
Resolution
Ou01 1400x1050P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 43 www.ute.de
Command
Description
Feedback
USER/O/[x]:0831%;
Set the resolution of output [x] to
1600x1200P@60Hz.
Resolution
Ou01 1600x1200P
USER/O/[x]:0832%;
Set the resolution of output [x] to
1440x900P@60Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0833%;
Set the resolution of output [x] to
1440x900P@75Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0837%;
Set the resolution of output [x] to
1920x1200P@60Hz.
Resolution
Ou01 1920x1200
USER/O/[x]:0839%;
Set the resolution of output [x] to
1600x900P@60Hz.
Resolution
Ou01 1600x900
GetVGAPortMode[x]
.
Get the port status of output [x].
USER/O/[x]:0900%;
Set the CVBS output [x] to NTSC
(60Hz).
USER/O/[x]:0901%;
Set the CVBS output [x] to PAL (50Hz).
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 44 www.ute.de
6.3.12. X2-4I-SS Input Card Command
Command
Description
Feedback
USER/I/[x]:02xx%;
Set the image brightness of input [x] to
xx, xx=00~99.
0299%
USER/I/[x]:03xx%;
Set the image contrast of input [x] to xx,
xx=00~99.
0399%
USER/I/[x]:04xx%;
Set the image saturation of input [x] to
xx, xx=00~99.
0499%
USER/I/[x]:05xx%;
Set the image sharpness of input [x] to
xx, xx=00~99.
0599%
USER/I/[x]:0606%;
Automatically calibrate the VGA signal
of input [x].
0606%
USER/I/[x]:0607%;
Set the image color temperature of
input [x] to user/cool/medium/warm.
0607%
USER/I/[x]:0608%;
Set the image aspect ratio of input [x] to
16:9/4:3/Auto/Panorama/Just
scan/Zoom2/Zoom1.
0608%
USER/I/[x]:0614%;
Set the image mode of input [x] to
user/Dynamic/Standard/mild.
0614%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768 HD.
0619%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768 XGA.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720 720P.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800 WXGA.
0628%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080 1080P.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200 WUXGA.
0620%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200 UXGA.
0621%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 45 www.ute.de
6.3.13. X2-4O-SS Output Card Command
Command
Description
Feedback
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0806%;
Set the resolution of output [x] to
1280x720P@50Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0810%;
Set the resolution of output [x]
to1920x1080i@60Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0812%;
Set the resolution of output [x]
to1920x1080i@50Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0815%;
Set the resolution of output [x] to
1920x1080P@50Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0816%;
Set the resolution of output [x] to
1920x1080P@30Hz.
Resolution
Ou01 1920x1080P
6.3.14. X2-4I-BT Input Card Command
Command
Description
Feedback
AUDIO[x]I[z].
Select audio source for input [x]
[x] is port number; [z] stands for audio
source, it can be 0 (embedded HDMI
audio) or 1 (analog audio)
AUDIO1I0.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 46 www.ute.de
6.3.15. X2-4I-BTS Input Card Command
Command
Description
Feedback
USER/I/[x]:02xx%;
Set the image brightness of input [x] to
xx, xx=00~99.
0299%
USER/I/[x]:03xx%;
Set the image contrast of input [x] to xx,
xx=00~99.
0399%
USER/I/[x]:04xx%;
Set the image saturation of input [x] to
xx, xx=00~99.
0499%
USER/I/[x]:05xx%;
Set the image sharpness of input [x] to
xx, xx=00~99.
0599%
USER/I/[x]:0606%;
Automatically calibrate the VGA signal
of input [x].
0606%
USER/I/[x]:0607%;
Set the image color temperature of
input [x] to user/cool/medium/warm.
0607%
USER/I/[x]:0608%;
Set the image aspect ratio of input [x] to
16:9/4:3/Auto/Panorama/Just
scan/Zoom2/Zoom1.
0608%
USER/I/[x]:0614%;
Set the image mode of input [x] to
user/Dynamic/Standard/mild.
0614%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768 HD.
0619%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768 XGA.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720 720P.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800 WXGA.
0628%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080 1080P.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200 WUXGA.
0620%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200 UXGA.
0621%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
USER/I/[x]:0686%;
Set the signal format of input [x] to
0686%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 47 www.ute.de
Command
Description
Feedback
HDMI.
USER/I/[x]:0711%;
Select HDMI embedded audio as audio
source for input [x].
0711%
USER/I/[x]:0712%;
Select external analog audio input as
audio source for input [x].
0712%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 48 www.ute.de
6.3.16. X2-4O-BTS Output Card Command
Command
Description
Feedback
USER/O/[x]:0110%;
Enable the analog audio output [x].
0110%
USER/O/[x]:0111%;
Disable the analog audio output [x].
0111%
USER/O/[x]:0800%;
Set the resolution of output [x] to
720x480i@60Hz.
Resolution
Ou01 720x480 I
USER/O/[x]:0801%;
Set the resolution of output [x] to
720x576i@50Hz.
Resolution
Ou01 720x576 I
USER/O/[x]:0802%;
Set the resolution of output [x] to
720x480P@60Hz.
Resolution
Ou01 720x480 P
USER/O/[x]:0803%;
Set the resolution of output [x] to
720x576p@50Hz.
Resolution
Ou01 720x576 P
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0805%;
Set the resolution of output [x] to
1280x720P@59Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0806%;
Set the resolution of output [x] to
1280x720P@50Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0807%;
Set the resolution of output [x] to
1280x720P@30Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0808%;
Set the resolution of output [x] to
1280x720P@25Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0809%;
Set the resolution of output [x]
to1280x720P@24Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0810%;
Set the resolution of output [x]
to1920x1080i@60Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0811%;
Set the resolution of output [x]
to1920x1080i@59Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0812%;
Set the resolution of output [x]
to1920x1080i@50Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0814%;
Set the resolution of output [x]
to1920x1080P@59Hz.
Resolution
Ou01 1920x1080P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 49 www.ute.de
Command
Description
Feedback
USER/O/[x]:0815%;
Set the resolution of output [x] to
1920x1080P@50Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0816%;
Set the resolution of output [x] to
1920x1080P@30Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0817%;
Set the resolution of output [x] to
1920x1080P@29Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0818%;
Set the resolution of output [x] to
1920x1080P@25Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0819%;
Set the resolution of output [x] to
1920x1080P@24Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0820%;
Set the resolution of output [x] to
640x480P@60Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0821%;
Set the resolution of output [x] to
640x480P@75Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0822%;
Set the resolution of output [x] to
800x600P@60Hz.
Resolution
Ou01 800x600
USER/O/[x]:0823%;
Set the resolution of output [x] to
800x600P@75Hz.
Resolution
Ou01 800x600 P
USER/O/[x]:0824%;
Set the resolution of output [x] to
1024x768p@60Hz.
Resolution
Ou01 1024x768
USER/O/[x]:0825%;
Set the resolution of output [x] to
1024x768p@75Hz.
Resolution
Ou01 1024x768 P
USER/O/[x]:0826%;
Set the resolution of output [x] to
1280x1024p@60Hz.
Resolution
Ou01 1280x1024
USER/O/[x]:0827%;
Set the resolution of output [x] to
1280x1024p@75Hz.
Resolution
Ou01 1280x1024P
USER/O/[x]:0828%;
Set the resolution of output [x] to
1360x768p@60Hz.
Resolution
Ou01 1360x768P
USER/O/[x]:0829%;
Set the resolution of output [x] to
1366x768p@60Hz.
Resolution
Ou01 1366x768P
USER/O/[x]:0830%;
Set the resolution of output [x] to
1400x1050P@60Hz.
Resolution
Ou01 1400x1050P
USER/O/[x]:0831%;
Set the resolution of output [x] to
1600x1200P@60Hz.
Resolution
Ou01 1600x1200P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 50 www.ute.de
Command
Description
Feedback
USER/O/[x]:0832%;
Set the resolution of output [x] to
1440x900P@60Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0833%;
Set the resolution of output [x] to
1440x900P@75Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0837%;
Set the resolution of output [x] to
1920x1200P@60Hz.
Resolution
Ou01 1920x1200
USER/O/[x]:0839%;
Set the resolution of output [x] to
1600x900P@60Hz.
Resolution
Ou01 1600x900
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 51 www.ute.de
6.3.17. X2-4I-UFS Input Card Command
Command
Description
Feedback
USER/I/[x]:02xx%;
Set the image brightness of input [x] to
xx, xx=00~99.
0299%
USER/I/[x]:03xx%;
Set the image contrast of input [x] to xx,
xx=00~99.
0399%
USER/I/[x]:04xx%;
Set the image saturation of input [x] to
xx, xx=00~99.
0499%
USER/I/[x]:05xx%;
Set the image sharpness of input [x] to
xx, xx=00~99.
0599%
USER/I/[x]:0607%;
Set the image color temperature of
input [x] to user/cool/medium/warm.
0607%
USER/I/[x]:0608%;
Set the image aspect ratio of input [x] to
16:9/4:3/Auto/Panorama/Just
scan/Zoom2/Zoom1.
0608%
USER/I/[x]:0614%;
Set the image mode of input [x] to
user/Dynamic/Standard/mild.
0614%
USER/I/[x]:0617%;
Restore the input [x] signal card to
factory default.
0617%
USER/I/[x]:0619%;
Set the resolution of input [x] to
1360x768 HD.
0619%
USER/I/[x]:0626%;
Set the resolution of input [x] to
1024x768 XGA.
0626%
USER/I/[x]:0627%;
Set the resolution of input [x] to
1280x720 720P.
0627%
USER/I/[x]:0628%;
Set the resolution of input [x] to
1280x800 WXGA.
0628%
USER/I/[x]:0629%;
Set the resolution of input [x] to
1920x1080 1080P.
0629%
USER/I/[x]:0620%;
Set the resolution of input [x] to
1920x1200 WUXGA.
0620%
USER/I/[x]:0621%;
Set the resolution of input [x] to
1600x1200 UXGA.
0621%
USER/I/[x]:0698%;
Upgrade the software of input [x].
0698%
USER/I/[x]:0686%;
Set the signal format of input [x] to
HDMI.
0686%
USER/I/[x]:0687%;
Set the signal format of input [x] to DVI.
0687%
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 52 www.ute.de
6.3.18. X2-4O-UFS Output Card Command
Command
Description
Feedback
USER/O/[x]:0800%;
Set the resolution of output [x] to
720x480i@60Hz.
Resolution
Ou01 720x480 I
USER/O/[x]:0801%;
Set the resolution of output [x] to
720x576i@50Hz.
Resolution
Ou01 720x576 I
USER/O/[x]:0802%;
Set the resolution of output [x] to
720x480P@60Hz.
Resolution
Ou01 720x480 P
USER/O/[x]:0803%;
Set the resolution of output [x] to
720x576p@50Hz.
Resolution
Ou01 720x576 P
USER/O/[x]:0804%;
Set the resolution of output [x] to
1280x720P@60Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0805%;
Set the resolution of output [x] to
1280x720P@59Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0806%;
Set the resolution of output [x] to
1280x720P@50Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0807%;
Set the resolution of output [x] to
1280x720P@30Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0808%;
Set the resolution of output [x] to
1280x720P@25Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0809%;
Set the resolution of output [x]
to1280x720P@24Hz.
Resolution
Ou01 1280x720 P
USER/O/[x]:0810%;
Set the resolution of output [x]
to1920x1080i@60Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0811%;
Set the resolution of output [x]
to1920x1080i@59Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0812%;
Set the resolution of output [x]
to1920x1080i@50Hz.
Resolution
Ou01 1920x1080I
USER/O/[x]:0813%;
Set the resolution of output [x]
to1920x1080P@60Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0814%;
Set the resolution of output [x]
to1920x1080P@59Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0815%;
Set the resolution of output [x] to
1920x1080P@50Hz.
Resolution
Ou01 1920x1080P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 53 www.ute.de
Command
Description
Feedback
USER/O/[x]:0816%;
Set the resolution of output [x] to
1920x1080P@30Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0817%;
Set the resolution of output [x] to
1920x1080P@29Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0818%;
Set the resolution of output [x] to
1920x1080P@25Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0819%;
Set the resolution of output [x] to
1920x1080P@24Hz.
Resolution
Ou01 1920x1080P
USER/O/[x]:0820%;
Set the resolution of output [x] to
640x480P@60Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0821%;
Set the resolution of output [x] to
640x480P@75Hz.
Resolution
Ou01 640x480 P
USER/O/[x]:0822%;
Set the resolution of output [x] to
800x600P@60Hz.
Resolution
Ou01 800x600
USER/O/[x]:0823%;
Set the resolution of output [x] to
800x600P@75Hz.
Resolution
Ou01 800x600 P
USER/O/[x]:0824%;
Set the resolution of output [x] to
1024x768p@60Hz.
Resolution
Ou01 1024x768
USER/O/[x]:0825%;
Set the resolution of output [x] to
1024x768p@75Hz.
Resolution
Ou01 1024x768 P
USER/O/[x]:0826%;
Set the resolution of output [x] to
1280x1024p@60Hz.
Resolution
Ou01 1280x1024
USER/O/[x]:0827%;
Set the resolution of output [x] to
1280x1024p@75Hz.
Resolution
Ou01 1280x1024P
USER/O/[x]:0828%;
Set the resolution of output [x] to
1360x768p@60Hz.
Resolution
Ou01 1360x768P
USER/O/[x]:0829%;
Set the resolution of output [x] to
1366x768p@60Hz.
Resolution
Ou01 1366x768P
USER/O/[x]:0830%;
Set the resolution of output [x] to
1400x1050P@60Hz.
Resolution
Ou01 1400x1050P
USER/O/[x]:0831%;
Set the resolution of output [x] to
1600x1200P@60Hz.
Resolution
Ou01 1600x1200P
USER/O/[x]:0832%;
Set the resolution of output [x] to
1440x900P@60Hz.
Resolution
Ou01 1440x900 P
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 54 www.ute.de
Command
Description
Feedback
USER/O/[x]:0833%;
Set the resolution of output [x] to
1440x900P@75Hz.
Resolution
Ou01 1440x900 P
USER/O/[x]:0837%;
Set the resolution of output [x] to
1920x1200P@60Hz.
Resolution
Ou01 1920x1200
USER/O/[x]:0839%;
Set the resolution of output [x] to
1600x900P@60Hz.
Resolution
Ou01 1600x900
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 55 www.ute.de
7. TCP/IP Control
7.1. Control Mode
TCP/IP default settings:
• IP: 192.168.0.178,
• Gateway is 192.168.0.1,
• Serial Port: 4001.
IP and Gateway can be changed as you need, Serial Port cannot be changed.
7.1.1. Controlled by Single PC
Connect a computer to the TCP/IP port of the X2-88A, and set its network segment to
the same as the default IP of the X2-88A (192.168.0.178).
Same network
segment as the
switcher
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 56 www.ute.de

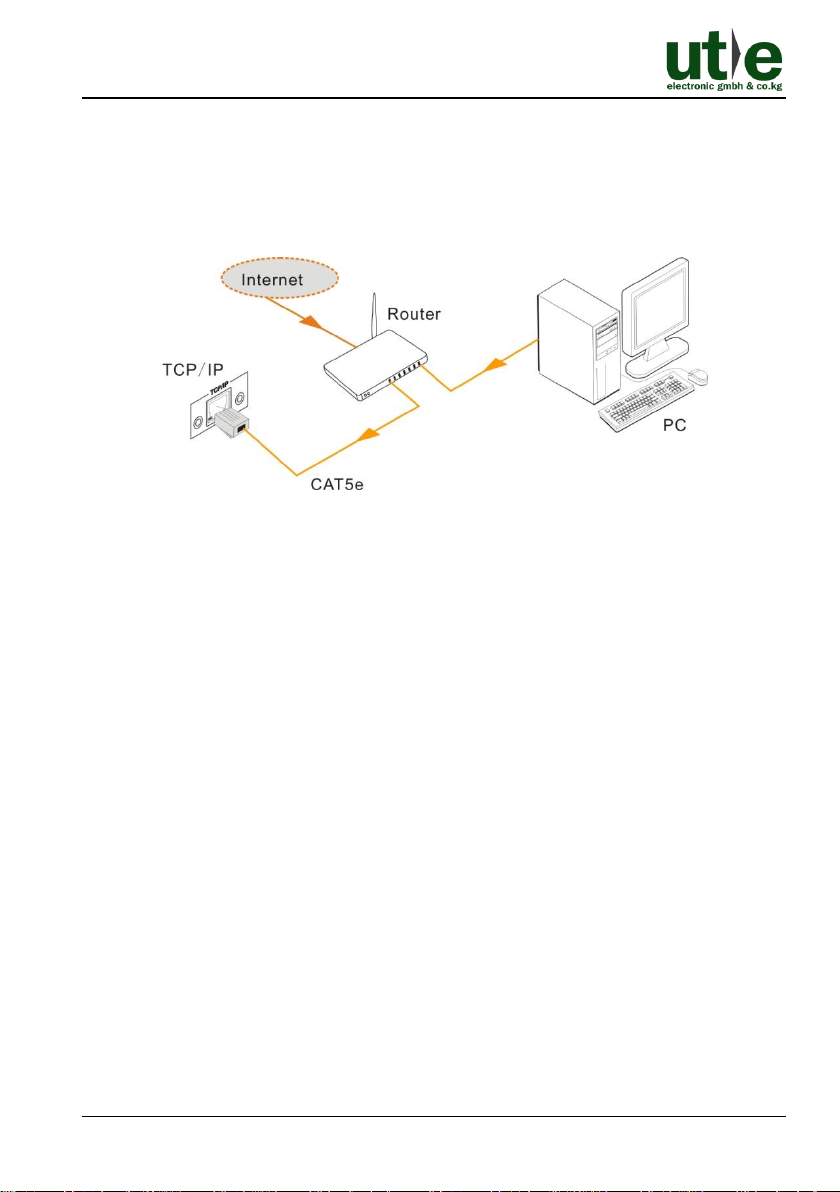

7.1.2. Controlled by PC(s) in LAN
The X2-88A can be connected with a router to make up a LAN with the PC(s), this
make it able to be controlled in a LAN. When control, just make sure the X”-88A’s
network segment is the same with the router. Please connect as the following figure for
LAN control.
Step1. Connect the TCP/IP port of the X2-88A to Ethernet port of PC with twisted pair.
Step2. Set the PC’s network segment to the same as the X2-88A. Do please
remember the PC’s original network segment.
Step3. Set the X2-88A’s network segment to the same as the router.
Step4. Set the PC’s network segment to the original one.
Step5. Connect the X2-88A and PC(s) to the router. In the same LAN, each PC is
able to control the X2-88A asynchronously.
Then it’s able to control the device via a TCP/IP communication software.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 57 www.ute.de
7.2. TCP/IP Communication Software
(Exampled by TCPUDP software)
1) Connect a computer and X2-88A to the same network. Open the TCPUDP software
(or any other TCP/IP communication software) and create a connection, enter the
IP address and port of X2-88A (default IP: 192.168.0.178, port:4001):
2) After connect successfully, we can enter commands to control the X2-88A, as
below:
Here you will receive the
feedback when a command
is sent.
Enter your command here.
Commands are the same with RS232
commands listed in 6.3 RS232
Communication Command
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 58 www.ute.de
7.3. Port Management
Type the designed website 192.168.0.178:100 in your browser. Enter correct username
and password to log in the WebServer:
• Username: admin;
• Password: admin
Here is the main configuration interface of the WebServer:
In this interface, you can:
⚫ Change website display language.
⚫ Modify network settings: Go to Internet Settings -> WAN.
⚫ Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select
program file -> Start upgrading.
⚫ Reboot the device after upgrading.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 59 www.ute.de
8. Specification
8.1. Main Unit
Control Part
Serial Control Port
RS232, 9- female D connector
Configuration
2 = TX, 3 = RX, 5 = GND
Installation
Rack Mountable
Front Panel Control
Buttons
Option
TCP/IP control
General
Power Supply
100VAC ~ 240VAC, 50/60Hz
Power Consumption
23W (Max, no load)
Operation Temperature
-10℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humility
10%-90%
Dimension (W*H*D)
483mm x 88mm x 320mm (2U high)
Net Weight
About 3KG (No signal card)
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 60 www.ute.de
8.2. Changeable Signal Cards
8.2.1. VGA Signal Cards
8.2.1.1. X2-4I-VA
Video
Input
(4) VGA
Input Connector
(4) Female 15-pin HD VGA
Input Level
0.5 ~ 2.0Vp-p
Input Impedance
75Ω
Audio
Input
(4) Audio
Input Connector
(4) 3-pin pluggable terminal block
CMRR
20Hz ~ 20KHz
Input Impedance
>10KΩ
General
Gain
0 dB
Bandwidth
YPbPr:170MHz; C-video:150MHz; VGA:170MHz
Video Signal Format
VGA (RGBHV), YPbPr, S-video, C-video
Audio Signal Format
PCM
Resolution
Up to 1080P@60Hz
Crosstalk
<-50dB@5MHz
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 61 www.ute.de
8.2.1.2. X2-4O-VG
Video
Output
(4) VGA
Output Connector
(4) Female 15-pin HD VGA
Output Level
0.5 ~ 2.0Vp-p
Output Impedance
75Ω
Audio
Output
(4) Audio
Output Connector
(4) 3.5mm mini jack
CMRR
20Hz ~ 20KHz
Output Impedance
75Ω
General
Bandwidth
350MHz (-3dB)
Crosstalk
<-50dB@5MHz
Video Signal Format
VGA
Audio Signal Format
PCM
Resolution
Up to 1080P@60Hz
Crosstalk
<-50dB@5MHz
8.2.1.3. X2-4O-VS
Video
Output
(4) VGA
Output Connector
(4) Female 15-pin HD VGA
Output Level
0.5 ~ 2.0Vp-p
Output Impedance
75Ω
Audio
Output
(4) Audio
Output Connector
(4) 3-pin pluggable terminal block
CMRR
20Hz ~ 20KHz
Output Impedance
75Ω
General
Gain
0 dB
Bandwidth
340MHz(-3dB)
Video Signal Format
VGA (RGBHV), YPbPr, C-video
Audio Signal Format
PCM
Resolution
Up to 1080P@60Hz
Crosstalk
<-50dB@5MHz
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 62 www.ute.de
8.2.2. HDMI Signal Cards
8.2.2.1. X2-4I-HS
Video
Input
(4) HDMI, (4) Audio
Input Connector
(4) Female 19-pin type-A HDMI,
(4) 3-pin pluggable terminal block
Color Depth
8, 10, 12 bit
General
Video Signal Format
HDMI, DVI
Audio Signal Format
PCM
Resolution
Up to 1080P@60Hz
Bandwidth
6.75 Gbps
Standard
HDMI 1.3 and HDCP 1.2
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data
8.2.2.2. X2-4O-HS
Video & Audio
Output
(4) HDMI, (4) Audio
Output Connector
(4) Female 19-pin type-A HDMI,
(4) 3-pin pluggable terminal block
Color Depth
8 bit
General
Video Signal Format
HDMI, DVI
Audio Signal Format
PCM
Resolution
Up to 1080P@60Hz
Bandwidth
6.75 Gbps
Standard
HDMI 1.3 and HDCP 1.2
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 63 www.ute.de
8.2.2.3. X2-4I-UH
Video & Audio
Input
(4) HDMI, (4) Audio
Input Connector
(4) Female 19-pin type-A HDMI,
(4) 3-pin pluggable terminal block
Input Level
T.M.D.S. 2.9V~3.3V
Input Impedance
75Ω
Frequency Response
20Hz～20K Hz
General
Gain
0dB
Resolution
Up to 4Kx2K
Transmission Distance
1080P≤70m, 4Kx2K ≤ 40m
SNR
>70dB@ 100MHz-100M
Return Loss
<-30dB@ 5KHz
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
Standard
HDMI 1.4 and HDCP 1.4
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 64 www.ute.de
8.2.2.4. X2-4O-UH
Video & Audio
Output
(4) HDMI, (4) Audio
Output Connector
(4) Female 19-pin type-A HDMI,
(4) 3-pin pluggable terminal block
Output Level
T.M.D.S. 2.9V~3.3V
Output Impedance
75Ω
Frequency Response
20Hz～20K Hz
General
Gain
0dB
Resolution
Up to 4Kx2K
Transmission Distance
1080P≤70m, 4Kx2K ≤ 40m
SNR
>70dB@ 100MHz-100M
Return Loss
<-30dB@ 5KHz
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
Standard
HDMI 1.4 and HDCP 1.4
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 65 www.ute.de
8.2.3. SDI Signal Cards
8.2.3.1. X2-4I-SS
Video
Input
(4) SDI
Input Connector
(4) Female BNC
Color Depth
8, 10, 12 bit
Input Level
T.M.D.S 2.9V～3.3V
Input Impedance
75Ω
General
Video Signal Format
SDI, HD-SDI, 3G-SDI
Resolution
Up to 1080P@60Hz
Transmission Distance
1080P≤60m
Color Depth
8, 10, 12 bit
Bandwidth
6.75Gpbs
8.2.3.2. X2-4O-SS
Video
Output
(4) SDI
Output Connector
(4) Female BNC
Color Depth
8 bit
Output Level
T.M.D.S 2.9V～3.3V
Output Impedance
75Ω
General
Video Signal Format
SDI, HD-SDI, 3G-SDI
Resolution
Up to 1080P@60Hz
Transmission Distance
1080P≤60m
Color Depth
8, 10, 12 bit
Bandwidth
6.75Gpbs
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 66 www.ute.de
8.2.4. DVI Signal Cards
8.2.4.1. X2-4I-DV
Video
Input
(4) DVI
Input Connector
(4) Female DB24+5
Input Level
T.M.D.S. 2.9V~3.3V
Input Impedance
75Ω
General
Gain
0 dB
Bandwidth
340 MHz (10.2 Gbit/s)
Video Signal
DVI 1.0/ HDMI 1.3 full digital T.M.D.S signal
Switching Speed
200ns (Max.)
Max Time-delay
5nS (±1nS)
Crosstalk
<-50dB@5MHz
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data using DVI and
HDMI standards. EDID and DDC signals are actively
buffered
HDCP
Compliant with HDCP using DVI and HDMI 1.3
standards
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 67 www.ute.de
8.2.4.2. X2-4O-DV
Video
Output
(4) DVI
Output Connector
(4) Female DB24+5
output Level
T.M.D.S. 2.9V~3.3V
Output Impedance
75Ω
General
Gain
0 dB
Bandwidth
340 MHz (10.2 Gbit/s)
Video Signal
DVI 1.0/ HDMI 1.3 full digital T.M.D.S signal
Switching Speed
200ns (Max.)
Max Time-delay
5nS (±1nS)
Crosstalk
<-50dB@5MHz
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data using DVI and
HDMI standards. EDID and DDC signals are actively
buffered
HDCP
Compliant with HDCP using DVI and HDMI 1.3
standards
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 68 www.ute.de
8.2.4.3. X2-4I-DS
Video
Input
(4) DVI
Input Connector
(4) Female DB24+5
Input Level
T.M.D.S. 2.9V~3.3V
Input Impedance
75Ω
General
Gain
0 dB
Bandwidth
340 MHz (10.2 Gbit/s)
Video Signal Format
DVI,HDMI,VGA,C-VIDEO,YPbPr
Max Time-delay
5nS (±1nS)
Crosstalk
<-50dB@5MHz
Color Depth
8 bit
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data using DVI and
HDMI standards. EDID and DDC signals are actively
buffered
HDCP
Compliant with HDCP using DVI and HDMI 1.3
standards
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 69 www.ute.de
8.2.4.4. X2-4O-DS
Video
Output
(4) DVI
Output Connector
(4) Female DB24+5
output Level
T.M.D.S. 2.9V~3.3V
Output Impedance
75Ω
General
Gain
0 dB
Bandwidth
340 MHz (10.2 Gbit/s)
Video Signal Format
DVI,HDMI,VGA,C-VIDEO,YPbPr
Max Time-delay
5nS (±1nS)
Crosstalk
<-50dB@5MHz
Color Depth
8 bit
EDID and DDC
Supports Extended Display Identification Data (EDID)
and Display Data Channel (DDC) data using DVI and
HDMI standards. EDID and DDC signals are actively
buffered
HDCP
Compliant with HDCP using DVI and HDMI 1.3
standards
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 70 www.ute.de
8.2.5. HDBaseT Signal Cards
8.2.5.1. X2-4I-BT
Video
Input
(4) HDBT, (4) Audio, (4) RS232
Input Connector
(4) Female RJ45 (with dual-color indicator),
(4) 3.5mm mini jack,
(4) 3-pin pluggable terminal block,
Input Level
T.M.D.S 2.9V～3.3V
Input Impedance
75Ω
Frequency Response
20Hz～20K Hz
General
Protocol
TCP/IP
Gain
0dB
Bandwidth
10.2Gbps
Resolution
Up to 4Kx2K
Crosstalk
<-50dB@5MHz
Transmission Distance
1080P≤70m, 4Kx2K ≤ 40m
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
HDMI Standard
HDBT 1.0, HDMI 1.4 and HDCP 1.4
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 71 www.ute.de
8.2.5.2. X2-4O-BT
Video
Output
(4) HDBT, (4) Audio, (4) RS232
Output Connector
(4) Female RJ45 (with dual-color indicator),
(4) 3.5mm mini jack,
(4) 3-pin pluggable terminal block,
Output Level
T.M.D.S 2.9V～3.3V
Output Impedance
75Ω
Frequency Response
20Hz～20K Hz
General
Protocol
TCP/IP
Gain
0dB
Bandwidth
10.2Gbps
Resolution
Up to 4Kx2K
Crosstalk
<-50dB@5MHz
Transmission Distance
1080P≤70m, 4Kx2K ≤ 40m
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
HDMI Standard
HDBT 1.0, HDMI 1.4 and HDCP 1.4
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 72 www.ute.de
8.2.5.3. X2-4I-BTS
Video
Input
(4) HDBT, (4) Audio, (4) RS232
Input Connector
(4) Female RJ45 (with dual-color indicator),
(4) 3.5mm mini jack,
(4) 3-pin pluggable terminal block,
Input Level
T.M.D.S 2.9V～3.3V
Input Impedance
70Ω
Frequency Response
20Hz～20K Hz
General
Protocol
TCP/IP
Gain
0dB
Bandwidth
10.2Gbps
Resolution
Up to 1080P@60Hz
Crosstalk
<-50dB@5MHz
Transmission Distance
1080P≤70m
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
HDMI Standard
HDBT 1.0, HDMI 1.3 and HDCP 1.3
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 73 www.ute.de
8.2.5.4. X2-4O-BTS
Video
Output
(4) HDBT, (4) Audio, (4) RS232
Output Connector
(4) Female RJ45 (with dual-color indicator),
(4) 3.5mm mini jack,
(4) 3-pin pluggable terminal block,
Output Level
T.M.D.S 2.9V～3.3V
Output Impedance
75Ω
Frequency Response
20Hz～20K Hz
General
Protocol
TCP/IP
Gain
0dB
Bandwidth
10.2Gbps
Resolution
Up to 1080P@60Hz
Crosstalk
<-50dB@5MHz
Transmission Distance
1080P≤70m
Audio Signal Format
Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-
HD
Analog audio: PCM
HDMI Standard
HDBT 1.0, HDMI 1.3 and HDCP 1.3
EDID
Support manual EDID management
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 74 www.ute.de
8.2.6. Optical Signal Cards
8.2.6.1. X2-4I-UFS
Video
Input
(4) Fiber Optical
Input Connector
(4) SPF Fiber Optical
Fiber Type
Multi-mode, Single mode
General
Data Rate
10.2 Gbps
Color Depth
8bit, 10bit, 12bit, 16bit
Optical Fiber Mode
Connector
LC connector
Resolution
Up to 1080P
Transmission Distance
2km (Single mode transmission, using Single Mode
Optical Module and OM3 Single Mode Fiber Cable)
300m (Multi-mode transmission, using Single/ Multi
mode Optical Module and OM3 Multi-Mode Fiber Cable)
Data Rate
10.2Gbit/s
8.2.6.2. X2-4O-UFS
Video
Output
(4) Fiber Optical
Output Connector
(4) SPF Fiber Optical
Fiber Type
Multi-mode, Single mode
General
Data Rate
10.2 Gbps
Color Depth
8bit, 10bit, 12bit, 16bit
Optical Fiber Mode
Connector
LC connector
Resolution
Up to 1080P
Transmission Distance
2km (Single mode transmission, using Single Mode
Optical Module and OM3 Single Mode Fiber Cable)
300m (Multi-mode transmission, using Single/ Multi
mode Optical Module and OM3 Multi-Mode Fiber Cable)
Data Rate
10.2Gbit/s
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 75 www.ute.de
9. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Output image with ghost
Bad quality of the
connecting cable
Try another high quality
cable
Impropriate image
setting of the displayer
Adjust corresponding image
settings
Output image with color
losing or no video signal
output
Fail connection
Reconnect the displayer
and the matrix
No output image when
switching
No signal at the input /
output end
Check with oscilloscope or
multimeter if there is any
signal at the input/ output
end.
Fail or loose connection
Make sure the connection is
good
The switcher is broken
Contact an authorized/ your
dealer for repairing.
IR remote does not work
Run out of battery
Change for another battery
IR remote is broken
Contact an authorized/ your
dealer for repairing.
POWER indicator doesn’t
work or no respond to any
operation
Fail connection of power
cord.
Make sure the power cord
connection is good.
EDID management does
not work normally
The HDMI cable is
broken at the output
end.
Change for another HDMI
cable which is in good
working condition.
There is a blank screen
on the display when
switching
The display does not
support the resolution of
the video source.
Switch again.
Manage the EDID data
manually to make the
resolution of the video
source automatically
compliant with the output
resolution.
Static becomes stronger
when connecting the
video connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 76 www.ute.de
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong RS232
communication
parameters
Type in correct RS232
communication parameters.
Broken RS232 port
Contact an authorized/ your
dealer for checking.
Cannot control the device
by front panel buttons
while can control it
through RS232 port
The front panel buttons
are locked
Send command 50605% to
unlock the front panel
buttons.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support (info@ute.de).
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 77 www.ute.de
10. After-sales/ Customer Service
If there appear some problems when running the Modular Matrix Switcher 8x8, please
check and deal with the problems referring to this user manual. Any transport costs are
borne by the users during the warranty.
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Product Limited Warranty: We warrants that its products will be free from defects
in materials and workmanship for two years, which starts from the first day you buy
this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) What the warranty does not cover (Warranty Exclusion)
⚫ Warranty expiration.
⚫ Factory applied serial number has been altered or removed from the product.
⚫ Damage, deterioration or malfunction caused by:
• Normal wear and tear.
• Use of supplies or parts not meeting our specifications.
• No certificate or invoice as the proof of warranty.
• The product model showed on the warranty card does not match with the model
of the product for repairing or had been altered.
• Damage caused by force majeure.
• Servicing not authorized by distributor.
• Any other causes which does not relate to a product defect.
⚫ Shipping fees, installation or labor charges for installation or setup of the
product.
4) Documentation
Customer Service will accept defective product(s) in the scope of warranty
coverage at the sole condition that the defeat has been clearly defined, and upon
reception of the documents or copy of invoice, indicating the date of purchase, the
type of product, the serial number, and the name of dealer.
X2-88A: Modular Matrix Switcher 8x8
U.T.E. electronic GmbH & Co. KG 78 www.ute.de
5) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
• Product version and name.
• Detailed failure situations.
• The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local dealer
or our customer support (info@ute.de).
