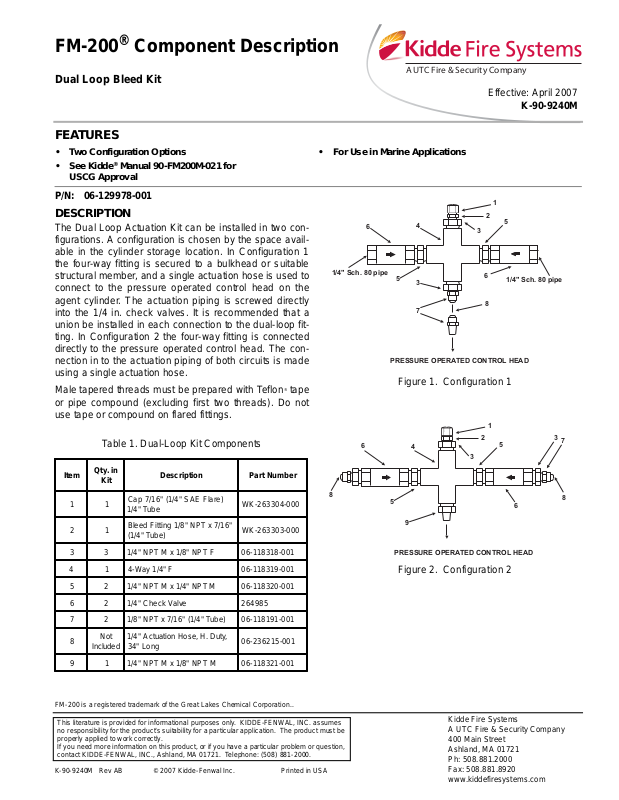

FM-200® Component Description
Dual Loop Bleed Kit
FEATURES
• Two Configuration Options
®
• See Kidde
USCG Approval
P/N: 06-129978-001
DESCRIPTION
The Dual Loop Actuation Kit can be installed in two configurations. A configuration is chosen by the space available in the cylinder storage location. In Configuration 1
the four-way fitting is secured to a bulkhe ad or suitable
structural member, and a single actuation hose is used to
connect to the pressure operated control head on the
agent cylinder. The actuation piping is screwed directly
into the 1/4 in. check valves. It is recommended that a
union be installed in each connection to the dual-loop fitting. In Configuration 2 the four-way fitting is connected
directly to the pressure operated control head. The connection in to the actuation piping of both circuits is made
using a single actuation hose.
Male tapered threads must be prepared with Teflon
or pipe compound (excluding first two threads). Do not
use tape or compound on flared fittings.
Item
11
21
3 3 1/4" NPT M x 1/8" NPT F 06-118318-001
4 1 4-Way 1/4" F 06-118319-001
5 2 1/4" NPT M x 1/4" NPT M 06-118320-001
6 2 1/4" Check Valve 264985
7 2 1/8" NPT x 7/16" (1/4" Tube) 06-118191-001
8
9 1 1/4" NPT M x 1/8" NPT M 06-118321-001
Manual 90-FM200M-021 for
Table 1. Dual-Loop Kit Comp on e nts
Qty. in
Kit
Not
Included
Cap 7/16" (1/4" SAE Flare)
1/4" Tube
Bleed Fitti ng 1/8" NPT x 7/16"
(1/4" Tube)
1/4" Actuation Ho se, H. Duty,
34" Long
Description Part N umber
®
tape
WK-263304-000
WK-263303-000
06-236215-001
A UTC Fire & Security Company
• For Use in Marine Applications
6
1/4" Sch. 80 pipe
4
5
3
7
PRESSURE OPERATED CONTROL HEAD

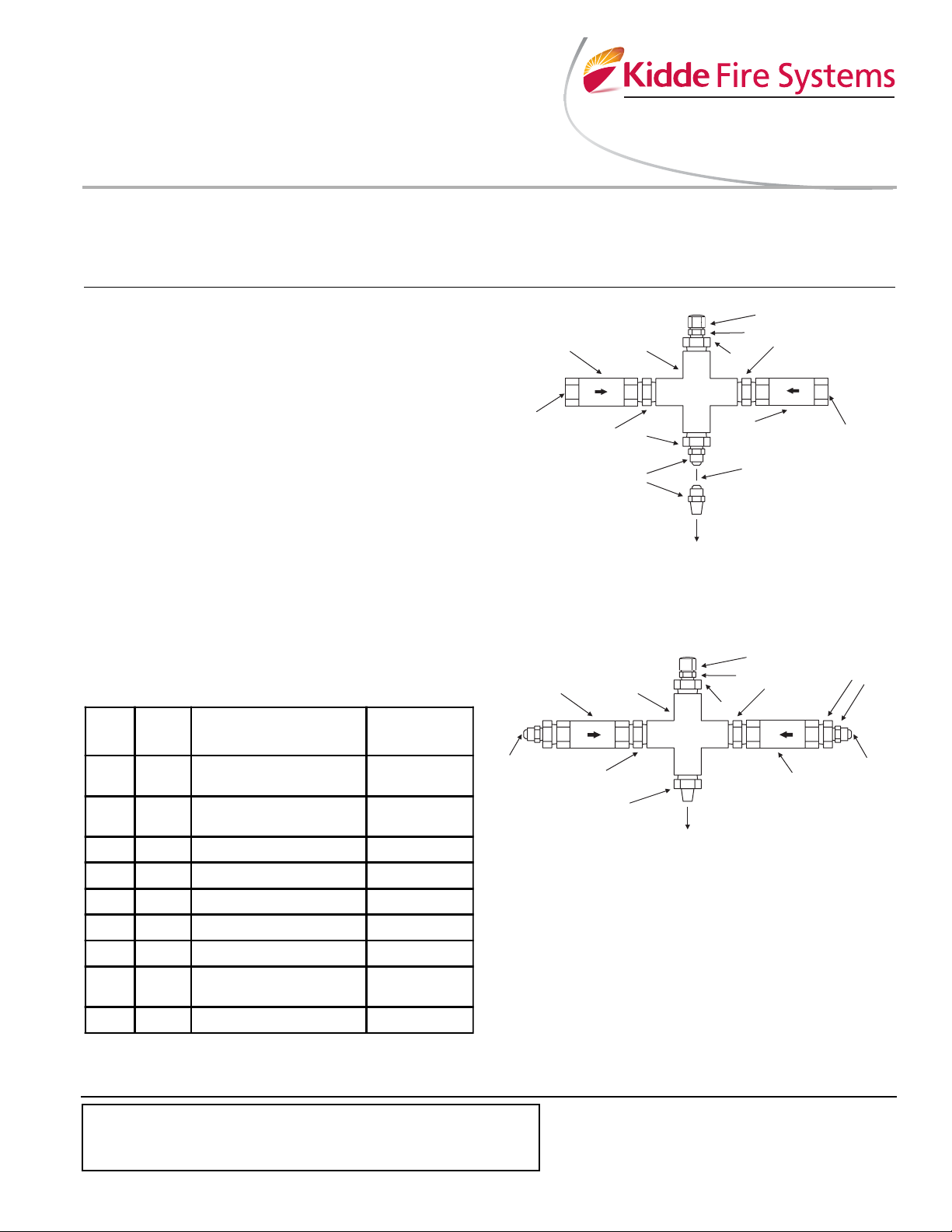

Figure 1. Configuration 1
6
8
4
5
9
PRESSURE OPERATED CONTROL HEAD
Figure 2. Configuration 2
Effective: April 2007
K-90-9240M
1
2
5
3
6
1/4" Sch. 80 pipe
8
1
2
5
3
6
3
7
8
FM-200 is a registered trademark of the Great Lakes Chemical Corporation..
This literature is provided for informational purposes only. KIDDE-FENWAL, INC. assumes
no responsibility for the product’s suitability for a particular application. The product must be
properly applied to work correctly.
If you need more information on this product, or if you have a particular problem or question,
contact KIDDE-FENWAL, INC., Ashland, MA 01721. Telephone: (508) 881-2000.
K-90-9240M Rev AB © 2007 Kidde-Fenwal Inc. Printed in USA
