UTC TA8207K LINEAR INTEGRATED CIRCUIT

LOW FREQUENCY POWER
AMPLIFIER

DESCRIPTION

The UTC TA8207K is an audio power IC with built-in two
channels developed for portable radio cassette tape recorder
with power ON/OFF switch.
Because of the parts reduction and SIP (Single inline
package), space merit is remarkable.
Thermal shut down protection circuit is built in.

FEATURES

*High Power : POUT=2.5W / CH (Typ.)
(Vcc=9V, RL=4Ω, f=1KHz, THD=10%)
: POUT=4.6W / CH (Typ.)
(Vcc=12V, RL=4Ω, f=1KHz, THD=10%)
*Low Popping Noise at Power ON
*Small Quiescent Current : ICCQ=21mA (Typ.)
(Vcc=9V, VIN=0)
*Soft Clip
*Built-in Thermal Shut Down Protection Circuit
*Bast for Supply Voltage 9V, 12V
*Operation Supply Voltage Range : Vcc=6-15V

FSIP-12H

ABSOLUTE MAXIMUM RATINGS (Ta=25°C)

PARAMETER SYMBOL VALUE UNIT

Supply Voltage Vcc 20 V
Output Current (Peak / CH) Io(peak) 2.5 A
Power Dissipation PD 12.5 W
Operating Temperature Topr -20 to + 75 °C
Storage Temperature Tstg -55 to + 150 °C

UTC UNISONIC TECHNOLOGIES CO., LTD.

QW-R107-013,A

1

UTC TA8207K LINEAR INTEGRATED CIRCUIT

ELECTRICAL CHARACTERISTICS

(Vcc=9V, RL=4Ω, Rg=600Ω, f=1kHz, Ta=25°C, unless otherwise specified)

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Quiescent Current ICCQ Vin=0 21 45 mA
Output Power POUT(1) THD=10% 2.0 2.5 W

POUT(2) Vcc=12V,THD=10% 4.6 W
Total Harmonic Distortion THD POUT=0.4W / ch 0.2 1.0 %
Voltage Gain GV(1) Rf=120Ω

VOUT=0.775Vrms

GV(2) Rf=0, VOUT=0.775Vrms 56.5 dB
Input Resistance RIN 30 kΩ
Output Noise Voltage VNO Rg=10kΩ

BW=20Hz ~ 20kHz

Ripple Rejection Ratio R.R. Rg=600Ω

Fripple=100Hz

Cross Talk C.T. Rg=600Ω, Amp1<->2

VOUT=0dBm, f=1kHz
Input Offset Voltage V6,V7 30 60 mV
Stand-by Current SW1->OFF 1 µA

TYPICAL DC VOLTAGE OF EACH TERMINAL (Vcc=9V, Ta=25°C)

43 45 47 dB

0.3 1.0 mVrms

52 dB

50 dB

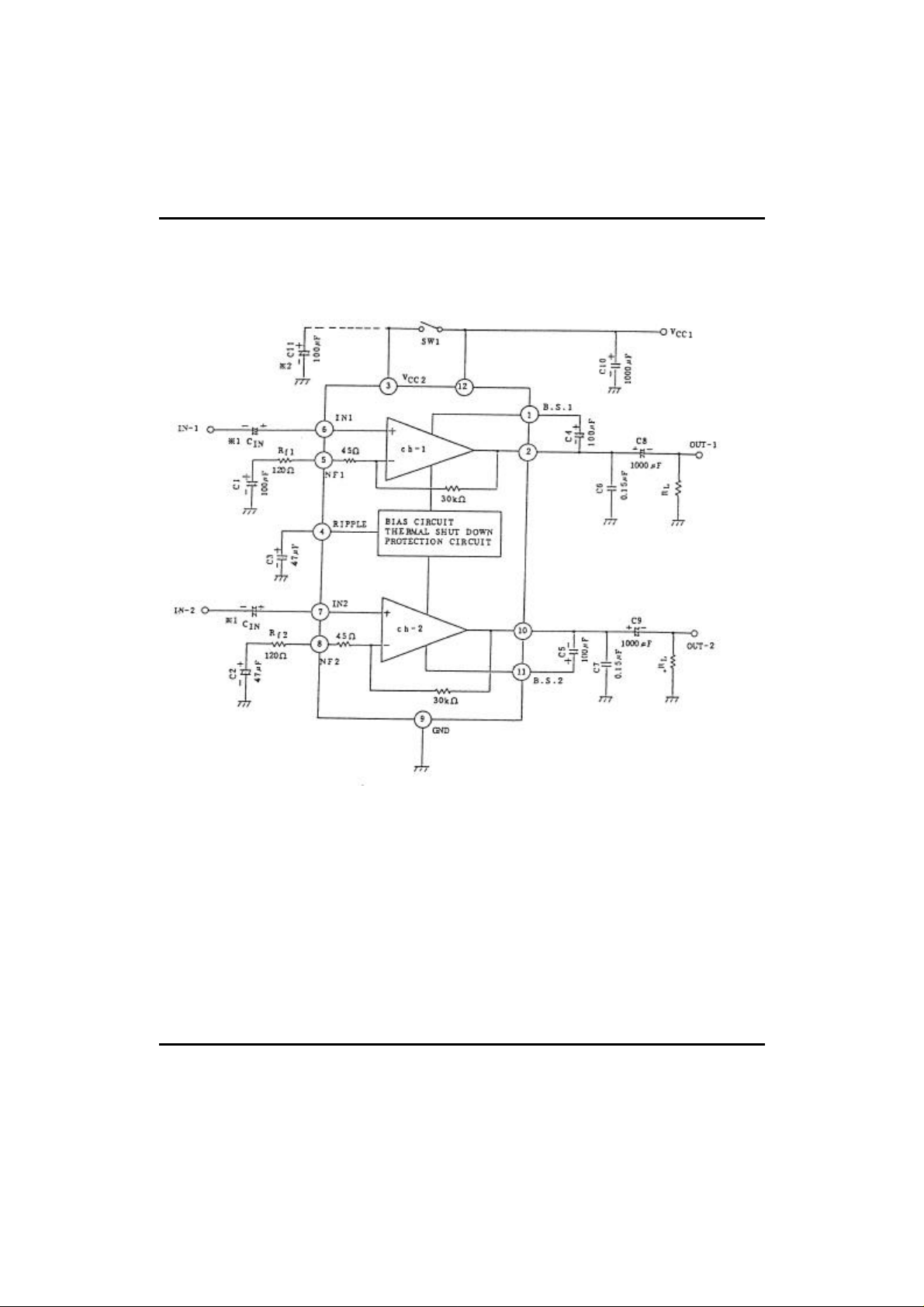

TERMINAL NO. 1 2 3 4 5 6 7 8 9 10 11 12
DC Voltage 8.7 4.5 Vcc 5.0 0.7 0.03 0.03 0.7 GND 4.5 8.7 Vcc
