MV3800 MyMovee HD Media Recorder

User’s Guide

Chapter: 1

A

Introduction

Thank you very much for purchasing the MV3800 HD Media Recorder product. We hope you will enjoy
using it as a great home entertainment partner.

The MV3800 HD Media Players & Recorders are designed to enhance the consumer experience with
breathtaking movie quality of High-Definition (HD) video and crystal sound clarity of DTS and Digital
Dolby digital audio. Featuring full support of major media formats, MV3800, offers users a simple way to
play their HD 1080p digital content on any TV.

Instead of keeping shelves full of music CDs, DVDs and Blue Ray Discs movies, more and more people
prefer to build large personal collections of digital content on their desktop or laptop computers. The
drawback is they must use the computer to play these files. Their movie watching or music listening
experience is confined to small screen and small speakers of their computer system. With MV3800, users
can simply play the digital content directly from the pre-assembled internal HDD up to 2TB or from USB
external storage device in the comfort of their living room or bedroom. They are free from struggling with
burning media files onto DVDs or connecting the computer to the TV.

MV3800 also has recording feature of TV shows from the Cable or Satellite, or family videos from a
Camcorder. It provides an ideal setup archiving old VCR tapes and DVDs to digital media files. MV3800
even supports time-shift and scheduled recording functionalities - making Live TV playback a snap

Features Highlight

High definition 1080p movie

Crystal clear high definition audio

More video format supported

Build-in HDD

Media Streaming with UPNP

Record, store and playback

USB 2.0 Host ports

Internet Radio

Download Station

NAS

Multi language support

Product Specifications

Chipset

Adapter

Realtek 1283 C+

C

Input: 100-240V Output: 12V/3A

A/V Video: HDMI 1.3,CVBS, YpbprAudio: Digital 5.1(optical+coaxial)Audio,Stereo L/R

Output

A

AV Input Video:CVBS. Audio:Stereo(L/R)

USB

Interface

HDD

Capacity

3* USB 2.0 HOST,1* mini USB 2.0 device

3.5 (SATA)HDD built-in , up to 2TB

Language English,Spanish,French,Germany,Italian,Dutch,Russian,Polish,Portuguese,Swedish,

Turkish

File

FAT32/NTFS

System

TV System NTSC/PAL

Video

Format

MKV, TS, M2TS, MTS, TP, WMV, IFO, ISO, VOB, DAT, AVI, MPG, MP4, MOV, RM,
RMVB, DIVX, XVID, FLV

Subtitle SUB, SRT, SSA, SMI, IDX+SUB

Codec MPEG1,HD MPEG2(up to MP@HL 1080i)

HD MPEG4 SP/ASP(720p/1080i/1080p)
Xvid,WMV9(up to 1080p)
H.264 BP@L3,[email protected],[email protected] （up to 1080p)
RM/RMVB8/9/10(up to 1280x720@30P)

Audio

Format

MP3, WMA, WAV, OGG, AAC, LPCM, FLAC, AC3

udio Out Stereo

Dolby Digital AC3 5.1 (passthrough & downmix to stereo)
Dolby Digital Plus (passthrough)
DTS (passthrough & downmix to stereo)
DTS-HD Master Audio (passthrough core stream & downmix to stereo)
DTS-HD High Resolution Audio (passthrough core stream & downmix to stereo)
FLAC 7.1 (passthrough & downmix to stereo)

Photo JPG/JPEG/BMP/GIF/TIFF,Music Slideshow, Zoom and Transition

Web

Service

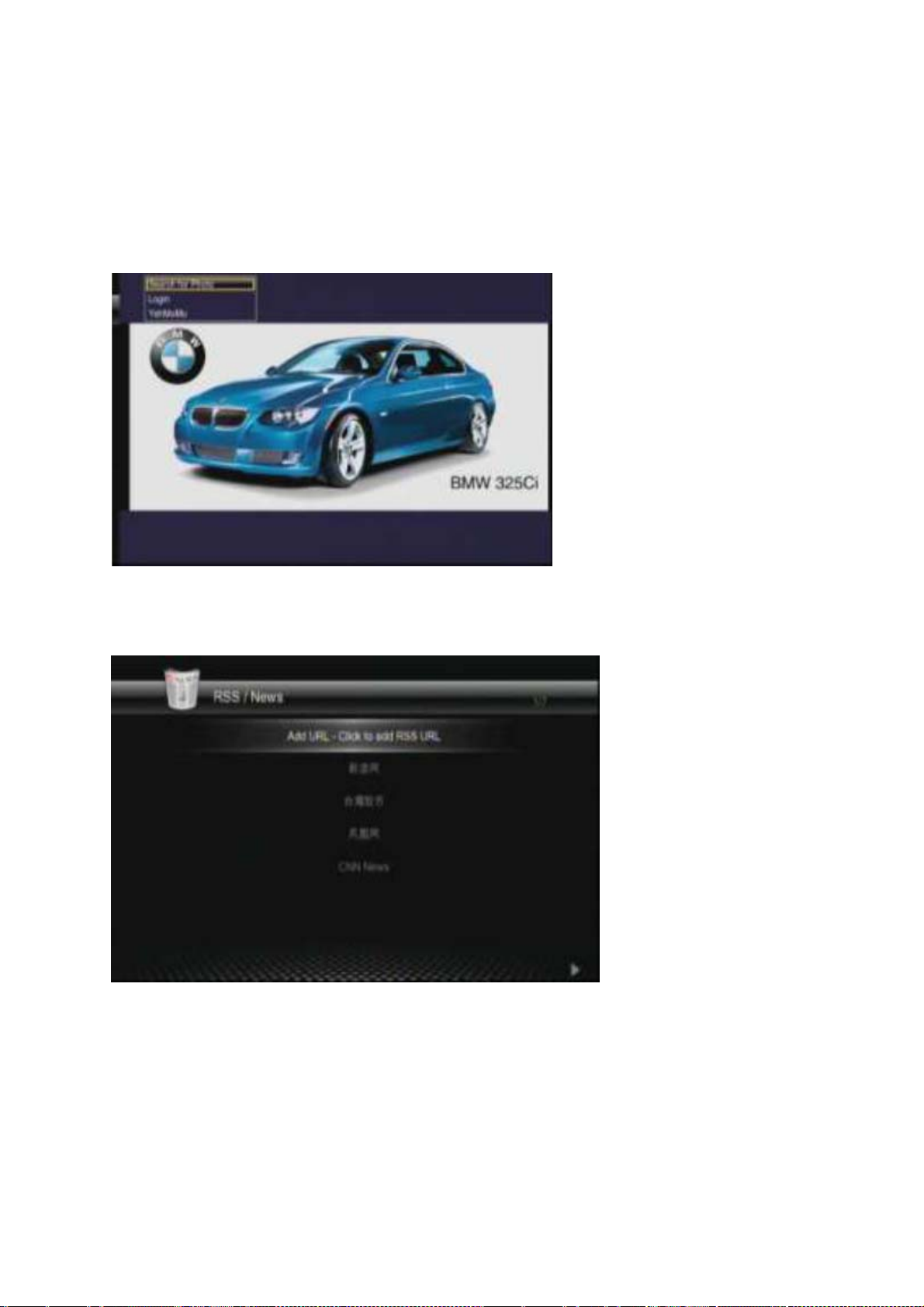

Youtube ,Youku,Picasa, Flickr ,Rss news,Weather, iRadio, Internet TV

Tuner Dual Tuner

Support MPEG2,MPEG4 & H.264 Standard Signal
Recorder format : TS
Support Timeshift recording/Schedule recording/EPG
Resolution: Same as signal

A/V

Recording

Audio Stereo and composite Video Recorded Format: MPEG2
Resolution: Up to 720x576@25fps(PAL), 720x480@30fps(NTSC)

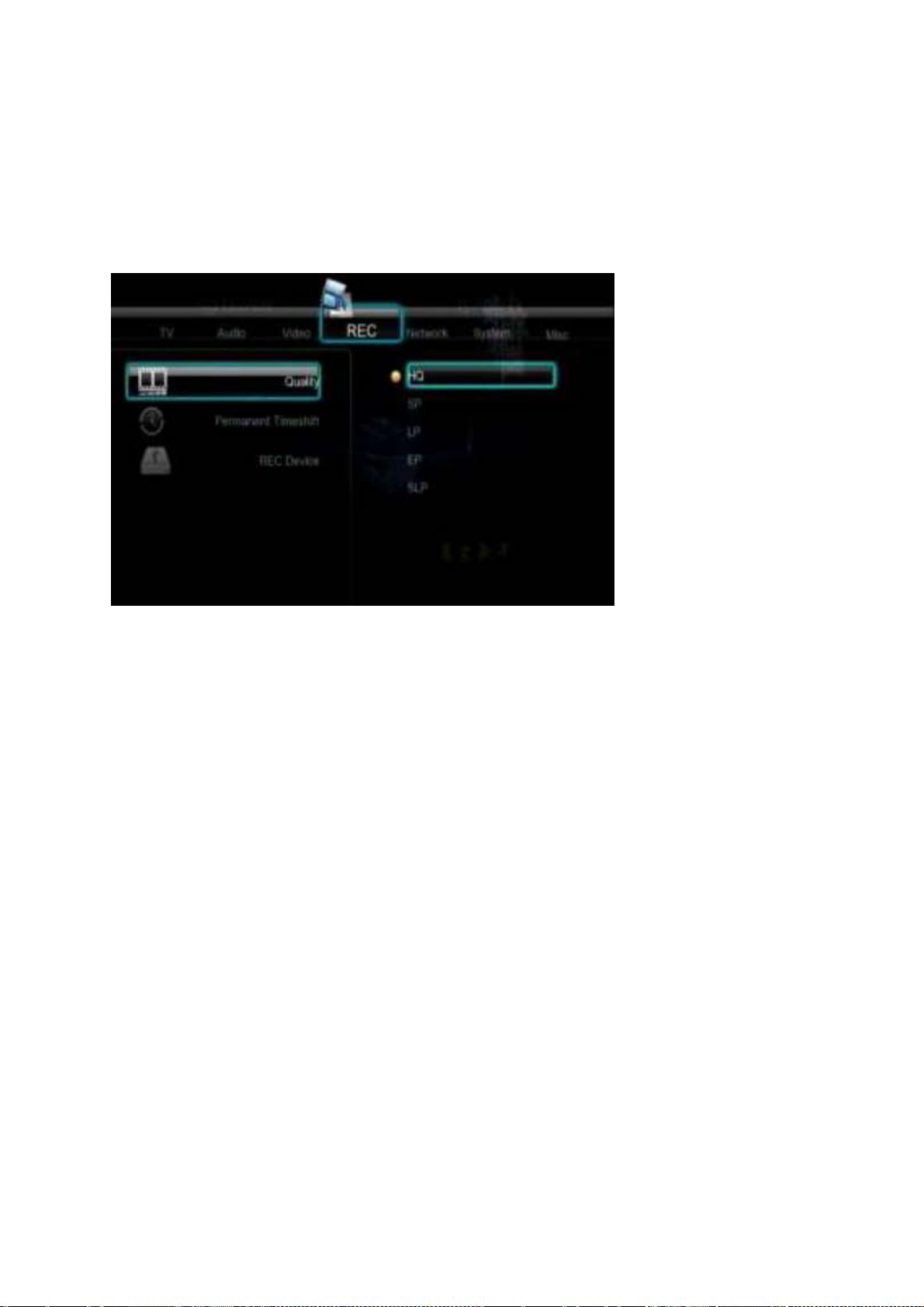

Adjustable Video quality: HQ/SP/LP/EP/SLP

Others

function

NAS,UPNP,SAMBA,BT,FTP,WIFI

Contents of box

Quick Installation Guide
Component AV Cables
Composite AV Cables
Power Adapter
HDMI Cable (optional)
Wireless N dongle (optional)

Note:
The actual contents in the package might be different from the packing list in this manual.

MV3800 HD Media Recorder

Remote Control with
Batteriese

Functionality

This MV3800 HD Media Recorder has the following functionality.

A/V Output

 HDMI V1.3 for high-definition video and digital audio
 Composite & component video and stereo audio for analog audio-visual connection
 S/PDIF coaxial & optical interface for high-fidelity digital audio
 Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Multimedia Playback

 Supports major audio, video and image file formats (1080p HD video decoding)
 Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/

WMV/ASF/RM/RMVB/FLV

 Music format: MP3/OGG/WMA/WAV/AAC/FLAC
 Photo format: HD JPEG/BMP/GIF/TIF/PNG
 Photo slide show with background music

DVB-T TV

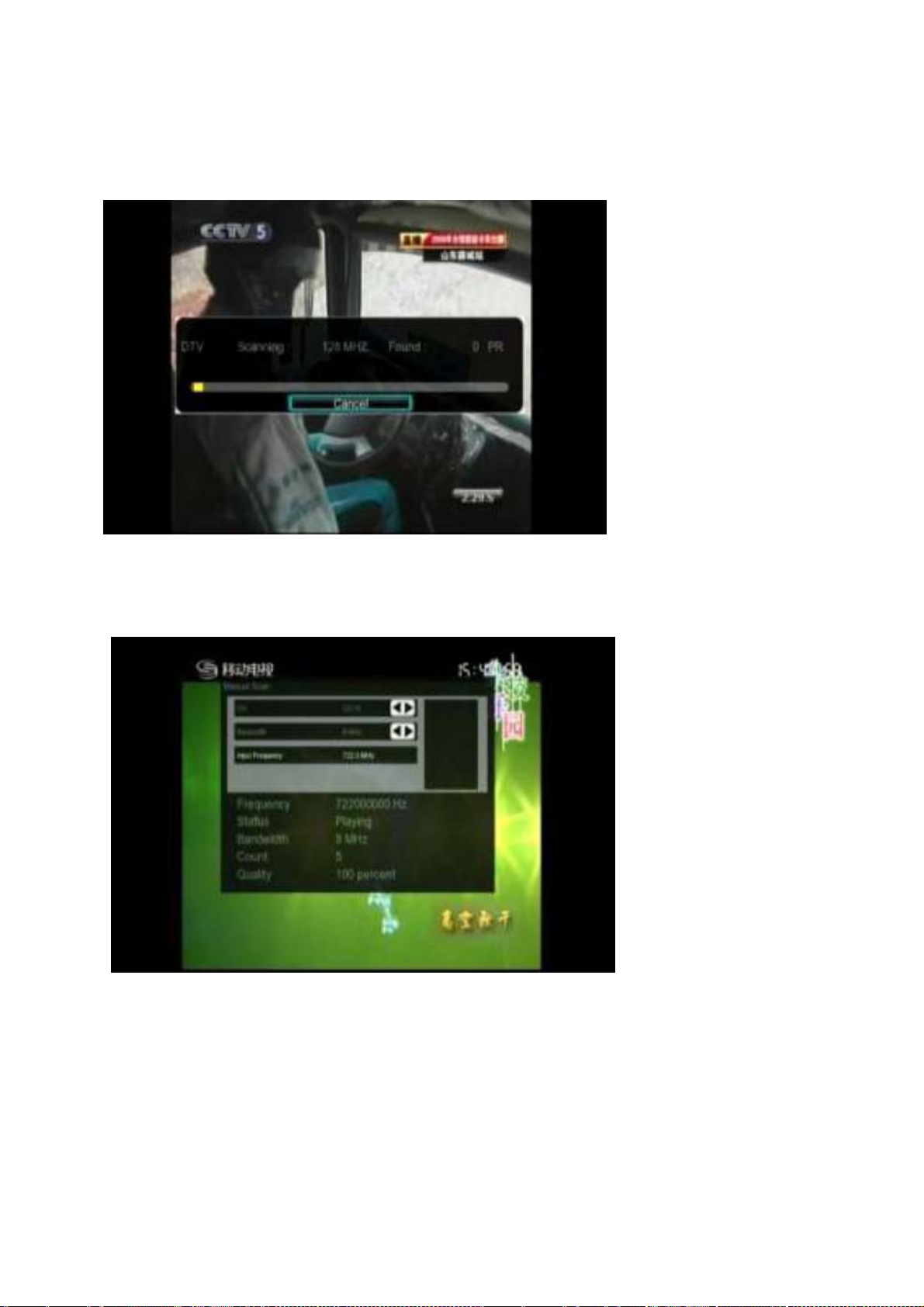

 supports Digital Video Broadcasting Terrestrial (DVB-T) TV reception

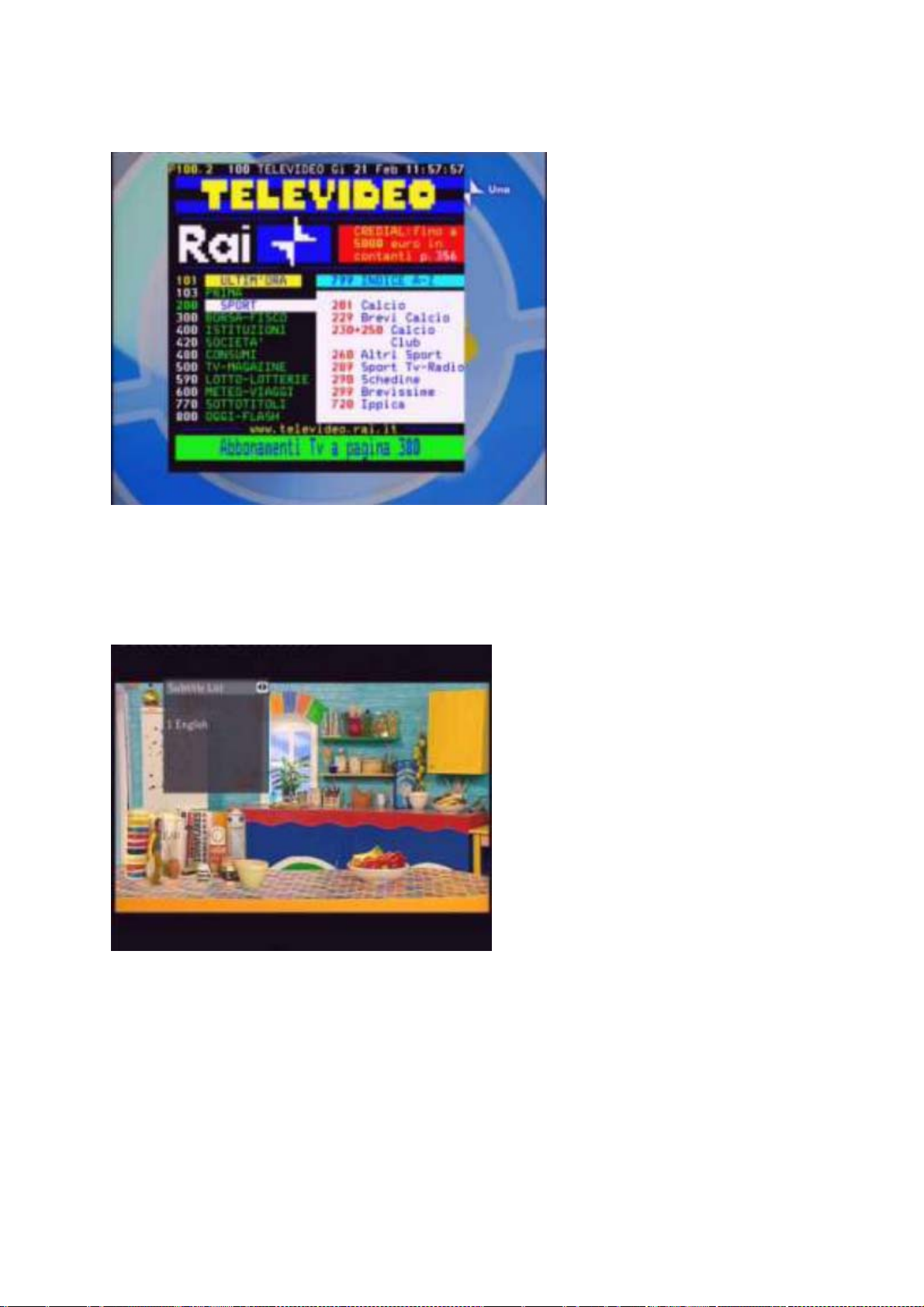

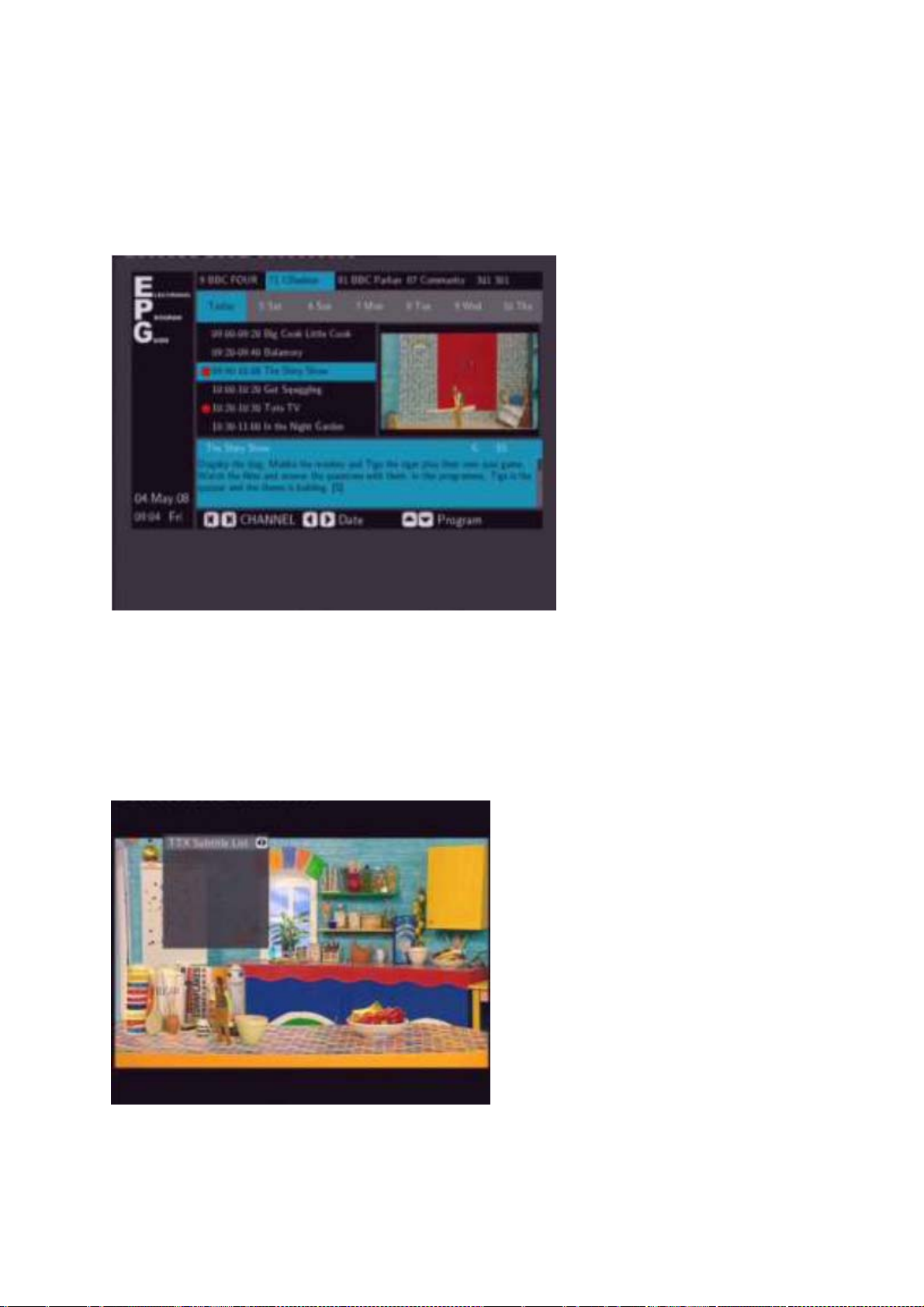

 supports Electronic Program Guide (EPG), Teletext and subtitle.

Video Recording

 supports one button recording and scheduled recording, can easily record programs from

DVB-T TV, DVD player, DV, etc., and save as MPEG-2 (.mpg, or .ts) format;

 supports time shifting function

Network Feature

 A/V streaming/transmission via Ethernet (10M/100M) & Wi-Fi (802.11b/g/n, optional)

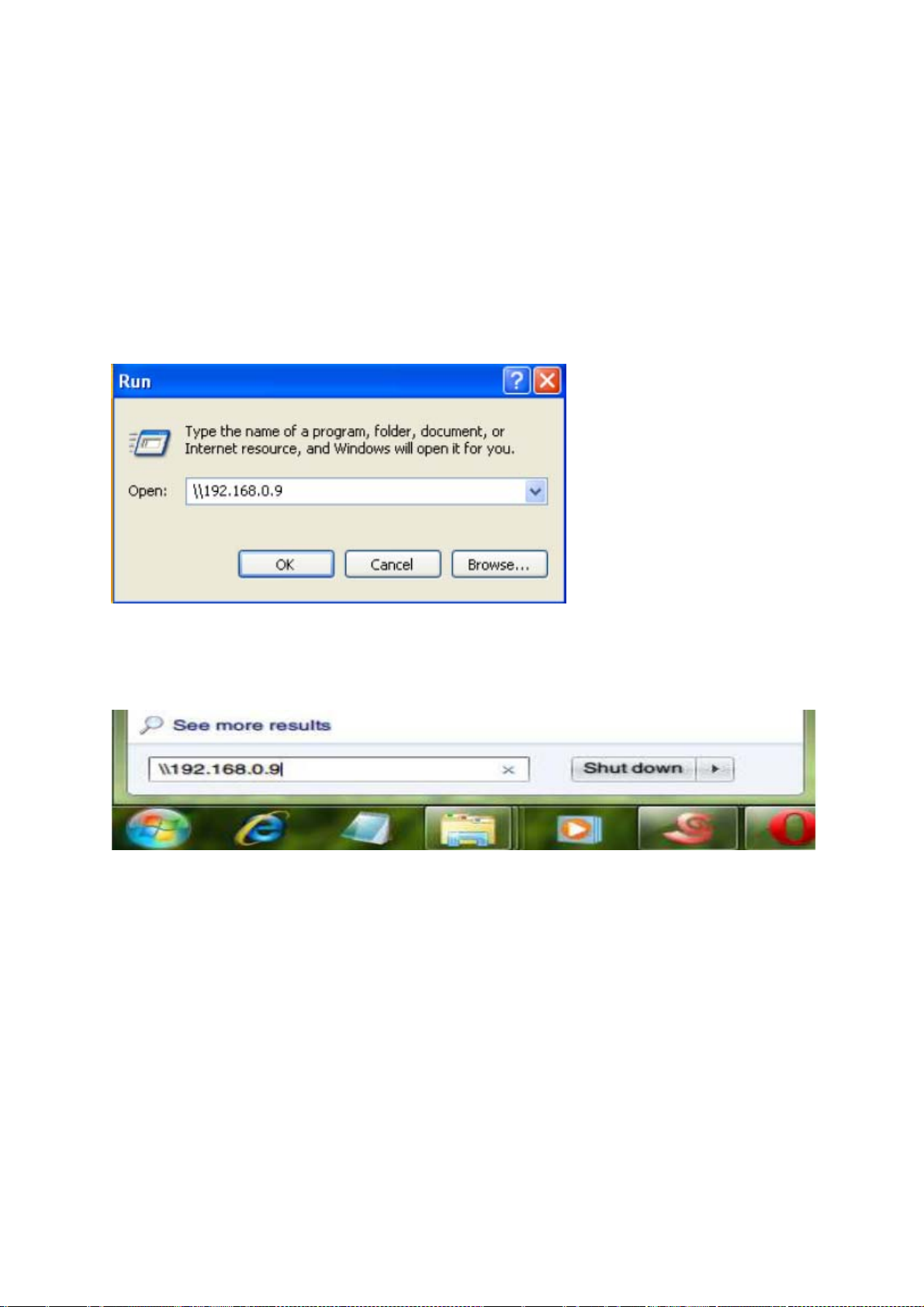

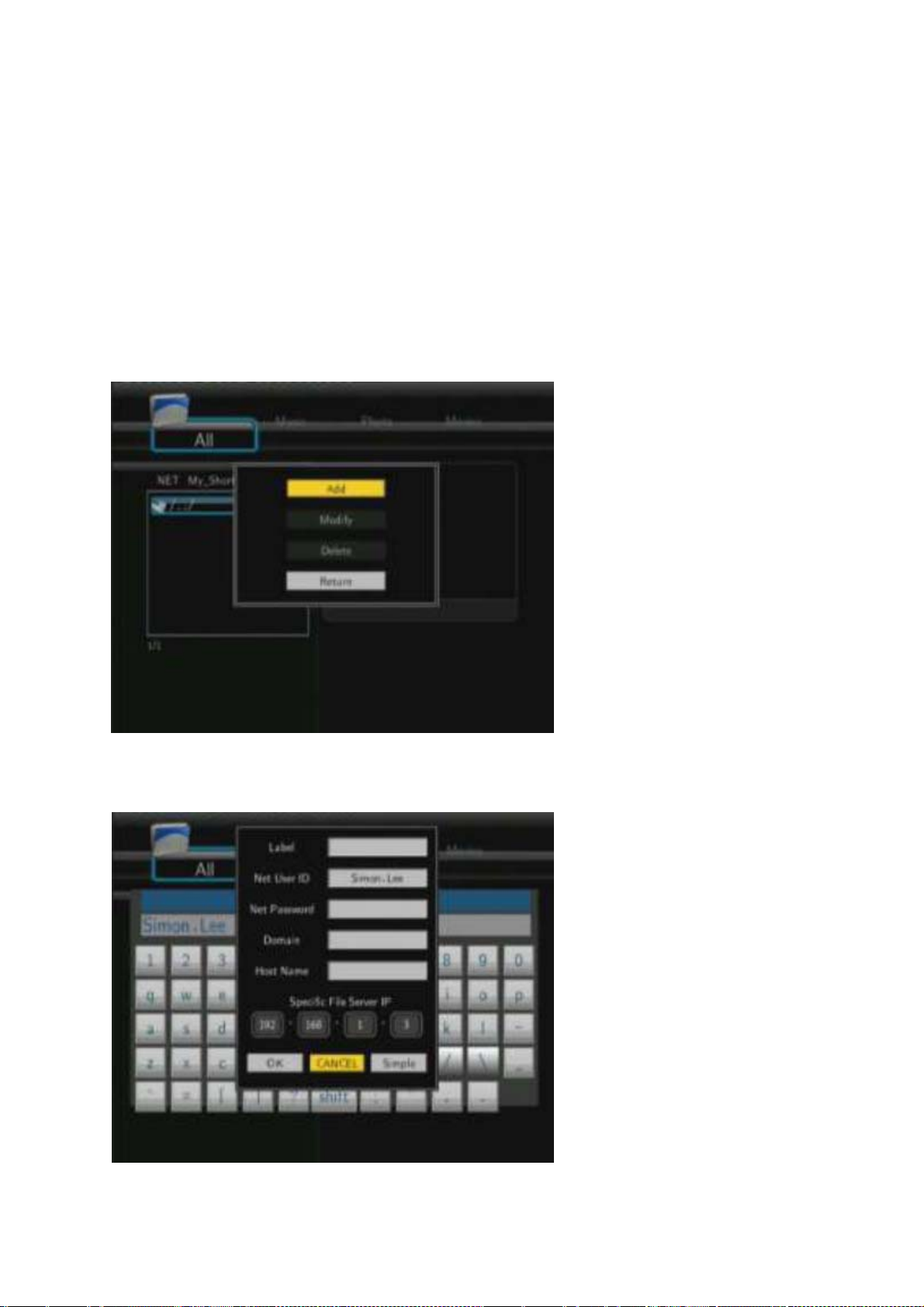

 File sharing via Samba server

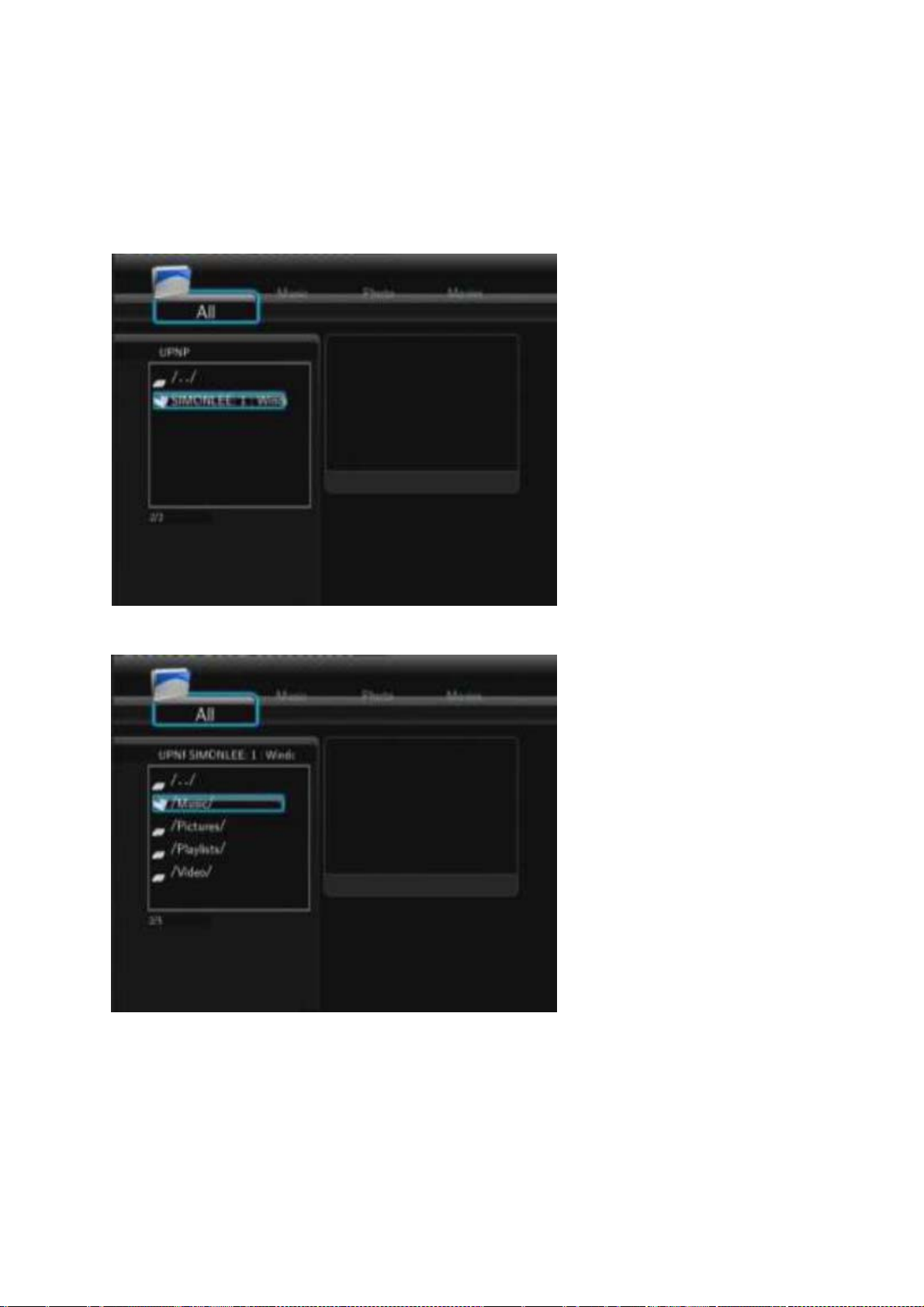

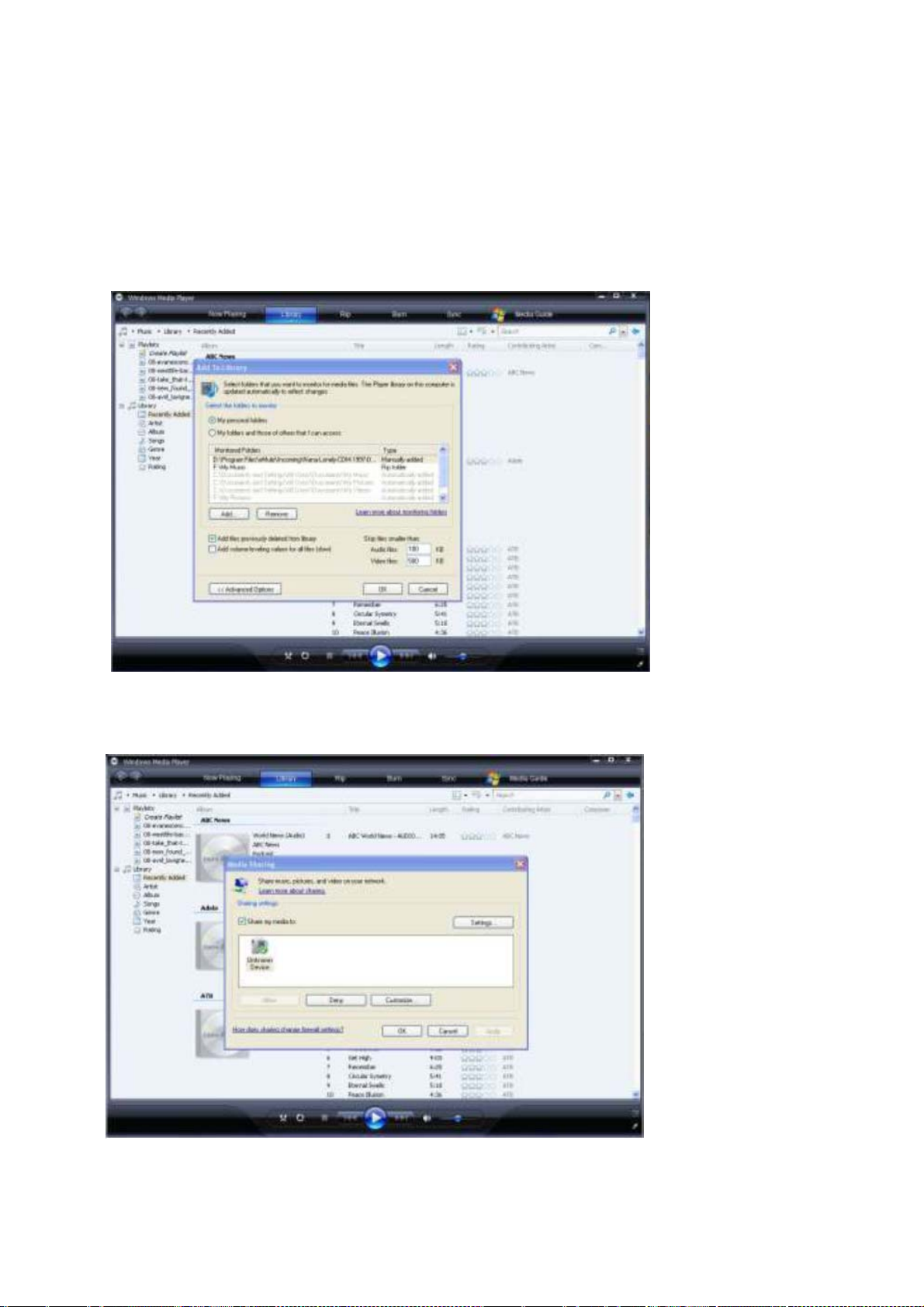

 A/V streaming via UPnP Media Server

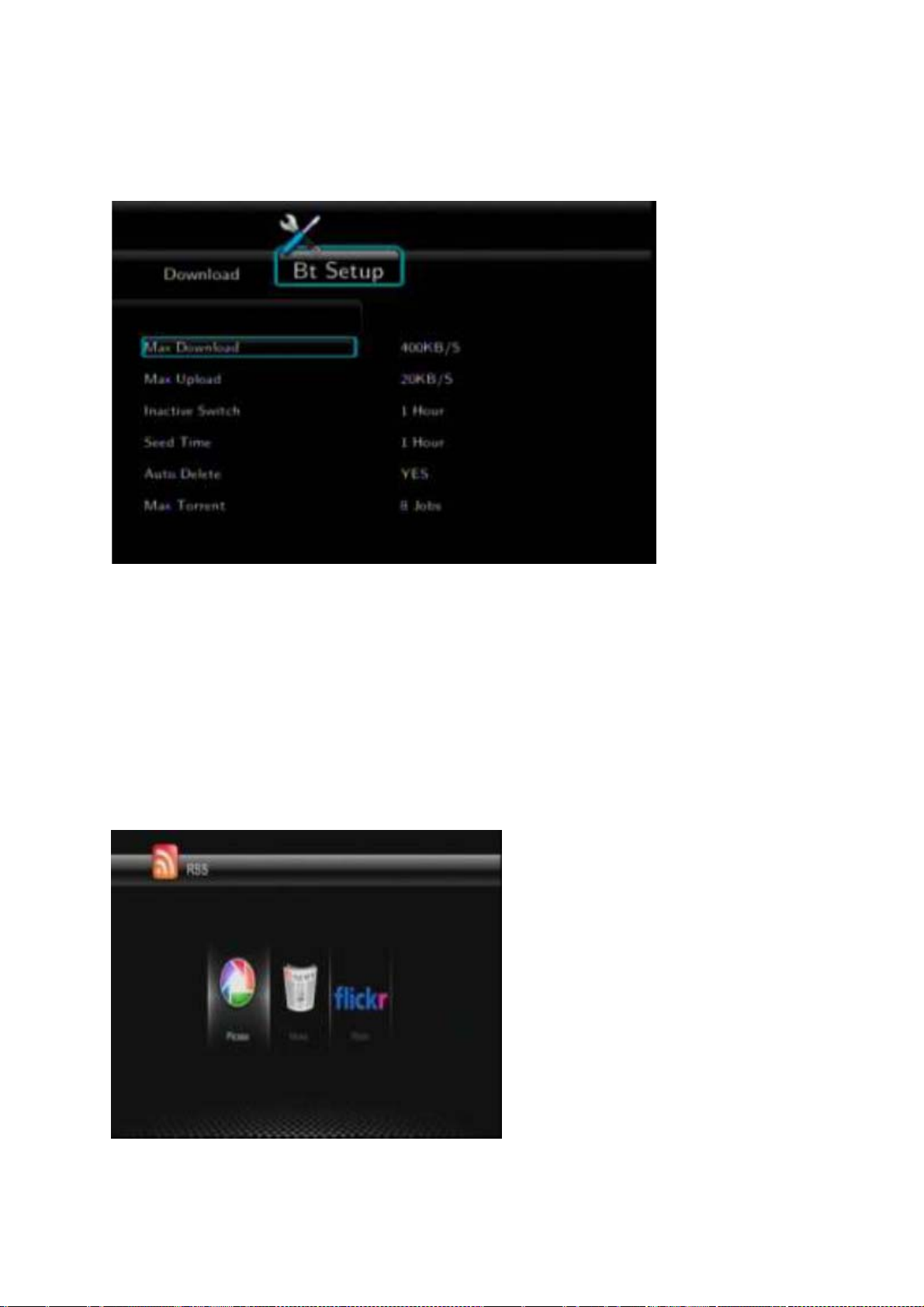

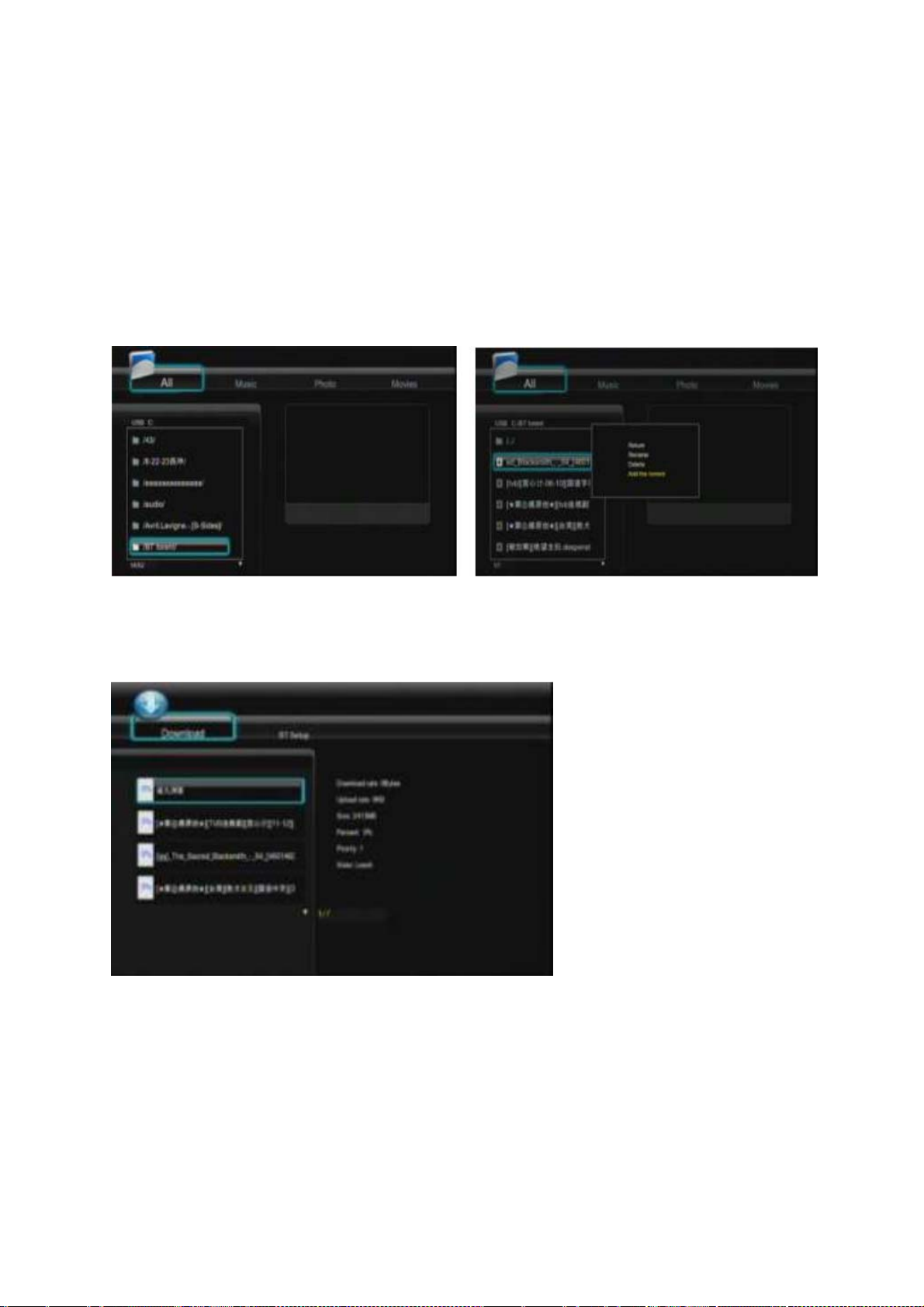

 BitTorrent download (controlled and managed via web server)
 Digital Radio (SHOUTcast) 3 / 63

File Copy

Supports copying & moving files among Card, USB, HDD, and Network・・

USB 2.0 Support

 USB DEVICE port (for computer connection)
 USB HOST port x 2 (for USB storage devices)

Note: All the information contained in this manual was correct at the time of publication. However, as
our engineers are always updating and improving the product, your device‟s software may have a slightly
different appearance or modified functionality than presented in this manual.

Cautions

This player‟s design and manufacture has your safety in mind. In order to safely and effectively use this
player, please read the following before usage.

Usage Cautions

User should not modify this player. If commercial hard disk is being used, the environmental temperature
should be within +5 ℃ ~ +35℃.

Power

The player‟s power voltage: DC 12V. When using this player, please connect the supplied AC adapter or
AC adapter cable to the player‟s power jack. When placing the adapter cable, make sure it can not get
damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before
cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter
or cable‟s wire or connector.

Radio Interference

If not properly shielded, almost all electronic devices will get radio interference. Under some conditions,
your player might get interference. The design of this player has followed the FCC/CE standard, and has
followed the following rules:

(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may cause
undesired operation.

Repair

If the player has a problem, you should take it to an appointed repair center and let the specialists do the
repair, never repair the player yourself, you might damage the player or endanger yourself or your data.

Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate
disposal of electrical device, please consult with your local authority.

Hard Disk Cautions

The player uses an internal hard disk for data storage, in normal case, format or repair is not required.
You should carefully read the < Frequently Asked Questions > chapter, and check our website for latest
information before formatting the hard disk.

 Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix theproblem.
 All data stored in the player may be lost due to physical impact, electrical shock, power lost, HDD

format etc. Please backup your data.

 It is suggested to do defragment after a long period of usage.
 Regularly backup the data in the hard disk so that it can be recovered in the event of data

corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.

Others

When using this player, please do not let the player come into contact with water or other liquid, if water
is accidentally spilled on the player, please use a dry cloth to absorb the spillage.
Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not
press the buttons too hard.

 Do not let the player come into contact with water or other liquid.
 Do not disassemble the player, repair the player or change the design of the player, any damage

done will not be included in the repair policy.

 Do not press the buttons of the player too hard.
 Avoid hitting the player with hard object, avoid shaking the player, and stay away from magnetic

fields.

 During electrostatic discharge and the strong electromagnetic field, the product will malfunction,

then unplug the power cable and the product will return to normal performance next time it is
powered on.

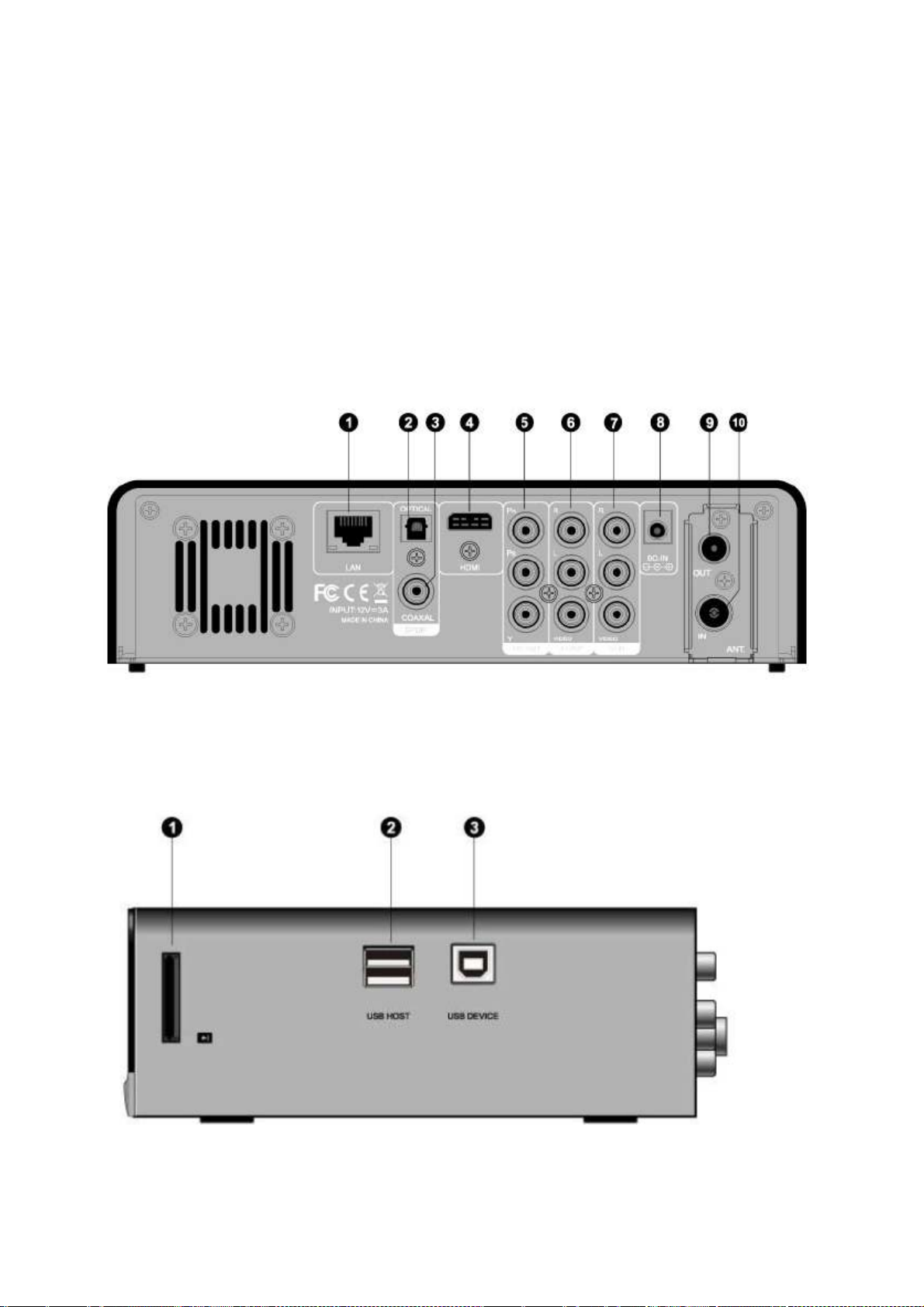

Connection

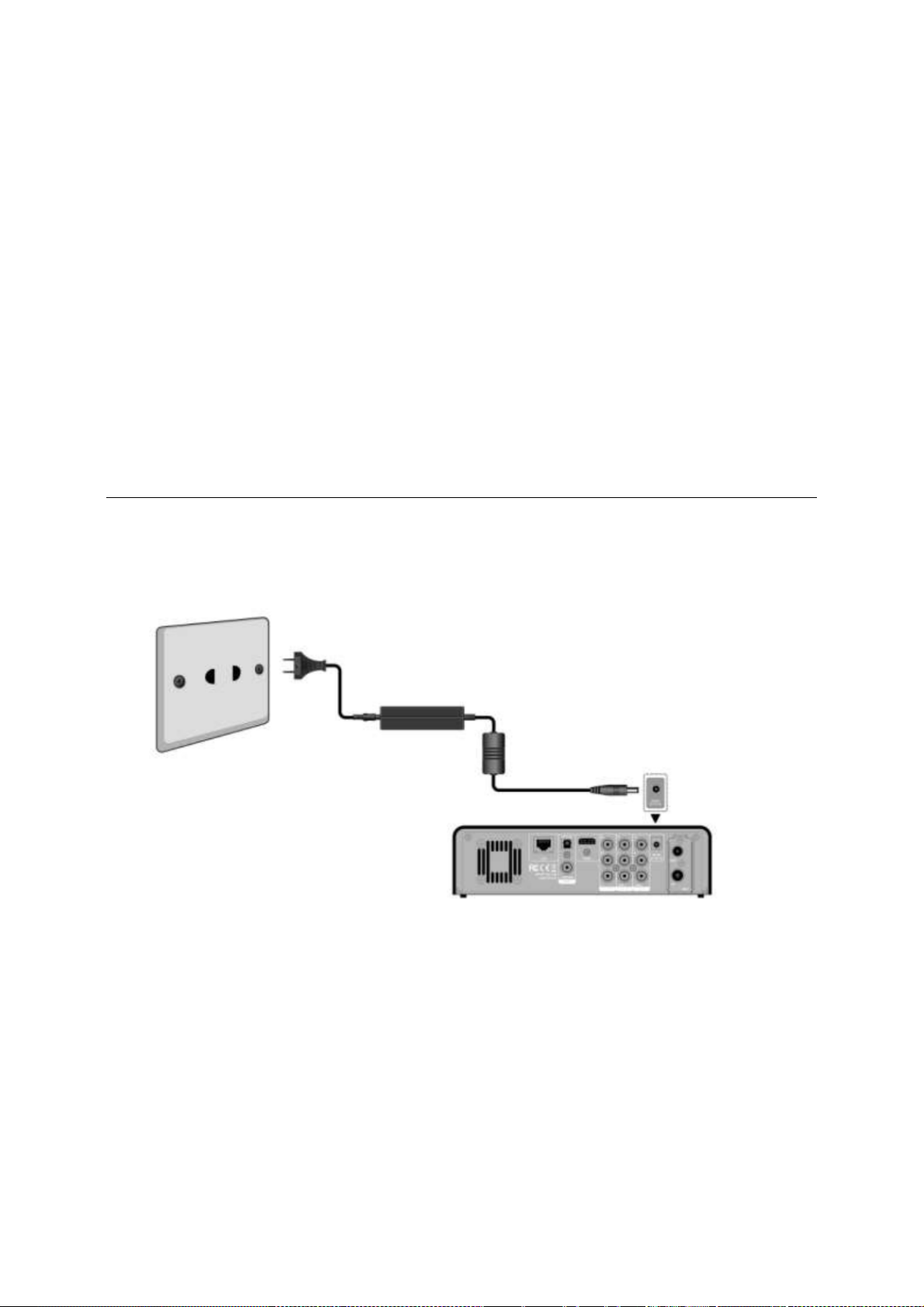

Connecting the Power Supply

 Follow the picture and connect the AC adaptor to the player‟s DC IN jack;
 Follow the picture and plug in the AC adaptor to the power outlet.

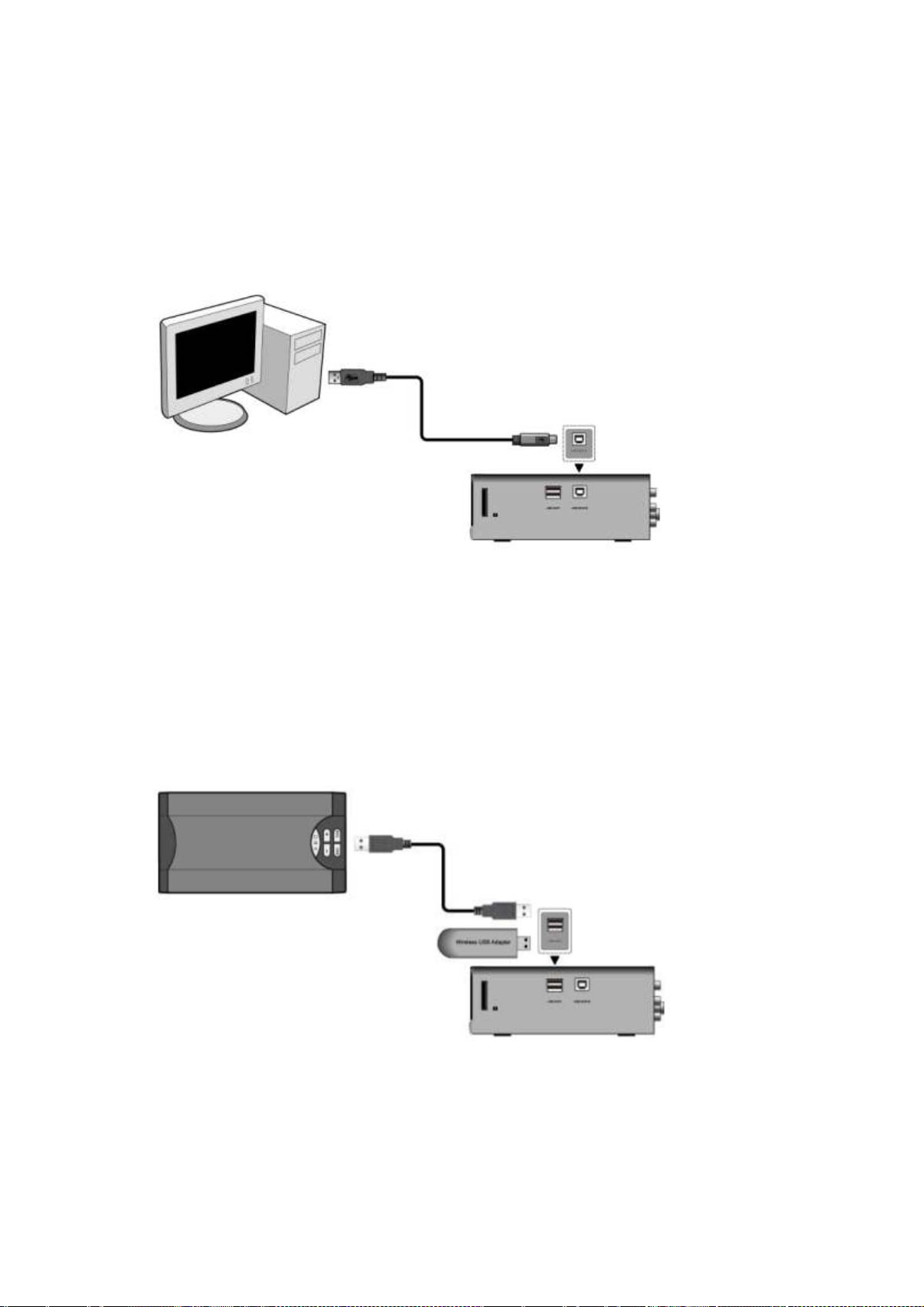

Connecting to a PC

 Make sure the player is powered on;
 Plug in the squarish connector of the USB cable to this player‟s USB DEVICE port;
 Plug in the rectangular connector of the USB cable to computer.

In this way, you can manage content on the built-in HDD of the player on your local PC.

Connecting a USB Device

 Make sure the player is powered on;
 Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.

In this way, you can browse contents on the USB device.

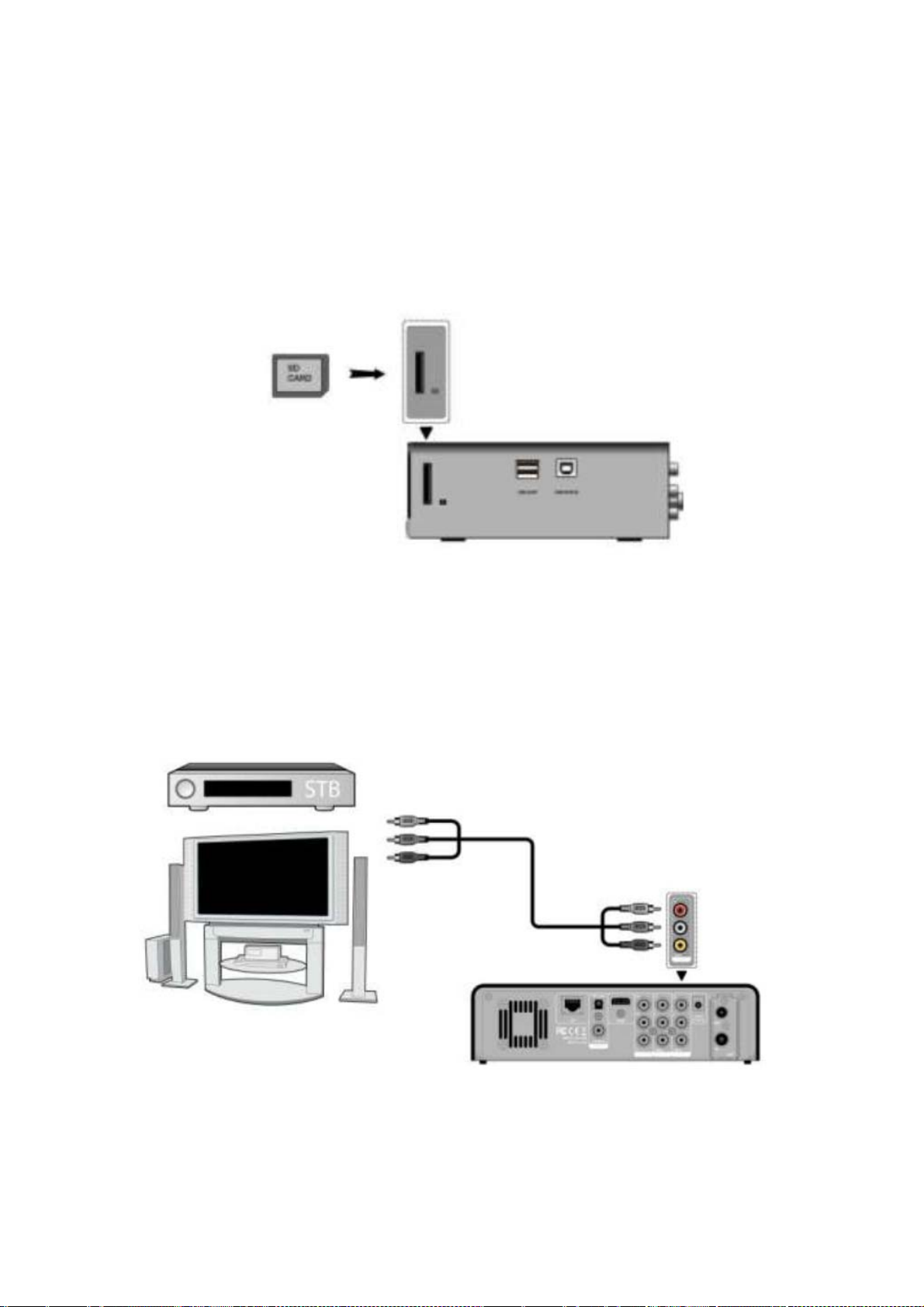

Connecting a Memory Card

Memory card can be used by inserting to the card slot

 Follow the picture to insert the memory card to the card slot properly;
 Insert the card by following the arrow pointer in the picture.

In this way, you can browse contents on the memory card.

Connecting to a TV

A/V IN

 Follow the picture and plug in the 3 color connector to the player‟s A/V IN jack;
 Follow the picture and plug in the 3 color connector to the A/V OUT jack of the TV/IPTV Set-Top

Box (STB).

In this way, you can record TV programs from the TV/IPTV Set-Top Box.

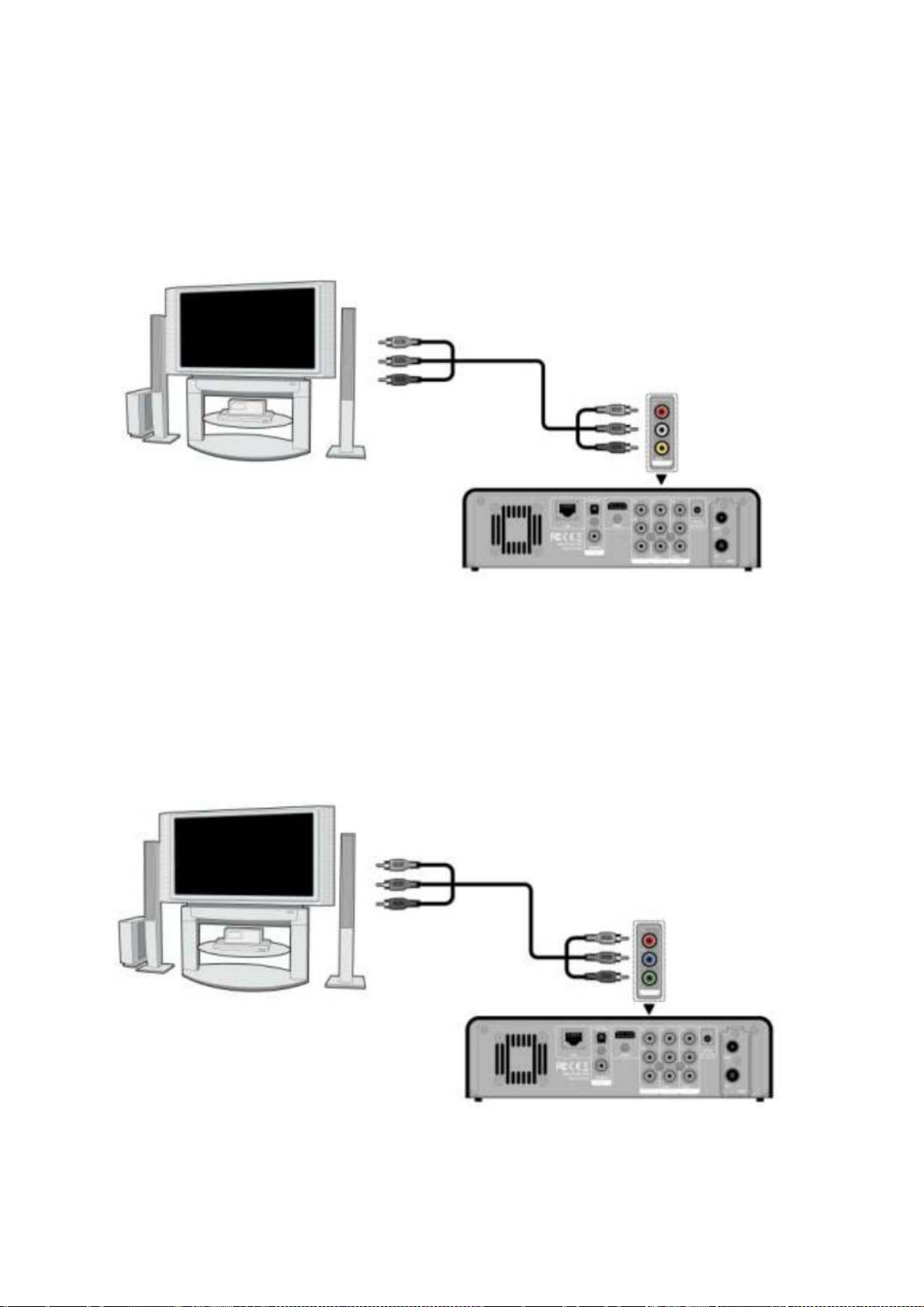

A/V OUT

 Follow the picture and plug in the 3 color connector to the player‟s A/V OUT jack;
 Follow the picture and plug in the 3 color connector to the TV‟s A/V IN jack.

In this way, you can enjoy the content in the player on TV or other display devices.

Y/Pb/Pr Component OUT

 Follow the picture and plug in the 3 color connector to the player‟s Y/Pb/Pr jack;
 Follow the picture and plug in the 3 color connector to the TV‟s Y/Pb/Pr jack.

Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;
Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

In this way, you can also enjoy videos, music, and photos in the player on TV.

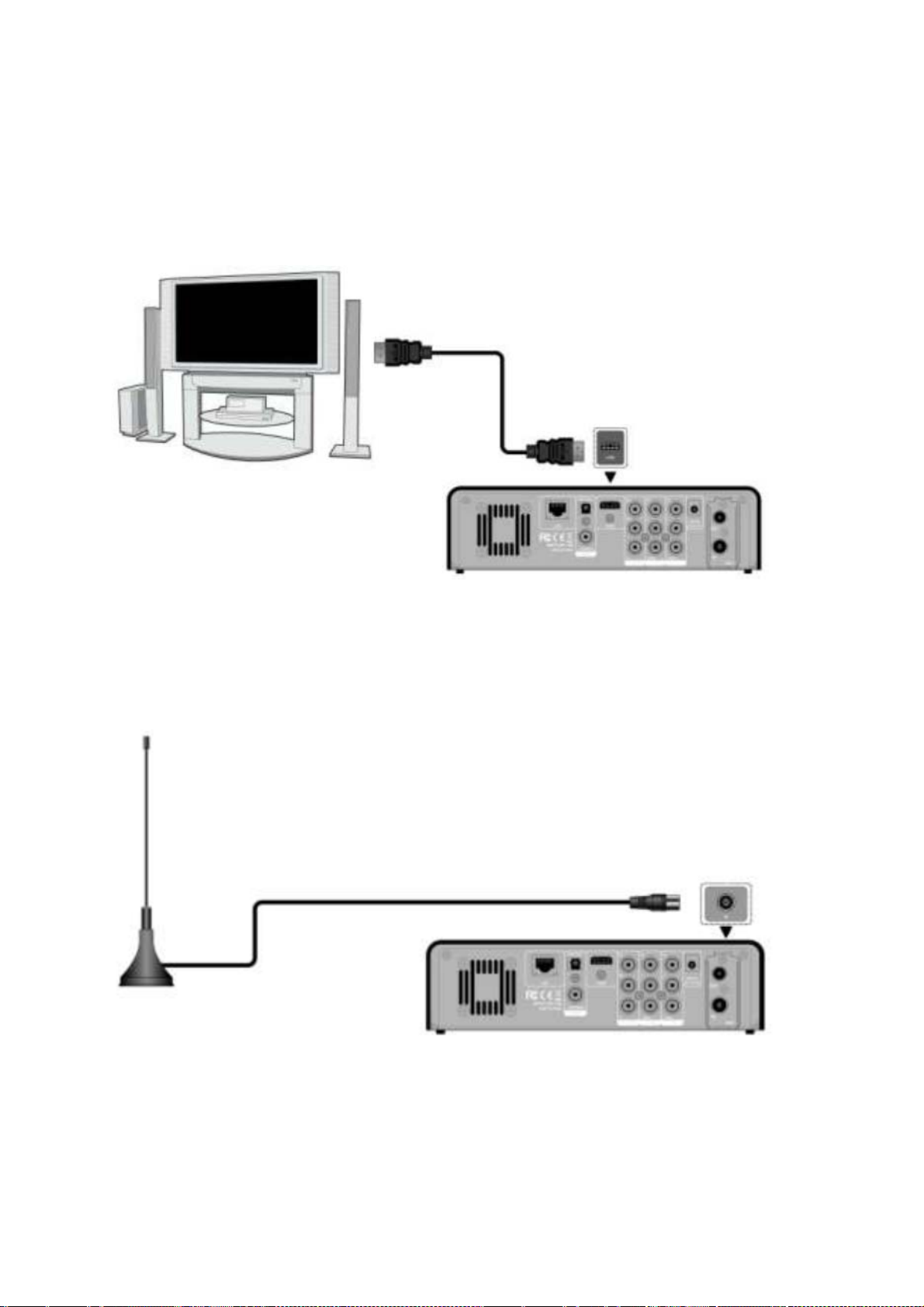

HDMI OUT

 Follow the picture and plug one connector on your HDMI cable to the player‟s HDMI jack;
 Follow the picture and plug the other connector on your HDMI cable to the TV‟s HDMI jack.

Note: The HDMI cable is an optional accessory sold separately.

In this way, you can have the highest quality video and audio via a single cable.

ANT. / RF IN

Follow the picture and plug a TV Aerial to the ANT. / RF IN socket;

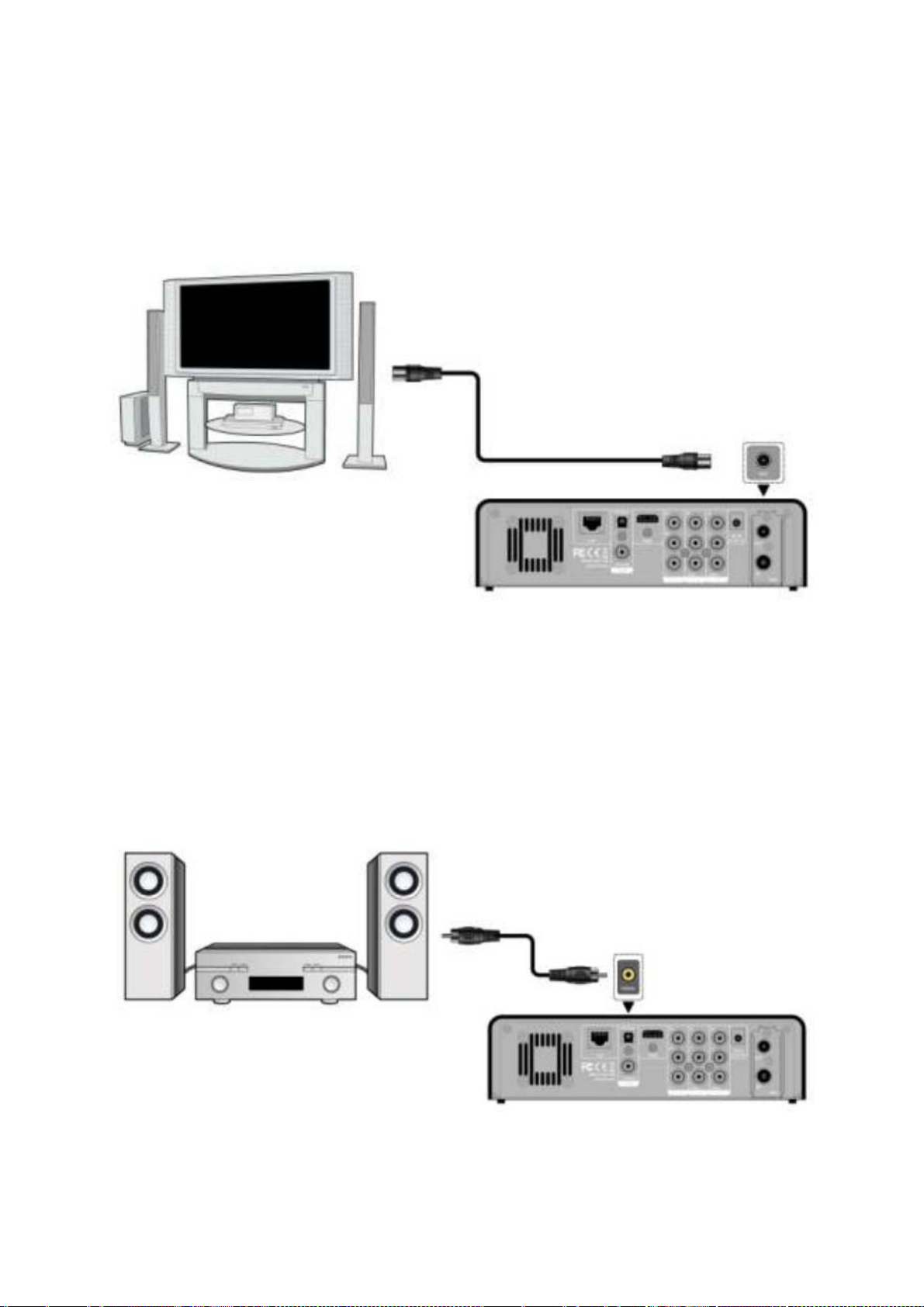

ANT. / RF OUT

 Make sure the player is connecting to power supply;
 Make sure a TV Aerial is connecting to the ANT. / RF IN socket;
 Follow the picture and plug a TV cable to the ANT. / RF OUT socket then plug the cable to a TV

or other TV receiver.

The player can loop out the DVB-T signal to other TV receiver device. In this way, you can watch the TV
programs with another TV receiver while recording.

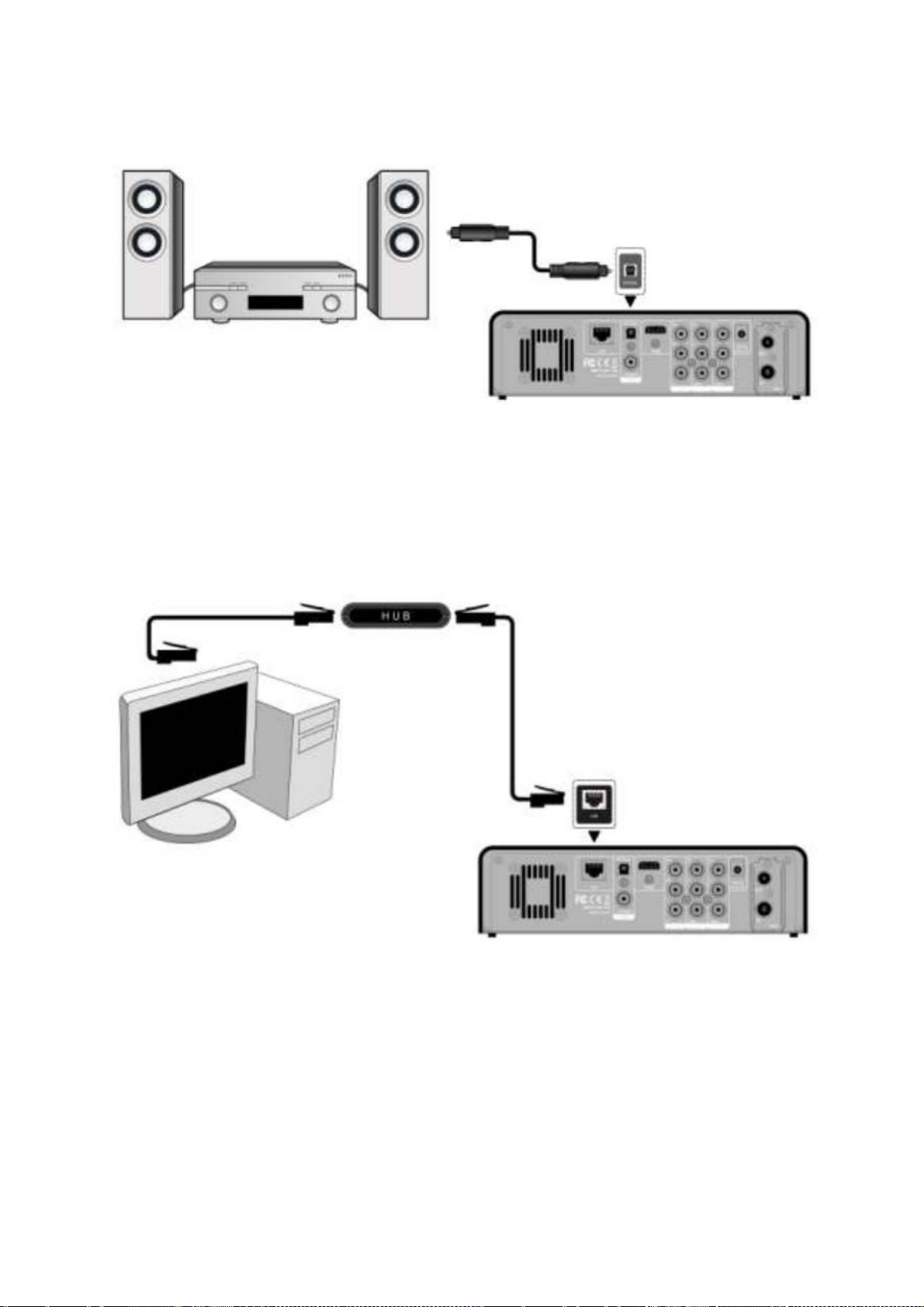

Connecting to an Digital Amplifier

 Follow the picture and plug in the RCA connector on your coaxial cable to the player‟s S/PDIF

Coaxial jack. Or if you use optical fiber, please plug in the Toslink connector on your optical fiber
to the player‟s S/PDIF Optical jack;

 Follow the picture and plug in the other connector on your coaxial cable or optical fiber to the

digital audio device (digital amplifier or decoder).

Note: Optical fiber and coaxial cable are not supplied.

In this way, you can enjoy powerful Dolby Digital, DTS, or MPEG sound. (Please refer “

Settings‟

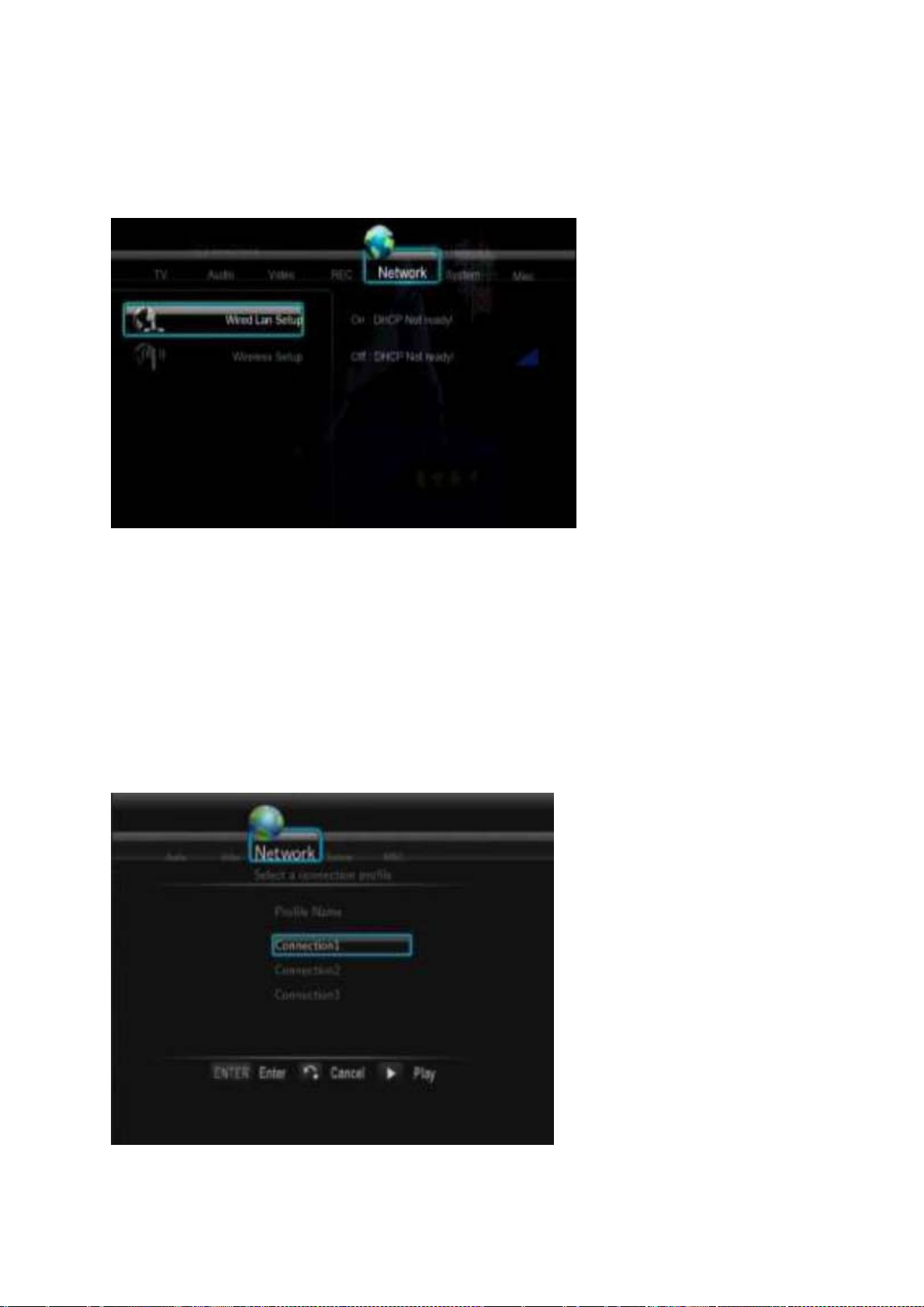

Connecting to a LAN

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied).

for configuration)

 Connect one of the crystal plugs on the cable to the player‟s RJ45 LAN socket;
 Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or hub

devices.

Changing Audio

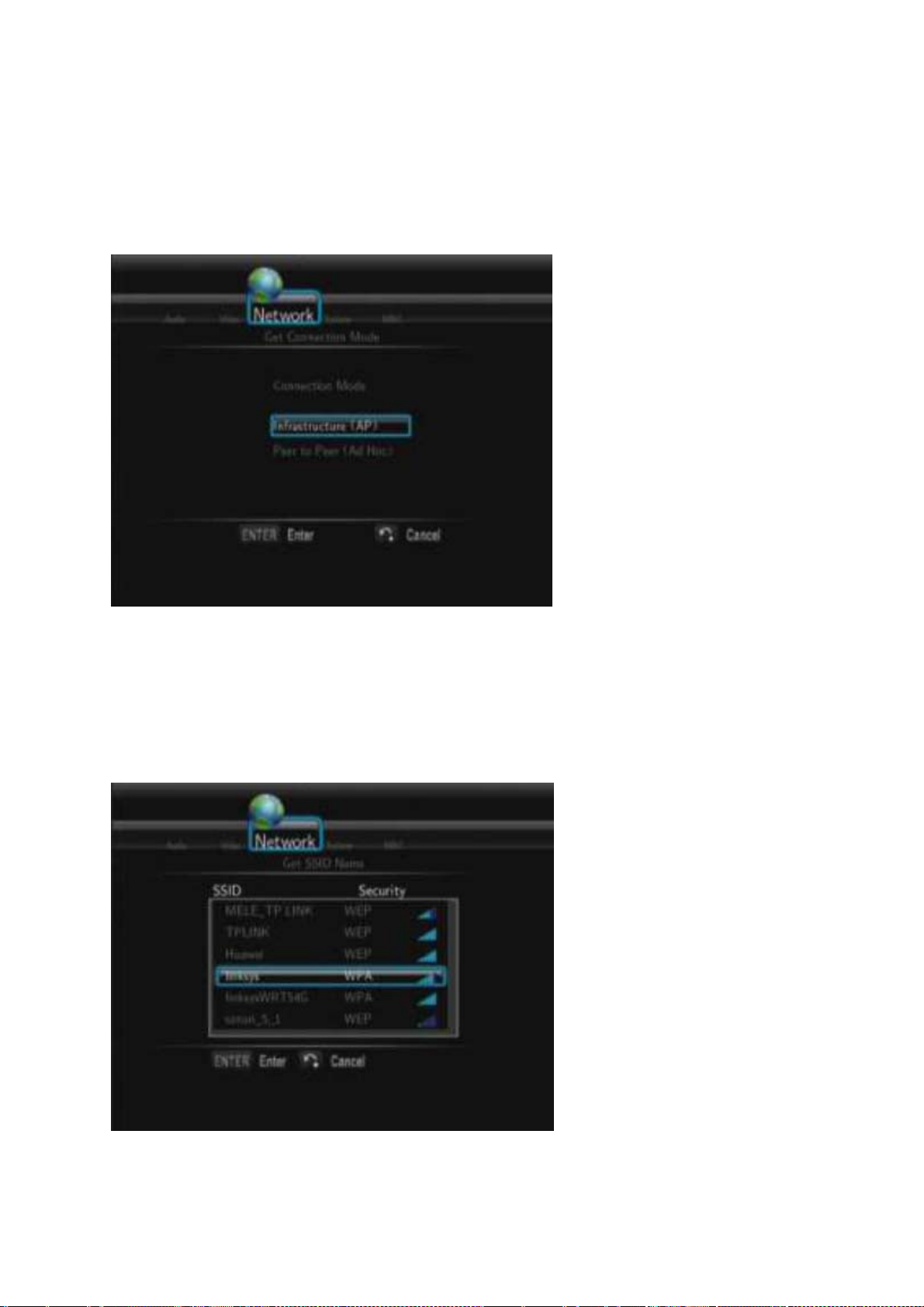

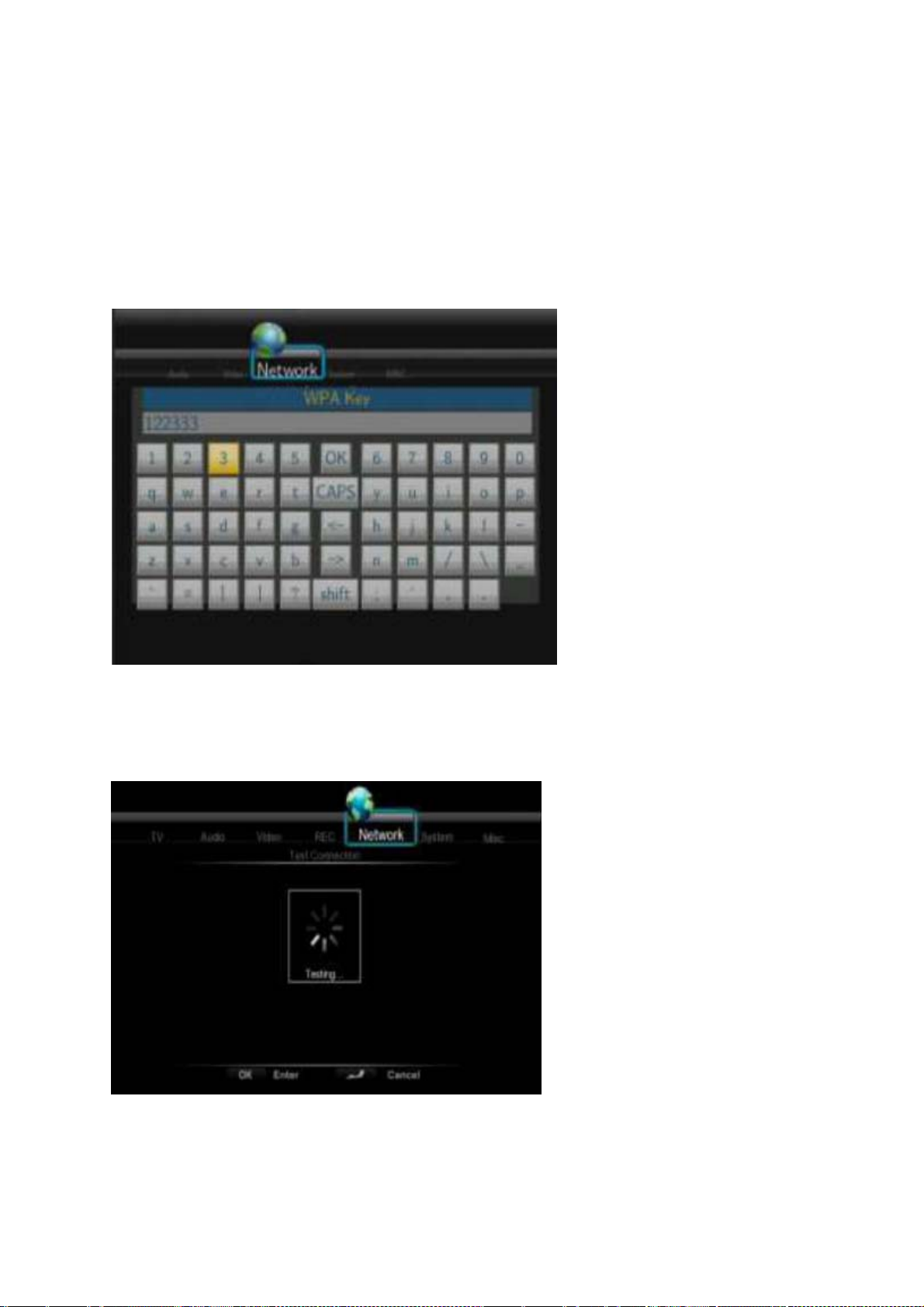

Connecting to a WLAN

 Make sure the player is powered on;
 Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player.

Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to “

Settings‟

for more details about wireless setup)

Changing Network

Power On / Off

Power On

After connecting the DC IN jack and press the power button on the front panel, the player will soon enter
the home screen, and the power indicator will turn blue.

Power Off

Press the power button on the front panel, the player will soon enter standby mode, and the power
indicator will turn red. Then unplug the power cord to cut off the power supply.

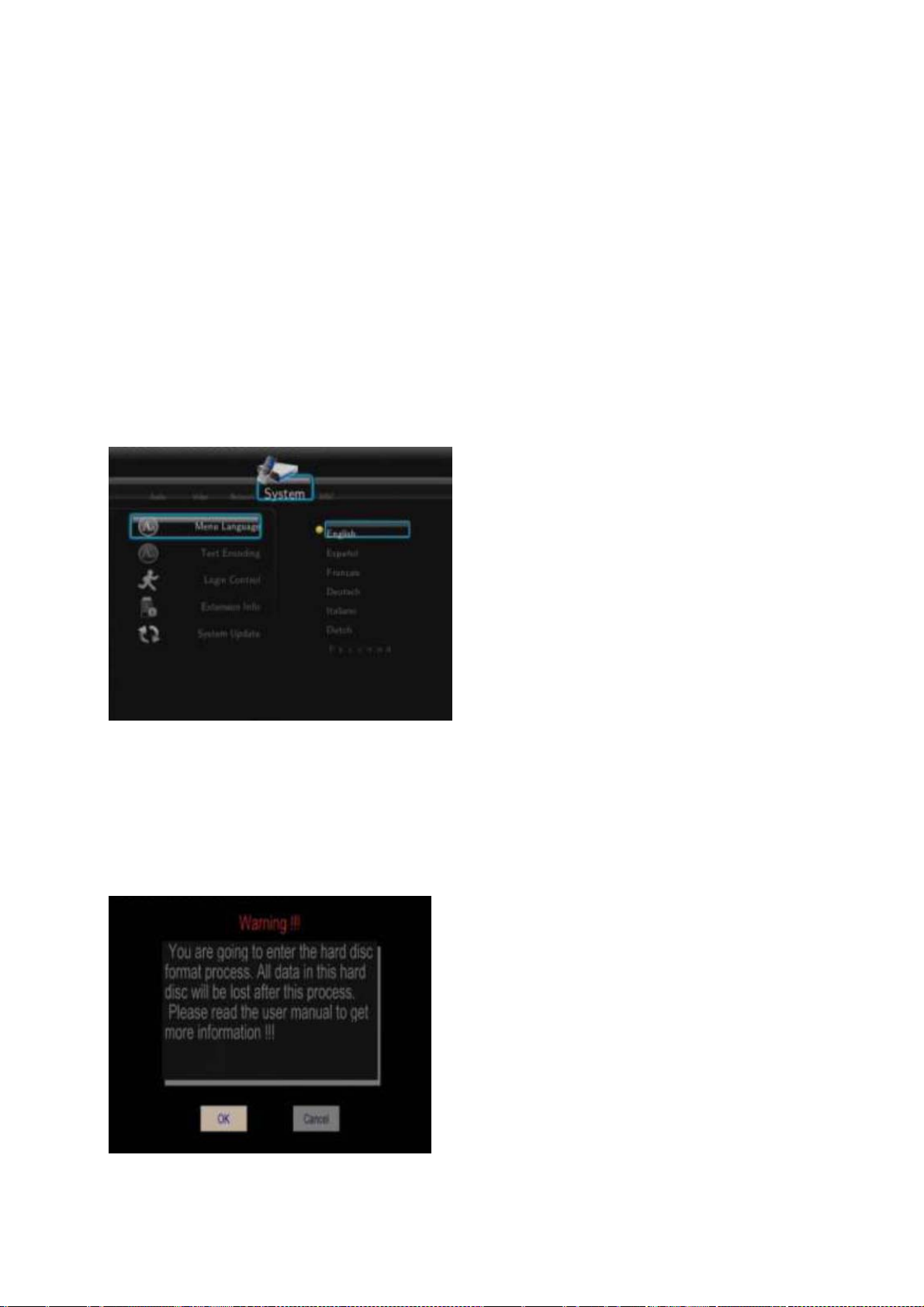

Menu Language

The system language of this player can be set to English or other languages. Change the language you
wish in the setup menu, the selected language will take effect immediately.

HDD Format

For users who wish to install a new SATA HDD into the player, please refer to the following procedures to
format the hard disk on the player before usage.

Step 1: Select OK on the Warning page, press ENTER to confirm.

Note: This page can be also accessed via Setup->System->HDD Format menu.

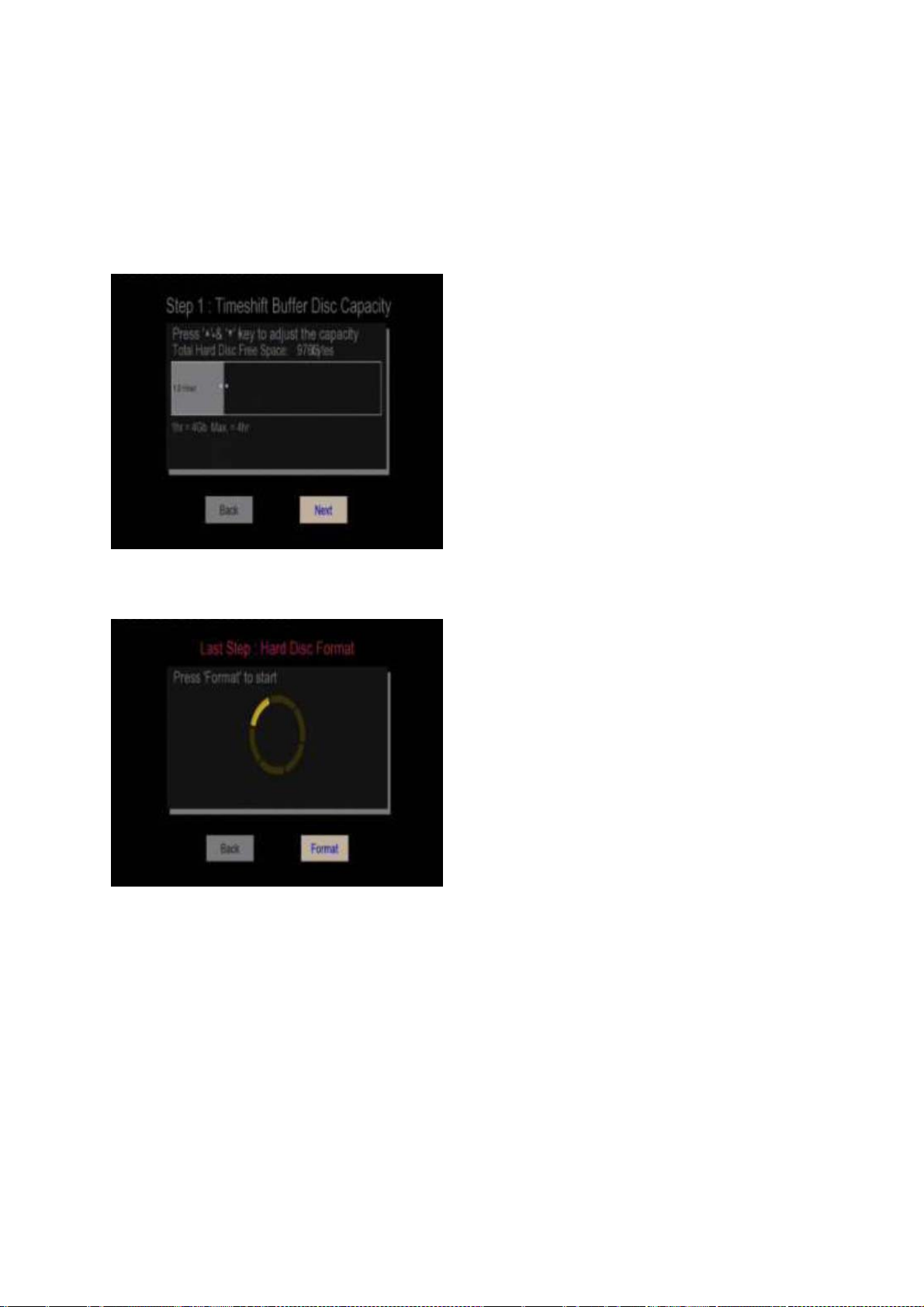

Step 2: Press the up / down button to adjust the capacity of time shift buffer.

Press the left / right button to select Next, and the enter button to confirm.

Step 3: Select Format, press ENTER, and then hard disk format will start.

The formatting procedure will be finished within a few minutes. And then you can use the hard disk
properly on the player.
Note: HDD format will remove all data stored on the hard disk drive. Please take care and backup your
data in advance!

About the Player

k

Remote Control

All procedures in this manual can be carried out using the remote control buttons.
See the following for details on each button and its function:

No. Button Function

1 STANDBY Press to enter standby mode or wake up
2 TV SYSTEM SYSTEM Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I,

and 1080P
3 BROWSER Press to enter the browser menu
4 Numeric buttons Press to enter numeric input when changing settings
5 REPEAT Press to set repeat option: One, All, (and Shuffle)
6 FR Press to fast rewind the current playback. Press repeatedly to select

speeds
7 FF Press to fast forward the current playback. Press repeatedly to select

speeds
8 PLAY/PAUSE Press to begin/pause the playbac
9 HOME Press to enter the home screen

10 Navigational buttons Press the arrow buttons to select menu options, and the ENTER button to

confirm

11 MENU Press to activate tools menus:

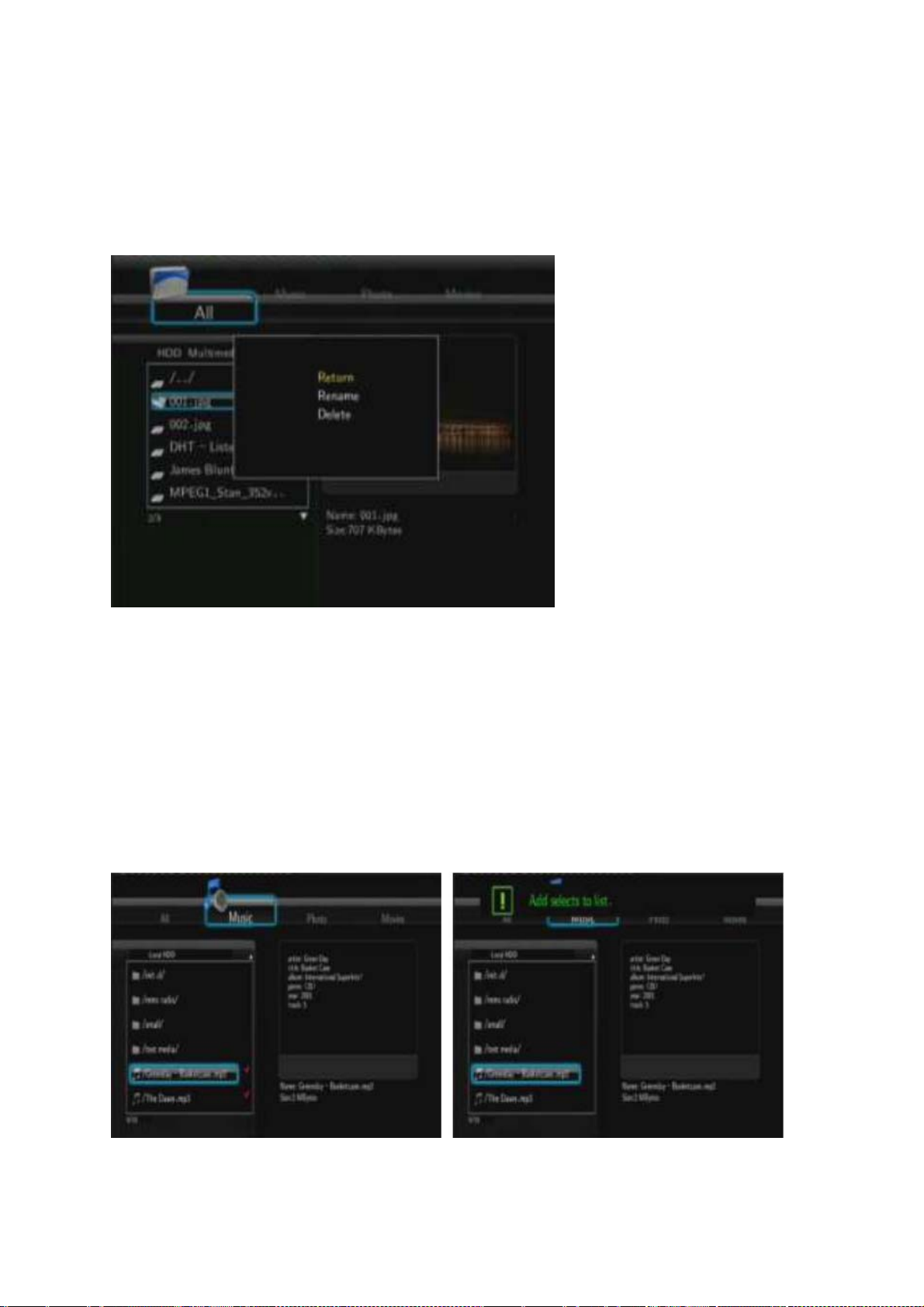

--Press to rename and delete files in the browser menu.

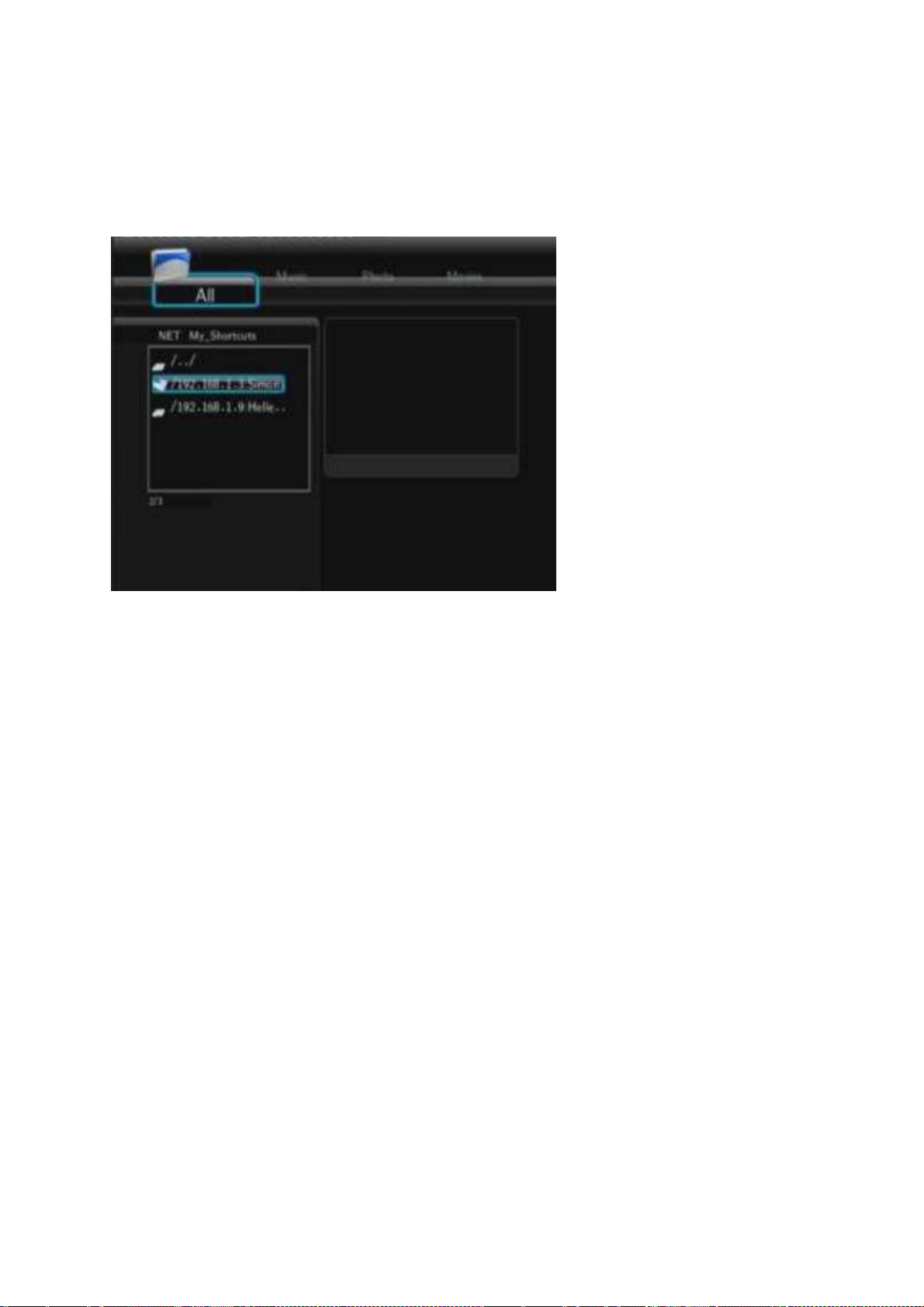

--Press to add shortcuts for network access in My_Shortcuts in NET of the

browser menu.

12 TIME SHIFT Press to activate the time shift function. Time shift function

allows you to pause live TV and resume the program from the

k

point you left it. While paused, the program is recorded to the

internal HDD as long as the space is available.

Time shift mode remains active until you press the stop button

13 SLOW Press to play back in slow motion. Press the PLAY button to

resume regular playback

14 ZOOM Press to zoom the image (photo or video)
15 AUDIO Press to select an audio track
16 Red Press to select the files in browser menu
17 EPG(Green) Press to enter the Electronic Program Guide which displays an on-screen

list of programs for the coming week when watching Digital Terrestrial TV.

Press to add the selected files to the playlist under browser menu.

18 MUTE Press to mute audio output, and press again to resume
19 REC Press to begin recording.

Press repeatedly to set one touch recording (OTR) length (30MIN. /60MIN.

/ 90 MIN. / 120 MIN. / 180 MIN. / 240 MIN. / Off)

20 COPY Press to enter the file copy menu
21 MUSIC Press to start playing music in the music playlist

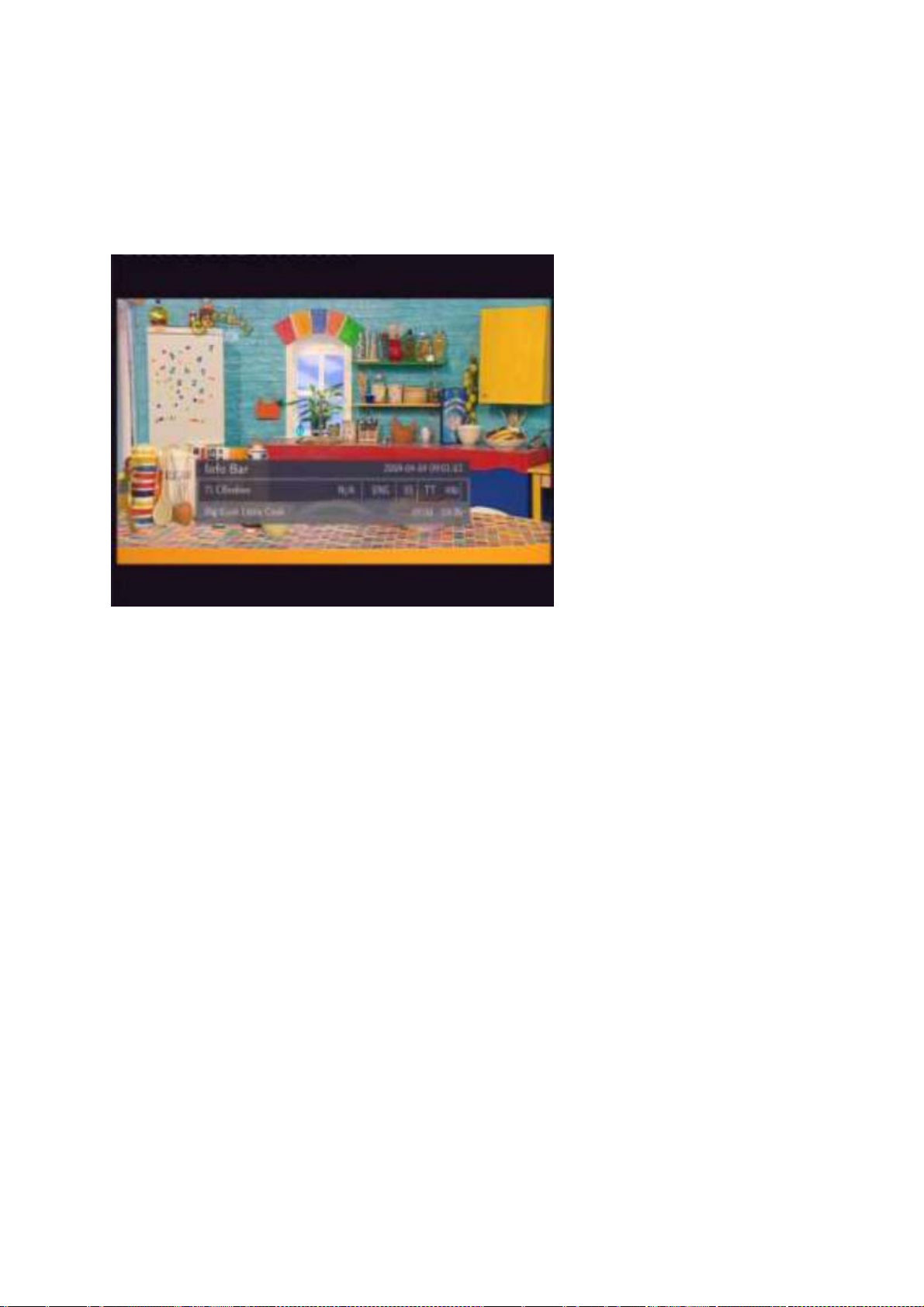

22 INFO Press to hide or display the information bar during playback
23 VOL-/VOL+ Press to decrease/increase the volume
24 PREV Press to view the previous file / page up
25 STOP Press to stop playback
26 NEXT Press to view the next file / page down
27 RETURN Press to return to the previous screen while navigating menus
28 ENTER Press to select options in menus
29 SETUP Press to enter the setup menu
30 A-B Press to set the beginning and end points of a section to repeat
31 GOTO Press to jump to a specific point on a title. Specify the point using Title,

Chapter and Time

32 SUBTITLE Press to set subtitle options
33 ANGLE Press to change the view angle during DVD (with multi-angle) playbac
34 Blue Press to activate sort function in channel set in TV setup menu
35 TTX(Yellow) Press to open Teletext OSD if it is available in the broadcasted stream of

Digital Terrestrial TV

Front Panel

1. Recording indicator 2. Power button & indicator 3. Infrared receiver window

Rear Panel

1. Air Flow hole RJ45 LAN socket

2. S/PDIF COAXIAL jack

3. S/PDIF OPTICAL jack

4. HDMI jack

5. Y/Pb/Pr OUT jack

6. A/V OUT jack

7. A/V DC IN jack

8. DC IN jack

9. ANT. / RF OUT socket

10. ANT. / RF IN socket

Side Panel

1. Memory Card slot

2. USB HOST port (A-Type) x 2

3. USB DEVICE port (B-Type)

Setup Menu

The Setup menu allows you to personalize and configure the preferences for your player.
To select a Setup option:

- Select the Setup icon on the home screen, or press the SETUP button on the remote control.

- Use the LEFT/RIGHT navigational buttons to select an option, and then press ENTER.

There are seven Setup options, including DTV, Audio, Video, REC, Network, System, and MISC. Use
the UP/DOWN navigational buttons to select a menu. Press ENTER to confirm. Press RETURN to
cancel and display the previous menu screen.

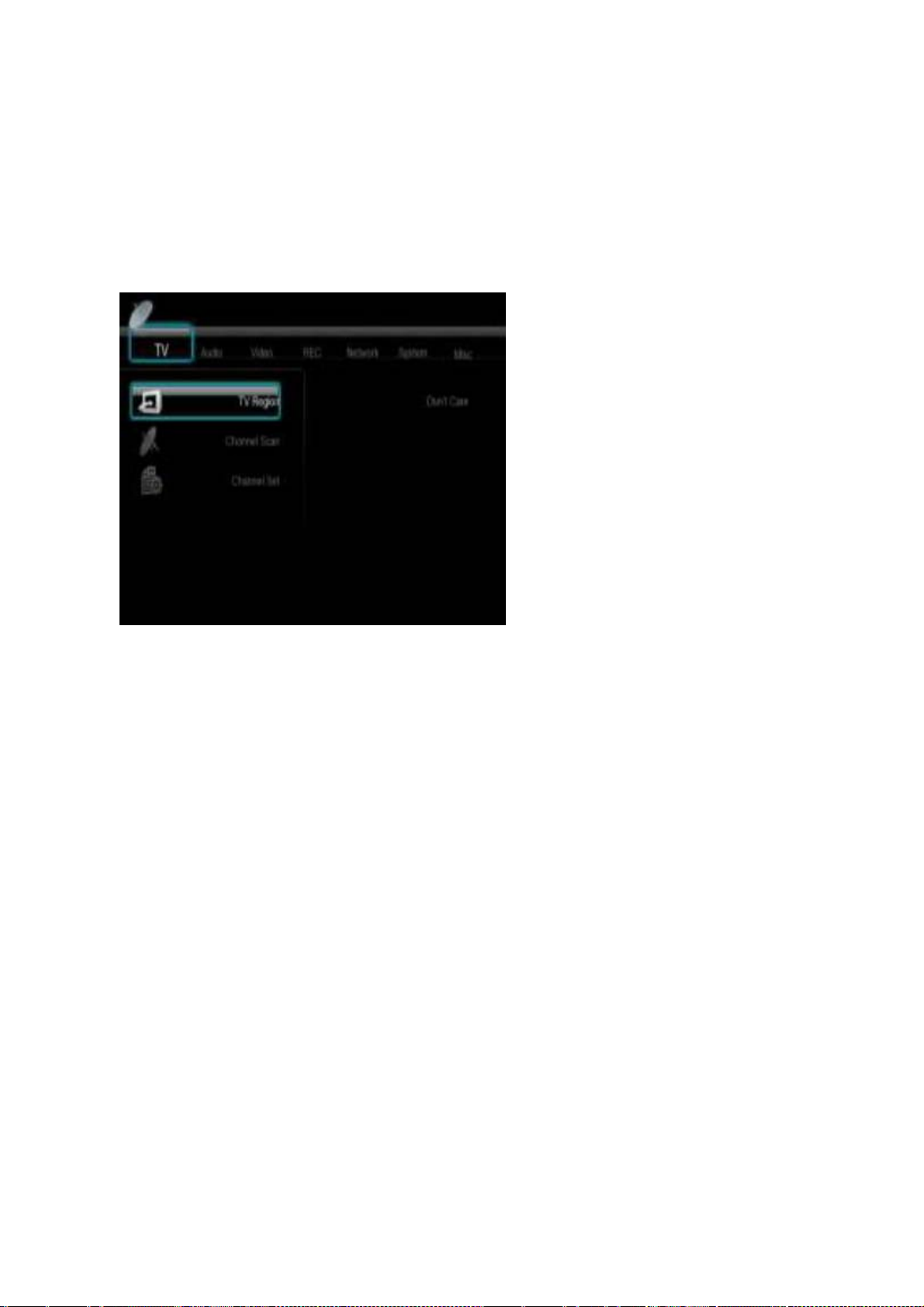

Changing TV Settings

Press the left / right button on the remote control to select the DTV tab from the menu bar.

TV Region

- Select to set the region for Digital Terrestrial TV

Channel Scan

- Select to scan for available Digital Terrestrial TV channels

AUTO SCAN

In AUTO SCAN mode, the system will automatically scan for available DVB-T TV channels.

MANUAL SCAN

In MANUAL SCAN mode, you can select the CH name, Bandwidth, and Input Frequency. Use
the navigational and numerical buttons on the remote control to select or input. Press the enter
button to confirm.

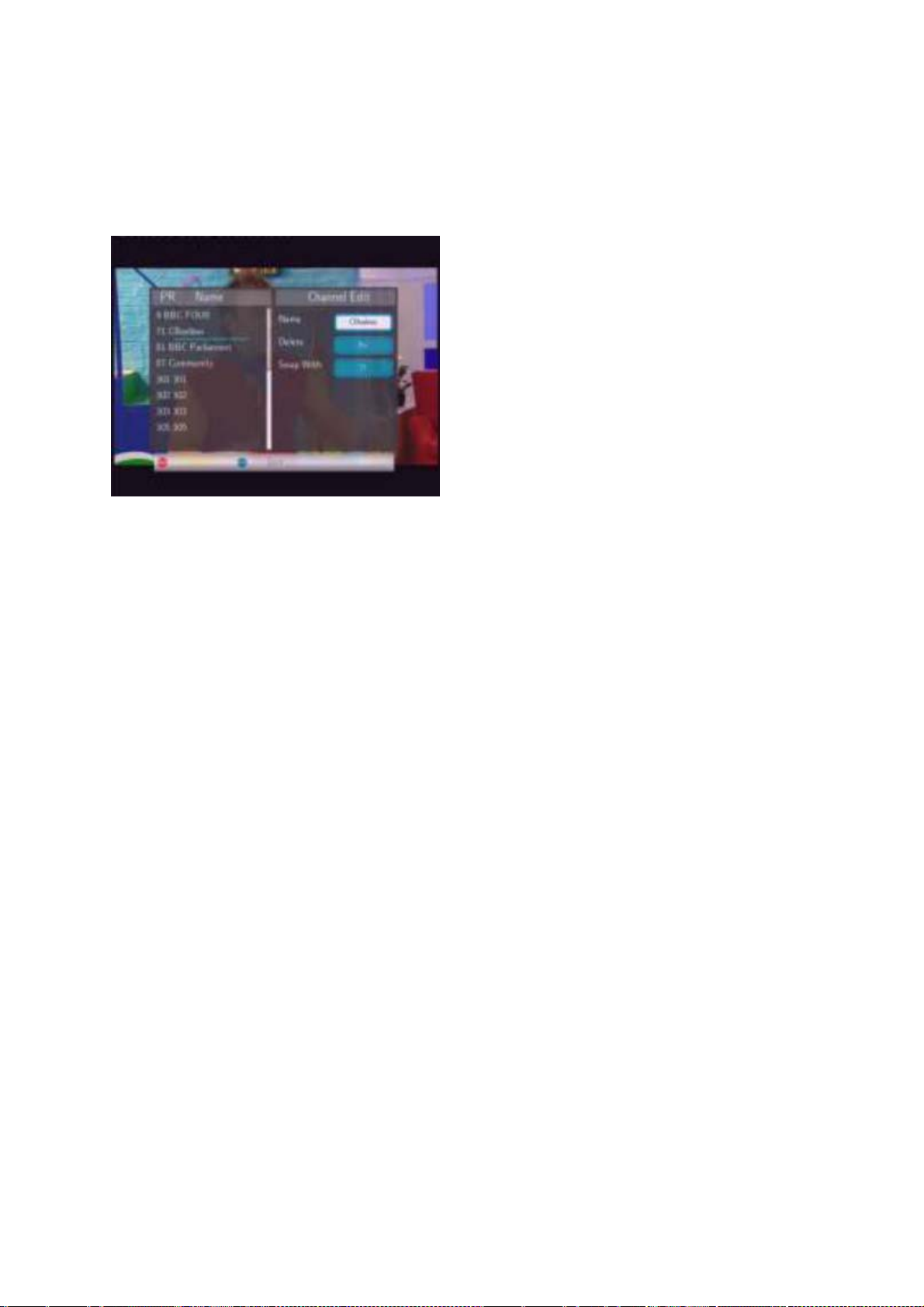

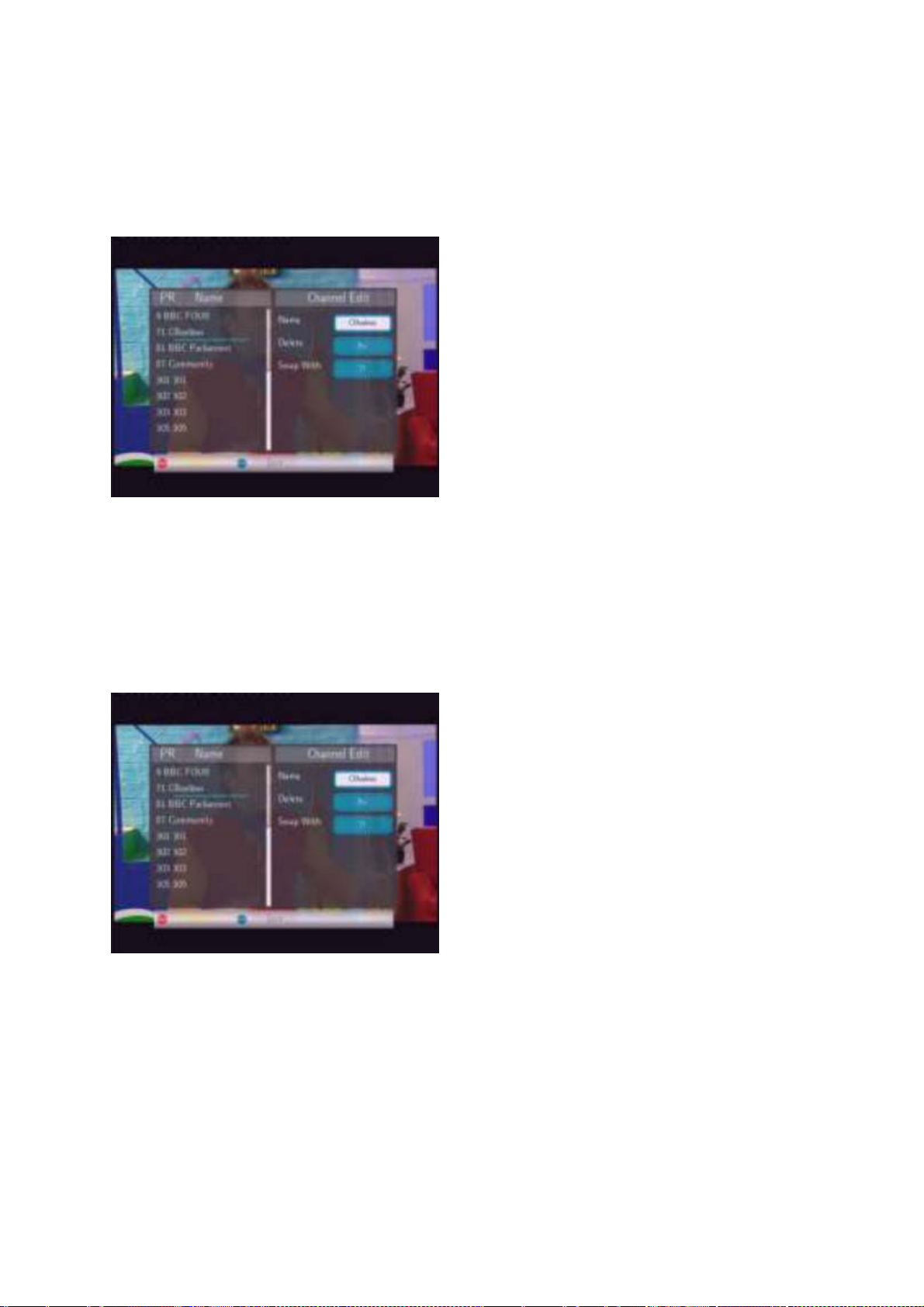

Channel Set

- Select to edit channel information.

In this menu, you can edit the Name, and sequence for the DVB-T TV channels. Use the navigational
buttons to select and modify the settings,and press the enter button to confirm.
You can also press the blue button to select Sort.

Changing Audio Settings

Use this menu to configure audio settings.

Night Mode

- Choose between Off / On / Comfort. If the option is turned on, the audio output volume will be
decreased to make you more comfortable.

Digital Output

- Choose between HDMI LPCM / HDMI RAW / SPDIF LPCM / SPDIF RAW. In raw mode,
Dolby Digital, DTS, or MPEG sound can be bypassed to the HDMI TV or Digital amplifier.

Changing Video Settings

Use this menu to configure video settings.

Aspect Ratio

- Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select
when a standard 4:3 TV is connected.

- Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3
screen. Select when a standard 4:3 TV is connected.

- 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected.

Brightness

- Adjust the level of brightness.

Contrast

- Adjust the level of contrast.

Hue

- Adjust the level of hue.

Saturation

- Adjust the level of saturation.

TV SYSTEM

- Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ /
1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ.

Changing Record Settings

Quality

- Select to set the default recording quality setting.

Press the up / down button to select the quality setting you require.The highest quality setting is HQ
which requires the most storage space. The other settings reduce recording quality sequentially but also
require less storage space.

Permanent Timeshift

- Select to set Time Shift mode.
Press the up / down button to select from On and Off. Press the enter button to confirm. If On, the
time shift will start automatically while in Video In mode.

REC Device

- Select to set device to restore the recorded files.
Press the up / down button to select from HDD and USB. Press the enter button to confirm.

Changing Network Settings

Use this menu to configure Ethernet and WLAN (Wireless Local Area Network) settings.

Wired LAN Setup

- DHCP IP (AUTO)
Select to obtain IP address automatically.

- FIX IP (MANUAL)
Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address.

Wireless Setup

- Selecting a connection profile

This player can store up to three wireless network connections. Press ENTER to go to next step, press
RETURN to cancel, and press PLAY to connect.

- Get Connection Mode

Choose between Infrastructure (AP) and Peer to Peer (Ad Hoc). Press ENTER to go to next step,
and press RETURN to cancel.

- Infrastructure (AP)
Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless
clients, to an existing wired network with the help from wireless router or access point.

Get SSID Name

Press ENTER to go to next step, press RETURN to cancel, and press SELECT to refresh the SSID list.
Note: In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) means the

network is encrypted, i.e. an encryption key is needed to access the network. NONE means it is an open
system network.

Input WEP / WPA Key

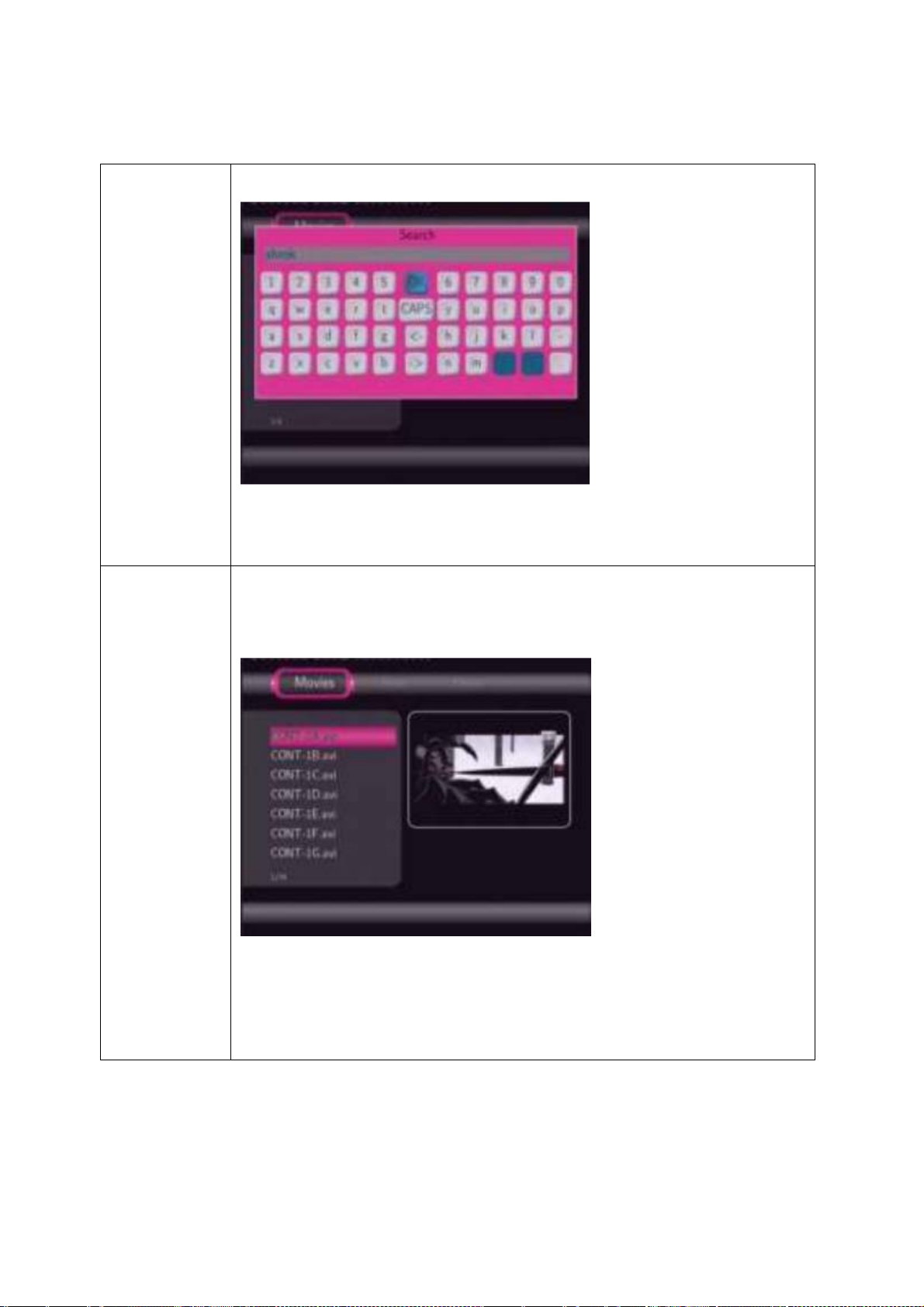

Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to select, ENTER
to input, CAPS to switch between uppercase and lowercase, <- to delete a character, -> to insert a
space, shift to make more symbols available, and OK to confirm.

Test connection

The testing process will take for a while, please be patient to wait. If the test is ok, the network
information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen.

- Peer to Peer (Ad Hoc)
Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is
used to connect wireless clients directly together, without the need for a wireless router or
access point.

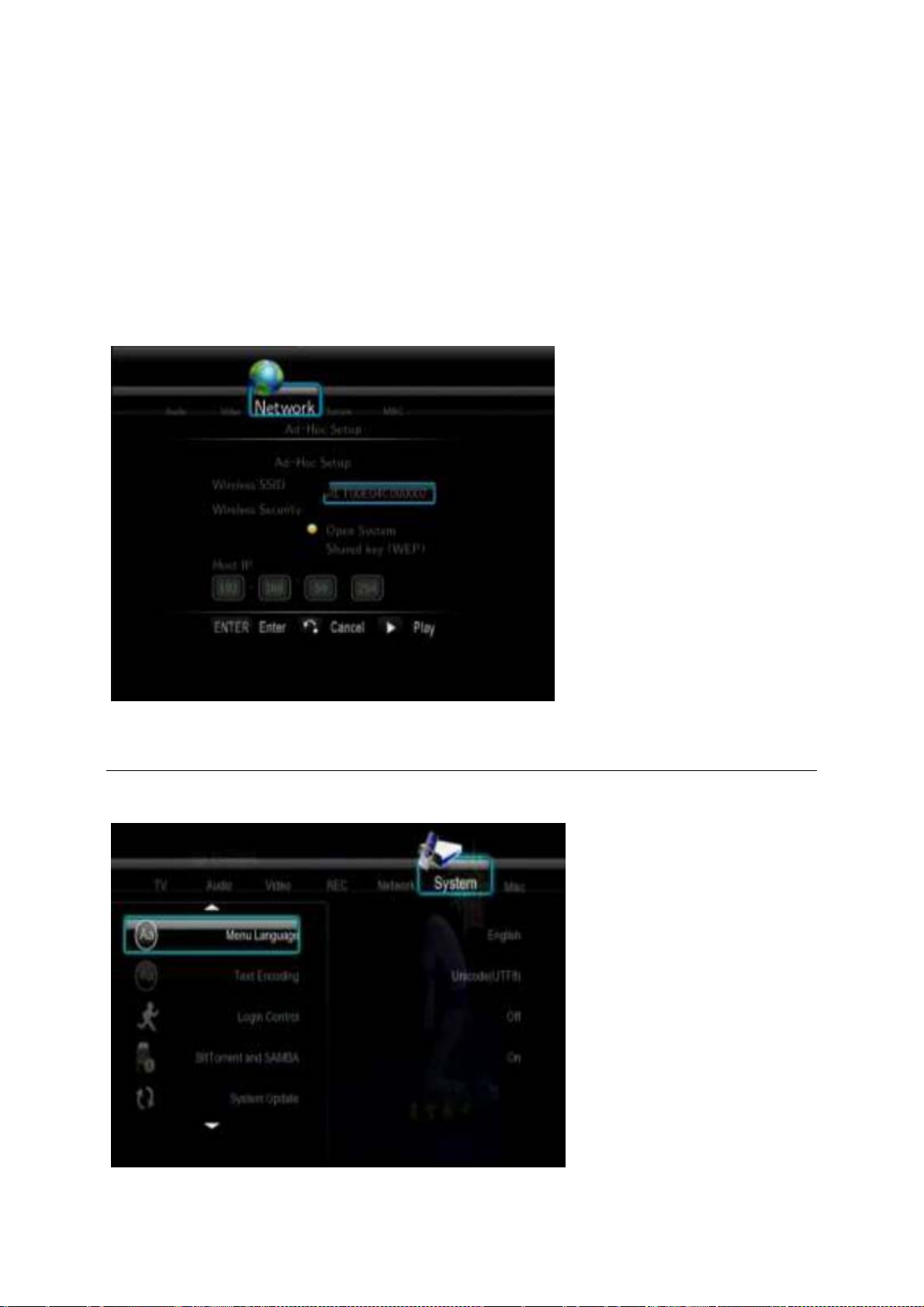

Ad-Hoc Setup

Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect.

Changing System Settings

Use this menu to configure system settings.

Menu Language

- Select to choose the OSD (On-Screen Display) language.

Text Encoding

- Select to set the text encoding option (subtitle display).

Login Control

- Select to turn on / off password protect for the Web server (Neighbor Web).

BT and SAMBA

- Select to turn on / off BitTorrent download service and NAS function.

System Update

- Select Extension Package Upgrade to update extension files for BT download and SAMBA services.

- Select system upgrade to update the firmware via a USB stick.

1) Copy „install.img‟ to the root directory of a USB stick, and connect it to the USB HOST port of the

player.

2) Press ENTER to confirm.

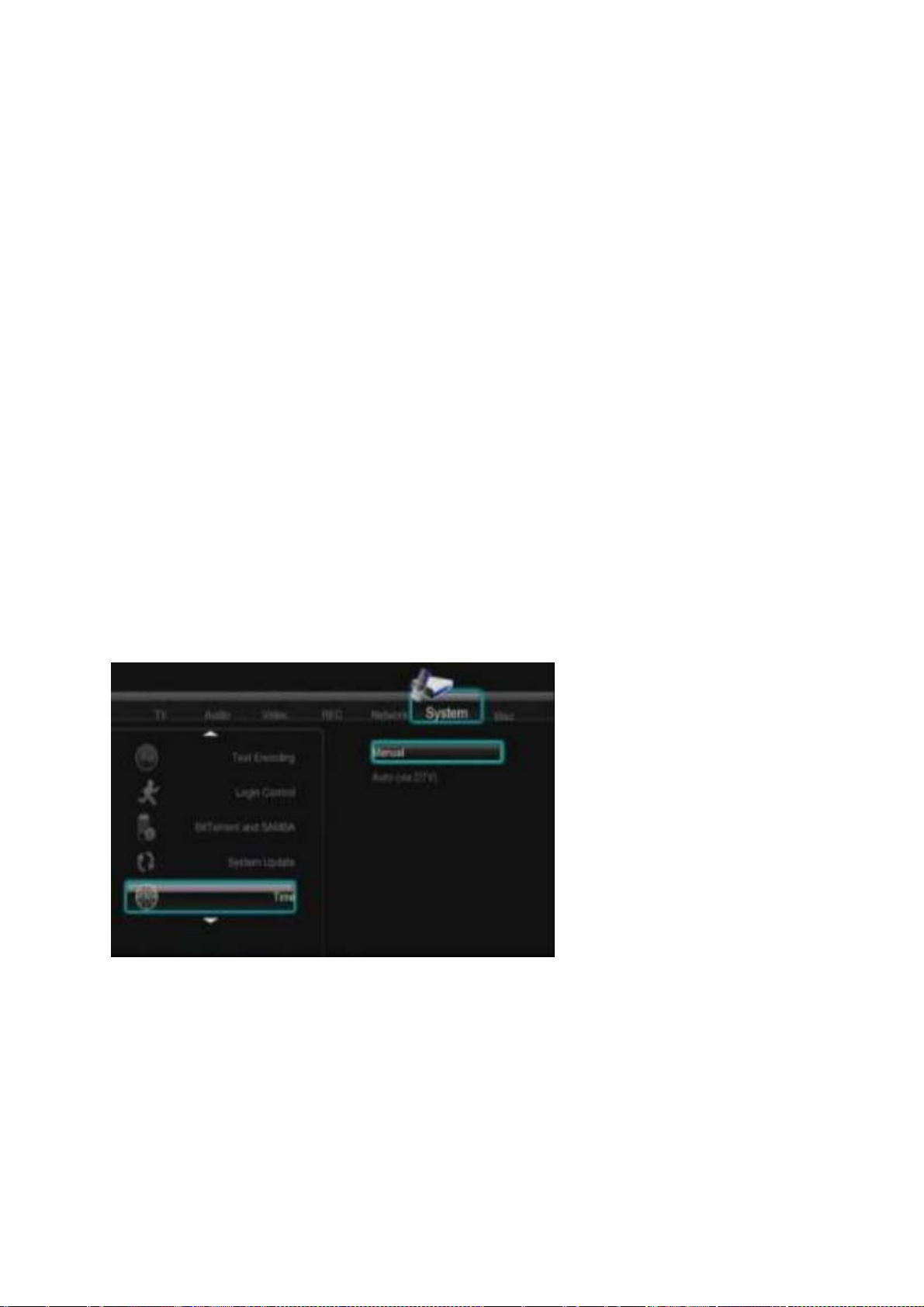

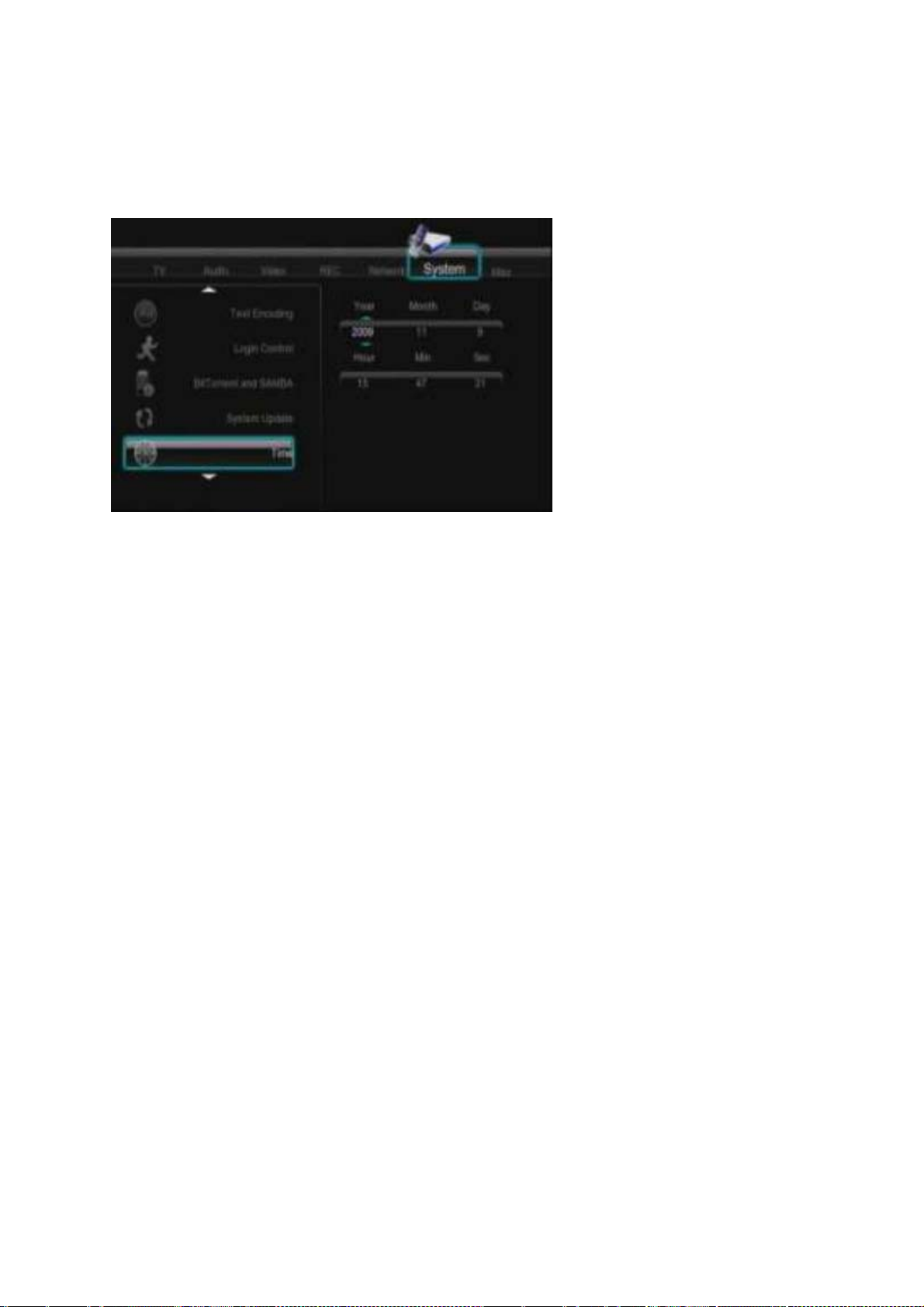

Time

- Select to set the system time.

Press the up / down button to select from Manual and Auto (via TV). Press the enter button to confirm.

Manual

Press the left / right button to select each field and the up / down button to adjust each setting.
Numeric buttons are available here. Press the enter button to confirm.

Parental Control

- Select to set the TV parental control options.

- A password will be needed for the modification. The default one is „0000‟. Press the numerical
buttons to input, and the enter button to confirm.

Lock system
Press the up / down button to turn on or off the parental system. Press the enter button to confirm.

Region
Press the up / down button to select the region. Press the enter button to confirm.

Password
Press the numerical buttons to input and change the password. Press the enter button to confirm.

Block unrated TV
Press the up / down button to turn on or off. Press the enter button to confirm.

TV Rating

Press the navigational buttons to select. Press the enter button to confirm, and the back button to
exit.

HDD Format

- Select to format the built-in HDD.

Note: Please take care that all data on the hard disk will be removed after formatting.

System Info

- Select to view system information (firmware version, HDD info, Mac address, etc.)

Restore Default

- Select to restore factory defaults.

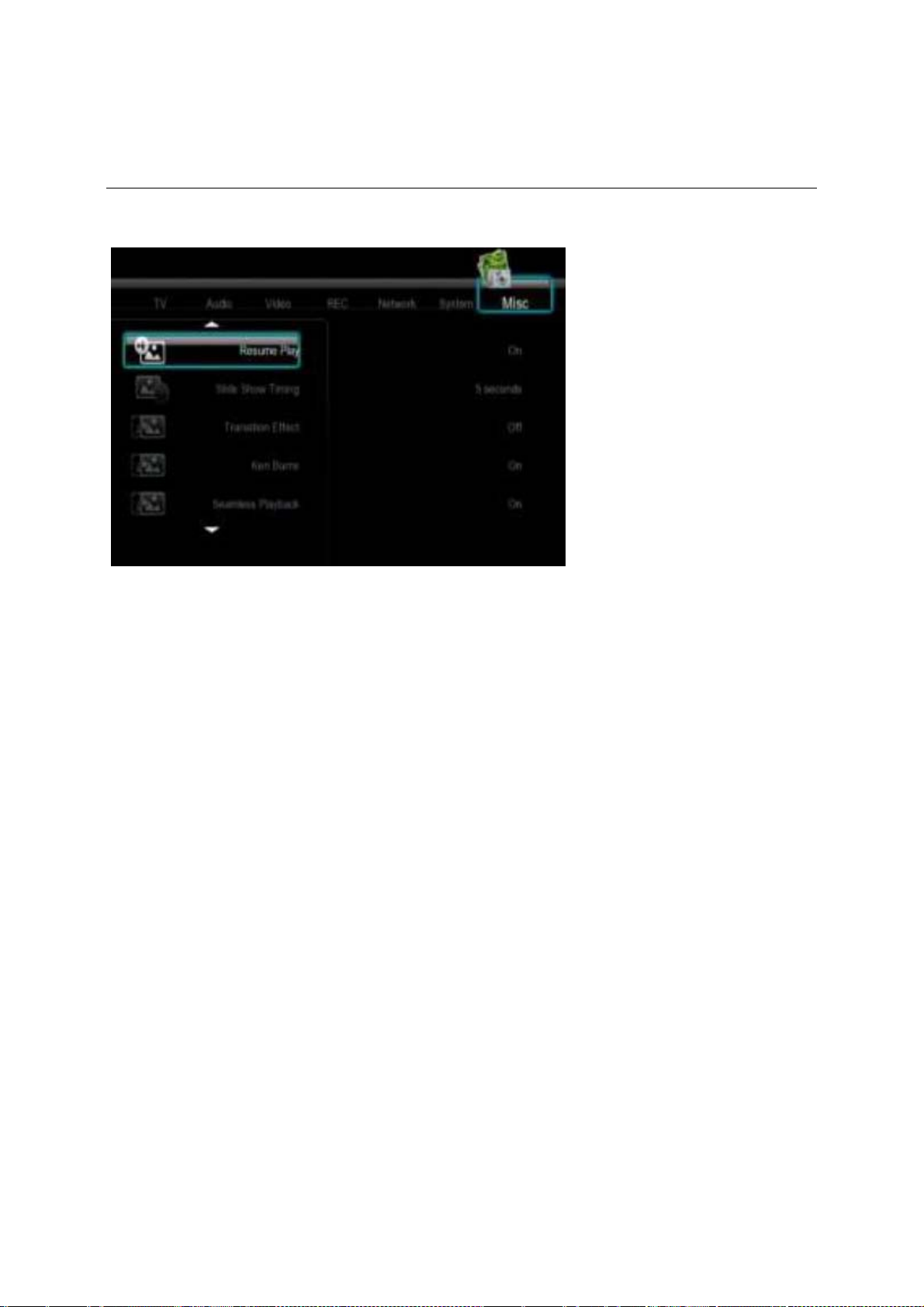

Miscellaneous

Use this menu to adjust miscellaneous settings.

Slide Show Timing

- Select to set the interval time for photo slide show.

Transition Effect

- Select to set the transition effect for photo slide show.

Background Music

- Select to set the background music options while view pictures: Off / Folder / Playlist.

Screen Saver

- Select to turn on / off screen saver.

Movie Preview

- Select to turn on / off movie preview in the browser menu.

Resume Playback

- Select to turn on / off resume playback (auto-bookmarking) feature for movies.

MAIN Menu

DTV Menu

In this menu, you can watch and record Digital Terrestrial TV programs, or have the time shift
function. To enter the DVB-T TV mode, select the DTV icon on the main menu.
The following are some functional buttons on the remote control available when watching Digital TV
programs.

Name Function

enter Press to view the program list menu

up / down Press to switch channels. (Channels cannot be switched in the recording mode.)

Numeric buttons Press to input channel numbers. Press the enter button to confirm

record Press to start recording the current TV program

time shift Press to activate the time shift function

subtitle Press to activate the subtitle list menu if available

EPG Press to activate the EPG menu if available
TTX Press to activate the Teletext menu if available

zoom Press to zoom out the image

Program List Menu

Press the enter button when watching DVB-T TV programs, and the program list menu where you can
see the program number and name will be displayed.

All the TV and Radio programs will be listed on this list. Press the up / down button to select channels,
and press the enter button to confirm. Press the prev / next button to page up /down.

Info Bar

While switching channels by the up / down button, an info bar will be displayed to show the channel
information.

There’re 4 strings displayed on the bar. Taking the info bar in the above photo for example:

N/A – Stands for TV rating;
ENG – Stands for the voice language;
SS – Stands for subtitle;
TT – Stands for Teletext;
480 – Stands for resolution (SD - Standard Definition, HD – High Definition).

When the string looks concave, the option will be available.

Electronic Programming Guide

Press the EPG button when watching DVB-T TV programs, the Electronic Programming Guide will be
displayed.

Press the prev / next button to change channels. Press the left / right button to change date.
Press the up / down button to change program. Press the red button to add / delete scheduled
recording.

Teletext Menu

If the broadcasted stream supports Teletext, press the TTX button to enter the Teletext menu.

Press the navigational and numeric buttons to view the content in the Teletext menu.

Subtitle List Menu

Press the subtitle button when watching DVB-T TV programs, the Subtitle List menu will be displayed.

Press the up / down button to select the subtitle, and press the enter button to confirm.

AV IN Menu

In this menu, you can watch and record audio-visual signal from the A/V IN jack on the rear panel of the
unit, or have the time shift function.
Select the A/V In icon on the main interface to enter this menu.

Timer Record Menu

T

The Timer Record menu allows you to create, edit and delete recording schedules and view all schedule
status and history. Select the TIMER REC icon on the main menu to enter this menu.

Create a New Schedule

Press the left / right button on the remote control to select the Edit tab from the menu bar.
Select Add a New Schedule and press the enter button. The schedule setting screen appears.

Use the left / right button on the remote control to move between fields and press the up / down
button to adjust each setting.

Source Select the video source or TV channels for the recording
Start Time Enter the date and time of the recording
Length Enter the length of the recording
Repeat Select how often you want the schedule to record. Choose from Once, Everyday, Mon-

Fri, Mon-Sat or for an individual day of the week

Quality Select the recording quality. Choose from HQ, SLP, EP, LP and SP. The higher the

quality, the more space required on the hard drive. See HDD Free Space on the left of
the screen for details of how long you can record for using each setting.

Preview

his small preview window will show the current program of the selected channel

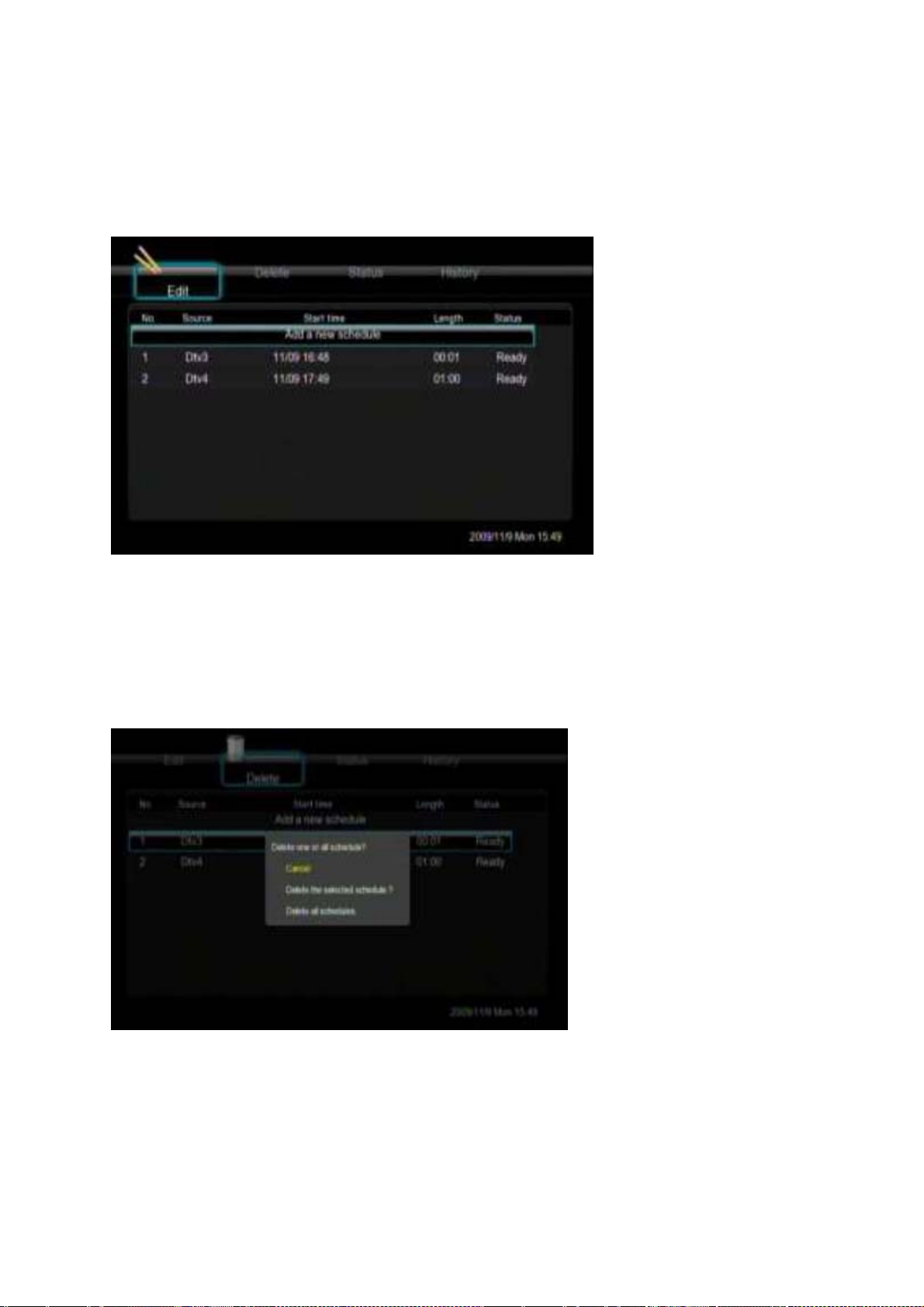

Edit Schedule

Press the left / right button on the remote control to select the Edit tab from the menu bar.

Select the schedule you want to edit from the list and press the enter button. The schedule setting
screen appears. Modify the schedule as described in “

Delete Schedule

Press the left / right button on the remote control to select the Delete tab from the menu bar.
Select the schedule you want to delete and press the enter button. A confirmation message appears.

Select CANCEL, Delete the selected schedule, or Delete all schedules. Press the enter
button to confirm.

Create a New Schedule

‟.

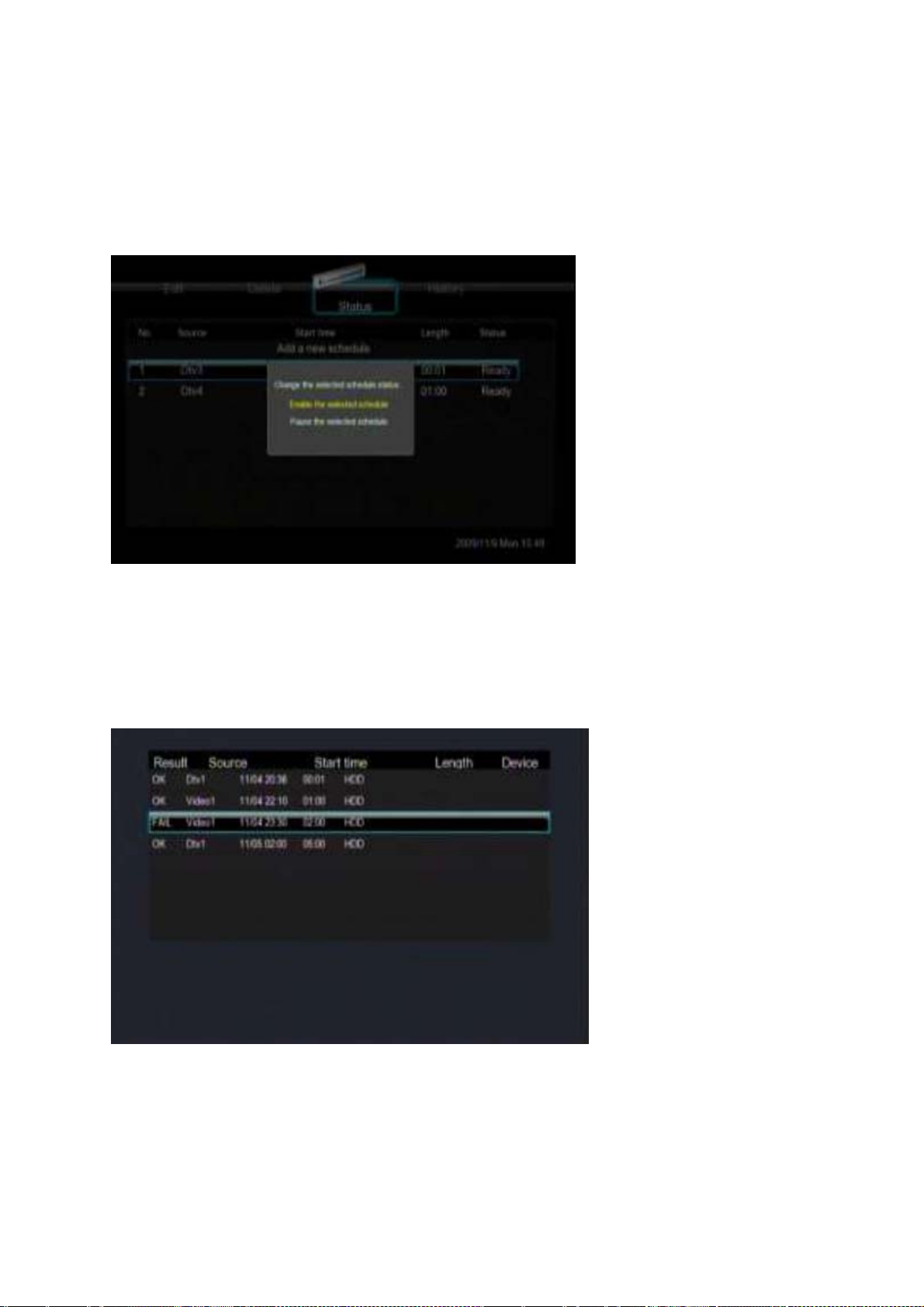

View Schedule Status

Press the left / right button on the remote control to select the Status tab from the menu bar.
The schedule list is displayed. Select a schedule and press the enter button.

Select Enable the selected schedule or Pause the selected schedule. Press the enter
button to confirm.

Viewing Recording History

Press the left / right button on the remote control to select the History tab from the menu bar.
Here you can view a complete history of all recordings that were set.

Browser Menu

The browser menu allows you to browse and play media files stored on Removable Devices (USB, Card),
HDD, Network, UPnP-server, and Playlist. To enter the menu, select the Browser icon on the home
screen, or press the BROWSER button on the remote control.

The following buttons can be used while navigating the browser menu.

Button Function

UP / DOWN

LEFT / RIGHT

PREV / NEXT

ENTER

RED

GREEN

RETURN

Move cursor up / down to select devices, folders, or files

Select filter options: All, Music, Photos, and Movies

Go to previous / next page

Enter or confirm the selected item

Select files under Browser -> HDD menu

Add the selected files to the playlist

Return to the previous menu

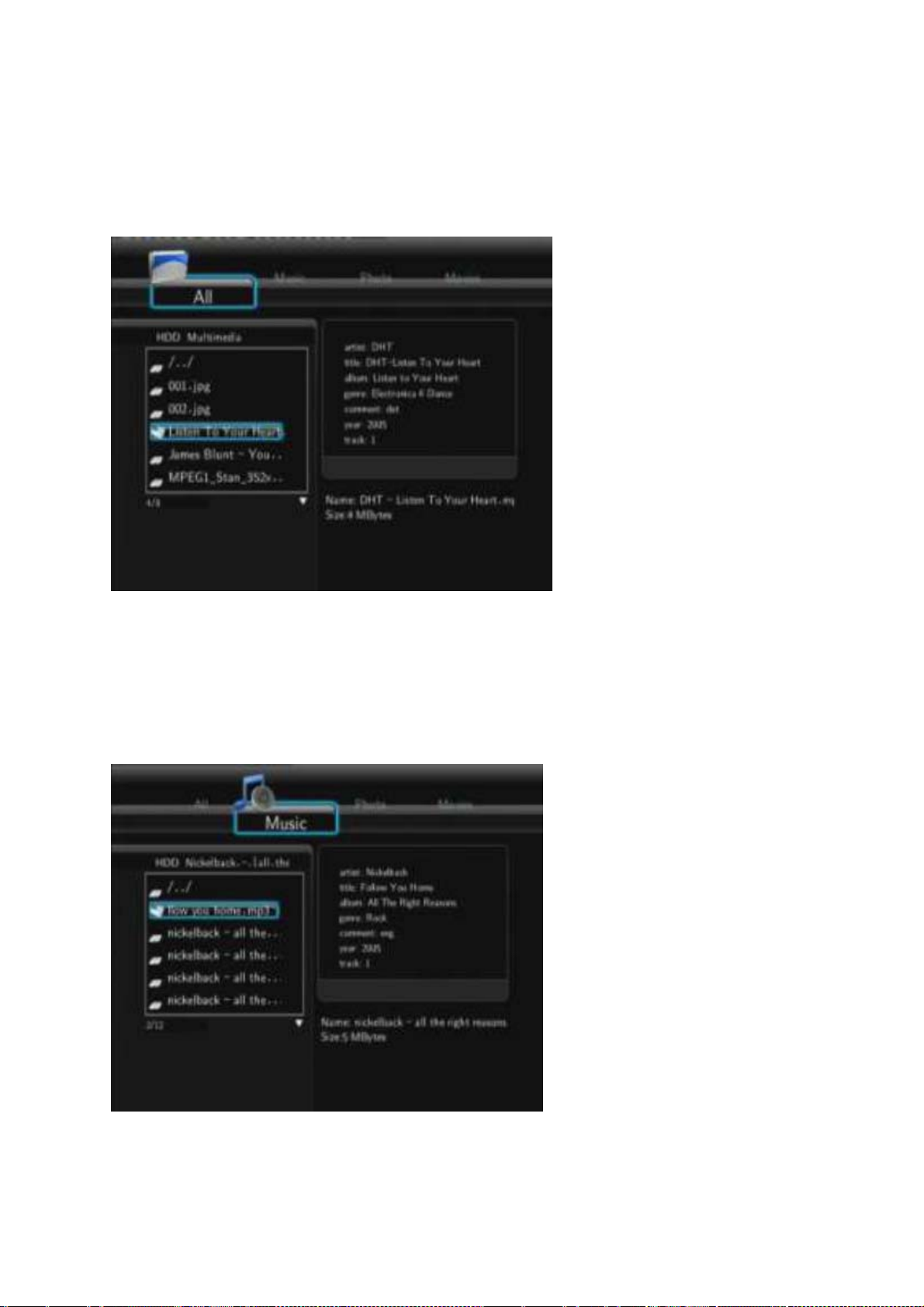

Browsing All

In this mode, all folders and supported contents (music, photos, and movies) will be displayed.

Note:

 Please refer to chapter „
 Muisc tracks might not be able to played continously under All filter, please switch to the Music

filter instead.

Browsing Music

In this mode, all folders and supported audio files in current directory will be displayed.

7.1 Specifications

„for more about the supported content formats.

The following buttons can be used to control music playback.

Button Function

PLAY/PAUSE

Begin/pause playback

FR / FF

REPEAT

INFO

STOP

Fast rewind or fast forward. Press repeatedly to select the speed

Set repeat options: One, All, (and Shuffle)

Hide or display the information bar during playback

Stop playback

Browsing Photos

In this mode, all folders and supported image files in current directory will be displayed.

The following buttons can be used to control photo playback.

Button Function

PLAY

Begin playback

PREV / NEXT

LEFT / RIGHT

REPEAT

ZOOM

INFO

STOP

You can view photos in slide show mode with background music. When it is enabled, the slide
show starts automatically once you press PLAY button. (Please refer to Slide Show Timing,

Transition Effect, and Background Music in chapter „

Browsing Movies

In this mode, all folders and supported video files in current directory will be displayed.

View the previous or next photo

Rotate photo

Set repeat options: One, All, (and Shuffle)

Zoom the image

Hide or display the information bar during playback

Stop playback

3.7 Miscellaneous

‟ for more details)

The following buttons can be used to control video playback.

Button Function

PLAY/PAUSE

Begin/pause playback

SLOW

FR / FF

PREV / NEXT

REPEAT

ZOOM

INFO

GOTO

A-B

ANGLE

Play video in slow motion. Press repeatedly to select the speed

Fast rewind or fast forward. Press repeatedly to select the speed

View the previous or next movie

Set repeat options: One, All, Off

Zoom the image

Hide or display the information bar during playback

Display playback search menu

Set the beginning and end points of a section to repeat

Change the view angle during DVD (with multi-angle) playback

MENU

AUDIO

SUBTITLE

STOP

Return to the root menu during DVD playback

Select an audio track while watching DivX video or DVD with multiple audio tracks

Set subtitle options. You can change text encoding and the size/color/offset of the
subtitle here

Stop playback

A/V Streaming via Network

You can stream the media files shared on the home network (Ethernet or WLAN). Please refer to

Changing Network Settings

“
There are two ways to locate media files shared on your local network in the Network menu.
One is to browse through workgroup; the other way is to browse through „My_Shortcuts‟.

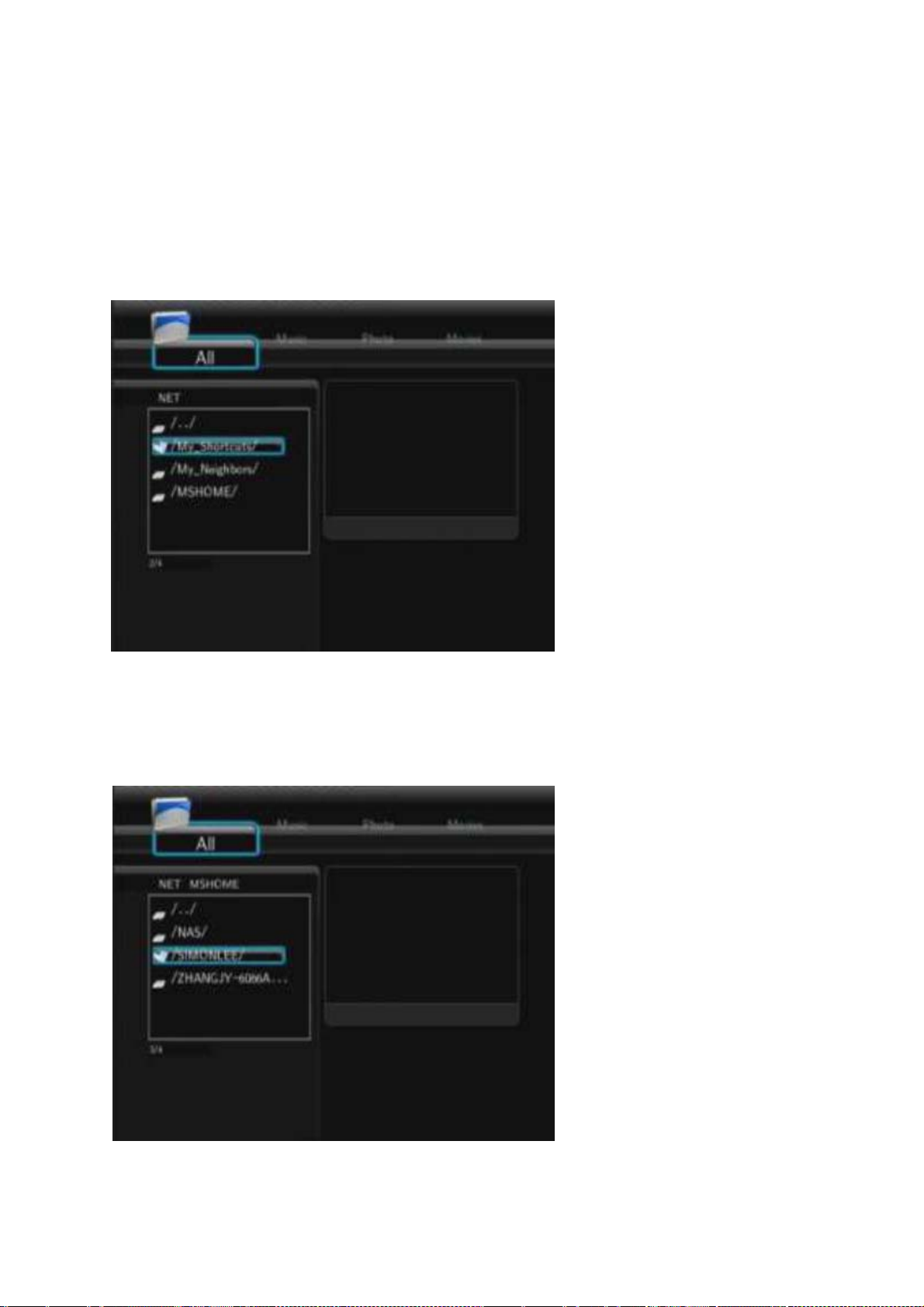

Browsing though Workgroup

You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name,
and press the ENTER button to confirm. Then you can select and play the shared media files that you
want to browse.

‟ for details about network settings.

Note:

 While browsing high definition video files (resolution up to 720p / 1080i / 1080p) via Ethernet or

WLAN, the video might be buffering. It is normal due to the limit of network speed or signal
strength.

 Due to different network conditions, sometimes the workgroup might not be accessed or shown

in the list. And then you need to use „My_Shortcuts‟ to browse shared files.

Browsing though ‘My_Shortcuts’

You can also set „Specific File Server IP‟ and access it from „My_Shortcuts‟ in the menu.

- Press the MENU button and a popup menu appears.

- Select Add to open a popup menu where you can input Label, Net User ID, Net Password,

Domain, Host Name, and Specific File Server IP. Select OK to confirm, Cancel to cancel, and
Simple / Detail to switch between simple and advanced options.

- Select the shortcut you added and press the ENTER button to confirm. Then you can select and play
the shared media files on the destination computer.

A/V Streaming via UPnP-server

A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the
player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

Installing UPnP Media Server on your PC

There‟re a lot of free and commercial UPnP Media Server software, such as Windows Media Connect,
Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTomb (Linux), etc. Please
install one of them on you computer. In the following chapters, we will take Windows Media Player 11 on
Microsoft Windows XP SP2 for an example.

Sharing Media on your PC

The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your Windows
Media Player library from anywhere in your home.

- Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to add or
remove media files from the library.

- Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click

Allow to authorize your player.

Streaming Media on your Player

- Connect your player to the home network (LAN or WLAN).

- Visit Browser - > UPnP menu on the player, select the UPnP-server, and press ENTER.

- Then you can browse the media library shared by Windows Media Player 11.

Note:

 Make sure your player and your computer are on the same local area network and subnet.
 Firewalls may prevent your player to communicating with your computer. Please open the ports

manually and add your player to the „trusted‟ list, or disable the firewall temporarily.

Renaming / Deleting Files

When navigating in the browser menu, you can press the MENU button to activate a popup menu where
you can rename and delete files or folders.

Press the UP / DOWN buttons to select from Return, Rename, and Delete. And press ENTER to
confirm.

Managing the Playlist

This player supports the playlist function, which allows you to add your favorite contents on local HDD to
the playlists (All, Music, Photos, and Movies), and enjoy them at any time.

Adding files to the playlist

Select the favorite file you wish to add, press the RED button, and the file will be ticked. Press the
GREEN button to confirm, and then an on-screen message „Add selects to list‟ will be shown. Multiple

selections are allowed. See photo below.

Browsing the playlist

Press the UP / DOWN buttons to select Play List in the browser menu. Press the LEFT /RIGHT
buttons to select between All, Music, Photos, and Movies. And press the ENTER button to confirm.
Then you will enter the playlist.

If you wish to delete a file from the playlist, press the RED button to select, and then press the GREEN
button to confirm.

Media Library

Owning to a powerful search engine, the library menu allows you to search and browse multimedia files
stored on the internal HDD in most easy ways. To enter this menu, select the Library icon on the home
screen.

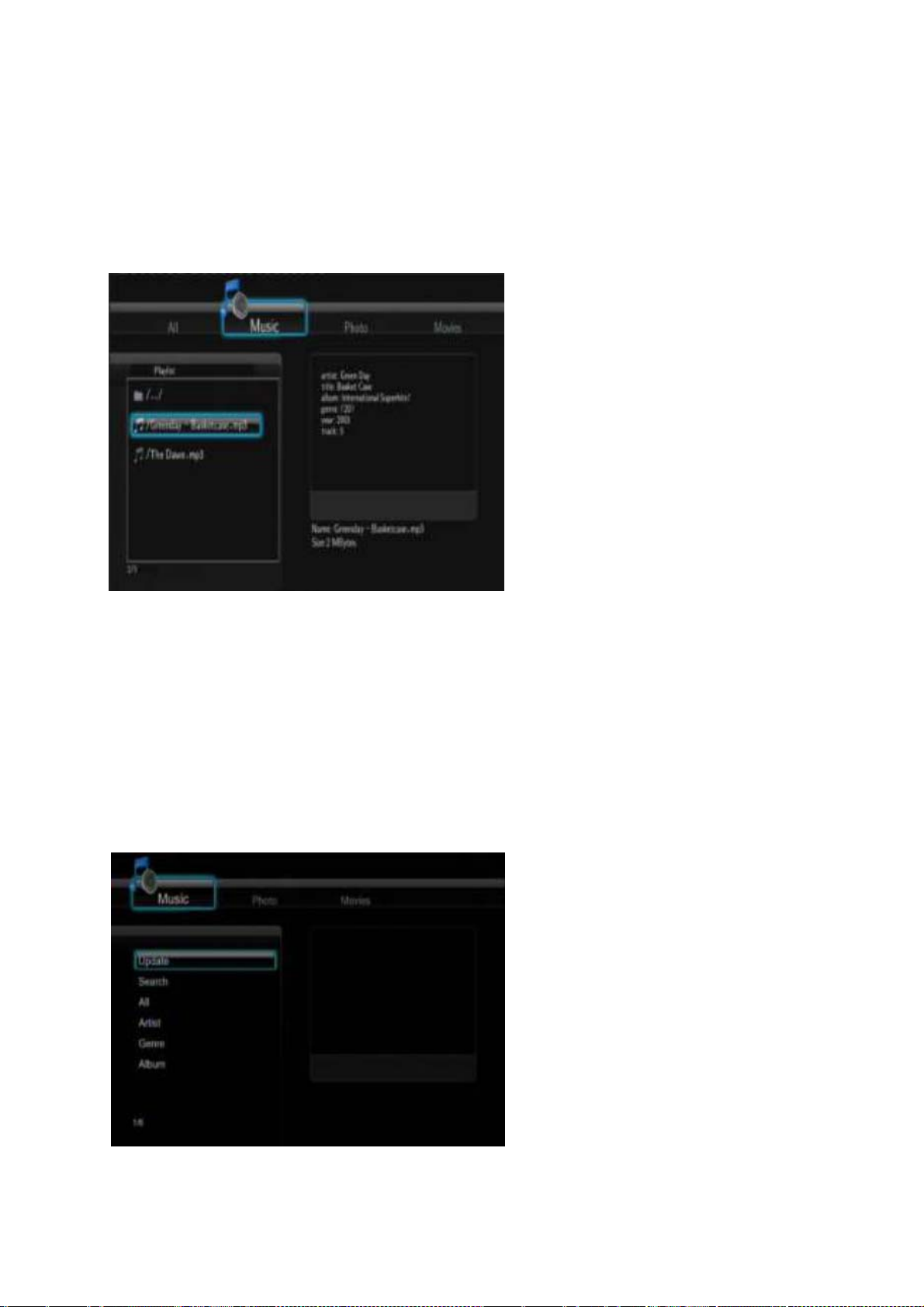

Music library

Use the left / right button on the remote control to select the Music tab.

Press the up / down button to select from Update, Search, All, Artist, Genre, and Album. And press the

enter button to confirm.

Update

Select to update and synchronize all the music stored on the internal HDD to the library

Search

All

Select to search for music files by their names. Use the navigational buttons to select, and
press the enter button to confirm. Select OK and press the enter button, and then the files
you desired will be displayed on the screen.

Select to list all the music files in the library

Artist

Select to search for music files by artist. Press the up / down button to select the artist, and
press the enter button to confirm.

Genre

Album

Select to search for music files by genre.

Press the up / down button to select the genre, and press the enter button to confirm
Select to search for music files by album.

Press the up / down button to select the album, and press the enter button to confirm

Quick­Search

You can also press the right button to turn on a Quick-Search bar while browsing music files
in the library.

Press the up / down button to select characters on the Quick-Search bar, and press the
enter button to confirm. And then music files with name starting with the specific characters
will be displayed onto the top. Press the left button to delete characters, and press the back
button to close the Quick-Search bar

Photo Library

Use the left / right button on the remote control to select the Photos tab.

Press the up / down button to select from Update, Search, All, and Date. And press the enter
button to confirm.

Update

Select to update and synchronize all the photos stored on the internal HDD to the
library

Search

Select to search for photos by their names. Use the navigational buttons to select,
and press the enter button to confirm. Select OK and press the enter button, and
then the files you desired will be displayed on the screen.

All

Date

Select to list all the photos in the library

Select to search for photos by date. Press the up / down button to select the date,
and press the enter button to confirm

k

Quick-Search

You can also press the right button to turn on a Quic
previewing photos in the library.

Press the up / down button to select characters on the Quick-Search bar, and press
the enter button to confirm. And then photos with name starting with the specific
characters will be displayed onto the top. Press the left button to delete characters,
and press the back button to close the Quick-Search bar.

-Search bar while

Movie Library

Use the left / right button on the remote control to select the Movies tab.

Press the up / down button to select from Update, Search, All, Actor, Genre, and Year. And press the

enter button to confirm.

Update

Select to update and synchronize all the movies stored on the internal HDD to the
library

Search Select to search for movies by their names.

Use the navigational buttons to select, and press the enter button to confirm.
Select OK and press the enter button, and then the files you desired will be
displayed on the screen

Select to list all the movies in the library

All

A

Actor

Genre

ctor Select to search for movies by actor.

Press the up / down button to select the actor, and press the enter button to
confirm.

Select to search for movies by genre.

Press the up / down button to select the genre, and press the enter
button to confirm.

Year

Select to search for movies by year.

Press the up / down button to select the year, and press the enter button to
confirm.

Quick-Search You can also press the right button to turn on a Quick-Search bar while

previewing movies in the library.

Press the up / down button to select characters on the Quick-Search bar, and press
the enter button to confirm. And then movies with name starting with the specific
characters will be displayed onto the top. Press the left button to delete characters,
and press the back button to close the Quick-Search bar.

Note:

In order to use the search function more efficiently, you are encouraged to use the following rules to
name the movies stored on the internal HDD.

Syntax: [Name][Actor][Genre][Year].extension
Examples: [Enchanted.CD1][Amy Adams][Love][2007].avi, [The.Dark.Knight.CD1][Christian
Bale][Action][2008].avi, etc.

File Copy Menu

Select the File Copy icon from the home screen to enter the File Copy menu or press the BROWSER
button on the remote control, which allows you to copy files between Removable Devices (Card, USB),
HDD, and Network.

The following buttons can be used under the file copy menu.

Button Function
UP / DOWN Move cursor up / down to select devices, folders
RIGHT Go to the next step
MENU Select (or cancel) folders or files (The selected items will be ticked)
STOP Cancel all selections
ENTER Confirm the selected options

ENTER Confirm the selected options.

Please refer to the following operations to copy / move folders / files between devices.

 Step 1: Select the source device and destination device.
 Step 2: Select the source files you want to copy.
 Step 3: Select the destination folder to store the above files.
 Step 4: Select Copy or Move to proceed.

Internet Radio

This player integrates the SHOUTcast free Internet radio function. Select the Internet Radio icon on the
main interface to enter this menu.

Note:

 Make sure the player is connected properly to a LAN or WLAN with Internet access, please refer

Changing Network Settings

to “

 When you enter the Digital Radio menu at the first time, it will take several seconds to download

data from the Internet, please be patient to wait;

 For more about SHOUTcast, please refer to the website: www.shoutcast.com

The following buttons can be used under this menu.

Button Function
UP / DOWN Move cursor up / down to select station, channel, and genre
PREV / NEXT Page up / down
ENTER Confirm and enter the selected menu
MENU Add / delete a station to / from Favorite while it is highlighted.
PLAY Begin playback after a channel has been selected
STOP Stop playback
RETURN Return to the previous menu

Station

- All downloaded stations will be listed under this menu.

Genre

- You can search for stations by genre (pop, rock, jazz, etc.) under this menu.

Favorite

- Your favorite stations can be kept under this menu.

‟ for more details;

P2P Share Menu

Select the P2P Share icon on the main menu. You can see the status of torrents download progress and
configure the BT download settings in this menu. Press LEFT/RIGHT button to enter into download
menu and BT setup menu.

Add a torrent

Locate your torrent file in Browser menu,then press MENU button to add the torrent to start
downloading.

Download Menu

After add the BT torrent files, the download progress can be displayed in this menu.

The following buttons can be used under this menu.

Button Function

UP / DOWN Move cursor up / down

MENU press to adjust the priority of the download task

PAUSE Press to pause the download
PLAY Press to start download
STOP Press to stop the download

RETURN Return to the previous menu

BT setup Menu

In the BT Setup menu, you can configure the following settings. Use UP/DOWN and ENTER to change
the settings.

 Set the maximum download rate.
 Set the maximum upload rate.
 Set the idle hours to start the next download automatically.
 Set the seeding hours.
 Set to delete the finished torrent files automatically or not.
 Set the maximum number of simultaneous download tasks.

IMS Menu

Several Internet Multimedia Services have been integrated into the player. Select the IMS (Internet
Multimedia Service) icon on the main interface to enter this menu.

Youtube

- You can view videos directly from Youtube though different classifications, like Recently Added,
Recently Featured, Top Favorites, etc.

Picasa

- You can view photos directly that stored on your own or your friend‟s Picasa account.

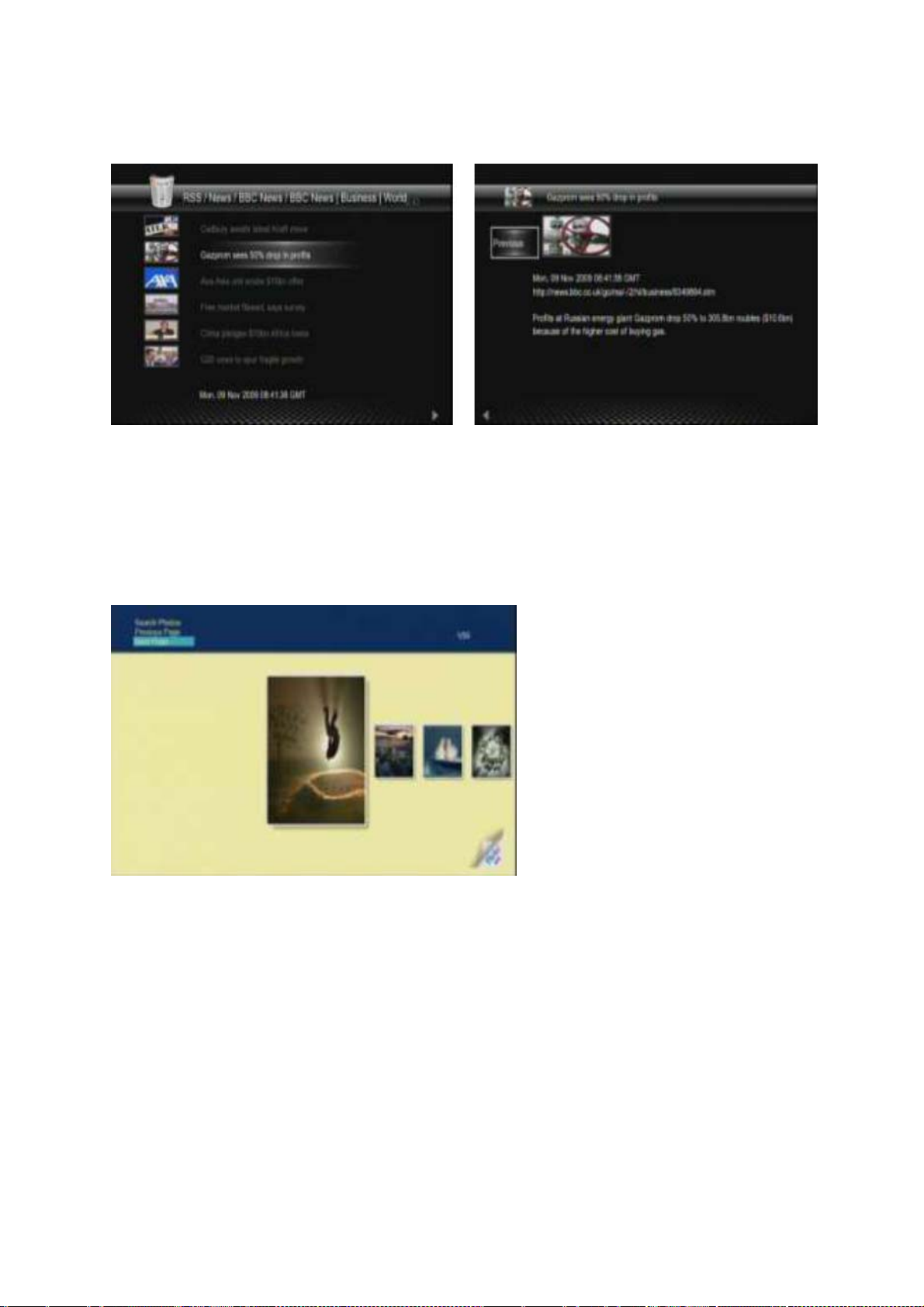

News

- You can read newest news directly from different websites(CNN News, BBC news, etc.).
In title list, press RIGHT button to view news in a full screen.

- You also can add RSS (Really Simple Syndication) URL to the list.

Flickr

- You can view photos from http://www.flickr.com/.
Press UP/DOWN button to select the option, press LEFT/RIGHT button to select a picture,
press ENTER/STOP button to start/stop playback.

Note:

 Make sure the player is connected properly to a LAN or WLAN with Internet access, please refer

3.5Changing Network Settings

to “

 It will take several seconds to get data from the Internet, please be patient to wait.

‟ for more details;

NAS Function

This player can be used as a NAS (Network-Attached Storage) device. It can be attached to the home
network via either Ethernet or WLAN. This feature allows homes to store and retrieve large amounts of
data more affordably than ever before.
When the network connection is done correctly and ready for use, please turn on NAS function in the
setup menu in advance (refer to
Address in the Run window (click Run in the start menu) or the address bar of Internet Explorer on your
PC (For example, if the IP address of the player is 192.168.0.9, please type: \\192.168.0.9), and click OK
or press the Enter button on the keyboard.

Under windows vista and windows 7,pls type:\\192.168.0.9 on search bar, then press the Enter button on
the keyboard.

3.6 Changing System Settings

for more details), and then type: \\IP

Then you can view, and edit the files stored on the hard disk installed on the player. In this way, you can
also playback and copy files via network between your PC and the player.

Note:

1. Please turn on the BitTorrent and SAMBA in the setup menu before using this function.

Upgrading the Firmware

The firmware is the operating system (OS) installed on the device. Firmware upgrades can bring new
features, improvements and bug fixes.

1. Copy “install.img‟ or extension files to the root directory of a USB stick, and connect it to the USB

HOST port of the player.

2. Press and hold the power / standby button on the front panel, and do not loosen.

3. Plug the power cable into the DC IN jack, wait for about 5 seconds or more, and then loosen

your finger on the power / standby button;

Firmware installation will start. There is another way for upgrading. Please refer to System Update and

Extension Info in the section “

Frequently Asked Questions

Changing System Settings

‟ for more details.

Question 1. When I try to disconnect the USB device, I keep on getting “The device „Generic
volume‟ cannot be stopped right now. Try stopping the device again later.” message, what
should I do?

Answer:

Close any program that might be accessing data on the player, including Windows® Explorer. If it does
not work, close all programs and wait for another 20 seconds, then try the green arrow icon again. If it
still does not work, you should shut down the player and disconnect the USB cable.

Question 2. I find new file names and folder names that I never created before or they have
strange gibberish names.

Answer:

Most likely, the player‟s file allocation table (FAT) has been corrupted. This might be due to the player
shutting down (due to low battery power) while reading or writing to your computer by the USB
connection. Windows and Macintosh often write extra files to the hard disk such as finder.def or System
volume info. These are normal and will not do any harm to the player.

Question 3. I used my player to transfer files back and forth between different computers.
Will defragmenting the player hard disk do any harm to it?

Answer:

Defragmenting the player hard disk may be useful after having transferred many files to and from the
player. It is never harmful to use the defragment on the player. Make sure no other programs are
running while using the Windows® defragment utility. Make sure you have connected the player with the
external power adapter during this procedure.

Question 4. My files have disappeared from the player.

Answer:

Make sure that you browse your files via the correct browser mode which means correct filtered views
such as Photos, Music, or Movies.

Question 5. During power on, why does the TV will have a short flashing, blue screen or
screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can output the
correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the
signals will not be stable and will cause the TV screen to flash, some TV‟s will treat this as no signal, and
will display a blue screen or screensaver.

Question 6. Why when I switch to Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p, does the TV
screen display an unwatchable picture?

Answer:

Please check if your TV supports Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p output, if your TV does not
support, please use the A/V signal display instead, press the TV SYSYEM button on the remote control,
then switch the TV‟s video input to NTSC or PAL.

Question 7. Why is there no sound on movie or music playback when using Y/Pb/Pr
component output?

Answer:

Y/Pb/Pr output is a video output only, and does not include sound signals. When using Y/Pb/Pr output,
please plug the A/V OUT or the S/PDIF jack to output sound.

Question 8. I cannot get SSID name, the screen always displays: „Can‟t get any SSID!!‟

Answer:

When the WLAN USB Adapter is connected to the player, it needs some time to get initialized. Please wait
for about 1~2 minutes and try refreshing the SSID list again.

Question 9. I cannot see files shared on my computer via Browser->Network menu.

Answer:

Please check following items:

1. Connect the player to network and obtain an IP address first;

2. Please enable NetBIOS of TCP/IP on computer;

3. Please check your PC‟s firewall settings;

4. Please enable your PC‟s „Guest‟ account;

5. Please share the folders which you wish to browse on your PC, and make sure that „Everyone‟ or

„Guest‟ has the right to access.

Question 10. I configured everything correctly, but still cannot get the wireless network or
UPnP function to work.

Answer:

Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or
even the built-in firewall of Windows XP? (Don‟t forget that Service Pack 2 for Windows XP automatically
upgrades your firewall and turn it on by default).
If you have a firewall, it may need to be configured or have exceptions created to allow you to see and
communicate with the player on the network. To test if your firewall is preventing network
communication (including PING and access shared folders), try disabling it to see if you can connect.
If you can connect with the firewall disabled, you may need to add the player to the „Trusted‟ list or
configure the firewall for local intranet access. Worst-case, disable your
firewall long enough to use the player, then enable it again when done.

Question 11. I am using the 802.11n Wi-Fi dongle with an 802.11n wireless router, why the
speed is still 802.11g 54Mbps rather than 300Mbps?

Answer:

The IEEE 802.11n Draft standard prohibits using high throughput with WEP or TKIP as the unicast cipher.
If you use these encryption methods (e.g. WEP, WPA-TKIP), your data rate will drop to 54 Mbps. You
may contact the Access Point or router manufacturer to download the latest firmware, or try other
encryption methods (WPA2-AES or WPA2-TKIP), or choose to configure an unsecured profile, but this
option is not recommended.

Question 12. Where can I find .torrent files for BitTorrent download?

Answer:

A lot of torrent sites can be found on the Internet, such as The Pirate Bay, Isohunt.com,
TorrentPortal.com, Mininova.org, etc. Please take care of the contents you‟re downloading and their
usage, which might cause copyright infringements and violate the local laws.

Question 13. Why do some supported photo formats, cannot be shown in the photo
function?

Answer:

In the JPEG format there are different modes. The player doesn‟t support all the modes. So you have to
change your photo format first as follow:

1. Use Photoshop to open the photo;

2. Choose ”File” then “save as” from the menu, as the picture on the left hand side shows, select

the picture format as JPEG, input the file name and click the “save” icon;

3. After click on the “save” icon, a new window will appear as the picture on the right hand side

shows, select “Baseline (standard)” or “Baseline optimized”;

4. Click the “OK” icon.

Question14. Why couldn‟t the player find the hard disc?

Answer:

Make sure the firmware is installed correctly, and no system partitions on the HDD were deleted. If hard
disc failure occurs, please backup your data and reinstall the firmware.

Question15. Some functions like recording, time shift etc. do not work. What should I do?

Answer:

If you find some functions do not work properly on the player, please change system settings to the
default (Refer to 3.6 for changing system settings).

Copyrights and Trademarks

Copyrights

All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any

means, whether by electronically or mechanically, without the express written permission from the
copyright holder.

Copyrighted materials, such as software, music files, or movies, are protected by local law, and may not
be illegally copied or used without permission from the copyright owner.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks are
property of their respective holders.

Manufactured under license under U.S. Patent #‟s: 5,451,942;5,956,674;
5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and the Symbol are registered trademarks, & DTS

2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.

Limited Warranty Statement

MV3800 MyMovee HD Media Recorder

Warranty Duration

Hardware: 3 years Limited Warranty

Hardware Limited Warranty

Universal Tech warrants that the product that you have purchased from Universal Tech is free from
defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited
Warranty Period starts on the date of purchase. Your dated sales or delivery receipt showing the date of
purchase is your proof of purchase date.

Limitation of Liability

If your UT hardware product fails to work as warranted above, UT’s maximum liability under this limited
warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair
or replacement of any hardware components that malfunction in conditions of normal use.

Exclusions

Universal Tech does not warrant that the operation of the product will be uninterrupted or error-free. UT
is not responsible for damage that occurs as a result of your failure to follow the instructions intended for
the product. This Limited Warranty does not apply to product under the following circumstances:

 serial number has been removed
 product enclosure has been opened
 product has been damaged or defective due to

a) transportation,

b) accident, misuse, abuse, water, fire, lightning or other acts of nature,

c) improper or inadequate site maintenance,

d) normal wear and tear,

e) software not supplied by UT.

ENSURE THAT YOUR DATA IS BACKED UP PERIODICALLY. UT IS NOT RESPONSIBLE FOR DAMAGE OR
LOSS OF DATA, AND IS NOT RESPONSIBLE FOR RECOVERY OF PROGRAMS OR DATA OTHER THAN THE
SOFTWARE SUPPLIED BY UT WHEN THE PRODUCT IS MANUFACTURED.

GPL Statement

This product contains free software which is licensed under the GNU General Public License.

After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL
software that is used in this product.

To obtain a copy of our open source software, please contact our support center and we will provide you
with a CD-ROM of the source code that is used, charging only the actual expense involved. However,
please be noted that we can not provide guarantee with the source code, and there is also no technical
support for the source code from us.
