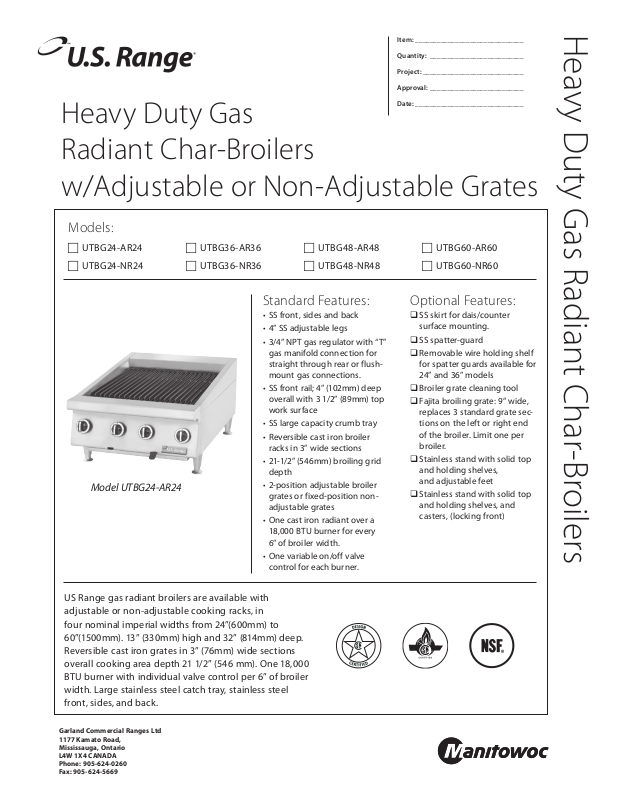

US Range UTBG24-NR2, UT User Manual

Item: ______________________________

Quantity: __________________________

Project: ____________________________

Approval: __________________________

Date: ______________________________

Heavy Duty Gas
Radiant Char-Broilers
w/Adjustable or Non-Adjustable Grates

Models:

 UTBG24-AR24  UTBG36-AR36  UTBG48-AR48  UTBG60-AR60

 UTBG24-NR24  UTBG36-NR36  UTBG48-NR48  UTBG60-NR60

Heavy Duty Gas Radiant Char-Broilers

Model UTBG24-AR24

Standard Features:

• SS front, sides and back

• 4” SS adjustable legs

• 3/4” NPT gas regulator with “T”
gas manifold connection for
straight through rear or flush­mount gas connections.

• SS front rail; 4” (102mm) deep
overall with 3 1/2” (89mm) top
work surface

• SS large capacity crumb tray

• Reversible cast iron broiler
racks in 3” wide sections

• 21-1/2” (546mm) broiling grid
depth

• 2-position adjustable broiler
grates or fixed-position non­adjustable grates

• One cast iron radiant over a
18,000 BTU burner for every
6” of broiler width.

• One variable on/off valve
control for each burner.

Optional Features:

 SS skirt for dais/counter

surface mounting.

 SS spatter-guard
 Removable wire holding shelf

for spatter guards available for
24” and 36” models

 Broiler grate cleaning tool
 Fajita broiling grate: 9” wide,

replaces 3 standard grate sec­tions on the left or right end
of the broiler. Limit one per
broiler.

 Stainless stand with solid top

and holding shelves,
and adjustable feet

 Stainless stand with solid top

and holding shelves, and
casters, (locking front)

US Range gas radiant broilers are available with
adjustable or non-adjustable cooking racks, in
four nominal imperial widths from 24”(600mm) to
60”(1500mm). 13” (330mm) high and 32” (814mm) deep.
Reversible cast iron grates in 3” (76mm) wide sections
overall cooking area depth 21 1/2” (546 mm). One 18,000
BTU burner with individual valve control per 6” of broiler
width. Large stainless steel catch tray, stainless steel
front, sides, and back.

Garland Commercial Ranges Ltd
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
Phone: [phone]
Fax: [phone]

LOW GRATE POSITION

1.7”

STRAIGHT (STD) OR FLUSH-REAR

[43mm]

4.0”

[102mm]

32.1”

[814mm]

GAS INLET w/REGULATOR

7.6”
[192mm]

1.7”
[43mm]

2.4”

[62mm]

TROUGH

DEPTH

Heavy Duty Gas Radiant Char-Broilers

For use with Natural or Propane gas only.
Gas input ratings shown for installations up to
2000 ft., (610m), above sea level. Please specify
altitudes over 2000 ft. and gas type when ordering.

Garland/U.S. Range products are not approved
or authorized for home or residential use, but are
intended for commercial applications only.
Garland/U.S. Range will not provide service,
warranty, maintenance or support of any kind
other than in commercial applications.

4.0”

[102mm]

Model #

With Adjustable Grates

UTBG24-AR24 23-5/8 (600)

UTBG36-AR36 35-7/16 (900) 108,000 391/178 26

UTBG48-AR48 47-1/4 (1200) 144,000 514/283 34

UTBG60-AR60 59-1/16 (1500) 180,000 635/288 41

With Non-Adjustable Grates

UTBG24-NR24 23-5/8 (600)

UTBG36-NR36 35-7/16 (900) 108,000 391/178

UTBG48-NR48 47-1/4 (1200) 144,000 514/283

UTBG60-NR60 59-1/16 (1500) 180,000 635/288

1.4” [35mm] HANDLE DEPTH MAX

WIDTH

Width

In (mm)

4.0”

[102mm]

15.9”

[404mm]

Height

(w/std legs)

13.0”

[330mm]

Depth

In (mm)

13 (330) 32 (814)

13 (330) 32 (814)

21.2”

[538mm]

GRATE DEPTH

NON-ADJUSTABLE GRATE

21.2”

[538mm]

GRATE DEPTH

ADJUSTABLE GRATE

26.0”

[660mm]

Total

Shipping Information

Input (BTU)

72,000 283/129 19

72,000 283/129

5.5°

GRATE ANGLE

5.5°

HIGH GRATE

POSITION

1.4°

5.3”

[136mm]

Lbs/Kg Cu Ft

18

25

33

40

SUPPLY OPERATING PRESSURE MANIFOLD OPERATING PRESSURE INSTALLATION CLEARANCES

NATURAL GAS PROPANE NATURAL GAS PROPANE

"WC MBar "WC Mbar "WC MBar "WC Mbar

7 17.5 11 27.5 4.5 11 10 24.5

CLEARANCE: 0”

FOR INSTALLATION IN

NON-COMBUSTIBLE

SURROUNDINGS ONLY

Form# UTBG-AR-NR (08/02/10)
