Page 1

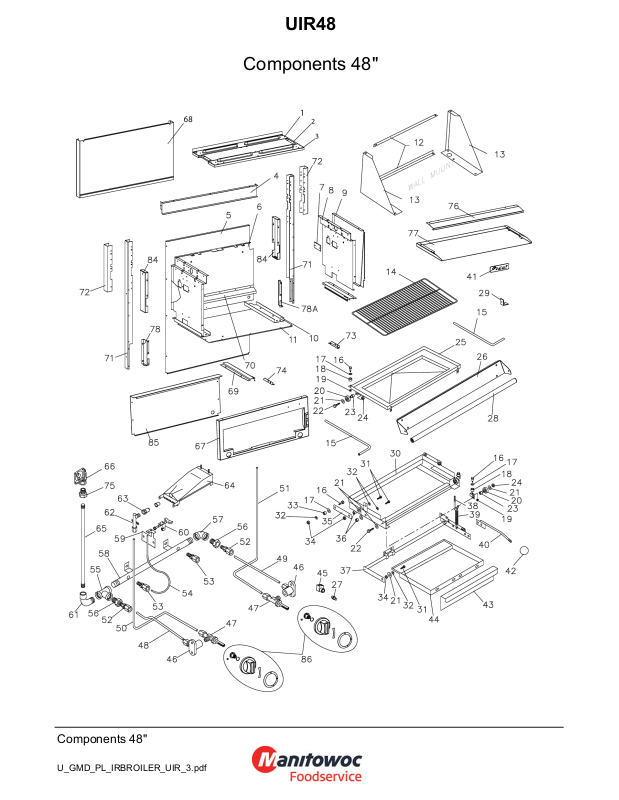

UIR48
Components 48"
Components 48"
U_GMD_PL_IRBROILER_UIR_3.pdf
Page 2
UIR48
Components 48"
# PART # DESCRIPTION QTY Note
1 G01377-1-6 Main Top Back 1
2 G01376-1-6 Main Back Center 1
3 G01375-1-6 Main Top Front 1
4 G01391-1-6 Front Brace 1
6 2584000 Flue Back 1
7 G01372-1-6 Orifi ce Fitting Cover 2
8 2584100 Side Liner - Right 1
8 2584101 Side Liner - Left 1
9 G01392-1-91 Main Side - Right 1
9 G01392-1-92 Main Side - Left 1
10 G01378-01-61 Bottom Assembly - Right 1
10 G01378-01-62 Bottom Assembly - Left 1
14 1347200 Salamander Rack 1
15 1387200 Protecting Rod 2
16 1031301 Broiler Rack Roller Pin 4
17 1031302 Rack Roller Wire Spacer 4
18 1035400 Small Roller Bearing 4 [1]
19 F76 Nut - 0.25"-20 4
20 G01244-1 Large Roller Bearing 4 [1]
21 F256 Lockwasher - 0.375” SS 4
22 G6424 Hex Bolt - 0.375"-16 4
23 G01247-3 Rear Bushing 4 [1]
24 F78 Nut - 0.375"-16 - Black 4
25 1037286 Rack Frame Weld Assembly 1
26 G01860-3-9 Rack Veneer 1
27 G02251-1 Pressure Test Spigot 1
28 4517693 Rack Handle Assembly SS 1
29 1341905 Spring Support 1
30 1342596 Rack Frame Assembly 1
31 F40 Hex-Bolt - 0.25"-20 x 0.75" 4
32 F111 Flatwasher - 0.25" 4
33 1037810 Rear Bushing 4 [1]
34 F76 Nut - 0.25"-20 4
35 1342001 Upper Arm 2
36 1031300 Broiler Rock Roller Bushing 4 [1]
37 1342499 Lever Assy 1 [1]
38 9004701 Oven Door Spring Hook 1 [1]
39 1005803 Spring 1 [1]
40 1342198 Handle Assy Nickel Plated 1
41 4529726 US Range Logo - Large 1
42 1039603 Gray Ball Knob 1
43 2540700 Grease Tray Front 1
44 2601301 Grease Tray 1
45 G01917-1 Elbow - 0.125" NPT 1
46 G01435-1 Elbow Flanged 2
47 G01410-1 High-Low Valve - 0.25" NPT to 0.4375" CC 2 [1]
Components 48"
U_GMD_PL_IRBROILER_UIR_3.pdf
Page 3
UIR48
Components 48"
# PART # DESCRIPTION QTY Note
48 G01471-1-8 Inlet Tubing - 0.4375" - Left 1
49 G01472-1-8 Inlet Tubing - 0.4375" - Right 1
50 G01473-1-81 Steel Tubing - 0.4.75" x 16.312" Right - Valve to Orifice 1
51 G01473-1-82 Steel Tubing - 0.4375" x 16.312" - Left - Valve to Orifice 1
52 G01243-1 Fitting 7-16” CC x 1/4” NPT 2
53 G6809 Valve Pilot - 0.25" Tube 2
54 G01494-16 Aluminum Tubing - 0.25" x 19” - Pilot 2
55 4521448 Tee - 0.5" NPT 1
56 G01569-1 Reducer Bushing - 0.5" to 0.25" NPT 2
57 G01474-1 Elbow Reducer - 0.5" to 0.25" NPT 1
58 G01412-01-8 Manifold Assembly 1
59 1815602 Pilot Bracket - Left/Right 2
60 1806601 Pilot Burner - Natural Gas - IR SAL 2 [1]
60 1806602 Pilot Burner - LP - IR SAL 2 [1]
61 4521449 Elbow - 0.5" NPT 1
62 G01411-XX Orifi ce Fitting Less Hood 2
63 G01411-48 Orifice Fitting - #48 Hood 2 [2]
63 G01411-55 Orifice Fitting - #55 Hood 2 [3]
64 CK117 SRC Burner Assembly Kit 2
65 G01477-9 Nipple 1/2” NPT x 18” Long 1 [4]
66 2127503 6” W.C 3/4” NPT, REGULATOR NATURAL GAS, SUPPLIED
WITH SALAMANDER/CHEESEMELTER
66 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
67 4512853 Main Front SS 1
69 G01384-01-61 Valve Housing Assembly - Right 1
69 G01384-01-62 Valve Housing Assembly - Left 1
70 1819001 Salamander Grease Shield 1
73 2588601 Strip Filler Right 1
74 2588600 Strip Filler Left 1
75 G01918-5 Bushing - 0.75" to 0.5" NPT - Brass 1
76 2612000 Heat Shield Front S/S 1 [5]
77 2612100 Heat Shield Bottom S/S 1 [5]
78 4523226 Salamander Support Left Hand - GALVANIZED 1
78A 4523227 Salamander Support Right Hand - GALVANIZED 1
86 4527469 GIR/UIR Series Salamander Knob Assembly 2 [1]
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - RECOMMENDED STOCK PARTSNatural
[3] - RECOMMENDED STOCK PARTS Propane
[4] - Top Gas Connection
[5] - Only Used with Range Mount Models
1
1
Components 48"
U_GMD_PL_IRBROILER_UIR_3.pdf
Page 4
UIR48
Optional Inter-Connect Gas Kit 48", 60"
Optional Inter-Connect Gas Kit 48", 60"
U_GMD_PL_IRBROILER_UIR_6.pdf
Page 5
UIR48
Optional Inter-Connect Gas Kit 48", 60"
# PART # DESCRIPTION QTY Note
1 F32 SCREW, #10-24 X 1/2” PAN HEAD, SELF-TAP, TYPE F 4 [1]
2 4522421 4.5” W.C 1”NPT, REGULATOR NATURAL GAS, SUPPLIED
WITH RANGE
2 4525049 1” ISO 7-1, REGULATOR NATURAL GAS, SUPPLIED WITH
RANGE
2 4522422 10” W.C 1”NPT, REGULATOR PROPANE GAS, SUPPLIED
WITH RANGE
2 4525050 1” ISO 7-1, REGULATOR PROPANE GAS, SUPPLIED WITH
RANGE
3 2127503 6” W.C 3/4” NPT, REGULATOR NATURAL GAS, SUPPLIED
WITH SALAMANDER/CHEESEMELTER
3 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
4 076029-204 NIPPLE, 1” NPT X 2” 3 [2]
5 G1738-5 NIPPLE, 3/4” NPT X 6.5” 1
6 G01474-5 ELBOW, 90DEG, 3/4” NPT 3
7 076029-171 ELBOW, 90DEG, 1” NPT 1 [3]
8 4530189 UNION, 1” NPT 1
9 4531602 BRACKET, PIPE SUPPORT 48/60 2
10 2640800 CLAMP, PIPE SUPPORT BRACKET 2
11 3012800 REDUCING TEE, 1” NPT X 1” NPT X 3/4” 1
12 G01738-16 NIPPLE, 3/4” NPT X 22.75” 1
13 G01738-14 NIPPLE, 3/4” NPT X 2” 1
14 F67 SCREW, #10-16 X 1/2” HEX, WASHER HEAD, TEKS SELF-
DRILL/TAP
15 G01738-11 NIPPLE, 3/4” NPT X 3.5” 1
16 G01474-9 REDUCING ELBOW, 90DEG, 3/4” NPT X 1/2” NPT 1
17 3013000 3/4”CC X 3/4” NPT STRAIGHT FITTING 2
18 4531608 TUBING 3/4” 1
PART NOTES:
[1] - not shown
[2] - one supplied with range
[3] - supplied with range
1
1
1
1
1
1
4 [1]
Optional Inter-Connect Gas Kit 48", 60"
U_GMD_PL_IRBROILER_UIR_6.pdf
Page 6
UIR48
Rear Panel for 48" Model
Rear Panel for 48" Model
U_GMD_PL_IRBROILER_UIR_7.pdf
Page 7
UIR48
Rear Panel for 48" Model
# PART # DESCRIPTION QTY Note
1 4523896 Salamander Rear Panel - 48" 1 [1]
1 4523913 Salamander Rear Panel - 48" SS 1 [2]
2 4524043 Salamander Center Support - 48" 1
3 4523898 Salamander Upright - Left Hand - 48" 1
4 4523897 Salamander Upright - Right Hand - 48" 1
5 4523899 Salamander Front Panel - 48" 1
6 4524055 48" Salamander Anti-Sway Bracket 1
PART NOTES:
[1] - Standard
[2] - OPTION
Rear Panel for 48" Model
U_GMD_PL_IRBROILER_UIR_7.pdf
