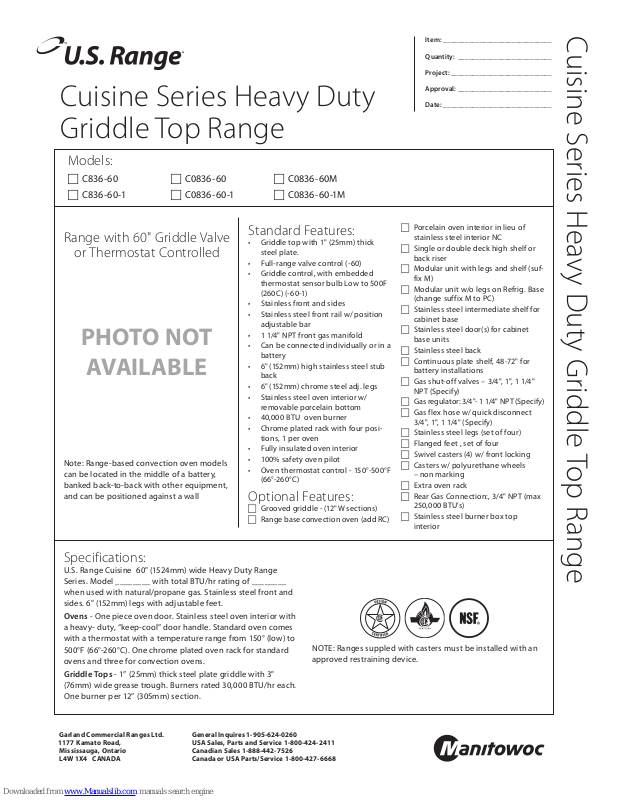

Page 1
Cuisine Series Heavy Duty
Griddle Top Range
Models:
C836-60 C0836-60 C0836-60M
C836-60-1 C0836-60-1 C0836-60-1M
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
Cuisine Series Heavy Duty Griddle Top Range
Range with 60" Griddle Valve
or Thermostat Controlled
PHOTO NOT
AVAILABLE
Note: Range -based convection oven models
can be located in the middle of a battery,
banked back-to-back with other equipment,
and can be positioned against a wall
Standard Features:
• Griddle top with 1" (25mm) thick
steel plate.
• Full-range valve control (- 60)
• Griddle control, with embedded
thermostat sensor bulb Low to 500F
(260C) (-60-1)
• Stainless front and sides
• Stainless steel front rail w/ position
adjustable bar
• 1 1/4" NPT front gas manifold
• Can be connected individually or in a
battery
• 6" (152mm) high stainless steel stub
back
• 6" (152mm) chrome steel adj. legs
• Stainless steel oven interior w/
removable porcelain bottom
• 40,000 BTU oven burner
• Chrome plated rack with four positions, 1 per oven
• Fully insulated oven interior
• 100% safety oven pilot
• Oven thermostat control - 150°-500°F
(66°-260°C)
Optional Features:
Grooved griddle - (12"W sections)
Range base convection oven (add RC)
Porcelain oven interior in lieu of
stainless steel interior NC
Single or double deck high shelf or
back riser
Modular unit with legs and shelf (suf-
fix M)
Modular unit w/o legs on Refrig. Base
(change suffix M to PC)
Stainless steel intermediate shelf for
cabinet base
Stainless steel door(s) for cabinet
base units
Stainless steel back
Continuous plate shelf, 48-72" for
battery installations
Gas shut-of f valves – 3/4", 1", 1 1/4"
NPT (Specify)
Gas regulator: 3/4"- 1 1/4" NPT (Specify)
Gas flex hose w/ quick disconnect
3/4", 1", 1 1/4" (Specify)
Stainless steel legs (set of four)
Flanged feet , set of four
Swivel casters (4) w/ front locking
Casters w/ polyurethane wheels
– non marking
Extra oven rack
Rear Gas Connection:, 3/4" NPT (max
250,000 BTU’s)
Stainless steel burner box top
interior
Specifications:
U.S. Range Cuisine 60" (1524mm) wide Heavy Duty Range
Series. Model ________ with total BTU/hr rating of ________
when used with natural/propane gas. Stainless steel front and
sides. 6" (152mm) legs with adjustable feet.
Ovens - One piece oven door. Stainless steel oven interior with
a heav y- duty, “keep -cool” door handle. Standard oven comes
with a thermostat with a temperature range from 150° (low) to
500°F (66°-260°C). One chrome plated oven rack for standard
ovens and three for convection ovens.
Griddle Tops - 1” (25mm) thick steel plate griddle with 3"
(76mm) wide grease trough. Burners rated 30,000 BTU/hr each.
One burner per 12” (305mm) section.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
NOTE: Ranges suppled with casters must be installed with an
approved restraining device.
Page 2
Cuisine Series Heavy Duty Griddle Top Range
Model # Description
C836-60* 60" Manual Valve Control Griddle - w/Std. Oven & 24" Cabinet 190,000 70
C0836-60 60" Manual Valve Control Griddle- w/ 36" & 24" Cabinet 150,000 70
C0836-60M 60" Manual Valve Control Griddle - Modular Top 150,000 35
C836-60-1* 60" Thermostat Control Griddle - w/Std. Oven & 24" Cabinet 190,000 70
C0836-60-1 60" Thermostat Control Griddle- w/ 36" & 24" Cabinet 150,000 70
C0836-60-1M 60" Thermostat Control Griddle - Modular Top 150,000 35
* Add Suffix “RC” for Convection Oven Base

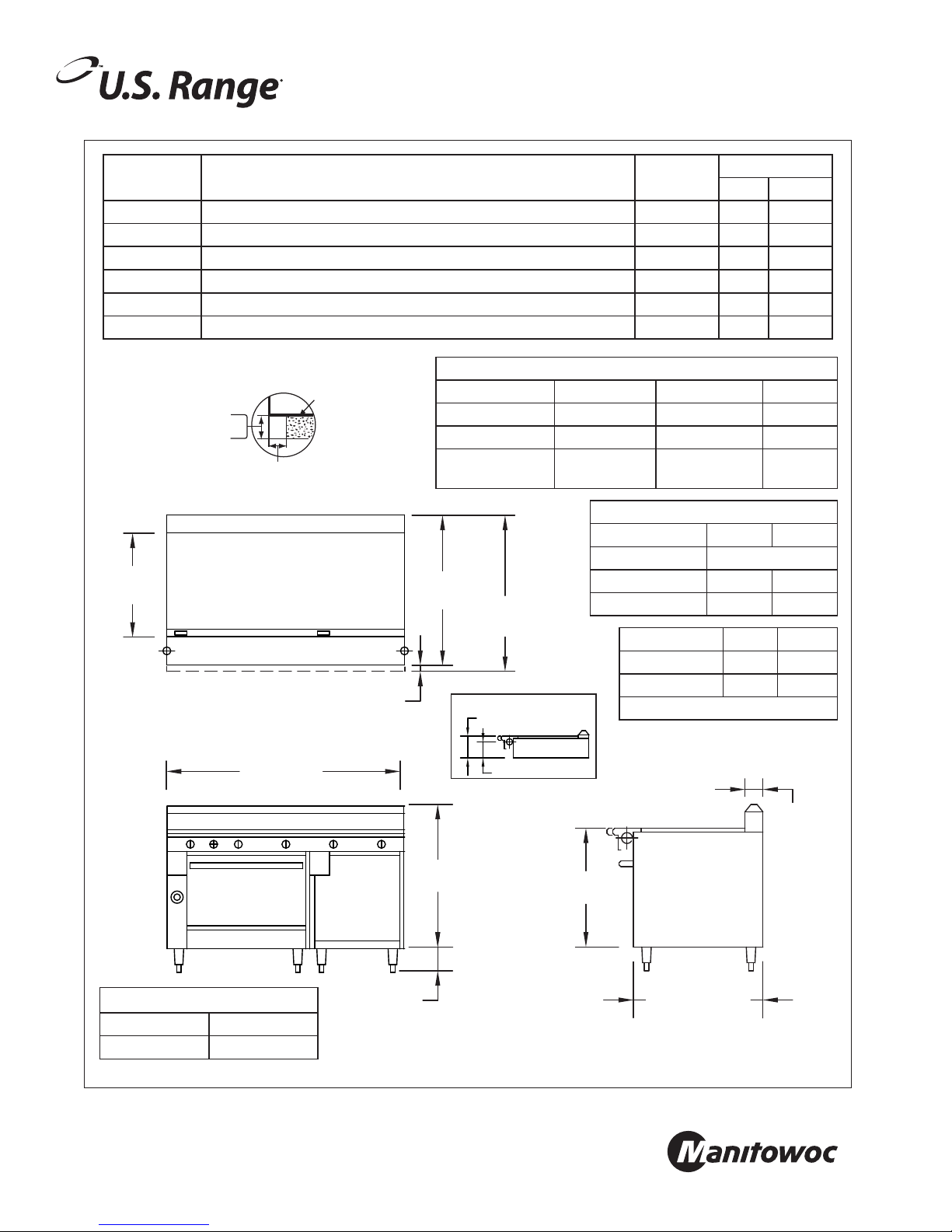

Interior Dimensions: In (mm)
26-1/4"
[667mm]
3" MIN
[75mm]
5" MAX
[133mm]
DAIS Mounting
RANGE
2-/12"
[64mm]
Vermin
Proof
Product Height Width Depth
Standard Oven 13-1/2(323) 26-/1/4 (667) 29 (737)
Convection 13-1/2(323) 26-/1/4 (667) 25 (635)
Cabinet Base 20-1/2 (521)
37-7/8"
[962mm]
39-3/8"
Total BTU
(NAT. Gas)
20-1/4(514) &
32-1/4(819)
Individual Burner Ratings (BTU/hr)
Burner NAT. PRO.
Griddle 30,000
Std. Oven 40,000 35,000
Conv. Oven 37,000 35,000
[1000mm]
Gas Pressure NAT. PRO.
G
G
1-1/2"
[38mm]
MODULAR TOP
9-15/32" [241mm]
Min. Supply 7" WC 11" WC
Operating 6" WC 10" WC
Gas Manifold 1-1/4" NPT
Shipping
Cu Ft Lb/Kg
1400/636
1220/555
1020/463
1400/636
1220/555
1020/463
31 (787)
Combustible Wall Clearance
Sides Back
6" (152mm) 6" (152mm)
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
60"
[1524mm]
[914mm]
6"
[152mm]
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
36"
6-31/32" [177mm]
4-1/2"
[114mm]
30"
[645mm]
32-11/16"
[830mm]
Form# C836-60 (08/16/11)
