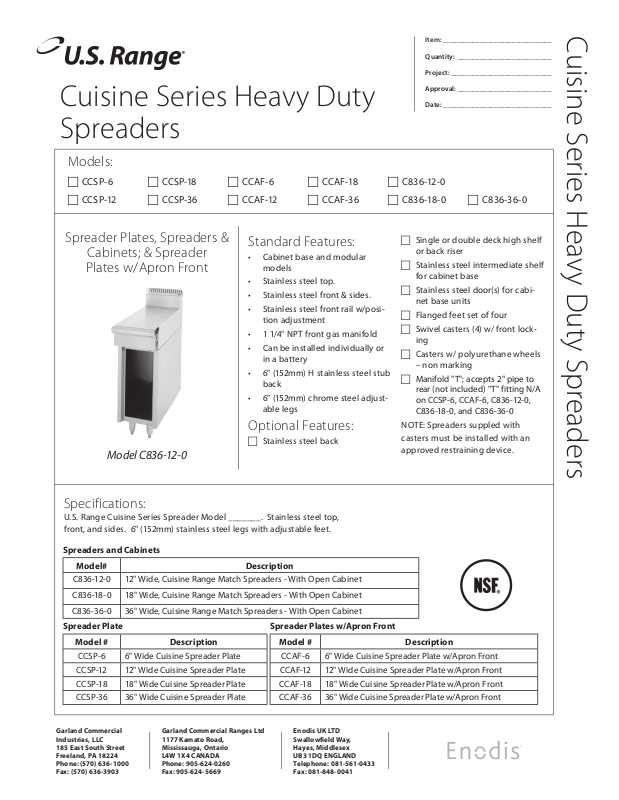

US Range C836-12-0 User Manual

Item: ______________________________

Quantity: __________________________

Project: ____________________________

Approval: __________________________

Cuisine Series Heavy Duty

Date: ______________________________

Spreaders

Models:

 CCSP-6  CCSP-18  CCAF-6  CCAF-18  C836-12-0

 CCSP-12  CCSP-36  CCAF-12  CCAF-36  C836-18-0  C836-36-0

Cuisine Series Heavy Duty Spreaders

Spreader Plates, Spreaders &

Cabinets; & Spreader

Plates w/Apron Front

Standard Features:

• Cabinet base and modular
models

• Stainless steel top.

• Stainless steel front & sides.

• Stainless steel front rail w/posi­tion adjustment

• 1 1/4" NPT front gas manifold

• Can be installed individually or
in a battery

• 6" (152mm) H stainless steel stub
back

• 6" (152mm) chrome steel adjust­able legs

Optional Features:

 Stainless steel back

Model C836-12-0

Specifications:

U.S. Range Cuisine Series Spreader Model _______. Stainless steel top,
front, and sides. 6" (152mm) stainless steel legs with adjustable feet.

 Single or double deck high shelf

or back riser

 Stainless steel intermediate shelf

for cabinet base

 Stainless steel door(s) for cabi-

net base units

 Flanged feet set of four
 Swivel casters (4) w/ front lock-

ing

 Casters w/ polyurethane wheels

– non marking

 Manifold "T"; accepts 2" pipe to

rear (not included) "T" fitting N/A
on CCSP-6, CCAF-6, C836-12-0,
C836-18-0, and C836-36-0

NOTE: Spreaders suppled with
casters must be installed with an
approved restraining device.

Spreaders and Cabinets

Model# Description

C836-12-0 12" Wide, Cuisine Range Match Spreaders - With Open Cabinet

C836-18-0 18" Wide, Cuisine Range Match Spreaders - With Open Cabinet

C836-36-0 36" Wide, Cuisine Range Match Spreaders - With Open Cabinet

Spreader Plate Spreader Plates w/Apron Front

Model # Description Model # Description

CCSP-6 6" Wide Cuisine Spreader Plate CCAF-6 6" Wide Cuisine Spreader Plate w/Apron Front

CCSP-12 12" Wide Cuisine Spreader Plate CCAF-12 12" Wide Cuisine Spreader Plate w/Apron Front

CCSP-18 18" Wide Cuisine Spreader Plate CCAF-18 18" Wide Cuisine Spreader Plate w/Apron Front

CCSP-36 36" Wide Cuisine Spreader Plate CCAF-36 36" Wide Cuisine Spreader Plate w/Apron Front

Garland Commercial
Industries, LLC
185 East South Street
Freeland, PA 18224
Phone: [phone]
Fax: [phone]

Garland Commercial Ranges Ltd
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
Phone: [phone]
Fax: [phone]

Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: [phone]
Fax: [phone]

Cuisine Series Heavy Duty Spreaders

2-/12"

[64mm]

RANGE

3" MIN
[75mm]
5" MAX

[133mm]

Vermin
Proof

DAIS Mounting

12"

(305mm)

18"

(457mm)

36"

(914mm)

4 1/2"

(114mm)

7 1/8"

(180mm)

8 5/8"

(219mm)

37 7/8"

(962mm)

RAIL

CLOSED

39 3/8"

(1000mm)

RAIL

OPEN

12"

(305mm)

18"

(457mm)

65 7/16"

(1662mm)

CDHS

HI-Shelf

25 3/4"

(654mm)

REAR GAS

CONNECTION

36 1/8"

(917mm)

CSTUB

BACKGUARD

54 7/16"

(1382mm)

CCHS

HI-SHELF

32 11/16"

(830mm)

34 5/16"

(871mm)

16"

(406mm)

27 1/2"

(598mm)

11 1/8"

(282mm)

22 1/4"

(565mm)

30"

(762mm)

6" (152mm)

36"

(914mm)

6-31/32" [177mm]

9-15/32" [241mm]

SPREADER PLATE

Exterior Dimensions

Series

836-12-0 836-18-0 836-36-0

Width 12" (305mm) 18" (457mm) 36" (914mm)

Depth 37-7/8" (962mm) 37-7/8" (962mm) 37-7/8" (962mm)

Height w/o Legs 30" (762mm) 30" (762mm) 30" (762mm)

Height w/Legs 36" (914mm) 36" (914mm) 36" (914mm)

Cabinet Interior Dimensions

Width 9-1/2" (241mm) 15-1/2" (394mm) 32-1/2" (826mm)

Depth 28-1/2" (724mm) 28-1/2" (724mm 28-1/2" (724mm

Height 19-1/2" (495mm) 19-1/2" (495mm) 19-1/2" (495mm)

Combustible Wall Clearance

Sides Back

0" (0mm) 0" (0mm)

Garland Commercial
Industries, LLC
185 East South Street
Freeland, PA 18224
Phone: [phone]
Fax: [phone]

Garland Commercial Ranges Ltd
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
Phone: [phone]
Fax: [phone]

Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: [phone]
Fax: [phone]

Form# C836-12-0 (08/07)
