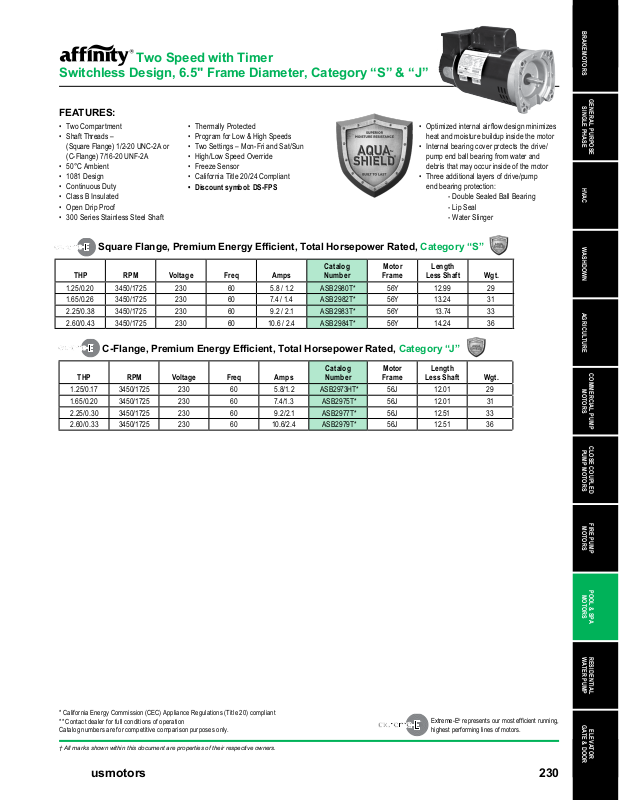

US Motors Two Speed with Timer Catalog Page

Two Speed with Timer
Switchless Design, 6.5" Frame Diameter, Category “S” & “J”

FE ATURES:

• Two Compartment

• Shaft Threads –
(Square Flange) 1/2-20 UNC-2A or
(C-Flange) 7/16-20 UNF-2A

• 50°C Ambient

• 1081 Design

• Continuous Duty

• Class B Insulated

• Open Drip Proof

• 300 Series Stainless Steel Shaft

• Thermally Protected

• Program for Low & High Speeds

• Two Settings – Mon-Fri and Sat/Sun

• High/Low Speed Override

• Freeze Sensor

• California Title 20/24 Compliant

• Discount symbol: DS-FPS

• Optimized internal airow design minimizes

• Internal bearing cover protects the drive/

• Three ad ditional l ayers of dr ive/pump

- Double Sealed Ball Bearing

- Lip Seal

- Water Slinger

heat and moisture buildup inside the motor

pump end ball bearing from water and
debris that may occur inside of the motor

end bearing protection:

BRAKEMOTORS

GENERAL PURPOSE

SINGLE PHASE

THP

®

RPM

Voltage

Freq

Amps

Catalog
Number

Motor

Frame

Length

Less Shaft Wgt.

Square Flange, Premium Energy E󰀩cient, Total Horsepower Rated, Category “S”

1.25/0.20 3450/1725 230 60 5.8 / 1.2 ASB2980T* 56Y 12.9 9 29

1.65/0.26 3450 /1725 230 60 7.4 / 1.4 ASB2982T* 56Y 13.24 31

2.25/0.38 34 50/1725 230 60 9.2 / 2.1 ASB2983T* 56Y 13.74 33

2.60/0.43 345 0/1725 230 60 10.6 / 2.4 ASB2984T* 56Y 14.24 36

THP

®

RPM

Voltage

Freq Amps

Catalog
Number

Motor
Frame

Length

Less Shaft Wgt.

C-Flange, Premium Energy E󰀩cient, Total Horsepower Rated, Category “J”

1. 25/0.17 3450/1725 230 60 5.8/1.2 ASB2973HT* 56J 12.01 29

1.65/0.20 3450/1725 230 60 7.4 /1.3 ASB2975T* 56J 12.01 31

2.25/0.30 3450/1725 230 60 9. 2/2.1 ASB2977T* 56J 12.51 33

2.60/0.33 3450/1725 230 60 10.6/2.4 ASB2979T* 56J 12.51 36

AGRICULTUREWASHDOWNHVAC

COMMERCIAL PUMP

MOTORS

CLOSE COUPLED

PUMP MOTORS

FIRE PUM P

MOTORS

* California Energy Commission (CEC) Appliance Regulations (Title 20) compliant
** Contact dealer for full conditions of operation
Catalog numbers are for competitive comparison purposes only.

† All marks shown within this document are properties of their respective owners.
