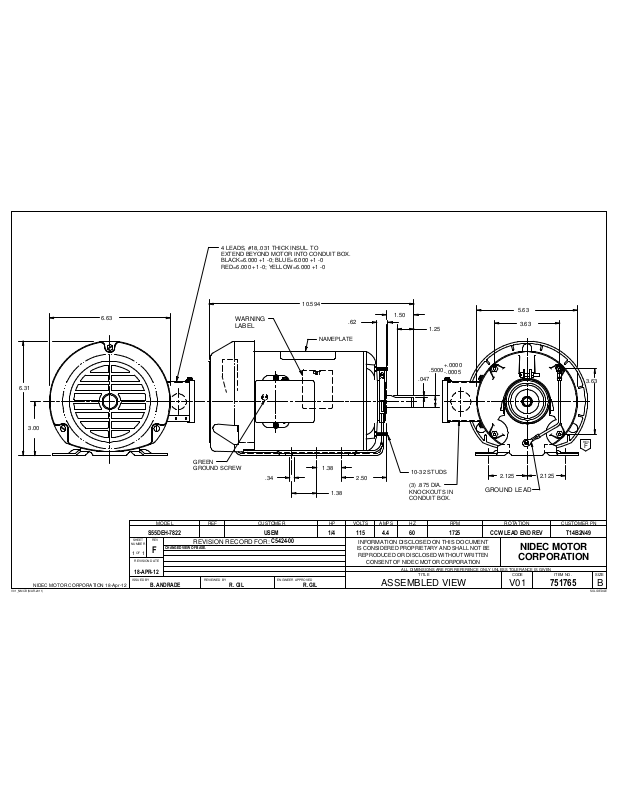

US Motors T14B2N49 Dimensional Sheet
4 LEADS, #18,.031 THICK INSUL. TO
EXTEND BEYOND MOTOR INTO CONDUIT BOX.
BLACK=6.000 +1 -0; BLUE=6.000 +1 -0
RED=6.000 +1 -0; YELLOW=6.000 +1 -0
6.31
3.00
NIDEC MOTOR CORPORATION 18-Apr-12
6.63
10.594
WARNING
LABEL
GREEN
GROUND SCREW
.34
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
SHEET
NUMBER
OF
1 1
REVISION DATE
18-APR-12
ISSUED BY
S55DEH-7822
REV
CHANGED VIEW OF BASE.
F
B. ANDRADE
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
R. GIL R. GIL
USEM
C5424-00
.62
NAMEPLATE
1.38
2.50
1.38
1/4 115 4.4
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
1.50
1.25
+.0000
.5000
-.0005
.047
10-32 STUDS
(3) .875 DIA.
KNOCKOUTS IN
CONDUIT BOX.
60 1725
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
GROUND LEAD
5.63
3.63
2.125
CCW LEAD END REV T14B2N49
NIDEC MOTOR
CORPORATION
V01
2.125
751765
3.63
REV.
F
B
SOLIDEDGEV01_NMCB (MAR-2011)
