Page 1
25°
REF.
AUTOMATIC
THERM. PROT
NAMEPLATE
SERIALIZED LABEL
(POOL AFTERMARKET)
GROUND
LUG
TOP
12.983
1.810±.015
.546±.010
a
A .010 T.I.R.
4.335
5.148
+.000
-.010
7.906 REF.
0
0
5
.
3
SEAM WELD
CALIFORNIA
TITLE 20 LABEL
NIDEC MOTOR CORPORATION 06-Oct-18
REV.
F
H
C
L
ST. SW.
END
3 COMB. Q. C.
2.4382.438
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
T55MWBLJ-962
SHEET
REV
NUMBER
1 1
ISSUED BY
OF
REVISION DATE
06-OCT-18
F
E. REYES
CALIFORNIA TITLE 20 LABEL ADDED.
& TERM. STUDS
3 TERM STUD NUTS
1 EACH PER TERM. STUD
1/2-14- NPT THREAD
WITH CONDUIT PLUG
POOL AFTERMARKET
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
S. SCHINZING J. SCHRADER
TOP
.344
E32436
.250±.062
3.000
1.5/.18 115
.125
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPR IETARY AND SHALL NOT B E
REPRODUCED OR DISCLOSE D WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORA TION

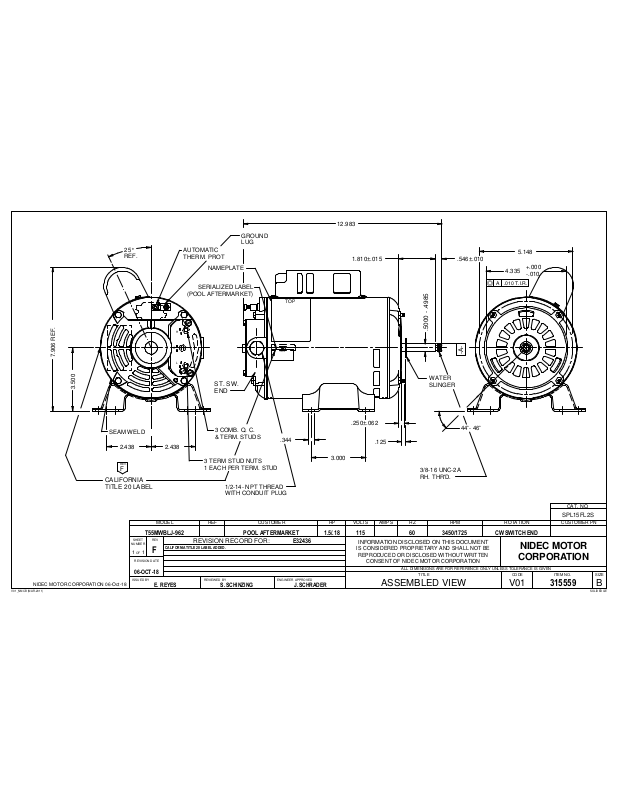

ASSEMBLED VIEW
.5000 - .4985
-A-
WATER
SLINGER
44v- 46
v
3/8-16 UNC-2A
RH. THR'D.
60 3450/1725
CW SWITCH END
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
CAT. NO.
SPL15FL2S
315559
B
SOLIDEDGEV01_NMCB (MAR-20 11)
