US Motors NA1024 Dimensional Sheet
MODEL
K55HXRKW-2203
NOTE:
KIT WITH BRACKET ASSEMBLY. RINGS SCREWS
AND NUTS TO BE INCLUDED IN CARTON BOX.
REF
C41342
WHOLESALE HAC
CUSTOMER
HP
1/4
VOLTS
208-230
(2).25 FLAG TYPE Q.C.
TERMS. WITH INSUL. GRIP
ON BROWN AND BRN/WHT LEADS
AMPS
2.1
HZ
50/60
1625/3 SPD
ROTATION
CCW LEAD END
CUSTOMER P.N.RPM
NA1024
DESCRIPTION / REMARKS
AUTOMATIC THERMAL
PROTECTOR
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR;
WHT=36.0 +/-1, BLUE=36.0 +/-1
BLK=36.0+/-1, RED=36.0+/-1
REV.
A
BRN=36.0+/-, BRN/WHT STRIPE 36.0+/-1
LEADS TO BE PROTECTED WITH GROMMET.
22.000
8.664
(6.750)
4.312u.062
8-32 THRD
TYP
1.625 ±.062
NAMEPLATE
.625u.062
SKINNED
#16 GREEN GROUND LEAD TO BE
24+/-.250 BETWEEN CENTER OF
TERMINALS, TERM TO FIT #10 SCREW.
9.024 ±.047
(6.750)
T
O
P
.5000
.4997
.453
.438
5.625
5.125
2.25
IDENTIFICATION
GROOVE THIS END
PROT.
.
X
U
A
N
R
B
MAIN 2
K
L
B
U
L
B
MAIN 3
REV.
A
D
E
R
T
H
W
MAIN 1
T
H
W
/
N
R
B
CAP.
NIDEC MOTOR CORPORATION 24-Feb-16
NIDEC MOTOR CORPORATION 24-Feb-16
ELIMINATED THE NOTE "FIGURES TO BE PRINTED ON LEADS"
ELIMINATED NUMBERS ASIDE THE COLORS OF THE CONECTION DIAGRAMA
ISSUED BY :
ISSUED BY :
I. NUÑEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
A. VILLANUEVA
E25008
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

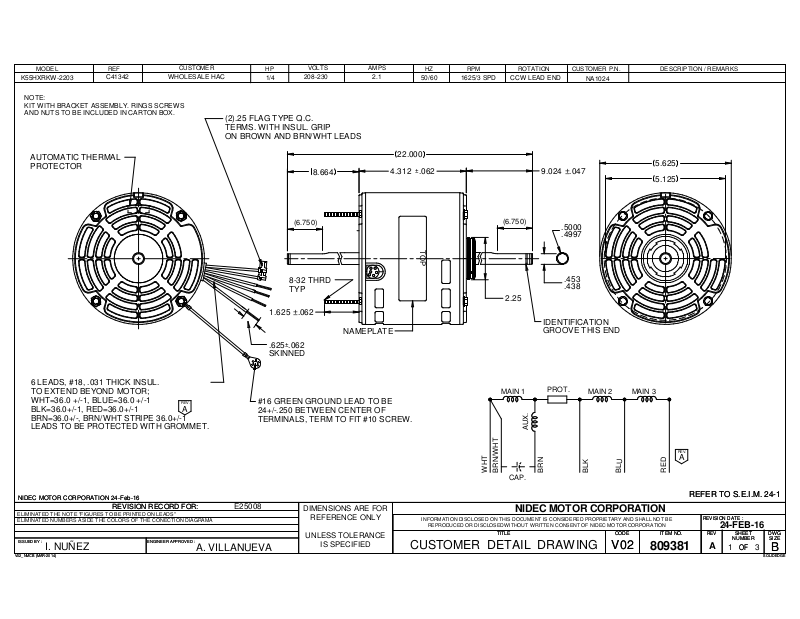

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
809381
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
24-FEB-16
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
