US Motors N169 Dimensional Sheet

MODEL

HP VOLTS AMPS ROTATION DESCRIPTION/REMARKS

B1880441700000B 1/25 230V 0.3A CWSE PALLET QTY 144

BLOWER SPECIFICATIONS

CAT #

HP
VOLTS
HERTZ

SPEEDS

AMPS

RPM

CAPACITOR

N169

1/25
230V
60HZ

1

0.3A

3000

1.5uF/450VAC

ROTATION

BEARING TYPE

MOTOR TYPE

PROTECTOR

PHASE

INSULATION CLASS

CFM

CWSE

BALL BEARING

PSC

AUTO

SINGLE

B

95.36@FREE AIR

8.79

8.17

WARNING

LABEL

8.82

10.02

T.P.

(COM)

WHITE

CR

BROWNGRAY

CAP

O
O

2.95

2.76

M

A

BLACK

MOTOR
NAMEPLATE

3.90

CAP

O

3.98

O

3.47

O

0.22

8.98

NIDEC MOTOR CORPORATION 08-OCT-15

CREATED DRAWING

ISSUED BY :

ISSUED BY :

F. GARCIA T. BOURQUIN

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

O

2.28

ECO: E24565

2.41

2.61

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

mm

0.24

0.81

6.35

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

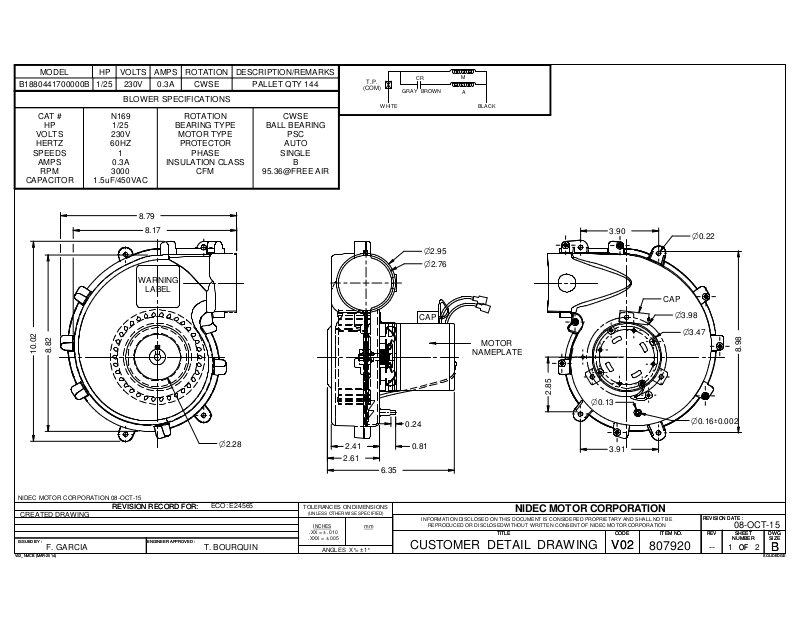

CUSTOMER DETAIL DRAWING
