US Motors N164 Dimensional Sheet

MODEL HP VOLTS AMPS ROTATION DESCRIPTION/REMARKS

B1880441500000B 1/60 120V 1.4A CCWSE PALLET QTY 270

BLOWER SPECIFICATIONS

CAT #

HP
VOLTS
HERTZ

SPEEDS

AMPS

RPM

N164

1/60
120V
60HZ

1

1.4A

2800

ROTATION

BEARING TYPE

MOTOR TYPE

PROTECTOR

PHASE

INSULATION CLASS

CFM

CCWSE

BALL BEARING

SHADE POLE

AUTO

SINGLE

B

69.7@FREE AIR

WARNING LABEL

MOTOR NAMEPLATE

5.75

T.P.

(COM)

PRESSURE TAP

TERMINAL

O

O

2.20

2.14

TERMINAL

O

4.15

5.37

NIDEC MOTOR CORPORATION 08-OCT-15

CREATED DRAWING

ISSUED BY :

ISSUED BY :

F. GARCIA T. BOURQUIN

REVISION RECORD FOR:

REVISION RECORD FOR:

6.38

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E24565

1.18

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

mm

2.22

6.185.96

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

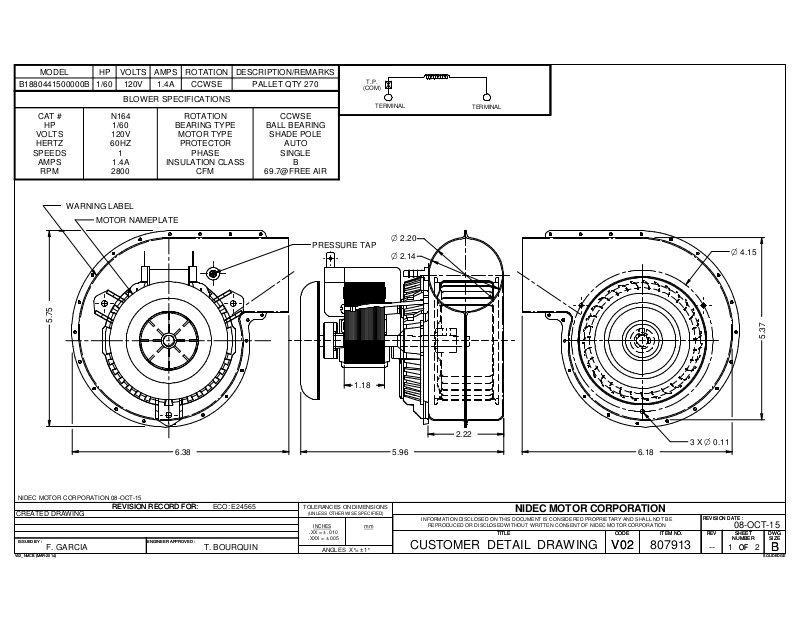

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

807913

3 X O 0.11

REVISION DATE :

REVISION DATE :

REV

REV

08-OCT-15

SHEET

SHEET

NUMBER

NUMBER

OF

OF

1 2--

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)
