US Motors N143 Dimensional Sheet

MODEL

HP VOLTS AMPS ROTATION DESCRIPTION/REMARKS

B1880441900000B 1/30 120V 1.3A CWSE PALLET QTY 120

BLOWER SPECIFICATIONS

CAT #

HP
VOLTS
HERTZ

SPEEDS

AMPS

RPM

N143

1/30
120V
60HZ

1

1.3A

3000

ROTATION

BEARING TYPE

MOTOR TYPE

PROTECTOR

PHASE

INSULATION CLASS

CFM

CWSE

BALL BEARING

SHADE POLE

AUTO

SINGLE

B

93.45@FREE AIR

T.P.

(COM)

TERMINAL

TERMINAL

7.11

5XO0.26

O

2.25

5.00

3.89

7.62

3.05

2.35 1.75

NIDEC MOTOR CORPORATION 08-OCT-15

CREATED DRAWING

ISSUED BY :

ISSUED BY :

F. GARCIA T. BOURQUIN

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

1.25

3.19

ECO: E24565

0.20

4.64

8.57

3.02

3.53

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

0.06

1.73

1.65

mm

4XO0.13

2.72

1.57

2.95

7.83

EARTH WIRE

16.54"

4.18

5.97

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

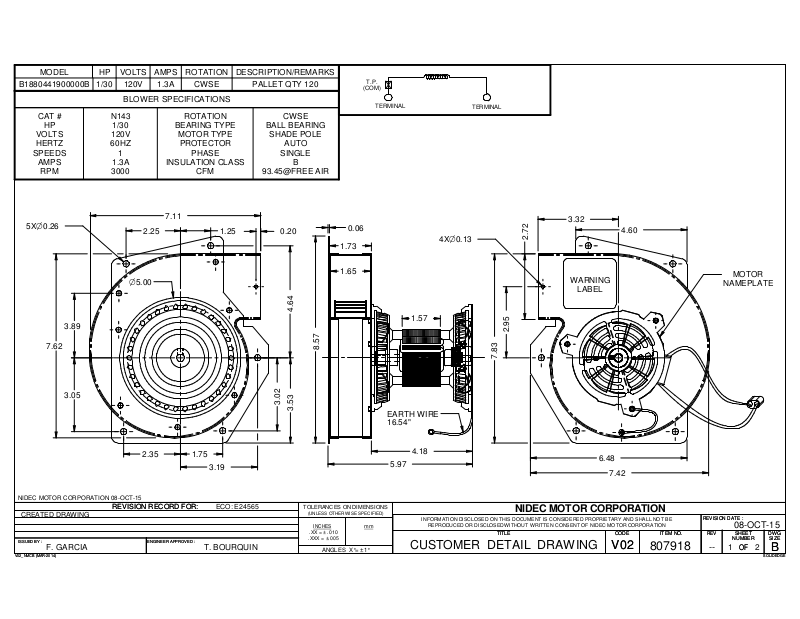

CUSTOMER DETAIL DRAWING

3.32

WARNING

LABEL

4.60

6.48

7.42

CODE ITEM NO.

CODE ITEM NO.

V02

V02

807918

MOTOR
NAMEPLATE

REVISION DATE :

REVISION DATE :

REV

REV

08-OCT-15

SHEET

SHEET

NUMBER

NUMBER

1 2--

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
