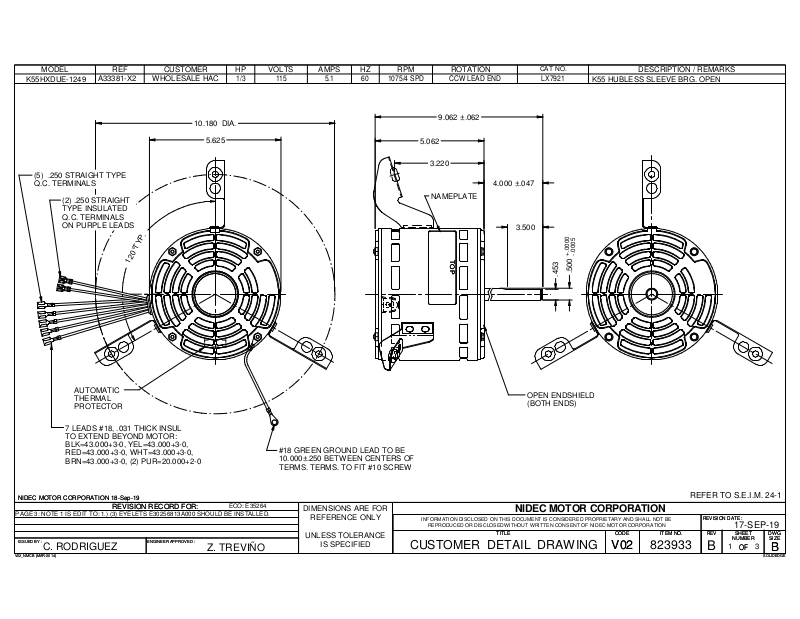

US Motors LX7921 Dimensional Sheet

B OF

B OF

MODEL REF

K55HXDUE-1249

A33381-X2

CUSTOMER

WHOLESALE HAC

HP

1/3

VOLTS

AMPS

5.1

HZ

60

RPM

1075/4 SPD

ROTATION

CCW LEAD END115

CAT NO.

LX7921

K55 HUBLESS SLEEVE BRG. OPEN

DESCRIPTION / REMARKS

(5) .250 STRAIGHT TYPE
Q.C. TERMINALS

(2) .250 STRAIGHT
TYPE INSULATED
Q.C. TERMINALS
ON PURPLE LEADS

AUTOMATIC
THERMAL
PROTECTOR

10.180 DIA.

5.625

9.062 ±.062

5.062

3.220

4.000 ±.047

NAMEPLATE

.

P

Y

T

°

0

2

1

T

T

T
O

O

O
P

P

P

3.500

+.0000

-.0005

.500

.453

OPEN ENDSHIELD
(BOTH ENDS)

7 LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
BLK=43.000+3-0, YEL=43.000+3-0,
RED=43.000+3-0, WHT=43.000+3-0,
BRN=43.000+3-0, (2) PUR=20.000+2-0

NIDEC MOTOR CORPORATION 18-Sep-19

NIDEC MOTOR CORPORATION 18-Sep-19

PAGE 3: NOTE 1 IS EDIT TO: 1.) (3) EYELETS E30256813A000 SHOULD BE INSTALLED.

ISSUED BY :

ISSUED BY :

C. RODRIGUEZ

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E35264

Z. TREVIÑO

#18 GREEN GROUND LEAD TO BE

10.000±.250 BETWEEN CENTERS OF
TERMS. TERMS. TO FIT #10 SCREW

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

823933

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

B

17-SEP-19

SHEET

SHEET

NUMBER

NUMBER

1 3

DWG

DWG

SIZE

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
