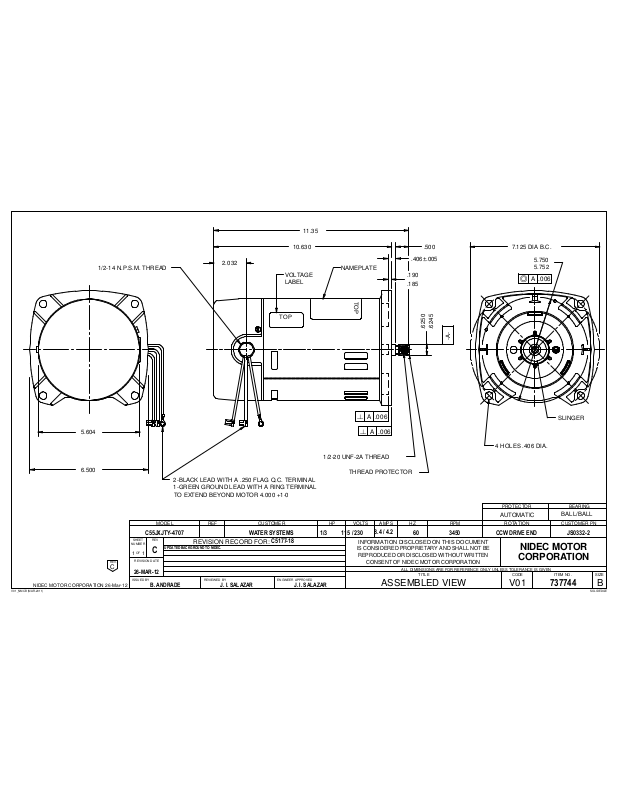

US Motors JS0332-2 Dimensional Sheet

1/2-14 N.P.S.M. THREAD

5.604

6.500

REV.

C

NIDEC MOTOR CORPORATION 26-Mar-12

11.35

2.032

10.630

VOLTAGE
LABEL

NAMEPLATE

.406±.005

.190
.185

.500

7.125 DIA B.C.

5.750

5.752

a

A .006

TOP

0

TOP

n

n

A .006

A .006

5

5

4

2

2

6

6

.

.

­A

-

4 HOLES .406 DIA.

1/2-20 UNF-2A THREAD

2-BLACK LEAD WITH A .250 FLAG Q.C. TERMINAL
1-GREEN GROUND LEAD WITH A RING TERMINAL

TO EXTEND BEYOND MOTOR 4.000 +1-0

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

C55JXJTY-4707

SHEET

NUMBER

OF

1 1

REVISION DATE

26-MAR-12

ISSUED BY

REV

UPDATED BACKGROUND TO NIDEC.

C

B. ANDRADE

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

WATER SYSTEMS

C5177-18

J. I. SALAZAR J. I. SALAZAR

THREAD PROTECTOR

1/3 115 / 230

8.4 / 4.2

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60 3450

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

PROTECTOR

AUTOMATIC

CCW DRIVE END JS0332-2

NIDEC MOTOR

CORPORATION

V01

SLINGER

BALL/BALL

737744

BEARING

B

SOLIDEDGEV01_NMCB (MAR-2011)
