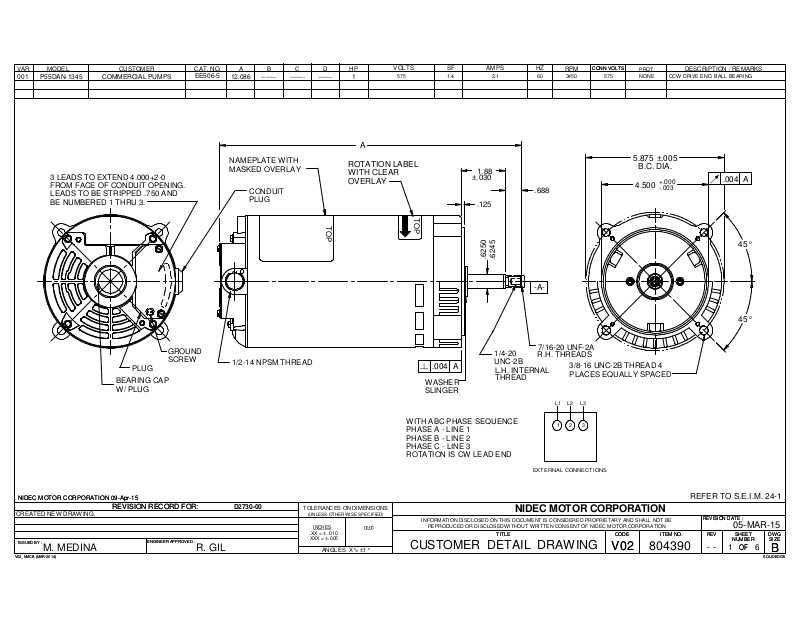

US Motors EE506-5 Dimensional Sheet
B OF
B OF
mm
001
MODEL
P55DAN-1345
CUSTOMERVAR
COMMERCIAL PUMPS
3 LEADS TO EXTEND 4.000+2-0
FROM FACE OF CONDUIT OPENING.
LEADS TO BE STRIPPED .750 AND
BE NUMBERED 1 THRU 3.
CAT. NO.
EE506-5
12.086
B
------- -------
NAMEPLATE WITH
MASKED OVERLAY
CONDUIT
PLUG
D DESCRIPTION / REMARKS
C
-------
HP
1
VOLTS
575
SF
1.4
AMPS
2.1 60 3450
HZ
CONN VOLTS
CONN VOLTS
RPMA
575
PROT.
NONE
CCW DRIVE END, BALL BEARING
A
ROTATION LABEL
WITH CLEAR
OVERLAY
1.88
±.030
.688
5.875 ±.005
B.C. DIA.
+.000
4.500
-.003
.125
TOP
TOP
0
5
5
4
2
2
6
6
.
.
-A-
^
.004 A
45°
45°
NIDEC MOTOR CORPORATION 09-Apr-15
NIDEC MOTOR CORPORATION 09-Apr-15
CREATED NEW DRAWING.
ISSUED BY :
ISSUED BY :
M. MEDINA
GROUND
SCREW
PLUG
BEARING CAP
W/ PLUG
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
R. GIL
1/2-14 NPSM THREAD
D2730-00
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
7/16-20 UNF-2A
R.H. THREADS
3/8-16 UNC-2B THREAD 4
PLACES EQUALLY SPACED
n
.004 A
WASHER
1/4-20
UNC-2B
L.H. INTERNAL
THREAD
SLINGER
L1 L2 L3
WITH ABC PHASE SEQUENCE
PHASE A - LINE 1
1 2 3
PHASE B - LINE 2
PHASE C - LINE 3
ROTATION IS CW LEAD END
EXTERNAL CONNECTIONS
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
804390
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
- -
05-MAR-15
SHEET
SHEET
NUMBER
NUMBER
1 6
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR- 2014)
SOLIDEDGEV02_NMCB (MAR- 2014)
