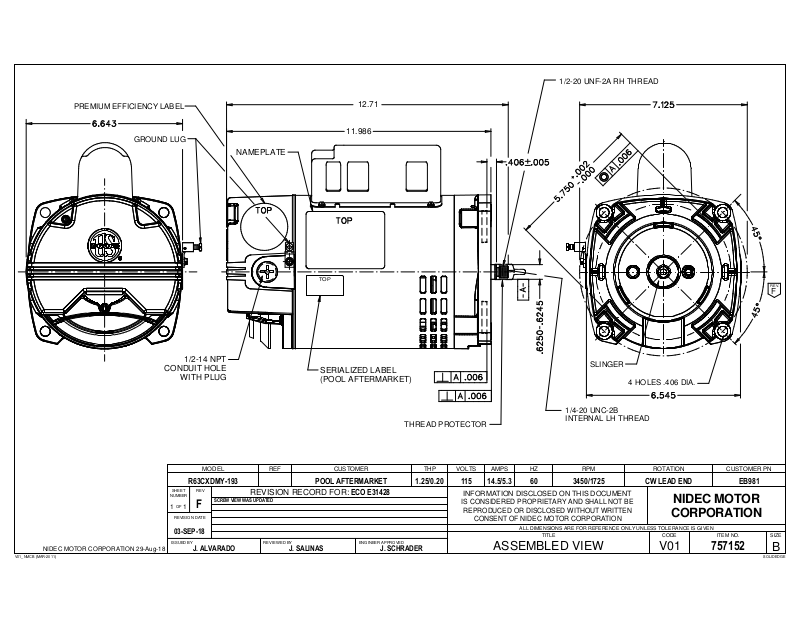

US Motors EB981 Dimensional Sheet

1/2-20 UNF-2A RH THREAD

PREMIUM EFFICIENCY LABEL

GROUND LUG

CONDUIT HOLE

1/2-14 NPT

WITH PLUG

NAMEPLATE

12.71

11.986

TOP

SERIALIZED LABEL
(POOL AFTERMARKET)

SLINGER

4 HOLES .406 DIA.

REV.

F

NIDEC MOTOR CORPORATION 29-Aug-18

R63CXDMY-193

SHEET

NUMBER

OF

1 1

REVISION DATE

03-SEP-18

ISSUED BY

J. ALVARADO

MODEL REF

REV

SCREW VIEW WAS UPDATED

F

REVISION RECORD FOR:

CUSTOMER THP VOLTS AMPS HZ RPM ROTATION

POOL AFTERMARKET

ECO E31428

REVIEWED BY ENGINEER APPROVED

J. SALINAS J. SCHRADER

THREAD PROTECTOR

1.25/0.20 115 14.5/5.3

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

1/4-20 UNC-2B
INTERNAL LH THREAD

60 3450/1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

CW LEAD END EB981

ASSEMBLED VIEW

CUSTOMER PN

NIDEC MOTOR

CORPORATION

V01

757152

B
