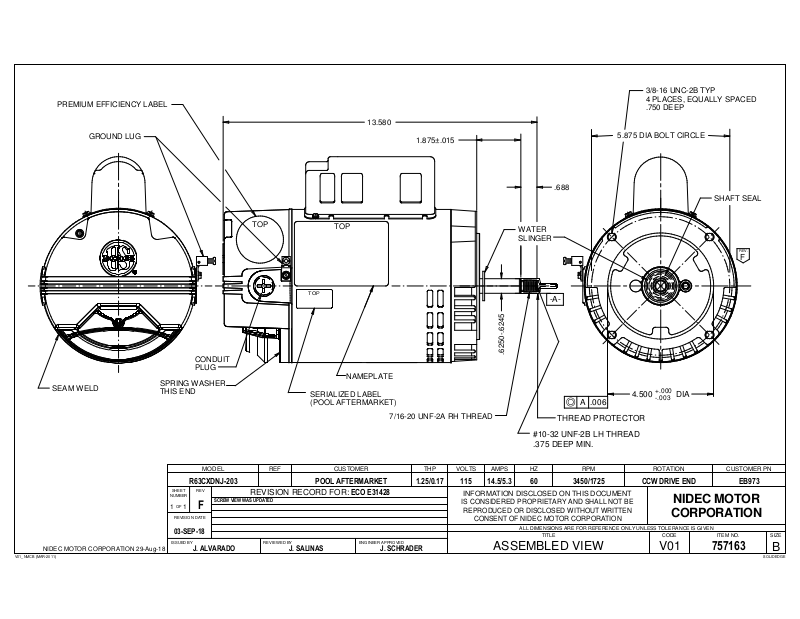

US Motors EB973 Dimensional Sheet

PREMIUM EFFICIENCY LABEL

GROUND LUG

13.580

1.875±.015

3/8-16 UNC-2B TYP 4 PLACES, EQUALLY SPACED .750 DEEP

5.875 DIA BOLT CIRCLE

.688

SHAFT SEAL

SEAM WELD

NIDEC MOTOR CORPORATION 29-Aug-18

CONDUIT PLUG

SPRING WASHER THIS END

MODEL REF

R63CXDNJ-203

SHEET

REV

NUMBER

1 1

REVISION DATE

SCREW VIEW WAS UPDATED

03-SEP-18

ISSUED BY

J. ALVARADO

TOP

NAMEPLATE

SERIALIZED LABEL (POOL AFTERMARKET)

CUSTOMER THP VOLTS AMPS HZ RPM ROTATION

POOL AFTERMARKET

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

J. SALINAS J. SCHRADER

ECO E31428

7/16-20 UNF-2A RH THREAD

1.25/0.17 115 14.5/5.3

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

WATER SLINGER

-A-

.6250-.6245

4.500

A .006

THREAD PROTECTOR

#10-32 UNF-2B LH THREAD .375 DEEP MIN.

60 3450/1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

CCW DRIVE END EB973

ASSEMBLED VIEW

+.000

DIA

-.003

NIDEC MOTOR

CORPORATION

V01

757163

REV.

CUSTOMER PN

SOLIDEDGEV01_NMCB (MAR-2011)
