Page 1
V02 USEM pg 1 English
VAR
001
MODEL
P63FPE-1727 D34P2GH
CUSTOMER
USEM
A
12.3
-----
C
B
-----
HP
D
3/4 -----
-----
VOLTS
575
SF
1.25
AMPS
0.93
HZ
60
RPM
1725
CONN VOLTS
PROT.CAT. NO.
NONE
DESCRIPTION / REMARKS
N56H, ODP
(6.50)
THERMAL PROTECTOR
(IF REQUIRED SEE CHART)
WARNING LABEL
(OPPOSITE SIDE)
A
NAMEPLATE
1.94 u .031
1.88
KEYWAY
(.188X1.440)
TOP
.517
6.72( )
+.000
-.060
.6250
.6245
3.500
1.25
(6 SLOTS)
2.438 2.438
1/2-14 NPSM THREAD
WITH CONDUIT PLUG
(5.000)
(.344) TYP
(3.000)
(2.750)
SHAFT KEY TAPED
TO MOTOR
NIDEC MOTOR CORPORATION 28-Feb-19
NIDEC MOTOR CORPORATION 28-Feb-19
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
C.ALMAGUER
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ROTATION: REVERSIBLE,TO REVERSE ROTATION INTERCHANGE ANY TWO LINE LEADS
JC 72894
T.MILLER
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
mm
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

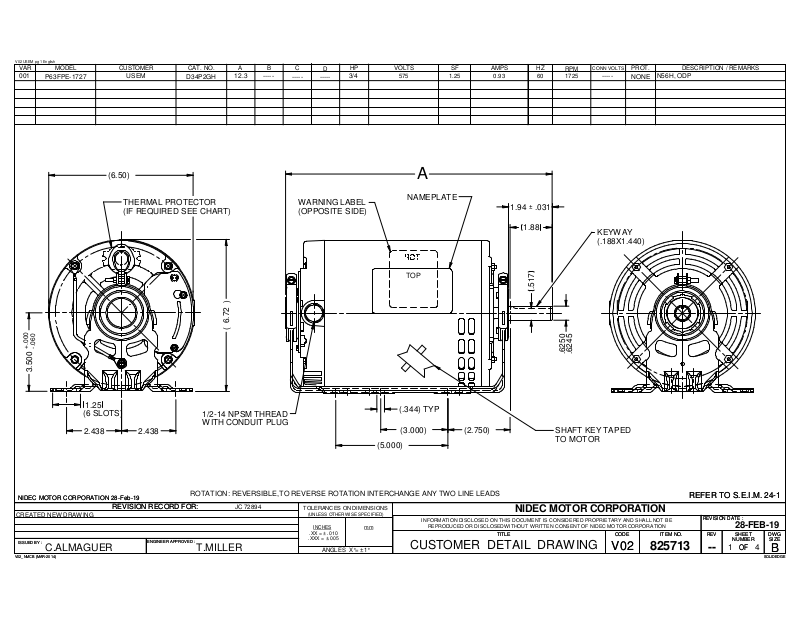

CUSTOMER DETAIL DRAWING
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
825713
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
28-FEB-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 4
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
