V02 USEM pg 1 English
VAR
T63CRB-2187
001
MODEL
CUSTOMER
USEM
D34CP2PHC
A
11.358
B
-------
C
-------
D
-------
HP
3/4
VOLTS
115/230
SF
1.25
AMPS
7.0/3.5
HZ
60
RPM
1725
CONN VOLTS
230
PROT.CAT. NO.
NONE
DESCRIPTION / REMARKS
N56H, ODP
(6.50)
THERMAL PROTECTOR
(IF REQUIRED SEE CHART)
(8.25)
(8.50)
+.000
-.060
3.500
1/2 -14 NPSM THREAD
WITH CONDUIT PLUG
NIDEC MOTOR CORPORATION 09-Oct-18
NIDEC MOTOR CORPORATION 09-Oct-18
UPDATED VIEW OF THE MACHINE SCREW FOR BEARING LOCK TAB, WITHOUT SLOT.
ISSUED BY :
ISSUED BY :
R. GUZMAN
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
MOTOR IS CCW ROTATION LEAD END, TO REVERSE ROTATION INTERCHANGE RED AND BLACK LEADS.
ECO: E31480
J. SALINAS
NAMEPLATE
WARNING LABEL
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
(5.00)
mm
A
TOP
(3.00)
±.060
.156
(.34)
2.560
SHAFT KEY TAPED TO MOTOR
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

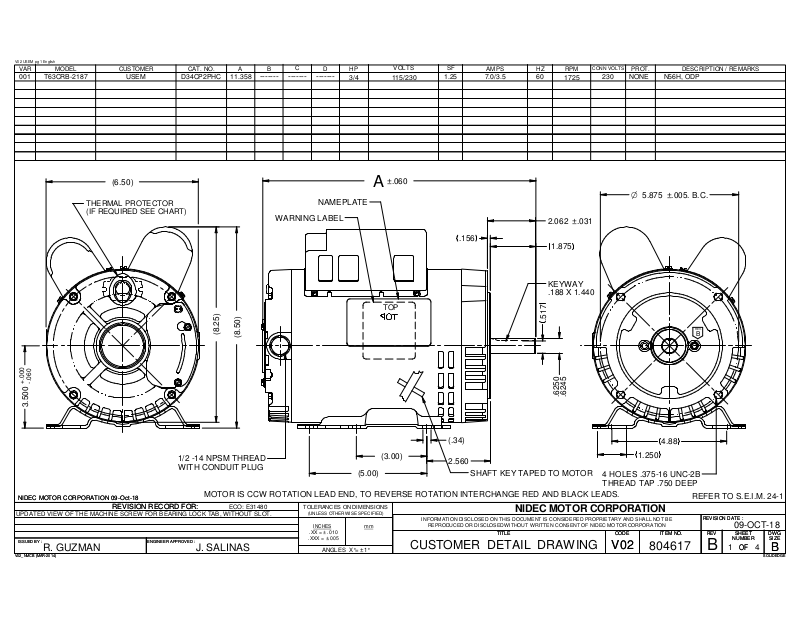

CUSTOMER DETAIL DRAWING
2.062 ±.031
1.875
KEYWAY
.188 X 1.440
.517
.6250
.6245
5.875O±.005. B.C.
4.88
1.250
4 HOLES .375-16 UNC-2B
THREAD TAP .750 DEEP
REFER TO S.E.I.M. 24-1
CODE ITEM NO.
CODE ITEM NO.
V02
V02
804617
REV.
B
REVISION DATE :
REVISION DATE :
REV
REV
B
09-OCT-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 4
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
