US Motors D13CP2P Dimensional Sheet
VAR
001
MODEL
T55CNT-1500
CUSTOMER
WHOLESALE-HAC
(5.625)
(39v)
(24v)
CAT. NO.
D13CP2P
A
9.875
B
-----
C
HP
D
1/3
----------
VOLTS
115/230 & 110/220
SF
1.35
3.9/1.9
&
4.8/2.5
HZ
60&50
RPMAMPS DESCRIPTION / REMARKS
1725 & 1425
CONN VOLTS
230
PROT.
NONE
N56, ODP, CCW LEAD END REV.
SHAFT KEY TAPED TO MOTOR
A u 0.062
NAMEPLATE
(1.969)
(1.875)
(7.432)
(3.500)
(2.438) (2.438)
(5.712)
NIDEC MOTOR CORPORATION 28-Jul-17
NIDEC MOTOR CORPORATION 28-Jul-17
CAPACITOR NOTES UPDATED ON PAGE 3 & 4.
ISSUED BY :
ISSUED BY :
E. REYES
REVISION RECORD FOR:
REVISION RECORD FOR:
3
2
6
ENGINEER APPROVED :
ENGINEER APPROVED :
1
5
4
7
A. LOZANO
(7.720)
CONDUIT PLUG
1/2-14 NPSC THR'D
ECO E29192
(.344)
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
mm
T
O
P
WARNING LABEL
(ON OPPOSITE SIDE)
(3.000)
(2.75)
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

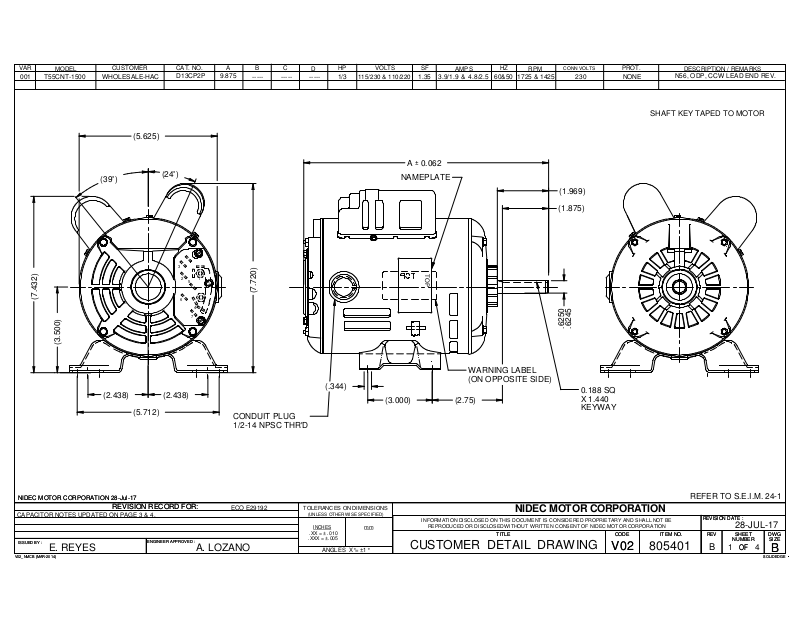

CUSTOMER DETAIL DRAWING
.6250
.6245
0.188 SQ
X 1.440
KEYWAY
CODE ITEM NO.
CODE ITEM NO.
V02
V02
805401
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
28-JUL-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 4
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
