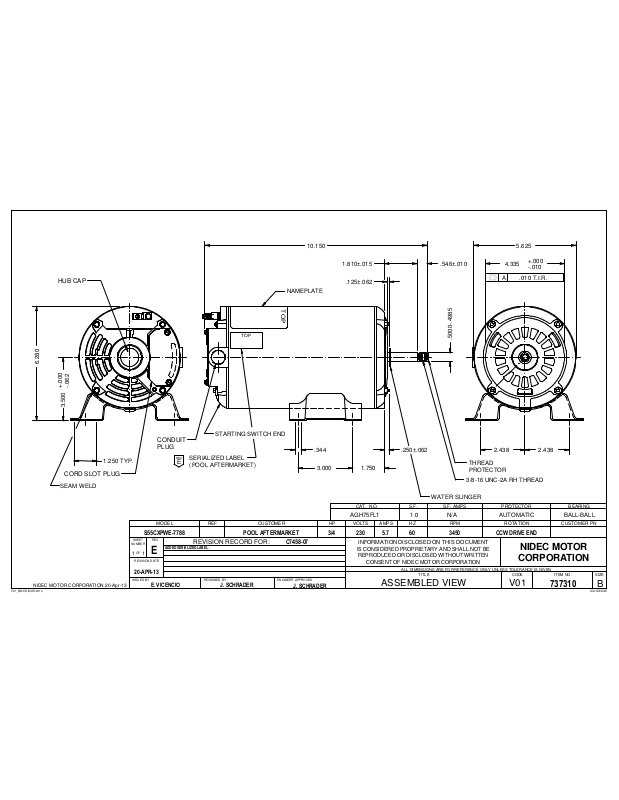

US Motors AGH75FL1 Dimensional Sheet

HUB CAP

NAMEPLATE

TOP

10.150

1.810±.015

.125±.062

.546±.010

4.335

r

A .010 T.I.R.

5.625

+.000

-.010

6.280

-.062

+.000

3.500

1.250 TYP.

CORD SLOT PLUG

SEAM WELD

NIDEC MOTOR CORPORATION 20-Apr-13

CONDUIT
PLUG

MODEL REF

S55CXPWE-7788

SHEET

REV

NUMBER

OF

E

1 1

REVISION DATE

20-APR-13

ISSUED BY

E. VICENCIO

REV.

SERIALIZED LABEL

E

(POOL AFTERMARKET)

REVISION RECORD FOR:

ADDED SERIALIZED LABEL.

REVIEWED BY ENGINEER APPROVED

TOP

STARTING SWITCH END

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

POOL AFTERMARKET

C7458-07

J. SCHRADER

J. SCHRADER

.5000-.4985

.250±.062

1.7503.000

THREAD
PROTECTOR

3/8-16 UNC-2A RH THREAD

WATER SLINGER

AGH75FL1 1.0 AUTOMATIC

S.F. AMPS

3/4 230 5.7

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60 3450

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

2.438 2.438.344

CCW DRIVE END

NIDEC MOTOR

CORPORATION

V01

BALL-BALLN/A

CUSTOMER PN

737310

BEARINGCAT. NO. S.F. PROTECTOR

B

SOLIDEDGEV01_NMCB (MAR-2011)
