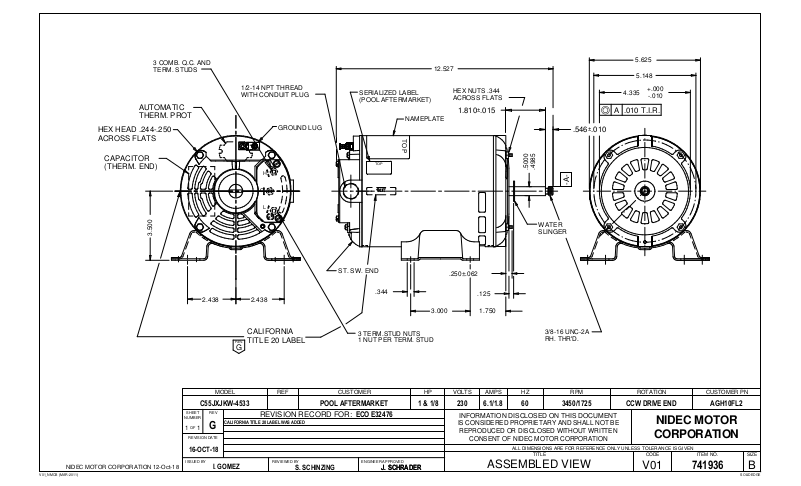

US Motors AGH10FL2 Dimensional Sheet
3 COMB. Q.C. AND
TERM. STUDS
AUTOMATIC
THERM. PROT
HEX HEAD .244-.250
ACROSS FLATS
CAPACITOR
(THERM. END)
1/2-14 NPT THREAD
WITH CONDUIT PLUG
GROUND LUG
H
C
L
SERIALIZED LABEL
(POOL AFTERMARKET)
NAMEPLATE
T
O
P
TOP
12.527
HEX NUTS .344
ACROSS FLATS
1.810u.015
.5000
.4985
.546u.010
-A-
5.625
5.148
+.000
4.335
-.010
a A .010 T.I.R.
0
0
5
.
3
NIDEC MOTOR CORPORATION 12-Oct-18
2.438
C55JXJKW-4533
SHEET
NUMBER
1
REV
G
OF
1
REVISION DATE
16-OCT-18
ISSUED BY
2.438
CALIFORNIA
TITLE 20 LABEL
REV.
G
MODEL REF
REVISION RECORD FOR:
CALIFORNIA TITLE 20 LABEL WAS ADDED
REVIEWED BY ENGINEER APPROVED
I. GOMEZ
POOL AFTERMARKET
S. SCHINZING
WATER
SLINGER
ST. SW. END
.344
3 TERM.STUD NUTS
1 NUT PER TERM. STUD
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
1 & 1/8
ECO E32476
J. SCHRADER
J. SCHRADER
3.000
.250±.062
.125
1.750
3/8-16 UNC-2A
RH. THR'D.
230 6.1/1.8
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60 3450/1725
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
CCW DRIVE END AGH10FL2
NIDEC MOTOR
CORPORATION
V01
CUSTOMER PN
741936
B
SOLIDEDGEV01_NMCB (MAR-2011)
