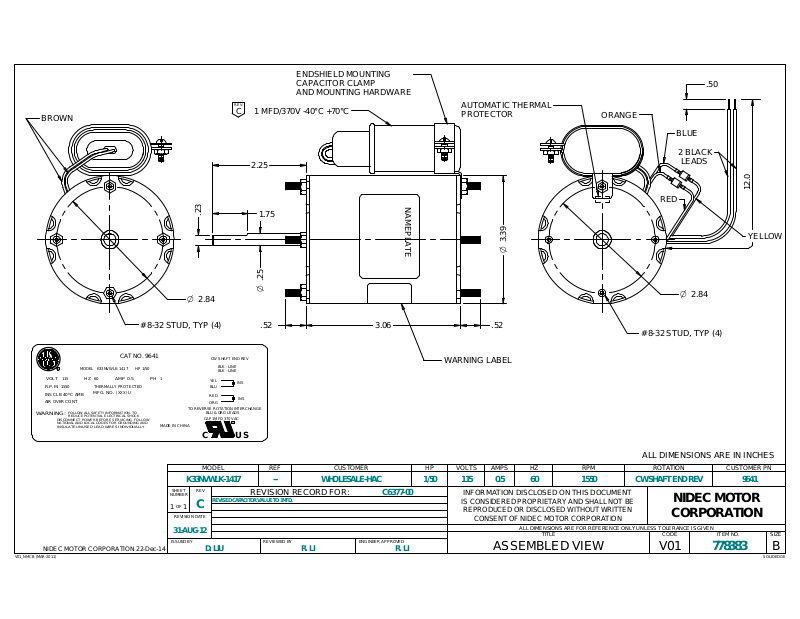

US Motors 9641 Dimensional Sheet

BROWN

.23

ENDSHIELD MOUNTING
CAPACITOR CLAMP
AND MOUNTING HARDWARE

REV.

1 MFD/370V -40°C +70°C

C

2.25

1.75

NAMEPLATE

AUTOMATIC THERMAL
PROTECTOR

.50

ORANGE

BLUE

2 BLACK
LEADS

12.0

RED

# 8-32 STUD, TYP (4)

CAT NO. 9641

R

MODEL K33NVWLK-1417

115

HZVOLT

60

1550

R.P.M.

INS CL B 40º C AMB

AIR OVER CONT

WARNING:

DISCONNECT POWER BEFORE SERVICING. FOLLOW
NATIONAL AND LOCAL CODES FOR GROUNDING AND
INSULATE UNUSED LEAD WIRES INDIVIDUALLY.

NIDEC MOTOR CORPORATION 22-Dec-14

THERMALLY PROTECTED
MFG. NO.

FOLLOW ALL SAFETY INFORMATION. TO
REDUCE POTENTIAL ELE CTRICAL SHOCK

HP 1/50

AMP 0.5

(XXX )U

PH

1

MADE IN CHINA

3.39O

.25O

O

2.84

CW SHAFT END REV

BLK - LINE
BLK - LINE

YEL

INS

BLU
RED

INS

ORG

TO REVERSE ROTATION INTERCHANGE
BLU & ORG LEADS

CAP 1MFD 370 VAC

R

C

US

.52

3.06

.52

WARNING LABEL

# 8-32 STUD, TYP (4)

2.84O

ALL DIMENSIONS ARE IN INCHES

MODEL REF

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

K33NVWLK-1417 -- WH OLESALE-HAC 1/50 115 0.5 60 1550 CW SHAFT E ND REV 9641

REV

SHEET

NUMBER

OF

1

1

REVISION DATE

31-AUG-12

ISSUED BY

REVISE D CA PA CI TO R VA LU E TO 1M FD.

C

D. LIU R. LI R. LI

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

C6377-00

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

NIDEC MOTOR

CORPORATION

V01

778383

YELLOW

CUSTOMER PN

SOLIDEDGEV01_NMCB (MAR-2011)

B
