US Motors 8955 Dimensional Sheet
MODEL REF
K48HXTYF-4150
A20931
STANDARD
HP
1/3
VOLTS
115
AMPS
3.8
HZ
60
RPM
1075/3 SPD
ROTATION
CCW LEAD END, REV
CUSTOMER PT. NO.
8955
SELF-ALIGN BRG., OPEN
DESCRIPTION / REMARKSCUSTOMER

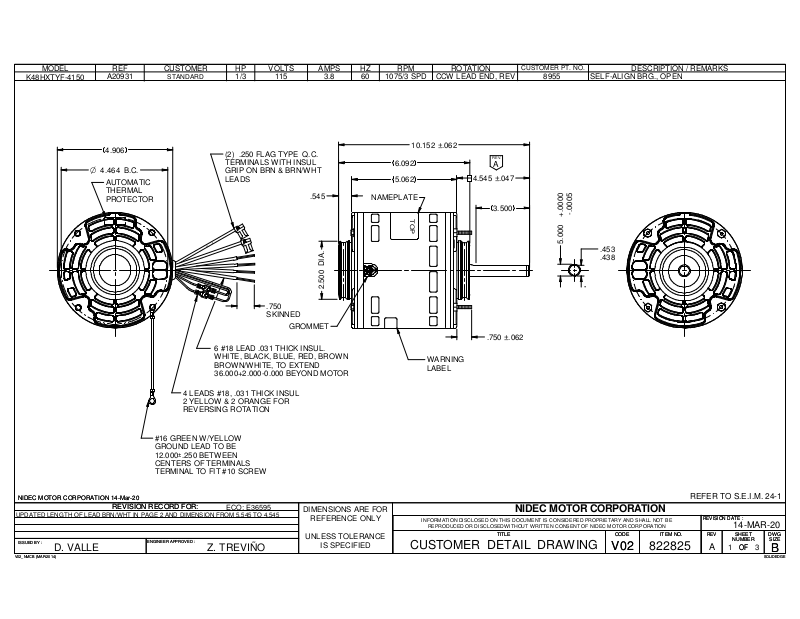

4.906
4.464OB.C.
AUTOMATIC
THERMAL
PROTECTOR
(2) .250 FLAG TYPE Q.C.
TERMINALS WITH INSUL
GRIP ON BRN & BRN/WHT
LEADS
.750
SKINNED
GROMMET
6 #18 LEAD .031 THICK INSUL.
WHITE, BLACK, BLUE, RED, BROWN
BROWN/WHITE, TO EXTEND
36.000+2.000-0.000 BEYOND MOTOR
4 LEADS #18, .031 THICK INSUL
2 YELLOW & 2 ORANGE FOR
REVERSING ROTATION
.545
10.152 ±.062
6.092
5.062
REV.
A
4.545 ±.047
NAMEPLATE
3.500
T
O
P
-.0005
5.000 +.0000
.453
.438
2.500 DIA.
.750 ±.062
WARNING
LABEL
#16 GREEN W/YELLOW
GROUND LEAD TO BE
12.000u.250 BETWEEN
CENTERS OF TERMINALS
TERMINAL TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 14-Mar-20
NIDEC MOTOR CORPORATION 14-Mar-20
UPDATED LENGTH OF LEAD BRN/WHT IN PAGE 2 AND DIMENSION FROM 5.545 TO 4.545
ISSUED BY :
ISSUED BY :
D. VALLE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E36595
Z. TREVIÑO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822825
REFER TO S.E.I.M. 24-1
