US Motors 8952 Dimensional Sheet

MODEL REF

K48HXTTW-4147

A20876

CUSTOMER

STANDAR

8952

(2) .250 FLAG TYPE Q.C.
TERMINALS WITH INSUL
GRIP ON BROWN LEADS

HP VOLTS AMPS HZ RPM

1/5

208-230

1.6

1075/3SPD CCW LE REV.

60

ROTATIONCUSTOMER PN

DESCRIPTION / REMARKS

AUTOMATIC THERMAL
PROTECTOR

#18 GREEN GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMINALS.
TERMINAL TO FIT #10 SCREW

NIDEC MOTOR CORPORATION 25-Oct-18

NIDEC MOTOR CORPORATION 25-Oct-18

NEW DRAWING CREATED.

ISSUED BY :

ISSUED BY :

I. GUTIERREZ

REVISION RECORD FOR:

REVISION RECORD FOR:

4 LEADS#18,.031 THICK INSUL
2 YEL & 2 ORG FOR REVERSING
ROTATION

2

+

0

0

0

.

4

6 LEADS #18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
PUR=36.000±1.5,BLK=36.000±1.5
BLU=36.000±1.5,RED=36.000±1.5
BRN=36.000±1.5,BRN=36.000±1.5

ECO E32155

ENGINEER APPROVED :

ENGINEER APPROVED :

P. RODRIGUEZ

4.906

Ø 4.464 B.C.

4.812

9.902

4.545 ±.047

NAMEPLATE

0

-

.545

T
O

P

3.500

2.500

.

7

5

0

S

K

I

N

N

E

D

WARNING
LABEL

YEL

N
R
B

CAP.
5MFD 370V

N
R
B

E
L
P

R
U
P

YEL

M1

MALE

AUX.

FEMALE

PROT

ORG

K
C
A

L
B

M2

ORG

M3

E
U

L
B

D
E
R

ROTATION IS COUNTER CLOCKWISE VIEWING
LEAD END WITH ORG TO ORG & YEL TO YEL.
TO REVERSE ROTATION INTERCHANGE ORG &

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

YEL LEADS

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

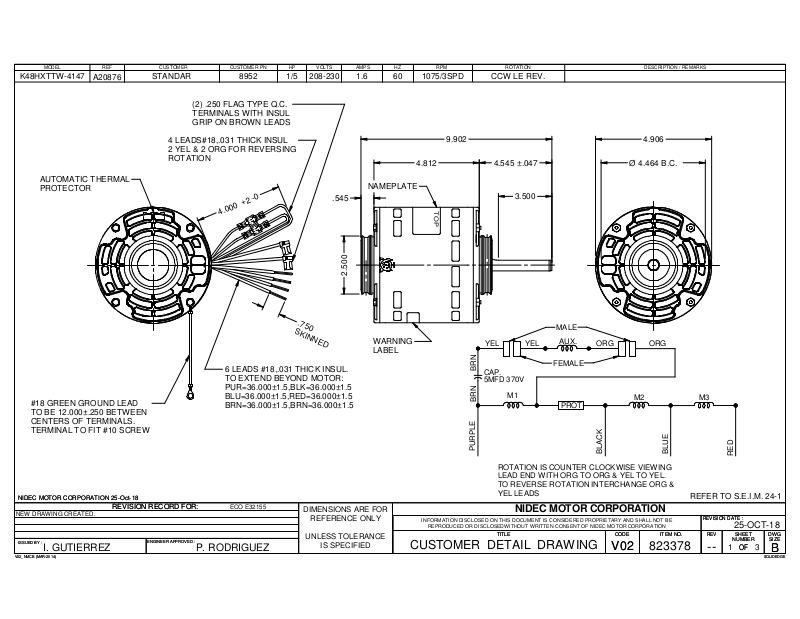

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

823378

REFER TO S.E.I.M. 24-1
