US Motors 8947 Dimensional Sheet

MODEL REF

K55HXTWY-0053

GREEN/YELLOW # 16 GROUND LEAD
TO BE 6.000u1.0 BETWEEN CENTERS
OF RING TERMS. TO FIT #10 SCREW

AUTOMATIC THERMAL
PROTECTOR

SEAM WELD

CUSTOMER

WHOLESALE

HP ROTATION

3/4 8947

VOLTS

AMPS

2.2

HZ

60

RPM

1075/2 SPD

CCW LEAD END, REV460

CUSTOMER PT. NO.

12.666 ±.062

(2).250FLAG
TYPE Q.C.
TERMS. WITH
INSUL.GRIP

5.558

WARNING LABEL

NAMEPLATE

6.000 ±.047
SHAFT EXTN.

5.500

TOP

+.0000

.5000

-.0005

K55 STUD MTD, BALL, OPAO

DESCRIPTION / REMARKS

5.625(

O

5.125OB.C.

3.625

.438 -.453

)

4.000

4 LEADS (2) YELLOW, (2) ORANGE,
#18, .031 THICK INSUL FOR
REVERSING ROTATION

NIDEC MOTOR CORPORATION 24-May-19

NIDEC MOTOR CORPORATION 24-May-19

NEW DRAWING.
DELETED NOTE INFORMATION "1 FORM" UNDER ECO E34367

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

+2.000

-0.000

ECO: E32250

Z. TREVIÑO

TO

WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS

6 SKINNED LEADS .750u.062
(WHITE, BLACK, RED, YELLOW,
BROWN AND BROWN/WHITE)
#18, .031 THICK INSUL TO EXTEND

36.000+2.000-0.000 BEYOND MOTOR

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

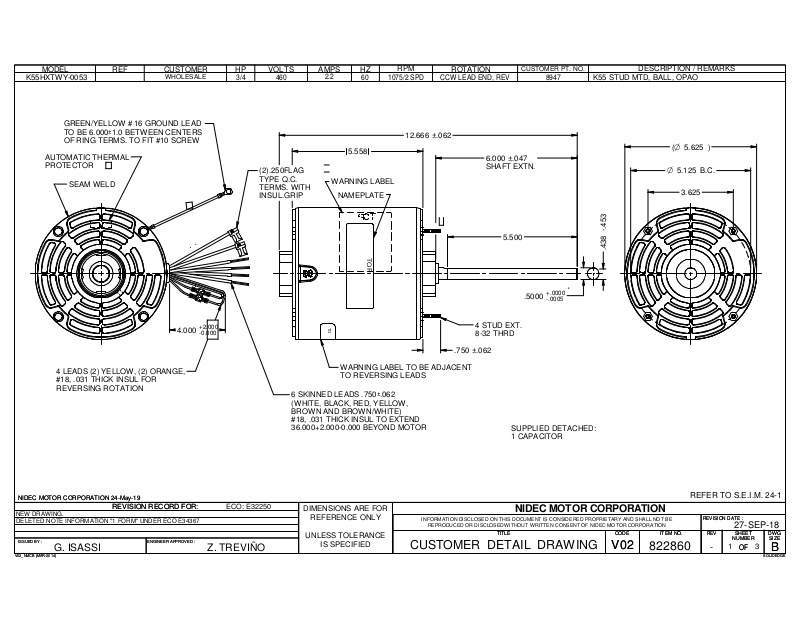

CUSTOMER DETAIL DRAWING

4 STUD EXT.
8-32 THRD

.750 ±.062

SUPPLIED DETACHED:
1 CAPACITOR

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

822860

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

27-SEP-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
