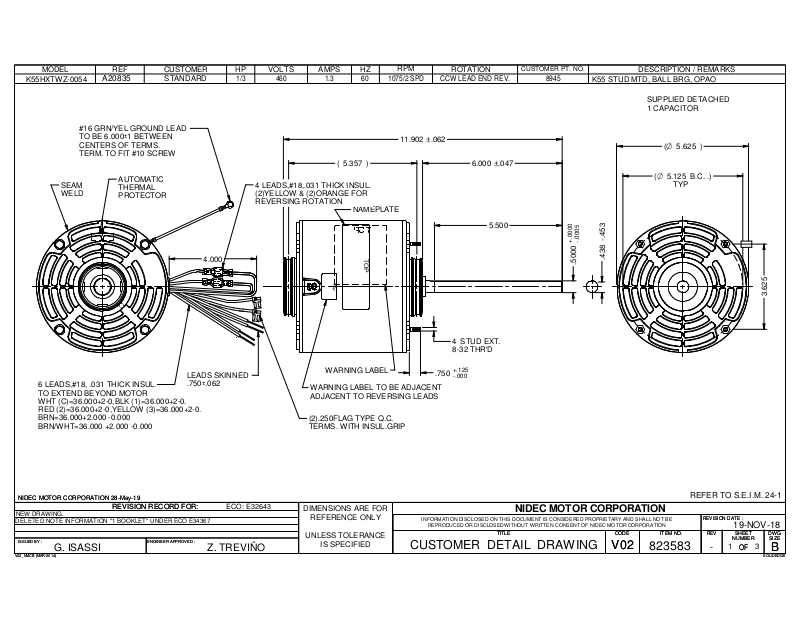

US Motors 8945 Dimensional Sheet

MODEL REF

K55HXTWZ-0054

#16 GRN/YEL GROUND LEAD
TO BE 6.000u1 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW

SEAM
WELD

A20835

AUTOMATIC
THERMAL
PROTECTOR

CUSTOMER
STANDARD

4.000

HP ROTATION

1/3

VOLTS

AMPS

1.3

HZ

60

RPM

1075/2 SPD

CCW LEAD END REV.460

11.902 ±.062

5.357( ) 6.000 ±.047

4 LEADS,#18,.031 THICK INSUL.
(2)YELLOW & (2)ORANGE FOR
REVERSING ROTATION

NAMEPLATE

TOP

T
O
P

4 STUD EXT.
8-32 THR'D

5.500

CUSTOMER PT. NO.

8945

+.0000

.5000

K55 STUD MTD, BALL BRG, OPAO

DESCRIPTION / REMARKS

SUPPLIED DETACHED
1 CAPACITOR

5.625(

O

5.125(

O

TYP

-.0005

.438 -.453

)

B.C. .)

3.625

LEADS SKINNED

6 LEADS,#18, .031 THICK INSUL.

.750u.062
TO EXTEND BEYOND MOTOR
WHT (C)=36.000+2-0,BLK (1)=36.000+2-0.
RED (2)=36.000+2-0,YELLOW (3)=36.000+2-0.
BRN=36.000+2.000 -0.000
BRN/WHT=36.000 +2.000 -0.000

NIDEC MOTOR CORPORATION 28-May-19

NIDEC MOTOR CORPORATION 28-May-19

NEW DRAWING.
DELETED NOTE INFORMATION "1 BOOKLET" UNDER ECO E34367

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E32643

Z. TREVIÑO

WARNING LABEL

WARNING LABEL TO BE ADJACENT
ADJACENT TO REVERSING LEADS

(2).250FLAG TYPE Q.C.
TERMS. WITH INSUL.GRIP

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

CUSTOMER DETAIL DRAWING

+.125

.750

-.000

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

823583

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

19-NOV-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
