Page 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTWG-0049
A20834
STANDARD
1/4
460
0.8
50/60 1625/2 SPD
#18 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERMINALS. TERMINAL TO FIT
AUTOMATIC THERMAL
#10 SCREW
4.562
PROTECTOR
NAMEPLATE
TOP
GROMMET
6 LEADS, .031 THICK INSUL TO
EXTEND BEYOND MOTOR:
WHT= 36.000±1.5, BLK= 36.000±1.5
BLU= 36.000±1.5, RED= 36.000±1.5
(2) BRN= 36.000±1.5
WARNING LABEL TO BE
ADJACENT TO REVERSING
LEADS
CCW LEAD END REV
10.562 ±.062
6.000 ±.047
TOPTOP
.750 ±.062
CAT. NO.
8944
5.375
.438
.453
SPRING WASHER
8-32 THR'D
DESCRIPTION / REMARKS
5.625
5.125
.4995
.5000
COIL END SLEEVING AT
THESE LOCATIONS
STRIP .500 ON WHT, BLK,
BLU AND RED LEADS
4 LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR
FOR REVERSING ROTATION
(2) ORANGE= 4.000+2-0,
(2) YELLOW= 4.000+2-0
NIDEC MOTOR CORPORATION 25-May-17
NIDEC MOTOR CORPORATION 25-May-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
(2) .250 FLAG TYPE Q.C. TERMINAL
WITH INSUL GRIP ON BRN LEAD
E28699
ENGINEER APPROVED :
ENGINEER APPROVED :
H. NAVARRO
ROTATION IS CONTER CLOCKWISE
VIEWING LEAD END WITH ORG TO ORG
& YEL TO YEL. TO REVERSE ROTATION
INTERCHANGE ORG & YEL LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
1/2 M1
AUX.
G
R
N
O
W
O
N
E
T
I
H
W
R
B
W
O
R
CAP
B
G
R
O
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

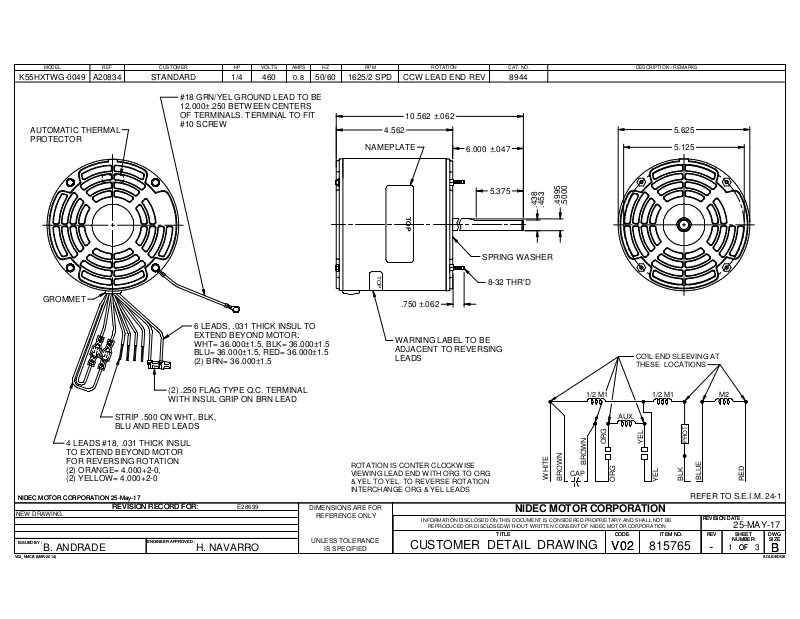

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
1/2 M1
L
E
Y
L
E
Y
815765
M2
PROT.
E
U
K
L
L
B
B
D
E
R
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
25-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
