Page 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CAT. NO. DESCRIPTION / REMARKS
K55HXTAK-8137
STANDARD
1
208-230
5.6 60 1075/3 SPD
CCW LEAD END REV
8907
#16 GREEN GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
12.152
AUTOMATIC
THERMAL
PROTECTOR
6.062 ±.062
NAMEPLATE
5.125 DIA B.C.
5.000 ±.047
GROMMET
FOR LEADS
TOP
T
O
P
4.500
.4995
.5000
.438
.453
SPRING WASHER
THIS END
+.125
1.000
-.000
WARNING LABEL
5.625
(4) LEADS, #18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION 4.000+2-0
NIDEC MOTOR CORPORATION 08-Jun-17
NIDEC MOTOR CORPORATION 08-Jun-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
LEAD SKINNED
.750±.062
ENGINEER APPROVED :
ENGINEER APPROVED :
(6) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
(2) BROWN= 24.000±1.0,
WHITE= 24.000±1.0, BLACK= 24.000±1.0
BLUE= 24.000±1.0, RED= 24.000±1.0
ONE BROWN LEAD TO BE STRIPED
(2) .250 INSULATED STRAIGHT TYPE. Q.C.
TERMS. WITH INSUL. GRIP ON BROWN LEADS.
E28787
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
)
D
E
P
I
R
T
S
(
E
T
N
I
H
W
O
W
R
N
W
O
R
B
B
ORG
E
G
N
A
R
O
ROTATION IS COUNTER CLOCKWISE
VIEWING LEAD END WITH ORG TO ORG
& YEL TO YEL. TO REVERSE ROTATION
INTERCHANGE ORG & YEL LEADS.
20. MFD 370 VAC CAPACITOR
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

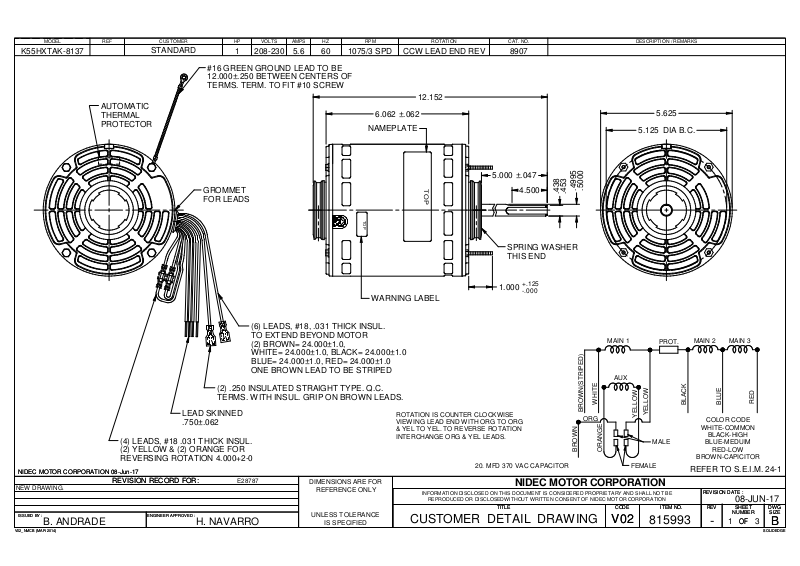

CUSTOMER DETAIL DRAWING
TITLE
TITLE
V02
V02
PROT.
AUX
W
W
O
O
L
L
L
L
E
E
Y
Y
MALE
FEMALE
CODE ITEM NO.
CODE ITEM NO.
815993
MAIN 3MAIN 2MAIN 1
K
C
A
L
B
E
U
L
B
COLOR CODE
WHITE-COMMON
BLACK-HIGH
BLUE-MEDUIM
RED-LOW
BROWN-CAPICITOR
D
E
R
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
08-JUN-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
