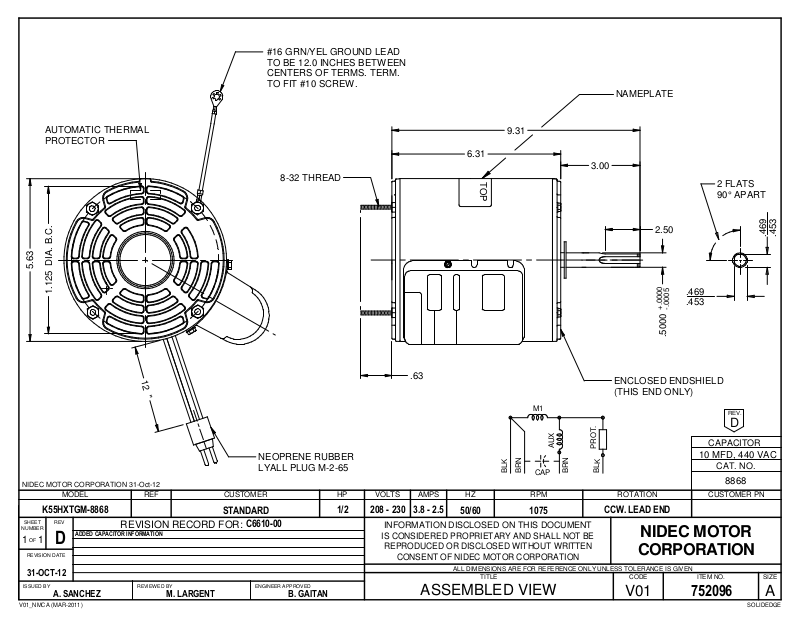

US Motors 8868 Dimensional Sheet
#16 GRN/YEL GROUND LEAD
TO BE 12.0 INCHES BETW EEN
CENTERS OF TERMS. TERM.
TO FIT #10 SCREW.
NAMEPLATE
AUTOMATIC THERMAL
PROTECTOR
5.63
1.125 DIA. B.C.
1
2
"
NIDEC MOTOR CORPORATION 31-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTGM-8868
SHEET
NUMBER
1 1
REV
OF
D
REVISION DATE
ADDED CAPACITOR INFORMATION
REVISION RECORD FOR:
31-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
A. SANCHEZ
8-32 THREAD
NEOPRENE RUBBER
LYALL PLUG M-2-65
STANDARD
C6610-00
M. LARGENT B. GAITAN
.63
1/2 208 - 230 3.8 - 2.5
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ASSEMBLED VIEW
9.31
6.31
3.00
TOP
2.50
+.0000
-.0005
.5000
ENCLOSED ENDSHIELD
(THIS END ONLY)
M1
.
T
O
R
P
N
R
B
K
L
B
CCW. LEAD END
N
K
L
R
B
B
CAP
50/60 1075
X
U
A
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
2 FLATS
90° APART
.469
.453
REV.
D
CAPACITOR
10 MFD, 440 VAC
CAT. NO.
8868
752096
9
3
6
5
4
4
.
.
A
SOLIDEDGEV01_NMCA (MAR-2011)
