US Motors 8726 Dimensional Sheet

MODEL

KA55HXSGS-9930

#16 GREEN GROUND LEAD
TO BE 6.000u.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW

PROTECTOR TERMICO
AUTOMATICO

REF

CUSTOMER

STANDARD

HP

1/3

7.000 ±.047

.750u.062 REF

VOLTS

230

AMPS

1.9

HZ

60

1625/3 SPD

18.312 ±.062

4.312

REV.

A

REV.

ROTATION

CCW LEAD END

CAT NO.RPM

8726

DESCRIPTION / REMARKS

IDENTIFICATION
GROOVE THIS END

A

5.625 ±.015

5.125 ±.015OB.C.

REV.

7.000 ±.047

A

.750u.062
SKINNED

6 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT(C)=24.000+2-0, BLK(1)=24.000+2-0
BLU(2)=24.000+2-0, RED(3)=24.000+2-0
BRN/WHT=24.000+2-0, BRN=24.000+2-0
FIGURES ARE PRINT ON LEAD.
LEADS TO BE PROTECTED WITH A GROMMET

NIDEC MOTOR CORPORATION 11-Feb-19

NIDEC MOTOR CORPORATION 11-Feb-19

IT WAS ADDED SEVERAL TOLERANCES AND UPDATED DIMENSIONS
IT WAS ADDED DIAGRAM IN PAGE 3

ISSUED BY :

ISSUED BY :

F. GARCIA

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

M. DE LEON

BROWN

ECO: E32862

REV.

A

6.500 ±.030

8-32 THR'D TYP

1.000 ±.062

NAMEPLATE

(2) .250 STRAIGHT TYPE Q.C.
TERMS. WITH INSUL. GRIP

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

TOP

REV.

A

.438

.453

.4995 .5000

OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
(BOTH ENDS)

6.500 ±.030

PROT.

.
X
U
A

N
R
B

MAIN 2

)
1

(
K
L
B

)
C

(
T
H

W

MAIN 1

T
H

W

/
N
R
B

CAP.

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

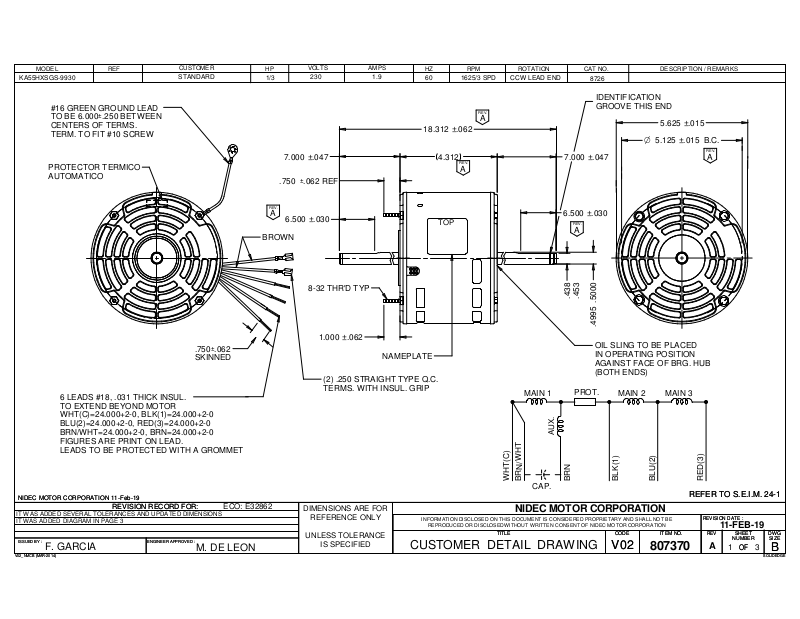

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

MAIN 3

)
2

(
U

L
B

807370

)
3

(
D
E
R

REFER TO S.E.I.M. 24-1

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

11-FEB-19

REV

REV

A

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
