KA55HXSGR-9929
REF
CUSTOMER
STANDARD
HPMODEL CATALOG NO.
1/4 601.6
VOLTS
230
AMPS
HZ
RPM
1625/3 SPD
ROTATION
CCW LEAD END
8725
DESCRIPTION / REMARKS
#16 GREEN GROUND LEAD
TO BE 6.000u.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
AUTOMATIC THERMAL
PROTECTOR
.750u.062
SKINNED
(2) .250 STRAIGHT TYPE
Q.C. TERM. WITH INSUL. GRIP
ON BROWN AND BRN/WHT LEADS
7.000 REF.
6.500
8-32 THR'D. TYP.
1.000 ±.062
18.062 ±.015
NAMEPLATE
4.062
TOP
IDENTIFICATION
GROOVE THIS END
7.000 ±.047
5.125 DIA. B.C.
TYP. BOTH ENDS
6.500
.438
.453
.4995
.5000
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
(BOTH ENDS)
5.625
6 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHT(C)= 24.000 +2-0, BLK(1)= 24.000 +2-0
BLU(2)= 24.000 +2-0, RED(3)= 24.000 +2-0
BRN/WHT= 24.000 +2-0, BRN= 24.000 +2-0
FIGURES ARE PRINTED ON LEAD.
LEADS TO BE PROTECTED WITH A GROMMET
NIDEC MOTOR CORPORATION 25-May-17
NIDEC MOTOR CORPORATION 25-May-17
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28700
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
PROT.
.
X
U
A
N
R
B
MAIN 2
)
1
(
K
L
B
)
C
(
T
H
W
MAIN 1
T
H
W
/
N
R
B
CAP.
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

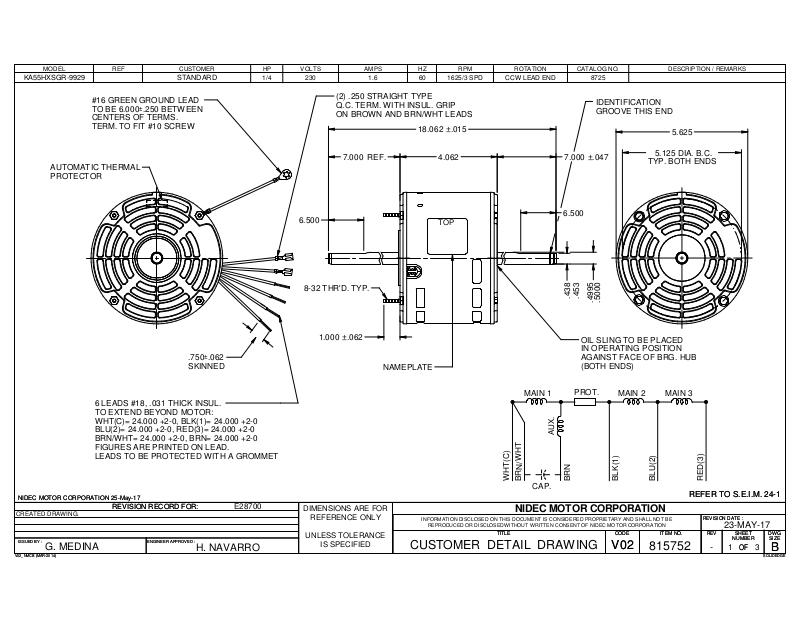

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
MAIN 3
)
2
(
U
L
B
815752
)
3
(
D
E
R
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
23-MAY-17
REV
REV
-
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
