Page 1
AUTOMATIC
THERMAL
PROTECTOR
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
5.625
5.125 DIA. B.C.
3.625
8-32 UNC
THREAD
TOTALLY ENCLOSED
WARNING LABEL TO
BE ADJACENT TO
REVERSING
LEADS
DRAIN PLUG
INSTRUCTION
T
O
P
ROTATION IS C.CW. VIEWING LEAD END
WITH ORG TO ORG & YEL TO YEL TO
REVERSE INTERCHANGE ORG & YEL LEADS.
(2) .166 DIA. HOLES
FOR MTG. CAPACITOR
11 .857
5 .312
LABEL
TOP
6.000
.125
4.500
+.0000
-.0005
.5000
.047
3.625
4.000
BLACK
DRAIN
PLUG
(4) LEADS,#18,.031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
5 LEADS,#18,.062 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=30.000 +2-0, WHITE=30.000 +2-0,
BROWN=30.000 +2-0, BRN/WHT STRIPE=30.000 +2-0.
RED=30.000 +2-0
CAT. NO.
NIDEC MOTOR CORPORATION 16-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTCF-8223
SHEET
NUMBER
1 1
REV
OF
D
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
8675
STANDARD 1/3 208-230 2 60 825/2 SPD C.CW. LD. END REV.
16-OCT-12
ISSUED BY
R. MORALES
REVIEWED BY ENGINEER APPROVED
M. LARGENT B. GAITAN
BEARING
SLEEVE BEARING
C6404-00
(2) .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP ON BROWN LEADS.
(3) LEADS SKINNED
.750±.062
CAPACITOR
7.5 MFD 370V
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
REV.
D
TOP
NAMEPLATE
.625
)
D
E
P
I
R
T
S
(
N
R
COLOR CODE
WHITE-COMMON
BLACK-HIGH
RED-LOW
BROWN-CAPACITOR
BRN/WHT STRIPE-CAPACITOR
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
B
CAP.

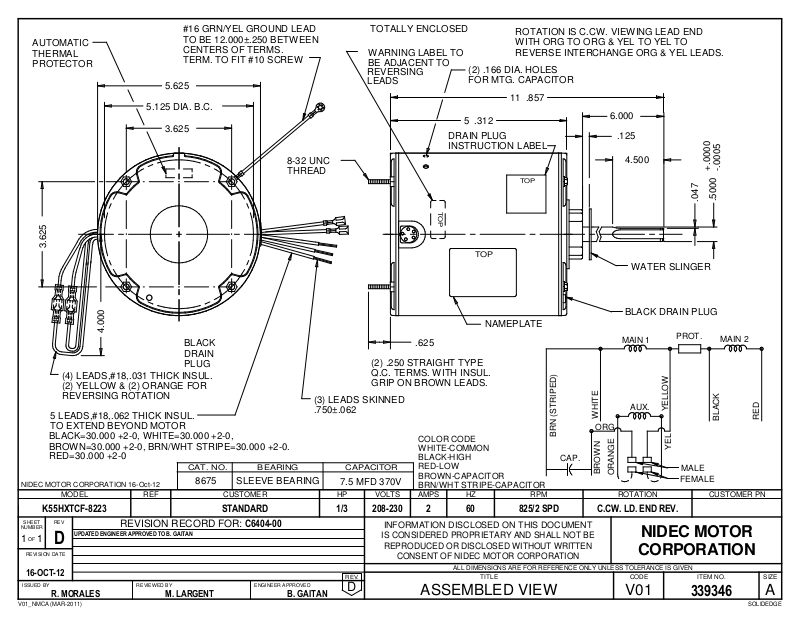

ASSEMBLED VIEW
E
T
I
H
W
ORG
N
W
O
R
B
WATER SLINGER
BLACK D
MAIN 1
AUX.
E
G
N
A
R
O
RAIN PLUG
PROT.
W
O
L
L
E
Y
L
E
Y
MALE
FEMALE
NIDEC MOTOR
CORPORATION
V01
339346
MAIN 2
K
C
A
L
B
D
E
R
A
SOLIDEDGEV01_NMCA (MAR-2011)
