Page 1
AUTOMATIC
THERMAL
PROTECTOR
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
ROTATION IS C.CW. VIEWING LEAD END
WITH ORG TO ORG & YEL TO YEL TO
REVERSE INTERCHANGE ORG & YEL LEADS.
5.125 DIA. B.C.
3.625
4.000
.750±.062 SKINNED (WHITE LEAD)
(4) LEADS,#18,.031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
TOTALLY ENCLOSED
NIDEC MOTOR CORPORATION 16-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTCD-8221
SHEET
NUMBER
1 1
REV
OF
D
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
16-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES
5.625
3.625
8-32 UNC
THREAD
BLACK
DRAIN
PLUG
5 LEADS,#18,.062 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLACK (1)=30.000 +2-0, WHITE (C)=30.000 +2-0,
RED (2)=30.000 +2-0, BROWN=30.000 +2-0,
BRN/WHT STRIPE=30.000 +2-0.
FIGURES TO BE PRINTED ON LEADS.
CAT. NO.
8673
SELF-ALIGNING SLEEVE
STANDARD 1/6 208-230 1.0 60 825/2 SPD CCW LD. END REV.
C6404-00
M. LARGENT B. GAITAN
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS.
.750
(2) .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP ON BROWN LEADS.
BEARING
5.0 MFD 370V
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
REV.
D

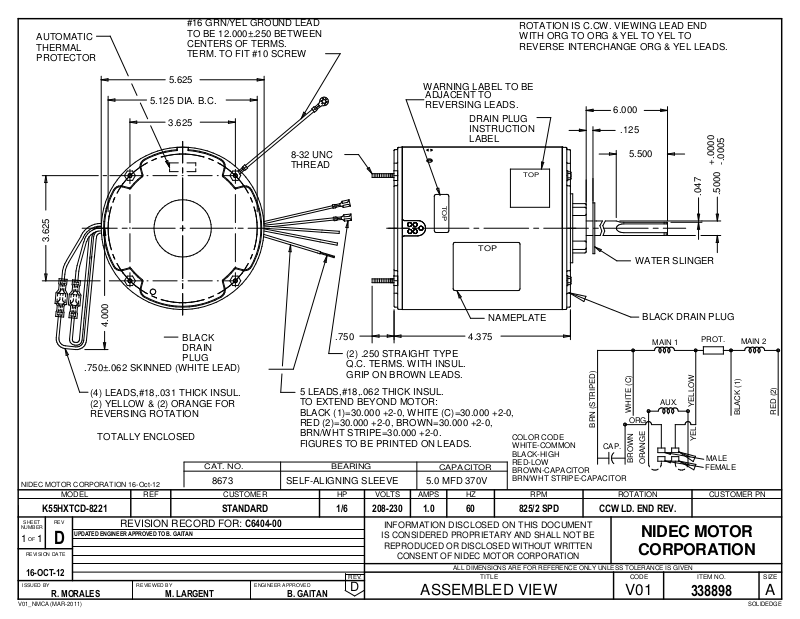

ASSEMBLED VIEW
DRAIN PLUG
6.000
INSTRUCTION
.125
LABEL
5.500
TOP
T
O
P
TOP
WATER SLINGER
BLACK DRAIN PL
MAIN 1
)
C
(
E
T
I
H
W
ORG
E
N
G
W
N
O
A
R
R
B
O
4.375
CAPACITOR
NAMEPLATE
COLOR CODE
WHITE-COMMON
BLACK-HIGH
RED-LOW
BROWN-CAPACITOR
BRN/WHT STRIPE-CAPACITOR
)
D
E
P
I
R
T
S
(
N
R
B
CAP.
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
AUX.
+.0000
-.0005
.5000
.047
UG
PROT.
W
O
L
L
E
Y
L
E
Y
MALE
FEMALE
338898
MAIN 2
)
1
(
K
C
A
L
B
SOLIDEDGEV01_NMCA (MAR-2011)
A
)
2
(
D
E
R
