US Motors 8671 Dimensional Sheet

MODEL REF

K55HXSGG-8671

CUSTOMER

STANDAR

8671

HP VOLTS AMPS HZ RPM

1/2

208-230

2.9

1075/2SPD CCW LE REV.

60

ROTATIONCUSTOMER PN

DESCRIPTION / REMARKS

#16 GREEN GROUND LEAD TO BE

6.000 ±.250 BETWEEN CENTER OF
TERMS.TERM. TO FIT #10 SCREW

AUTOMATIC THERMAL
PROTECTOR

5.125 DIA. B.C.

BLACK DRAIN
PLUG
SEE CRIT.REQ. #5

NIDEC MOTOR CORPORATION 27-Oct-18

NIDEC MOTOR CORPORATION 27-Oct-18

NEW DRAWING CREATED.

ISSUED BY :

ISSUED BY :

I. GUTIERREZ

REVISION RECORD FOR:

REVISION RECORD FOR:

4 LEADS, (2)YEL & (2)ORG
#18,.031 THICK INSUL. FOR
REV.ROTATION LEADS TO
BE PROTECTED WITH A
3 HOLE GROMMET

WARNING LABEL
TO BE CENTERED &
ADJACENT
TO LEAD HOLE

0

-

2

+

0

0

0

.

4

.750 ±.062 SKINNED
(WHITE LEAD ONLY)

5 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK(1)=30.000 +2-0,RED(2)=30.000 +2-0
WHT(C)=30.000 +2-0,(1)BRN=30.000 +2-0
FIGURES TO BE PRINTED ON LEADS
(1)BRN/WHT STRIPE=30.000+2-0
LEADS TO BE PROTECTED WITH A GROMMET

ECO E32155

ENGINEER APPROVED :

ENGINEER APPROVED :

P. RODRIGUEZ

(2).166 DIA. HOLES FOR
MOUNTING CAPACITORS.

5.812

DRAIN PLUG
INSTRUCTION
LABEL

1.500 +.125

-.000

(2).250 FLAG TYPE Q.C.
TERMS.WITH INSUL. GRIP
ON BROWN LEADS

ROTATION: C.CW. VIEWING LEAD END
AS SHOWN. TO REVERSE ROTATION
INTERCHANGE ORG & YEL LEADS.

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

SUPPLIED DETACHED:
1-INSTRUCTION FORM

12.359

6.000 ±.047

.125

NAMEPLATE

"BUNA N"
RUBBER
THIS SIDE

TOP

5.500

TOP

.500

.438

90°

.438

.453

.453

WASHER SLINGER

OIL SLING TO BE
PLACED IN OPERATING
POSITION AGAINST
FACE OF BRG. HUB

W
O

L
L
E
Y

L
E
Y

PROT.

MALE

FEMALE

MAIN 1

)
D
E
P

I

)

R

C

(

T
S

E

(

T

I

N
R
B

N
W

O
R
B

H
W

ORG

AUX.

E
G
N
A
R
O

MAIN 2

)
1

(
K

C
A
L
B

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

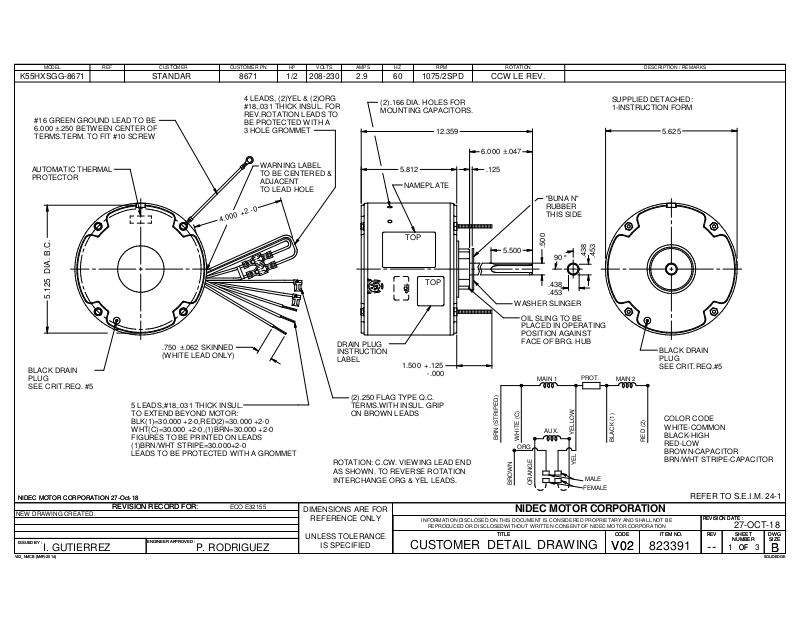

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

5.625

BLACK DRAIN
PLUG
SEE CRIT.REQ.#5

COLOR CODE

)
2

(

WHITE-COMMON

D
E

BLACK-HIGH

R

RED-LOW
BROWN-CAPACITOR
BRN/WHT STRIPE-CAPACITOR

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

823391

--

27-OCT-18

SHEET

SHEET

NUMBER

NUMBER

OF

OF

1 3

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
