Page 1
MODEL REF
KA55HXSGC-8667
CUSTOMER
STANDARD
HP
1/3
VOLTS
230
AMPS
2.0
HZ
60
RPM
825
ROTATION
CCW LEAD END REV
CUSTOMER PT. NO.
8667
KA55 STUD MTD. SELF-ALING BRG. OPEN
DESCRIPTION / REMARKS
#16 GREEN GROUND LEAD TO BE
8.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
AUTOMATIC
26°
THERMAL
PROTECTOR
SEAM WELD
4 LEADS,#18,.031 THICK INSUL. TO EXTEND
BEYOND MOTOR LEADS TO PROTECTED
WITH A 4 HOLE GROMMET.
BLK=30.000 +2 -0, WHT=30.000 +2 -0
(1)BRN=30.000 +2 -0
(1)BRN/WHT STRIPE=30.000 +2 -0
4 LEADS, #18, .031
THICK INSUL.
(2) YEL & (2) ORG
+
2
4
.
0
.
0
0
0
0
-
0
.
0
0
0
(2).250 STRAIGHT
TYPE Q.C. TERMS.
WITH INSUL. GRIP
ON BRN LEADS.
8-32 UNC
THREAD
0
.750±.062 SKINNED
SHIPPED DETACHED:
11.062 ±.062
1-INSTRUCTION FORM
5.062( )
5.625(
O
)
(2) .166 DIA. HOLES FOR
MOUNTING CAPACITOR
6.000 ±.047
5.125(
O
B.C.)
NAMEPLATE
.125
5.500( )
.469
TOP
90°
.453
1.970( )
.469
WASHER SLINGER
.453
"BUNA N" RUBBER
THIS SIDE
OIL SLING TO BE PLACED
.875 ±.062
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
WARNING LABEL TO BE CENTERED
& ADJACENT TO LEAD NOTCH
NIDEC MOTOR CORPORATION 13-Dec-18
NIDEC MOTOR CORPORATION 13-Dec-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32641
Z. TREVIÑO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

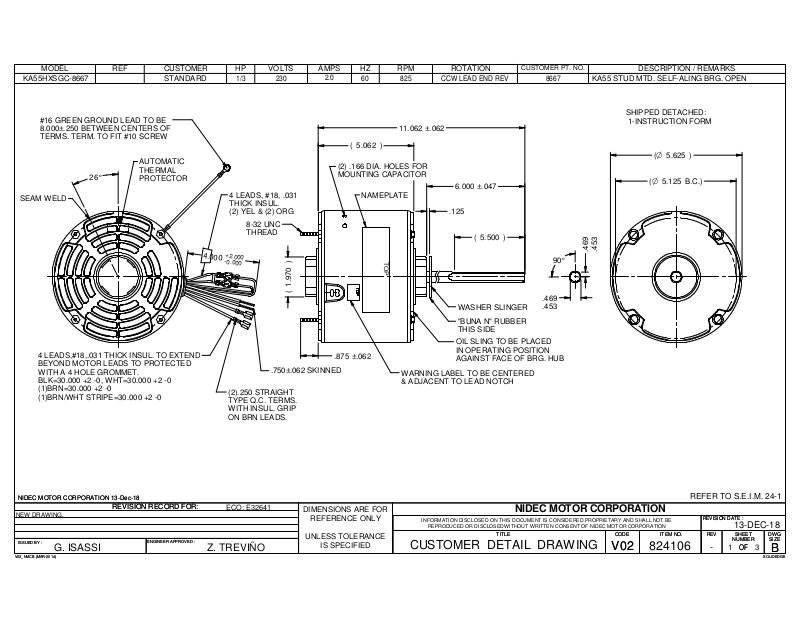

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824106
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
13-DEC-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
