Page 1
MODEL
KA55HXSGB-8666
REF
#16 GREEN GROUND LEAD TO BE
8.000 ±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
CUSTOMER
STANDARD
HP
VOLTS HZ
(2) .166 DIA. HOLES FOR
MOUNTING CAPACITOR
RPM
11.56 ±.062
ROTATION
825601.92301/4
CCW LEAD END, REV. KA55 STUD MTD., SELF-ALIGN BRG., OPEN
CUSTOMER PT. NO.
8666
DESCRIPTION/REMARKSAMPS
SUPPLIED DETACHED
1- INSTRUCTION FORM
5.625 ±.015
AUTOMATIC
THERMAL
PROTECTOR
4 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK=30.000 +2-0, WHT=30.000 +2-0,
(1) BRN=30.000 +2-0,
(1) BRN/WHT STRIPE=30.000 +2-0,
(2) .250 STRAIGHT TYPE Q.C.
TERMINALS WITH INSUL. GRIP
ON BRN LEADS
NIDEC MOTOR CORPORATION 27-Jun-19
NIDEC MOTOR CORPORATION 27-Jun-19
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
O. CASTANEDA
REVISION RECORD FOR:
REVISION RECORD FOR:
4
.
0
ENGINEER APPROVED :
ENGINEER APPROVED :
.500 ±.062
8-32 UNC
THREAD
GROMMET
0
0
+
2
-
0
M. DE LEON
E33625
4.562
NAMEPLATE
TOP
TOP
WARNING LABEL TO BE
CENTERED AND ADJACENT
TO LEAD NOTCH
4 LEADS #18, .031 THICK INSUL.
(2) YEL & (2) ORG FOR
REVERSING ROTATION
.750±.062
SKINNED
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
6.000 ±.047
5.500 ±.030
.500 +.0000
-.0005
9
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
OIL SLING TO BE PLACE IN
OPERATING POSITION
AGAINST FACE OF BRG HUB
ROTATION: CCW VIEWING LEAD END
WITH ORG TO ORG & YEL TO YEL
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

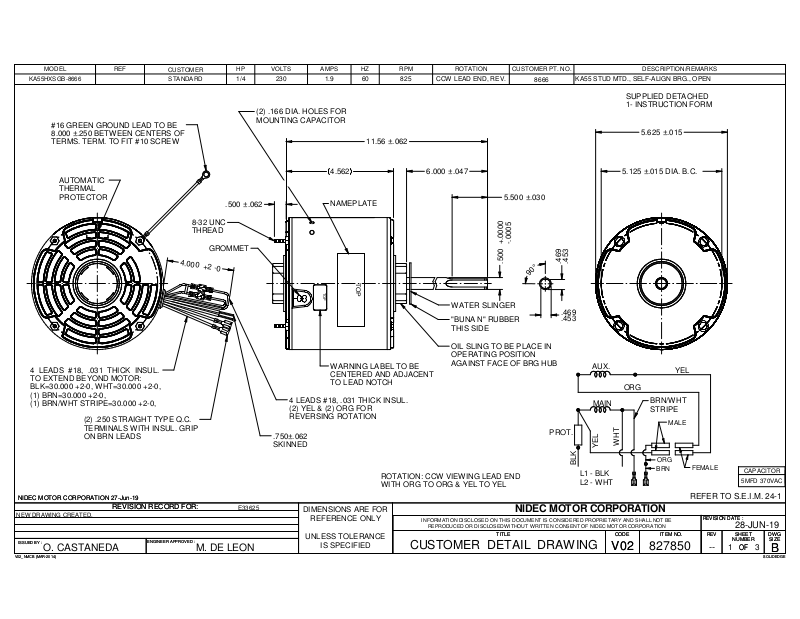

CUSTOMER DETAIL DRAWING
5.125 ±.015 DIA. B.C.
.469
°
0
.453
.469
.453
AUX.
YEL
ORG
BRN/WHT
STRIPE
MALE
ORG
BRN
FEMALE
CAPACITOR
5MFD 370VAC
PROT.
MAIN
K
L
B
L1 - BLK
L2 - WHT
T
L
H
E
W
Y
REFER TO S.E.I.M. 24-1
REVISION DATE :
CODE ITEM NO.
CODE ITEM NO.
V02
V02
827850
REVISION DATE :
REV
REV
--
28-JUN-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
