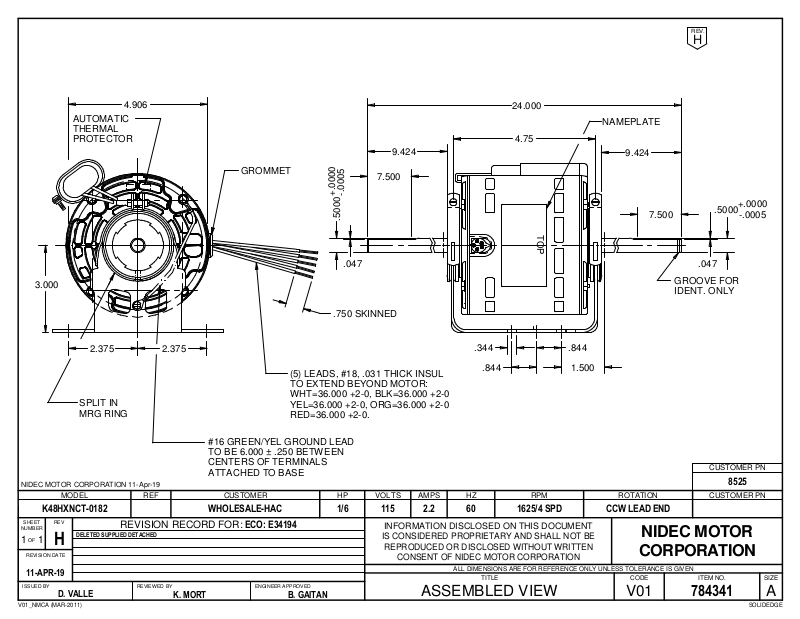

US Motors 8525 Dimensional Sheet
REV.
H
3.000
4.906
AUTOMATIC
THERMAL
PROTECTOR
2.375
SPLIT IN
MRG RING
2.375
GROMMET
9.424
7.500
-.0005
+.0000
.5000
.047
.750 SKINNED
(5) LEADS, #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
WHT=36.000 +2-0, BLK=36.000 +2-0
YEL=36.000 +2-0, ORG=36.000 +2-0
RED=36.000 +2-0.
24.000
4.75
T
O
P
.344 .844
.844
1.500
NAMEPLATE
9.424
7.500
.5000
.047
GROOVE FOR
IDENT. ONLY
+.0000
-.0005
NIDEC MOTOR CORPORATION 11-Apr-19
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K48HXNCT-0182
SHEET
NUMBER
1 1
REV
OF
H
REVISION DATE
DELETED SUPPLIED DETACHED
11-APR-19
ISSUED BY
D. VALLE
#16 GREEN/YEL GROUND LEAD
TO BE 6.000 ± .250 BETWEEN
CENTERS OF TERMINALS
ATTACHED TO BASE
WHOLESALE-HAC 1/6 115 2.2 60 1625/4 SPD CCW LEAD END
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
ECO: E34194
K. MORT
B. GAITAN
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
CUSTOMER PN
NIDEC MOTOR
CORPORATION
V01
784341
8525
A
SOLIDEDGEV01_NMCA (MAR-2011)
